◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25B - SPEEDOMETER DRIVEN GEAR ▶
2-25B — SPEEDOMETER DRIVEN GEAR (#69646) — 29 parça

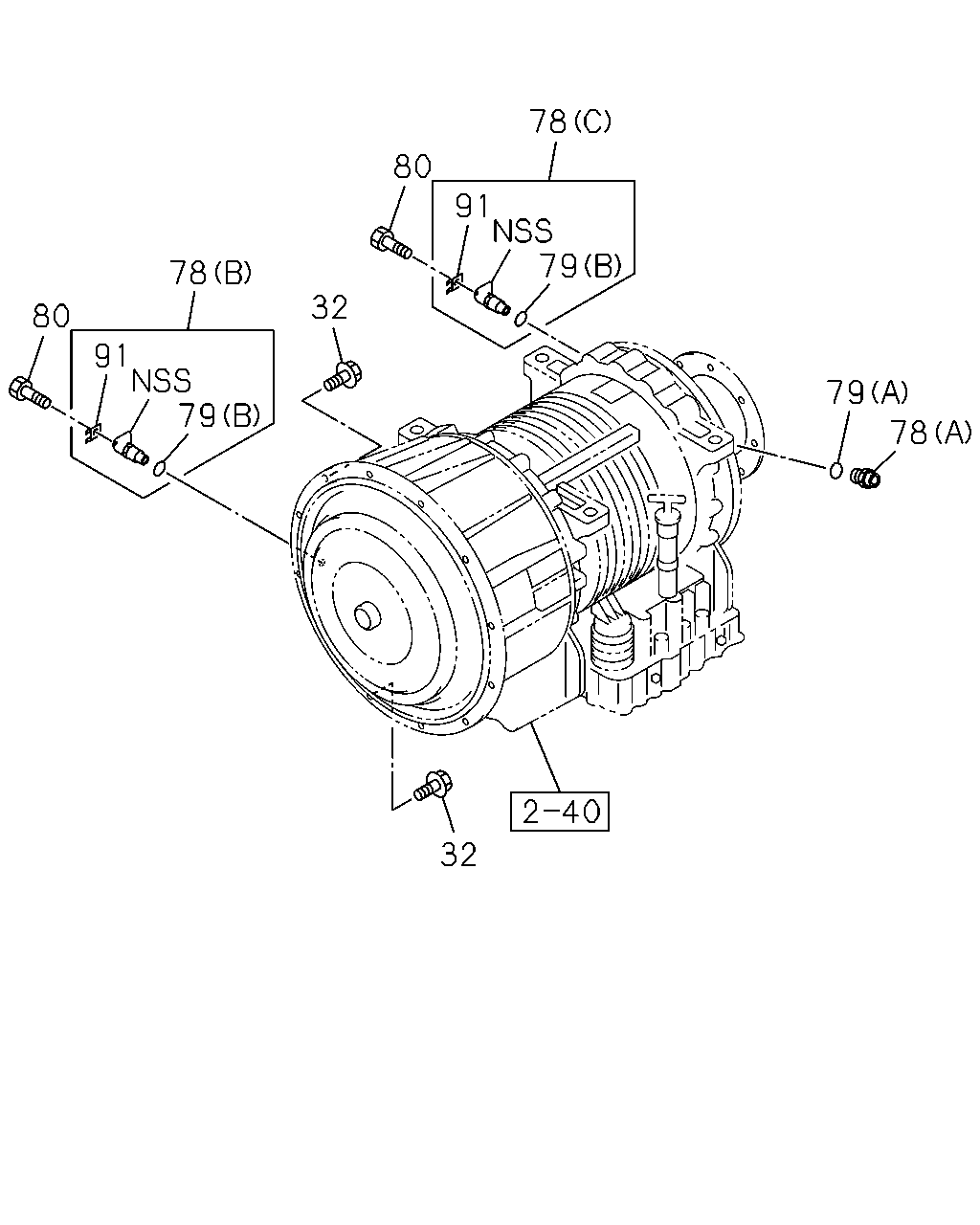

çizim 109736
80 78 91 79 32 80 78 91 79 79 78 32
BalonParca AdiParca NoAdetTipApplied Date
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X30 FLANGE 		0-28151-030-0 06 1 1010-
32 BOLT; CLU HSG TO FLYWHEEL HSG
M10X50 FLANGE 		0-28151-050-0 06 1 1010-
78 SENSOR; SPD
(B) 		1-34119-128-0 01 1 1010-1501
78 SENSOR; SPD
EXC. VIN MODEL YEAR 2015<VZF> (B) 		1-34119-128-0 01 1 1502-1503
78 SENSOR; SPD
(B) 		1-34119-128-0 01 1 1504-
78 SENSOR; SPD
(C) 		1-34119-129-0 01 1 1010-1501
78 SENSOR; SPD
EXC. VIN MODEL YEAR 2015<VZF> (C) 		1-34119-129-0 01 1 1502-1503
78 SENSOR; SPD
(C) 		1-34119-129-0 01 1 1504-
78 SENSOR; SPD
(A) 		1-80240-013-0 01 1 1010-1501
78 SENSOR; SPD
EXC. VIN MODEL YEAR 2015<VZF> (A) 		1-80240-013-0 01 1 1502-1503
78 SENSOR; SPD
(A) 		1-80240-013-0 01 1 1504-
79 GASKET; SPD SENSOR
(B) 		1-34119-021-0 02 1 1010-1501
79 GASKET; SPD SENSOR
EXC. VIN MODEL YEAR 2015<VZF> (B) 		1-34119-021-0 02 1 1502-1503
79 GASKET; SPD SENSOR
(B) 		1-34119-021-0 02 1 1504-
79 GASKET; SPD SENSOR
(A) T=1.2 		1-80249-003-0 AR 1 1010-1501
79 GASKET; SPD SENSOR
EXC. VIN MODEL YEAR 2015<VZF> (A) T=1.2 		1-80249-003-0 AR 1 1502-1503
79 GASKET; SPD SENSOR
(A) T=1.2 		1-80249-003-0 AR 1 1504-
79 GASKET; SPD SENSOR
(A) T=0.6 		8-98087-226-0 AR 1 1010-1501
79 GASKET; SPD SENSOR
EXC. VIN MODEL YEAR 2015<VZF> (A) T=0.6 		8-98087-226-0 AR 1 1502-1503
79 GASKET; SPD SENSOR
(A) T=0.6 		8-98087-226-0 AR 1 1504-
79 GASKET; SPD SENSOR
(A) T=1.0 		8-98087-227-0 AR 1 1010-1501
79 GASKET; SPD SENSOR
EXC. VIN MODEL YEAR 2015<VZF> (A) T=1.0 		8-98087-227-0 AR 1 1502-1503
79 GASKET; SPD SENSOR
(A) T=1.0 		8-98087-227-0 AR 1 1504-
80 BOLT; SPD SENSOR 1-34119-111-0 02 1 1010-1501
80 BOLT; SPD SENSOR
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-111-0 02 1 1502-1503
80 BOLT; SPD SENSOR 1-34119-111-0 02 1 1504-
91 RETAINER; SPEED SENSOR 1-34119-073-0 02 1 1010-1501
91 RETAINER; SPEED SENSOR
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-073-0 02 1 1502-1503
91 RETAINER; SPEED SENSOR 1-34119-073-0 02 1 1504-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
