2-05 — CLUTCH PIPING (#69641) — 56 parça

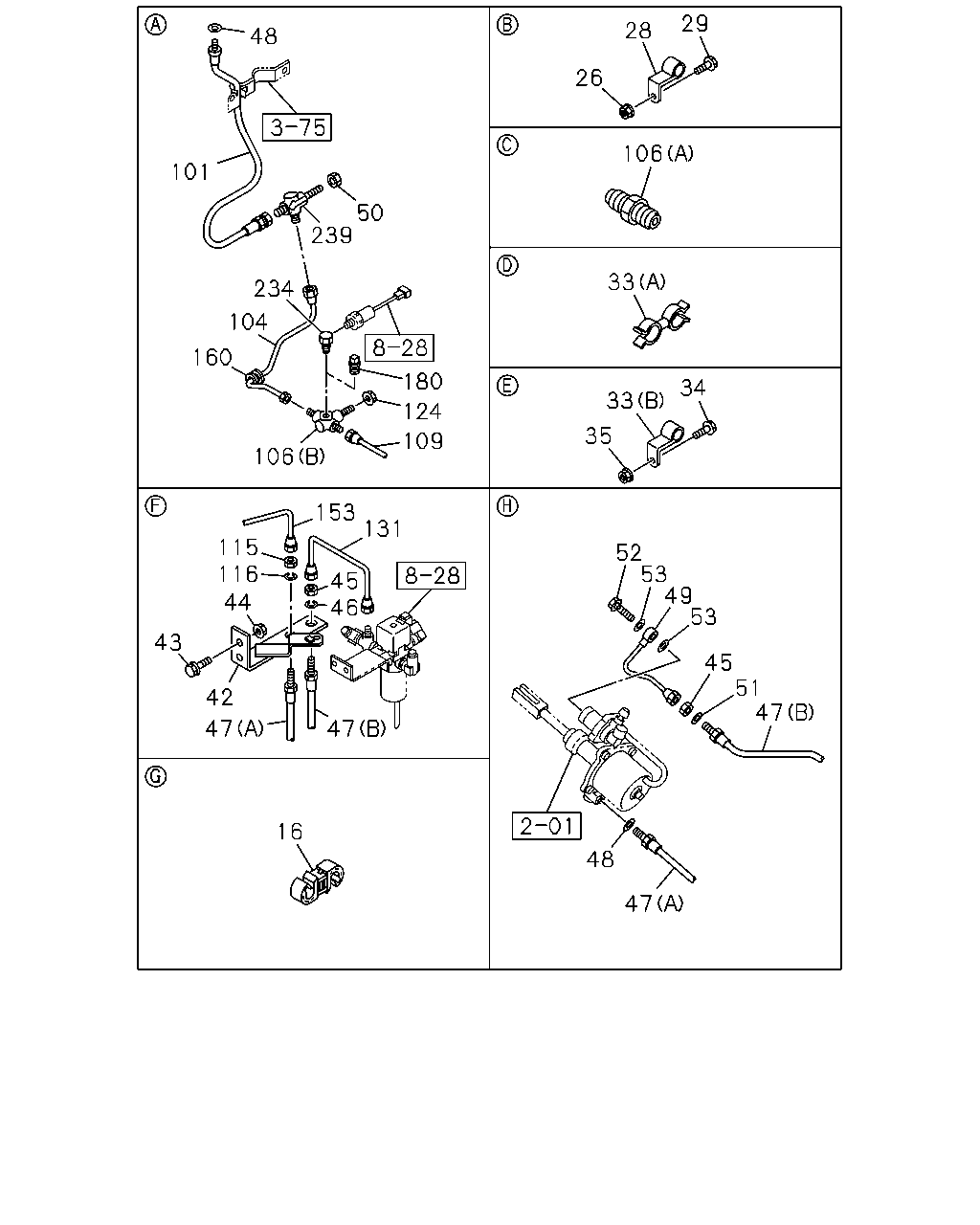

çizim 189004
29 28 26 106 33 34 33 35 47 51 45 53 49 53 52 47 48 16 47 45 46 47 42 43 115 116 44 131 153 106 109 124 180 160 104 234 239 50 101 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
MANUAL TRANSMISSION<X9C> ID=10 & 12 		1-09709-278-1 01 1 1010-1306 ● ●
16 CLIP; FLEX HOSE
ZF9S1110 M/T(Y5E) ID=10 & 12 		1-09709-278-1 01 1 1307- ● ●
26 NUT; CLIP,OIL PIPE
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
28 CLIP; OIL PIPE
ZF9S1110 M/T(Y5E) ID=8 H=20 L=20 		1-09700-604-0 03 1 1010- ● ●
29 BOLT; CLIP,OIL PIPE
ZF9S1110 M/T(Y5E) M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
29 BOLT; CLIP,OIL PIPE
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 01 1 1010- ● ●
33 CLIP; OIL PIPE
ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1010- ● ●
33 CLIP; OIL PIPE
ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10 		8-94176-792-0 01 1 1010- ● ●
34 BOLT; PIPE CLIP
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 03 1 1010- ● ●
35 NUT; PIPE CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) 		8-98099-521-1 01 1 1010- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
MANUAL TRANSMISSION<X9C> M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
MANUAL TRANSMISSION<X9C> M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
45 NUT; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) M12 		9-09840-280-0 02 1 1010- ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) ID=12.2 		0-91510-512-0 02 1 1010-1011 ● ●
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (B) L=500 		1-09363-720-0 01 1 1010- ● ●
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (A) L=500 		1-09364-329-0 01 1 1010- ● ●
48 GASKET; FLEX HOSE,CLU CONT
MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0 		9-09571-410-0 02 1 1010-1306 ● ●
48 GASKET; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1307- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) L=232 		1-49124-795-0 01 1 1010- ● ●
50 NUT; UNION
EXC. A/T<X9D> M12 		0-91111-512-0 01 1 1010-1306 ● ●
50 NUT; UNION
ZF9S1110 M/T(Y5E) M12 		0-91111-512-0 01 1 1307- ● ●
51 WASHER; LK
ZF9S1110 M/T(Y5E) ID=12.2 		0-91510-812-0 01 1 1012- ● ●
52 BOLT; EYE,AIR PIPE
ZF9S1110 M/T(Y5E) M14X27 FLANGE 		1-09675-086-0 01 1 1010- ● ●
53 GASKET; JOINT BOLT
ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1010-1312 ● ●
53 GASKET; JOINT BOLT
ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
MANUAL TRANSMISSION<X9C> L=500 		8-98072-350-0 01 1 1010-1306 ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
ZF9S1110 M/T(Y5E) L=500 		8-98072-350-0 01 1 1307- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550 		1-47428-753-0 01 1 1010- ● ●
106 UNION; OIL PIPE
ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT 		0-92113-008-0 01 1 1010- ● ●
106 UNION; OIL PIPE
ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1010- ● ●
109 PIPE; AIR,UNION TO UNION
ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1010- ● ●
115 NUT; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) M14 		0-91111-514-0 01 1 1010- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) ID=14.2 		0-91510-814-0 01 1 1010-1011 ● ●
124 NUT; PIPE UNION
MANUAL TRANSMISSION<X9C> M12 		0-91111-512-0 01 1 1010-1306 ● ●
124 NUT; PIPE UNION
ZF9S1110 M/T(Y5E) M12 		0-91111-512-0 01 1 1307- ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203 		8-98100-103-0 01 1 1010-1306 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=203 		8-98100-103-0 01 1 1307- ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244 		8-98092-621-0 01 1 1010-1306 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) L=244 		8-98092-621-0 01 1 1307- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1010- ● ●
160 GROMMET; OIL PIPE
MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1010-1306 ● ●
160 GROMMET; OIL PIPE
ZF9S1110 M/T(Y5E) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1307- ● ●
180 PLUG; PIPE
ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1010- ● ●
234 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		1-09660-012-0 01 1 1010- ● ●
239 UNION; CLU HOSE
ZF9S1110 M/T(Y5E) 		8-98107-850-0 01 1 1010- ● ●

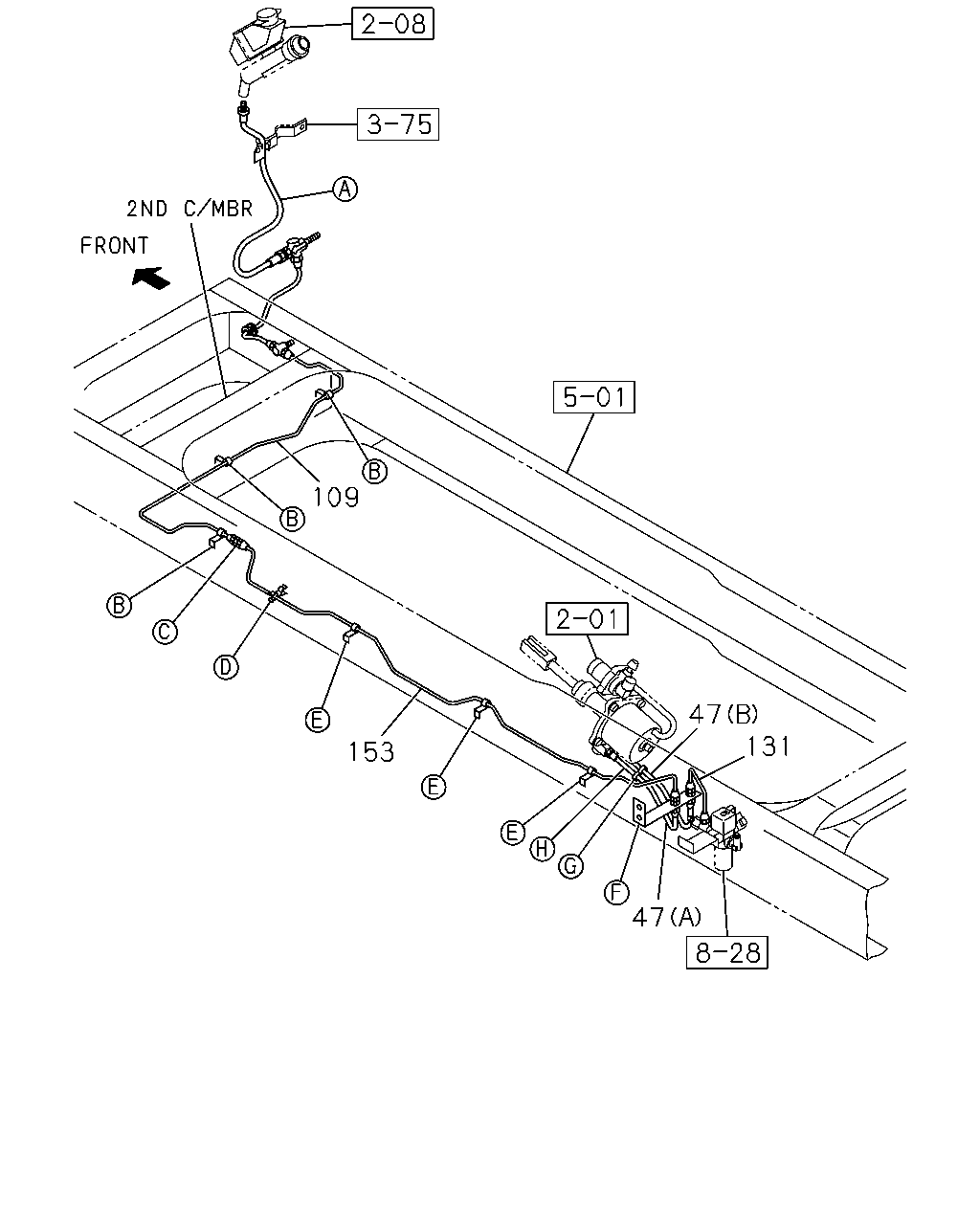

çizim 189005
47 131 47 109 153
BalonParca AdiParca NoAdetTipApplied Date A B
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (B) L=500 		1-09363-720-0 01 1 1010- ● ●
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (A) L=500 		1-09364-329-0 01 1 1010- ● ●
109 PIPE; AIR,UNION TO UNION
ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1010- ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203 		8-98100-103-0 01 1 1010-1306 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=203 		8-98100-103-0 01 1 1307- ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244 		8-98092-621-0 01 1 1010-1306 ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) L=244 		8-98092-621-0 01 1 1307- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1010- ● ●
