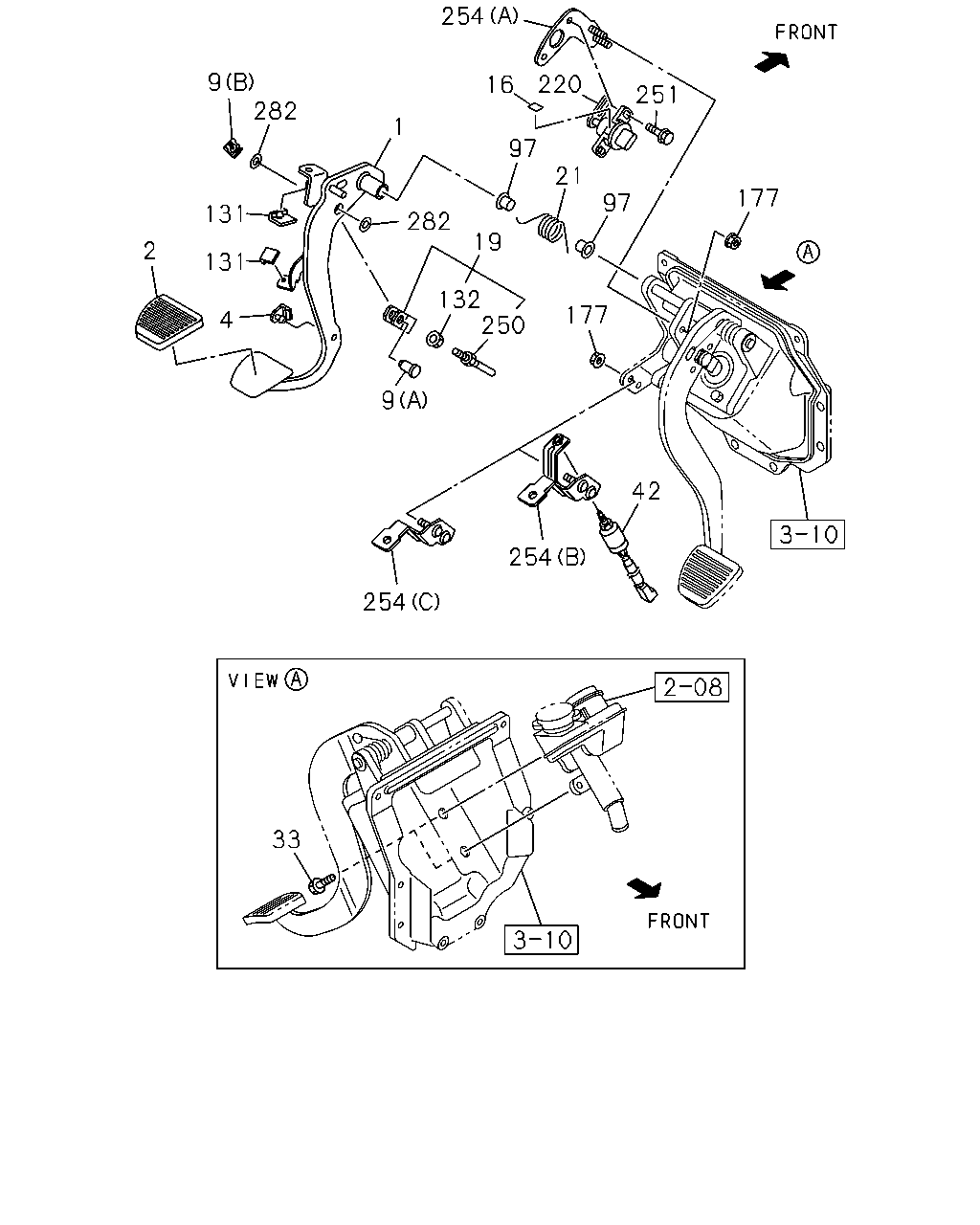

2-03 — CLUTCH PEDAL AND CONTROL (#69640) — 31 parça

254 16 97 220 251 97 21 282 282 9 2 131 131 4 9 132 19 1 254 254 42 177 177 250 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PEDAL; CLU ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP>	8-98057-123-0	01	1	1010-1306	●	●
1	PEDAL; CLU ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP>	8-98057-123-0	01	1	1307-	●	●
1	PEDAL; CLU ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>,H.S.A SYSTEM<6EP>	8-97613-941-1	01	1	1010-1306	●	●
1	PEDAL; CLU ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> ASSISTOR SHIFT CONTROL<WX8>	8-98057-122-0	01	1	1010-1306	●	●
1	PEDAL; CLU ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	8-98057-122-0	01	1	1307-	●	●
1	PEDAL; CLU ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98021-375-1	01	1	1010-1306	●	●
2	COVER; CLU PEDAL ZF9S1110 M/T(Y5E)	8-98056-865-0	01	1	1010-	●	●
4	STOPPER; CLU PEDAL ZF9S1110 M/T(Y5E)	8-98079-251-0	01	1	1010-	●	●
9	PIN; CLU PEDAL ZF9S1110 M/T(Y5E) (B)	8-98007-161-0	01	1	1010-	●	●
9	PIN; CLU PEDAL ZF9S1110 M/T(Y5E) (A)	8-98147-657-0	01	1	1010-	●	●
16	SEAL; CLU PEDAL ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 30X30	8-98142-344-0	01	1	1204-	●	●
19	ROD ASM; PUSH,CLU ZF9S1110 M/T(Y5E)	8-98021-406-1	01	1	1010-	●	●
21	SPRING; RETURN,CLU PEDAL ZF9S1110 M/T(Y5E)	8-98021-560-0	01	1	1010-	●	●
33	BOLT; CLU M/CYL TO BRKT ZF9S1110 M/T(Y5E) M12X20 FLANGE	0-28051-220-0	02	1	1010-	●	●
42	SWITCH; CLU ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-97620-841-0	01	1	1010-1306	●	●
42	SWITCH; CLU ZF9S1110 M/T(Y5E)	8-97620-841-0	01	1	1307-	●	●
97	BUSHING; CLU PEDAL SHAFT ZF9S1110 M/T(Y5E)	8-94238-596-0	02	1	1010-	●	●
131	STOPPER; CLU SW ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-97302-305-0	02	1	1010-1306	●	●
131	STOPPER; CLU SW ZF9S1110 M/T(Y5E)	8-97302-305-0	02	1	1307-	●	●
131	STOPPER; CLU SW ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97302-305-0	01	1	1010-1306	●	●
132	NUT; LK,PUSH ROD ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
177	NUT; BRKT ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	04	1	1010-	●	●
177	NUT; BRKT ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
220	SENSOR; CLUTCH ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-80250-014-0	01	1	1010-	●	●
250	ROD; PUSH,CLU ZF9S1110 M/T(Y5E)	8-97615-589-0	01	1	1010-	●	●
251	BOLT; SENSOR ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> M6X16	0-52000-616-0	02	1	1010-	●	●
254	BRACKET; CLU SENSOR ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98057-131-1	01	1	1010-1306	●	●
254	BRACKET; CLU SENSOR ZF9S1110 M/T(Y5E) (B)	8-98057-131-1	01	1	1307-	●	●
254	BRACKET; CLU SENSOR ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98021-377-1	01	1	1010-1306	●	●
254	BRACKET; CLU SENSOR ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (A)	8-98021-376-1	01	1	1010-	●	●
282	SPACER; CLU PEDAL ZF9S1110 M/T(Y5E)	8-98070-329-0	02	1	1010-	●	●
