1-50 — EXHAUST PIPE AND SILENCER (#69636) — 121 parça

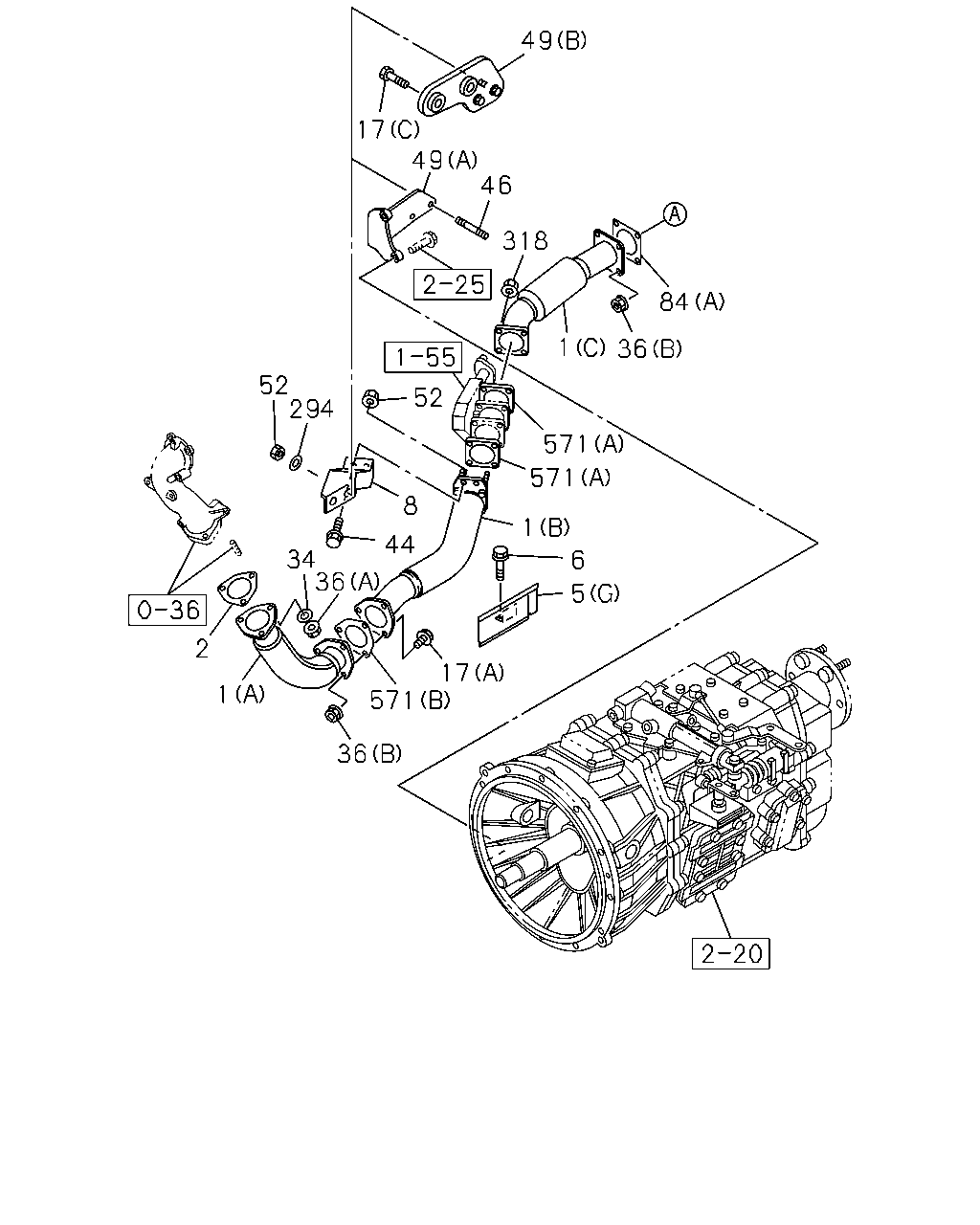

çizim 96555
36 571 5 17 6 1 571 571 36 1 84 318 49 17 46 49 52 52 8 44 294 34 36 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(B) 		8-98047-778-0 01 1 1010-1209 ● ●
1 PIPE; EXH
(B) 		8-98221-117-0 01 1 1210- ● ●
1 PIPE; EXH
(C) 		8-98099-921-0 01 1 1010- ● ●
1 PIPE; EXH
(A) 		8-98120-560-0 01 1 1010-1209 ● ●
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1210- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 1010-1306 ● ●
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 1010-1306 ● ●
8 BRACKET; EXH PIPE
ALLISON MD3560P A/T(Y3B) 		8-98149-834-0 01 1 1010- ● ●
8 BRACKET; EXH PIPE
ZF9S1110 M/T(Y5E) 		8-98120-522-0 01 1 1010- ● ●
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE 		0-28051-235-0 04 1 1204-1306 ● ●
17 BOLT; EXH PIPE
ALLISON MD3560P A/T(Y3B) (C) M16X45 		9-92361-645-0 02 1 1011- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1010- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1010- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1010- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1010-1306 ● ●
46 BOLT; BRKT,EXH PIPE
ZF9S1110 M/T(Y5E) M10X25 L=40 		0-44011-025-0 02 1 1307- ● ●
49 BRACKET; EXH PIPE TO TRANS
ALLISON MD3560P A/T(Y3B) (B) 		8-98149-833-0 01 1 1010- ● ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (A) 		8-98120-497-0 01 1 1010- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1010- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1010- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 1010- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1010- ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1010- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1010- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1010- ● ●

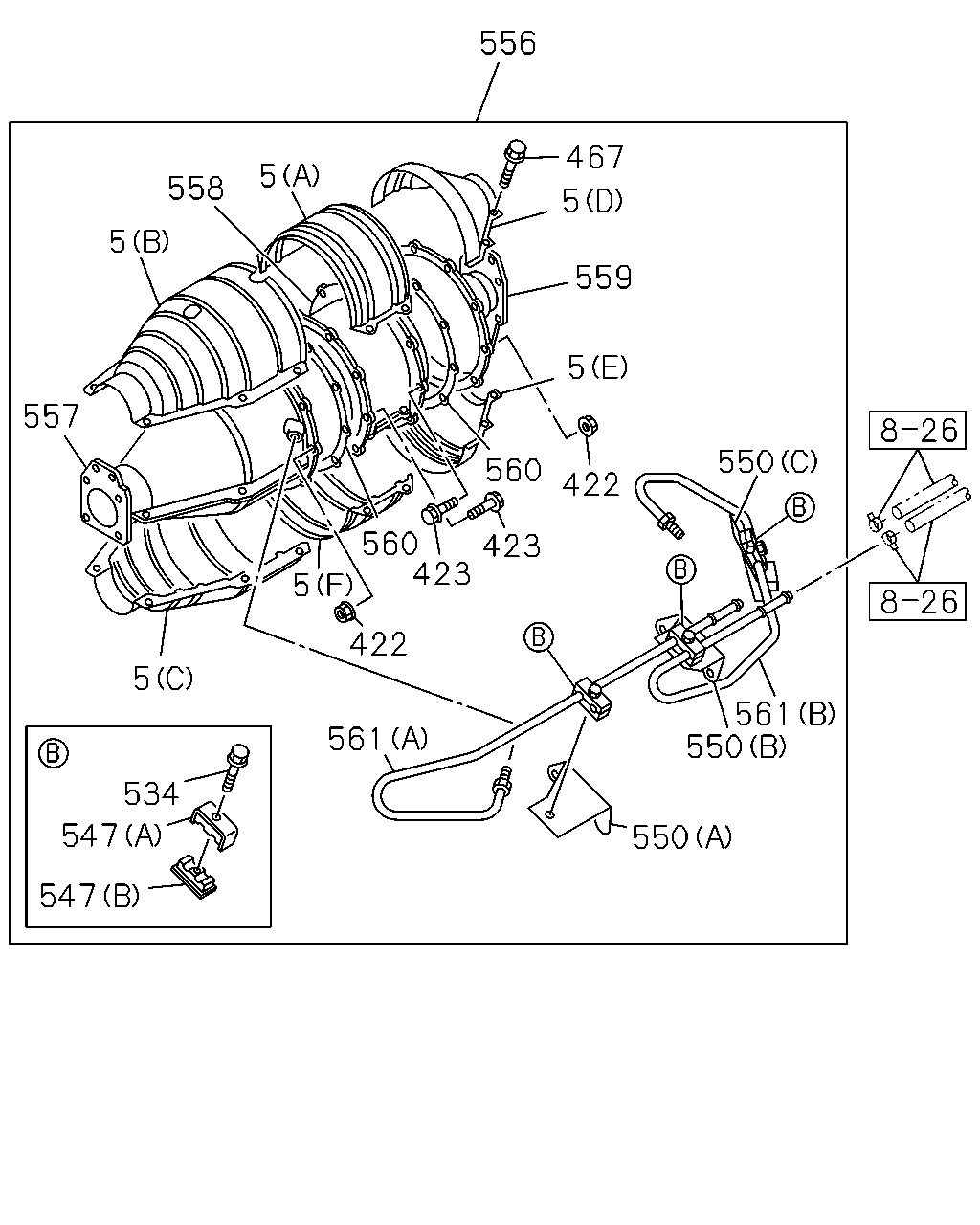

çizim 97262
556 467 5 559 5 422 550 560 423 423 560 422 5 561 550 550 561 5 5 558 5 557 534 547 547
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 1010-1306 ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1010- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1010- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1010- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1010- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1010- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1010- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1010- ● ●
550 BRACKET; DPD
(A) 		8-97611-096-0 01 1 1010- ● ●
550 BRACKET; DPD
(B) 		8-97611-097-0 01 1 1010- ● ●
556 DPD ASM 8-97606-314-5 01 1 1010-1011 ● ●
556 DPD ASM 8-97622-899-4 01 1 1012- ● ●
557 CATALYST ASM 8-97608-054-6 01 1 1010- ● ●
558 FILTER ASM 8-97608-056-2 01 1 1010- ● ●
559 COVER; RR 8-97611-090-0 01 1 1010-1011 ● ●
559 COVER; RR 8-97622-903-0 01 1 1012- ● ●
560 GASKET; DPD 8-97611-092-0 02 1 1010- ● ●
561 PIPE; DPD
(A) 		8-97611-093-0 01 1 1010-1011 ● ●
561 PIPE; DPD
(A) 		8-97622-904-0 01 1 1012- ● ●
561 PIPE; DPD
(B) 		8-97611-094-0 01 1 1010-1011 ● ●
561 PIPE; DPD
(B) 		8-97622-905-0 01 1 1012- ● ●

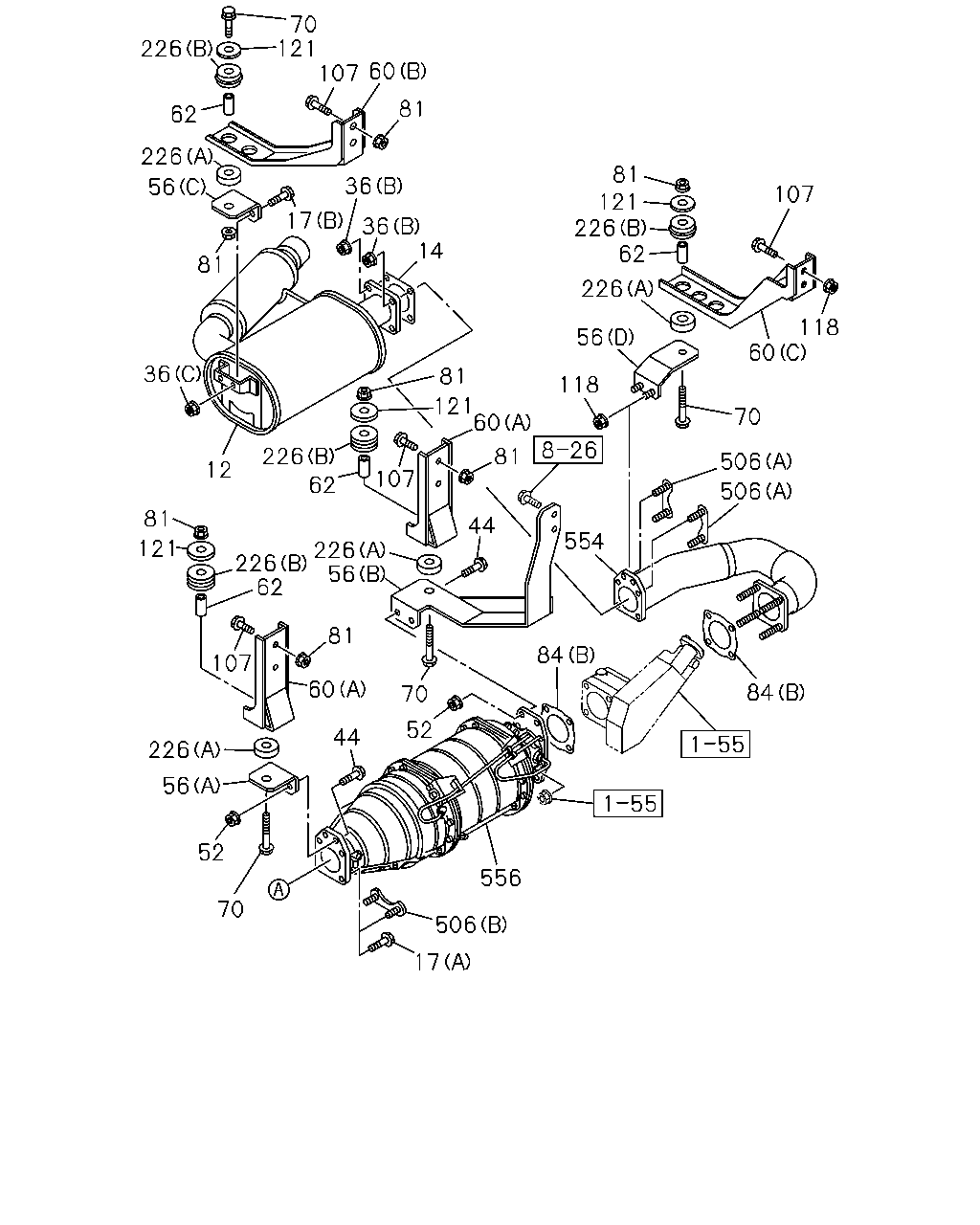

çizim 189003
107 118 60 70 506 506 84 554 118 56 226 62 226 121 81 84 556 506 52 70 81 70 226 121 62 107 60 36 17 36 226 81 56 36 12 226 226 62 62 107 81 121 107 226 56 52 70 60 44 56 226 14 81 60 121 81 44 81 17
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-98070-098-2 01 1 1010- ● ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 1010- ● ●
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE 		0-28051-235-0 04 1 1204-1306 ● ●
17 BOLT; EXH PIPE
ALLISON MD3560P A/T(Y3B) (C) M16X45 		9-92361-645-0 02 1 1011- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1010- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1010- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1010- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 1010- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 1010-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-1 01 1 1010- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1010- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1010- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1010- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 02 1 1010- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 01 1 1010- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 01 1 1010- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 02 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1010- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 1010- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 1010- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 1010- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1010- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1010- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1010- ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 1010-1203 ● ●
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> (B) M12X35 		1-22131-963-0 02 1 1204-1306 ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 1307- ● ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 1010- ● ●
554 PIPE; EXH,SILENCER 8-98085-262-0 01 1 1010- ● ●
556 DPD ASM 8-97606-314-5 01 1 1010-1011 ● ●
556 DPD ASM 8-97622-899-4 01 1 1012- ● ●
