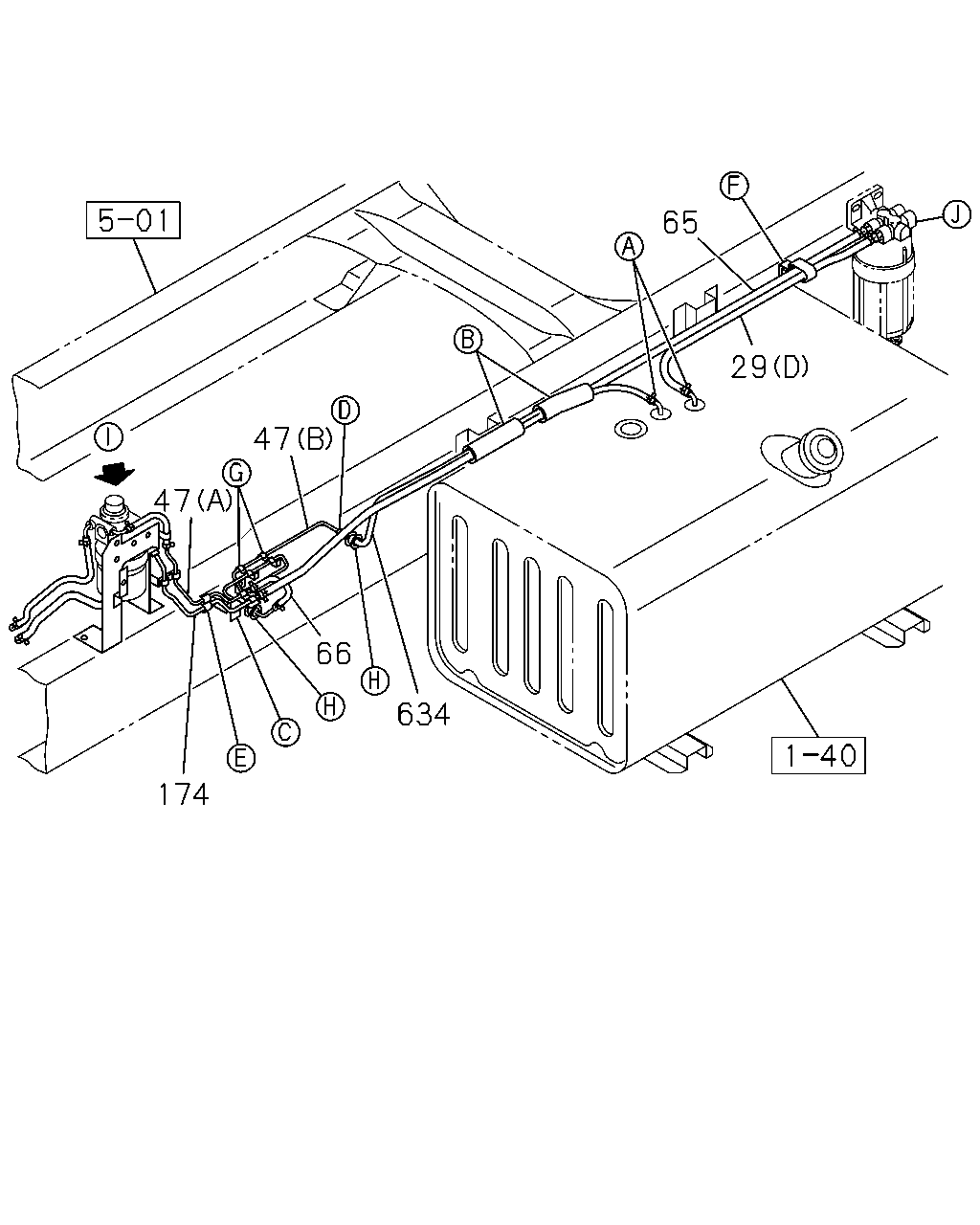

1-41 — FUEL PIPING; CHASSIS (#69634) — 157 parça

47 47 174 66 634 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98232-243-0	01	1	1307-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (D) L=920	8-98232-244-0	01	1	1307-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1010-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1010-1408	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1409-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1010-1306	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1307-	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	1010-1306	●	●
47	PIPE; FUEL,RETURN (A) L=688	8-98129-921-0	01	1	1307-	●	●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	1010-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01859-300-0	01	1	1010-1306	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1307-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01859-300-0	01	1	1010-1306	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1307-	●	●
66	HOSE; FUEL,RETURN PIPE L=150 SERVICED BY L=3000	0-01558-300-0	01	1	1010-1306	●	●
66	HOSE; FUEL,RETURN PIPE L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1307-	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	1010-1306	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1307-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1307-	●	●
634	HOSE; RUBBER RETURN L=900 SERVICED BY L=3000	0-01558-300-0	01	1	1010-1306	●	●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1307-	●	●

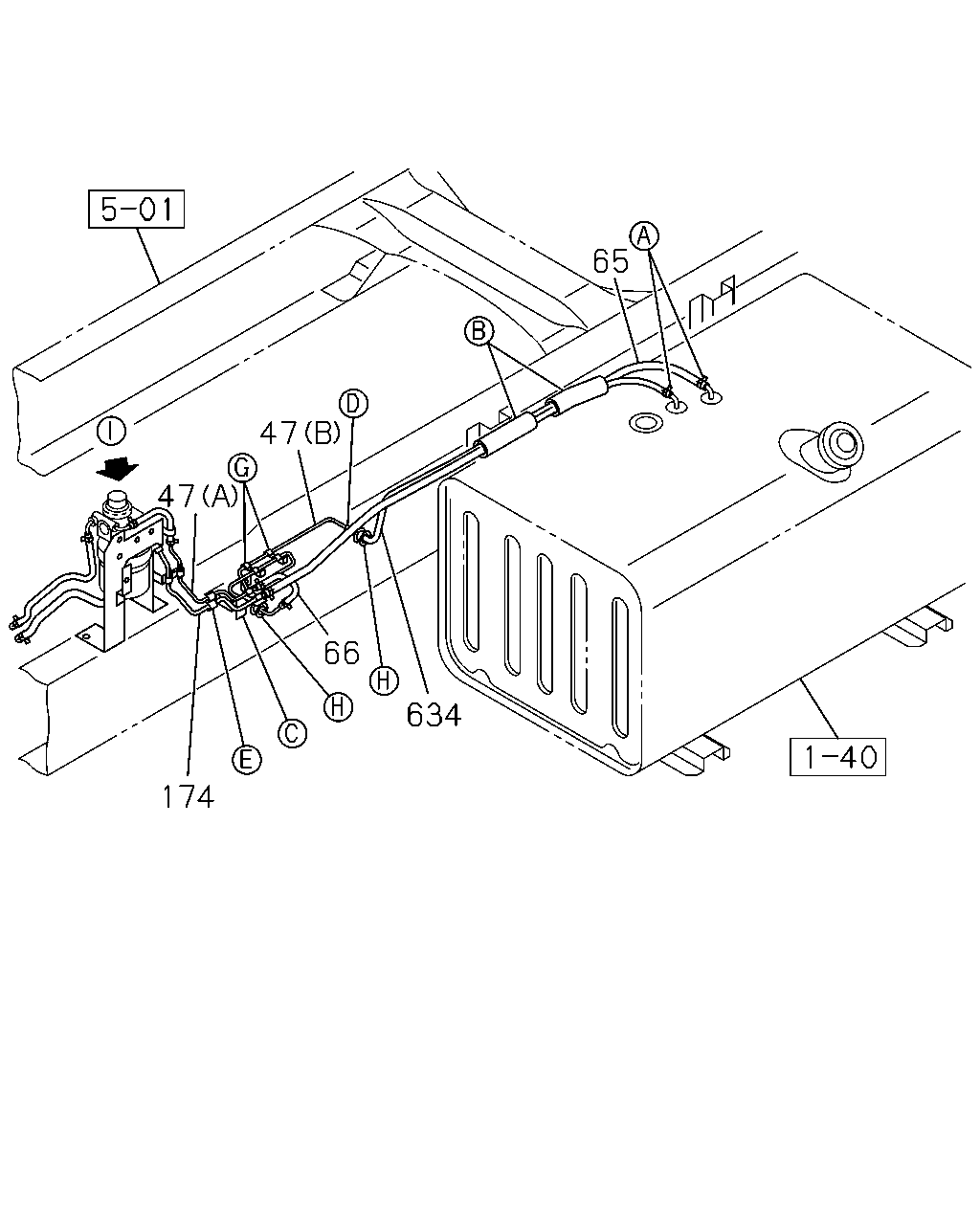

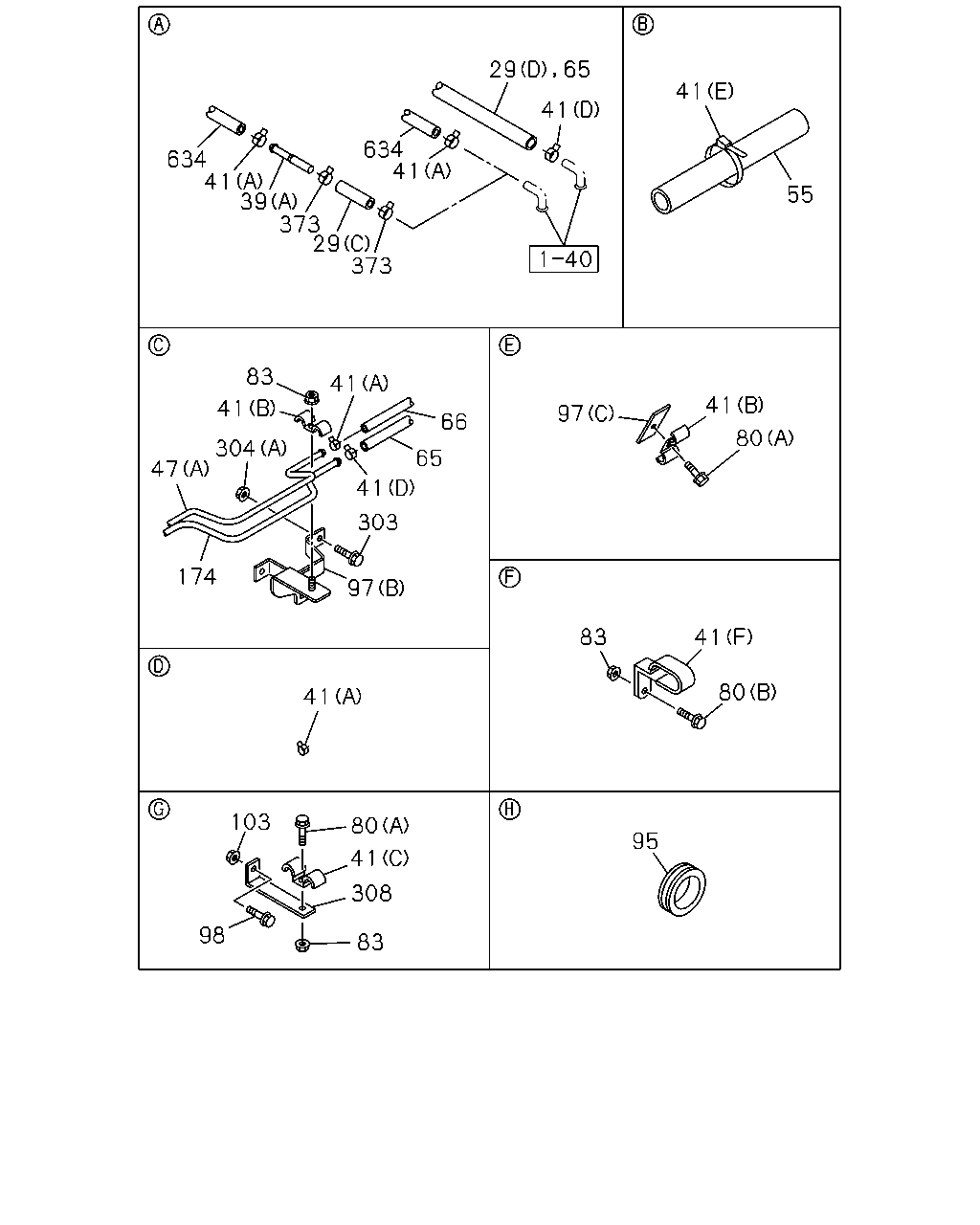

47 47 65 634 66 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	1010-1306	●	●
47	PIPE; FUEL,RETURN (A) L=688	8-98129-921-0	01	1	1307-	●	●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	1010-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01859-300-0	01	1	1010-1306	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1307-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01859-300-0	01	1	1010-1306	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1307-	●	●
66	HOSE; FUEL,RETURN PIPE L=150 SERVICED BY L=3000	0-01558-300-0	01	1	1010-1306	●	●
66	HOSE; FUEL,RETURN PIPE L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1307-	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	1010-1306	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1307-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1307-	●	●
634	HOSE; RUBBER RETURN L=900 SERVICED BY L=3000	0-01558-300-0	01	1	1010-1306	●	●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1307-	●	●

29 65 41 41 55 634 41 634 41 39 373 29 373 83 41 41 304 47 66 65 41 303 97 174 41 97 41 80 41 83 80 95 103 80 41 308 98 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98232-243-0	01	1	1307-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (D) L=920	8-98232-244-0	01	1	1307-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1010-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1010-1408	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1409-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1010-1306	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1307-	●	●
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1307-	●	●
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=24 & 24 L=49	1-09701-018-0	01	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1010-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1307-1408	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1307-1408	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1409-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1409-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	1010-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	1010-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	1010-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1307-	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	1010-1306	●	●
47	PIPE; FUEL,RETURN (A) L=688	8-98129-921-0	01	1	1307-	●	●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	1010-	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1010-1306	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1307-1407	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1408-	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1010-1306	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1307-1407	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01859-300-0	01	1	1010-1306	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1307-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01859-300-0	01	1	1010-1306	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1307-	●	●
66	HOSE; FUEL,RETURN PIPE L=150 SERVICED BY L=3000	0-01558-300-0	01	1	1010-1306	●	●
66	HOSE; FUEL,RETURN PIPE L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1307-	●	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	1307-	●	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1307-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1010-1306	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1010-1306	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	02	1	1307-	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	1010-	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	1010-	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	1010-1306	●	●
97	BRACKET; CLIP (B)	8-98129-922-0	01	1	1307-	●	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	1010-1306	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1307-	●	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1010-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1010-	●	●
308	BRACKET; FUEL PIPE L=75	1-47478-323-0	02	1	1010-	●	●
373	CLAMP; HOSE,FUEL FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	1010-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1307-	●	●
634	HOSE; RUBBER RETURN L=900 SERVICED BY L=3000	0-01558-300-0	01	1	1010-1306	●	●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1307-	●	●

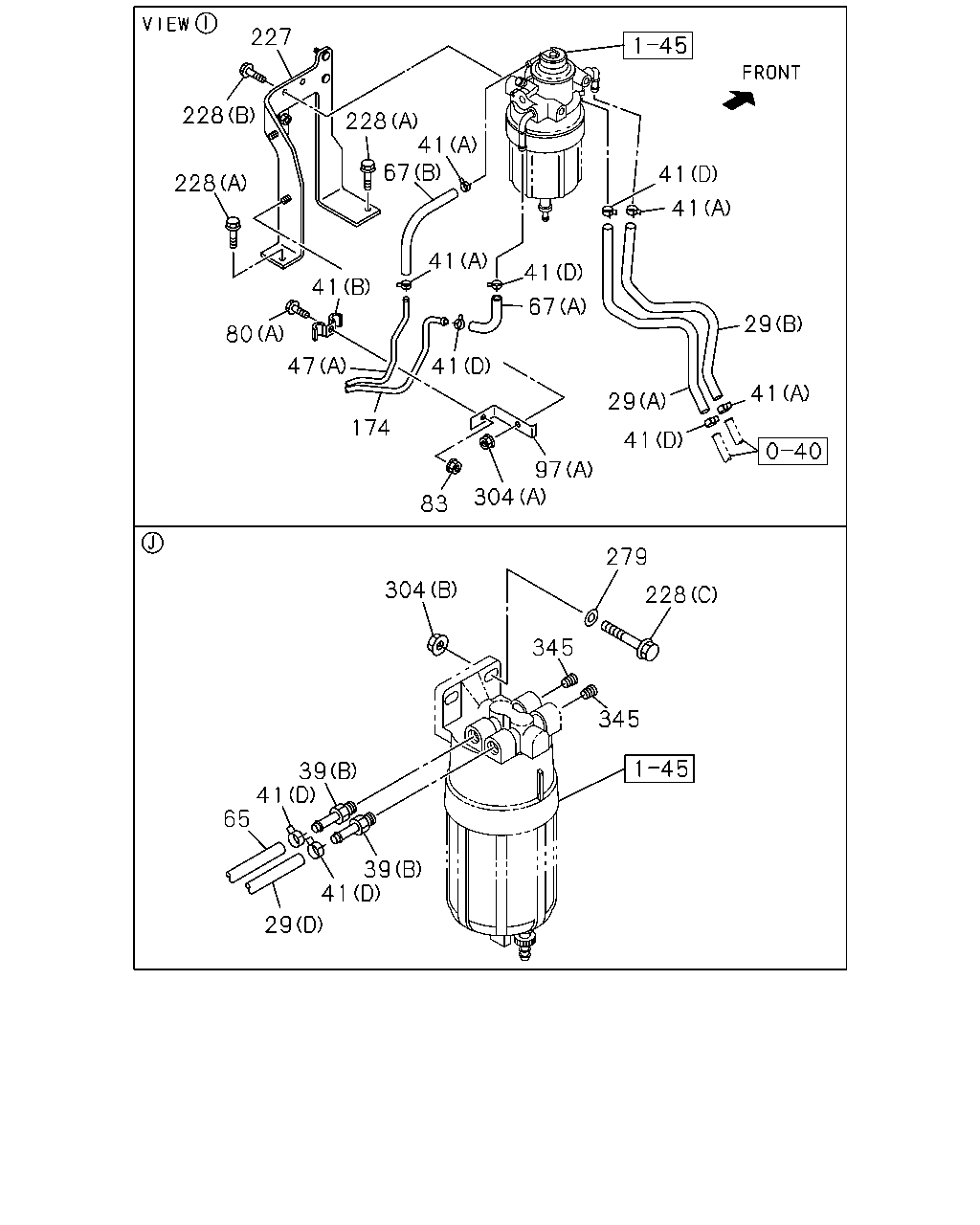

227 228 228 80 41 47 174 83 97 304 41 29 41 29 41 41 228 67 41 41 41 41 67 279 345 228 345 39 41 29 65 39 41 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL FUEL TANK 200L FRAME SIDE<N20> (D) L=730	8-98232-243-0	01	1	1307-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (D) L=920	8-98232-244-0	01	1	1307-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1010-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1010-1408	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1409-	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1010-1306	●	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1307-	●	●
39	PIPE; FUEL (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1307-	●	●
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=24 & 24 L=49	1-09701-018-0	01	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1010-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1307-1408	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1307-1408	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1409-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1409-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	1010-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	1010-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	1010-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1307-	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	1010-1306	●	●
47	PIPE; FUEL,RETURN (A) L=688	8-98129-921-0	01	1	1307-	●	●
47	PIPE; FUEL,RETURN (B) L=787	8-98127-647-0	01	1	1010-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01859-300-0	01	1	1010-1306	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1307-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01859-300-0	01	1	1010-1306	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1307-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1010-	●	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01859-300-0	01	1	1010-	●	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	1307-	●	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1307-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1010-1306	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	1010-	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	1010-	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	1010-1306	●	●
97	BRACKET; CLIP (B)	8-98129-922-0	01	1	1307-	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	1010-1306	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1307-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1010-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1307-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1010-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1307-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1010-	●	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1307-	●	●
