Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11305 - FVZ AUST/NZ EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#69631) — 49 parça
◀

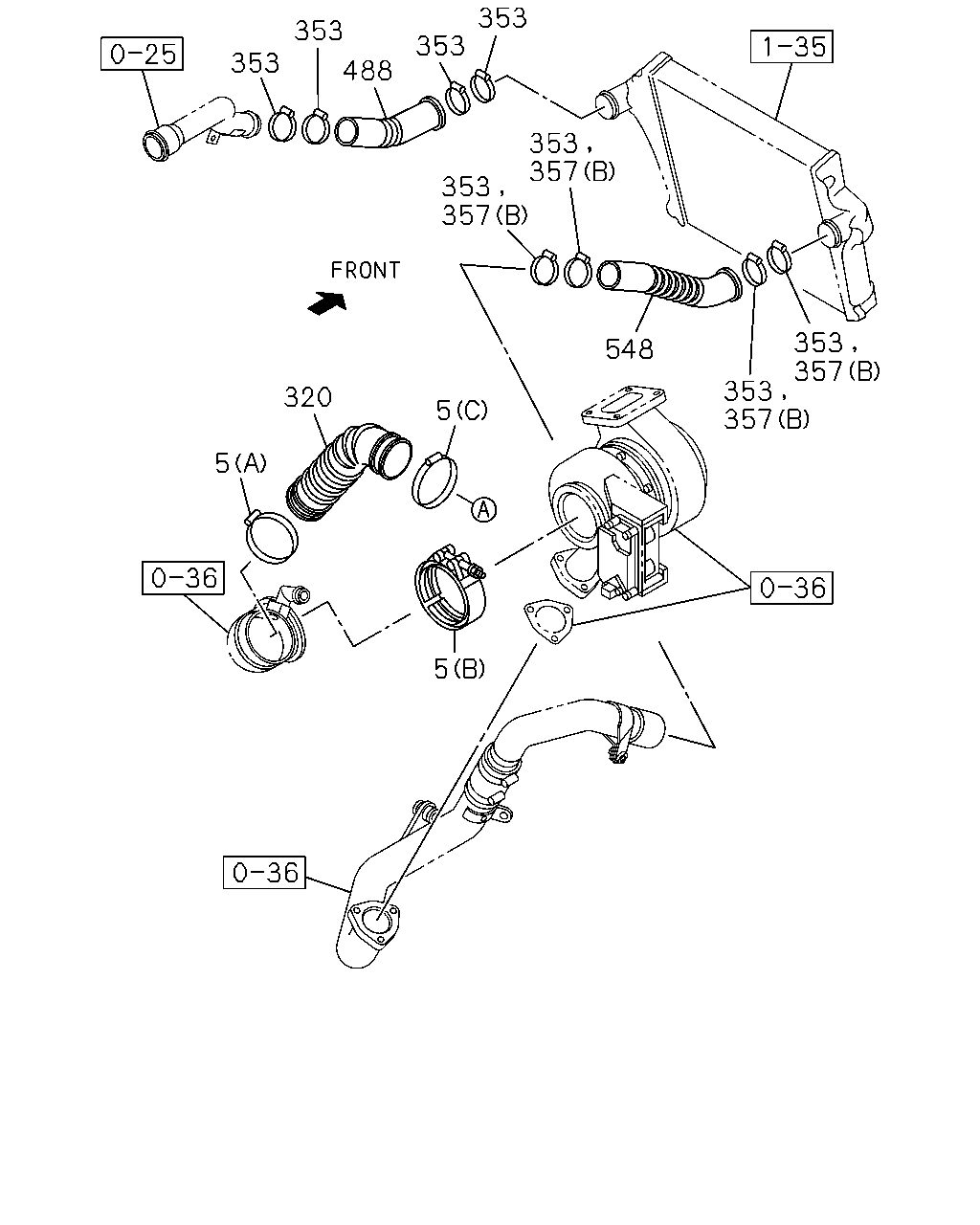

[131A] PIPING (15 parça)
[131A] DUCT FIXING (34 parça)
▶
5
5
5
320
357
353
357
353
548
357
353
357
353
353
353
488
353
353
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(B) ID=114
8-15178-030-0
01
1
1010-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (C) ID=130-150
8-98133-360-0
01
1
1010-1306
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-139-0
01
1
1307-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=100-120
8-98133-366-0
01
1
1010-1306
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1010-1306
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (C) ID=130-169
8-98155-950-0
01
1
1010-1306
5
CLIP; AIR DUCT
(C) ID=130-169
8-98155-950-0
01
1
1307-
320
HOSE; CONN,ACL
8-98021-990-2
01
1
1010-
353
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75
8-98133-349-0
08
1
1010-1306
353
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79
1-09707-136-0
08
1
1010-1306
353
CLIP; RUBBER HOSE
ID=58-79
1-09707-136-0
04
1
1307-
357
CLIP; RUBBER HOSE
(B) ID=58-79
1-09707-136-0
04
1
1307-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
02
1
1010-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
1010-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98065-044-0
01
1
1010-
558
49
242
49
56
56
58
242
58
242
61
49
26
560
450
316
252
71
209
296
210
379
357
357
174
543
48
58
245
49
56
56
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1010-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1010-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1010-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1010-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1010-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1010-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1010-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1010-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1010-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1010-
71
CLIP; AIR DUCT
ID=140-160
8-98133-368-0
01
1
1010-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
1010-1404
174
SENSOR; AIR FLOW CONT
SPEED LIMITER 100KM(NMU)
8-97601-967-0
01
1
1405-1406
174
SENSOR; AIR FLOW CONT
SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT)
8-97601-967-0
01
1
1407-
209
BRACKET; ACL
8-98021-995-1
01
1
1010-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1010-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1010-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1010-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1010-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1010-
252
DUCT; AIR INT
8-98021-989-1
01
1
1010-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1010-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1010-
357
CLIP; RUBBER HOSE
(B) ID=58-79
1-09707-136-0
04
1
1307-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
02
1
1010-
379
HOSE; RUBBER
8-98077-470-0
01
1
1010-
450
CLAMP; HOSE
9-09915-504-1
01
1
1010-
543
SCREW; SENSOR
M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1010-1404
543
SCREW; SENSOR
SPEED LIMITER 100KM(NMU) M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1405-1406
543
SCREW; SENSOR
SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1407-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
1010-1306
558
CLIP; AIR FLOW SENSOR
L=250
5-09707-030-1
02
1
1010-1306
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1307-
560
FILTER; VERTICAL DUCT
8-98061-675-0
02
1
1010-1306
