0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#69624) — 117 parça

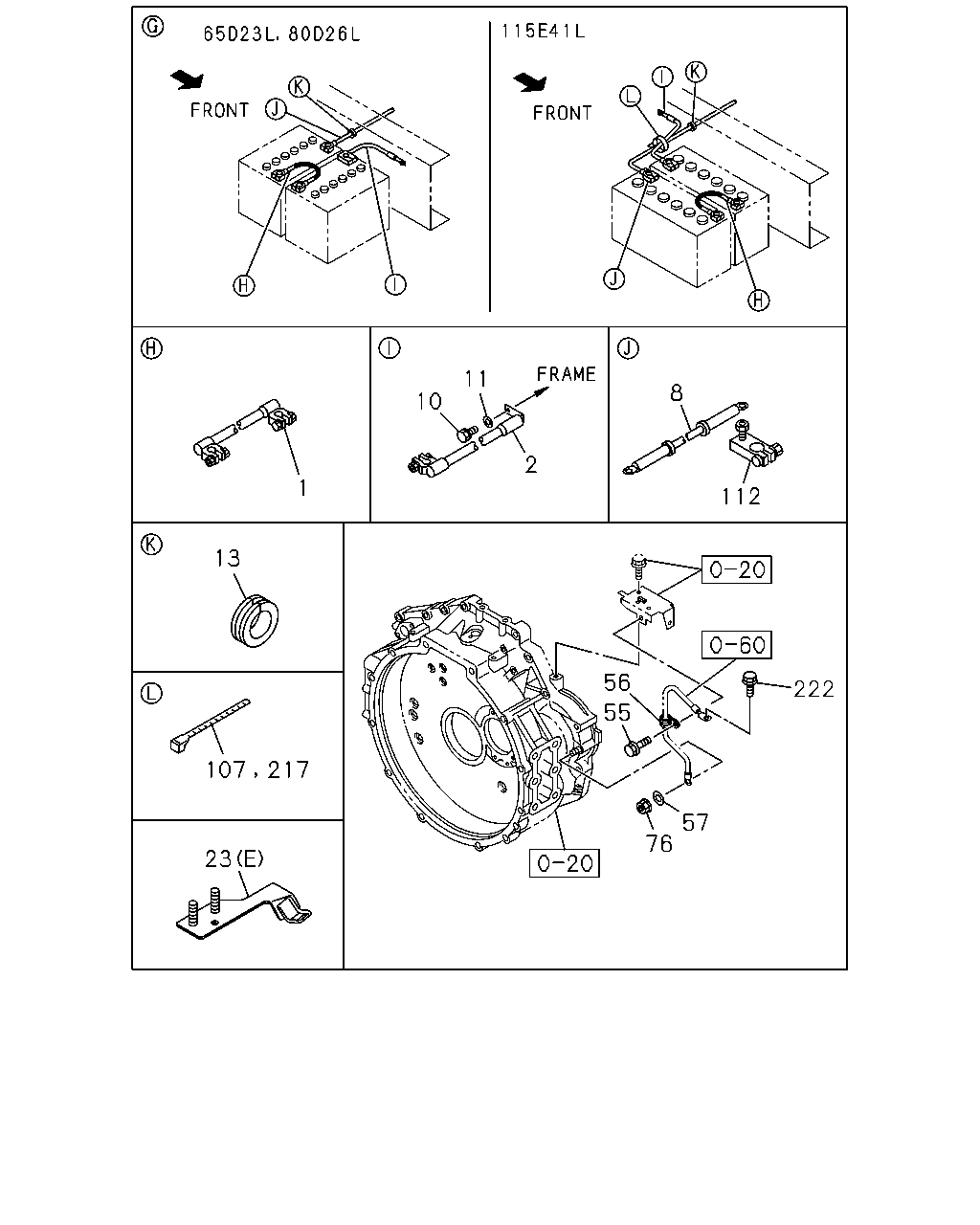

çizim 73400
11 10 2 112 8 222 56 55 57 76 107 217 23 1 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1010- ● ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 1010- ● ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 1010- ● ●
8 CABLE; BATTERY,STARTER
A/T<X9D> BATTERY 115E41L<8MA> 		8-98159-414-0 01 1 1010-1502 ● ●
8 CABLE; BATTERY,STARTER
A/T<X9D> BATTERY 115E41L<8MA> 		8-98295-515-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> A/T<X9D> 		8-98159-413-0 01 1 1010-1502 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> A/T<X9D> 		8-98295-514-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> MANUAL TRANSMISSION<X9C> 		8-98159-411-0 01 1 1010-1502 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> MANUAL TRANSMISSION<X9C> 		8-98295-512-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
MANUAL TRANSMISSION<X9C> BATTERY 115E41L<8MA> 		8-98159-412-0 01 1 1010-1502 ● ●
8 CABLE; BATTERY,STARTER
MANUAL TRANSMISSION<X9C> BATTERY 115E41L<8MA> 		8-98295-513-0 01 1 1503- ● ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1010- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1010- ● ●
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1010- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1307-1308 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1010- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98085-160-4 01 1 1010-1111 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98201-025-0 01 1 1112- ● ●
23 BRACKET; CABLE CLIP TO FRAME
ALLISON MD3560P A/T(Y3B) (C) L=95 		1-82699-085-0 01 1 1010-1306 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1010-1306 ● ●
23 BRACKET; CABLE CLIP TO FRAME
ZF9S1110 M/T(Y5E) (C) L=95 		1-82699-085-0 02 1 1307- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 02 1 1307- ● ●
23 BRACKET; CABLE CLIP TO FRAME
ALLISON MD3560P A/T(Y3B) (D) 		8-97612-957-1 02 1 1010- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-97612-957-1 02 1 1010- ● ●
23 BRACKET; CABLE CLIP TO FRAME
MANUAL TRANSMISSION<X9C> (C) L=95 		1-82699-085-0 03 1 1010-1308 ● ●
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 1010- ● ●
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1010- ● ●
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1010- ● ●
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 1010- ● ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1010- ● ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1010-1408 ● ●
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409- ● ●
217 CLIP; BAND,CABLE
ZF9S1110 M/T(Y5E) L=250 		5-09707-030-1 01 1 1307- ● ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1010- ● ●

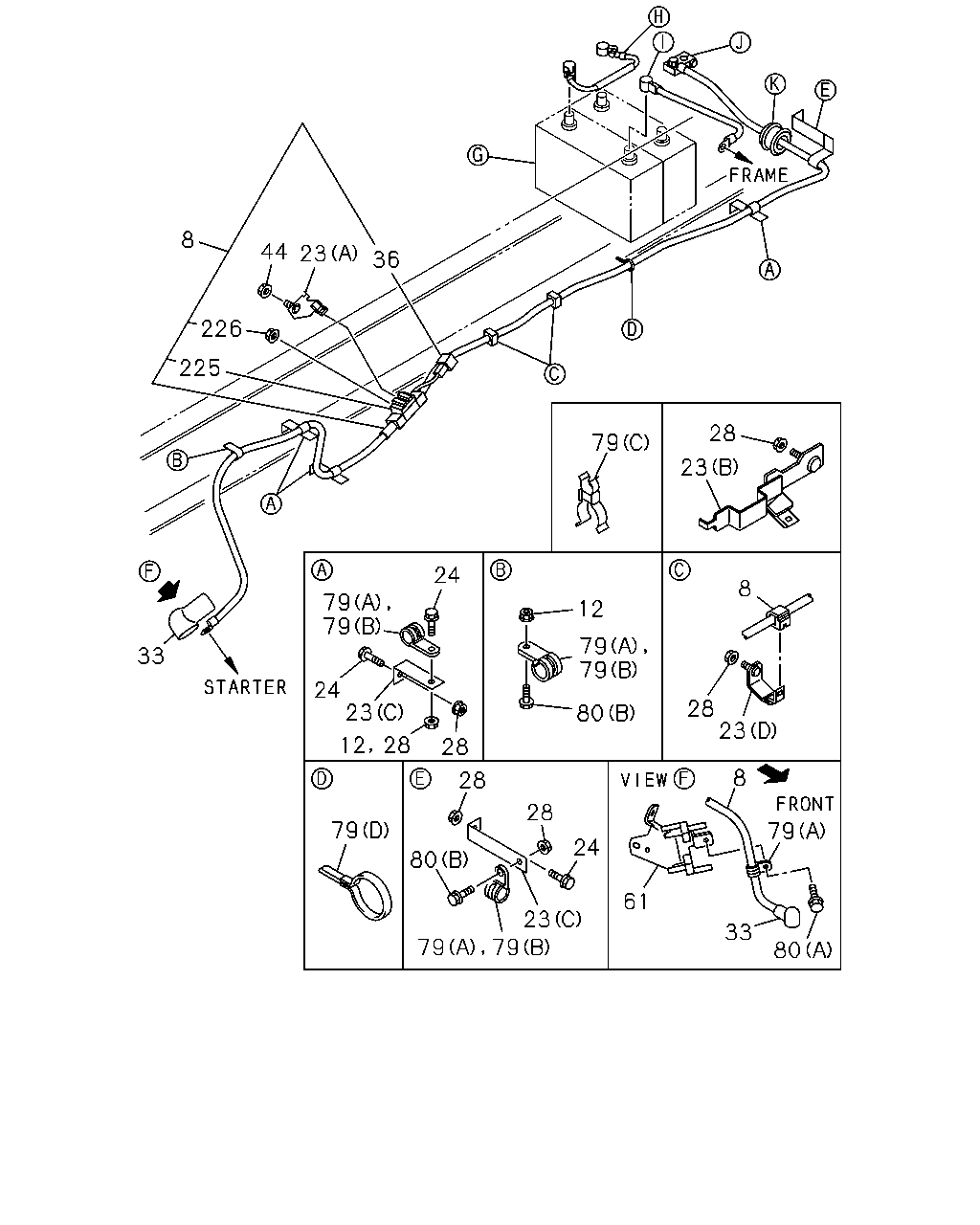

çizim 188993
44 8 23 36 226 225 33 79 79 24 24 23 12 28 28 28 79 80 79 79 23 24 28 61 33 80 79 8 23 28 8 28 23 79 12 79 79 80
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
A/T<X9D> BATTERY 115E41L<8MA> 		8-98159-414-0 01 1 1010-1502 ● ●
8 CABLE; BATTERY,STARTER
A/T<X9D> BATTERY 115E41L<8MA> 		8-98295-515-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> A/T<X9D> 		8-98159-413-0 01 1 1010-1502 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> A/T<X9D> 		8-98295-514-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> MANUAL TRANSMISSION<X9C> 		8-98159-411-0 01 1 1010-1502 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> MANUAL TRANSMISSION<X9C> 		8-98295-512-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
MANUAL TRANSMISSION<X9C> BATTERY 115E41L<8MA> 		8-98159-412-0 01 1 1010-1502 ● ●
8 CABLE; BATTERY,STARTER
MANUAL TRANSMISSION<X9C> BATTERY 115E41L<8MA> 		8-98295-513-0 01 1 1503- ● ●
12 NUT; BATTERY CABLE CLIP
A/T<X9D> M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ● ●
12 NUT; BATTERY CABLE CLIP
MANUAL TRANSMISSION<X9C> M8 FLANGE 		0-91180-108-0 03 1 1010-1306 ● ●
12 NUT; BATTERY CABLE CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
12 NUT; BATTERY CABLE CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) M8 FLANGE 		0-91180-108-0 02 1 1307- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1307- ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1307-1308 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1010- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98085-160-4 01 1 1010-1111 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98201-025-0 01 1 1112- ● ●
23 BRACKET; CABLE CLIP TO FRAME
ALLISON MD3560P A/T(Y3B) (C) L=95 		1-82699-085-0 01 1 1010-1306 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1010-1306 ● ●
23 BRACKET; CABLE CLIP TO FRAME
ZF9S1110 M/T(Y5E) (C) L=95 		1-82699-085-0 02 1 1307- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 02 1 1307- ● ●
23 BRACKET; CABLE CLIP TO FRAME
ALLISON MD3560P A/T(Y3B) (D) 		8-97612-957-1 02 1 1010- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-97612-957-1 02 1 1010- ● ●
23 BRACKET; CABLE CLIP TO FRAME
MANUAL TRANSMISSION<X9C> (C) L=95 		1-82699-085-0 03 1 1010-1308 ● ●
24 BOLT; BRKT TO FRAME
A/T<X9D> M8X30 FLANGE 		0-28650-830-0 01 1 1010-1306 ● ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 01 1 1010-1306 ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 01 1 1010-1306 ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1308 ● ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1308 ● ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ●
24 BOLT; BRKT TO FRAME
MANUAL TRANSMISSION<X9C> M8X30 FLANGE 		0-28650-830-0 03 1 1010-1306 ● ●
24 BOLT; BRKT TO FRAME
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 02 1 1307- ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M8X30 FLANGE 		0-28650-830-0 02 1 1307- ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28650-825-0 01 1 1010-1306 ● ●
24 BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1307-1308 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1010-1111 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1010-1111 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1112-1306 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1112-1306 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1112-1306 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1010-1306 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1307-1308 ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1010- ● ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1010-1502 ● ●
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503- ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010- ● ●
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1010- ● ●
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1010- ● ●
79 CLIP; BATTERY CABLE
(C) ID=13-18 L=26 		1-09709-293-0 02 1 1010-1306 ● ●
79 CLIP; BATTERY CABLE
(C) ID=13-18 L=26 		1-09709-293-0 02 1 1307-1308 ● ●
79 CLIP; BATTERY CABLE
ZF9S1110 M/T(Y5E) (C) ID=13-18 L=26 		1-09709-293-0 02 1 1307-1308 ● ●
79 CLIP; BATTERY CABLE
ZF9S1110 M/T(Y5E) (C) ID=13-18 L=26 		1-09709-293-0 02 1 1309-1310 ● ●
79 CLIP; BATTERY CABLE
(C) ID=13-18 L=26 		1-09709-293-0 02 1 1311- ● ●
79 CLIP; BATTERY CABLE
(D) ID=20 L=50 		9-09917-430-0 01 1 1010-1306 ● ●
79 CLIP; BATTERY CABLE
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (D) ID=20 L=50 		9-09917-430-0 01 1 1307-1308 ●
79 CLIP; BATTERY CABLE
(D) ID=20 L=50 		9-09917-430-0 01 1 1307-1308 ●
79 CLIP; BATTERY CABLE
(D) ID=20 L=50 		9-09917-430-0 01 1 1307-1308 ●
79 CLIP; BATTERY CABLE
(D) ID=20 L=50 		9-09917-430-0 01 1 1309- ● ●
79 CLIP; BATTERY CABLE
A/T<X9D> (B) ID=21 L=24 		8-98019-191-0 01 1 1010-1306 ● ●
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 01 1 1010-1306 ● ●
79 CLIP; BATTERY CABLE
ZF9S1110 M/T(Y5E) (B) ID=21 L=24 		8-98019-191-0 02 1 1307- ● ●
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 02 1 1307- ● ●
79 CLIP; BATTERY CABLE
MANUAL TRANSMISSION<X9C> (B) ID=21 L=24 		8-98019-191-0 03 1 1010-1306 ● ●
79 CLIP; BATTERY CABLE
ALLISON MD3560P A/T(Y3B) (B) ID=21 L=24 		8-98019-191-0 01 1 1307-1308 ● ●
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 01 1 1307-1308 ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1010- ● ●
80 BOLT; BATTERY CABLE CLIP
A/T<X9D> (B) M8X25 FLANGE 		0-28650-825-0 01 1 1010-1306 ● ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1010-1306 ● ●
80 BOLT; BATTERY CABLE CLIP
ZF9S1110 M/T(Y5E) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ● ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ● ●
80 BOLT; BATTERY CABLE CLIP
MANUAL TRANSMISSION<X9C> (B) M8X25 FLANGE 		0-28650-825-0 03 1 1010-1306 ● ●
80 BOLT; BATTERY CABLE CLIP
ALLISON MD3560P A/T(Y3B) (B) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1308 ● ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1308 ● ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1010-1502 ● ●
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503- ● ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1010-1502 ● ●
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503- ● ●
