0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#696) — 100 parça

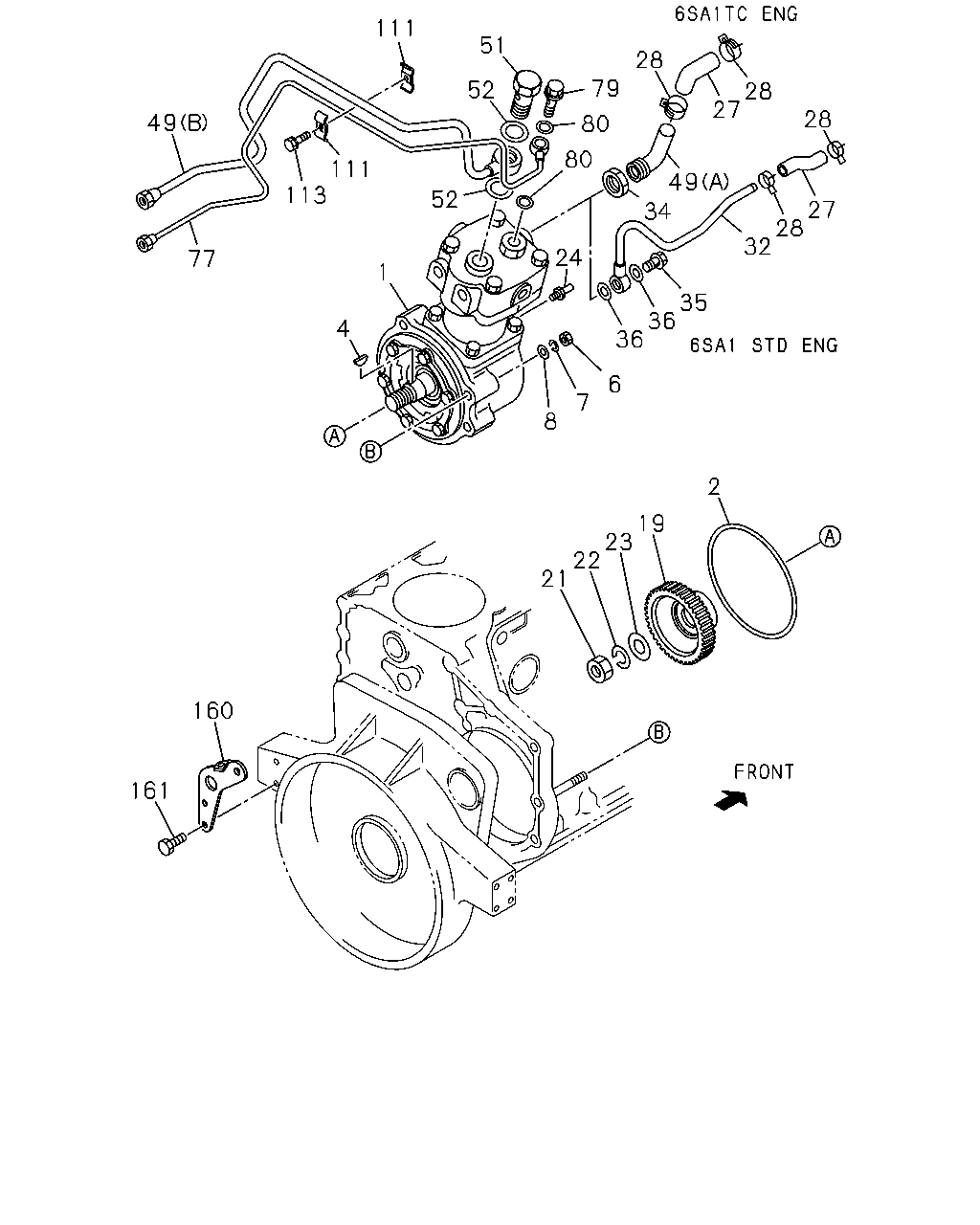

111 51 28 79 52 28 27 28 49 80 80 111 113 49 52 27 28 32 34 24 77 1 35 36 36 4 6 7 8 2 19 23 22 21 160 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-4	01	1	9204-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-6	01	1	9505-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	9204-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9505-			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9204-	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9505-			●
6	NUT; AIR CMPR M12	9-99110-412-0	04	1	9204-	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9505-			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9505-			●
7	WASHER; LK,AIR CMPR ID=12.2	9-09150-512-0	04	1	9204-	●	●
8	WASHER; PL,AIR CMPR ID=12.5	9-09160-512-0	02	1	9204-	●	●
19	GEAR; INJ PUMP Z=36	1-12524-037-2	01	1	9204-	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9505-			●
21	NUT; PUMP GEAR M24	9-99111-524-0	01	1	9204-	●	●
21	NUT; PUMP GEAR M20	9-99110-520-0	01	1	9505-			●
22	WASHER; LK,INJ PUMP GEAR FIX ID=24.5	9-09150-524-0	01	1	9204-	●	●
23	WASHER; PL,PUMP GEAR ID=25	9-09160-524-0	01	1	9204-	●	●
23	WASHER; PL,PUMP GEAR ID=21	9-09160-520-0	01	1	9505-			●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9204-	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9505-			●
27	HOSE; AIR CMPR,SUCTION	1-09360-128-2	01	1	9204-9205	●
27	HOSE; AIR CMPR,SUCTION	1-09360-916-0	01	1	9206-	●
27	HOSE; AIR CMPR,SUCTION	1-19192-160-0	01	1	9204-		●
27	HOSE; AIR CMPR,SUCTION	8-94395-083-0	01	1	9505-			●
28	CLIP; HOSE,AIR CMPR ID=20	1-09707-084-1	02	1	9204-9206	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9207-	●	●
32	PIPE; AIR,AIR CMPR	1-19192-217-0	01	1	9204-	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	01	1	9204-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	9204-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9204-	●
49	PIPE; AIR,CHARGE (B)	1-19192-120-0	01	1	9204-9212	●
49	PIPE; AIR,CHARGE (B)	1-19192-740-0	01	1	9301-	●
49	PIPE; AIR,CHARGE (A)	1-19119-003-0	01	1	9204-		●
49	PIPE; AIR,CHARGE (B)	1-19192-620-0	01	1	9204-9212		●
49	PIPE; AIR,CHARGE (B)	1-19192-739-0	01	1	9301-		●
49	PIPE; AIR,CHARGE	8-94393-200-0	01	1	9505-			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9204-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9505-			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9204-	●	●	●
77	PIPE; AIR,GOV	1-19192-309-0	01	1	9204-	●
77	PIPE; AIR,GOV	1-19192-619-0	01	1	9204-		●
77	PIPE; AIR,GOV	8-94393-795-0	01	1	9505-			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9204-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9204-	●	●	●
111	CLIP; AIR PIPE ID=8 & 12	9-09917-471-0	05	1	9204-9401	●	●
111	CLIP; AIR PIPE WO/NUT	1-09700-547-0	05	1	9402-	●	●
111	CLIP; AIR PIPE W/NUT	9-09917-472-0	03	1	9204-9401	●	●
111	CLIP; AIR PIPE W/NUT	1-09700-550-0	03	1	9402-	●	●
113	BOLT; CLIP,AIR PIPE M6X25 W/LK WASHER	0-50040-625-0	04	1	9204-	●	●
113	BOLT; CLIP,AIR PIPE M6X16 FLANGE	0-28280-616-0	01	1	9505-			●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28280-630-0	03	1	9505-			●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	03	1	9505-			●
160	BRACKET; AIR PIPE	1-19199-120-0	01	1	9204-	●
160	BRACKET; AIR PIPE	8-94394-455-0	01	1	9505-			●
161	BOLT; BRKT,AIR PIPE M8X16 W/LK WASHER	0-50040-816-0	02	1	9204-	●

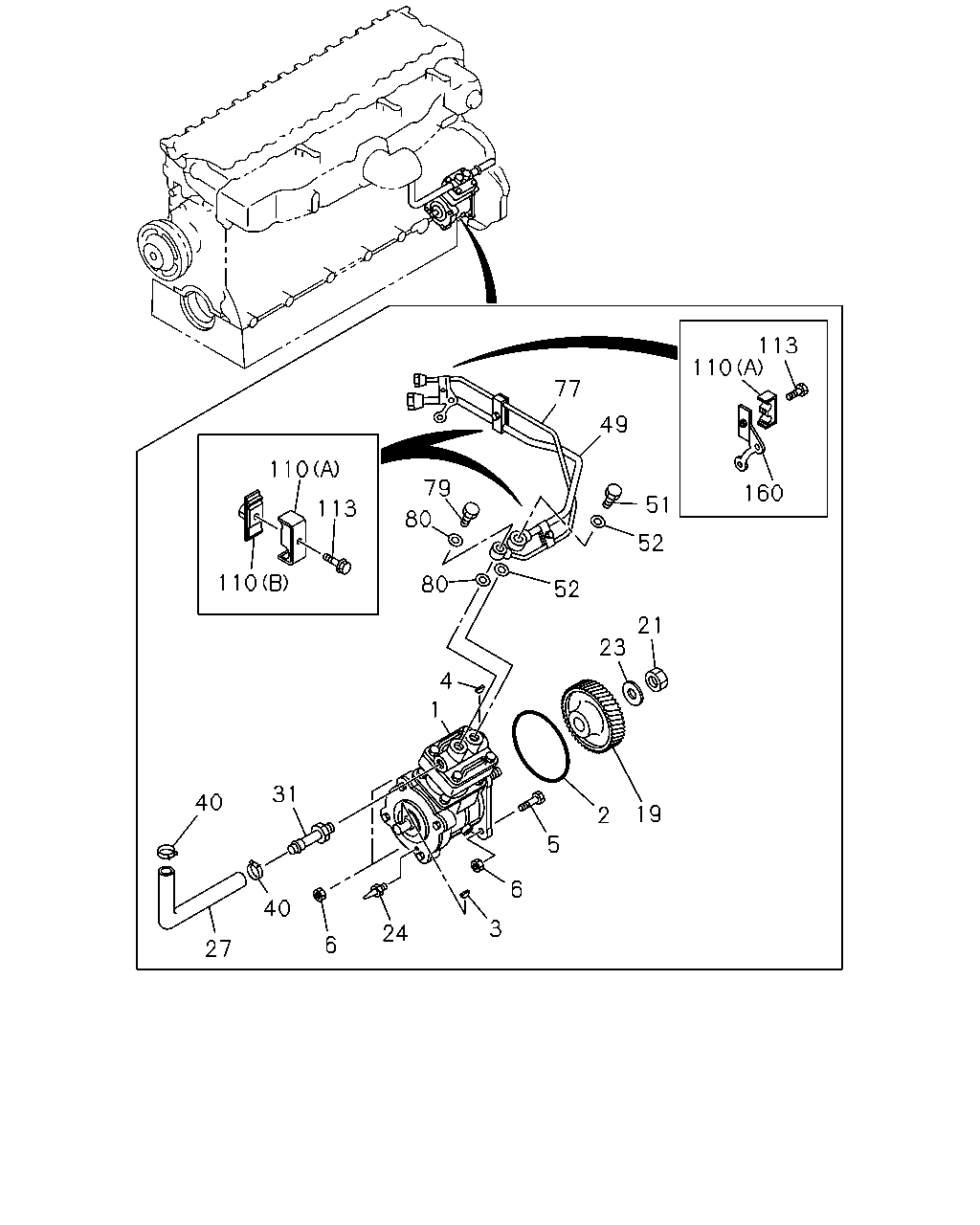

113 110 77 49 110 79 160 1 113 80 52 110 80 52 21 23 4 1 31 40 19 2 5 6 40 3 24 6 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-4	01	1	9204-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-6	01	1	9505-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	9204-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9505-			●
3	KEY; COUPLING,INJ PUMP	9-08055-416-0	01	1	9505-			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9204-	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9505-			●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9505-			●
6	NUT; AIR CMPR M12	9-99110-412-0	04	1	9204-	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9505-			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9505-			●
19	GEAR; INJ PUMP Z=36	1-12524-037-2	01	1	9204-	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9505-			●
21	NUT; PUMP GEAR M24	9-99111-524-0	01	1	9204-	●	●
21	NUT; PUMP GEAR M20	9-99110-520-0	01	1	9505-			●
23	WASHER; PL,PUMP GEAR ID=25	9-09160-524-0	01	1	9204-	●	●
23	WASHER; PL,PUMP GEAR ID=21	9-09160-520-0	01	1	9505-			●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9204-	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9505-			●
27	HOSE; AIR CMPR,SUCTION	1-09360-128-2	01	1	9204-9205	●
27	HOSE; AIR CMPR,SUCTION	1-09360-916-0	01	1	9206-	●
27	HOSE; AIR CMPR,SUCTION	1-19192-160-0	01	1	9204-		●
27	HOSE; AIR CMPR,SUCTION	8-94395-083-0	01	1	9505-			●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	9505-			●
40	CLIP; AIR PIPE ID=26	1-09707-091-0	02	1	9505-			●
49	PIPE; AIR,CHARGE (B)	1-19192-120-0	01	1	9204-9212	●
49	PIPE; AIR,CHARGE (B)	1-19192-740-0	01	1	9301-	●
49	PIPE; AIR,CHARGE (A)	1-19119-003-0	01	1	9204-		●
49	PIPE; AIR,CHARGE (B)	1-19192-620-0	01	1	9204-9212		●
49	PIPE; AIR,CHARGE (B)	1-19192-739-0	01	1	9301-		●
49	PIPE; AIR,CHARGE	8-94393-200-0	01	1	9505-			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9204-	●	●	●
77	PIPE; AIR,GOV	1-19192-309-0	01	1	9204-	●
77	PIPE; AIR,GOV	1-19192-619-0	01	1	9204-		●
77	PIPE; AIR,GOV	8-94393-795-0	01	1	9505-			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9204-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9204-	●	●	●
110	CLIP; AIR PIPE (A)	8-94393-037-0	03	1	9505-			●
110	CLIP; AIR PIPE (B)	8-94393-090-0	02	1	9505-			●
113	BOLT; CLIP,AIR PIPE M6X25 W/LK WASHER	0-50040-625-0	04	1	9204-	●	●
113	BOLT; CLIP,AIR PIPE M6X16 FLANGE	0-28280-616-0	01	1	9505-			●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28280-630-0	03	1	9505-			●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	03	1	9505-			●
160	BRACKET; AIR PIPE	1-19199-120-0	01	1	9204-	●
160	BRACKET; AIR PIPE	8-94394-455-0	01	1	9505-			●
