◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#69594) — 23 parça

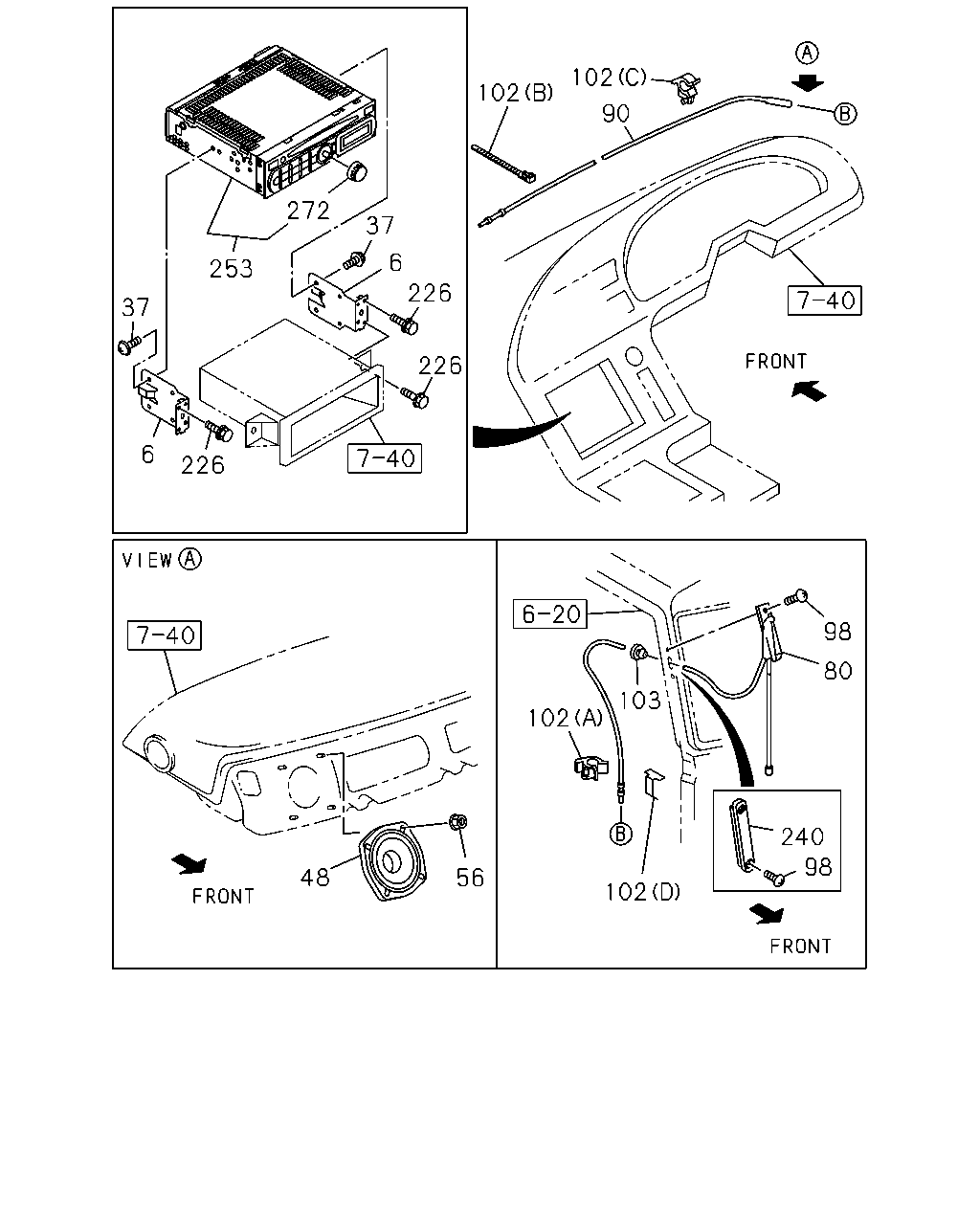

çizim 158308
272 37 253 6 226 226 226 6 37 102 102 90 102 103 98 80 102 240 98 56 48
BalonParca AdiParca NoAdetTipApplied Date
6 BRACKET; RADIO TO PANEL 1-65671-822-1 02 1 1009-
37 SCREW; CASSETTE & RADIO
RADIO AM/FM STEREO CD(UT3) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1009-
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		8-98140-326-1 02 1 1009-
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 1009-
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 1009-1203
80 ANTENNA
ANTENNA RADIO<U73> 		8-98210-874-0 01 1 1204-1302
80 ANTENNA 8-98210-874-1 01 1 1303-
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 1009-1302
90 CABLE; ANTENNA,FEEDER 1-84113-011-2 01 1 1303-
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 1009-
102 CLIP; CABLE
(D) L=20 SET=10 PIECE 		1-09987-246-2 01 1 1410-
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) ID=4.8 		1-73907-618-0 05 1 1009-1302
102 CLIP; CABLE
(A) ID=4.8 		1-73907-618-0 05 1 1303-
102 CLIP; CABLE
ANTENNA RADIO<U73> (C) ID=4.8 		8-94128-483-0 03 1 1009-1302
102 CLIP; CABLE
(C) ID=4.8 		8-94128-483-0 03 1 1303-
102 CLIP; CABLE
ANTENNA RADIO<U73> EXC. RADIO AM/FM STEREO CD(UT3) (B) L=140 		5-09707-031-1 01 1 1009-1302
102 CLIP; CABLE
EXC. RADIO AM/FM STEREO CD(UT3) (B) L=140 		5-09707-031-1 01 1 1303-
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 1009-1302
103 GROMMET; ANTENNA HOLE,FRT 8-97027-381-0 01 1 1303-
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1009-
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 1009-1302
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD(UT3) 		8-98105-038-0 01 1 1009-
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD(UT3) CLARION 		8-98048-329-0 01 1 1009-
