8-74 — EVAPORATOR (#69591) — 30 parça

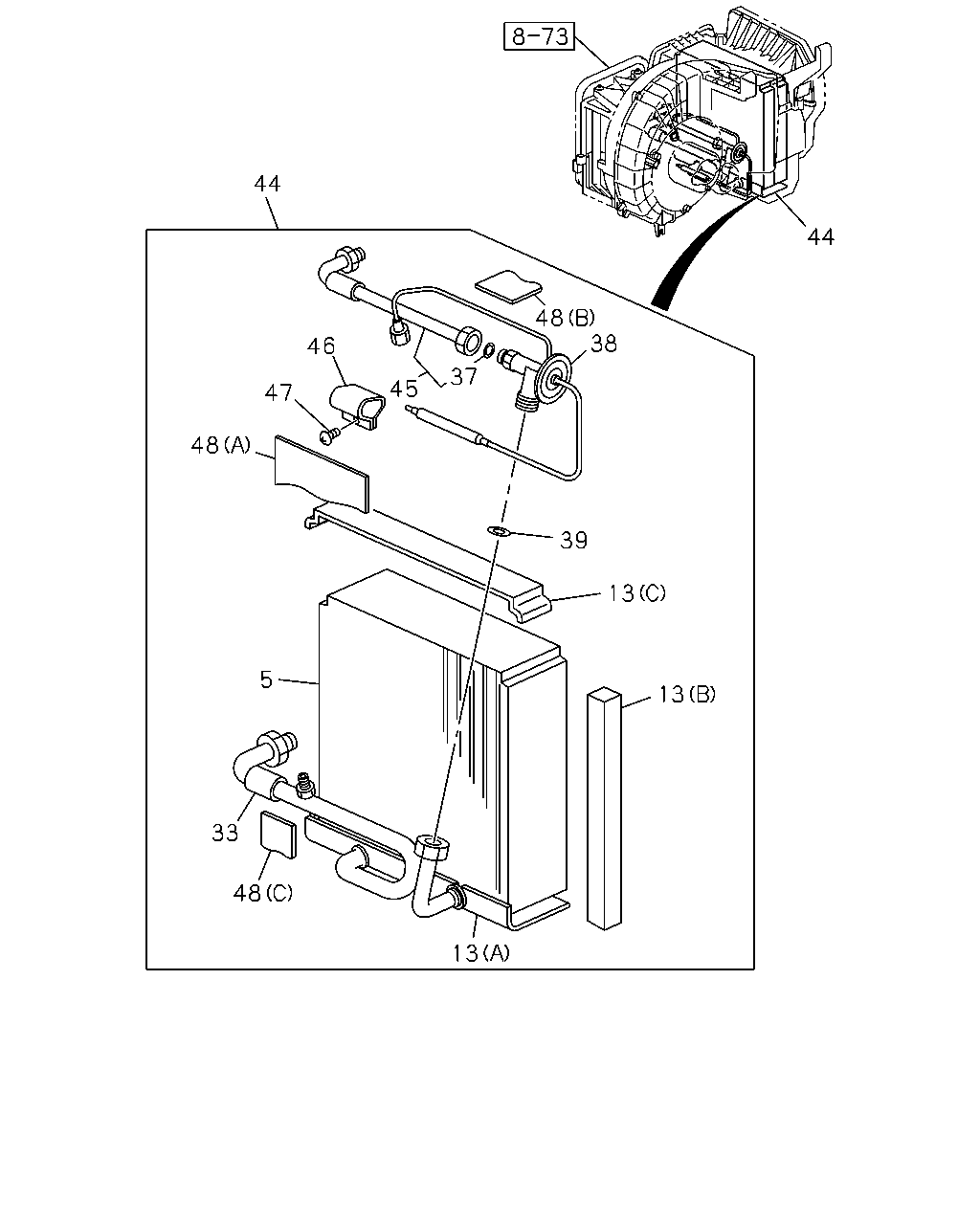

çizim 158348
44 46 47 48 5 33 48 13 13 13 39 38 48 37 45 44
BalonParca AdiParca NoAdetTipApplied Date
5 EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-095-0 01 1 1009-1302
5 EVAPORATOR 1-83562-095-0 01 1 1303-
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-669-1 01 1 1009-1302
13 SEAL; EVAP
(A) 		1-83579-669-1 01 1 1303-
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-938-0 01 1 1009-1302
13 SEAL; EVAP
(B) 		1-83579-938-0 01 1 1303-
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-939-0 01 1 1009-1302
13 SEAL; EVAP
(C) 		1-83579-939-0 01 1 1303-
33 LINING; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-653-0 01 1 1009-1302
33 LINING; EVAP 1-83579-653-0 01 1 1303-
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07 		8-94461-902-0 01 1 1009-1302
37 GASKET; EVAP
ID=6.07 		8-94461-902-0 01 1 1303-
38 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83569-158-0 01 1 1009-1302
38 VALVE; EXPANSION 1-83569-158-0 01 1 1303-
39 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94481-717-0 01 1 1009-1302
39 GASKET; EVAP 8-94481-717-0 01 1 1303-
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-094-1 01 1 1009-1302
44 EVAPORATOR ASM; A/C 1-83562-094-1 01 1 1303-
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-681-1 01 1 1009-1302
45 PIPE; EXPANSION VLV 1-83567-681-1 01 1 1303-
46 CLIP; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-214-0 01 1 1009-1302
46 CLIP; EXPANSION VLV 1-83574-214-0 01 1 1303-
47 SCREW; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 1009-1302
47 SCREW; EVAP 8-97130-601-0 01 1 1303-
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-784-0 01 1 1009-1302
48 INSULATOR; EVAP
(A) 		1-83579-784-0 01 1 1303-
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-969-0 01 1 1009-1302
48 INSULATOR; EVAP
(B) 		1-83579-969-0 01 1 1303-
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-970-0 01 1 1009-1302
48 INSULATOR; EVAP
(C) 		1-83579-970-0 01 1 1303-
