8-73 — BLOWER UNIT (#69590) — 180 parça

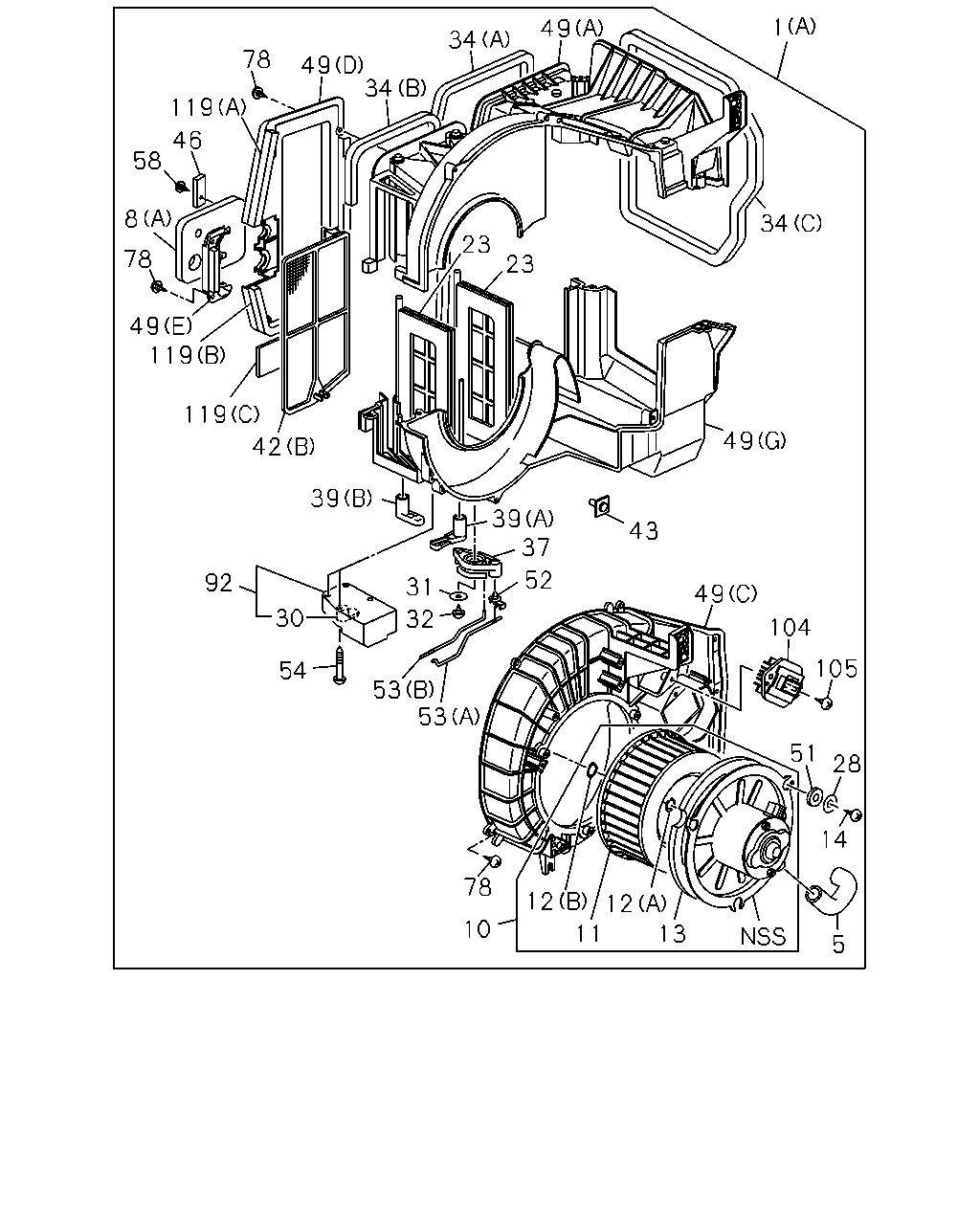

çizim 188961
1 49 34 34 49 78 119 58 46 8 49 78 119 119 39 42 92 30 54 31 32 53 53 52 39 43 49 104 49 34 105 51 28 14 5 13 12 11 12 10 78 37 23 23
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-182-2 01 1 1009-1302
1 BLOWER ASM
(B) 		1-83561-182-2 01 1 1303-
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-178-2 01 1 1009-1302
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 1009-1302
5 HOSE; AIR 1-83563-140-0 01 1 1303-
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-261-1 01 1 1009-1302
8 SEAL; BLOWER UNIT
(B) 		1-83539-261-1 01 1 1303-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-801-1 01 1 1009-1302
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 1009-1302
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 1303-
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 1009-1302
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 1303-
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1009-1302
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1303-
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1009-1302
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1303-
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1009-1302
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1303-
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1009-1302
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1303-
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1009-1302
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1303-
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1009-1302
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1303-
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1009-1302
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1303-
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1009-1302
31 WASHER; LEVER 1-83579-095-0 01 1 1303-
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1009-1302
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1303-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1009-1302
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1303-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 1009-1302
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1303-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 1009-1302
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1303-
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 1009-1302
37 LEVER; MODE LEVER 1-83564-344-0 01 1 1303-
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 1009-1302
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 1303-
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 1009-1302
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 1303-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 1009-1302
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1303-
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-3 01 1 1009-1302
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 1303-
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1009-1302
43 BOLT; CASE 1-83579-657-2 04 1 1303-
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41) 		1-83571-870-1 01 1 1009-1302
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 1009-1302
49 CASE; BLOWER UNIT
(B) 		1-83564-336-6 01 1 1303-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 1009-1302
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 1303-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (G) 		1-83564-352-5 01 1 1009-1302
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 1009-1302
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 1303-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 1009-1302
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 1303-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 1009-1302
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 1303-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 1009-1302
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 1303-
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1009-1302
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1303-
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 1009-1302
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 1303-
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 1009-1302
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 1303-
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1009-1302
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1303-
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1009-1302
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1303-
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41) M4X16 		8-94324-850-0 01 1 1009-1302
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 17 1 1009-1302
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 1303-
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 1009-1302
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 1303-
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 1009-1302
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 1303-
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 1009-1302
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 1303-
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 1009-1302
119 LINING; CASE
(D) 		1-83579-673-2 01 1 1303-
119 LINING; CASE
HEATER & DEFROSTER(C41) (C) 		1-83579-839-0 02 1 1009-1302
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 1009-1302
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1303-
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 1009-1302
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1303-

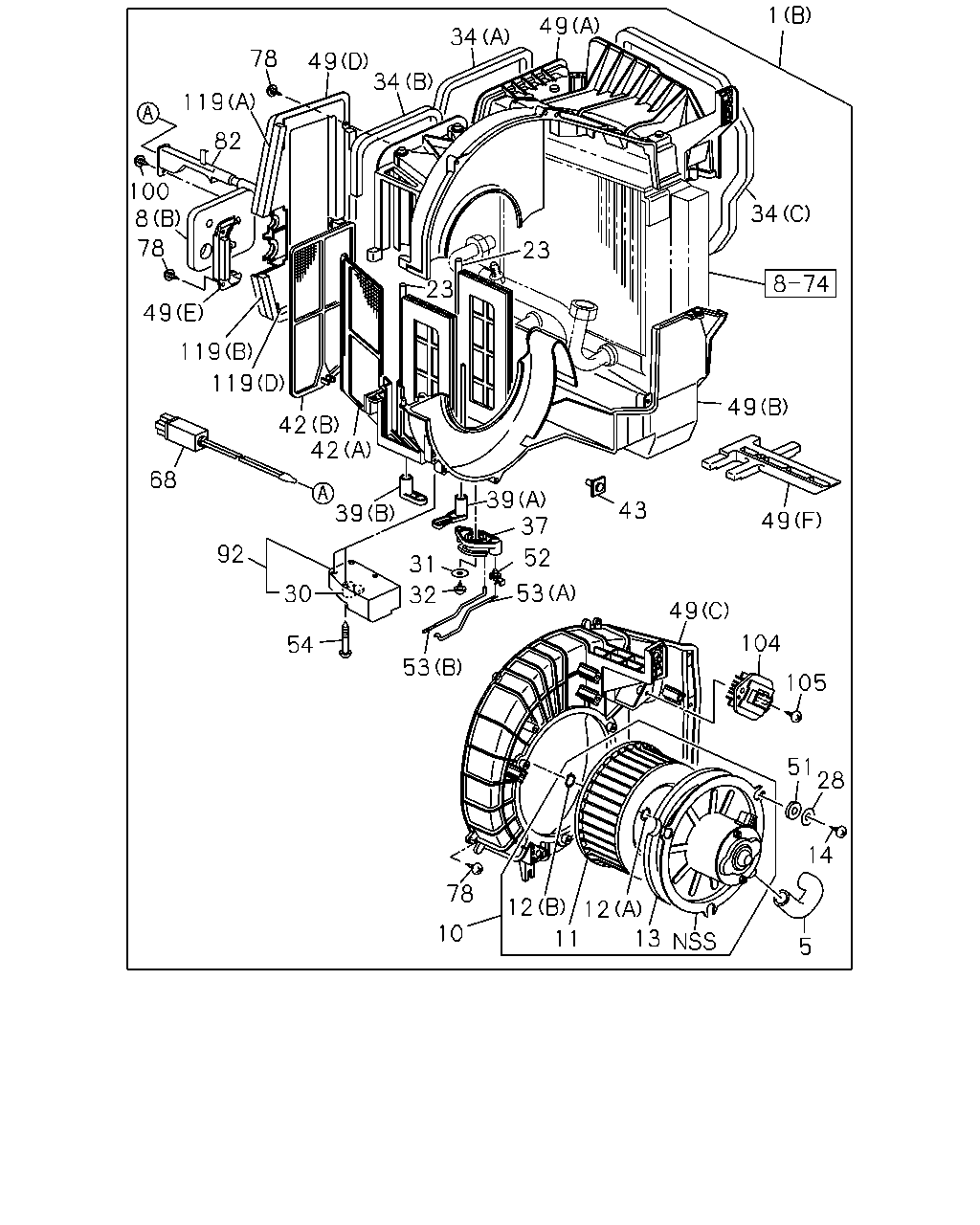

çizim 188962
34 49 1 34 49 49 43 52 37 39 39 42 42 119 119 49 78 8 100 119 78 34 49 49 104 105 51 28 14 5 13 12 11 12 10 53 78 32 31 53 54 30 92 68 23 23 82
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83561-182-2 01 1 1009-1302
1 BLOWER ASM
(B) 		1-83561-182-2 01 1 1303-
1 BLOWER ASM
HEATER & DEFROSTER(C41) (A) 		1-83561-178-2 01 1 1009-1302
5 HOSE; AIR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-140-0 01 1 1009-1302
5 HOSE; AIR 1-83563-140-0 01 1 1303-
8 SEAL; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-261-1 01 1 1009-1302
8 SEAL; BLOWER UNIT
(B) 		1-83539-261-1 01 1 1303-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-801-1 01 1 1009-1302
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83561-161-0 01 1 1009-1302
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 1303-
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-635-0 01 1 1009-1302
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 1303-
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		5-83569-088-0 01 1 1009-1302
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1303-
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94243-962-0 01 1 1009-1302
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1303-
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-636-0 01 1 1009-1302
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1303-
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 03 1 1009-1302
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1303-
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-797-0 02 1 1009-1302
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1303-
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-170-0 03 1 1009-1302
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1303-
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-345-1 01 1 1009-1302
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1303-
31 WASHER; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-095-0 01 1 1009-1302
31 WASHER; LEVER 1-83579-095-0 01 1 1303-
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1009-1302
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1303-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-633-2 01 1 1009-1302
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1303-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-634-2 01 1 1009-1302
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1303-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-644-0 01 1 1009-1302
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1303-
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-344-0 01 1 1009-1302
37 LEVER; MODE LEVER 1-83564-344-0 01 1 1303-
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-342-0 01 1 1009-1302
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 1303-
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-343-0 01 1 1009-1302
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 1303-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-993-0 02 1 1009-1302
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1303-
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-643-3 01 1 1009-1302
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 1303-
43 BOLT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 04 1 1009-1302
43 BOLT; CASE 1-83579-657-2 04 1 1303-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-336-6 01 1 1009-1302
49 CASE; BLOWER UNIT
(B) 		1-83564-336-6 01 1 1303-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83564-340-1 01 1 1009-1302
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 1303-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41) (G) 		1-83564-352-5 01 1 1009-1302
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-337-4 01 1 1009-1302
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 1303-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83564-339-1 01 1 1009-1302
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 1303-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-351-1 01 1 1009-1302
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 1303-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83564-353-1 01 1 1009-1302
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 1303-
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-496-0 03 1 1009-1302
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1303-
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 02 1 1009-1302
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 1303-
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-638-0 01 1 1009-1302
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 1303-
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-639-0 01 1 1009-1302
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1303-
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 02 1 1009-1302
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1303-
68 THERMOSTAT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-026-1 01 1 1009-1302
68 THERMOSTAT; BLOWER UNIT 1-83544-026-1 01 1 1303-
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 17 1 1009-1302
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 1303-
82 BRACKET; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-871-1 01 1 1009-1302
82 BRACKET; BLOWER UNIT 1-83571-871-1 01 1 1303-
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-640-1 01 1 1009-1302
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 1303-
100 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 01 1 1009-1302
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 1303-
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-093-0 01 1 1009-1302
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 1303-
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-94324-850-0 02 1 1009-1302
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 1303-
119 LINING; CASE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83579-673-2 01 1 1009-1302
119 LINING; CASE
(D) 		1-83579-673-2 01 1 1303-
119 LINING; CASE
HEATER & DEFROSTER(C41) (C) 		1-83579-839-0 02 1 1009-1302
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-670-1 01 1 1009-1302
119 LINING; CASE
(A) 		1-83579-670-1 01 1 1303-
119 LINING; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-671-1 01 1 1009-1302
119 LINING; CASE
(B) 		1-83579-671-1 01 1 1303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
