◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#69588) — 78 parça

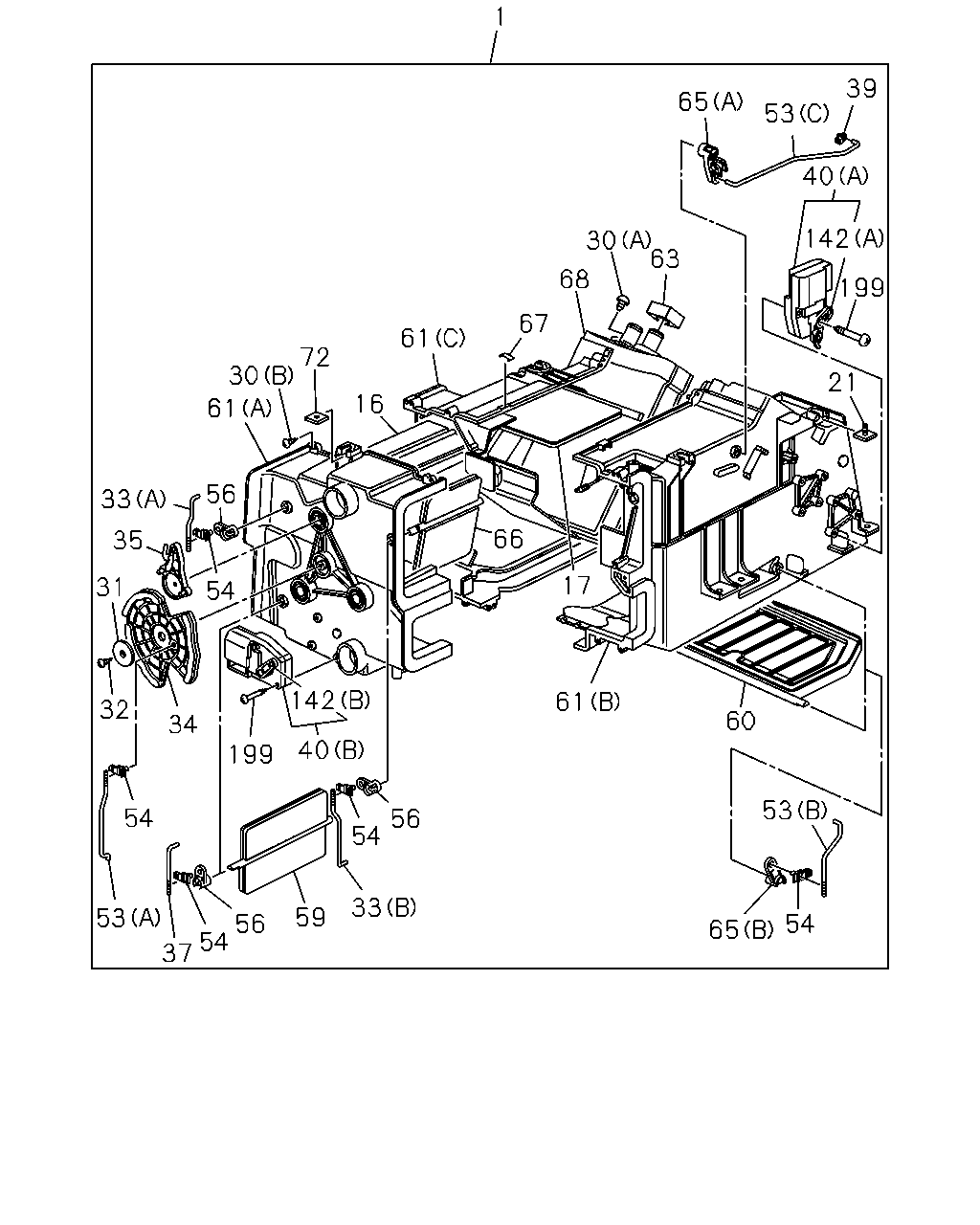

çizim 188959
65 54 53 60 61 56 33 54 40 199 56 59 54 37 53 54 34 32 31 54 142 66 17 68 30 63 67 61 16 72 30 61 56 33 35 21 199 142 40 53 39 65 1
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83511-175-1 01 1 1009-1302
1 HEATER UNIT 1-83511-175-1 01 1 1303-1409
1 HEATER UNIT 8-98238-476-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-625-1 01 1 1009-1302
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1303-
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-628-1 01 1 1009-1302
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1303-
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-657-2 02 1 1009-1302
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1303-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M4X16 		8-94324-850-0 12 1 1009-1302
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1303-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X20 		9-09829-324-1 01 1 1009-1302
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 1303-1409
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94129-950-0 01 1 1009-1302
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1303-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 		9-09829-324-1 01 1 1009-1302
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1303-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-619-0 01 1 1009-1302
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1303-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-621-0 01 1 1009-1302
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1303-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-326-0 01 1 1009-1302
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1303-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94389-502-1 03 1 1009-1302
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1303-
37 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-620-1 01 1 1009-1302
37 ROD; LEVER 1-83579-620-1 01 1 1303-
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-136-0 01 1 1009-1302
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1303-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-649-1 01 1 1009-1302
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 1303-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-650-1 01 1 1009-1302
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1303-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-622-0 01 1 1009-1302
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1303-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-623-0 01 1 1009-1302
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1303-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-624-0 01 1 1009-1302
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1303-
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-794-0 05 1 1009-1302
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1303-
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-325-0 03 1 1009-1302
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1303-
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-626-2 01 1 1009-1302
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1303-
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-084-0 01 1 1009-1302
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1303-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83564-346-3 01 1 1009-1302
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 1303-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-401-0 01 1 1009-1302
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 1303-1409
61 CASE; HTR UNIT
(B) 		8-98299-713-0 01 1 1410-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-402-0 01 1 1009-1302
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 1303-1409
61 CASE; HTR UNIT
(A) 		8-98299-715-0 01 1 1410-
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-557-0 02 1 1009-1302
63 LINING; HTR UNIT 1-83579-557-0 02 1 1303-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-327-0 01 1 1009-1302
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1303-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-328-1 01 1 1009-1302
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1303-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-627-0 01 1 1009-1302
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 1303-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-148-0 01 1 1009-1302
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1303-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-078-1 01 1 1009-1302
68 CORE; HTR UNIT 1-83562-078-1 01 1 1303-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-659-4 02 1 1009-1302
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1303-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83564-345-1 01 1 1009-1302
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 1303-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83564-414-0 01 1 1009-1302
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 1303-
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94348-809-0 04 1 1009-1302
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1303-
