8-52 — PIPING; AIR CONDITIONING (#69587) — 200 parça

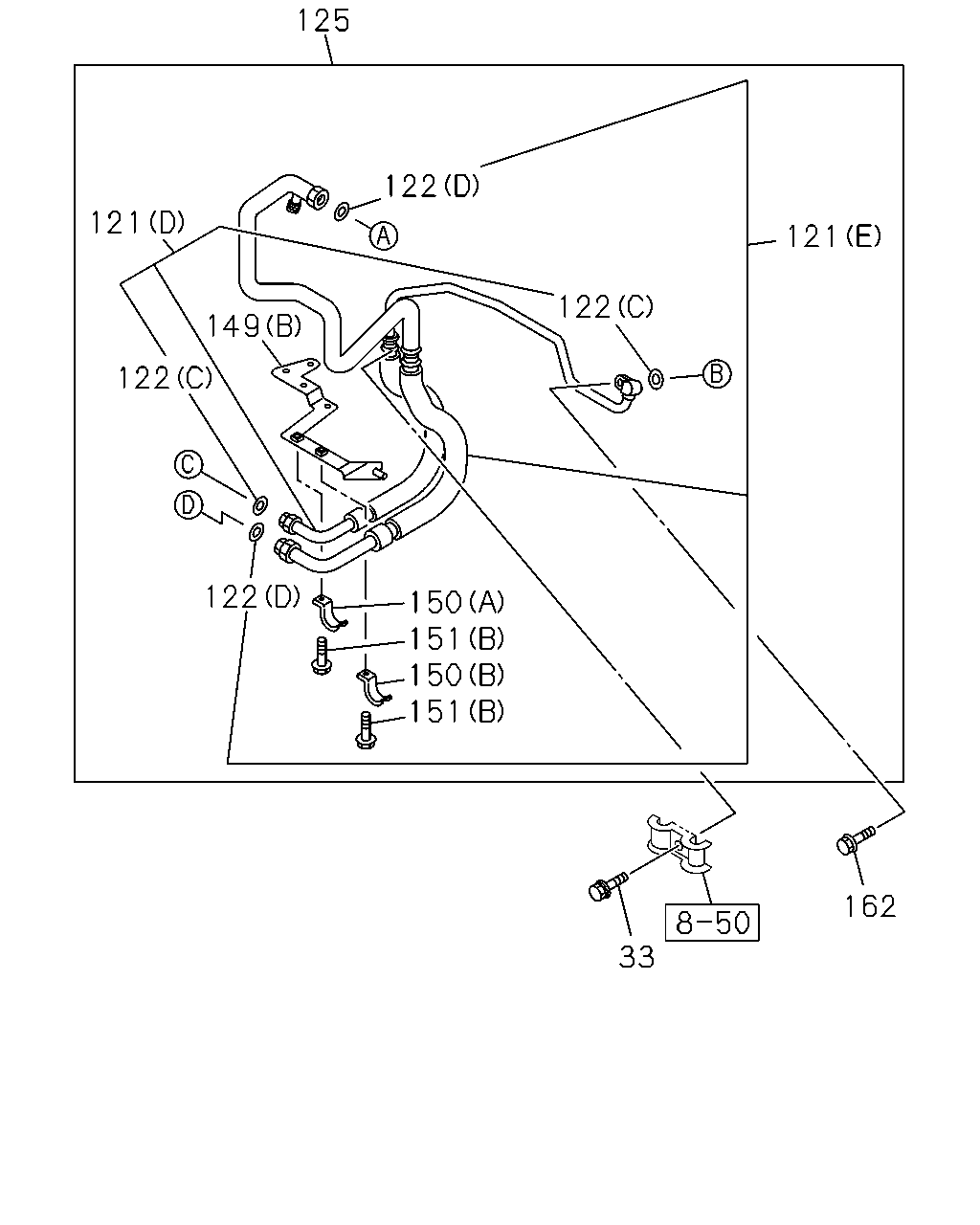

33 162 121 122 122 125 121 122 122 150 151 151 150 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1303-1303
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-1302
33	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-054-0	01	1	1009-1302
121	HOSE; COOLER (F)	8-98232-122-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-070-0	01	1	1009-1302
121	HOSE; COOLER (D)	8-98165-880-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-071-0	01	1	1009-1302
121	HOSE; COOLER (C)	1-83577-054-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83577-129-0	01	1	1009-1302
121	HOSE; COOLER (G)	8-98232-123-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83577-130-0	01	1	1009-1302
121	HOSE; COOLER (E)	8-98165-881-0	01	1	1303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	1-83539-317-0	02	1	1009-1302
122	GASKET (C) ID=11.7	1-83539-317-0	02	1	1303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	1-83539-324-0	02	1	1009-1302
122	GASKET (D) ID=14.5	1-83539-324-0	02	1	1303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	8-97095-907-0	02	1	1009-1302
122	GASKET (A) ID=11.7	8-97095-907-0	02	1	1303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	02	1	1009-1302
122	GASKET (B) ID=14.5	8-97095-908-0	02	1	1303-
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98028-191-0	01	1	1009-1302
125	HOSE; FLEX,UNIT TO CMPR	8-98119-508-1	01	1	1303-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-255-0	01	1	1009-1302
149	BRACKET; COOLER HOSE (B)	8-98165-879-0	01	1	1303-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-265-0	01	1	1009-1302
149	BRACKET; COOLER HOSE (C)	8-98232-121-0	01	1	1303-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-249-0	01	1	1009-1302
150	CLIP; HOSE (C)	1-83574-249-0	01	1	1303-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-262-0	01	1	1009-1302
150	CLIP; HOSE (A)	1-83574-262-0	01	1	1303-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-263-0	01	1	1009-1302
150	CLIP; HOSE (B)	1-83574-263-0	01	1	1303-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83574-264-0	01	1	1009-1302
150	CLIP; HOSE (D)	1-83574-264-0	01	1	1303-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	1009-1302
151	BOLT; CLIP FIX,COOLER HOSE (B)	1-83539-336-0	02	1	1303-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83578-098-0	02	1	1009-1302
151	BOLT; CLIP FIX,COOLER HOSE (A)	1-83578-098-0	02	1	1303-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	1009-1302
162	BOLT; FLEX HOSE M6X25 FLANGE	0-28050-625-0	02	1	1303-

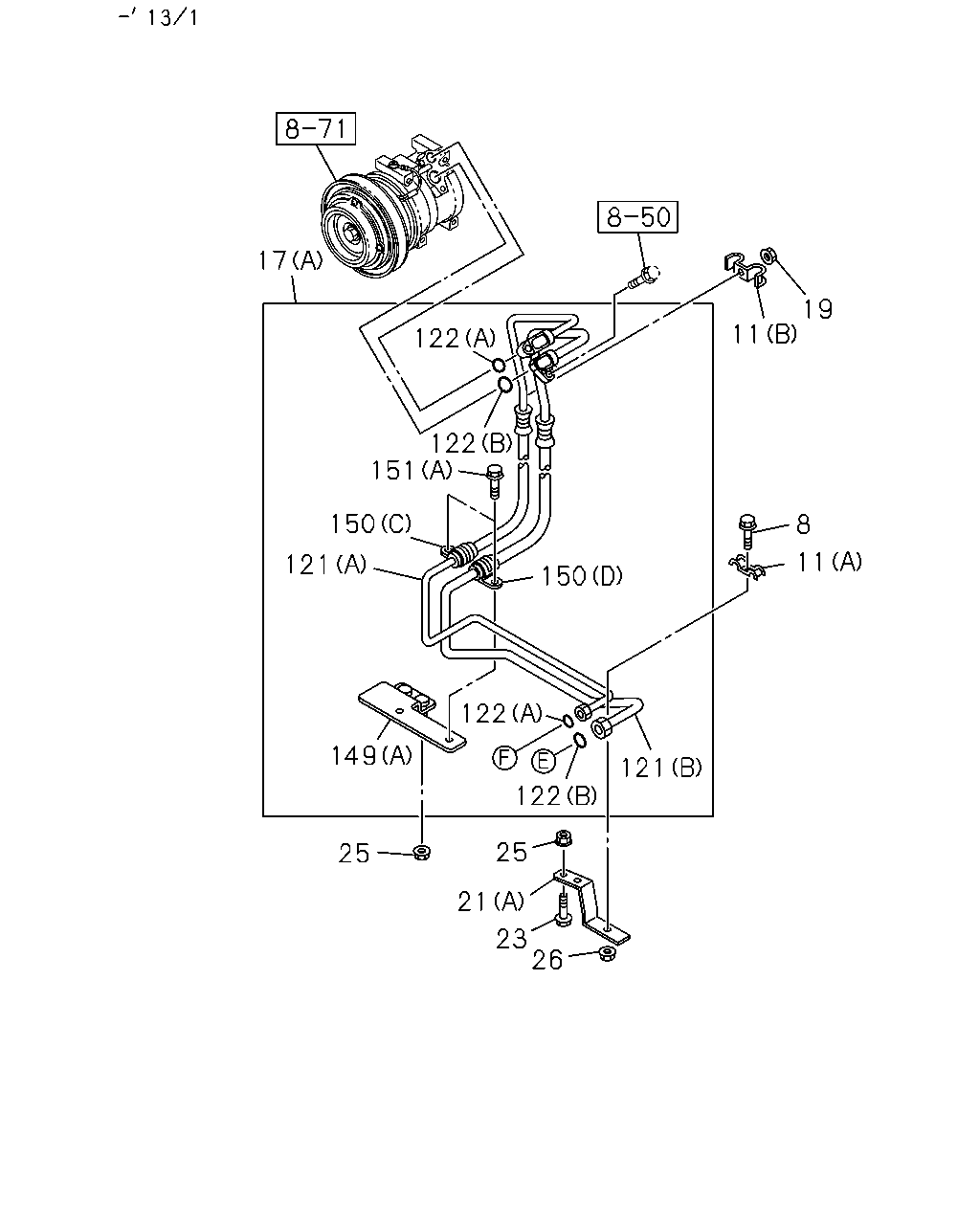

17 122 122 151 150 121 150 149 8 11 11 19 25 122 122 25 121 21 23 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20	1-83574-195-1	01	1	1009-1302
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5	1-83574-257-0	01	1	1009-1302
11	CLIP; COOLER PIPE (B) ID=12 & 14.5	1-83574-257-0	01	1	1303-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-062-1	01	1	1009-1302
17	HOSE; FLEX,CMPR TO PIPE (B)	8-98226-521-1	01	1	1303-
19	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1305-
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1009-1302
19	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1303-1304
19	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1305-
21	BRACKET; COOLER HOSE (B)	8-98227-085-1	01	1	1303-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-297-0	01	1	1009-1302
21	BRACKET; COOLER HOSE (C)	8-98227-084-0	01	1	1303-
23	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	01	1	1303-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28050-820-0	02	1	1009-1302
23	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1303-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	03	1	1009-1302
25	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1009-1302
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1009-1302
26	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-054-0	01	1	1009-1302
121	HOSE; COOLER (F)	8-98232-122-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-070-0	01	1	1009-1302
121	HOSE; COOLER (D)	8-98165-880-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-071-0	01	1	1009-1302
121	HOSE; COOLER (C)	1-83577-054-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83577-129-0	01	1	1009-1302
121	HOSE; COOLER (G)	8-98232-123-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83577-130-0	01	1	1009-1302
121	HOSE; COOLER (E)	8-98165-881-0	01	1	1303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	1-83539-317-0	02	1	1009-1302
122	GASKET (C) ID=11.7	1-83539-317-0	02	1	1303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	1-83539-324-0	02	1	1009-1302
122	GASKET (D) ID=14.5	1-83539-324-0	02	1	1303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	8-97095-907-0	02	1	1009-1302
122	GASKET (A) ID=11.7	8-97095-907-0	02	1	1303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	02	1	1009-1302
122	GASKET (B) ID=14.5	8-97095-908-0	02	1	1303-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-255-0	01	1	1009-1302
149	BRACKET; COOLER HOSE (B)	8-98165-879-0	01	1	1303-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-265-0	01	1	1009-1302
149	BRACKET; COOLER HOSE (C)	8-98232-121-0	01	1	1303-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-249-0	01	1	1009-1302
150	CLIP; HOSE (C)	1-83574-249-0	01	1	1303-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-262-0	01	1	1009-1302
150	CLIP; HOSE (A)	1-83574-262-0	01	1	1303-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-263-0	01	1	1009-1302
150	CLIP; HOSE (B)	1-83574-263-0	01	1	1303-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83574-264-0	01	1	1009-1302
150	CLIP; HOSE (D)	1-83574-264-0	01	1	1303-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	1009-1302
151	BOLT; CLIP FIX,COOLER HOSE (B)	1-83539-336-0	02	1	1303-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83578-098-0	02	1	1009-1302
151	BOLT; CLIP FIX,COOLER HOSE (A)	1-83578-098-0	02	1	1303-

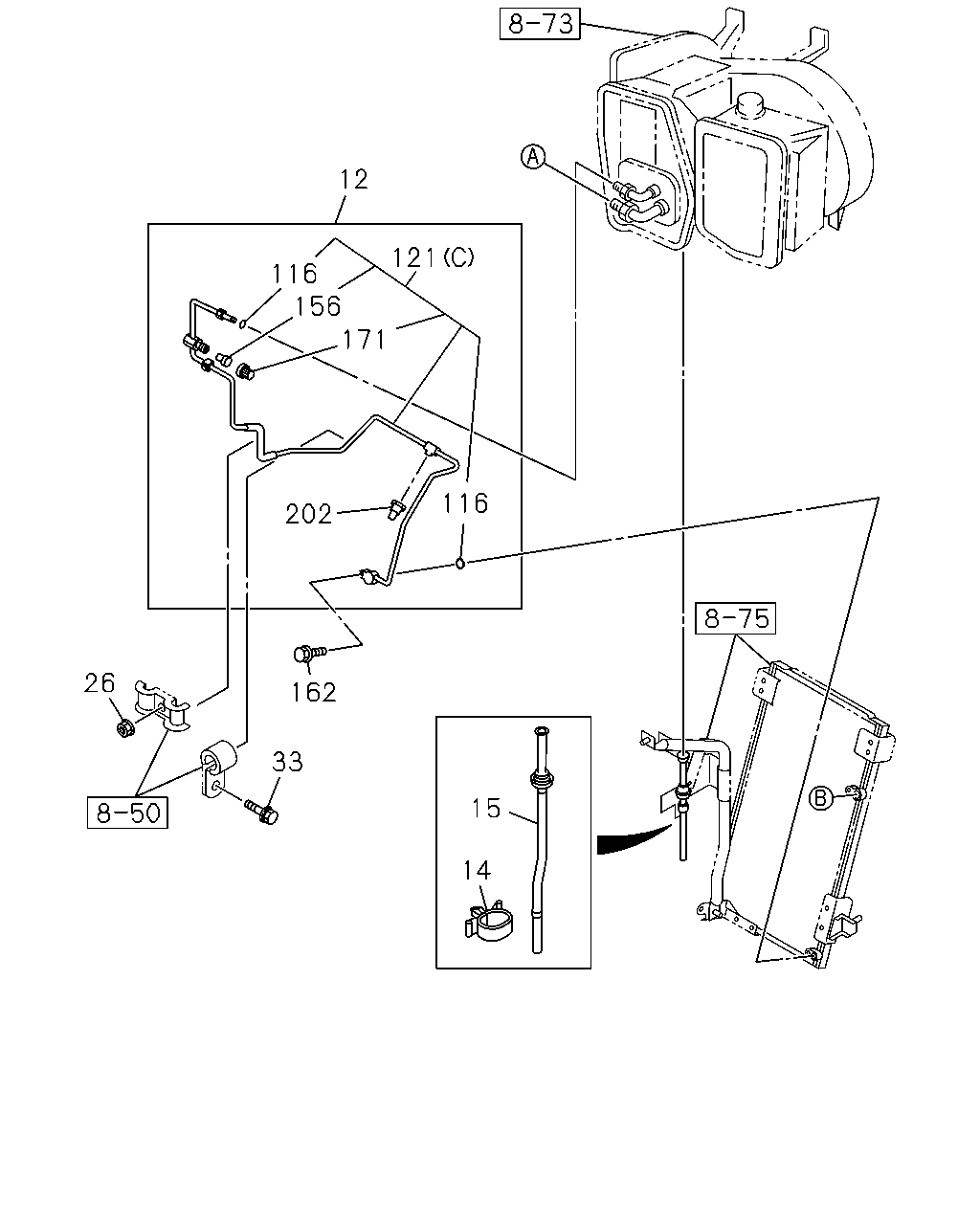

15 14 33 162 26 202 116 121 171 156 116 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-877-1	01	1	1009-1302
12	PIPE; COOLER,EVAP TO TANK	1-83567-877-1	01	1	1303-
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	1009-1302
14	CLIP; BAND,EVAP DRAIN HOSE ID=20	8-94410-200-0	01	1	1303-
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	1009-1302
15	HOSE; DRAIN	1-83572-635-0	01	1	1303-
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83572-412-0	01	1	1009-1302
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1009-1302
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1009-1302
26	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1303-
33	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1303-1303
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-1302
33	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=7.4	8-97095-906-0	02	1	1009-1302
116	GASKET; PIPE ID=7.4	8-97095-906-0	02	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-054-0	01	1	1009-1302
121	HOSE; COOLER (F)	8-98232-122-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-070-0	01	1	1009-1302
121	HOSE; COOLER (D)	8-98165-880-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-071-0	01	1	1009-1302
121	HOSE; COOLER (C)	1-83577-054-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83577-129-0	01	1	1009-1302
121	HOSE; COOLER (G)	8-98232-123-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83577-130-0	01	1	1009-1302
121	HOSE; COOLER (E)	8-98165-881-0	01	1	1303-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1009-1302
156	VALVE; PIPE	8-97095-909-0	01	1	1303-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	1009-1302
162	BOLT; FLEX HOSE M6X25 FLANGE	0-28050-625-0	02	1	1303-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	1009-1302
171	CAP; PIPE CAP MARK H	8-97095-911-0	01	1	1303-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-1	01	1	1009-1302
202	SWITCH; PRESSURE	1-83564-392-1	01	1	1303-

33 23 34 21 25 29 19 23 34 9 9 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-899-0	01	1	1009-1302
9	PIPE; COOLER,HOSE TO HOSE (C)	8-98226-522-0	01	1	1303-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83567-900-0	01	1	1009-1302
9	PIPE; COOLER,HOSE TO HOSE (D)	8-98226-523-0	01	1	1303-
19	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1305-
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1009-1302
19	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1303-1304
19	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1305-
21	BRACKET; COOLER HOSE (B)	8-98227-085-1	01	1	1303-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-297-0	01	1	1009-1302
21	BRACKET; COOLER HOSE (C)	8-98227-084-0	01	1	1303-
23	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	01	1	1303-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28050-820-0	02	1	1009-1302
23	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1303-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	03	1	1009-1302
25	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1303-
29	BRACKET; COOLER PIPE	8-97638-928-0	01	1	1303-
33	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1303-1303
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1009-1302
33	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1303-
34	CLIP; COOLER PIPE (B) ID=20 & 20	1-83574-195-1	01	1	1303-
34	CLIP; COOLER PIPE (A) ID=17 L=28	8-94427-862-0	01	1	1303-

23 21 149 122 122 150 121 122 121 151 150 122 11 17 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20	1-83574-195-1	01	1	1009-1302
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5	1-83574-257-0	01	1	1009-1302
11	CLIP; COOLER PIPE (B) ID=12 & 14.5	1-83574-257-0	01	1	1303-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-062-1	01	1	1009-1302
17	HOSE; FLEX,CMPR TO PIPE (B)	8-98226-521-1	01	1	1303-
19	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1305-
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1009-1302
19	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1303-1304
19	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1305-
21	BRACKET; COOLER HOSE (B)	8-98227-085-1	01	1	1303-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-297-0	01	1	1009-1302
21	BRACKET; COOLER HOSE (C)	8-98227-084-0	01	1	1303-
23	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	01	1	1303-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28050-820-0	02	1	1009-1302
23	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83577-054-0	01	1	1009-1302
121	HOSE; COOLER (F)	8-98232-122-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-070-0	01	1	1009-1302
121	HOSE; COOLER (D)	8-98165-880-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-071-0	01	1	1009-1302
121	HOSE; COOLER (C)	1-83577-054-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83577-129-0	01	1	1009-1302
121	HOSE; COOLER (G)	8-98232-123-0	01	1	1303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83577-130-0	01	1	1009-1302
121	HOSE; COOLER (E)	8-98165-881-0	01	1	1303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	1-83539-317-0	02	1	1009-1302
122	GASKET (C) ID=11.7	1-83539-317-0	02	1	1303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	1-83539-324-0	02	1	1009-1302
122	GASKET (D) ID=14.5	1-83539-324-0	02	1	1303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	8-97095-907-0	02	1	1009-1302
122	GASKET (A) ID=11.7	8-97095-907-0	02	1	1303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	02	1	1009-1302
122	GASKET (B) ID=14.5	8-97095-908-0	02	1	1303-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-255-0	01	1	1009-1302
149	BRACKET; COOLER HOSE (B)	8-98165-879-0	01	1	1303-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-265-0	01	1	1009-1302
149	BRACKET; COOLER HOSE (C)	8-98232-121-0	01	1	1303-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-249-0	01	1	1009-1302
150	CLIP; HOSE (C)	1-83574-249-0	01	1	1303-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-262-0	01	1	1009-1302
150	CLIP; HOSE (A)	1-83574-262-0	01	1	1303-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-263-0	01	1	1009-1302
150	CLIP; HOSE (B)	1-83574-263-0	01	1	1303-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83574-264-0	01	1	1009-1302
150	CLIP; HOSE (D)	1-83574-264-0	01	1	1303-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	1009-1302
151	BOLT; CLIP FIX,COOLER HOSE (B)	1-83539-336-0	02	1	1303-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83578-098-0	02	1	1009-1302
151	BOLT; CLIP FIX,COOLER HOSE (A)	1-83578-098-0	02	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
