Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11294 - EXZ RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#69586) — 40 parça
◀

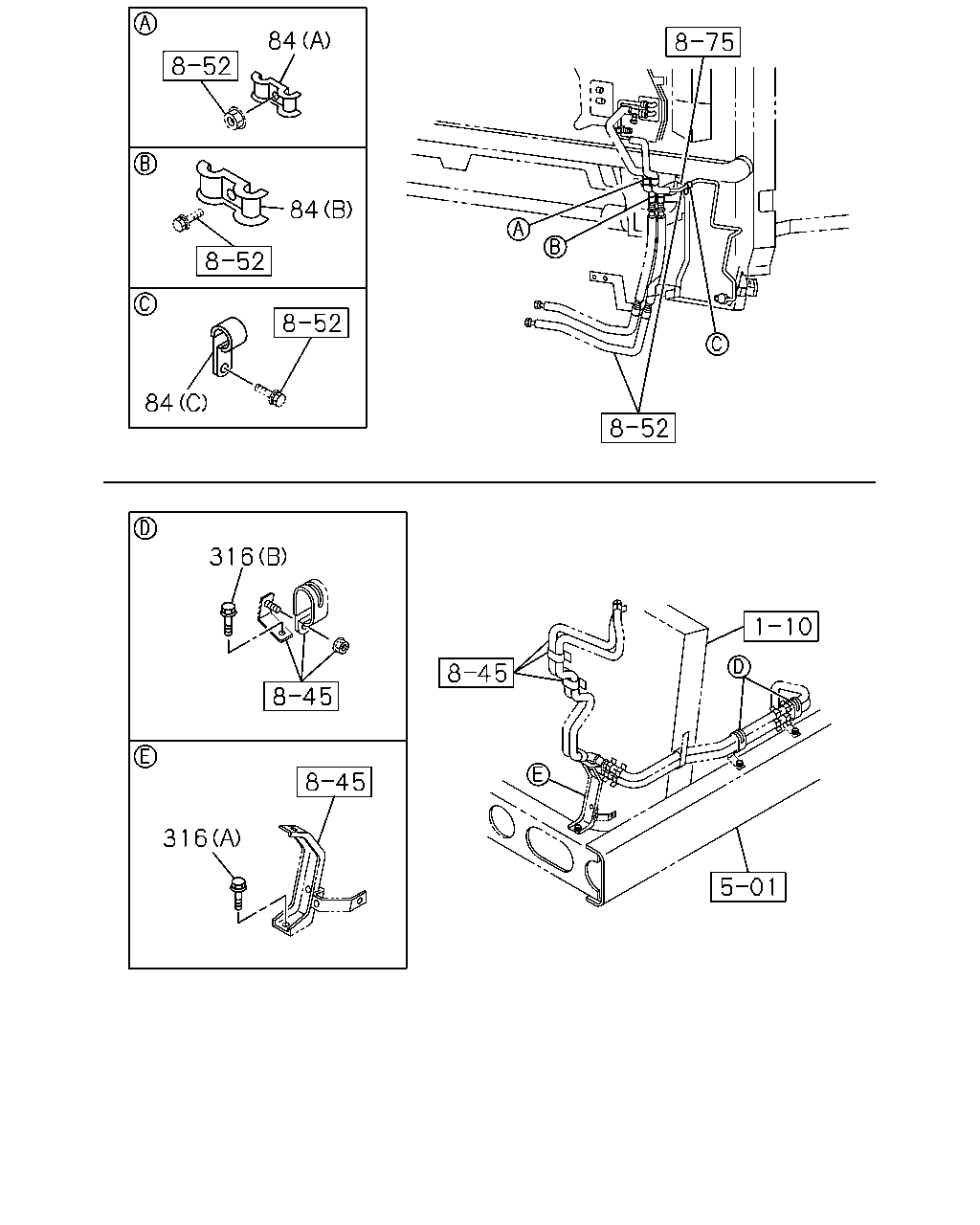

[850A] CAB AND FRAME SIDE (9 parça)

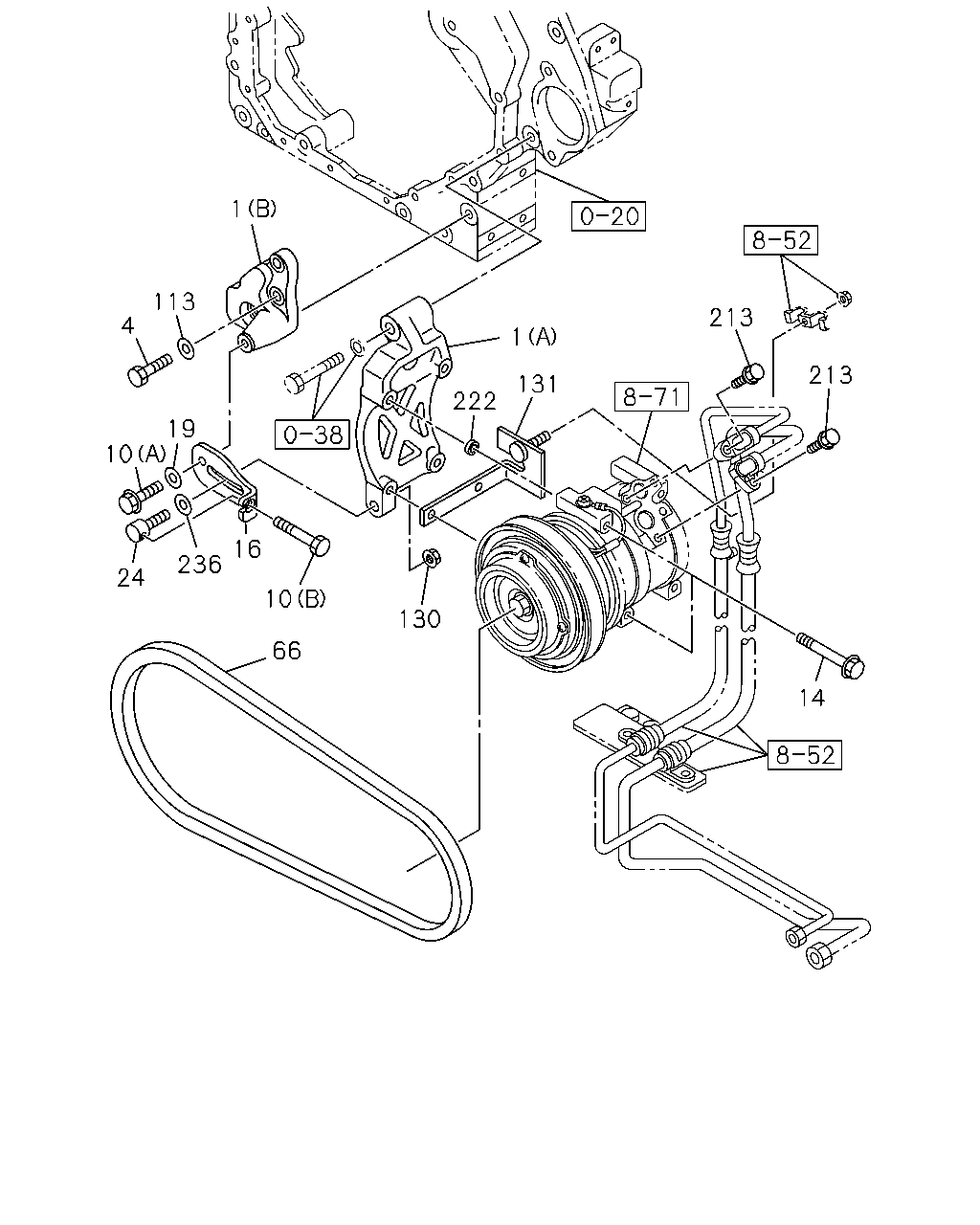

[850A] ENGINE SIDE (31 parça)
▶
84
84
84
316
316
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20
0-95234-835-0
01
1
1009-1302
84
CLIP; PIPE
(C) ID=9 L=20
0-95234-835-0
01
1
1303-
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2
1-83574-190-0
01
1
1009-1302
84
CLIP; PIPE
(A) ID=12.2 & 16.2
1-83574-190-0
01
1
1303-
84
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20
1-83574-195-1
01
1
1009-1302
84
CLIP; PIPE
(B) ID=20 & 20
1-83574-195-1
01
1
1303-
316
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28050-820-0
01
1
1009-
316
BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X30 FLANGE
0-28650-830-0
02
1
1009-1302
316
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
02
1
1303-
1
113
4
19
10
24
10
66
16
236
130
222
131
1
213
213
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; A/C
(B)
1-83573-119-0
01
1
1009-
1
BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83573-095-3
01
1
1009-1302
1
BRACKET; A/C
(A)
1-83573-095-3
01
1
1303-
4
BOLT; A/C CMPR BRKT
M14X135
1-09020-055-0
03
1
1009-
10
BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X40 FLANGE
0-28151-240-0
01
1
1009-1302
10
BOLT; ADJ PLATE
(A) M12X40 FLANGE
0-28151-240-0
01
1
1303-
10
BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90
1-09009-151-0
01
1
1009-1302
10
BOLT; ADJ PLATE
(B) M10X90
1-09009-151-0
01
1
1303-
10
BOLT; ADJ PLATE
HEATER & DEFROSTER(C41) (A) M12X35 FLANGE
0-28751-235-0
01
1
1009-1302
14
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X80 FLANGE
0-28050-880-0
04
1
1009-1302
14
BOLT; CMPR
M8X80 FLANGE
0-28050-880-0
04
1
1303-
16
PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-13674-293-2
01
1
1009-1302
16
PLATE; ADJ,CMPR
1-13674-293-2
01
1
1303-
19
WASHER; PL,ADJ PLATE TO CMPR
HEATER & DEFROSTER(C41) ID=12.5 OD=32
9-09160-712-0
01
1
1009-1302
24
PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45
1-13674-160-0
01
1
1009-1302
24
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
1303-
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1189
8-97604-138-1
01
1
1009-1302
66
BELT; A/C CMPR
L=1189
8-97604-138-1
01
1
1303-
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS
1-87610-103-0
01
1
1009-1302
66
BELT; A/C CMPR
BEST VALUE PARTS
1-87610-103-0
01
1
1303-
113
WASHER; PL,BRKT
ID=15 OD=26
9-09164-514-0
03
1
1009-
130
NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE
0-91180-112-0
01
1
1009-1302
130
NUT; ADJ BRKT
M12 FLANGE
0-91180-112-0
01
1
1303-
131
STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-244-0
01
1
1009-1302
131
STAY; CMPR BRKT
1-83573-244-0
01
1
1303-
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
02
1
1009-1302
213
BOLT; FLEX HOSE TO CMPR
M6X25 FLANGE
0-28050-625-0
02
1
1303-
222
GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.4 OD=19
5-11779-001-0
02
1
1009-1302
222
GASKET; CONNECTOR
ID=8.4 OD=19
5-11779-001-0
02
1
1303-
236
WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32
9-09160-712-0
01
1
1009-1302
236
WASHER; PL,ADJ BOLT
ID=12.5 OD=32
9-09160-712-0
01
1
1303-
