Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#69583) — 327 parça

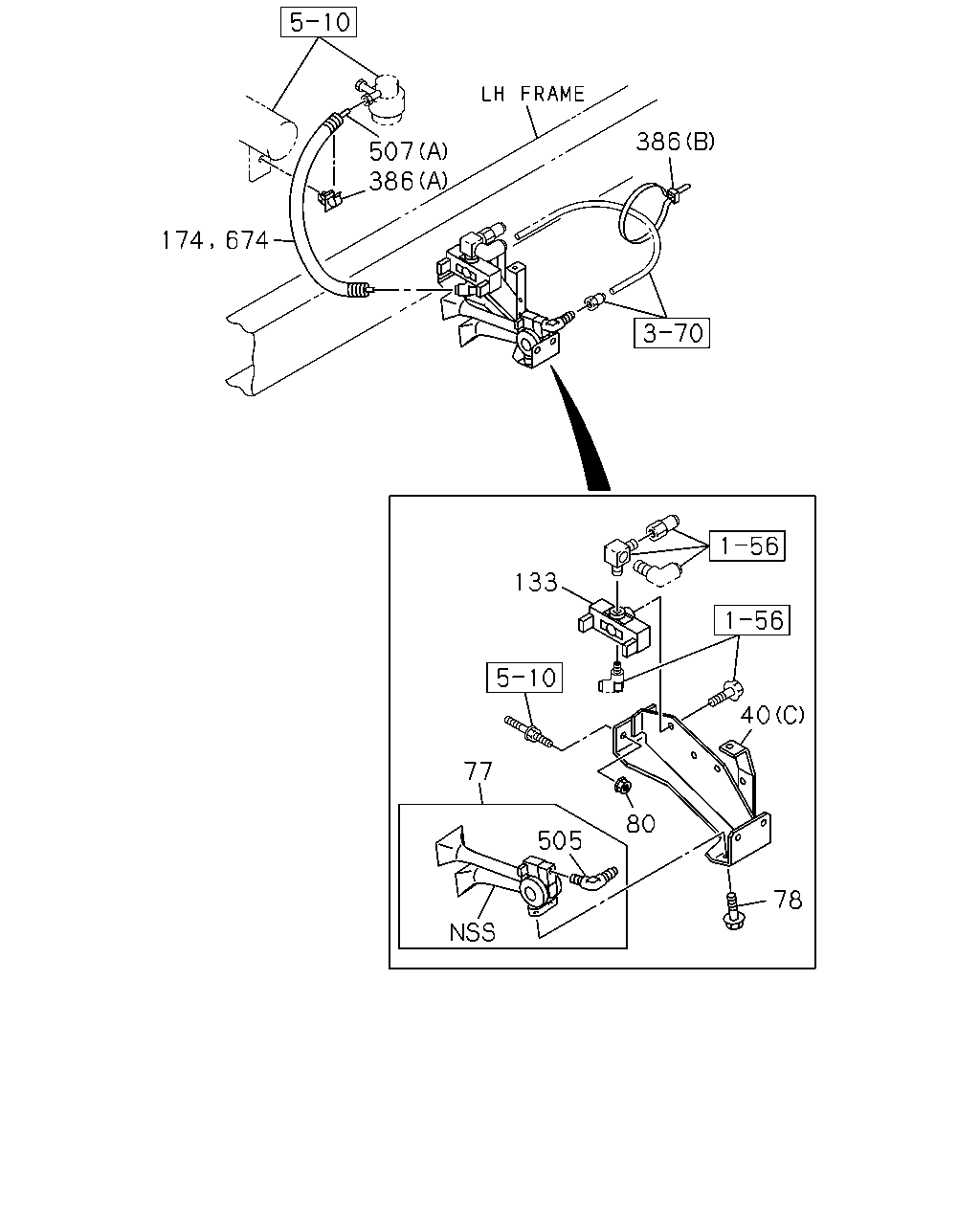

507 386 174 674 386 133 77 80 505 40 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1009-
40	BRACKET; MAG VLV (A)	1-82569-425-0	01	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (A)	1-82569-425-0	01	1	1303-
40	BRACKET; MAG VLV (B)	1-82698-604-0	02	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (B)	1-82698-604-0	02	1	1303-
40	BRACKET; MAG VLV (C)	8-98069-778-0	01	1	1009-1302
77	HORN ASM	1-83430-041-2	01	1	1009-1302
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	1009-1302
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	1009-1302
174	COVER L=800	1-83129-031-1	01	1	1009-1302
386	CLIP; HARNESS (B) L=350	1-09707-183-0	02	1	1009-1302
386	CLIP; HARNESS (A) ID=9.5	5-09709-020-0	01	1	1009-1302
505	JOINT; AIR HORN	1-83439-006-0	01	1	1009-1302
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	1009-1302
507	TUBE; NYLON SMOOTHER-G(C1W) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	1303-
674	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	1009-1302

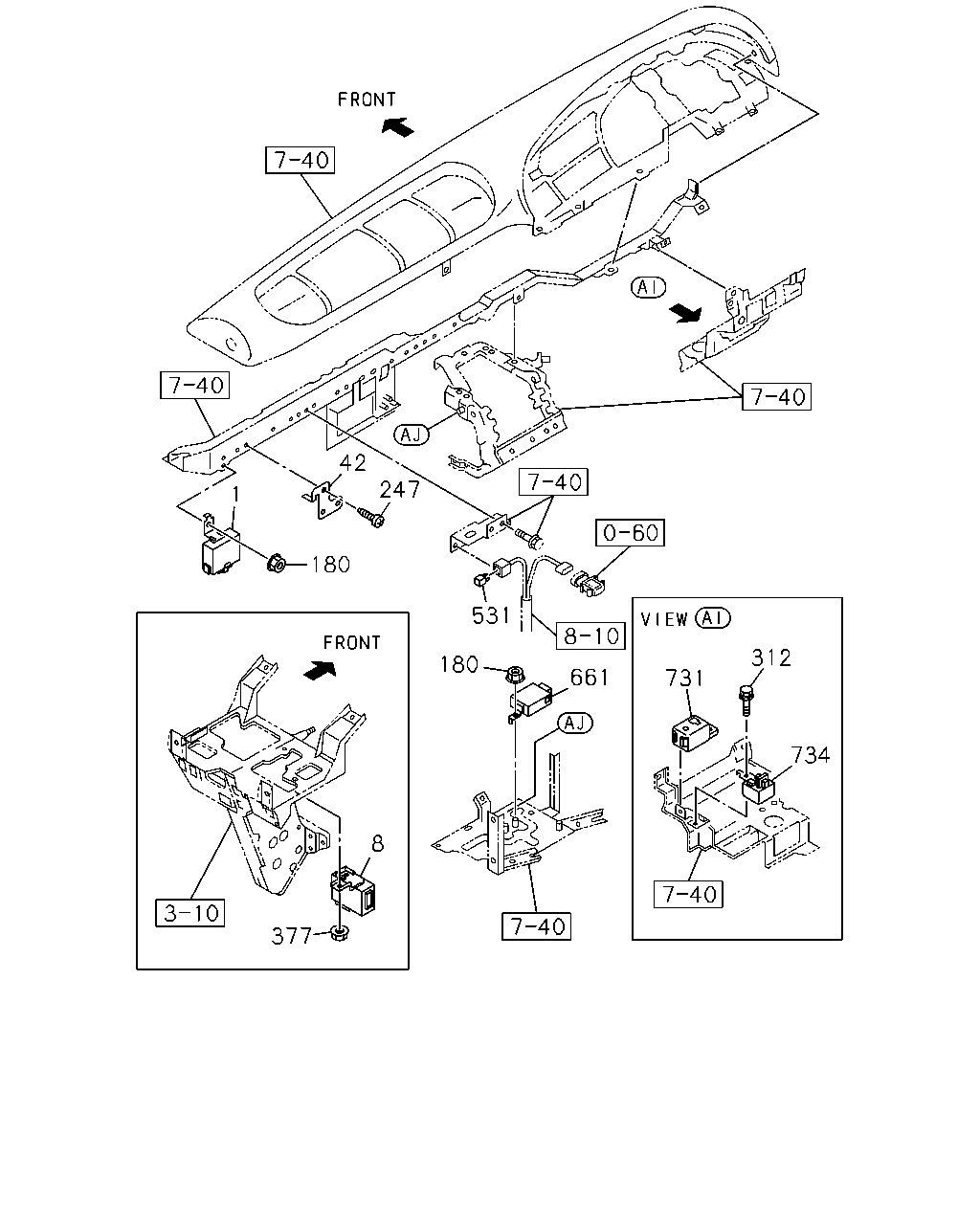

42 1 180 247 531 180 661 731 734 312 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-97613-970-1	01	1	1009-
8	RELAY; WIPER AIR BAG(TFQ)	1-83316-002-4	01	1	1009-1302
8	RELAY; WIPER	1-83316-002-4	01	1	1303-
42	BRACKET; RELAY	1-82698-128-2	01	1	1009-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1009-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1009-
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	1009-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1009-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	1009-1302
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1303-
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	1009-1302
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1303-
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1009-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	1009-
731	ALARM; INFORMATION	1-83460-051-1	01	1	1009-1302
731	ALARM; INFORMATION SMOOTHER-G(C1W)	1-83460-051-1	01	1	1303-
734	ALARM; MULTI	1-83460-106-0	01	1	1009-

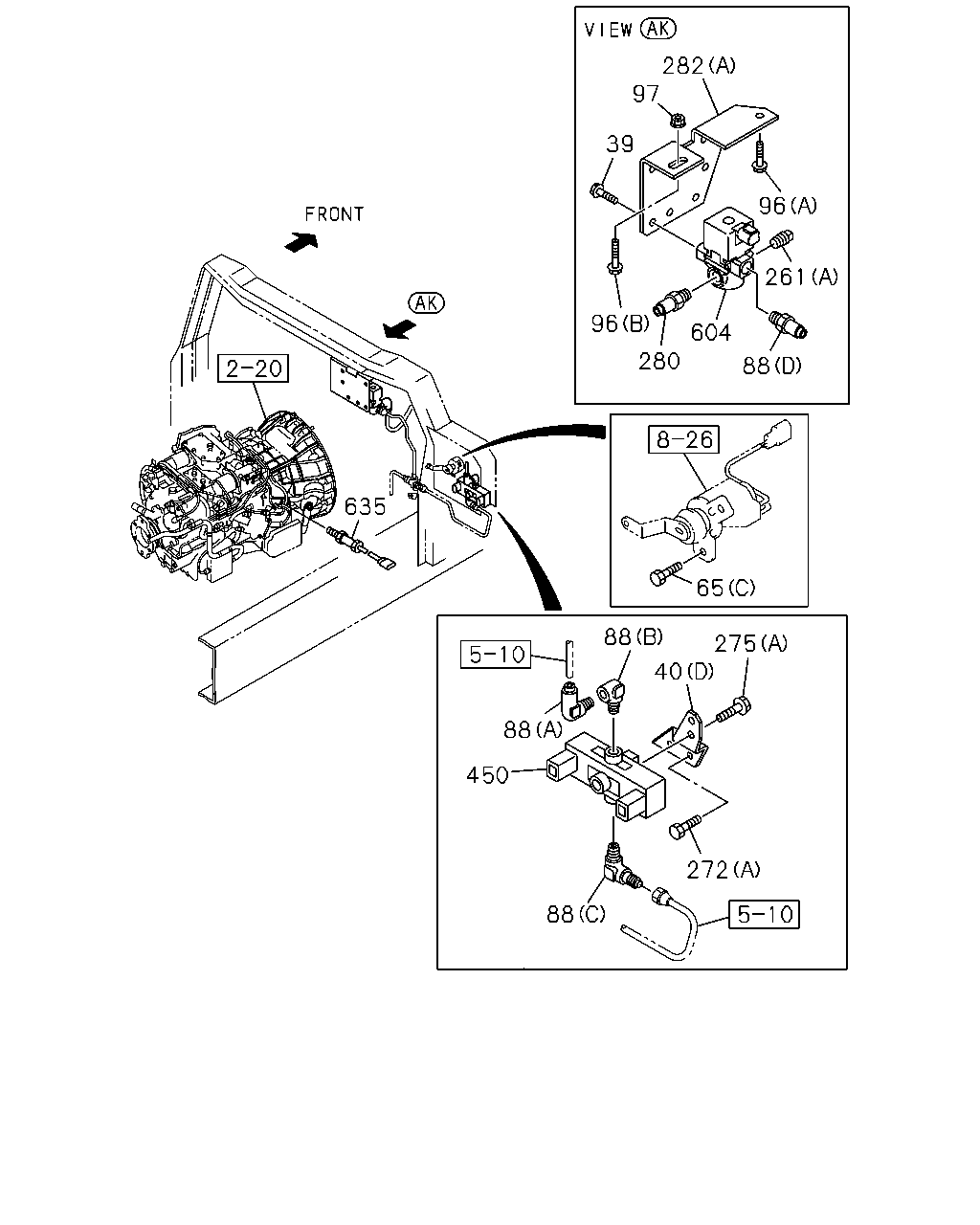

635 282 97 39 96 96 604 261 88 280 65 275 40 88 88 450 88 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	1009-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1009-
40	BRACKET; MAG VLV (A)	1-82569-425-0	01	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (A)	1-82569-425-0	01	1	1303-
40	BRACKET; MAG VLV (B)	1-82698-604-0	02	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (B)	1-82698-604-0	02	1	1303-
40	BRACKET; MAG VLV (C)	8-98069-778-0	01	1	1009-1302
65	BOLT; SOCKET FIX (C) M6X16 FLANGE	0-28050-616-0	02	1	1009-1302
65	BOLT; SOCKET FIX (C) M6X25 FLANGE	0-28050-625-0	02	1	1303-
65	BOLT; SOCKET FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	06	1	1303-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	1303-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-
88	CONNECTOR; MAG VLV (G) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1303-
88	CONNECTOR; MAG VLV (H) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (H) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1303-
88	CONNECTOR; MAG VLV (J) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (J) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1303-
88	CONNECTOR; MAG VLV (F) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	1009-1302
88	CONNECTOR; MAG VLV (M)	1-09661-073-0	01	1	1303-
88	CONNECTOR; MAG VLV (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1303-
88	CONNECTOR; MAG VLV (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1303-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-
88	CONNECTOR; MAG VLV (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1303-
88	CONNECTOR; MAG VLV (L) PT3/8 4WAY	1-09661-489-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (L) PT3/8 4WAY	1-09661-489-0	01	1	1303-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-
96	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
96	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1009-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1009-
261	PLUG; MAG VLV (B) PT3/8	9-09204-517-0	01	1	1009-1302
261	PLUG; MAG VLV SMOOTHER-G(C1W) (B) PT3/8	9-09204-517-0	01	1	1303-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1009-1106
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1009-1106
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1107-1302
261	PLUG; MAG VLV EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) PT1/4	9-99204-513-0	01	1	1107-1302
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1303-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1303-
272	BOLT; MAG VLV (A) M10X20 FLANGE	0-28651-020-0	02	1	1009-1208
272	BOLT; MAG VLV (A) M10X25 FLANGE	0-28651-025-0	02	1	1009-
272	BOLT; MAG VLV (B) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302
272	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1303-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1303-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1009-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	1009-
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1009-
450	VALVE; MAG	1-53458-378-2	01	1	1009-1302
450	VALVE; MAG	1-53458-378-2	02	1	1303-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	1009-
635	SENSOR; PICK UP,INPUT SHAFT	1-81510-736-1	01	1	1009-1302
635	SENSOR; PICK UP,INPUT SHAFT SMOOTHER-G(C1W)	1-81510-736-1	01	1	1303-

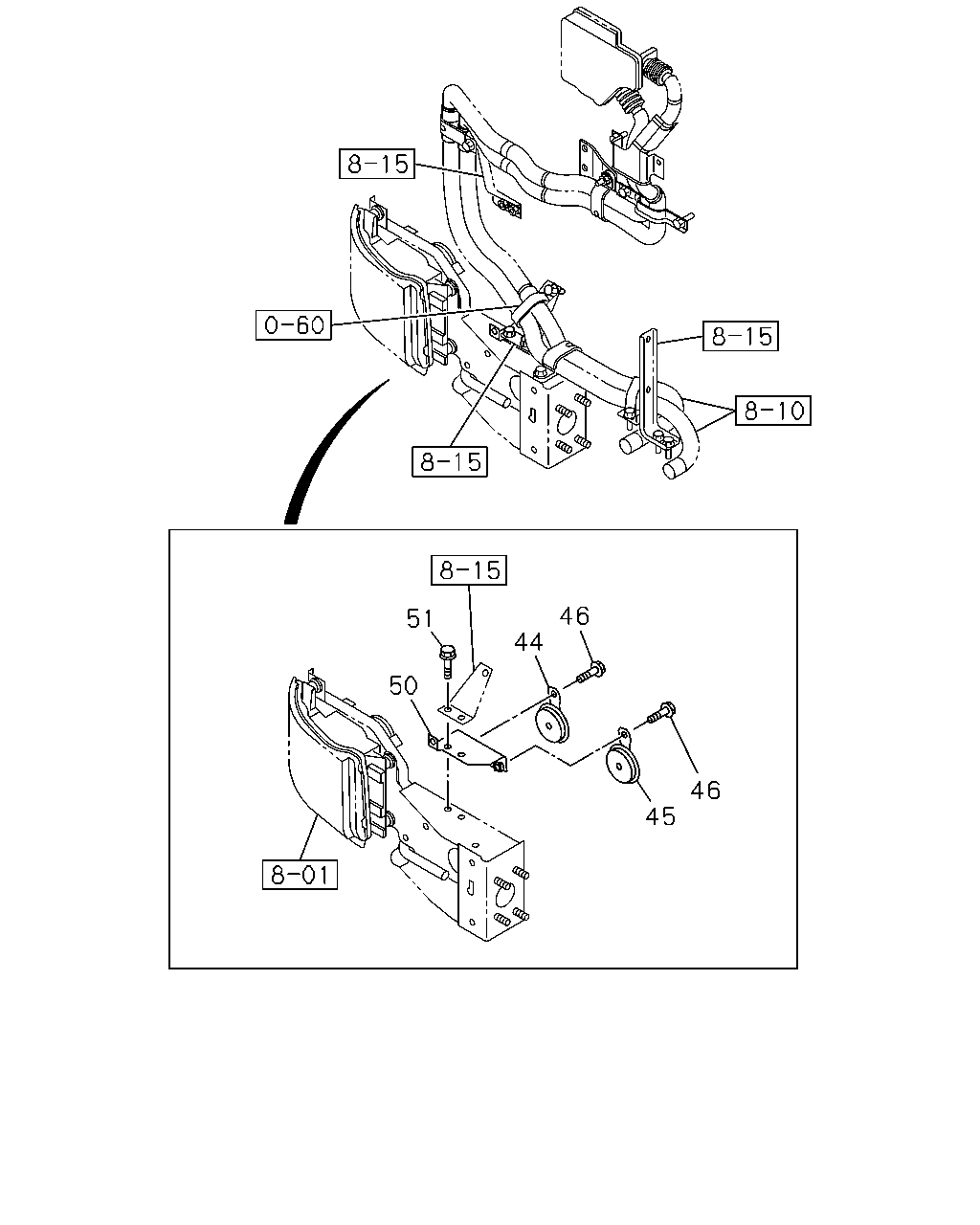

45 46 46 44 50 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	1-83410-061-1	01	1	1303-
45	HORN; LOW NOTE	1-83410-062-1	01	1	1303-
46	BOLT; HORN TO BODY M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1303-
50	BRACKET; HORN	8-98210-372-0	01	1	1303-
51	BOLT; HORN TO BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-

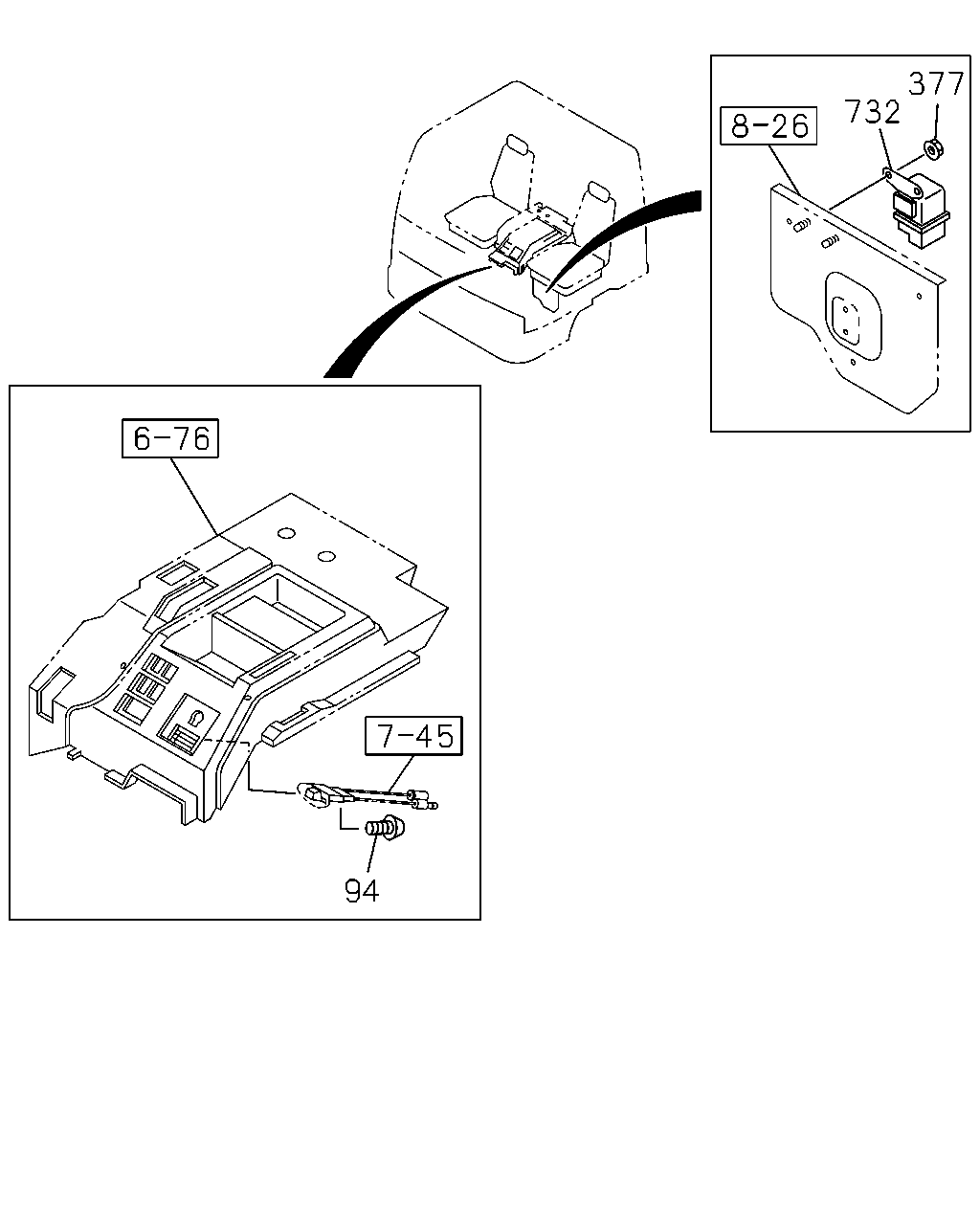

94 732 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	1009-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	1009-1302
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1303-
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	1009-1302
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1303-
732	RELAY; EDS	1-82550-337-1	01	1	1009-1302
732	RELAY; EDS SMOOTHER-G(C1W)	1-82550-337-1	01	1	1303-

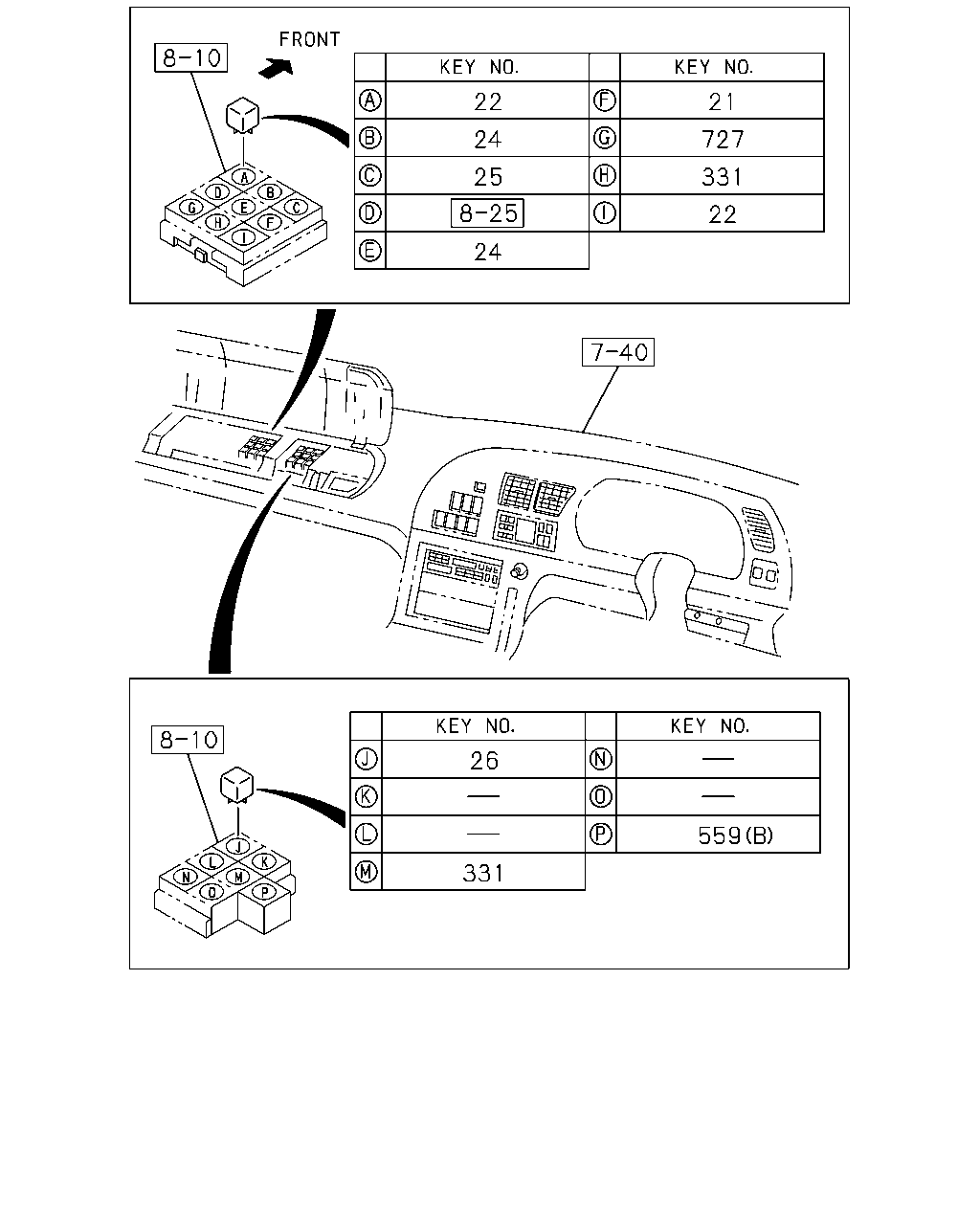

22 24 25 24 21 727 331 22 26 331 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-1302
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	1009-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	1009-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	02	1	1303-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	03	1	1009-1302
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-
559	RELAY; MAG VLV (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
559	RELAY; MAG VLV (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-1302
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-
727	RELAY; START CUT 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1306
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1307-

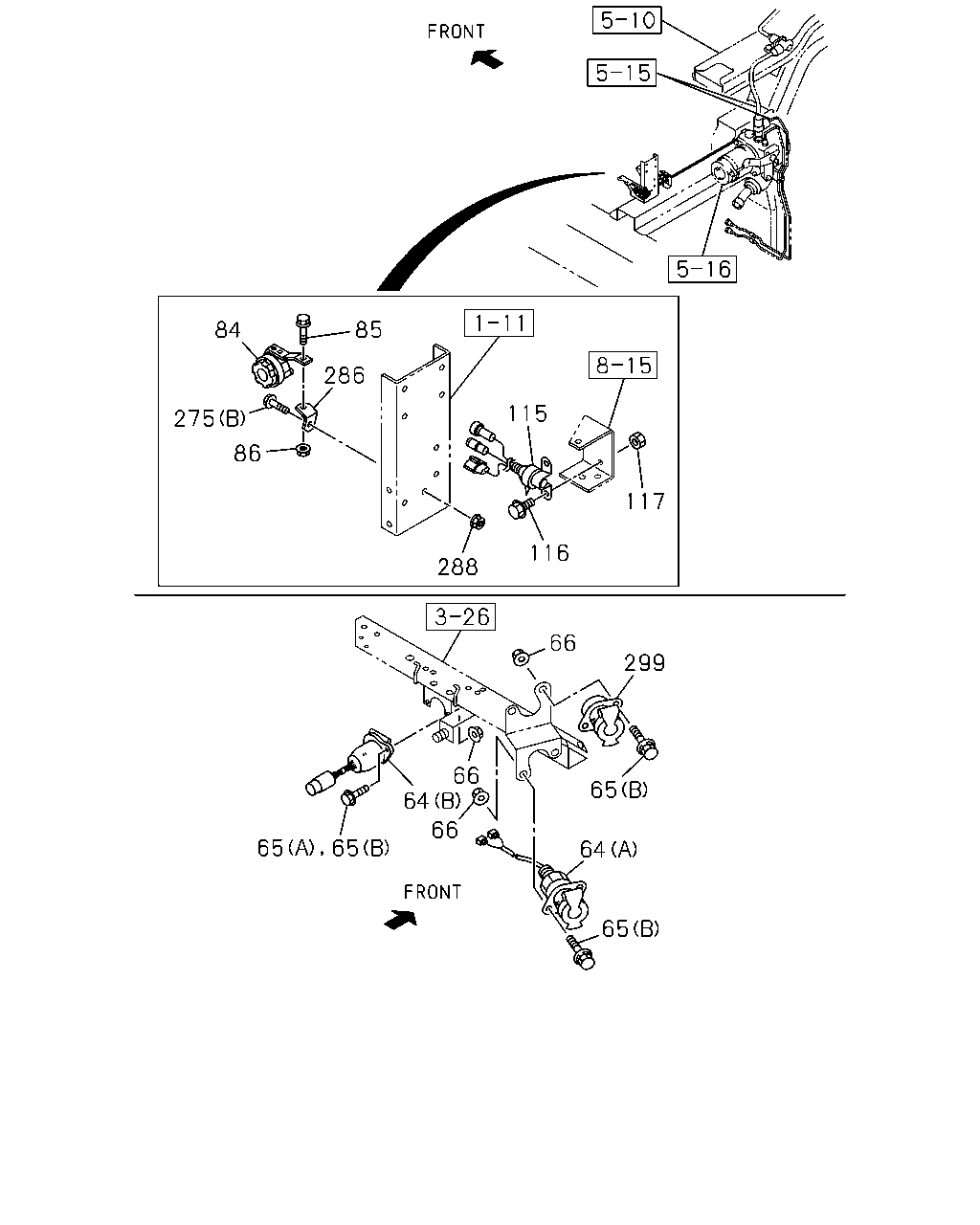

115 117 116 288 286 85 84 275 86 66 299 65 64 65 66 64 66 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	1009-
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (A) L=1200	8-98163-928-1	01	1	1009-1302
64	SOCKET; TRAILER (A) L=1200	8-98163-928-1	01	1	1303-
65	BOLT; SOCKET FIX (C) M6X16 FLANGE	0-28050-616-0	02	1	1009-1302
65	BOLT; SOCKET FIX (C) M6X25 FLANGE	0-28050-625-0	02	1	1303-
65	BOLT; SOCKET FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	06	1	1303-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	05	1	1009-1302
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	1303-
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1009-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1009-
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1009-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	1009-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	1009-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1009-1302
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1303-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1009-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
286	BRACKET	1-82699-199-0	01	1	1009-
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1009-
299	SOCKET; PARKING ANTILOCK BRAKE SYSTEM(BFA)	1-82699-396-2	01	1	1009-1302
299	SOCKET; PARKING	1-82699-396-2	01	1	1303-

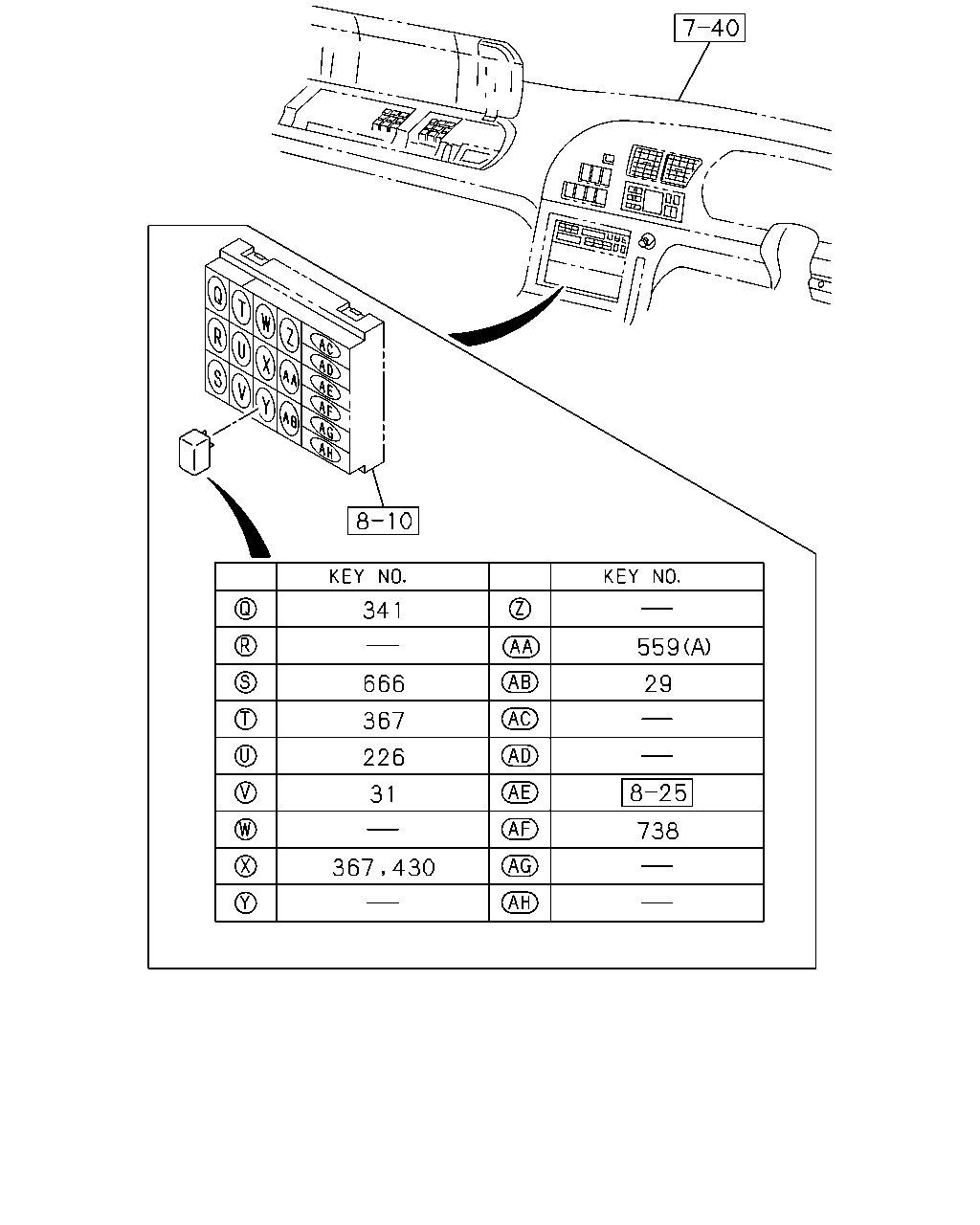

341 666 367 226 31 367 430 559 29 738

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	RELAY; HORN 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	1009-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
367	RELAY; NEUTRAL SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
430	RELAY; RANGE TRANSMISSION CONTROL CABLE TYPE(C1A) 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
559	RELAY; MAG VLV (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
559	RELAY; MAG VLV (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1009-1302
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1303-
666	RELAY; STARTER 24V 10A PANASONIC	8-97173-035-1	01	1	1009-1302
666	RELAY; STARTER SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	1303-
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	1009-

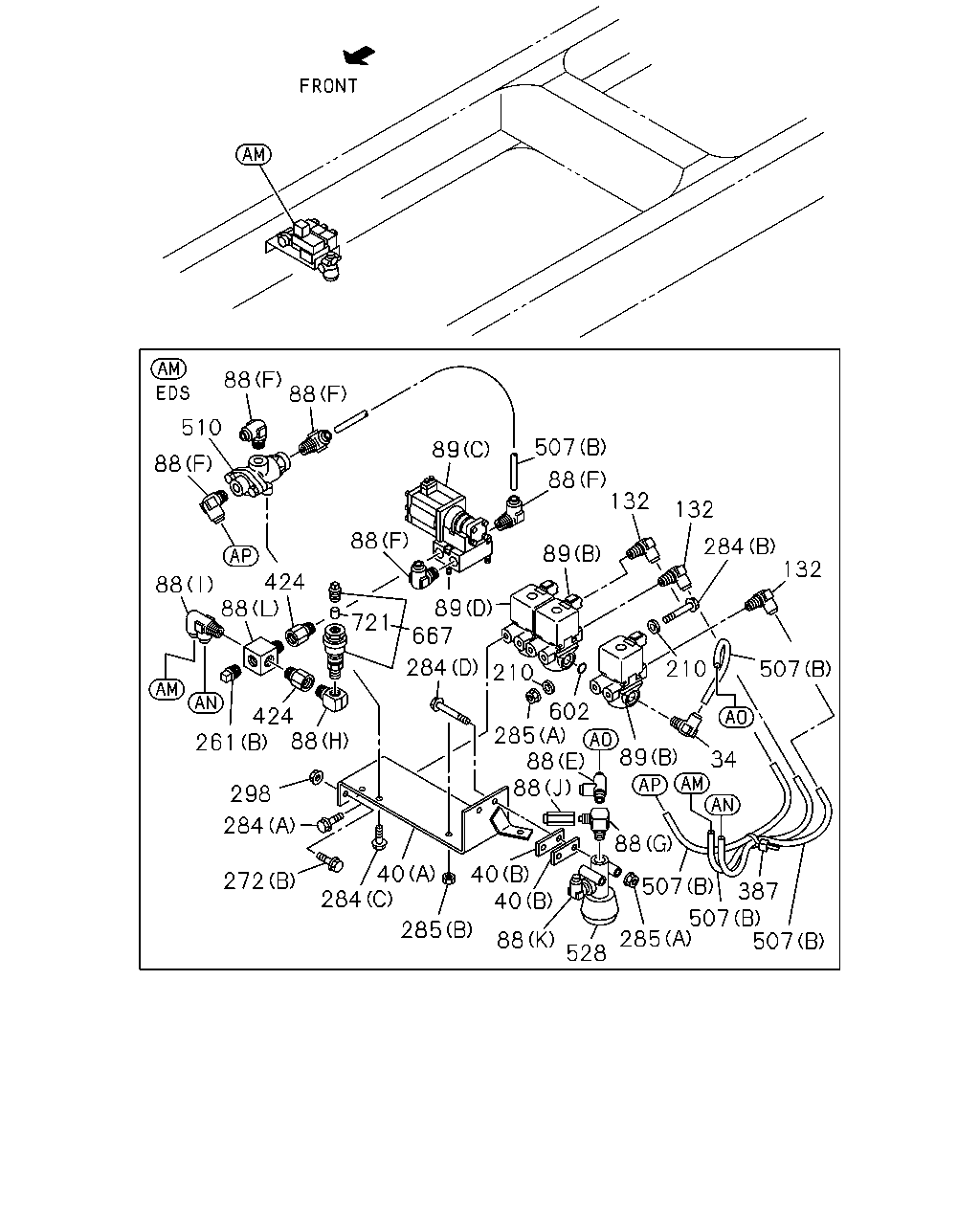

88 510 88 88 88 88 88 89 507 132 132 132 284 507 210 89 89 721 424 424 261 298 284 272 284 285 40 88 528 507 507 387 507 88 89 40 40 88 285 88 602 210 284 88 667 34 88 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1107-1302
34	CONNECTOR; MAG VLV,INL PORT DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-1302
34	CONNECTOR; MAG VLV,INL PORT DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1303-
34	CONNECTOR; MAG VLV,INL PORT DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-1302
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1303-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	1009-
40	BRACKET; MAG VLV (A)	1-82569-425-0	01	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (A)	1-82569-425-0	01	1	1303-
40	BRACKET; MAG VLV (B)	1-82698-604-0	02	1	1009-1302
40	BRACKET; MAG VLV SMOOTHER-G(C1W) (B)	1-82698-604-0	02	1	1303-
40	BRACKET; MAG VLV (C)	8-98069-778-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	1303-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-
88	CONNECTOR; MAG VLV (G) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1303-
88	CONNECTOR; MAG VLV (H) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (H) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1303-
88	CONNECTOR; MAG VLV (J) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (J) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1303-
88	CONNECTOR; MAG VLV (F) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	1009-1302
88	CONNECTOR; MAG VLV (M)	1-09661-073-0	01	1	1303-
88	CONNECTOR; MAG VLV (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1303-
88	CONNECTOR; MAG VLV (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1303-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-
88	CONNECTOR; MAG VLV (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1303-
88	CONNECTOR; MAG VLV (L) PT3/8 4WAY	1-09661-489-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (L) PT3/8 4WAY	1-09661-489-0	01	1	1303-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	1009-1205
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1009-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-094-2	01	1	1009-1302
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (D)	8-98160-652-1	01	1	1303-
89	VALVE; MAG,DIFF LOCK (B)	1-82564-095-1	02	1	1009-1302
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	1-82564-095-1	02	1	1303-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-279-1	01	1	1009-1302
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (C)	1-82564-279-1	01	1	1303-
132	CONNECTOR; OUTLET,MAG VLV DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1009-1302
132	CONNECTOR; OUTLET,MAG VLV SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1303-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1009-1302
210	WASHER; PL,BRKT SMOOTHER-G(C1W)	1-82569-266-0	04	1	1303-
261	PLUG; MAG VLV (B) PT3/8	9-09204-517-0	01	1	1009-1302
261	PLUG; MAG VLV SMOOTHER-G(C1W) (B) PT3/8	9-09204-517-0	01	1	1303-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1009-1106
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1009-1106
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1107-1302
261	PLUG; MAG VLV EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) PT1/4	9-99204-513-0	01	1	1107-1302
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1303-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1303-
272	BOLT; MAG VLV (A) M10X20 FLANGE	0-28651-020-0	02	1	1009-1208
272	BOLT; MAG VLV (A) M10X25 FLANGE	0-28651-025-0	02	1	1009-
272	BOLT; MAG VLV (B) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302
272	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1303-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	1009-1302
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	02	1	1303-
284	BOLT; MAG VLV (D) M6X60 FLANGE	0-28050-660-0	02	1	1009-1302
284	BOLT; MAG VLV SMOOTHER-G(C1W) (D) M6X60 FLANGE	0-28050-660-0	02	1	1303-
284	BOLT; MAG VLV (C) M8X12 FLANGE	0-28050-812-0	02	1	1009-1302
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X12 FLANGE	0-28050-812-0	02	1	1303-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	1009-1302
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	03	1	1303-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	1009-1302
285	NUT; MAG VLV SMOOTHER-G(C1W) (B) M5	0-91110-505-0	03	1	1303-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	1009-1302
285	NUT; MAG VLV SMOOTHER-G(C1W) (A) M6 FLANGE	0-91180-106-0	04	1	1303-
298	NUT; MAG VLV M10 FLANGE	0-91180-210-0	02	1	1009-1302
298	NUT; MAG VLV SMOOTHER-G(C1W) M10 FLANGE	0-91180-210-0	02	1	1303-
387	CLIP; BAND L=350	1-09707-183-0	01	1	1009-1302
387	CLIP; BAND SMOOTHER-G(C1W) L=350	1-09707-183-0	01	1	1303-
424	ADAPTER PT3/8	1-09664-210-0	02	1	1009-1302
424	ADAPTER SMOOTHER-G(C1W) PT3/8	1-09664-210-0	02	1	1303-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	1009-1302
507	TUBE; NYLON SMOOTHER-G(C1W) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	1303-
510	VALVE; CHECK	1-48410-531-1	01	1	1009-1302
510	VALVE; CHECK SMOOTHER-G(C1W)	1-48410-531-1	01	1	1303-
528	VALVE; PRESSURE REDUCING	1-48410-744-0	01	1	1009-1302
528	VALVE; PRESSURE REDUCING SMOOTHER-G(C1W)	1-48410-744-0	01	1	1303-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1009-1302
602	GASKET; MAG VLV SMOOTHER-G(C1W) ID=16.8	9-09565-117-0	02	1	1303-
667	LUBRICATION	8-98063-001-0	01	1	1009-1302
667	LUBRICATION SMOOTHER-G(C1W)	8-98063-001-0	01	1	1303-
721	ELEMENT; LUBRICATION	1-33779-028-0	01	1	1009-1302
721	ELEMENT; LUBRICATION SMOOTHER-G(C1W)	1-33779-028-0	01	1	1303-

90 34 34 89 261 603 282 91 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1107-1302
34	CONNECTOR; MAG VLV,INL PORT DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-1302
34	CONNECTOR; MAG VLV,INL PORT DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1303-
34	CONNECTOR; MAG VLV,INL PORT DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-1302
34	CONNECTOR; MAG VLV,INL PORT SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1303-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	1009-1205
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1009-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-094-2	01	1	1009-1302
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (D)	8-98160-652-1	01	1	1303-
89	VALVE; MAG,DIFF LOCK (B)	1-82564-095-1	02	1	1009-1302
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (B)	1-82564-095-1	02	1	1303-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-279-1	01	1	1009-1302
89	VALVE; MAG,DIFF LOCK SMOOTHER-G(C1W) (C)	1-82564-279-1	01	1	1303-
90	BOLT; MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	1303-
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	1009-
261	PLUG; MAG VLV (B) PT3/8	9-09204-517-0	01	1	1009-1302
261	PLUG; MAG VLV SMOOTHER-G(C1W) (B) PT3/8	9-09204-517-0	01	1	1303-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1009-1106
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1009-1106
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1107-1302
261	PLUG; MAG VLV EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) PT1/4	9-99204-513-0	01	1	1107-1302
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1303-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1303-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	1009-
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1009-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	02	1	1009-1302
284	BOLT; MAG VLV SMOOTHER-G(C1W) (B) M6X50 FLANGE	0-28050-650-0	02	1	1303-
284	BOLT; MAG VLV (D) M6X60 FLANGE	0-28050-660-0	02	1	1009-1302
284	BOLT; MAG VLV SMOOTHER-G(C1W) (D) M6X60 FLANGE	0-28050-660-0	02	1	1303-
284	BOLT; MAG VLV (C) M8X12 FLANGE	0-28050-812-0	02	1	1009-1302
284	BOLT; MAG VLV SMOOTHER-G(C1W) (C) M8X12 FLANGE	0-28050-812-0	02	1	1303-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	1009-1302
284	BOLT; MAG VLV SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	03	1	1303-
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	1009-

717 724 722 718 717 741 290 289 718

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
289	BOLT SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	1303-
290	NUT M8 FLANGE	0-91180-108-0	02	1	1009-1302
290	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	1303-
717	FILTER; MAG VLV	8-98092-703-0	01	1	1009-1302
717	FILTER; MAG VLV SMOOTHER-G(C1W)	8-98092-703-0	01	1	1303-
718	CONNECTOR; FILTER (A) DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	1009-1302
718	CONNECTOR; FILTER (B) DIN8 & M16 ELBOW	1-09661-531-0	01	1	1009-1302
718	CONNECTOR; FILTER SMOOTHER-G(C1W) (B) DIN8 & M16 ELBOW	1-09661-531-0	01	1	1303-
722	ELEMENT; AIR FILTER	1-33779-040-0	01	1	1009-1302
722	ELEMENT; AIR FILTER SMOOTHER-G(C1W)	1-33779-040-0	01	1	1303-
724	GASKET; AIR FILTER	5-09623-075-0	01	1	1009-1302
724	GASKET; AIR FILTER SMOOTHER-G(C1W)	5-09623-075-0	01	1	1303-
741	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	1303-

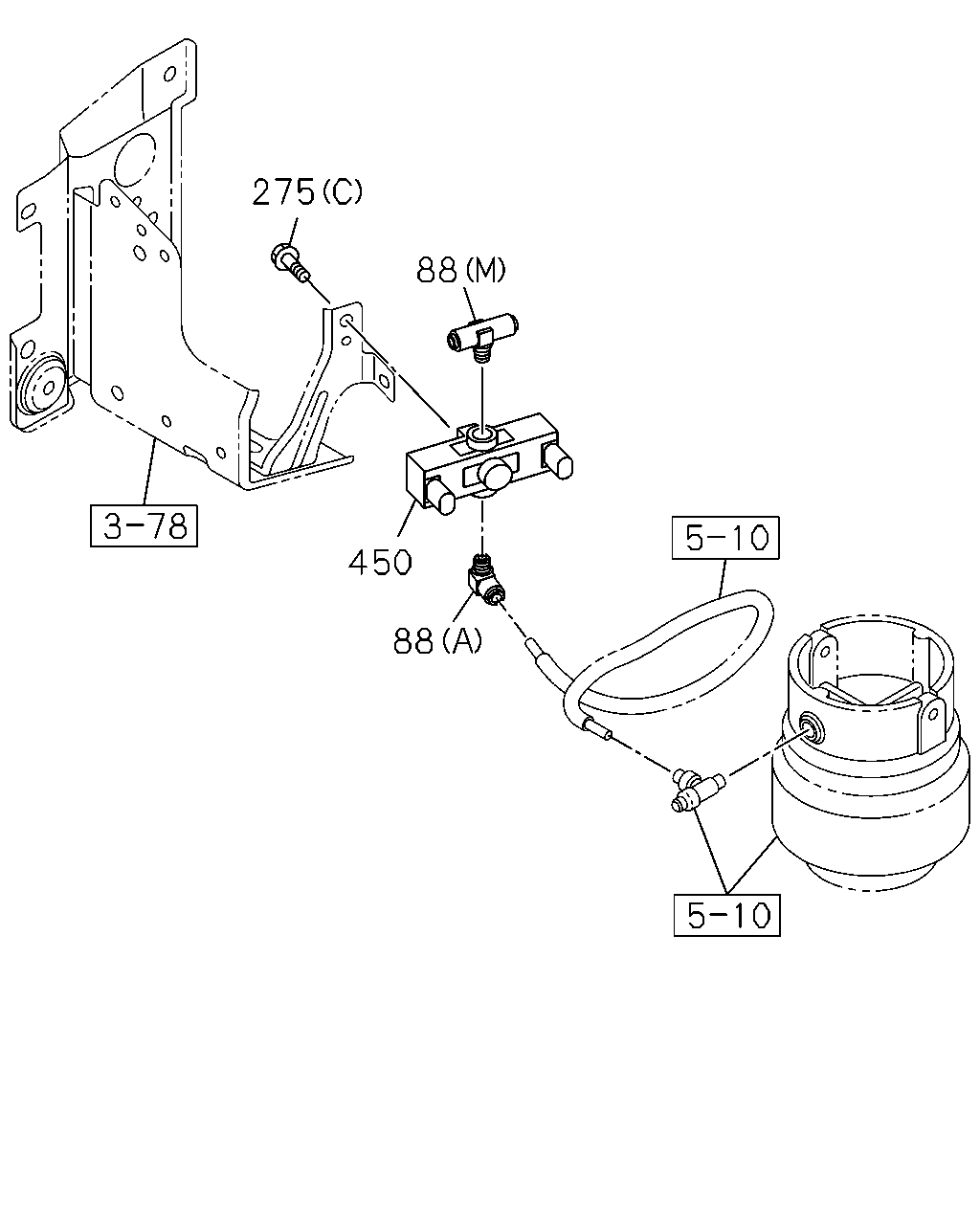

275 88 450 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	1303-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-
88	CONNECTOR; MAG VLV (G) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (G) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1303-
88	CONNECTOR; MAG VLV (H) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (H) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1303-
88	CONNECTOR; MAG VLV (J) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (J) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1303-
88	CONNECTOR; MAG VLV (F) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	1009-1302
88	CONNECTOR; MAG VLV (M)	1-09661-073-0	01	1	1303-
88	CONNECTOR; MAG VLV (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1303-
88	CONNECTOR; MAG VLV (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1303-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	1009-1302
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1303-
88	CONNECTOR; MAG VLV (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1303-
88	CONNECTOR; MAG VLV (L) PT3/8 4WAY	1-09661-489-0	01	1	1009-1302
88	CONNECTOR; MAG VLV SMOOTHER-G(C1W) (L) PT3/8 4WAY	1-09661-489-0	01	1	1303-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1303-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1009-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
450	VALVE; MAG	1-53458-378-2	01	1	1009-1302
450	VALVE; MAG	1-53458-378-2	02	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
