1 |

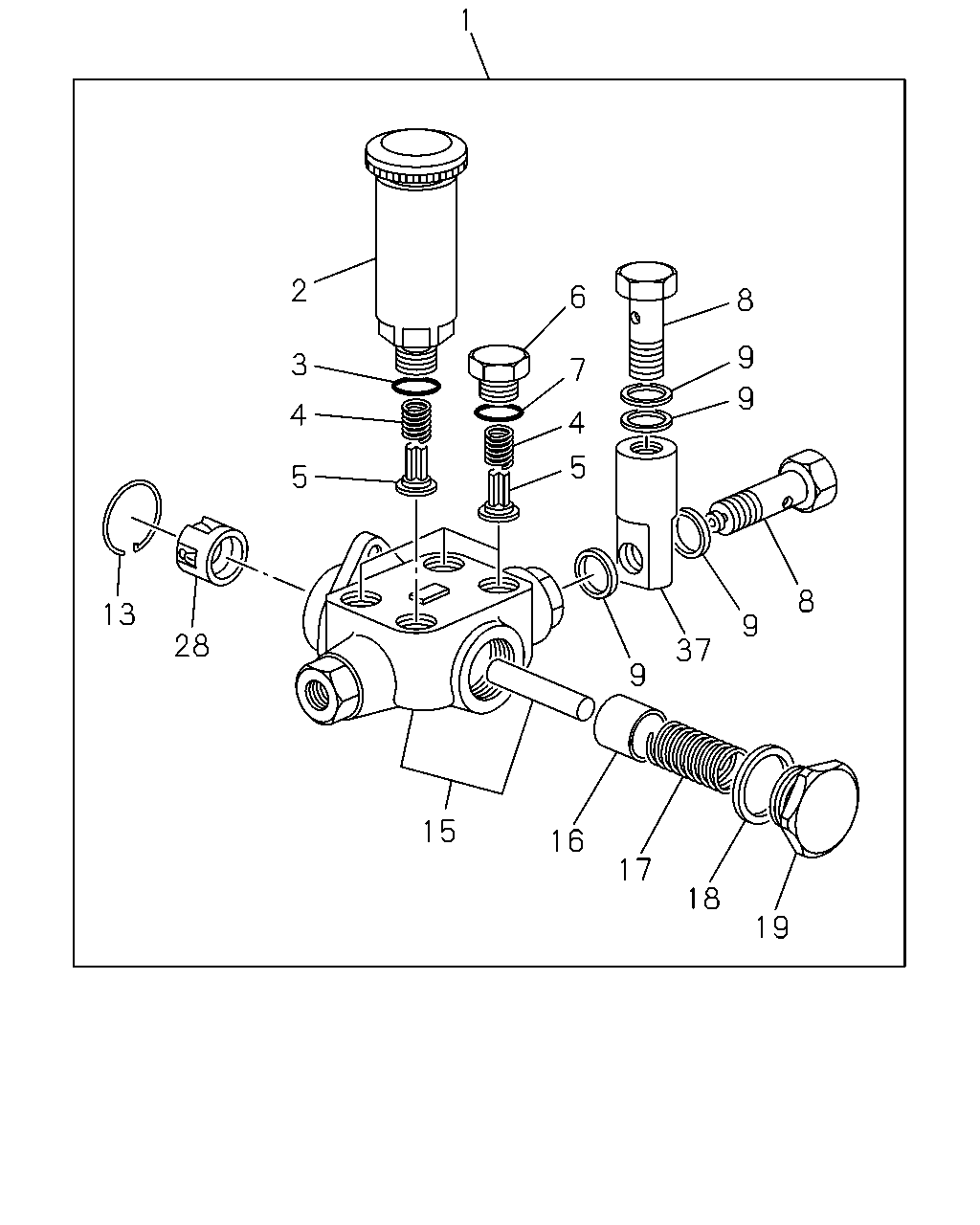

PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-15750-177-0 |
01 |
1 |
- |
| |
2 |
PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-15761-006-0 |
01 |
1 |
- |
| |
3 |
GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-19623-016-0 |
01 |
1 |
- |
| |
4 |
SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
9-81351-702-0 |
04 |
1 |
- |
| |
5 |
VALVE; FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-15755-002-0 |
04 |
1 |
- |
| |
6 |
PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-15759-009-0 |
03 |
1 |
- |
| |
7 |
GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
9-81355-031-0 |
03 |
1 |
- |
| |
8 |
BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-15759-011-0 |
02 |
1 |
- |
| |
9 |
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-09630-085-0 |
04 |
1 |
- |
| |
13 |
RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
9-81355-062-0 |
01 |
1 |
- |
| |
15 |
HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-15751-042-0 |
01 |
1 |
- |
| |
16 |
PISTON; FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-15752-002-0 |
01 |
1 |
- |
| |
17 |
SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-15753-004-0 |
01 |
1 |
- |
| |
18 |
GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-15759-042-0 |
01 |
1 |
- |
| |
19 |
PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
8-94171-185-0 |
01 |
1 |
- |
| |
28 |
TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-15754-006-0 |
01 |
1 |
- |
| |
37 |
EYE; FUEL OUTLET,FUEL FEED PUMP
ASM PART: A = 1-15603-209-1, B = 1-15603-370-1
|
1-15759-068-0 |
01 |
1 |
- |
