◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#69577) — 715 parça
çizim 136877
1 1 1 1 178 178 178 178 178 178 178 503 178 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(A) ID=29 OD=39 L=40 		1-09337-013-0 02 1 1009-
1 SLEEVE; RUBBER
(D) ID=38.1 L=25 		1-09337-052-0 01 1 1009-
1 SLEEVE; RUBBER
(B) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1009-
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=38.1 L=50 		5-09360-835-0 01 1 1009-1302
1 SLEEVE; RUBBER
(C) ID=38.1 L=50 		5-09360-835-0 01 1 1303-
178 GROMMET; HARNESS
(F) ID=18 OD=23 T=12 		1-09332-035-0 01 1 1303-
178 GROMMET; HARNESS
EXC. SMOOTHER-G(C1W) (G) 		1-82698-551-0 01 1 1303-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 1009-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1009-
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 01 1 1009-1302
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1303-
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 1009-1302
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1303-
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=28 OD=35 T=17 		9-09956-256-2 04 1 1009-1302
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 04 1 1303-
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (D) ID=19 OD=23 T=18 		9-09956-130-1 01 1 1009-1302
178 GROMMET; HARNESS
(H) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1303-
178 GROMMET; HARNESS
SMOOTHER-G(C1W) (H) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1303-
503 CONNECTOR
EXC. SMOOTHER-G(C1W) 		1-82690-666-0 01 1 1303-
530 SEAL; HARNESS
SMOOTHER-G(C1W) 180X40 		1-72498-019-1 03 1 1303-
530 SEAL; HARNESS
EXC. SMOOTHER-G(C1W) 180X40 		1-72498-019-1 01 1 1303-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1009-1302
530 SEAL; HARNESS
180X40 		1-72498-019-1 13 1 1303-
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 1009-

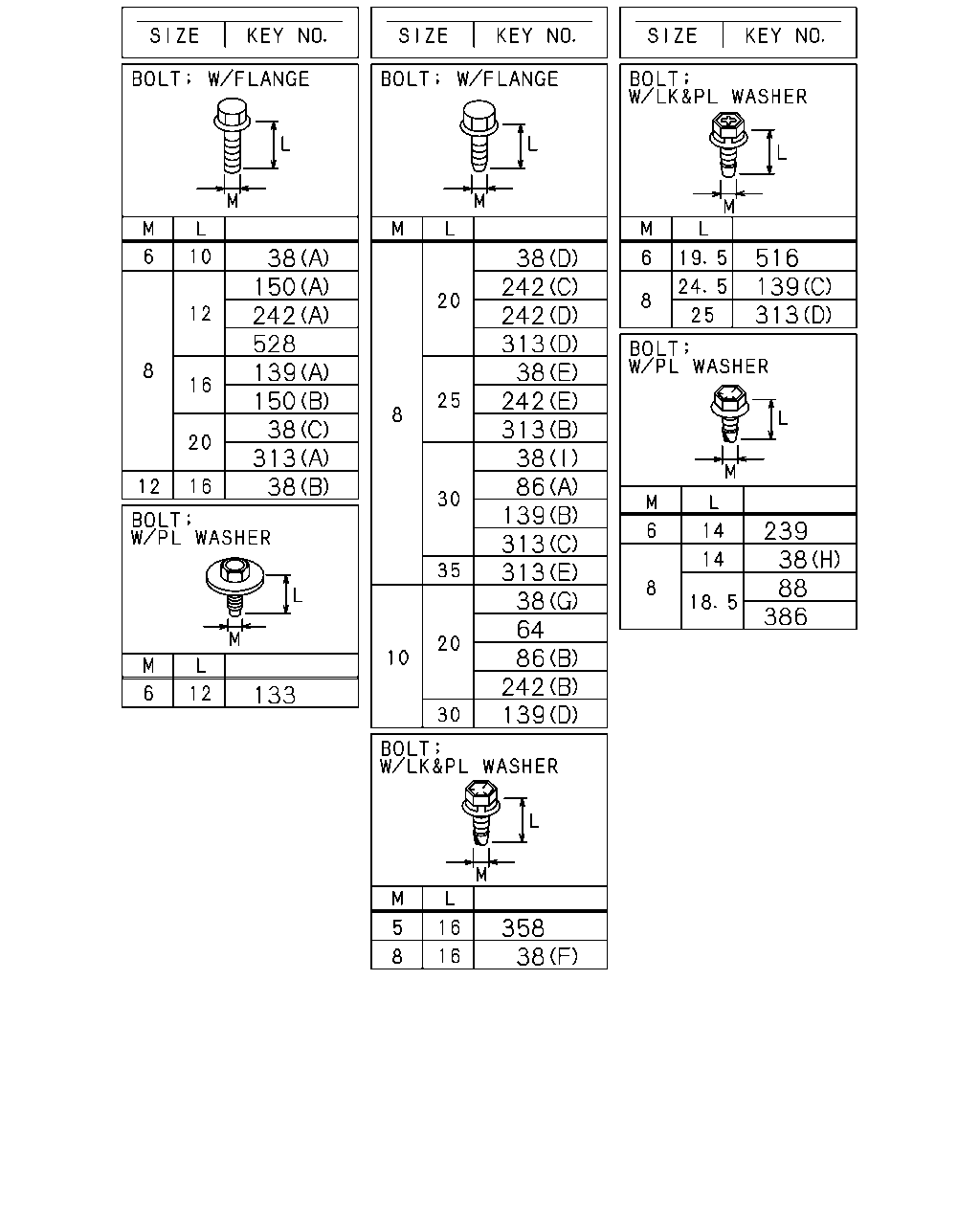

çizim 137024
38 242 150 528 150 139 38 38 313 133 38 242 242 313 242 38 313 86 38 139 313 313 38 64 86 242 139 516 139 313 239 386 88 38 358 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 03 1 1009-1302
38 BOLT; CLIP,HARNESS
(I) M8X30 FLANGE 		0-28650-830-0 04 1 1303-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1303
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1303
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1303
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1303
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1304-1304
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1304-1304
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 03 1 1305-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 03 1 1305-
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-
38 BOLT; CLIP,HARNESS
(A) M6X10 FLANGE 		0-28050-610-0 01 1 1009-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 06 1 1009-1302
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1303-1303
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 03 1 1303-1304
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1305-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1305-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1305-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 05 1 1009-1302
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (D) M8X20 FLANGE 		0-28650-820-0 01 1 1303-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1303-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1302
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (E) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1303-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1303-
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (E) M8X25 FLANGE 		0-28650-825-0 01 1 1303-
38 BOLT; CLIP,HARNESS
(G) M10X20 FLANGE 		0-28751-020-0 01 1 1009-1302
38 BOLT; CLIP,HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (G) M10X20 FLANGE 		0-28751-020-0 01 1 1303-
38 BOLT; CLIP,HARNESS
(B) M12X16 FLANGE 		1-09044-079-0 01 1 1009-1105
38 BOLT; CLIP,HARNESS
(B) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 1009-1201
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-1302
38 BOLT; CLIP,HARNESS
SMOOTHER-G(C1W) (H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1303-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
38 BOLT; CLIP,HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M8X20 FLANGE 		0-28650-820-0 05 1 1303-1303
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 05 1 1304-1304
38 BOLT; CLIP,HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M8X20 FLANGE 		0-28650-820-0 05 1 1304-1304
38 BOLT; CLIP,HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M8X20 FLANGE 		0-28650-820-0 05 1 1305-
64 SCREW; CLIP
M10X20 FLANGE 		0-28751-020-0 01 1 1009-1302
64 SCREW; CLIP
SMOOTHER-G(C1W) M10X20 FLANGE 		0-28751-020-0 01 1 1303-
86 BOLT; CLIP BRKT
SMOOTHER-G(C1W) (B) M10X20 FLANGE 		0-28751-020-0 01 1 1303-
86 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1009-1302
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1303-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1009-
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1112-
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 03 1 1009-1111
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1112-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1009-1302
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1009-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1303-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1303-
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 05 1 1009-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 07 1 1009-
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1009-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1009-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 04 1 1009-1302
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1303-
242 BOLT; BRKT,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 05 1 1009-1302
242 BOLT; BRKT,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1303-
242 BOLT; BRKT,HARNESS
(B) M10X20 FLANGE 		0-28651-020-0 01 1 1009-1302
242 BOLT; BRKT,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1304-1304
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 03 1 1305-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 03 1 1009-1302
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 02 1 1303-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 1303-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 06 1 1009-1302
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 05 1 1303-1303
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1009-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1303-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1009-
528 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 1009-1302
528 BOLT; CONNECTOR
SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 01 1 1303-
çizim 137144
16 470 380 51 81 369 104 206 212 305 369 16 102 111 142 171 194 208 305 14 194 212 14 16 48 102 194 380 16 33 51 142 16 142 16 67
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1009-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1009-1010
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1009-1010
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1011-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 07 1 1305-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 1305-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 03 1 1009-
16 CLIP; HARNESS
(AI) ID=18-24 L=18 		1-09709-294-0 02 1 1009-1302
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1303-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1302
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 02 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (Q) L=350 		1-09707-183-0 02 1 1303-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1302
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 1103-1302
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303-
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=11 L=20 		0-95235-035-0 01 1 1303-
16 CLIP; HARNESS
(C) T=0.8 ID=16 L=20 		0-95235-535-0 02 1 1009-
16 CLIP; HARNESS
(C) T=1.2 ID=19 L=20 		0-95235-836-0 01 1 1009-1302
16 CLIP; HARNESS
(AO) ID=18 L=38 H=23 		1-09701-147-0 01 1 1303-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1009-
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 05 1 1009-1302
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 03 1 1303-
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 02 1 1009-1302
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 02 1 1009-1302
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1303-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1303-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 1009-1302
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1303-1303
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 1304-1304
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 05 1 1305-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 04 1 1009-1302
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 08 1 1303-1304
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 1305-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 08 1 1009-1010
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 09 1 1011-1302
16 CLIP; HARNESS
(AL) L=36 		8-94224-891-1 01 1 1303-
16 CLIP; HARNESS
(AG) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1302
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1303-
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 1009-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1303
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS

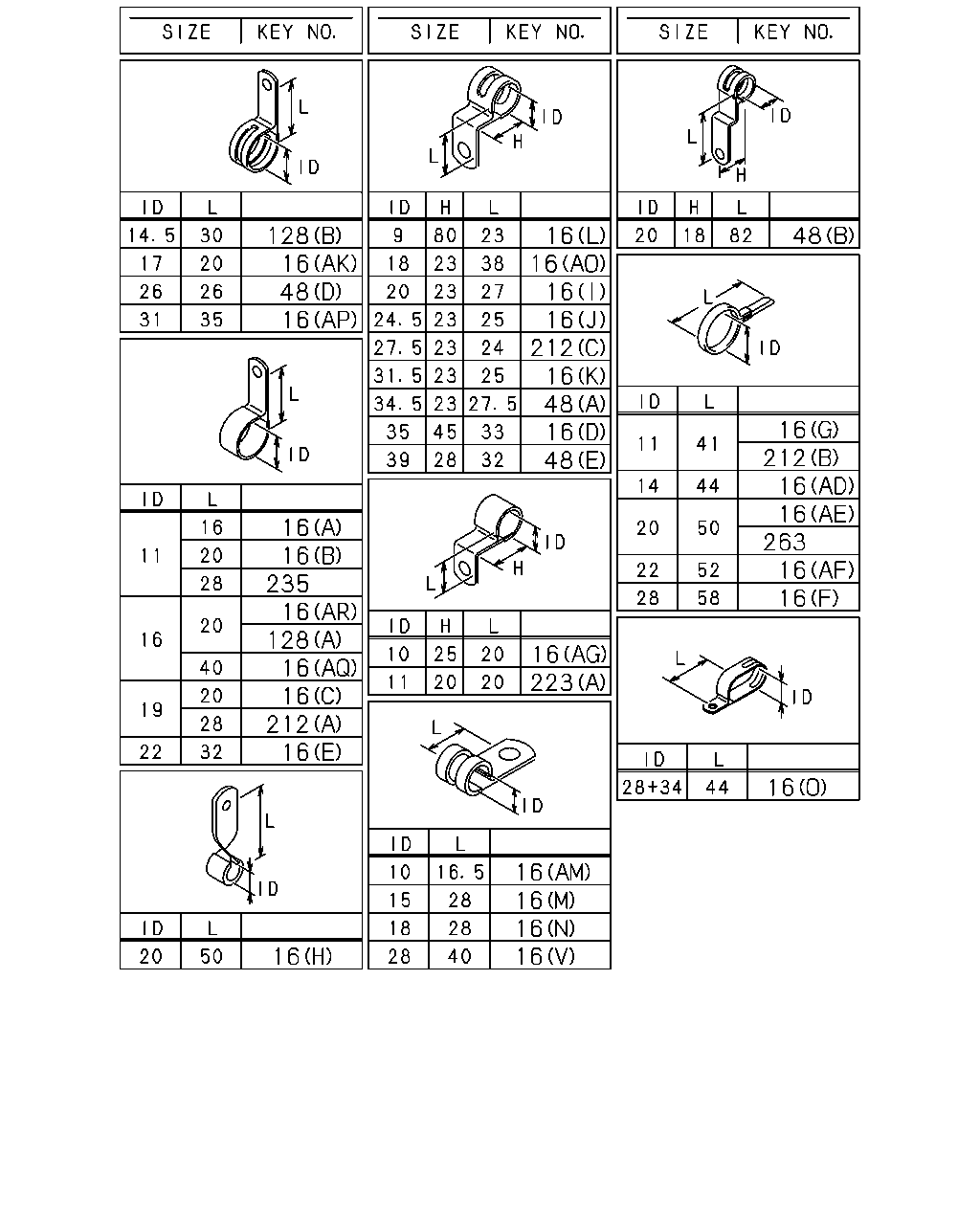

(I) ID=20 H=23 L=27 		1-09700-861-0 02 1 1009-1303
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1303-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1009-1302
16 CLIP; HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 1303-
16 CLIP; HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303-
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1009-1302
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1303-
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (S) OD=9 H=6 		1-09709-178-0 01 1 1303-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1303-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1303-
16 CLIP; HARNESS
(N) ID=18 L=28 		1-09701-067-0 03 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (AR) ID=16 L=20 		0-95235-536-0 01 1 1303-
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 1009-
16 CLIP; HARNESS
(V) ID=28 L=40 		1-09701-261-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AG) ID=10 H=25 L=20 		1-09700-519-0 01 1 1303-
16 CLIP; HARNESS
(O) ID=28+34 L=44 		1-09701-311-0 01 1 1009-1302
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1303-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1009-1302
16 CLIP; HARNESS
INSPECTION LAMP<T95> (P) L=180 		1-09707-162-1 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (J) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 1303-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 05 1 1009-1302
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 04 1 1303-
16 CLIP; HARNESS
(R) W/SPONGE RUBBER 		1-09709-150-0 01 1 1009-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (S) OD=9 H=6 		1-09709-178-0 06 1 1303-1506
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (S) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (S) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 06 1 1009-1302
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1303-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 07 1 1009-1302
16 CLIP; HARNESS
(V) ID=28 L=40 		1-09701-261-0 01 1 1303-
16 CLIP; HARNESS
(T) OD=9 H=13.5 		1-09709-180-0 01 1 1009-
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1302
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1302
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 1303-
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 1303-
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 03 1 1009-
16 CLIP; HARNESS
(AI) ID=18-24 L=18 		1-09709-294-0 01 1 1009-1302
16 CLIP; HARNESS
(AI) ID=18-24 L=18 		1-09709-294-0 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 1009-1302
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=250 		5-09707-030-1 03 1 1009-1302
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 10 1 1009-1205
16 CLIP; HARNESS
(X) L=250 		8-98216-430-0 10 1 1206-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (AQ) ID=16 L=40 		0-95235-576-0 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1009-1102
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1103-1302
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (X) L=250 		5-09707-030-1 02 1 1103-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (S) OD=9 H=6 		1-09709-178-0 07 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 05 1 1009-1302
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 1303-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 1009-1302
16 CLIP; HARNESS
(N) ID=18 L=28 		1-09701-067-0 03 1 1303-
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1009-1302
16 CLIP; HARNESS
(AP) ID=31 L=35 		1-09700-329-1 01 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AP) ID=31 L=35 		1-09700-329-1 01 1 1303-
16 CLIP; HARNESS
(AL) L=36 		8-94224-891-1 01 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (Y) L=140 		5-09707-031-1 03 1 1303-
16 CLIP; HARNESS
(AB) ID=14-20 		8-97061-603-0 03 1 1009-
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1009-1302
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (C) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1303-
16 CLIP; HARNESS
(AC) OD=9 H=6 		8-97368-793-0 02 1 1009-
16 CLIP; HARNESS
(AK) ID=17 L=20 		8-97619-251-0 01 1 1009-1302
16 CLIP; HARNESS
(AJ) L=251 		8-97619-917-0 01 1 1009-
16 CLIP; HARNESS
(AJ) L=251 		8-97619-917-0 04 1 1303-
16 CLIP; HARNESS
(AM) ID=10 L=16.5 		8-98082-034-0 02 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AI) ID=18-24 L=18 		1-09709-294-0 01 1 1303-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 01 1 1009-1302
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 02 1 1303-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 01 1 1009-1302
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 04 1 1303-1303
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 02 1 1304-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 02 1 1304-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 04 1 1009-1302
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1303-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 01 1 1009-1302
16 CLIP; HARNESS
(AM) ID=10 L=16.5 		8-98082-034-0 02 1 1303-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 1009-1302
16 CLIP; HARNESS
(X) L=250 		8-98216-430-0 10 1 1303-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16 		0-95235-025-0 02 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (Q) L=350 		1-09707-183-0 01 1 1303-1303
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (Q) L=350 		1-09707-183-0 01 1 1303-1304
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (Q) L=350 		1-09707-183-0 01 1 1303-1304
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (Q) L=350 		1-09707-183-0 01 1 1305-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AN) L=382 		1-09707-196-0 03 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) T=1.2 ID=19 L=20 		0-95235-836-0 01 1 1303-
16 CLIP; HARNESS
(C) T=1.2 ID=19 L=20 		0-95235-836-0 01 1 1303-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (X) L=250 		5-09707-030-1 01 1 1009-1302
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1303-1303
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1303-1303
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1303-
33 CLIP; HARNESS,VLV
L=180 		1-09707-162-1 01 1 1009-1302
33 CLIP; HARNESS,VLV
SMOOTHER-G(C1W) L=180 		1-09707-162-1 01 1 1303-
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (A) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1303-
48 CLIP; FRAME HARNESS
(E) ID=39 H=28 L=32 		1-09701-263-0 03 1 1303-
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (D) ID=26 L=26 		1-09701-236-0 01 1 1303-
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1009-1302
48 CLIP; FRAME HARNESS
(E) ID=39 H=28 L=32 		1-09701-263-0 01 1 1303-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1009-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 06 1 1009-1302
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1303-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 07 1 1009-1302
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 1303-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1009-1302
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 1303-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 1009-1302
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 1303-
67 CLIP; BAND,HARNESS,CLU SW
TRANSMISSION CONTROL CABLE TYPE(C1A) L=140 		5-09707-031-1 01 1 1303-
81 CLIP; HARNESS
L=140 		5-09707-031-1 04 1 1009-1302
102 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 1009-1302
102 CLIP; BAND
SMOOTHER-G(C1W) (A) L=250 		5-09707-030-1 01 1 1303-
102 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 1303-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 1009-1302
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 04 1 1009-1302
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 02 1 1303-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 1009-1302
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 1009-1207
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1208-
142 CLIP; HARNESS,ENG
(B) L=250 		5-09707-030-1 02 1 1009-1205
142 CLIP; HARNESS,ENG
(B) L=250 		8-98216-430-0 02 1 1206-
142 CLIP; HARNESS,ENG
(C) L=251 		8-97619-917-0 01 1 1009-
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 05 1 1009-1302
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 02 1 1303-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 1009-
194 CLIP; BAND
(C) L=350 		1-09707-183-0 05 1 1009-1202
194 CLIP; BAND
(C) L=350 		1-09707-183-0 06 1 1203-1302
194 CLIP; BAND
(C) L=350 		1-09707-183-0 03 1 1303-
194 CLIP; BAND
(B) L=250 		5-09707-030-1 01 1 1009-1302
194 CLIP; BAND
SMOOTHER-G(C1W) (B) L=250 		5-09707-030-1 07 1 1303-
194 CLIP; BAND
(B) L=250 		5-09707-030-1 06 1 1009-1302
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 1009-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=250 		5-09707-030-1 01 1 1009-1302
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 1303-
212 CLIP; HORN HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 1009-1302
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1009-1302
212 CLIP; HORN HARNESS
(C) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 1009-1302
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 1009-1302
212 CLIP; HORN HARNESS
(E) L=140 		5-09707-031-1 01 1 1009-1302
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 1009-1302
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 04 1 1303-
369 CLIP; BAND EDS HARNESS
(A) L=250 		5-09707-030-1 01 1 1009-1302
369 CLIP; BAND EDS HARNESS
(B) L=140 		5-09707-031-1 01 1 1303-
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 01 1 1303-
380 CLIP; EARTH HARNESS
(A) L=250 		5-09707-030-1 01 1 1009-1302
380 CLIP; EARTH HARNESS
(A) L=250 		5-09707-030-1 02 1 1303-
470 CLIP; HARNESS,LICENSE LAMP
L=250 		5-09707-030-1 03 1 1009-1111
470 CLIP; HARNESS,LICENSE LAMP
L=250 		5-09707-030-1 05 1 1112-

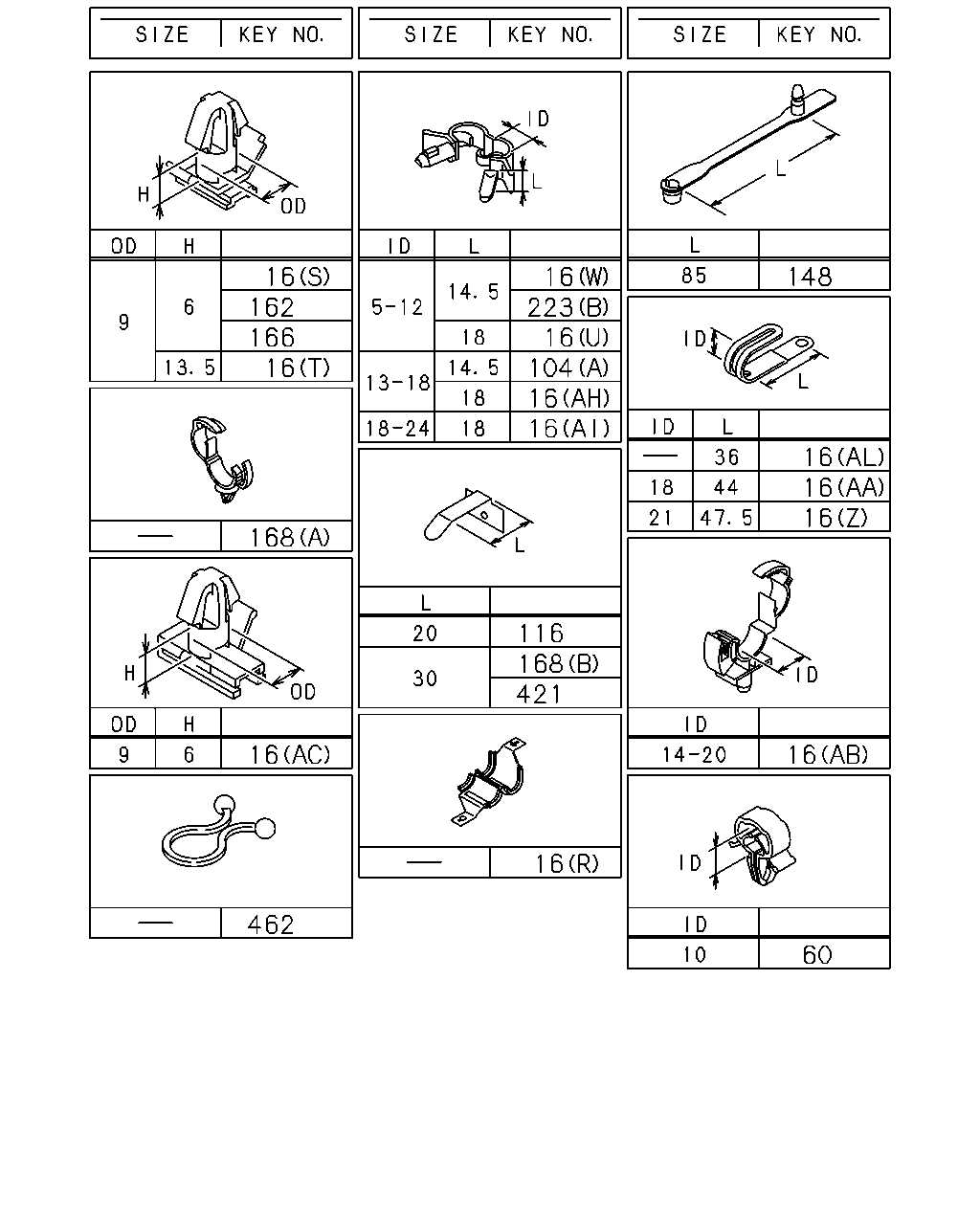

çizim 137193
60 16 16 16 16 148 16 223 104 16 16 116 168 421 16 462 16 168 16 166 162 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 07 1 1305-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 1305-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 03 1 1009-
16 CLIP; HARNESS
(AI) ID=18-24 L=18 		1-09709-294-0 02 1 1009-1302
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1303-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1302
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 02 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (Q) L=350 		1-09707-183-0 02 1 1303-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1302
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 1103-1302
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303-
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=11 L=20 		0-95235-035-0 01 1 1303-
16 CLIP; HARNESS
(C) T=0.8 ID=16 L=20 		0-95235-535-0 02 1 1009-
16 CLIP; HARNESS
(C) T=1.2 ID=19 L=20 		0-95235-836-0 01 1 1009-1302
16 CLIP; HARNESS
(AO) ID=18 L=38 H=23 		1-09701-147-0 01 1 1303-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1009-
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 05 1 1009-1302
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 03 1 1303-
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 02 1 1009-1302
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 02 1 1009-1302
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1303-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1303-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 1009-1302
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1303-1303
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 1304-1304
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 05 1 1305-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 04 1 1009-1302
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 08 1 1303-1304
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 1305-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 08 1 1009-1010
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 09 1 1011-1302
16 CLIP; HARNESS
(AL) L=36 		8-94224-891-1 01 1 1303-
16 CLIP; HARNESS
(AG) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1302
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1303-
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 1009-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1303
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 02 1 1009-1303
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1303-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1009-1302
16 CLIP; HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 1303-
16 CLIP; HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303-
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1009-1302
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1303-
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (S) OD=9 H=6 		1-09709-178-0 01 1 1303-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1303-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1303-
16 CLIP; HARNESS
(N) ID=18 L=28 		1-09701-067-0 03 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (AR) ID=16 L=20 		0-95235-536-0 01 1 1303-
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 1009-
16 CLIP; HARNESS
(V) ID=28 L=40 		1-09701-261-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AG) ID=10 H=25 L=20 		1-09700-519-0 01 1 1303-
16 CLIP; HARNESS
(O) ID=28+34 L=44 		1-09701-311-0 01 1 1009-1302
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1303-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1009-1302
16 CLIP; HARNESS
INSPECTION LAMP<T95> (P) L=180 		1-09707-162-1 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (J) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 1303-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 05 1 1009-1302
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 04 1 1303-
16 CLIP; HARNESS
(R) W/SPONGE RUBBER 		1-09709-150-0 01 1 1009-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (S) OD=9 H=6 		1-09709-178-0 06 1 1303-1506
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (S) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (S) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 06 1 1009-1302
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1303-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 07 1 1009-1302
16 CLIP; HARNESS
(V) ID=28 L=40 		1-09701-261-0 01 1 1303-
16 CLIP; HARNESS
(T) OD=9 H=13.5 		1-09709-180-0 01 1 1009-
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1302
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1302
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 1303-
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 1303-
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 03 1 1009-
16 CLIP; HARNESS
(AI) ID=18-24 L=18 		1-09709-294-0 01 1 1009-1302
16 CLIP; HARNESS
(AI) ID=18-24 L=18 		1-09709-294-0 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 1009-1302
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=250 		5-09707-030-1 03 1 1009-1302
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 10 1 1009-1205
16 CLIP; HARNESS
(X) L=250 		8-98216-430-0 10 1 1206-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (AQ) ID=16 L=40 		0-95235-576-0 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1009-1102
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1103-1302
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (X) L=250 		5-09707-030-1 02 1 1103-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (S) OD=9 H=6 		1-09709-178-0 07 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 05 1 1009-1302
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 1303-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 1009-1302
16 CLIP; HARNESS
(N) ID=18 L=28 		1-09701-067-0 03 1 1303-
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1009-1302
16 CLIP; HARNESS
(AP) ID=31 L=35 		1-09700-329-1 01 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AP) ID=31 L=35 		1-09700-329-1 01 1 1303-
16 CLIP; HARNESS
(AL) L=36 		8-94224-891-1 01 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (Y) L=140 		5-09707-031-1 03 1 1303-
16 CLIP; HARNESS
(AB) ID=14-20 		8-97061-603-0 03 1 1009-
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1009-1302
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (C) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1303-
16 CLIP; HARNESS
(AC) OD=9 H=6 		8-97368-793-0 02 1 1009-
16 CLIP; HARNESS
(AK) ID=17 L=20 		8-97619-251-0 01 1 1009-1302
16 CLIP; HARNESS
(AJ) L=251 		8-97619-917-0 01 1 1009-
16 CLIP; HARNESS
(AJ) L=251 		8-97619-917-0 04 1 1303-
16 CLIP; HARNESS
(AM) ID=10 L=16.5 		8-98082-034-0 02 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AI) ID=18-24 L=18 		1-09709-294-0 01 1 1303-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 01 1 1009-1302
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 02 1 1303-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 01 1 1009-1302
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 04 1 1303-1303
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 02 1 1304-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 02 1 1304-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 04 1 1009-1302
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1303-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 01 1 1009-1302
16 CLIP; HARNESS
(AM) ID=10 L=16.5 		8-98082-034-0 02 1 1303-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 1009-1302
16 CLIP; HARNESS
(X) L=250 		8-98216-430-0 10 1 1303-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16 		0-95235-025-0 02 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (Q) L=350 		1-09707-183-0 01 1 1303-1303
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (Q) L=350 		1-09707-183-0 01 1 1303-1304
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (Q) L=350 		1-09707-183-0 01 1 1303-1304
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (Q) L=350 		1-09707-183-0 01 1 1305-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AN) L=382 		1-09707-196-0 03 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) T=1.2 ID=19 L=20 		0-95235-836-0 01 1 1303-
16 CLIP; HARNESS
(C) T=1.2 ID=19 L=20 		0-95235-836-0 01 1 1303-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (X) L=250 		5-09707-030-1 01 1 1009-1302
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1303-1303
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1303-1303
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1303-
60 CLIP; CONSOLE HARNESS,SW PTO
ID=10 		8-94450-392-0 01 1 1009-1302
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 1009-1302
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 04 1 1009-1302
104 CLIP; HEADLAMP HARNESS
(B) L=140 		5-09707-031-1 02 1 1303-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1009-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 03 1 1009-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1009-
166 CLIP; HARNESS CLU SW
EXC. SMOOTHER-G(C1W) OD=9 H=6 		1-09709-178-0 01 1 1303-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 1009-1302
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 05 1 1303-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 1009-1302
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 1009-1302
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1303-
421 CLIP; FLOOR HARNESS
L=30 SET=10 PIECE 		1-09987-265-0 05 1 1009-1302
421 CLIP; FLOOR HARNESS
SMOOTHER-G(C1W) L=30 SET=10 PIECE 		1-09987-265-0 05 1 1303-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 1009-1302
çizim 137232
128 48 16 16 16 235 16 16 128 16 16 212 16 16 16 16 16 16 223 48 16 16 48 16 212 16 16 16 16 48 16 212 16 16 263 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 07 1 1305-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 1305-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 03 1 1009-
16 CLIP; HARNESS
(AI) ID=18-24 L=18 		1-09709-294-0 02 1 1009-1302
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1303-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-1302
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 02 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (Q) L=350 		1-09707-183-0 02 1 1303-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 1103-1302
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 03 1 1103-1302
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303-
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=11 L=20 		0-95235-035-0 01 1 1303-
16 CLIP; HARNESS
(C) T=0.8 ID=16 L=20 		0-95235-535-0 02 1 1009-
16 CLIP; HARNESS
(C) T=1.2 ID=19 L=20 		0-95235-836-0 01 1 1009-1302
16 CLIP; HARNESS
(AO) ID=18 L=38 H=23 		1-09701-147-0 01 1 1303-
16 CLIP; HARNESS
(E) ID=22 L=32 		1-09700-126-1 01 1 1009-
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 05 1 1009-1302
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 03 1 1303-
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 02 1 1009-1302
16 CLIP; HARNESS
(F) ID=28 L=58 		1-09700-400-0 02 1 1009-1302
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1303-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1303-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 1009-1302
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 03 1 1303-1303
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 1304-1304
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 05 1 1305-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 04 1 1009-1302
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 08 1 1303-1304
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 1305-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 08 1 1009-1010
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 09 1 1011-1302
16 CLIP; HARNESS
(AL) L=36 		8-94224-891-1 01 1 1303-
16 CLIP; HARNESS
(AG) ID=10 H=25 L=20 		1-09700-519-0 01 1 1009-1302
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1303-
16 CLIP; HARNESS
(H) ID=20 L=50 		1-09700-679-1 01 1 1009-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-1303
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 01 1 1304-
16 CLIP; HARNESS
(I) ID=20 H=23 L=27 		1-09700-861-0 02 1 1009-1303
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1009-1302
16 CLIP; HARNESS
(B) ID=11 L=20 		0-95235-035-0 02 1 1303-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1009-1302
16 CLIP; HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 1303-
16 CLIP; HARNESS
(D) ID=35 H=45 L=33 		1-09700-947-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1303-
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1009-1302
16 CLIP; HARNESS
(K) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 1303-
16 CLIP; HARNESS
(L) ID=9 H=80 L=23 		1-09701-061-0 02 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (S) OD=9 H=6 		1-09709-178-0 01 1 1303-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1303-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1303-
16 CLIP; HARNESS
(N) ID=18 L=28 		1-09701-067-0 03 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (AR) ID=16 L=20 		0-95235-536-0 01 1 1303-
16 CLIP; HARNESS
(M) ID=15 L=28 		1-09701-216-0 01 1 1009-
16 CLIP; HARNESS
(V) ID=28 L=40 		1-09701-261-0 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AG) ID=10 H=25 L=20 		1-09700-519-0 01 1 1303-
16 CLIP; HARNESS
(O) ID=28+34 L=44 		1-09701-311-0 01 1 1009-1302
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1303-
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1009-1302
16 CLIP; HARNESS
INSPECTION LAMP<T95> (P) L=180 		1-09707-162-1 01 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (J) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 1303-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 05 1 1009-1302
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 04 1 1303-
16 CLIP; HARNESS
(R) W/SPONGE RUBBER 		1-09709-150-0 01 1 1009-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
16 CLIP; HARNESS
INSPECTION LAMP<T95> (S) OD=9 H=6 		1-09709-178-0 01 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (S) OD=9 H=6 		1-09709-178-0 06 1 1303-1506
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (S) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (S) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 06 1 1009-1302
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 02 1 1303-
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 07 1 1009-1302
16 CLIP; HARNESS
(V) ID=28 L=40 		1-09701-261-0 01 1 1303-
16 CLIP; HARNESS
(T) OD=9 H=13.5 		1-09709-180-0 01 1 1009-
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1302
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1302
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 1303-
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 1303-
16 CLIP; HARNESS
(AH) ID=13-18 L=18 		1-09709-291-0 03 1 1009-
16 CLIP; HARNESS
(AI) ID=18-24 L=18 		1-09709-294-0 01 1 1009-1302
16 CLIP; HARNESS
(AI) ID=18-24 L=18 		1-09709-294-0 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 1009-1302
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=250 		5-09707-030-1 03 1 1009-1302
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 10 1 1009-1205
16 CLIP; HARNESS
(X) L=250 		8-98216-430-0 10 1 1206-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (AQ) ID=16 L=40 		0-95235-576-0 02 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1009-1102
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 02 1 1103-1302
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (X) L=250 		5-09707-030-1 02 1 1103-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (S) OD=9 H=6 		1-09709-178-0 07 1 1303-
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 05 1 1009-1302
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 1303-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 1009-1302
16 CLIP; HARNESS
(N) ID=18 L=28 		1-09701-067-0 03 1 1303-
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1009-1302
16 CLIP; HARNESS
(AP) ID=31 L=35 		1-09700-329-1 01 1 1303-
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AP) ID=31 L=35 		1-09700-329-1 01 1 1303-
16 CLIP; HARNESS
(AL) L=36 		8-94224-891-1 01 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (Y) L=140 		5-09707-031-1 03 1 1303-
16 CLIP; HARNESS
(AB) ID=14-20 		8-97061-603-0 03 1 1009-
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1009-1302
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (C) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1303-
16 CLIP; HARNESS
(AC) OD=9 H=6 		8-97368-793-0 02 1 1009-
16 CLIP; HARNESS
(AK) ID=17 L=20 		8-97619-251-0 01 1 1009-1302
16 CLIP; HARNESS
(AJ) L=251 		8-97619-917-0 01 1 1009-
16 CLIP; HARNESS
(AJ) L=251 		8-97619-917-0 04 1 1303-
16 CLIP; HARNESS
(AM) ID=10 L=16.5 		8-98082-034-0 02 1 1009-1302
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AI) ID=18-24 L=18 		1-09709-294-0 01 1 1303-
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 01 1 1009-1302
16 CLIP; HARNESS
(AD) ID=14 L=44 		9-09917-427-0 02 1 1303-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 01 1 1009-1302
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 04 1 1303-1303
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 02 1 1304-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 02 1 1304-
16 CLIP; HARNESS
(AE) ID=20 L=50 		9-09917-430-0 04 1 1009-1302
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1303-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 01 1 1009-1302
16 CLIP; HARNESS
(AM) ID=10 L=16.5 		8-98082-034-0 02 1 1303-
16 CLIP; HARNESS
(AF) ID=22 L=52 		9-09917-431-0 03 1 1009-1302
16 CLIP; HARNESS
(X) L=250 		8-98216-430-0 10 1 1303-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16 		0-95235-025-0 02 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (Q) L=350 		1-09707-183-0 01 1 1303-1303
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (Q) L=350 		1-09707-183-0 01 1 1303-1304
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (Q) L=350 		1-09707-183-0 01 1 1303-1304
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (Q) L=350 		1-09707-183-0 01 1 1305-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AN) L=382 		1-09707-196-0 03 1 1009-1302
16 CLIP; HARNESS
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) T=1.2 ID=19 L=20 		0-95235-836-0 01 1 1303-
16 CLIP; HARNESS
(C) T=1.2 ID=19 L=20 		0-95235-836-0 01 1 1303-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (X) L=250 		5-09707-030-1 01 1 1009-1302
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1303-1303
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1303-1303
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 01 1 1303-
48 CLIP; FRAME HARNESS
SMOOTHER-G(C1W) (A) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1303-
48 CLIP; FRAME HARNESS
(E) ID=39 H=28 L=32 		1-09701-263-0 03 1 1303-
48 CLIP; FRAME HARNESS
EXC. SMOOTHER-G(C1W) (D) ID=26 L=26 		1-09701-236-0 01 1 1303-
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1009-1302
48 CLIP; FRAME HARNESS
(E) ID=39 H=28 L=32 		1-09701-263-0 01 1 1303-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1009-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 06 1 1009-1302
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1303-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 07 1 1009-1302
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 04 1 1303-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1009-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1009-
212 CLIP; HORN HARNESS
(A) ID=19 L=28 		0-95235-856-0 01 1 1009-1302
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1009-1302
212 CLIP; HORN HARNESS
(C) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 1009-1302
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 1009-1302
212 CLIP; HORN HARNESS
(E) L=140 		5-09707-031-1 01 1 1009-1302
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 1009-1302
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1303-
235 CLIP; HARNESS,SPD SENSOR,SSPS
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=11 L=28 		9-09917-544-0 01 1 1303-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 1009-1302

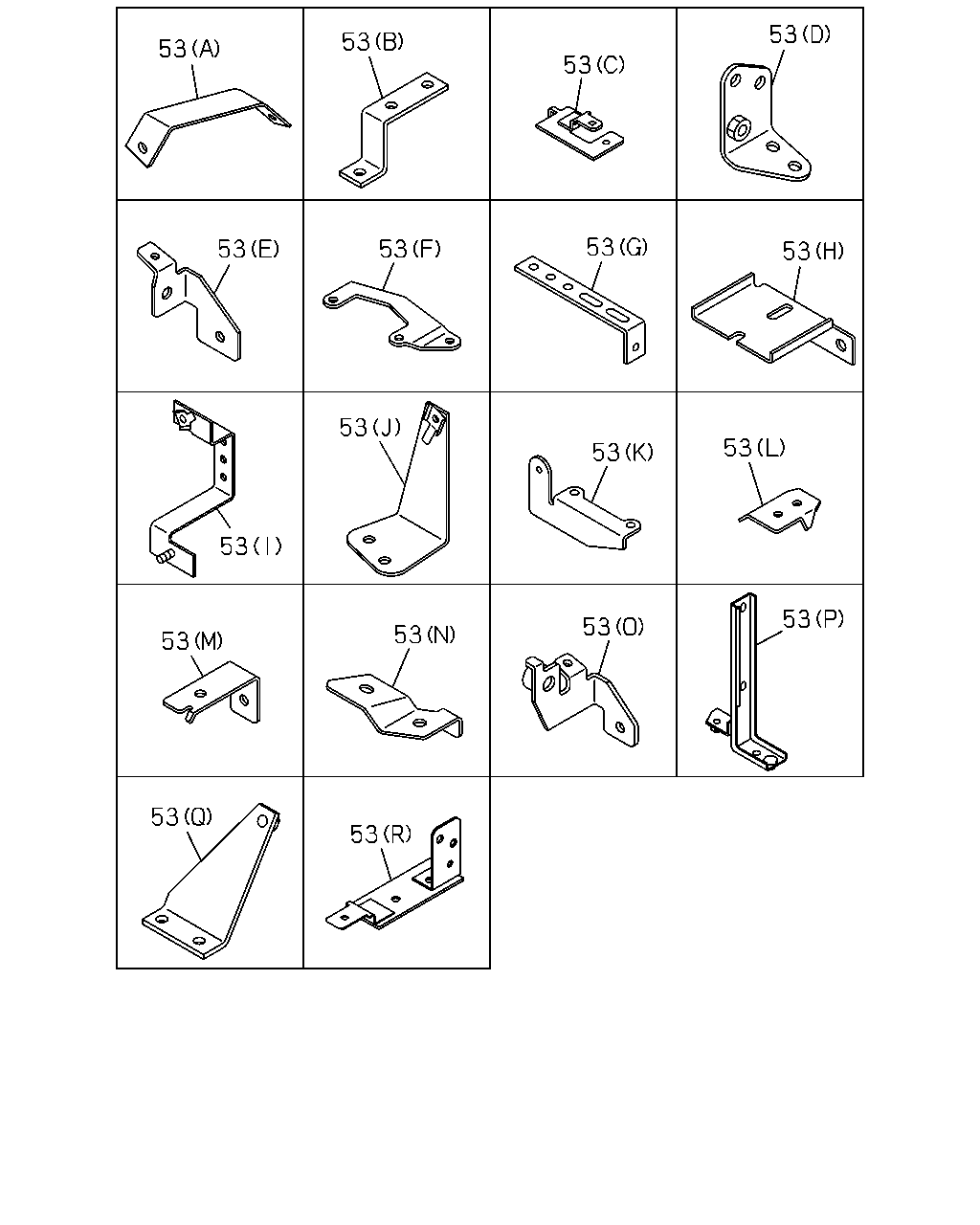

çizim 137693
53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(A) 		1-47479-537-0 10 1 1009-1302
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1303-
53 BRACKET; HARNESS
(G) L=160 H=30 		1-47479-759-0 01 1 1009-1302
53 BRACKET; HARNESS
(A) 		1-47479-537-0 03 1 1303-
53 BRACKET; HARNESS
(C) 		1-82698-495-2 01 1 1009-1302
53 BRACKET; HARNESS
(R) 		8-97638-190-0 01 1 1303-
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 1009-1302
53 BRACKET; HARNESS
(L) 		8-97625-412-0 02 1 1009-1302
53 BRACKET; HARNESS
(P) 		8-98227-138-0 01 1 1303-
53 BRACKET; HARNESS
(M) 		8-97625-794-0 01 1 1009-
53 BRACKET; HARNESS
(N) 		8-97630-437-0 01 1 1009-
53 BRACKET; HARNESS
(H) 		8-98032-696-0 01 1 1009-1302
53 BRACKET; HARNESS
(Q) 		8-98227-141-0 01 1 1303-
53 BRACKET; HARNESS
(I) 		8-98050-989-0 01 1 1009-1302
53 BRACKET; HARNESS
(D) 		8-97610-339-1 01 1 1303-
53 BRACKET; HARNESS
(J) 		8-98052-592-0 01 1 1009-1302
53 BRACKET; HARNESS
(L) 		8-97625-412-0 02 1 1303-
53 BRACKET; HARNESS
(E) 		8-98123-473-1 01 1 1009-1111
53 BRACKET; HARNESS
(O) 		8-98194-068-0 01 1 1112-
53 BRACKET; HARNESS
(F) 		8-98123-474-0 01 1 1009-
53 BRACKET; HARNESS
(K) 		8-98123-475-0 01 1 1009-
53 BRACKET; HARNESS
(B) 		8-98124-778-0 01 1 1009-
çizim 137839
59 59 59 211 312 375 312 312 312 312 312 312 312 312 312 312 312 334 334 335 342 504
BalonParca AdiParca NoAdetTipApplied Date
59 BRACKET; FRAME HARNESS
(A) 		1-82698-531-0 01 1 1009-1302
59 BRACKET; FRAME HARNESS
(C) 		8-97639-069-0 01 1 1303-
59 BRACKET; FRAME HARNESS
(B) 		8-98061-135-1 01 1 1009-
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) L=95 		1-82699-085-0 02 1 1009-1302
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 1303-
312 BRACKET; CLIP HARNESS
(D) 		1-82698-556-0 01 1 1009-1302
312 BRACKET; CLIP HARNESS
(I) L=160 H=30 		1-47479-759-0 01 1 1303-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-570-0 01 1 1009-1302
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (C) 		1-82698-570-0 01 1 1303-
312 BRACKET; CLIP HARNESS
(A) 		1-82699-182-0 01 1 1009-1302
312 BRACKET; CLIP HARNESS
(K) 		8-97636-868-1 01 1 1303-
312 BRACKET; CLIP HARNESS
(F) 		8-98035-927-1 01 1 1009-
312 BRACKET; CLIP HARNESS
(H) 		8-98052-591-0 01 1 1009-1302
312 BRACKET; CLIP HARNESS
(L) 		8-97638-177-0 01 1 1303-
312 BRACKET; CLIP HARNESS
(B) L=82 B=20 		1-47478-420-0 01 1 1009-1302
312 BRACKET; CLIP HARNESS
SMOOTHER-G(C1W) (A) 		1-82699-182-0 01 1 1303-
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 1009-1302
312 BRACKET; CLIP HARNESS
EXC. SMOOTHER-G(C1W) (J) L=120 H=35 		1-82698-088-0 01 1 1303-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) 		1-82698-443-0 01 1 1009-1302
334 BRACKET
(A) 		1-53457-153-2 01 1 1009-
334 BRACKET
(B) 		1-82698-650-0 01 1 1009-1302
334 BRACKET
SMOOTHER-G(C1W) (B) 		1-82698-650-0 01 1 1303-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1009-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 1009-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1009-
504 PROTECTOR; HARNESS
MIR O/S RR VIEW HEATED<DNN> 		1-82698-391-0 02 1 1009-1302
504 PROTECTOR; HARNESS 1-82698-391-0 02 1 1303-
çizim 188946
119 423 524 552 515 294 219 340
BalonParca AdiParca NoAdetTipApplied Date
119 SCREW; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER 		8-94447-551-0 02 1 1009-1302
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1303-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1303
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1303
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1303
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1303
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-1303
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1304-1304
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1304-1304
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1304-1304
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1304-1304
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1305-
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 1009-1302
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 1303-
219 NUT
M8 FLANGE 		0-91180-108-0 11 1 1009-1302
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 1303-1303
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1303-1303
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 1304-1304
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1304-1304
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1304-1304
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1305-
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1305-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1305-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1305-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1305-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1305-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1305-
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1009-1302
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
219 NUT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 03 1 1303-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1009-1302
294 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303-
294 NUT
M8 FLANGE 		0-91180-108-0 08 1 1009-1302
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1303-
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 05 1 1009-
423 WASHER; HARNESS,EARTH
EXC. SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 03 1 1303-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 1009-1302
423 WASHER; HARNESS,EARTH
SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 04 1 1303-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1009-1302
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1303-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 1009-
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1009-1302
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
