◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#69576) — 180 parça

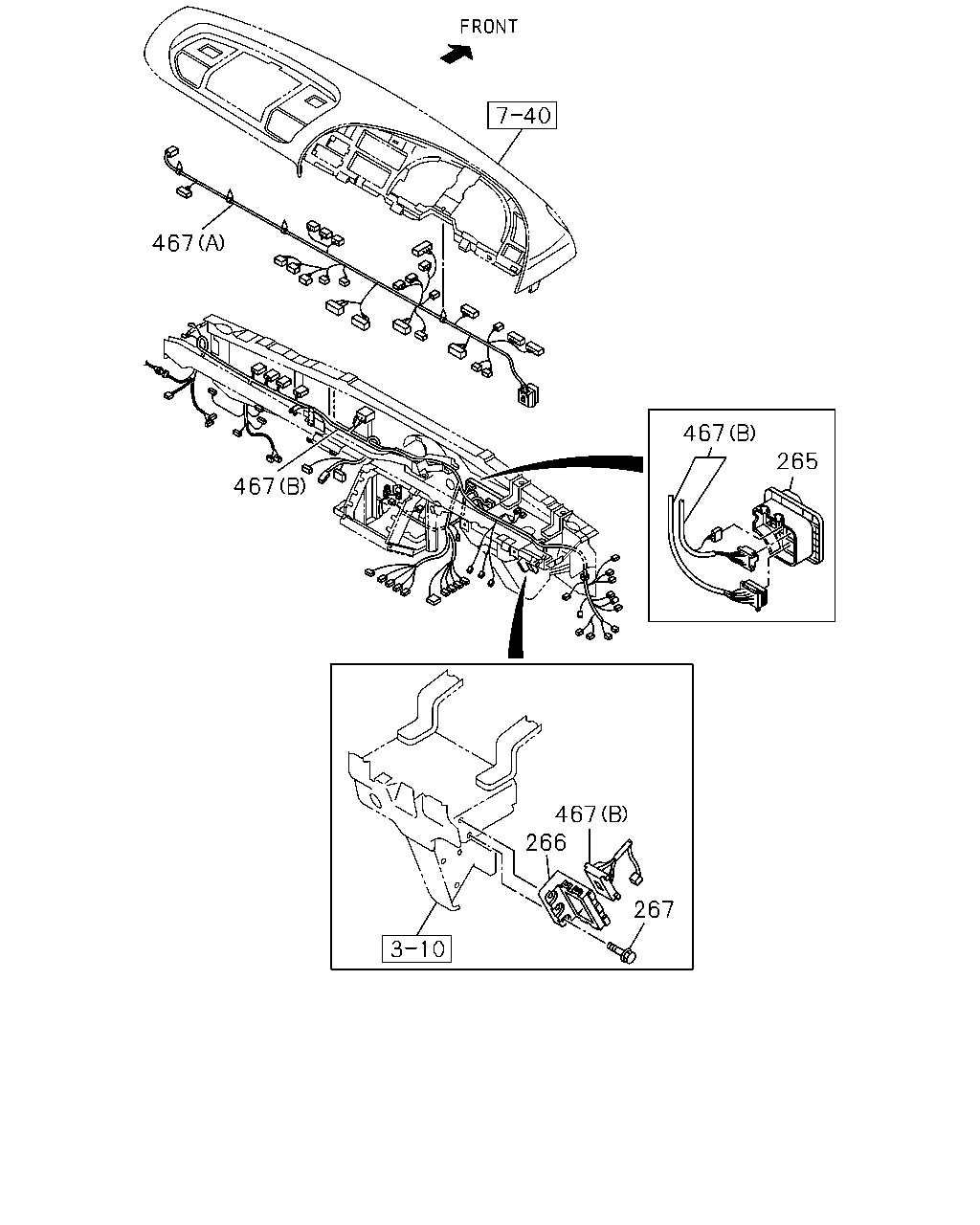

çizim 136306
467 467 467 467 267 266 265
BalonParca AdiParca NoAdetTipApplied Date
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1009-
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1009-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 1009-
467 HARNESS; FACIA
(A) 		8-97635-060-0 01 1 1009-1302
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B) 		8-97635-009-2 01 1 1009-1302
467 HARNESS; FACIA
SMOOTHER-G(C1W) (B) 		8-97645-321-2 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B) 		8-97635-012-2 01 1 1009-1302
467 HARNESS; FACIA
EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1303-

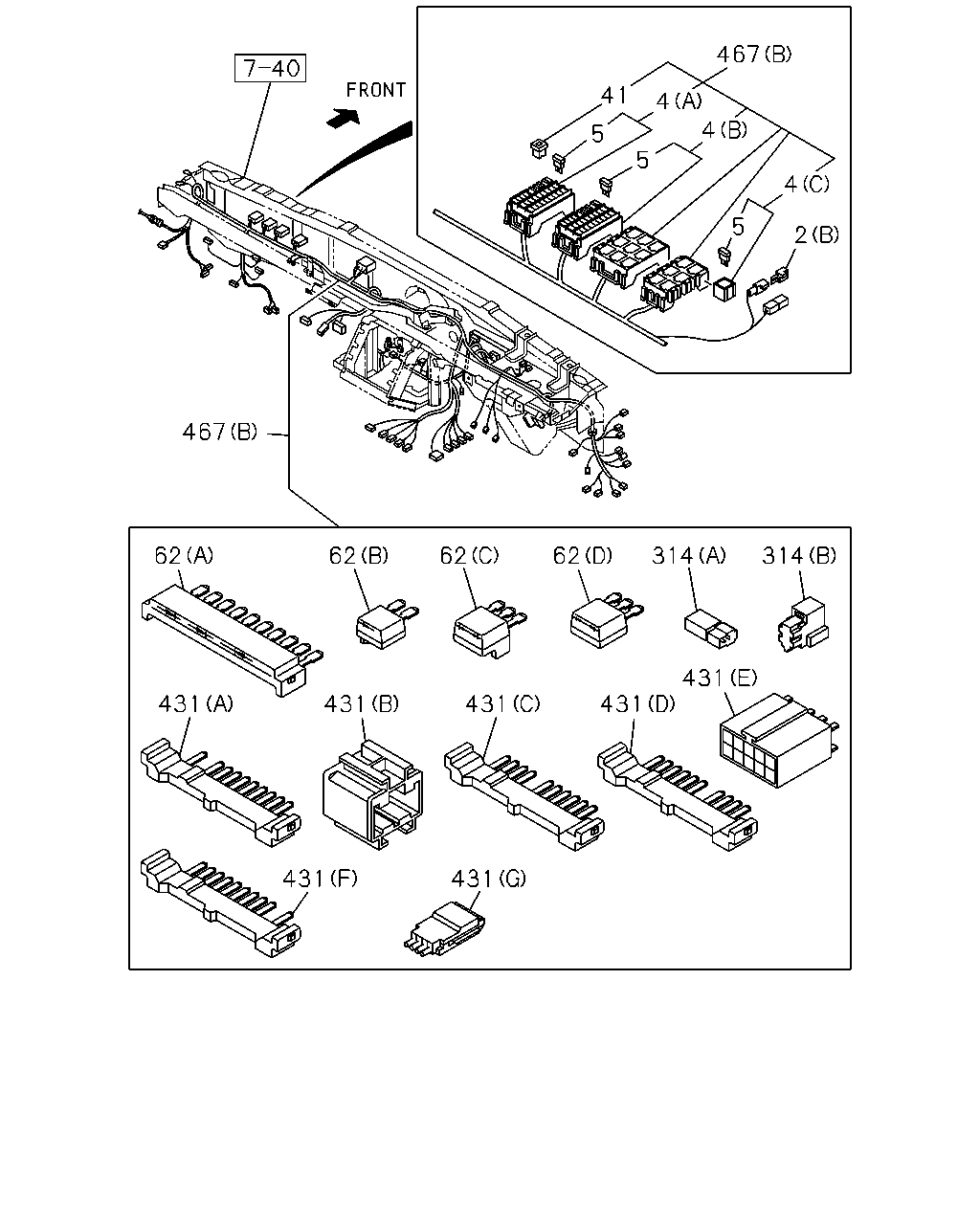

çizim 136339
431 431 431 431 431 431 431 314 314 62 62 62 62 467 2 5 4 5 4 4 41 4 467
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 1009-1302
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1303-
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1009-1302
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 1303-
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX22 10AX4 		1-82510-455-0 01 1 1009-1302
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX20 10AX4 15AX1 		1-82510-478-0 01 1 1303-
4 BOX ASM; FUSE,HARNESS
(B) 15AX25 25AX2 		1-82510-602-0 01 1 1009-
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 1009-1302
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 04 1 1009-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 28 1 1009-1302
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 27 1 1303-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 1009-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 22 1 1009-1302
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 20 1 1303-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1009-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 03 1 1009-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 03 1 1009-1302
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1303-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 09 1 1009-1302
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1303-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 03 1 1009-
314 RESISTOR; HARNESS
(A) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 1009-1302
314 RESISTOR; HARNESS
(B) BLUE 		1-82691-204-0 02 1 1009-1302
431 CONNECTOR; JOINT
(B) 6P 		1-82691-206-0 01 1 1009-1302
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 1009-1302
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 13 1 1009-1302
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 03 1 1009-1302
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 07 1 1009-1302
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 1009-1302
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 17 1 1009-1302
467 HARNESS; FACIA
(A) 		8-97635-060-0 01 1 1009-1302
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B) 		8-97635-009-2 01 1 1009-1302
467 HARNESS; FACIA
SMOOTHER-G(C1W) (B) 		8-97645-321-2 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B) 		8-97635-012-2 01 1 1009-1302
467 HARNESS; FACIA
EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1303-

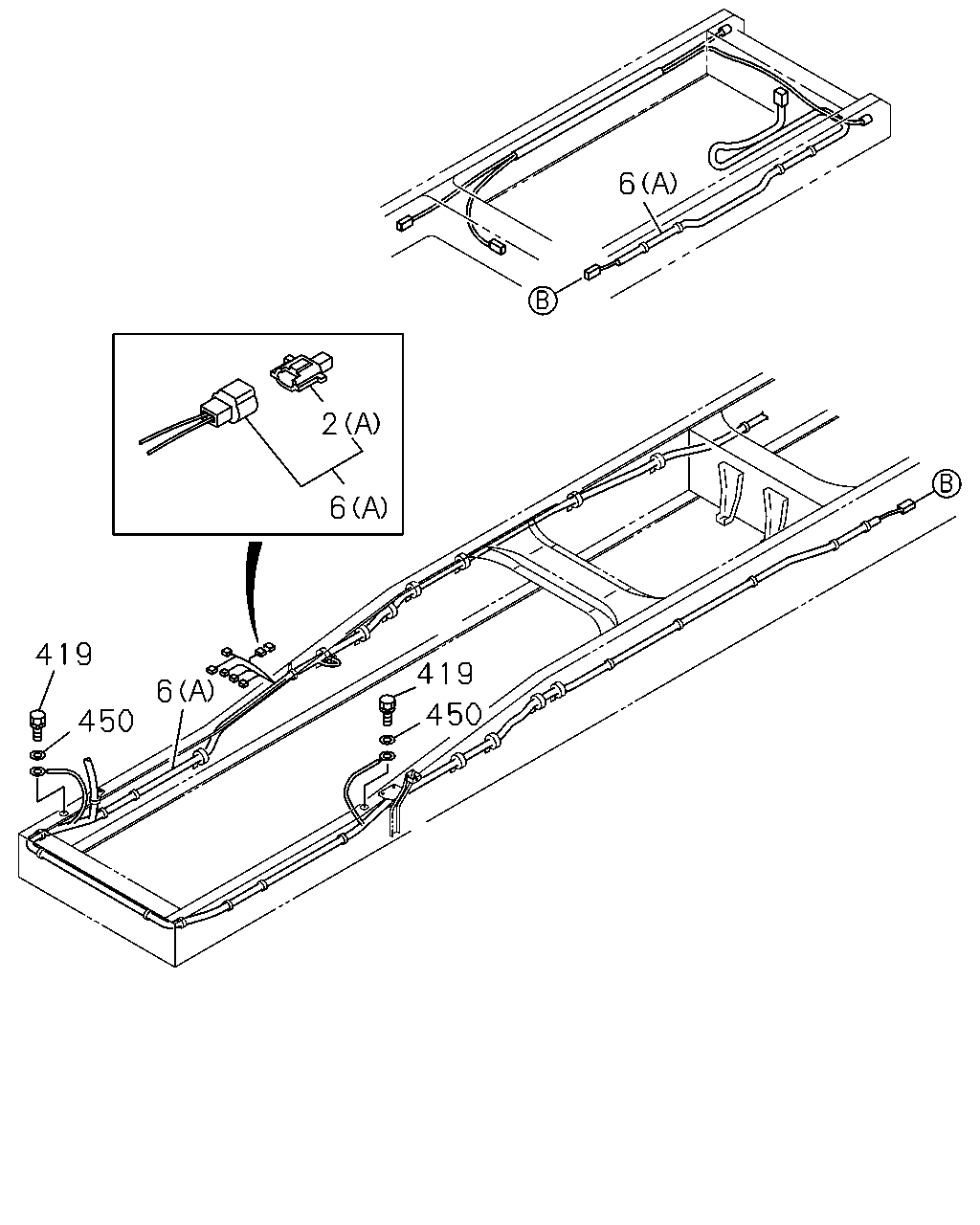

çizim 136594
6 2 6 419 450 6 419 450
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 1009-1302
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1303-
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1009-1302
6 HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-089-0 01 1 1103-1302
6 HARNESS; FRAME
SMOOTHER-G(C1W) (A) 		8-98232-949-3 01 1 1303-
6 HARNESS; FRAME
(A) 		8-97631-067-3 01 1 1009-1102
6 HARNESS; FRAME
EXC. POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-067-3 01 1 1103-1302
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W) (A) 		8-98232-948-3 01 1 1303-
6 HARNESS; FRAME
(B) 		8-97631-087-1 01 1 1009-1302
6 HARNESS; FRAME
(B) 		8-98232-960-2 01 1 1303-
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1009-1201
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-1302
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 1009-1201
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-1302
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 02 1 1303-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1009-1302
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 1303-

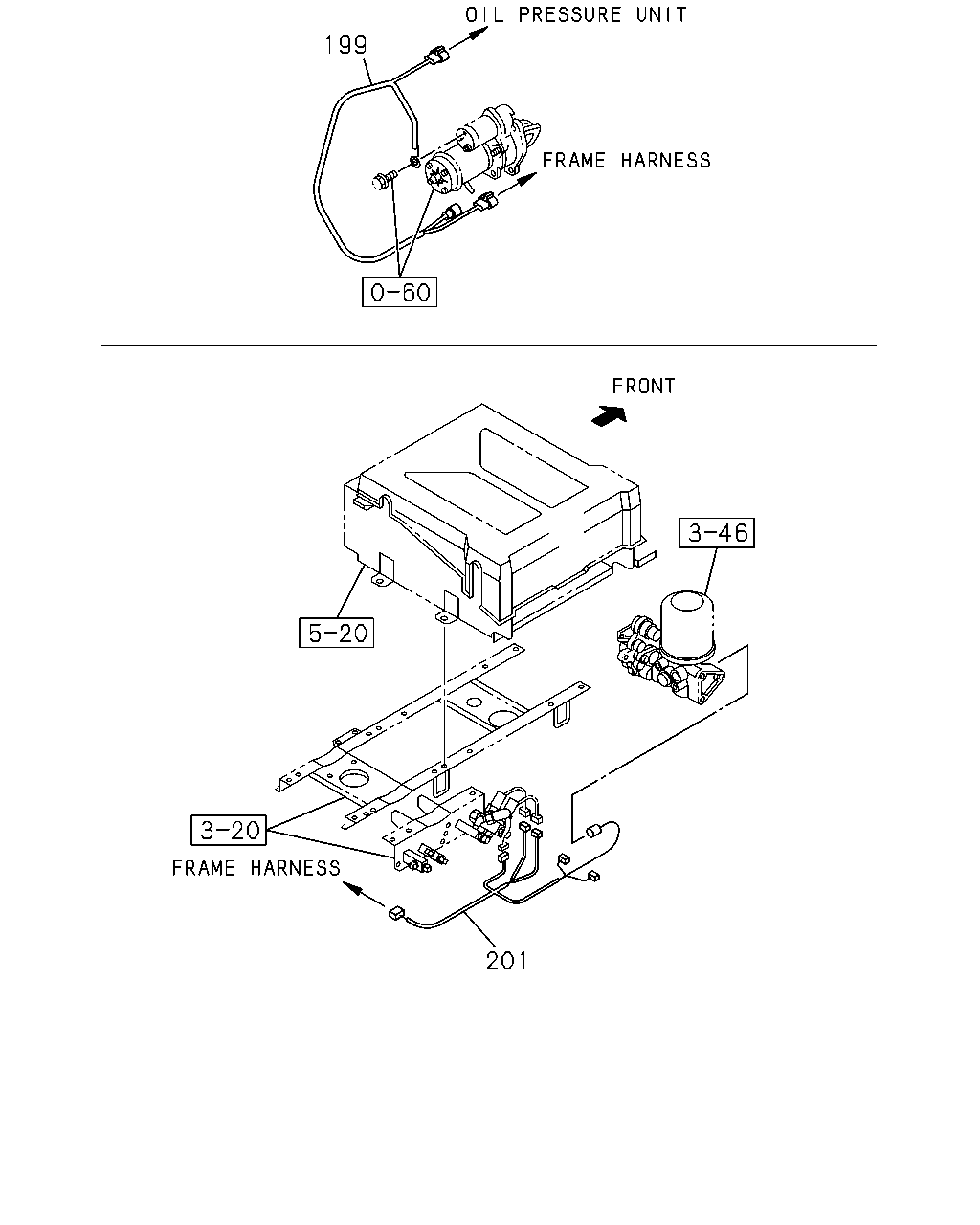

çizim 136734
199 201
BalonParca AdiParca NoAdetTipApplied Date
199 HARNESS; STARTER 8-97607-313-0 01 1 1009-
201 HARNESS; AIR TANK 8-97631-202-1 01 1 1009-1302
201 HARNESS; AIR TANK 8-98232-957-2 01 1 1303-

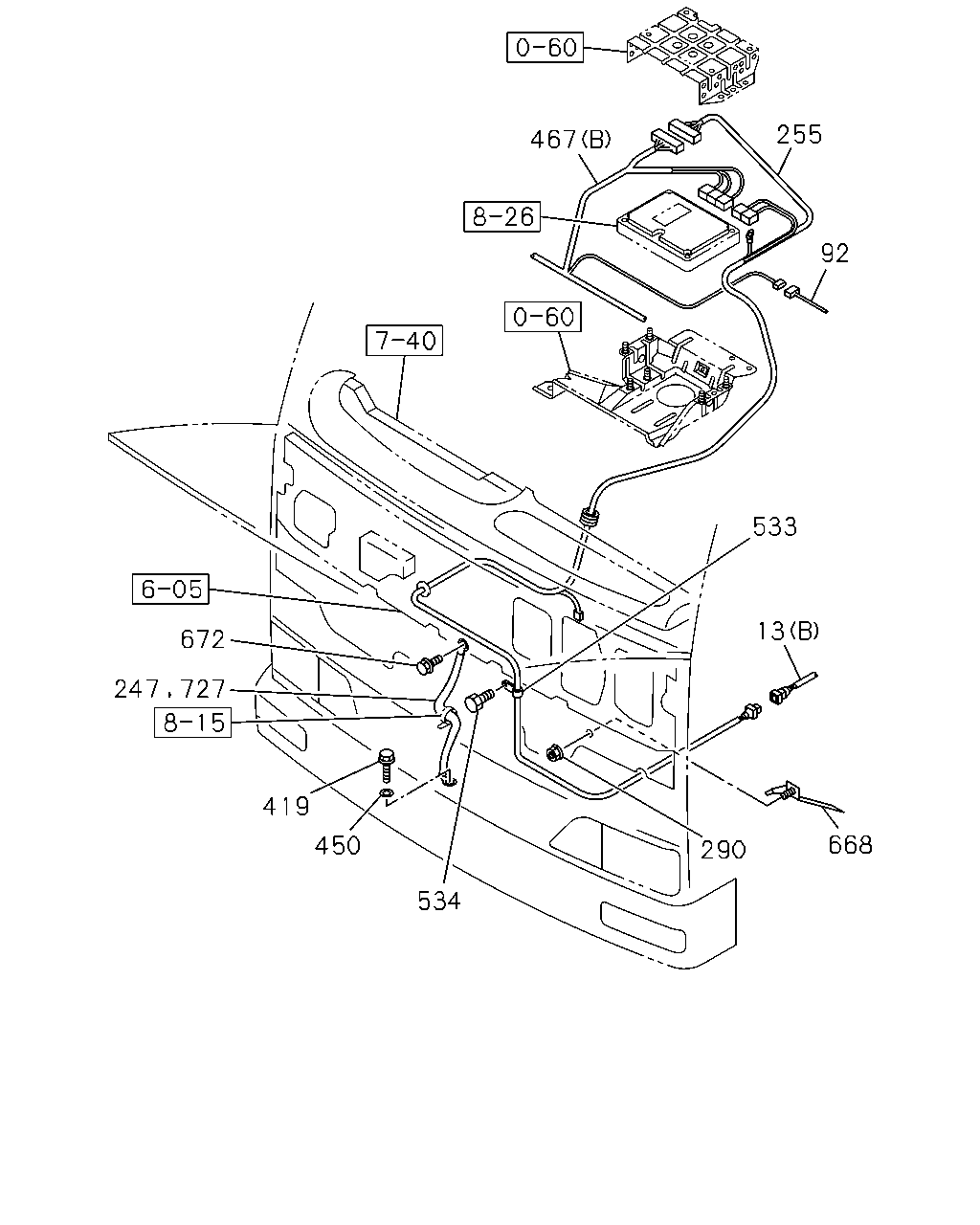

çizim 137072
533 13 668 290 534 450 419 727 247 672 467 255 92
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-98152-248-0 01 1 1009-1204
13 HARNESS; ENG
(B) 		8-98210-224-0 01 1 1205-
13 HARNESS; ENG
(A) 		8-98126-840-2 01 1 1009-
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W) 		8-97645-327-0 01 1 1303-
92 HARNESS; FLOOR 8-97631-426-1 01 1 1009-1210
92 HARNESS; FLOOR 8-98229-078-0 01 1 1211-1302
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97645-331-1 01 1 1303-
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97631-055-2 01 1 1009-1302
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97645-326-0 01 1 1303-1401
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-98258-216-0 01 1 1402-
92 HARNESS; FLOOR
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97632-200-2 01 1 1009-1302
92 HARNESS; FLOOR
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97645-440-0 01 1 1303-
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 1009-1302
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 1303-
255 HARNESS; ELEC GOV 8-97631-059-0 01 1 1009-1302
255 HARNESS; ELEC GOV 8-97645-325-2 01 1 1303-
290 NUT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 1009-1302
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1009-1201
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-1302
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 1009-1201
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-1302
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 02 1 1303-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1009-1302
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 1303-
467 HARNESS; FACIA
(A) 		8-97635-060-0 01 1 1009-1302
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B) 		8-97635-009-2 01 1 1009-1302
467 HARNESS; FACIA
SMOOTHER-G(C1W) (B) 		8-97645-321-2 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B) 		8-97635-012-2 01 1 1009-1302
467 HARNESS; FACIA
EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1303-
533 CLIP
EXC. SMOOTHER-G(C1W) ID=35 L=35 		1-09700-684-0 01 1 1303-
533 CLIP
ID=28 & 34 L=63 		1-09701-310-0 01 1 1009-1302
533 CLIP
SMOOTHER-G(C1W) ID=28 & 34 L=63 		1-09701-310-0 01 1 1303-
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 1009-
668 BRACKET; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82698-415-1 01 1 1009-1302
672 BOLT; BONDING
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 1009-1302
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1303-
727 HARNESS; CAB,EARTH
L=760 		8-97632-854-0 01 1 1303-

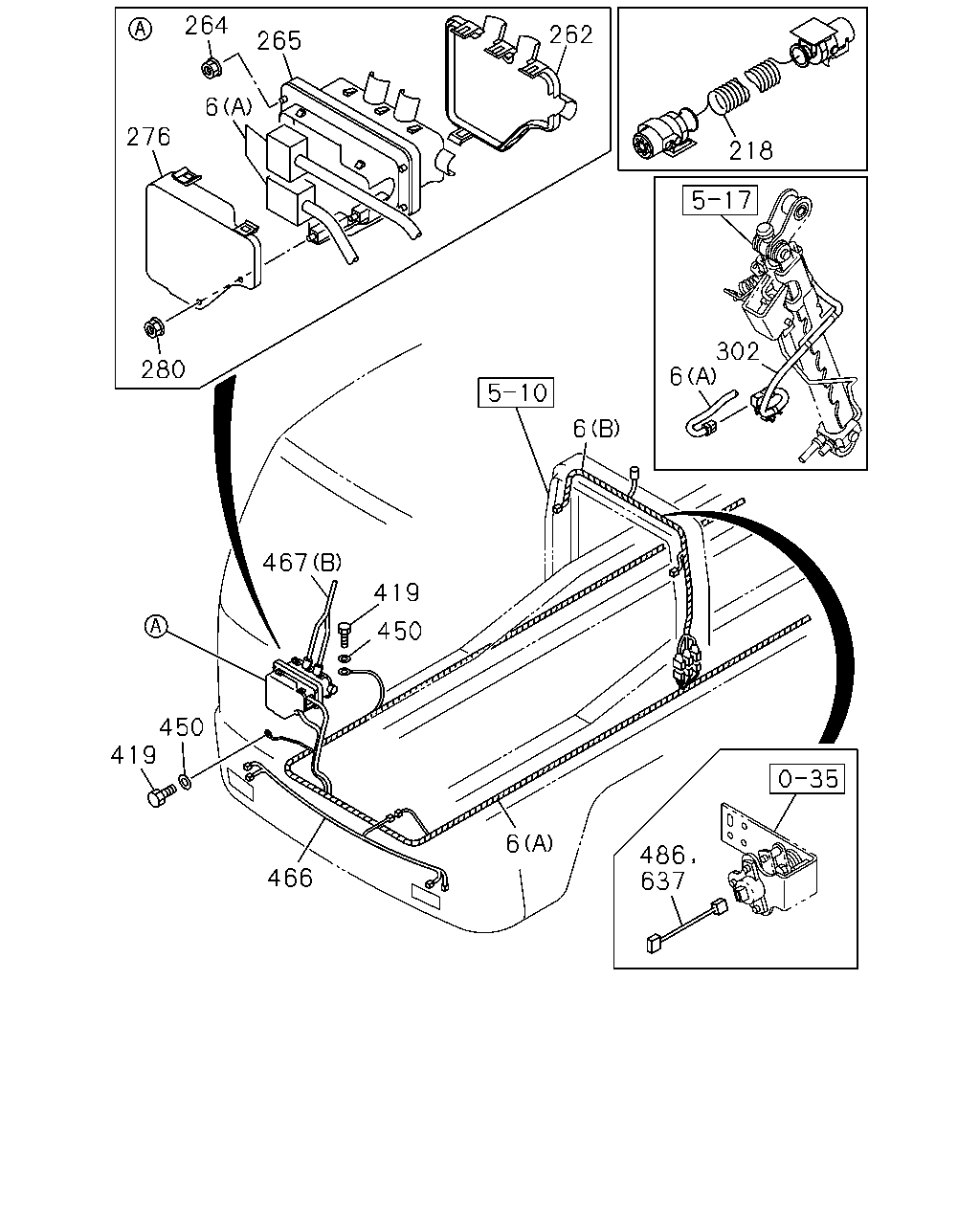

çizim 137203
218 262 302 6 6 486 637 6 466 450 419 467 419 450 280 276 6 264 265
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-089-0 01 1 1103-1302
6 HARNESS; FRAME
SMOOTHER-G(C1W) (A) 		8-98232-949-3 01 1 1303-
6 HARNESS; FRAME
(A) 		8-97631-067-3 01 1 1009-1102
6 HARNESS; FRAME
EXC. POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97631-067-3 01 1 1103-1302
6 HARNESS; FRAME
EXC. SMOOTHER-G(C1W) (A) 		8-98232-948-3 01 1 1303-
6 HARNESS; FRAME
(B) 		8-97631-087-1 01 1 1009-1302
6 HARNESS; FRAME
(B) 		8-98232-960-2 01 1 1303-
218 CABLE; JUMPER,ABS
ANTILOCK BRAKE SYSTEM(BFA) L=5500 		1-82659-198-3 01 1 1009-1302
218 CABLE; JUMPER,ABS
L=5500 		1-82659-198-3 01 1 1303-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 1009-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1009-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1009-
276 COVER; BOX,FRAME HARNESS 1-82699-585-2 01 1 1009-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1009-
302 HARNESS; POWER CAB TILT 8-97636-525-0 01 1 1303-
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1009-1201
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-1302
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1303-
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 1009-1201
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-1302
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 02 1 1303-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1009-1302
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 1303-
466 HARNESS; BUMPER 8-97610-100-0 01 1 1009-1302
467 HARNESS; FACIA
(A) 		8-97635-060-0 01 1 1009-1302
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B) 		8-97635-009-2 01 1 1009-1302
467 HARNESS; FACIA
SMOOTHER-G(C1W) (B) 		8-97645-321-2 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B) 		8-97635-012-2 01 1 1009-1302
467 HARNESS; FACIA
EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1303-
486 HARNESS; ALL SPEED ACCEL
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97624-338-0 01 1 1303-
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 1009-1302

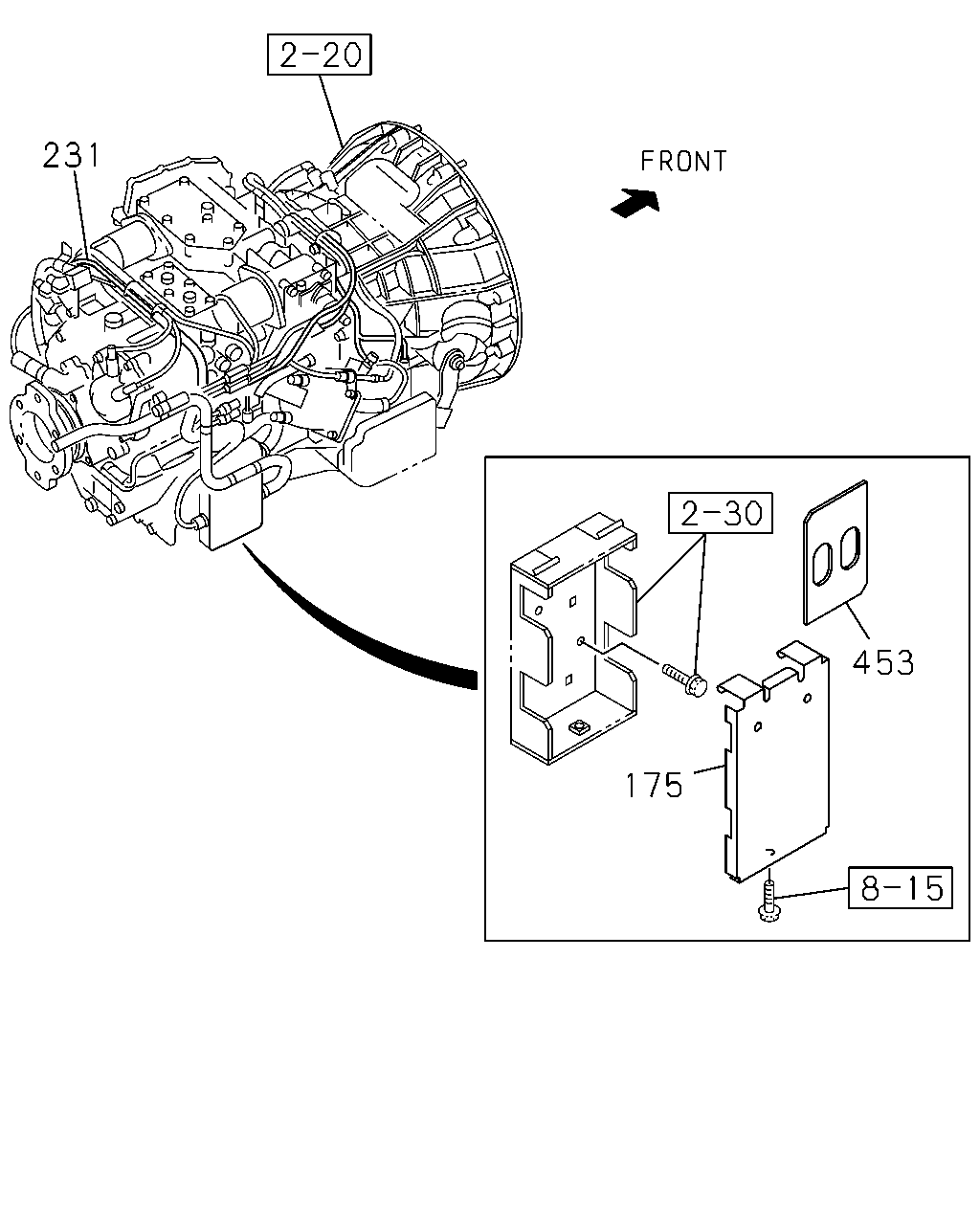

çizim 188942
231 175 453
BalonParca AdiParca NoAdetTipApplied Date
175 BOX; CONNECTOR 1-82569-435-1 01 1 1009-1302
175 BOX; CONNECTOR
SMOOTHER-G(C1W) 		1-82569-435-1 01 1 1303-
231 HARNESS; TRANS
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98221-994-2 01 1 1303-
231 HARNESS; TRANS 8-97631-170-0 01 1 1009-1302
231 HARNESS; TRANS
SMOOTHER-G(C1W) 		8-97631-170-1 01 1 1303-
453 PROTECTOR; HARNESS 8-98213-847-1 01 1 1207-1302
453 PROTECTOR; HARNESS
SMOOTHER-G(C1W) 		8-98213-847-1 01 1 1303-

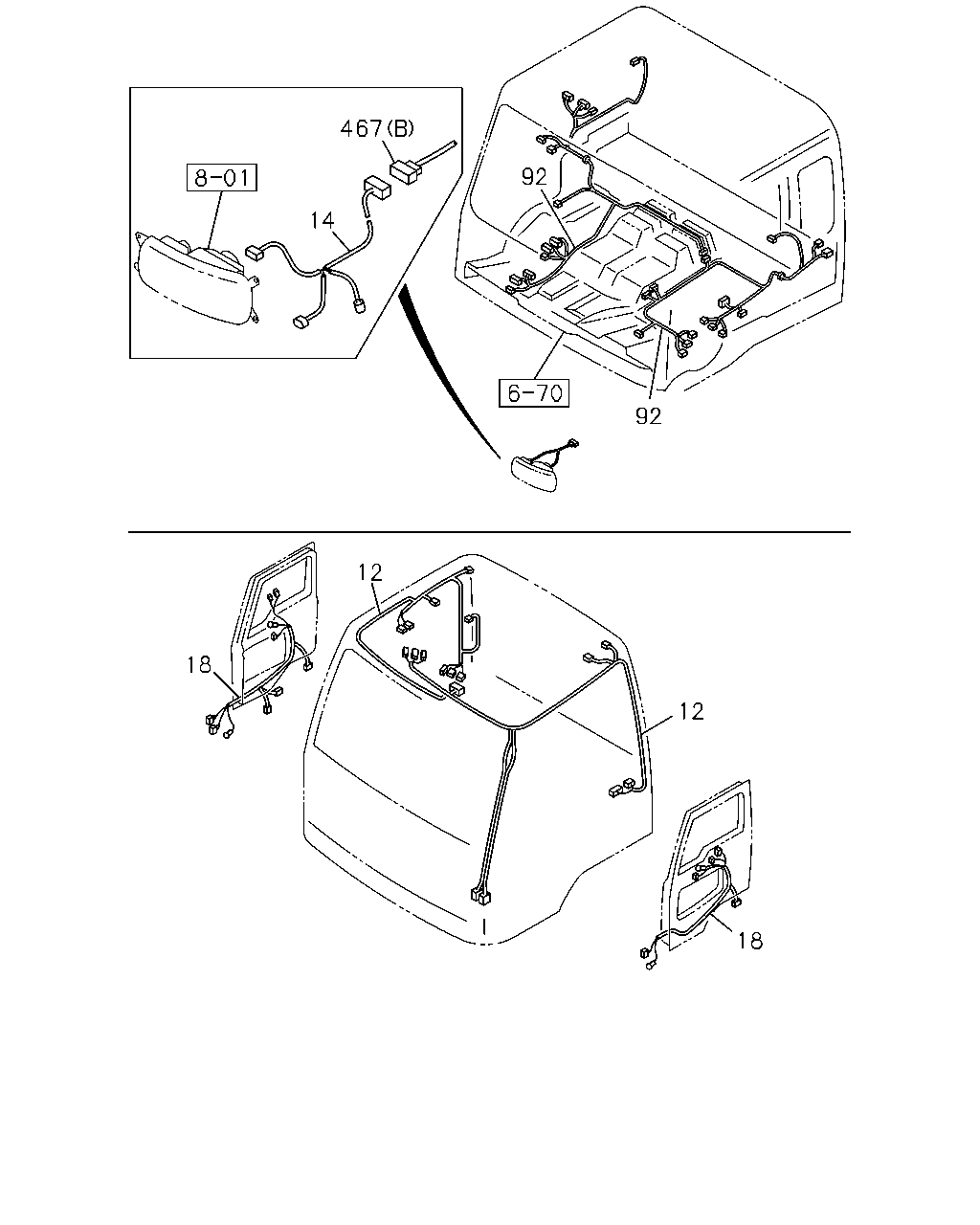

çizim 188943
467 14 92 92 12 18 12 18
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
PASSENGER SIDE 		8-97611-861-1 01 1 1009-1302
12 HARNESS; ROOF
PASSENGER SIDE 		8-97644-022-2 01 1 1303-1410
12 HARNESS; ROOF
PASSENGER SIDE 		8-98284-065-0 01 1 1411-
12 HARNESS; ROOF
DRIVER SIDE 		8-97611-862-0 01 1 1009-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		8-97607-335-0 02 1 1009-1302
14 HARNESS; HEADLAMP 8-98156-953-2 02 1 1303-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-97631-060-0 01 1 1009-1302
18 HARNESS; DOOR 8-97644-086-0 01 1 1303-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-97631-061-0 01 1 1009-1302
18 HARNESS; DOOR 8-97644-087-0 01 1 1303-
92 HARNESS; FLOOR
EXC. SMOOTHER-G(C1W) 		8-97645-327-0 01 1 1303-
92 HARNESS; FLOOR 8-97631-426-1 01 1 1009-1210
92 HARNESS; FLOOR 8-98229-078-0 01 1 1211-1302
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97645-331-1 01 1 1303-
92 HARNESS; FLOOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97631-055-2 01 1 1009-1302
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-97645-326-0 01 1 1303-1401
92 HARNESS; FLOOR
SMOOTHER-G(C1W) 		8-98258-216-0 01 1 1402-
92 HARNESS; FLOOR
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97632-200-2 01 1 1009-1302
92 HARNESS; FLOOR
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97645-440-0 01 1 1303-
467 HARNESS; FACIA
(A) 		8-97635-060-0 01 1 1009-1302
467 HARNESS; FACIA
(A) 		8-97645-324-0 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) AIR BAG(TFQ) (B) 		8-97635-009-2 01 1 1009-1302
467 HARNESS; FACIA
SMOOTHER-G(C1W) (B) 		8-97645-321-2 01 1 1303-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG(TFQ) (B) 		8-97635-012-2 01 1 1009-1302
467 HARNESS; FACIA
EXC. SMOOTHER-G(C1W) (B) 		8-97645-322-2 01 1 1303-

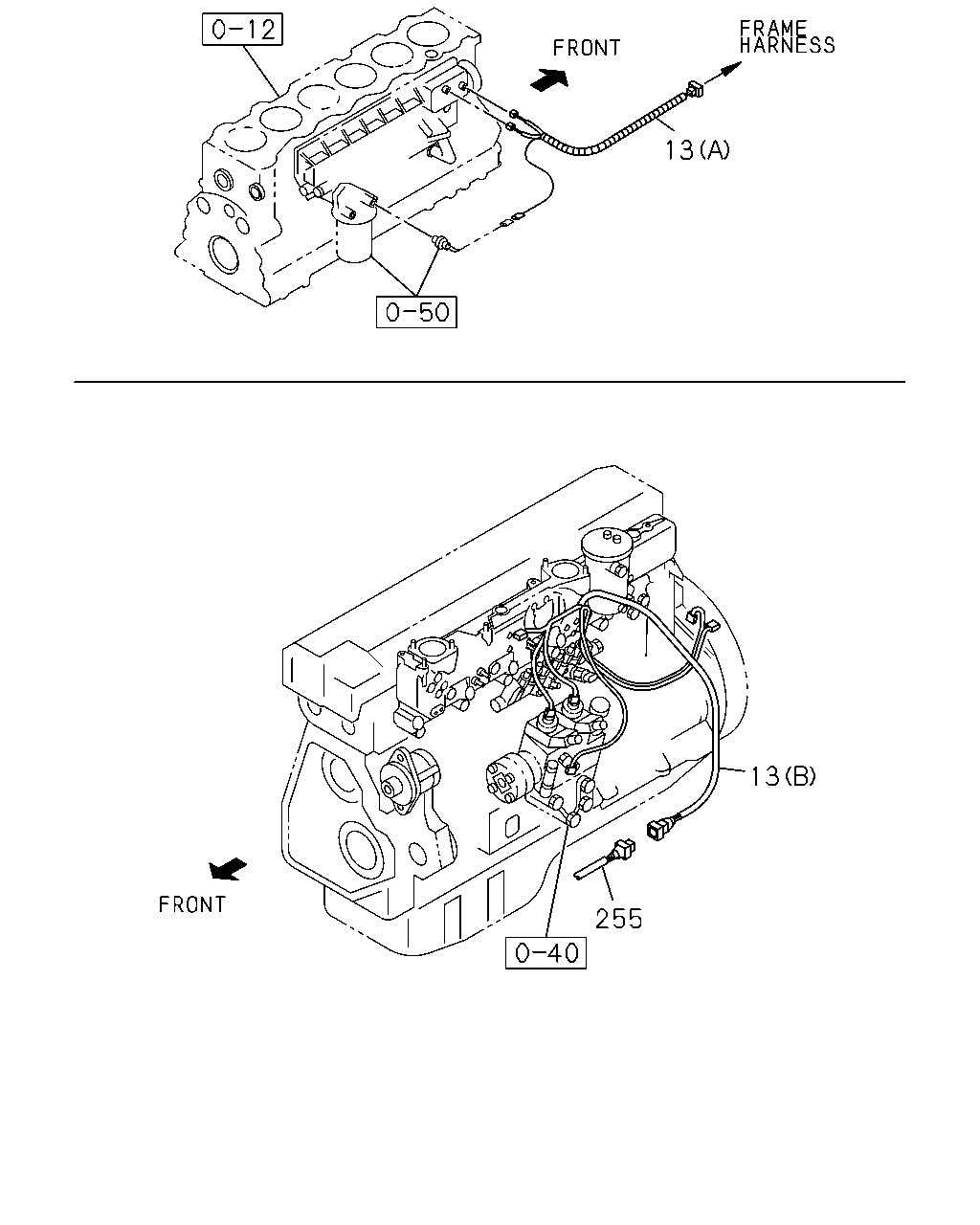

çizim 188945
13 13 255
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-98152-248-0 01 1 1009-1204
13 HARNESS; ENG
(B) 		8-98210-224-0 01 1 1205-
13 HARNESS; ENG
(A) 		8-98126-840-2 01 1 1009-
255 HARNESS; ELEC GOV 8-97631-059-0 01 1 1009-1302
255 HARNESS; ELEC GOV 8-97645-325-2 01 1 1303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
