◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#69573) — 199 parça
çizim 135720
1 4 13 211 340 13 12 5 202 202 18 23 14 339 338
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 8-98097-188-0 01 1 1009-1302
1 LAMP ASM; HEAD 8-98225-620-0 01 1 1303-1305
1 LAMP ASM; HEAD 8-98241-312-0 01 1 1306-
1 LAMP ASM; HEAD 8-98097-189-0 01 1 1009-1302
1 LAMP ASM; HEAD 8-98225-621-0 01 1 1303-1305
1 LAMP ASM; HEAD 8-98241-313-0 01 1 1306-
4 HEADLAMP UNIT 1-82119-214-0 01 1 1009-1302
4 HEADLAMP UNIT 8-98199-566-0 01 1 1303-
4 HEADLAMP UNIT 1-82119-215-0 01 1 1009-1302
4 HEADLAMP UNIT 8-98199-567-0 01 1 1303-
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1303-
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1009-
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 1009-1302
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 1009-1302
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 1009-1302
14 CAP; BULB,LAMP 1-86830-148-0 02 1 1009-1302
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 1009-1302
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 1009-1302
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1303-
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 1009-1302
211 TUBE; HEADLAMP 8-98101-137-0 01 1 1009-1302
211 TUBE; HEADLAMP 8-98101-138-0 01 1 1009-1302
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1009-
339 GASKET; LEVELING 1-86830-158-0 02 1 1009-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 1009-1302

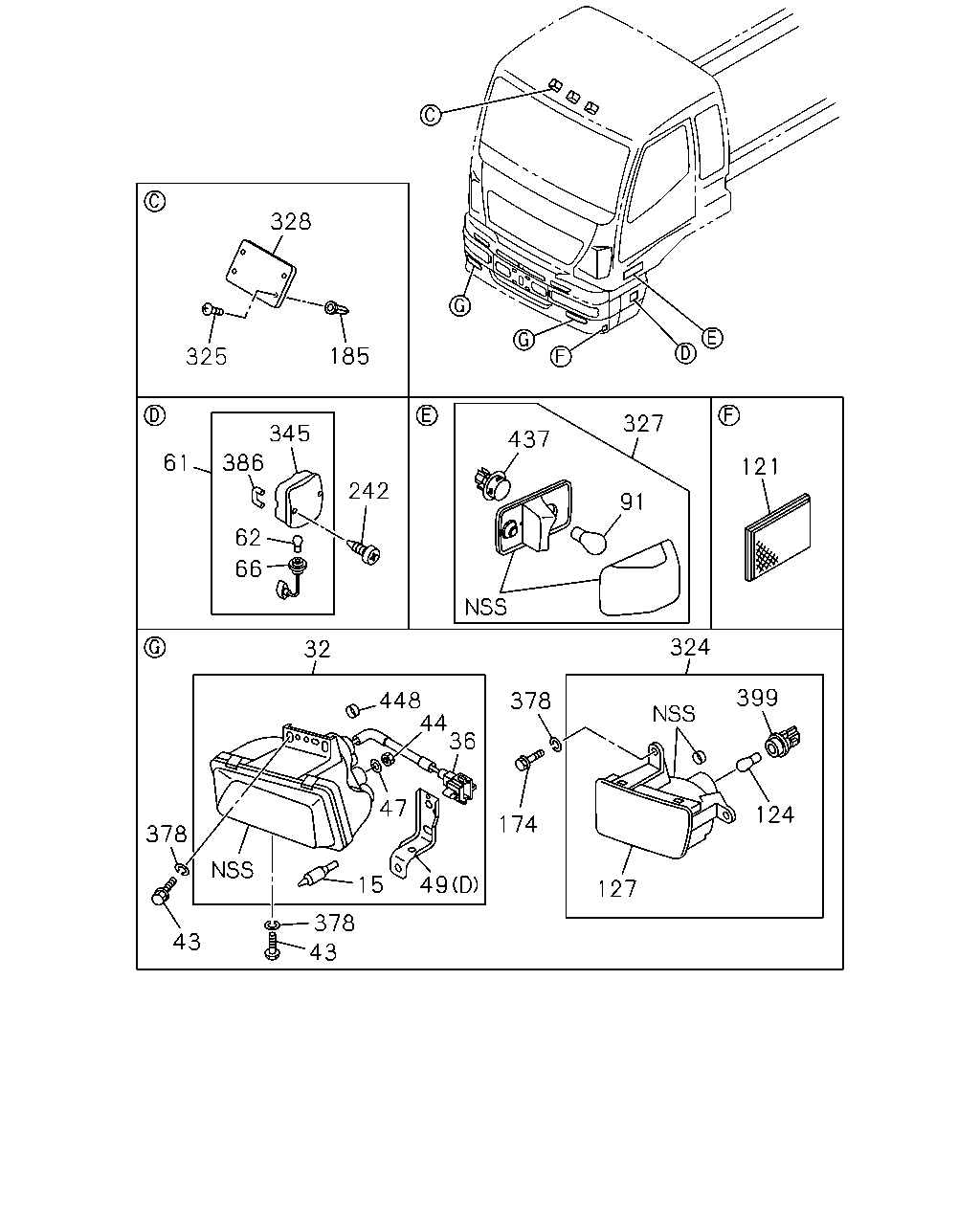

çizim 136215
328 325 185 345 386 61 242 62 66 32 378 448 44 36 43 378 43 49 15 47 378 174 127 324 399 124 437 327 91 121
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 1009-1302
32 LAMP ASM; FOG 8-98149-150-1 01 1 1009-1301
32 LAMP ASM; FOG 8-98232-065-0 01 1 1302-1302
32 LAMP ASM; FOG 8-98149-149-1 01 1 1009-1301
32 LAMP ASM; FOG 8-98232-064-0 01 1 1302-1302
36 CORD; FOG LAMP 1-82118-016-0 01 1 1009-1302
36 CORD; FOG LAMP 1-82118-015-0 01 1 1009-1302
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 04 1 1009-1302
43 BOLT; FOG LAMP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205-1302
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205-1302
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 1009-1302
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 1009-1302
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 1009-1302
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 1009-1302
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 1009-1302
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 1009-1302
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 1009-1302
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-389-1 01 1 1009-1302
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-388-1 01 1 1009-1302
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 02 1 1009-1302
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 02 1 1009-1302
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1009-
121 REFLECTOR; REFLEX 8-98013-990-1 02 1 1009-1302
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 1009-1302
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 1009-1302
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 1009-1302
174 BOLT
M6X20 FLANGE 		0-28650-620-0 04 1 1009-1302
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 1009-
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 1009-1302
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 1009-1302
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 1009-1302
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 1009-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1009-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1009-
328 COVER; LAMP 1-76217-122-1 03 1 1009-
345 LAMP UNIT; CORNERING
CORNERING LAMP<TDS> 		8-98004-042-0 01 1 1009-1302
345 LAMP UNIT; CORNERING
CORNERING LAMP<TDS> 		8-98004-041-0 01 1 1009-1302
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 1009-1302
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 1009-1302
386 TUBE; CORNERING LAMP
CORNERING LAMP<TDS> 		8-94451-175-0 02 1 1009-1302
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 1009-1302
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1009-
448 CAP ASM; LAMP 8-97378-874-0 02 1 1009-1302

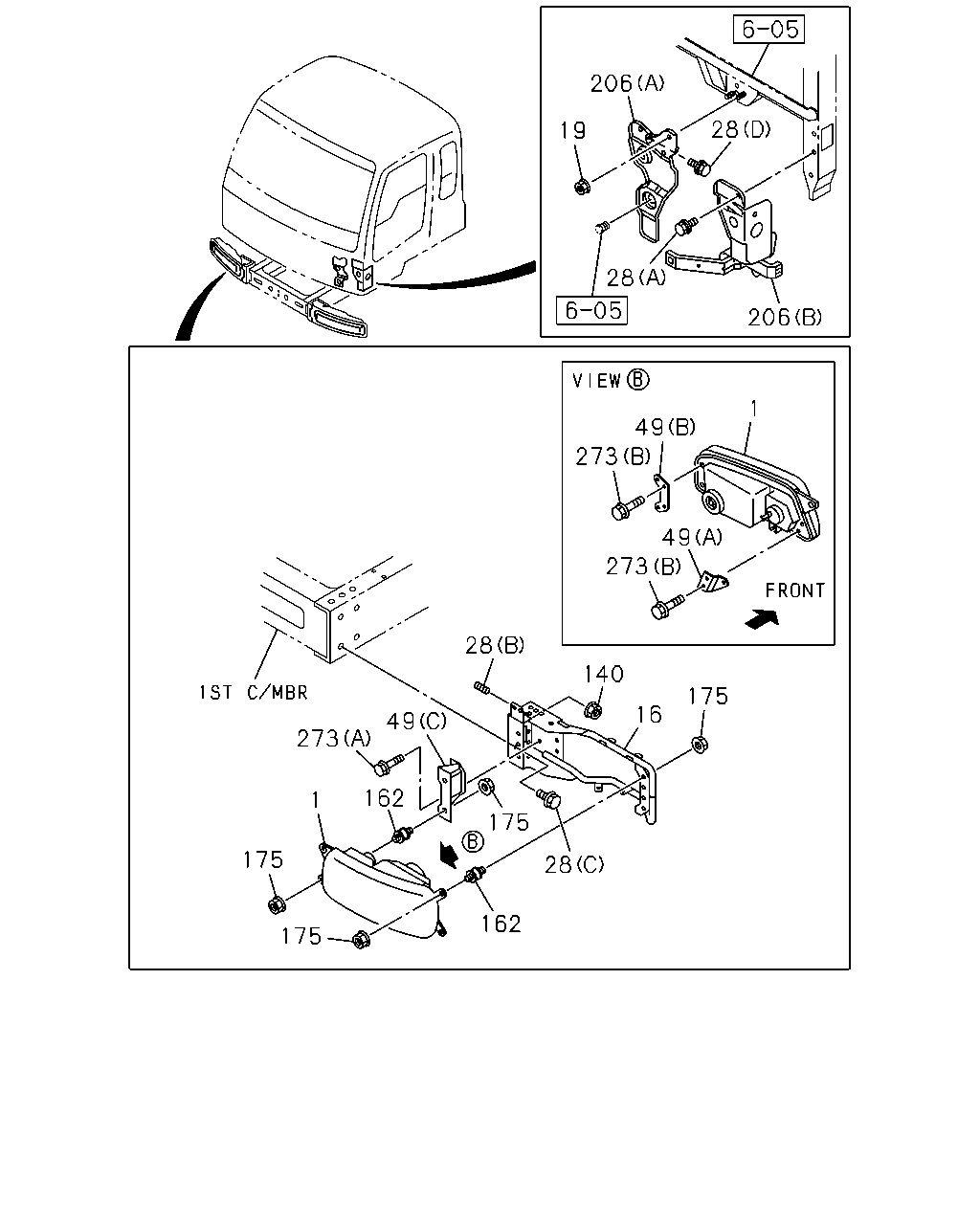

çizim 136280
206 19 28 206 28 49 273 49 273 175 1 140 16 28 175 28 162 49 273 162 175 175 1
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 8-98097-188-0 01 1 1009-1302
1 LAMP ASM; HEAD 8-98225-620-0 01 1 1303-1305
1 LAMP ASM; HEAD 8-98241-312-0 01 1 1306-
1 LAMP ASM; HEAD 8-98097-189-0 01 1 1009-1302
1 LAMP ASM; HEAD 8-98225-621-0 01 1 1303-1305
1 LAMP ASM; HEAD 8-98241-313-0 01 1 1306-
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 1009-1302
16 BRACKET; HEADLAMP 8-98121-414-3 01 1 1303-
16 BRACKET; HEADLAMP 8-97613-935-0 01 1 1009-1302
16 BRACKET; HEADLAMP 8-98121-415-3 01 1 1303-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1009-
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 1009-1302
28 BOLT; HEADLAMP
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1303-
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 1009-1302
28 BOLT; HEADLAMP
(B) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1303-
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1009-
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1009-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 1009-1302
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 1009-1302
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 1009-1302
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 1009-1302
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 1009-1302
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 1009-1302
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 1009-1302
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 1009-1302
140 NUT
M12 FLANGE 		0-91180-212-0 04 1 1303-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1009-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1009-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 1009-1302
206 HOLDER; HEADLAMP
(A) 		8-98121-219-1 01 1 1303-
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 1009-1302
206 HOLDER; HEADLAMP
(B) 		8-98121-335-0 01 1 1303-
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 1009-1302
206 HOLDER; HEADLAMP
(B) 		8-98121-218-2 01 1 1303-
206 HOLDER; HEADLAMP
(A) 		1-65671-817-0 01 1 1009-1302
206 HOLDER; HEADLAMP
(A) 		8-98121-330-0 01 1 1303-
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1009-1302
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 1009-1302

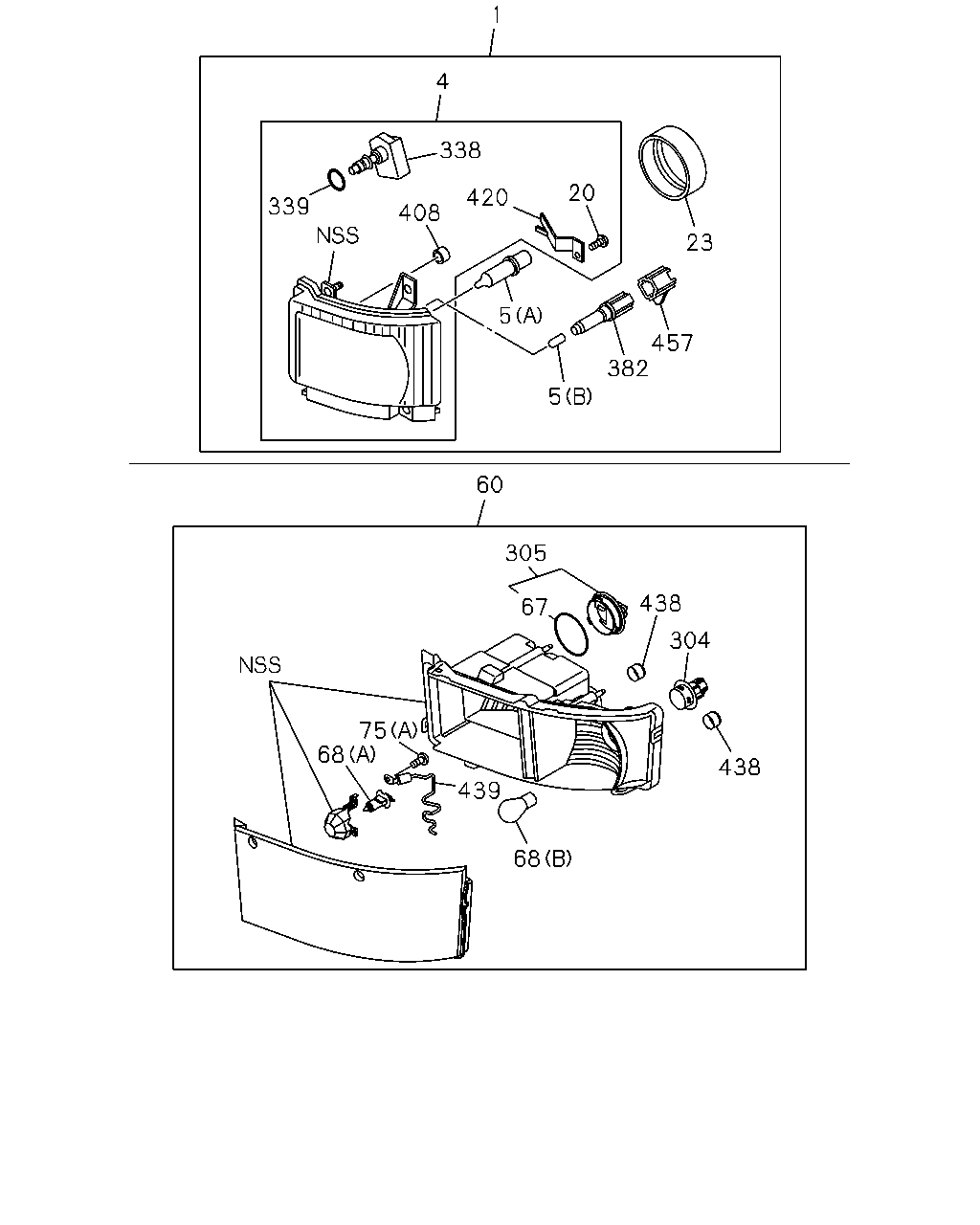

çizim 336733
1 4 338 20 23 457 382 5 5 420 408 339 60 305 67 438 304 438 68 439 75 68
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 8-98097-188-0 01 1 1009-1302
1 LAMP ASM; HEAD 8-98225-620-0 01 1 1303-1305
1 LAMP ASM; HEAD 8-98241-312-0 01 1 1306-
1 LAMP ASM; HEAD 8-98097-189-0 01 1 1009-1302
1 LAMP ASM; HEAD 8-98225-621-0 01 1 1303-1305
1 LAMP ASM; HEAD 8-98241-313-0 01 1 1306-
4 HEADLAMP UNIT 1-82119-214-0 01 1 1009-1302
4 HEADLAMP UNIT 8-98199-566-0 01 1 1303-
4 HEADLAMP UNIT 1-82119-215-0 01 1 1009-1302
4 HEADLAMP UNIT 8-98199-567-0 01 1 1303-
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1303-
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1009-
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1303-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 1009-1302
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1303-
60 LAMP ASM; FRT COMB 8-98159-978-2 01 1 1303-1303
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1303-
60 LAMP ASM; FRT COMB 8-98159-979-2 01 1 1303-1303
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1303-
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1303-
68 BULB; FRT COMB LAMP
(A) 24V 70W 		1-82194-106-0 02 1 1303-
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1303-
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1303-
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1303-
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 1303-
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1303-
305 COVER; FRT COMB LAMP 8-98074-440-0 02 1 1303-1303
305 COVER; FRT COMB LAMP 8-98240-559-0 02 1 1303-
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1009-
339 GASKET; LEVELING 1-86830-158-0 02 1 1009-
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1303-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1303-
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1303-
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 04 1 1303-1303
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1303-
439 SPRING SET; COMB LAMP 8-98075-644-0 02 1 1303-
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306-

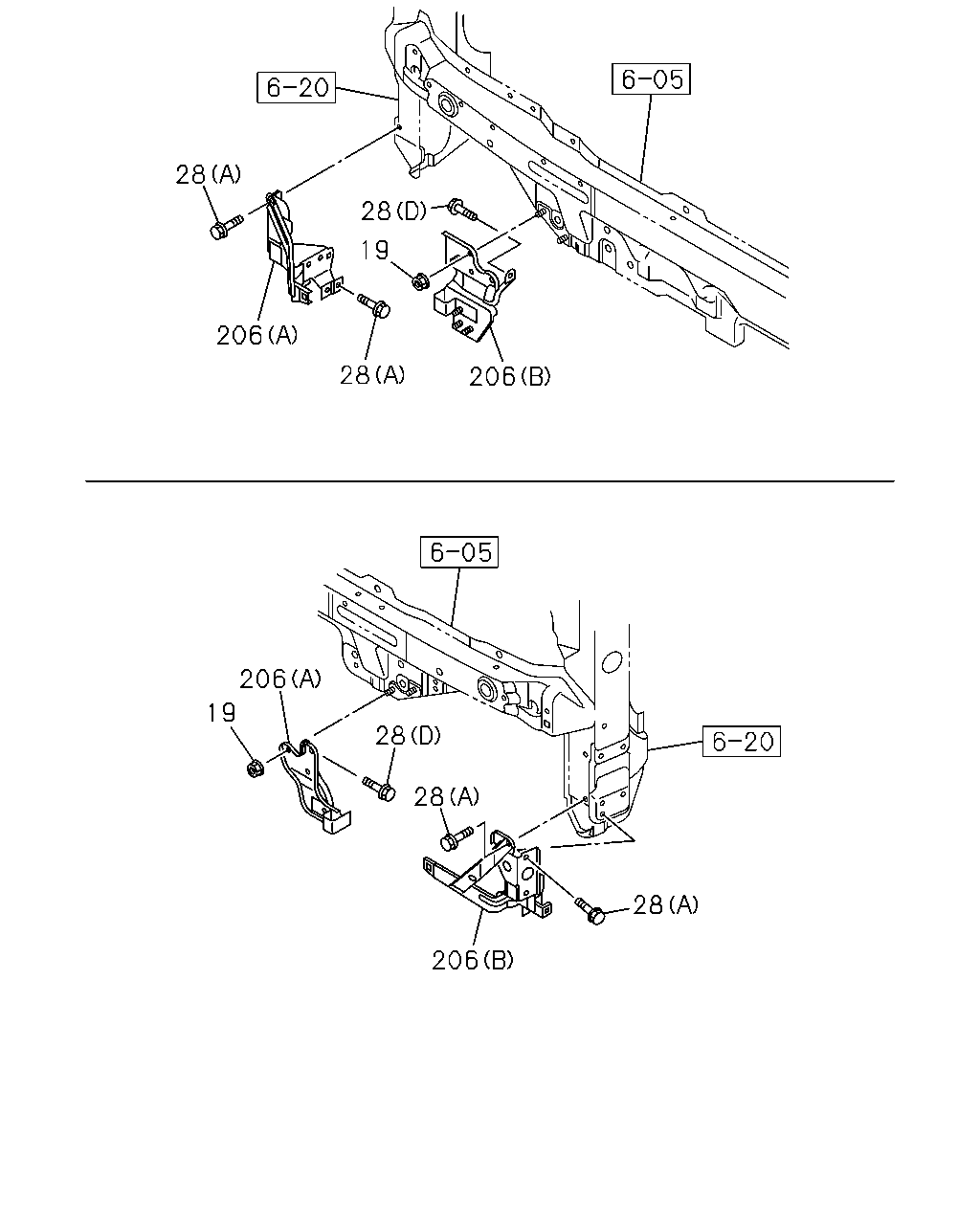

çizim 336766
28 28 206 28 206 19 206 19 28 28 206 28
BalonParca AdiParca NoAdetTipApplied Date
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1009-
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 1009-1302
28 BOLT; HEADLAMP
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1303-
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 1009-1302
28 BOLT; HEADLAMP
(B) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1303-
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1009-
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1009-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 1009-1302
206 HOLDER; HEADLAMP
(A) 		8-98121-219-1 01 1 1303-
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 1009-1302
206 HOLDER; HEADLAMP
(B) 		8-98121-335-0 01 1 1303-
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 1009-1302
206 HOLDER; HEADLAMP
(B) 		8-98121-218-2 01 1 1303-
206 HOLDER; HEADLAMP
(A) 		1-65671-817-0 01 1 1009-1302
206 HOLDER; HEADLAMP
(A) 		8-98121-330-0 01 1 1303-
çizim 336919
328 185 325 327 91 437 427
BalonParca AdiParca NoAdetTipApplied Date
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1009-
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 1009-
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 1009-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1009-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1009-
328 COVER; LAMP 1-76217-122-1 03 1 1009-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1307-
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1009-

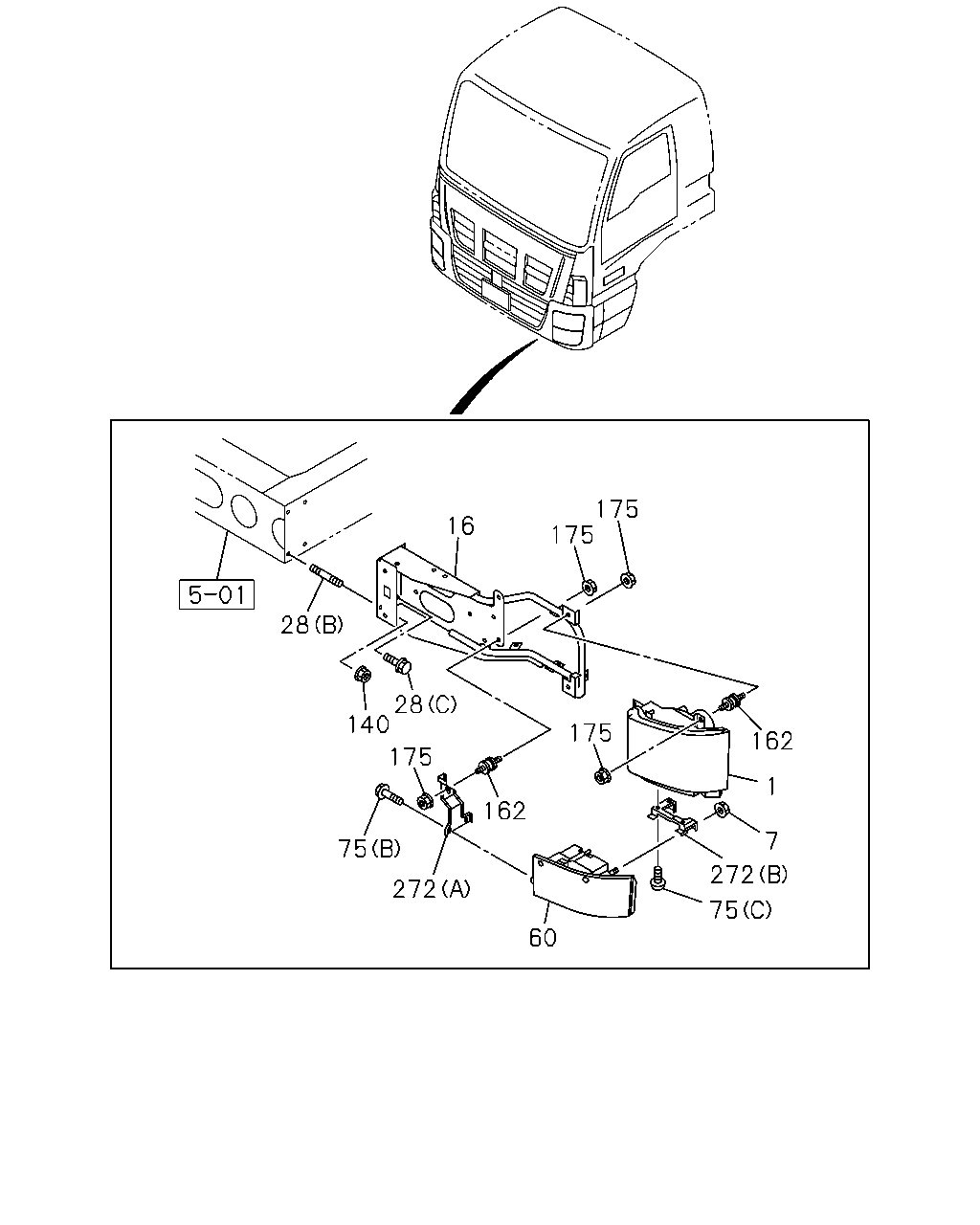

çizim 336995
16 175 175 28 28 140 175 175 162 1 7 272 75 60 272 162 75
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 8-98097-188-0 01 1 1009-1302
1 LAMP ASM; HEAD 8-98225-620-0 01 1 1303-1305
1 LAMP ASM; HEAD 8-98241-312-0 01 1 1306-
1 LAMP ASM; HEAD 8-98097-189-0 01 1 1009-1302
1 LAMP ASM; HEAD 8-98225-621-0 01 1 1303-1305
1 LAMP ASM; HEAD 8-98241-313-0 01 1 1306-
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1303-
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 1009-1302
16 BRACKET; HEADLAMP 8-98121-414-3 01 1 1303-
16 BRACKET; HEADLAMP 8-97613-935-0 01 1 1009-1302
16 BRACKET; HEADLAMP 8-98121-415-3 01 1 1303-
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 1009-1302
28 BOLT; HEADLAMP
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1303-
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 1009-1302
28 BOLT; HEADLAMP
(B) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1303-
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1009-
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1009-
60 LAMP ASM; FRT COMB 8-98159-978-2 01 1 1303-1303
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1303-
60 LAMP ASM; FRT COMB 8-98159-979-2 01 1 1303-1303
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1303-
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1303-
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1303-
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 1303-
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 1009-1302
140 NUT
M12 FLANGE 		0-91180-212-0 04 1 1303-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1009-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1009-
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1303-
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1303-
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1303-
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
