7-70 — SEPARATER AND BED (#69572) — 80 parça

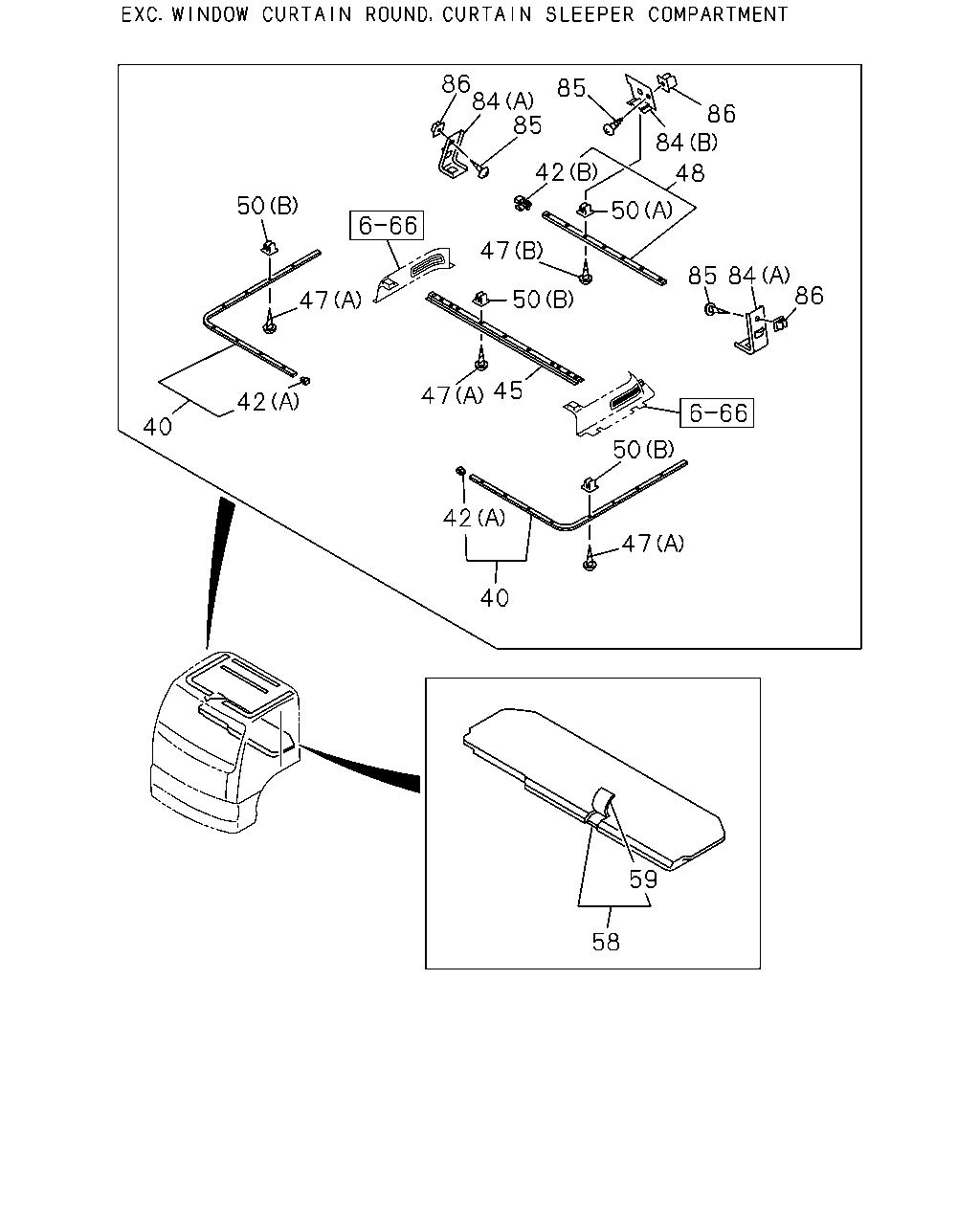

40 47 42 50 45 47 42 40 47 50 47 50 85 86 84 50 48 84 86 42 85 85 84 86 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1009-1302
40	RAIL; CURTAIN,SIDE	1-73907-538-1	01	1	1303-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1009-1302
40	RAIL; CURTAIN,SIDE	1-73907-537-1	01	1	1303-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1009-1302
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1009-1302
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1009-1302
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	04	1	1303-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1009-1302
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	02	1	1303-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1009-1302
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1009-1302
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1009-1302
45	RAIL; CURTAIN,FRT	1-73907-546-3	01	1	1303-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1009-1302
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1009-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1009-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1009-1302
48	RAIL; CURTAIN,BACK	1-73996-386-1	01	1	1303-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1009-1302
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1009-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1009-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1009-1302
58	BED; MAT	1-75127-112-2	01	1	1303-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1009-1302
59	COVER ASM; TRIM,BED MAT	1-75127-130-1	01	1	1303-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1009-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1009-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1009-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1009-

64 92 44 44 51 51 46 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-1	01	1	1009-1302
44	CURTAIN ASM; CABIN CENTER	1-73907-480-1	01	1	1303-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-1	01	1	1009-1302
44	CURTAIN ASM; CABIN CENTER	1-73907-481-1	01	1	1303-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-426-0	01	1	1009-1302
46	CURTAIN ASM; DOOR	1-73907-426-0	01	1	1303-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-1	01	1	1009-1302
51	CURTAIN; BACK	1-73907-482-1	01	1	1303-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-1	01	1	1009-1302
51	CURTAIN; BACK	1-73907-483-1	01	1	1303-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-479-1	01	1	1009-1302
64	CURTAIN KIT	1-73907-479-1	01	1	1303-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-1	01	1	1009-1302
92	CURTAIN ASM; ROUND	1-73907-484-1	01	1	1303-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-1	01	1	1009-1302
92	CURTAIN ASM; ROUND	1-73907-485-1	01	1	1303-

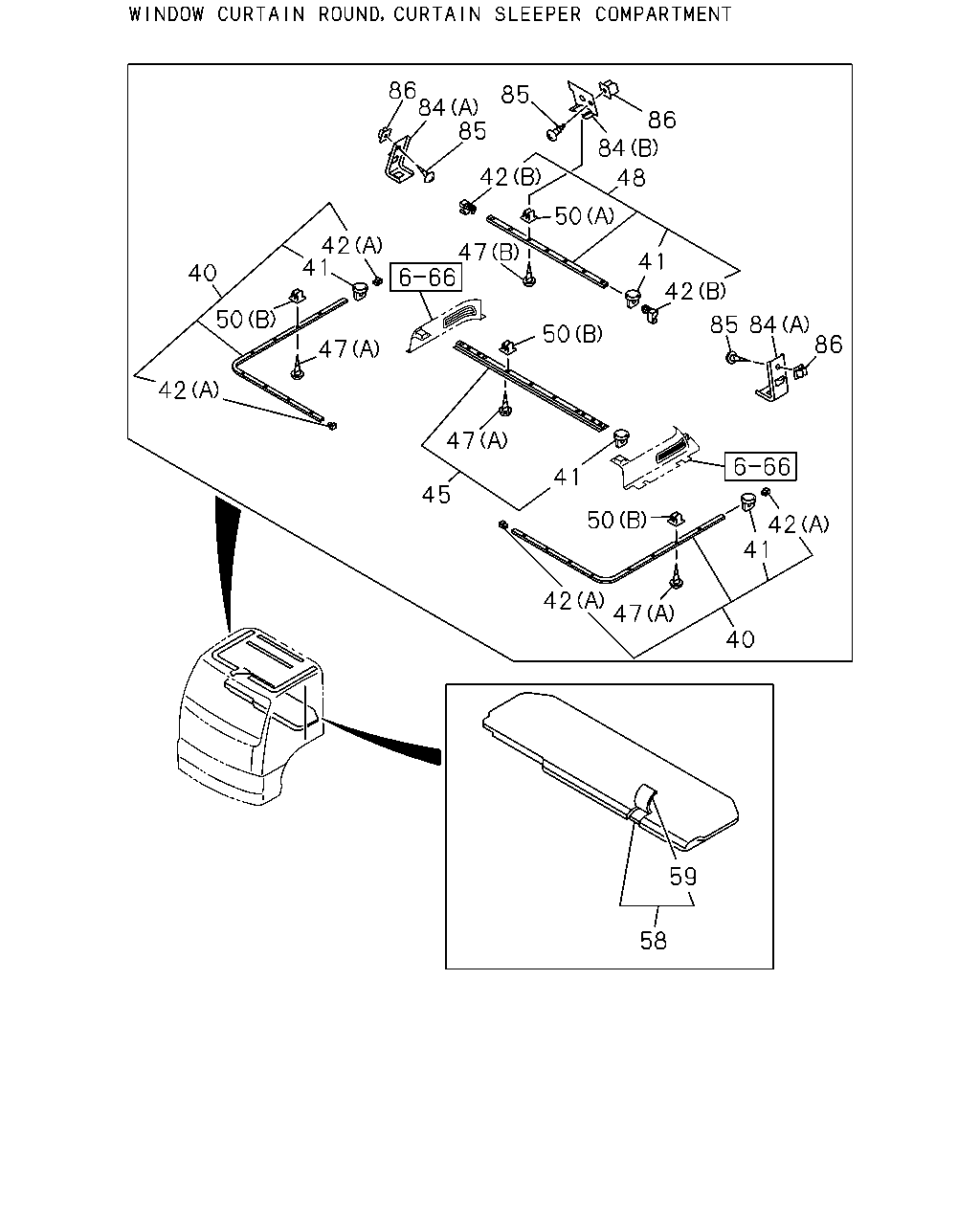

86 85 84 48 86 84 85 42 50 41 42 85 84 86 47 50 42 42 41 47 47 41 50 41 40 50 45 42 47 40 42 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	1009-1302
40	RAIL; CURTAIN,SIDE	1-73907-538-1	01	1	1303-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	1009-1302
40	RAIL; CURTAIN,SIDE	1-73907-537-1	01	1	1303-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	1009-1302
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	1009-1302
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	1009-1302
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	42	1	1303-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	1009-1302
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	14	1	1303-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	1009-1302
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	04	1	1303-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	1009-1302
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	02	1	1303-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	1009-1302
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	1009-1302
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	1009-1302
45	RAIL; CURTAIN,FRT	1-73907-546-3	01	1	1303-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	1009-1302
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	1009-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	1009-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	1009-1302
48	RAIL; CURTAIN,BACK	1-73996-386-1	01	1	1303-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	1009-1302
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	1009-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	1009-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	1009-1302
58	BED; MAT	1-75127-112-2	01	1	1303-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	1009-1302
59	COVER ASM; TRIM,BED MAT	1-75127-130-1	01	1	1303-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	1009-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	1009-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	1009-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	1009-
