◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#69570) — 312 parça

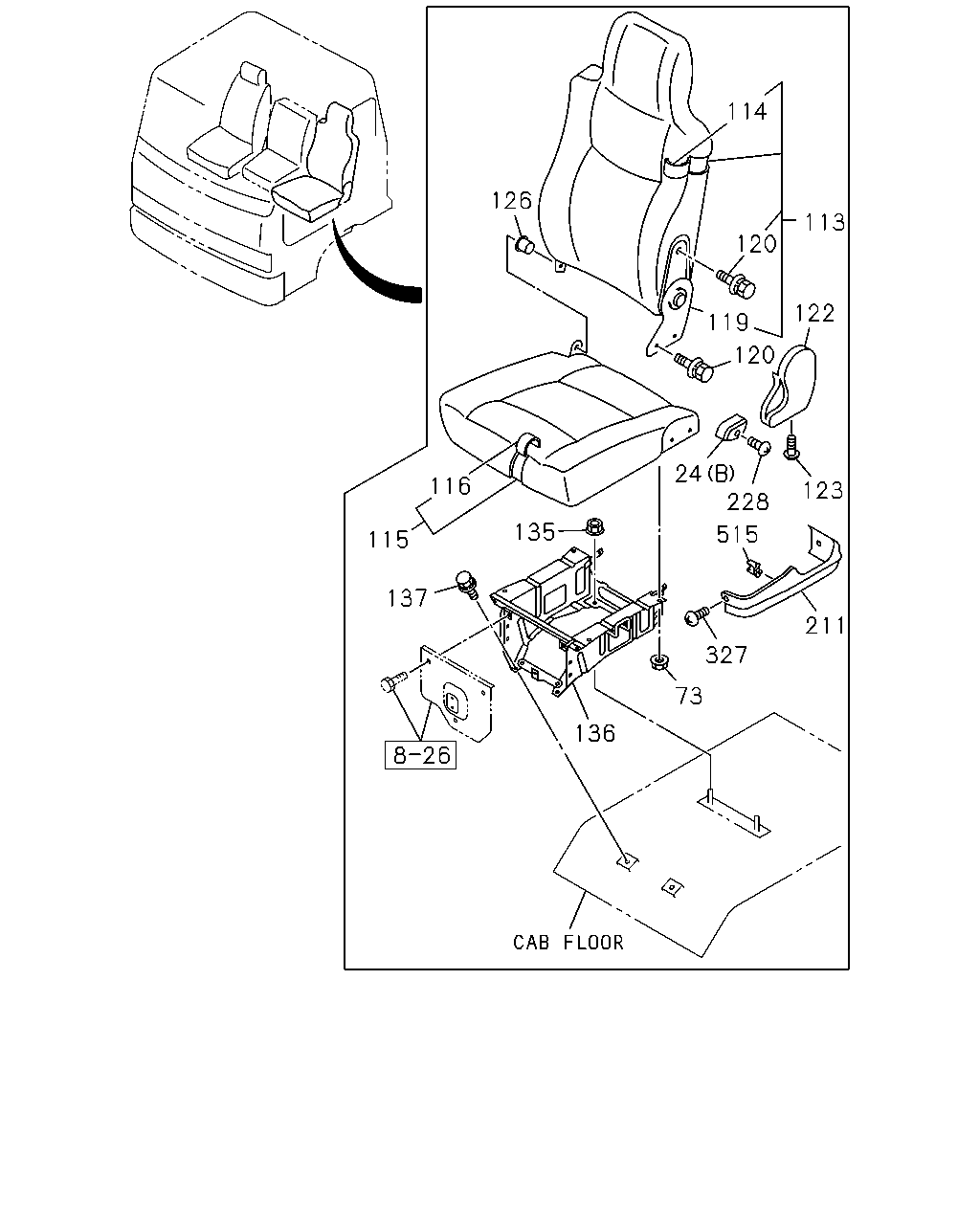

çizim 135134
126 114 120 113 122 119 120 24 228 123 515 211 327 73 136 137 115 116 135
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 1009-1302
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75418-066-0 01 1 1009-1302
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-066-0 01 1 1009-1302
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 1303-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 1009-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-759-0 01 1 1009-1009
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-280-0 01 1 1010-1302
113 BACK ASM; SEAT 8-98168-280-0 01 1 1303-
113 BACK ASM; SEAT
VINYL SEAT(A83) 		1-75207-652-2 01 1 1009-1302
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-189-0 01 1 1009-1009
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-295-0 01 1 1010-1302
114 COVER; TRIM,PASSENGER SEAT,BACK 8-98168-295-0 01 1 1303-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) 		1-75127-171-1 01 1 1009-1302
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-771-0 01 1 1009-1009
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-131-0 01 1 1010-1302
115 CUSHION ASM; PASSENGER SEAT 8-98168-131-0 01 1 1303-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) 		1-75207-300-0 01 1 1009-1302
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-188-0 01 1 1009-1009
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-270-0 01 1 1010-1302
116 COVER; TRIM,PASSENGER SEAT,CUSHION 8-98168-270-0 01 1 1303-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-124-0 01 1 1009-1302
119 ADJ; SEAT RECLINING,ASSIST SIDE
FABRIC SEAT W/RECLINING(SFQ) 		1-75417-597-0 01 1 1009-1302
119 ADJ; SEAT RECLINING,ASSIST SIDE 1-75417-597-0 01 1 1303-
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) M8X20 		8-97255-906-0 04 1 1009-1302
120 BOLT; RECLINING ADJ
VINYL SEAT(A83) M8X20 		8-97255-906-0 02 1 1009-1302
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 04 1 1303-
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) 		1-75417-598-0 01 1 1009-1302
122 COVER; ADJ,RECLINING 1-75417-598-0 01 1 1303-
122 COVER; ADJ,RECLINING
VINYL SEAT(A83) DARK GRAY 		8-97859-018-0 01 1 1009-1302
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) M6X12 		9-03490-612-0 01 1 1009-1302
123 SCREW; COVER,RECLINING
M6X12 		9-03490-612-0 01 1 1303-
123 SCREW; COVER,RECLINING
VINYL SEAT(A83) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 1009-1302
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 1009-
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 1009-
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75558-522-8 01 1 1009-1302
136 STAND; PASSENGER SEAT 1-75558-522-8 01 1 1303-1305
136 STAND; PASSENGER SEAT 8-98242-290-0 01 1 1306-
136 STAND; PASSENGER SEAT
VINYL SEAT(A83) 		1-75558-602-3 01 1 1009-1302
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 1009-
211 COVER; FRT SEAT
VINYL SEAT(A83) 		1-72538-274-0 01 1 1009-1302
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 1009-1302
228 SCREW; KNOB
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DRIVER M4 		8-98062-662-0 01 1 1009-1302
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 1009-1302
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1303-
327 CLIP; COVER
VINYL SEAT(A83) 		1-09987-273-0 02 1 1009-1302
327 CLIP; COVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-09987-273-0 02 1 1009-1302
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 02 1 1009-1302
327 CLIP; COVER 1-09987-273-0 02 1 1303-
515 CLIP; PIPE
VINYL SEAT(A83) BLACK 		8-94227-248-1 01 1 1009-1302

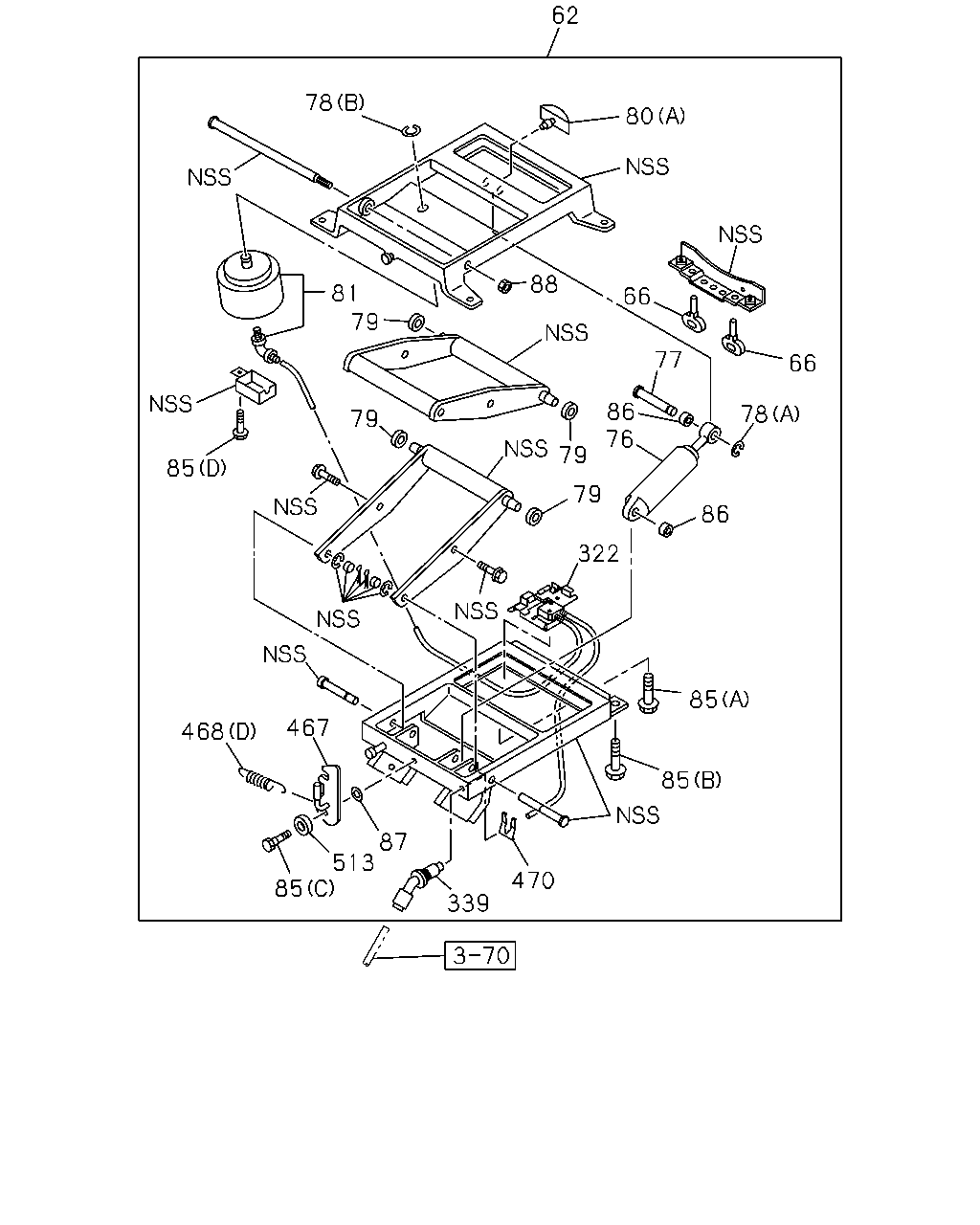

çizim 135145
62 78 81 85 79 79 88 80 66 66 77 86 79 322 79 86 76 78 467 468 513 85 87 470 339 85 85
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-7 01 1 1009-1302
62 DAMPER ASM; SEAT SUSP 1-75537-262-8 01 1 1303-1403
62 DAMPER ASM; SEAT SUSP 8-98261-449-0 01 1 1404-
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 1009-1302
66 RUBBER; LWR STOPPER 1-75538-145-0 02 1 1303-
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 1009-1302
76 DAMPER; AIR SUSP 1-75537-230-2 01 1 1303-
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 1009-1302
77 PIN; DAMPER 1-75538-138-2 01 1 1303-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 1009-1302
78 RING; SNAP
(A) ID=8 		9-09185-408-0 01 1 1303-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 1009-1302
78 RING; SNAP
(B) ID=15 		9-09185-415-0 01 1 1303-
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 1009-1302
79 ROLLER ASM; AIR SUSP 1-75538-159-0 04 1 1303-1403
79 ROLLER ASM; AIR SUSP 8-98261-489-0 04 1 1404-
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1009-
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 1009-1302
80 RUBBER; STOPPER
(A) 		1-09987-123-0 01 1 1303-
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 1009-1302
81 SPRING; AIR 1-75538-151-2 01 1 1303-1312
81 SPRING; AIR 8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
(D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-0 01 1 1009-1302
85 BOLT; AIR SUSP
(C) 		1-09980-577-1 01 1 1303-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 		1-75538-208-0 02 1 1009-1302
85 BOLT; AIR SUSP
(A) M6X12 		1-75538-208-1 02 1 1303-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1009-1302
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1303-1312
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1009-1302
86 BUSHING; GUIDE
OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1303-
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		0-91510-508-0 01 1 1009-1302
87 WASHER; AIR SUSP
ID=8.2 		0-91510-508-0 01 1 1303-
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		1-75537-273-1 01 1 1009-1302
88 NUT; AIR SUSP
M10 		1-75537-273-1 01 1 1303-
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-186-2 01 1 1009-1302
322 VALVE; AIR SPRING 1-75538-186-3 01 1 1303-
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-3 01 1 1009-1302
339 UNION; DRIVER SEAT 1-75538-131-3 01 1 1303-
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 1009-1302
467 LEVER; LOCK 1-75538-134-0 01 1 1303-
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 1009-1302
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 1303-
468 SPRING; RETURN
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-206-0 01 1 1009-1302
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 1009-1302
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1303-
468 SPRING; RETURN
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-207-0 01 1 1009-1302
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 1009-1302
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1303-
468 SPRING; RETURN
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-208-0 02 1 1009-1302
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 1009-1302
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1303-
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 1009-1302
470 CLIP; HOSE 1-75538-137-0 01 1 1303-
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 1009-1302
513 SPACER; LEVER 1-75538-133-0 01 1 1303-
çizim 135196
506 360 175 176 188 16 189 359 403 182 179 403 188
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 1009-
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-762-0 01 1 1009-1011
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-329-1 01 1 1012-1302
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) 		8-98168-329-1 01 1 1303-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75026-856-3 01 1 1009-1302
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-191-0 01 1 1009-1011
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-332-0 01 1 1012-1302
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) 		8-98168-332-0 01 1 1303-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75116-710-1 01 1 1009-1302
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-190-0 01 1 1009-1011
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-326-0 01 1 1012-1302
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) 		8-98168-326-0 01 1 1303-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75116-696-1 01 1 1009-1302
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-761-0 01 1 1009-1011
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-318-2 01 1 1012-1302
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) 		8-98168-318-2 01 1 1303-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75026-845-4 01 1 1009-1302
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1009-
189 BUSHING; HINGE,CENTER SEAT BACK
CENTER SEAT(SA1) 		8-97854-900-0 01 1 1009-
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1009-
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1009-1104
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1009-
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1009-
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 1009-
506 CAP; PARCEL BOX
CENTER SEAT(SA1) 		1-09983-180-3 02 1 1009-

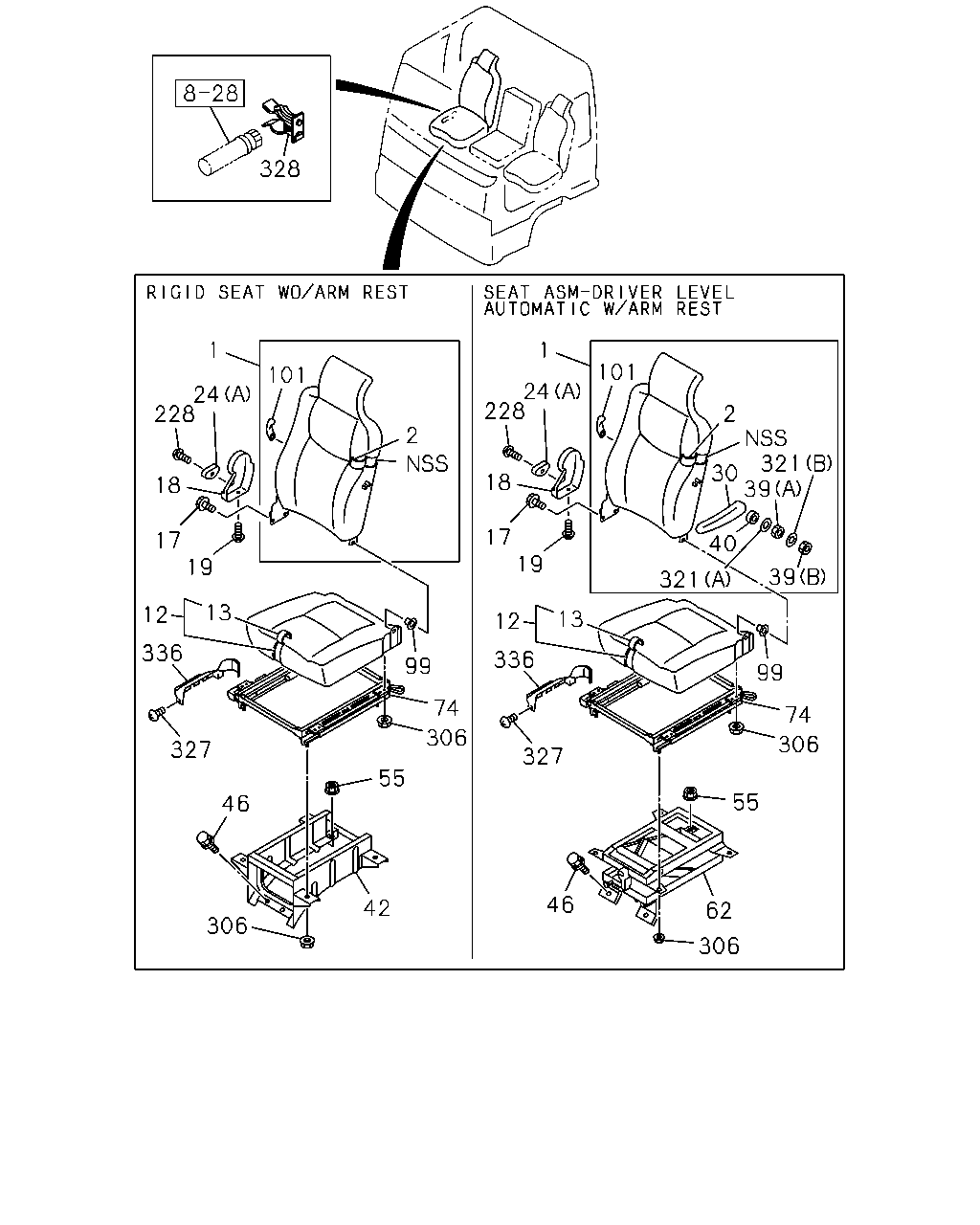

çizim 188936
328 306 62 46 55 306 74 99 327 336 12 13 321 39 39 321 2 30 17 19 18 228 24 1 101 42 55 306 99 74 306 46 327 336 12 13 19 17 18 228 24 1 101 2 40
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-639-0 01 1 1009-1009
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-072-0 01 1 1010-1302
1 BACK ASM; SEAT 8-98168-072-0 01 1 1303-
1 BACK ASM; SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		8-98135-635-0 01 1 1009-1302
1 BACK ASM; SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-630-0 01 1 1009-1302
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-187-0 01 1 1009-1009
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-089-0 01 1 1010-1302
2 COVER; TRIM,FRT SEAT,BACK 8-98168-089-0 01 1 1303-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75127-165-1 01 1 1009-1302
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-146-2 01 1 1009-1302
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-770-0 01 1 1009-1009
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-048-0 01 1 1010-1302
12 CUSHION; SEAT,FRT 8-98168-048-0 01 1 1303-
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) 		1-75207-603-2 01 1 1009-1302
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-186-0 01 1 1009-1009
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-081-0 01 1 1010-1302
13 COVER; TRIM,FRT SEAT,CUSHION 8-98168-081-0 01 1 1303-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-102-1 01 1 1009-1302
17 BOLT; RECLINING
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) M8X20 		8-97255-906-0 02 1 1009-1302
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 1009-1302
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 1303-
18 COVER; RECLINING
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY 		8-97867-020-0 01 1 1009-1302
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		8-97867-020-0 01 1 1009-1302
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 1303-
19 SCREW; COVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 1009-1302
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 1009-1302
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 1303-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 1009-1302
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75418-066-0 01 1 1009-1302
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-066-0 01 1 1009-1302
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 1303-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-185-0 01 1 1009-1009
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-091-0 01 1 1010-1302
30 REST ASM; ARM,FRT SEAT 8-98168-091-0 01 1 1303-
30 REST ASM; ARM,FRT SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-015-1 01 1 1009-1302
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 1009-1302
39 NUT; ARM REST
(B) M8 		1-75147-657-0 01 1 1303-
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 1009-1302
39 NUT; ARM REST
(A) M10 		9-09110-410-0 01 1 1303-
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 1009-1302
40 SPACER; ARM REST 8-94285-921-0 02 1 1303-
42 STAND; DRIVER SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75558-604-1 01 1 1009-1302
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1009-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 1009-
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-7 01 1 1009-1302
62 DAMPER ASM; SEAT SUSP 1-75537-262-8 01 1 1303-1403
62 DAMPER ASM; SEAT SUSP 8-98261-449-0 01 1 1404-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-330-3 01 1 1009-1302
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-330-3 01 1 1009-1302
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-3 01 1 1303-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-644-0 01 1 1503-
99 BUSHING; SEAT BACK
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		8-97854-087-0 01 1 1009-1302
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 1009-1302
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 1303-
101 LEVER ASM; LUMBAR
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		5-75190-138-0 01 1 1009-1302
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 1009-1302
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 1303-
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 1009-1302
228 SCREW; KNOB
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DRIVER M4 		8-98062-662-0 01 1 1009-1302
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 1009-1302
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1303-
306 NUT; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 1009-1302
306 NUT; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 1009-1302
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 1303-
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 1009-1302
321 WASHER; PL,ARM REST
(A) ID=10.5 OD=22 		9-09160-610-0 01 1 1303-
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 1009-1302
321 WASHER; PL,ARM REST
(B) ID=8.4 OD=22 		9-09164-708-0 01 1 1303-
327 CLIP; COVER
VINYL SEAT(A83) 		1-09987-273-0 02 1 1009-1302
327 CLIP; COVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-09987-273-0 02 1 1009-1302
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 02 1 1009-1302
327 CLIP; COVER 1-09987-273-0 02 1 1303-
328 CLIP; HANDY WARNING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-72537-239-0 01 1 1009-1302
328 CLIP; HANDY WARNING 1-72537-239-0 01 1 1303-
336 COVER; DRIVER SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-303-0 01 1 1009-1302
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-303-0 01 1 1009-1302
336 COVER; DRIVER SEAT 1-75518-303-0 01 1 1303-

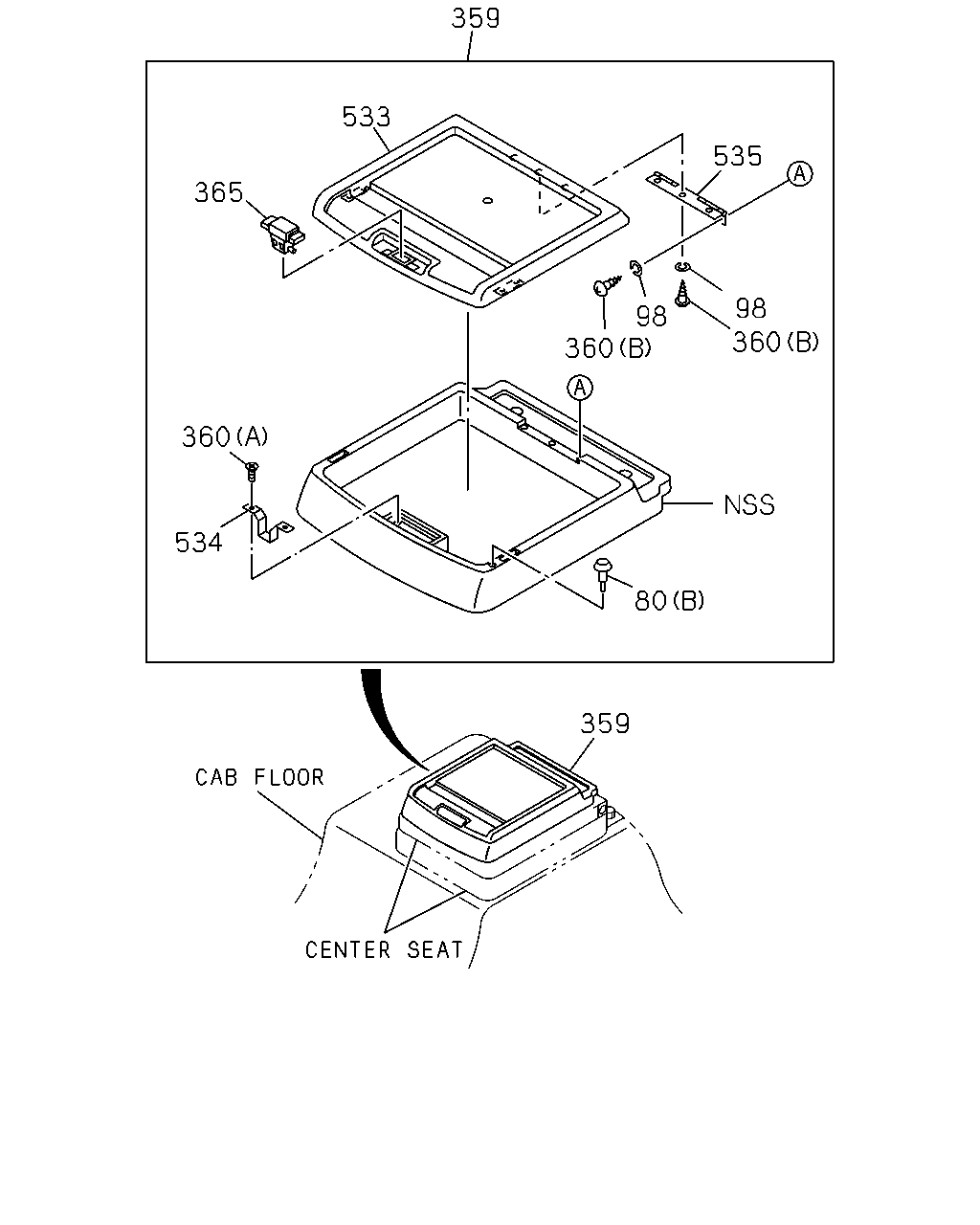

çizim 188937
535 359 533 365 360 534 360 98 98 80 360 359
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1009-
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 1009-1302
80 RUBBER; STOPPER
(A) 		1-09987-123-0 01 1 1303-
98 WASHER; HINGE
CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 1009-
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1009-
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1009-1104
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1009-
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1009-
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-180-0 01 1 1009-
533 LID; PARCEL BOX
CENTER SEAT(SA1) 		8-98145-118-0 01 1 1009-
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) 		1-72538-190-0 01 1 1009-
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 1009-
çizim 188938
468 468 512 51 532 278 302 518 543 518 471 158 158 551 201 306 63 63 518 302 518 306 201 551 551 72 518 302 518 302 302 551 302 72 543 518 302 543 468 529 468 543 518 518 543 302 518 278 532 278 512 51 51 51 74
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-325-1 04 1 1009-1302
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-1 04 1 1009-1302
51 SCREW; COVER 1-75518-325-1 04 1 1303-
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-199-1 01 1 1009-1302
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-199-1 01 1 1009-1302
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 1303-
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-323-0 01 1 1009-1302
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-323-0 01 1 1009-1302
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 1303-
72 SPACER; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-334-1 02 1 1009-1302
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-1 02 1 1009-1302
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 1303-1502
72 SPACER; SEAT ADJ 8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-330-3 01 1 1009-1302
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-330-3 01 1 1009-1302
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-3 01 1 1303-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-644-0 01 1 1503-
158 BUSHING; LINK ARM
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-209-0 02 1 1009-1302
158 BUSHING; LINK ARM
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 1009-1302
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1303-
201 CABLE; ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) L=667 		1-75518-288-0 01 1 1009-1302
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 1009-1302
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1303-
201 CABLE; ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) L=605 		1-75518-289-1 01 1 1009-1302
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 1009-1302
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1303-
278 COLLAR; FRT SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-244-0 03 1 1009-1302
278 COLLAR; FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 1009-1302
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 1303-
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-266-2 02 1 1009-1302
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-2 02 1 1009-1302
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-2 02 1 1303-
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-270-1 04 1 1009-1302
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-1 04 1 1009-1302
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 1303-1502
302 BOLT; ADJ,HEIGHT CONT
(A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-336-1 02 1 1009-1302
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-1 02 1 1009-1302
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-336-1 02 1 1303-
306 NUT; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 1009-1302
306 NUT; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 1009-1302
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 1303-
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 1009-1302
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 1303-
468 SPRING; RETURN
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-206-0 01 1 1009-1302
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 1009-1302
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1303-
468 SPRING; RETURN
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-207-0 01 1 1009-1302
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 1009-1302
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1303-
468 SPRING; RETURN
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-208-0 02 1 1009-1302
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 1009-1302
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1303-
471 LEVER; SEAT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		8-98107-869-0 01 1 1009-1302
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98107-869-0 01 1 1009-1302
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1303-
512 COVER; LEVER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-243-1 02 1 1009-1302
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-243-1 02 1 1009-1302
512 COVER; LEVER 1-75518-243-1 02 1 1303-
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-263-0 01 1 1009-1302
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 1009-1302
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1303-
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (C) M8 		1-75518-264-0 04 1 1009-1302
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 		1-75518-264-0 04 1 1009-1302
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 1303-
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1009-1302
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1009-1302
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 1303-
518 NUT; TILT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) M8 FLANGE 		8-94152-886-0 04 1 1009-1302
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE 		8-94152-886-0 04 1 1009-1302
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 1303-
529 PIN; LINK
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-262-0 01 1 1009-1302
529 PIN; LINK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 1009-1302
529 PIN; LINK 1-75518-262-0 01 1 1303-
532 LEVER ASM; TILT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-203-0 01 1 1009-1302
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-203-0 01 1 1009-1302
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 1303-
532 LEVER ASM; TILT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-204-1 01 1 1009-1302
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-204-1 01 1 1009-1302
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 1303-
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-335-0 02 1 1009-1302
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-335-0 02 1 1009-1302
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-335-0 02 1 1303-1502
543 WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) ID=8.4 		9-09160-508-0 04 1 1009-1302
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 		9-09160-508-0 04 1 1009-1302
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 1303-
551 SLIDER; HEIGHT ADJ
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75518-265-0 04 1 1009-1302
551 SLIDER; HEIGHT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 1009-1302
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 1303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
