0-83 — ANEROID COMPENSATOR; INJECTION GOVERNOR (#6957) — 16 parça

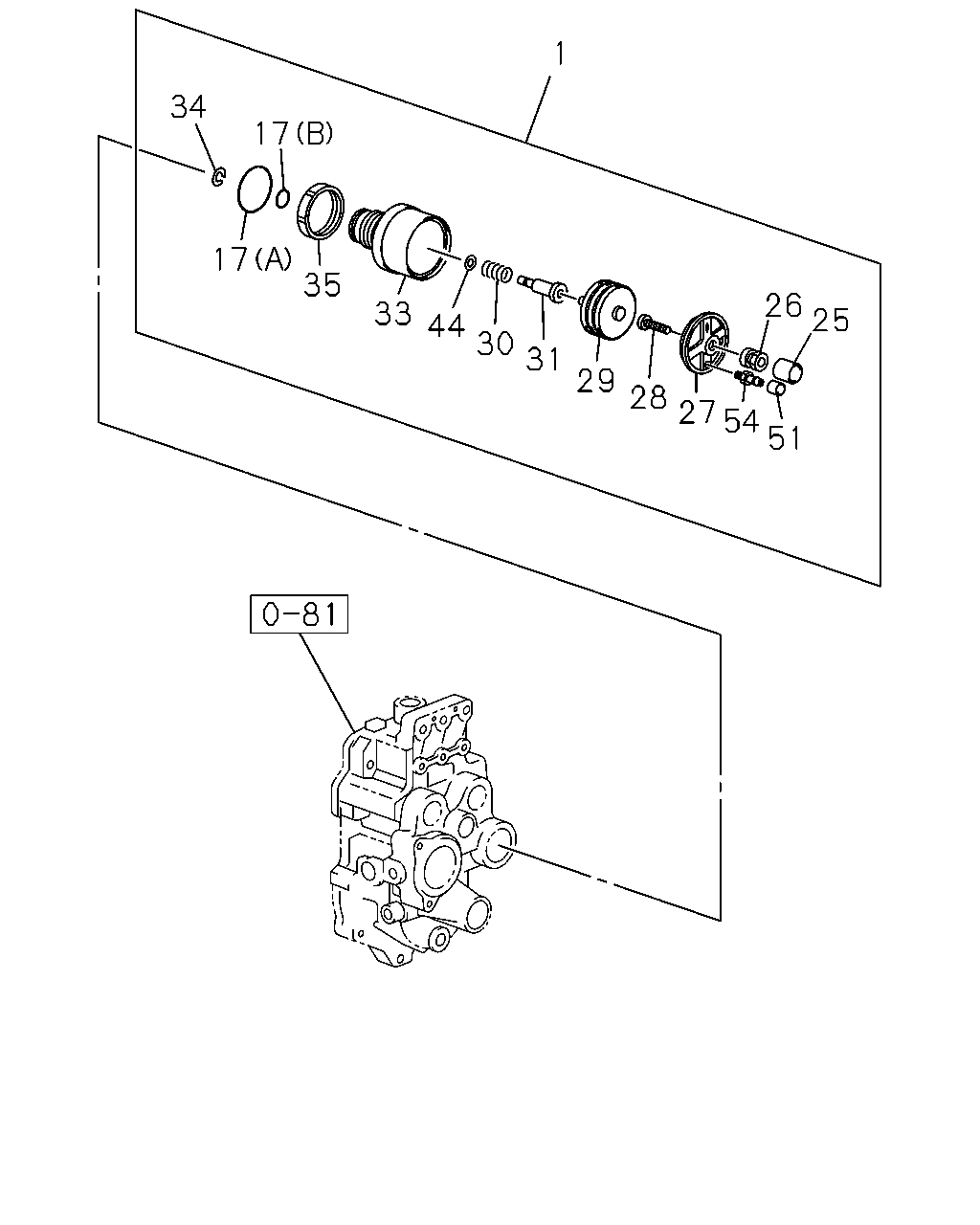

çizim 43762
1 34 17 17 35 26 25 33 44 30 31 29 28 27 54 51
BalonParca AdiParca NoAdetTipApplied Date
1 COMPENSATOR ASM; ANEROID,INJ PUMP
ASM PART: A = 1-15603-370-1 		1-15728-109-0 01 1 -
17 GASKET; HSG,ANEROID COMPENSATOR
(A) ASM PART: A = 1-15603-370-1 		8-97037-290-0 01 1 -
17 GASKET; HSG,ANEROID COMPENSATOR
(B) ASM PART: A = 1-15603-370-1 		8-97037-291-0 01 1 -
25 NUT; CAP,SET BOLT,ANEROID COMPENSATOR
CAP NUT ASM PART: A = 1-15603-370-1 		1-15729-093-0 01 1 -
26 NUT; SET BOLT,ANEROID COMPENSATOR
ASM PART: A = 1-15603-370-1 		9-81325-081-0 01 1 -
27 COVER; HSG,ANEROID COMPENSATOR
ASM PART: A = 1-15603-370-1 		1-15721-337-0 01 1 -
28 BOLT; BELLOWS SET,ANEROID COMPENSATOR
ASM PART: A = 1-15603-370-1 		1-15779-487-0 01 1 -
29 BELLOWS; ANEROID COMPENSATOR
ASM PART: A = 1-15603-370-1 		1-15729-622-0 01 1 -
30 SPRING; PUSH ROD,ANEROID COMPENSATOR
ASM PART: A = 1-15603-370-1 		1-15723-570-0 01 1 -
31 ROD; PUSH,BELLOWS,ANEROID COMPENSATOR
ASM PART: A = 1-15603-370-1 		1-15779-486-1 01 1 -
33 HOUSING; ANEROID COMPENSATOR
ASM PART: A = 1-15603-370-1 		1-15721-338-0 01 1 -
34 RING; SNAP,PUSH ROD,ANEROID COMPENSATO
ASM PART: A = 1-15603-370-1 		1-15779-196-0 01 1 -
35 NUT; HSG LOCK,ANEROID COMPENSATOR
ASM PART: A = 1-15603-370-1 		8-97037-294-0 01 1 -
44 SHIM; SPRING,ANEROID COMPENSATOR
ASM PART: A = 1-15603-370-1 		8-97037-292-0 01 1 -
51 CAP; HOSE JOINT,ANEROID COMPENSATOR
ASM PART: A = 1-15603-370-1 		8-94424-221-0 01 1 -
54 JOINT; HOSE,ANEROID COMPENSATOR
ASM PART: A = 1-15603-370-1 		1-15729-360-0 01 1 -
