7-20 — MIRROR AND MIRROR STAY (#69565) — 173 parça

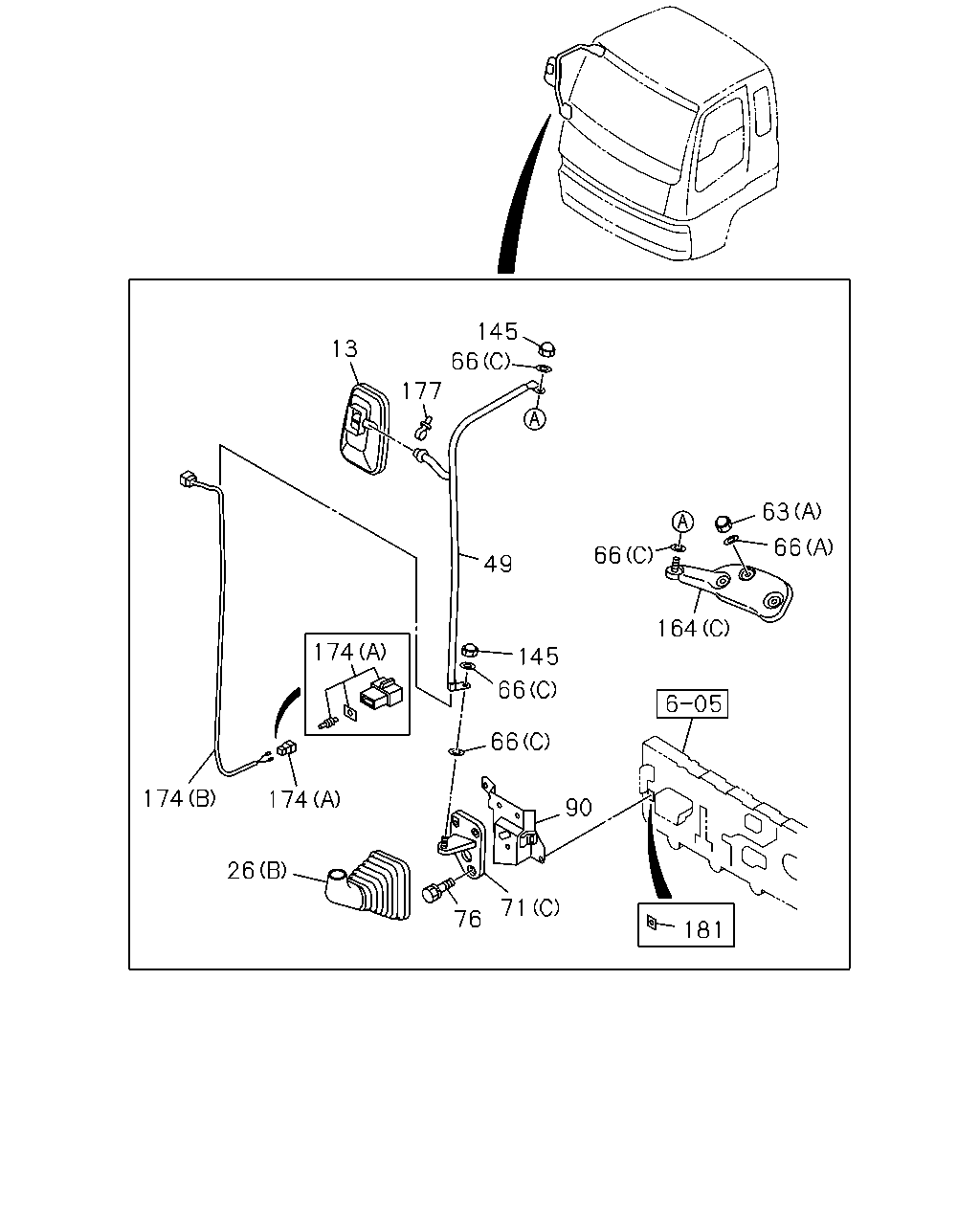

13 66 145 177 49 145 66 63 164 66 90 66 66 174 26 174 76 71 174 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-182-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-181-0	01	1	1009-1504
13	MIRROR ASM; OUTSIDE RR VIEW	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW	8-98324-746-0	01	1	1511-
26	COVER; OUTSIDE MIRROR (A)	1-71707-222-0	01	1	1009-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	1009-
26	COVER; OUTSIDE MIRROR (A)	1-71707-221-0	01	1	1009-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	1009-
49	STAY; MIRROR SIDE	1-71707-177-1	01	1	1009-
49	STAY; MIRROR SIDE	1-71707-175-1	01	1	1009-
63	NUT; STAY (A) M8	1-09984-187-0	06	1	1009-
63	NUT; STAY (D) M14	0-91110-514-0	01	1	1009-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	1009-1302
63	NUT; STAY (B) M8	1-71798-603-1	02	1	1303-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	1009-1302
63	NUT; STAY (C) M10 CAP NUT	1-71798-859-0	01	1	1303-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1009-1302
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1303-
66	WASHER; PL (B) ID=12.5	1-09985-334-0	04	1	1009-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1009-1302
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	02	1	1009-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-309-4	01	1	1009-
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1009-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	1009-
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	1009-
145	NUT; CAP,SUB STAY M10	1-09984-183-0	02	1	1009-
164	STAY; ROOF (B)	1-71798-299-4	01	1	1009-
164	STAY; ROOF (C)	1-71707-090-0	01	1	1009-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	1009-1302
164	STAY; ROOF (A)	1-71798-602-1	01	1	1303-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (A)	1-82662-365-1	02	1	1009-1302
174	HARNESS; MIRROR (A)	1-82662-365-1	02	1	1303-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (B)	8-97610-653-0	01	1	1009-1302
174	HARNESS; MIRROR (B)	8-97610-653-0	01	1	1303-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (B)	8-97610-652-0	01	1	1009-1302
174	HARNESS; MIRROR (B)	8-97610-652-0	01	1	1303-
177	CLIP; HARNESS L=140	5-09707-031-1	02	1	1009-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1009-

29 32 86 30 135 21 87 29 30 32 134 132 135 21 87 86 13 53 53 71 26 25 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-182-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-181-0	01	1	1009-1504
13	MIRROR ASM; OUTSIDE RR VIEW	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW	8-98324-746-0	01	1	1511-
14	MIRROR ASM; OUTSIDE	1-71707-231-0	01	1	1009-1510
14	MIRROR ASM; OUTSIDE	8-98324-759-0	01	1	1511-
14	MIRROR ASM; OUTSIDE	1-71707-230-0	01	1	1009-1504
14	MIRROR ASM; OUTSIDE	8-98288-714-0	01	1	1505-1510
14	MIRROR ASM; OUTSIDE	8-98324-757-0	01	1	1511-
21	NUT; MIRROR M5	1-09984-124-0	04	1	1009-1302
21	NUT; MIRROR M5	1-09984-124-0	02	1	1303-
21	NUT; MIRROR M5	1-09984-124-0	02	1	1303-
25	SCREW; OUTSIDE MIRROR M6X40	1-71707-223-0	04	1	1009-
26	COVER; OUTSIDE MIRROR (A)	1-71707-222-0	01	1	1009-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	1009-
26	COVER; OUTSIDE MIRROR (A)	1-71707-221-0	01	1	1009-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	1009-
29	MIRROR ASM; UNDER (A)	1-71797-137-1	01	1	1009-
29	MIRROR ASM; UNDER (B)	1-71798-421-1	01	1	1009-
30	MIRROR; UNDER (A)	1-71797-853-1	01	1	1009-
30	MIRROR; UNDER (B)	1-71798-592-1	01	1	1009-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	04	1	1009-1302
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1303-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1303-
53	PIVOT; SIDE MIRROR ID=22.2	1-71736-489-2	02	1	1009-1302
53	PIVOT; SIDE MIRROR ID=22.2	1-71736-489-2	04	1	1303-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	02	1	1009-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-309-4	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-649-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-652-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	1009-
87	SPACER	1-71737-646-2	02	1	1009-1302
87	SPACER	1-71737-646-2	01	1	1303-
87	SPACER	1-71737-646-2	01	1	1303-
132	RING; MIRROR	1-71737-935-0	01	1	1009-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	1009-
135	LENS; MIRROR,SIDE UNDER (B)	1-71707-130-0	01	1	1009-
135	LENS; MIRROR,SIDE UNDER (A)	1-71737-929-0	01	1	1009-

1 2

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	MIRROR; ROOM	1-73117-033-1	01	1	1009-
	2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	1009-

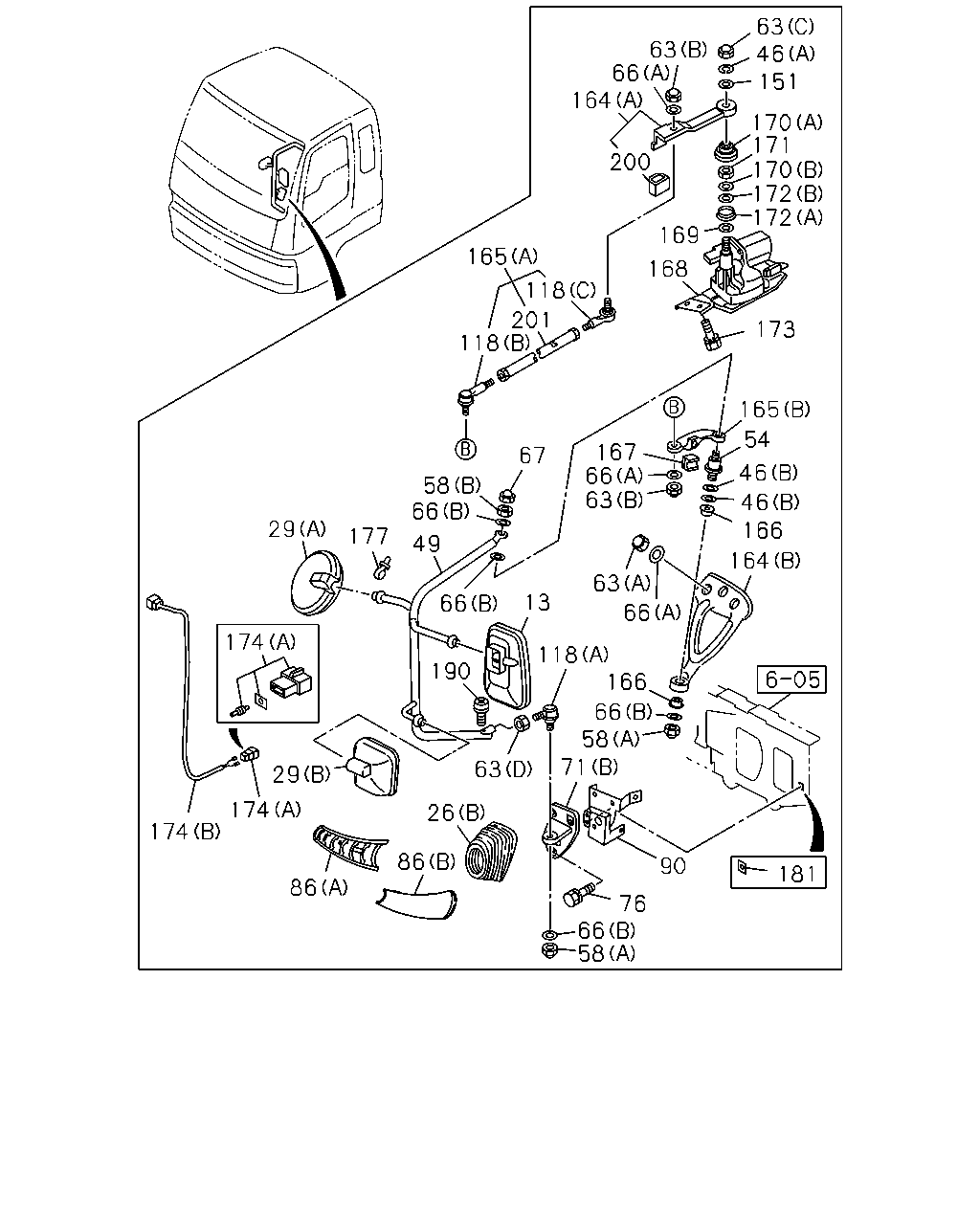

63 63 66 164 170 151 46 171 169 168 173 172 172 170 200 165 165 46 54 46 166 164 63 167 66 67 58 66 49 177 29 174 29 174 174 26 63 190 118 166 66 58 71 66 63 13 66 118 201 118 86 66 90 86 76 58 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-182-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71707-181-0	01	1	1009-1504
13	MIRROR ASM; OUTSIDE RR VIEW	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW	8-98324-746-0	01	1	1511-
26	COVER; OUTSIDE MIRROR (A)	1-71707-222-0	01	1	1009-
26	COVER; OUTSIDE MIRROR (B)	1-71798-316-2	01	1	1009-
26	COVER; OUTSIDE MIRROR (A)	1-71707-221-0	01	1	1009-
26	COVER; OUTSIDE MIRROR (B)	1-71798-695-0	01	1	1009-
29	MIRROR ASM; UNDER (A)	1-71797-137-1	01	1	1009-
29	MIRROR ASM; UNDER (B)	1-71798-421-1	01	1	1009-
46	WASHER; LK,STAY (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	1009-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=10	1-09985-345-0	01	1	1009-1302
46	WASHER; LK,STAY (A) ID=10	1-09985-345-0	01	1	1303-
49	STAY; MIRROR SIDE	1-71707-177-1	01	1	1009-
49	STAY; MIRROR SIDE	1-71707-175-1	01	1	1009-
54	BOLT; STAY	1-09980-618-0	01	1	1009-
58	NUT; MIRROR STAY (A) M12	1-09984-178-1	02	1	1009-
58	NUT; MIRROR STAY (B) M12	1-09984-184-1	01	1	1009-
63	NUT; STAY (A) M8	1-09984-187-0	06	1	1009-
63	NUT; STAY (D) M14	0-91110-514-0	01	1	1009-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M8	1-71798-603-1	02	1	1009-1302
63	NUT; STAY (B) M8	1-71798-603-1	02	1	1303-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	1009-1302
63	NUT; STAY (C) M10 CAP NUT	1-71798-859-0	01	1	1303-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1009-1302
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1303-
66	WASHER; PL (B) ID=12.5	1-09985-334-0	04	1	1009-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1009-1302
67	NUT; STAY M12	1-09984-178-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-224-0	02	1	1009-
71	BRACKET; OUTSIDE MIRROR (B)	1-71797-809-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-309-4	01	1	1009-
76	BOLT; STAY BRKT M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	1009-
86	COVER; STAY,OUTSIDE MIRROR (C) BLACK	1-71737-649-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR (D) BLACK	1-71737-652-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR (A)	1-71798-732-0	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR (B)	1-71798-733-0	01	1	1009-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	1009-
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	1009-
118	JOINT ASM; BALL (A)	1-71797-805-1	01	1	1009-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD	1-71798-819-2	01	1	1009-1302
118	JOINT ASM; BALL (C) RH THREAD	1-71798-819-2	01	1	1303-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	1009-1302
118	JOINT ASM; BALL (B) LH THREAD	1-71798-820-2	01	1	1303-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1009-1302
151	WASHER; PL,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	1303-
164	STAY; ROOF (B)	1-71798-299-4	01	1	1009-
164	STAY; ROOF (C)	1-71707-090-0	01	1	1009-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-602-1	01	1	1009-1302
164	STAY; ROOF (A)	1-71798-602-1	01	1	1303-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-600-1	01	1	1009-1302
165	LINK; POWER MIRROR (B)	1-71798-600-1	01	1	1303-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-782-2	01	1	1009-1302
165	LINK; POWER MIRROR (A)	1-71798-782-2	01	1	1303-
166	BUSHING; STAY	1-09983-179-0	02	1	1009-
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA>	1-71798-308-0	01	1	1009-1302
167	RUBBER; STOPPER	1-71798-308-0	01	1	1303-
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	1009-1302
168	POWER UNIT; MIRROR STAY	1-86855-031-0	01	1	1303-1311
168	POWER UNIT; MIRROR STAY	8-98251-163-0	01	1	1312-
169	WASHER; PL,POWER UNIT MIR STAY O/S W/REMOTE<TBA> ID=26.2 OD=44 T=2	1-86855-011-1	01	1	1009-1302
169	WASHER; PL,POWER UNIT ID=26.2 OD=44 T=2	1-86855-011-1	01	1	1303-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-86855-012-0	01	1	1009-1302
170	CAP; POWER UNIT (A)	1-86855-012-0	01	1	1303-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-014-1	01	1	1009-1302
170	CAP; POWER UNIT (B)	1-86855-014-1	01	1	1303-
171	NUT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M26	1-86855-013-1	01	1	1009-1302
171	NUT; POWER UNIT M26	1-86855-013-1	01	1	1303-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-79928-003-1	01	1	1009-1302
172	SEAL; RUBBER,POWER UNIT (A)	1-79928-003-1	01	1	1303-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-015-0	01	1	1009-1302
172	SEAL; RUBBER,POWER UNIT (B)	1-86855-015-0	01	1	1303-
173	BOLT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	1009-1302
173	BOLT; POWER UNIT M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	1303-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (A)	1-82662-365-1	02	1	1009-1302
174	HARNESS; MIRROR (A)	1-82662-365-1	02	1	1303-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (B)	8-97610-653-0	01	1	1009-1302
174	HARNESS; MIRROR (B)	8-97610-653-0	01	1	1303-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> (B)	8-97610-652-0	01	1	1009-1302
174	HARNESS; MIRROR (B)	8-97610-652-0	01	1	1303-
177	CLIP; HARNESS L=140	5-09707-031-1	02	1	1009-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1009-
190	SCREW; COVER M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	1009-
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA>	1-71798-597-0	01	1	1009-1302
200	STOPPER; STAY	1-71798-597-0	01	1	1303-
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-821-0	01	1	1009-1302
201	ROD; MIRROR	1-71798-821-0	01	1	1303-
