◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#69564) — 93 parça

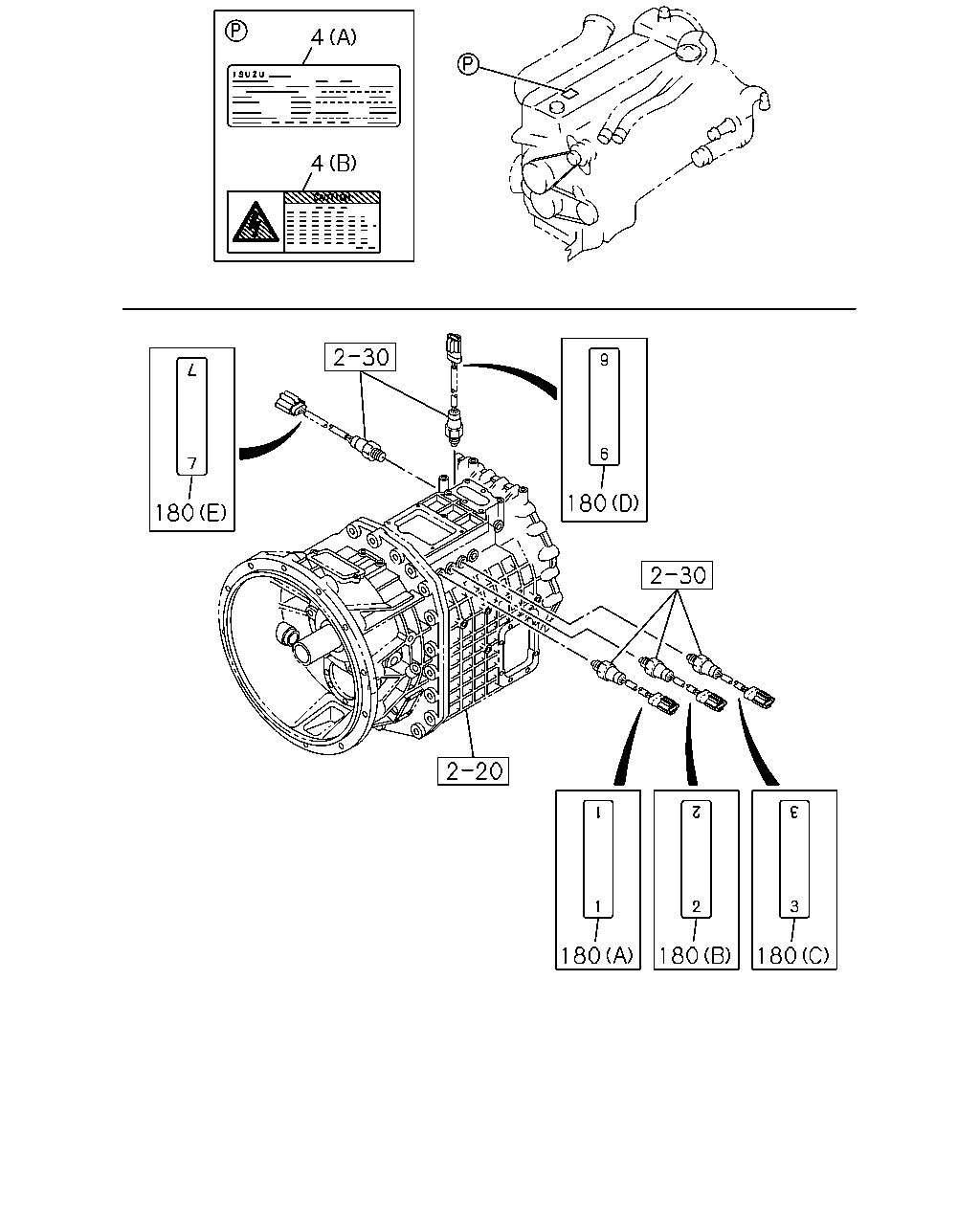

çizim 132959
4 4 180 180 180 180 180
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 1009-
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 1009-
180 PLATE; CAUTION,SWITCH
(A) 		1-85881-871-0 01 1 1009-1302
180 PLATE; CAUTION,SWITCH
(A) 		1-85881-871-0 01 1 1303-1506
180 PLATE; CAUTION,SWITCH
(B) 		1-85881-872-0 01 1 1507-
180 PLATE; CAUTION,SWITCH
(B) 		1-85881-872-0 01 1 1009-1302
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (B) 		1-85881-872-0 01 1 1303-1506
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (A) 		1-85881-871-0 01 1 1507-
180 PLATE; CAUTION,SWITCH
(C) 		1-85881-873-0 01 1 1009-1302
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (C) 		1-85881-873-0 01 1 1303-
180 PLATE; CAUTION,SWITCH
(D) 		1-85881-880-0 01 1 1009-1302
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (D) 		1-85881-880-0 01 1 1303-1506
180 PLATE; CAUTION,SWITCH
(D) 		1-85881-880-0 01 1 1507-
180 PLATE; CAUTION,SWITCH
(E) 		1-85881-881-0 01 1 1009-1302
180 PLATE; CAUTION,SWITCH
SMOOTHER-G(C1W) (E) 		1-85881-881-0 01 1 1303-1506
180 PLATE; CAUTION,SWITCH
(E) 		1-85881-881-0 01 1 1507-

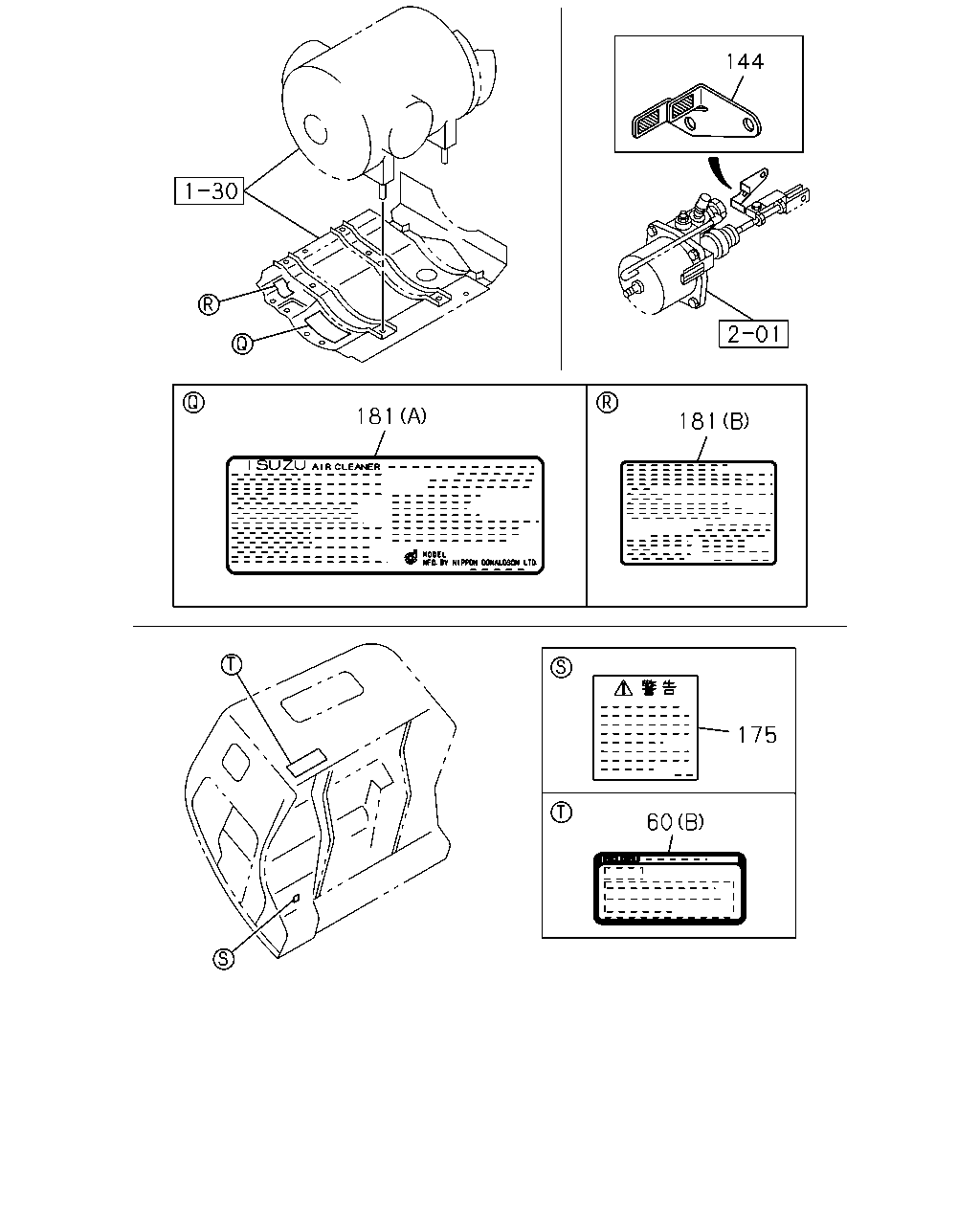

çizim 133008
144 181 175 60 181
BalonParca AdiParca NoAdetTipApplied Date
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> (A) 		1-85883-242-0 01 1 1009-1302
60 PLATE; CAUTION,CAB TILT
(A) 		8-98191-063-0 01 1 1303-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ENGLISH<RR8> (A) 		1-85883-234-0 01 1 1009-1302
60 PLATE; CAUTION,CAB TILT
(B) 		8-98191-071-0 01 1 1303-
144 PLATE; CAUTION,CLU
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-85878-345-0 01 1 1303-
175 LABEL; STRG,AIR BAG
CAUTIONS CHINESE<SL7> AIR BAG(TFQ) 		1-85878-107-0 02 1 1009-1302
175 LABEL; STRG,AIR BAG 1-85878-107-0 02 1 1303-
175 LABEL; STRG,AIR BAG
CAUTIONS ENGLISH<RR8> AIR BAG(TFQ) 		1-85878-116-0 02 1 1009-1302
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 1303-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 1009-

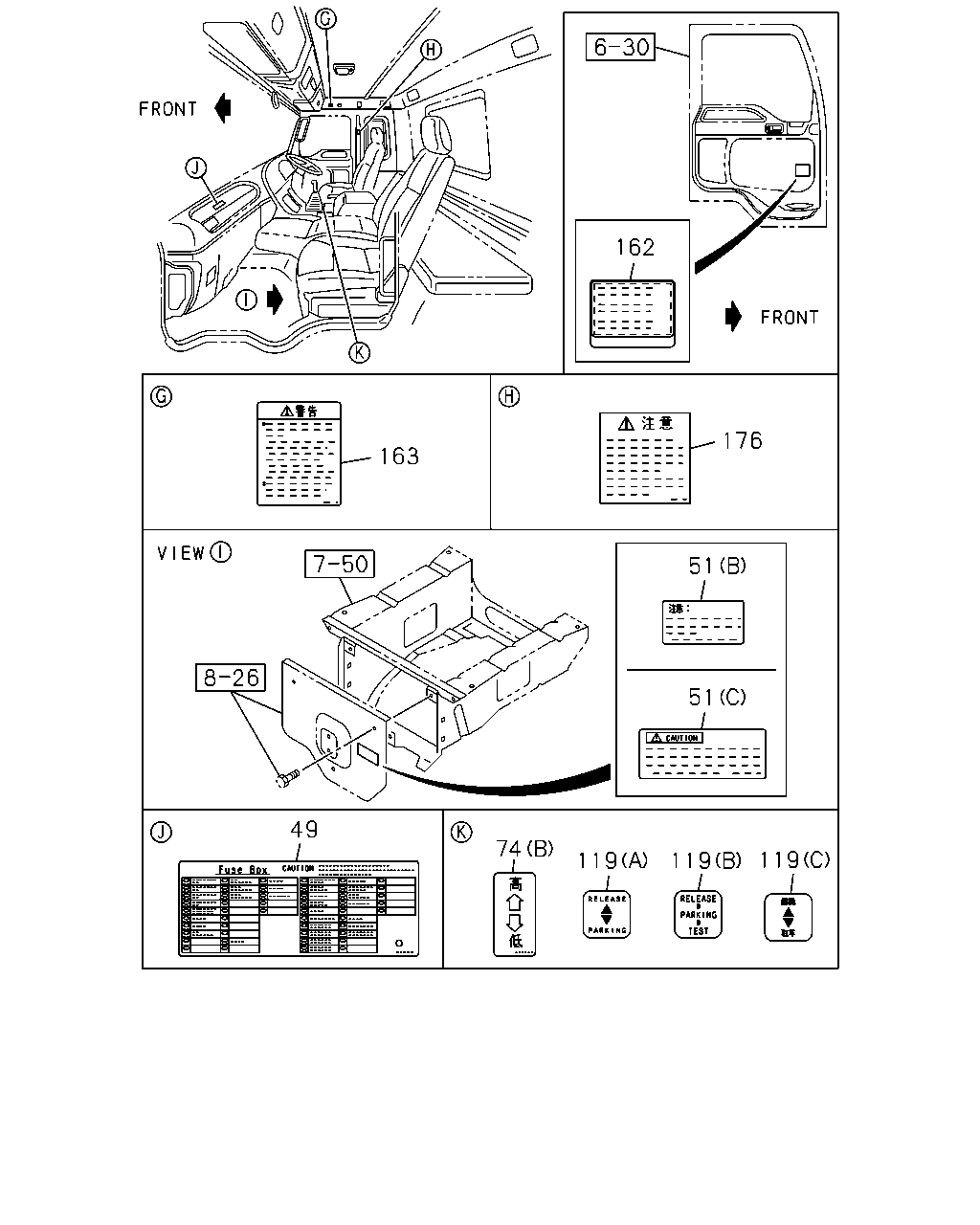

çizim 133050
162 163 176 51 51 119 119 119 74 49
BalonParca AdiParca NoAdetTipApplied Date
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		8-97631-089-1 01 1 1009-1302
49 PLATE; CAUTION,FUSE BOX 8-97631-089-1 01 1 1303-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		8-97631-090-1 01 1 1009-1302
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 1009-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B) 		8-97616-500-0 01 1 1009-1302
51 PLATE; CAUTION,WARNING
(B) 		8-97616-500-0 01 1 1303-
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (C) 		1-85878-544-0 01 1 1009-1302
51 PLATE; CAUTION,WARNING
(D) 		1-85878-571-0 01 1 1303-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98120-457-0 01 1 1303-
74 PLATE; CAUTION,CHANGE LEV
CAUTIONS CHINESE<SL7> (A) 		1-85881-928-0 01 1 1009-1302
74 PLATE; CAUTION,CHANGE LEV
SMOOTHER-G(C1W) (A) 		1-85881-928-0 01 1 1303-
74 PLATE; CAUTION,CHANGE LEV
CAUTIONS ENGLISH<RR8> (A) 		1-85881-869-0 01 1 1009-1302
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-85881-849-0 01 1 1303-
119 PLATE; CAUTION,HAND BRK LEVER
BRAKE REGULATION HONG KONG<TCZ> (A) 		1-85881-759-0 01 1 1009-1302
119 PLATE; CAUTION,HAND BRK LEVER
(C) 		1-85881-874-0 01 1 1303-
119 PLATE; CAUTION,HAND BRK LEVER
EXC. BRAKE REGULATION HONG KONG<TCZ> (B) 		1-85881-791-0 01 1 1009-1302
162 PLATE; CAUTION,FUEL
CAUTIONS CHINESE<SL7> 		1-85875-457-0 01 1 1009-1302
162 PLATE; CAUTION,FUEL 1-85875-457-0 01 1 1303-
162 PLATE; CAUTION,FUEL
CAUTIONS ENGLISH<RR8> 		8-97623-712-0 01 1 1009-1302
163 PLATE; NAME,AIR BAG
CAUTIONS CHINESE<SL7> AIR BAG(TFQ) 		1-85878-109-0 01 1 1009-1302
163 PLATE; NAME,AIR BAG 1-85878-109-0 01 1 1303-
163 PLATE; NAME,AIR BAG
CAUTIONS ENGLISH<RR8> AIR BAG(TFQ) 		1-85878-485-0 01 1 1009-1302
176 LABEL; SEAT BELT
CAUTIONS CHINESE<SL7> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-85878-108-0 01 1 1009-1302
176 LABEL; SEAT BELT 1-85878-108-0 01 1 1303-
176 LABEL; SEAT BELT
CAUTIONS ENGLISH<RR8> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-85878-486-0 01 1 1009-1302

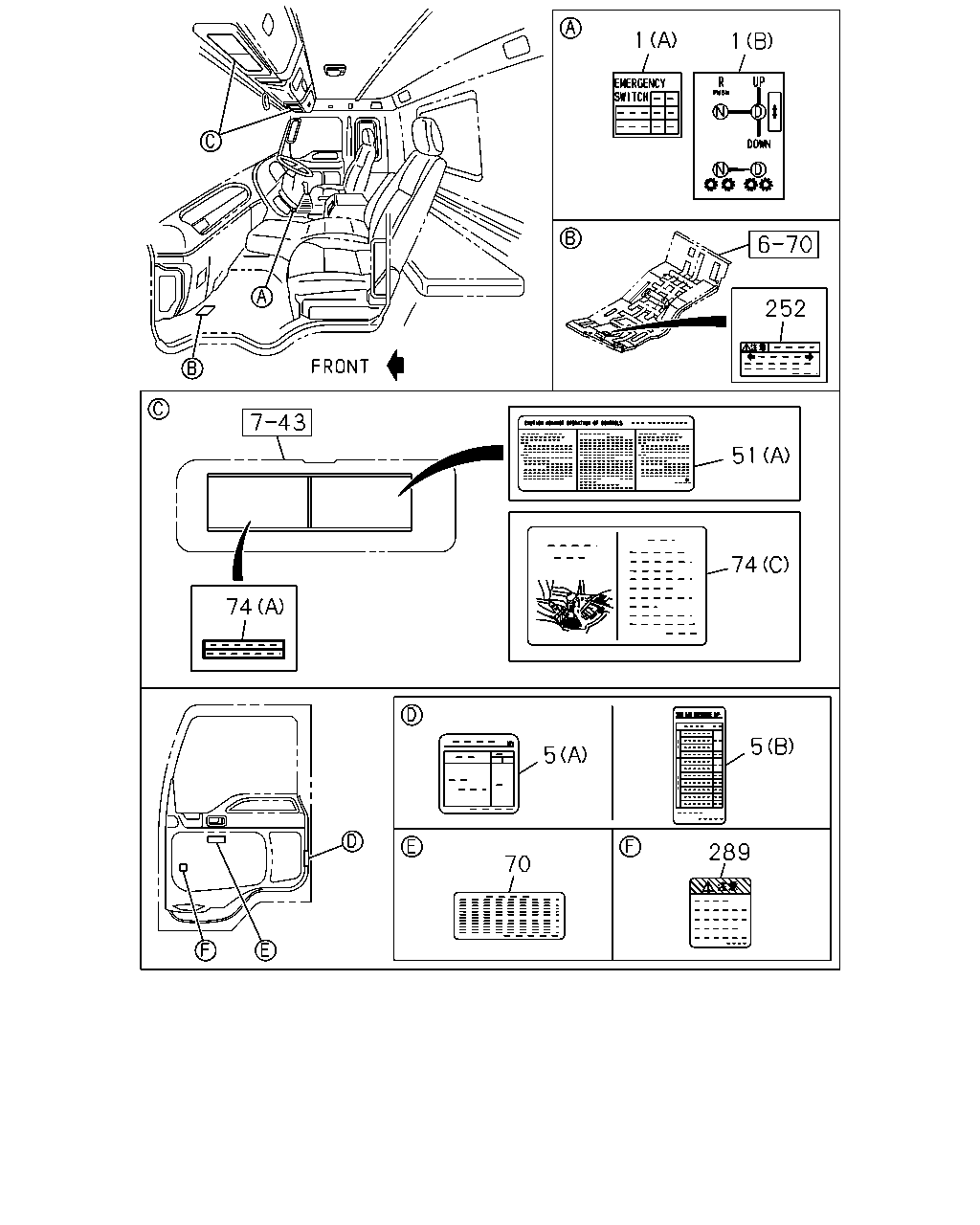

çizim 133198
289 70 5 5 74 51 252 1 1 74
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
(B) 		1-85881-798-0 01 1 1009-1302
1 PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (B) 		1-85881-798-0 01 1 1303-
1 PLATE; CAUTION,SHIFT PATTERN
(A) 		1-85881-879-1 01 1 1009-1302
1 PLATE; CAUTION,SHIFT PATTERN
SMOOTHER-G(C1W) (A) 		1-85881-879-1 01 1 1303-
5 LABEL; TIRE AIR PRESSURE
CAUTIONS CHINESE<SL7> (A) 		1-85881-887-0 01 1 1009-1302
5 LABEL; TIRE AIR PRESSURE
(A) 		1-85881-887-0 01 1 1303-
5 LABEL; TIRE AIR PRESSURE
EXC. CAUTIONS CHINESE<SL7> (B) 		1-85880-778-0 01 1 1009-1302
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 1009-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B) 		8-97616-500-0 01 1 1009-1302
51 PLATE; CAUTION,WARNING
(B) 		8-97616-500-0 01 1 1303-
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (C) 		1-85878-544-0 01 1 1009-1302
51 PLATE; CAUTION,WARNING
(D) 		1-85878-571-0 01 1 1303-
70 PLATE; CAUTION,ACT
CAUTIONS CHINESE<SL7> 		1-85878-547-0 01 1 1009-1302
70 PLATE; CAUTION,ACT
SMOOTHER-G(C1W) 		1-85878-547-0 01 1 1303-
70 PLATE; CAUTION,ACT
CAUTIONS ENGLISH<RR8> 		1-85878-484-0 01 1 1009-1302
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-98120-457-0 01 1 1303-
74 PLATE; CAUTION,CHANGE LEV
CAUTIONS CHINESE<SL7> (A) 		1-85881-928-0 01 1 1009-1302
74 PLATE; CAUTION,CHANGE LEV
SMOOTHER-G(C1W) (A) 		1-85881-928-0 01 1 1303-
74 PLATE; CAUTION,CHANGE LEV
CAUTIONS ENGLISH<RR8> (A) 		1-85881-869-0 01 1 1009-1302
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-85881-849-0 01 1 1303-
252 PLATE; CAUTION,HARNESS
CAUTIONS CHINESE<SL7> 		1-85878-515-0 01 1 1009-1302
252 PLATE; CAUTION,HARNESS 1-85878-515-0 01 1 1303-
252 PLATE; CAUTION,HARNESS
CAUTIONS ENGLISH<RR8> 		1-85878-488-1 01 1 1009-1302
289 PLATE; CAUTION,DRIVING
HONG KONG EQUIPMENT(PQ1) CAUTIONS CHINESE<SL7> 		1-85883-223-1 01 1 1009-1302
289 PLATE; CAUTION,DRIVING 1-85883-223-1 01 1 1303-

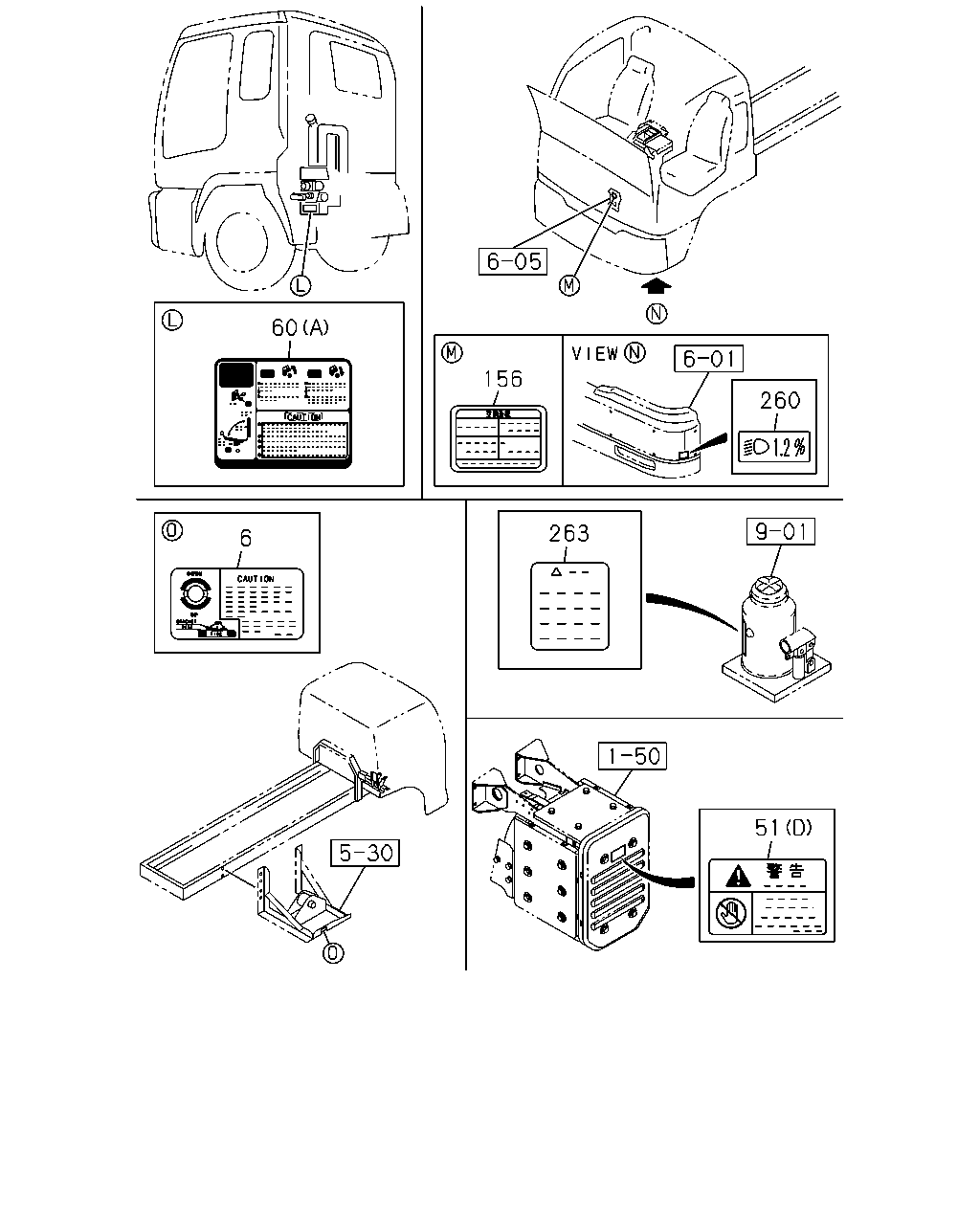

çizim 188931
60 156 260 263 6 51
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		8-98082-438-0 01 1 1009-1302
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-98082-438-0 01 1 1303-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8> 		8-98082-437-0 01 1 1009-1302
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 1009-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B) 		8-97616-500-0 01 1 1009-1302
51 PLATE; CAUTION,WARNING
(B) 		8-97616-500-0 01 1 1303-
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8> (C) 		1-85878-544-0 01 1 1009-1302
51 PLATE; CAUTION,WARNING
(D) 		1-85878-571-0 01 1 1303-
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> (A) 		1-85883-242-0 01 1 1009-1302
60 PLATE; CAUTION,CAB TILT
(A) 		8-98191-063-0 01 1 1303-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ENGLISH<RR8> (A) 		1-85883-234-0 01 1 1009-1302
60 PLATE; CAUTION,CAB TILT
(B) 		8-98191-071-0 01 1 1303-
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98055-383-0 01 1 1009-1302
156 PLATE; CAUTION,A/C 8-98231-357-0 01 1 1303-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 1009-1302
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 		1-85881-878-0 01 1 1009-1302
263 PLATE; CAUTION,JACK 1-85881-878-0 01 1 1303-
