◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#69551) — 251 parça
çizim 131287
130 281 185 249 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 1303-1303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 1304-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1303-1303
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1303-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-1302
281 INSULATOR; NOISE
(D) 		1-73237-445-4 01 1 1303-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-1302
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1303-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1009-1302
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303-

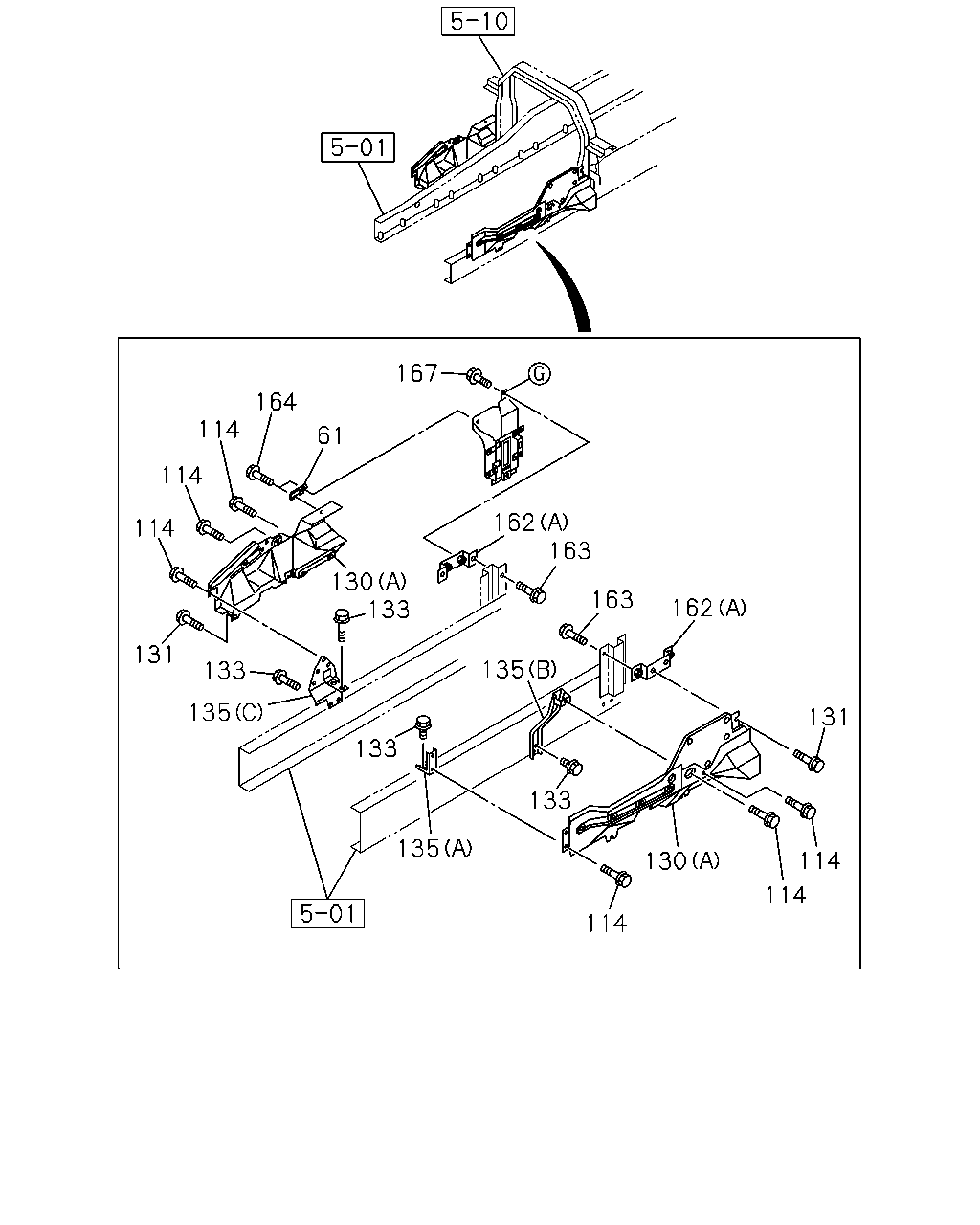

çizim 131329
114 131 114 130 114 162 163 135 133 135 133 163 162 167 133 130 135 133 131 114 114 114 164 61
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 8-98039-501-1 01 1 1009-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1009-
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 1009-1302
133 BOLT; FRAME
SMOOTHER-G(C1W) M10X35 FLANGE 		0-28651-035-0 01 1 1303-
133 BOLT; FRAME
SMOOTHER-G(C1W) M14X45 FLANGE 		0-28851-445-0 01 1 1303-
133 BOLT; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X35 FLANGE 		0-28651-035-0 01 1 1303-
133 BOLT; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) M14X45 FLANGE 		0-28851-445-0 01 1 1303-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 1009-1302
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1303-
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 1009-1302
133 BOLT; FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1303-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 1009-1302
135 BRACKET; SIDE PANEL
(A) 		8-98225-728-0 01 1 1303-
135 BRACKET; SIDE PANEL
(B) 		8-98127-905-0 01 1 1009-
135 BRACKET; SIDE PANEL
(C) 		8-98039-211-2 01 1 1009-1302
135 BRACKET; SIDE PANEL
SMOOTHER-G(C1W) (C) 		8-98216-394-1 01 1 1303-
135 BRACKET; SIDE PANEL
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		8-98216-298-1 01 1 1303-
162 BRACKET
(A) 		1-53441-520-0 02 1 1009-
162 BRACKET
(B) 		1-71907-815-0 01 1 1009-
162 BRACKET
(D) 		8-98113-210-2 01 1 1009-1302
162 BRACKET
(E) 		1-53441-521-2 01 1 1009-
162 BRACKET
(C) 		1-53441-522-0 01 1 1009-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1009-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 1009-

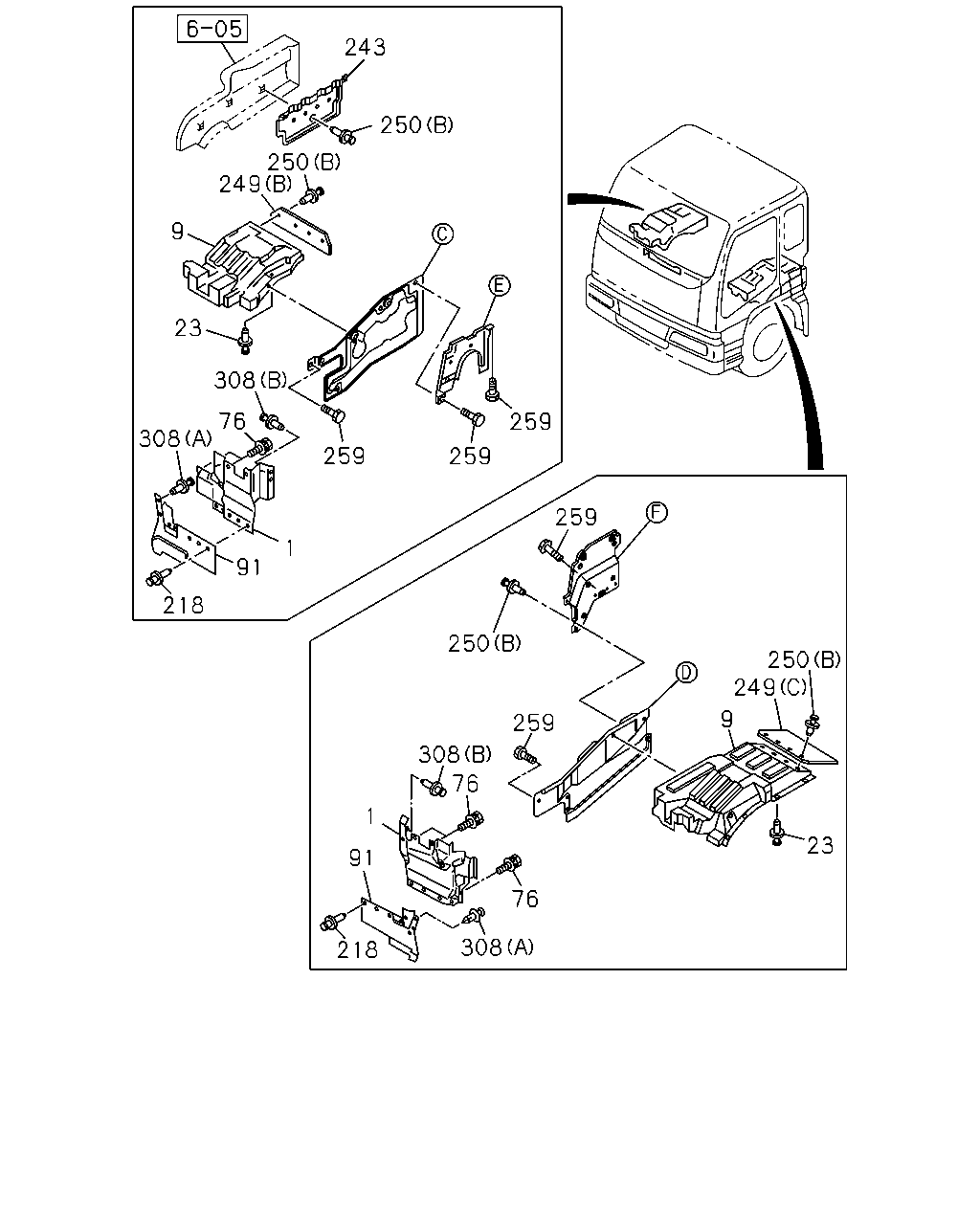

çizim 131555
243 250 250 249 9 23 308 308 91 1 218 259 259 259 259 250 259 308 76 1 91 218 308 76 9 23 249 250 76
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1009-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1009-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1009-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1009-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1009-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1009-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1009-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1009-
91 COVER; MUD,FRT 1-79931-204-1 01 1 1009-1302
91 COVER; MUD,FRT 8-98134-826-2 01 1 1303-
91 COVER; MUD,FRT 1-79931-203-1 01 1 1009-1302
91 COVER; MUD,FRT 8-98134-825-2 01 1 1303-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1009-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1009-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1303-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 11 1 1009-1302
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 1009-1302
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 1303-1510
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1511-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 1009-1302
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1303-1510
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1009-1510
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1511-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 1511-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1009-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1009-
çizim 131607
122 162 162 122 167 122 168 167 160 122 160 251 251 73 74 130 251 130
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1009-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1009-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1009-1302
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 06 1 1303-
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1009-1302
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1009-1302
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303-
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1009-
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302
160 COVER ASM; EXH
(A) 		1-79931-408-4 01 1 1009-1207
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1208-
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 1009-
162 BRACKET
(A) 		1-53441-520-0 02 1 1009-
162 BRACKET
(B) 		1-71907-815-0 01 1 1009-
162 BRACKET
(D) 		8-98113-210-2 01 1 1009-1302
162 BRACKET
(E) 		1-53441-521-2 01 1 1009-
162 BRACKET
(C) 		1-53441-522-0 01 1 1009-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 1009-
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 1009-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 1303-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 1009-1302
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 1303-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1009-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 04 1 1009-1302
çizim 188925
130 185 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(C) 		8-98167-256-0 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 1009-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 1303-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-170-1 01 1 1009-
130 PANEL; SHUTTER NOISE
(D) 		8-98125-820-0 01 1 1009-
130 PANEL; SHUTTER NOISE
HONG KONG EQUIPMENT(PQ1) (C) 		8-98167-256-0 01 1 1009-1302
130 PANEL; SHUTTER NOISE
(A) 		8-98225-727-0 01 1 1303-
130 PANEL; SHUTTER NOISE
EXC. HONG KONG EQUIPMENT(PQ1) (C) 		8-98079-171-0 01 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 1303-1303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 1304-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1303-1303
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1303-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-1302
281 INSULATOR; NOISE
(D) 		1-73237-445-4 01 1 1303-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-1302
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1303-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1009-1302
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303-

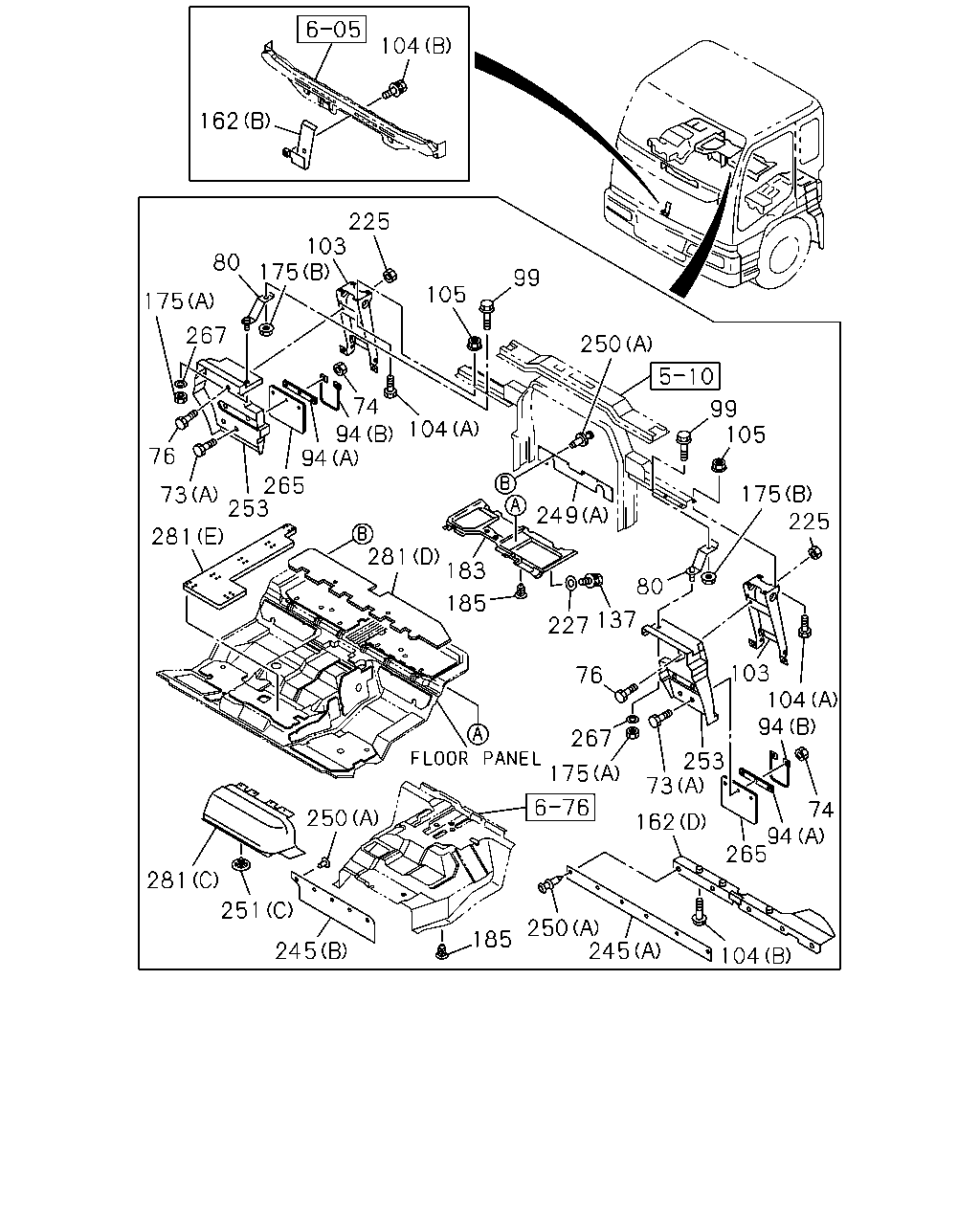

çizim 188927
104 162 80 175 175 103 225 99 105 250 99 175 105 225 103 104 94 74 94 265 104 162 253 73 175 76 137 227 267 245 250 185 245 251 281 250 185 281 183 249 80 281 76 253 73 265 94 94 74 267 104
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1009-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1009-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1009-1302
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28050-816-0 06 1 1303-
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1009-1302
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1009-1302
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303-
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1303-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1009-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1009-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1009-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1009-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1009-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1009-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1009-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1009-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1009-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 1009-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-445-0 01 1 1009-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-893-0 01 1 1503-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1009-
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 04 1 1009-1302
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 1303-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 1009-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1009-
162 BRACKET
(A) 		1-53441-520-0 02 1 1009-
162 BRACKET
(B) 		1-71907-815-0 01 1 1009-
162 BRACKET
(D) 		8-98113-210-2 01 1 1009-1302
162 BRACKET
(E) 		1-53441-521-2 01 1 1009-
162 BRACKET
(C) 		1-53441-522-0 01 1 1009-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1009-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1009-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 1009-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 1303-1303
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 1304-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 31 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 1303-
185 CLIP; HEAT INSULATOR
HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 09 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 1303-1303
185 CLIP; HEAT INSULATOR
EXC. HONG KONG EQUIPMENT(PQ1) ID=6.2 L=11.4 		8-97808-623-0 04 1 1009-1302
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 1303-1303
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1009-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1009-
245 RUBBER; SHUTTER,RAD
(A) 		8-98113-211-0 01 1 1009-1302
245 RUBBER; SHUTTER,RAD
(B) 		8-98227-395-0 01 1 1303-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1009-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 1009-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1009-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1303-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1009-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 1009-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1303-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 11 1 1009-1302
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1303-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 1009-1302
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 1303-1510
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 1511-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 1009-1302
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1303-1510
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 1303-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 1009-1302
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 1303-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1009-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 04 1 1009-1302
253 GUARD; MUD 8-98134-766-1 01 1 1009-
253 GUARD; MUD 8-98134-759-0 01 1 1009-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1009-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1009-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1009-
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1009-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-1302
281 INSULATOR; NOISE
(D) 		1-73237-445-4 01 1 1303-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 1009-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 1009-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 1009-
281 INSULATOR; NOISE
HONG KONG EQUIPMENT(PQ1) (B) 		1-71907-742-0 01 1 1009-1302
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 1303-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 1009-1302
281 INSULATOR; NOISE
(C) 		8-98227-396-0 01 1 1303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
