Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11294 - EXZ RHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

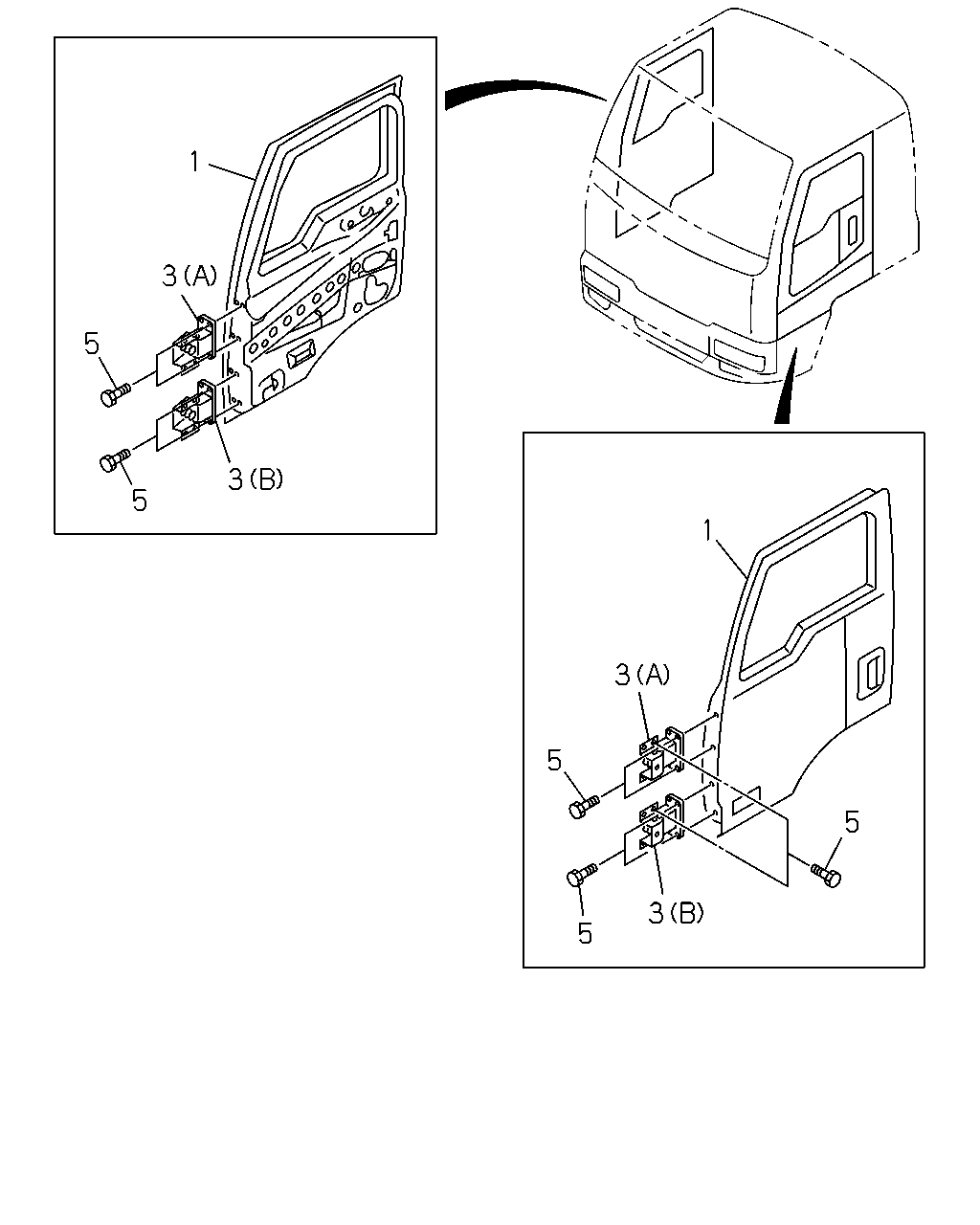

6-30 - FRONT DOOR AND HINGE
▶
6-30 — FRONT DOOR AND HINGE
(#69545) — 12 parça
1
3
5
5
3
1
3
5
5
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
1-64080-392-2
01
1
1009-
1
DOOR ASM; FRT,WO/TRIM
1-64080-388-2
01
1
1009-
3
HINGE; DOOR FRT
(A) UPPER
1-64780-097-1
02
1
1009-1302
3
HINGE; DOOR FRT
(A) UPPER
1-64780-097-1
01
1
1303-
3
HINGE; DOOR FRT
(A) UPPER
1-64780-097-1
01
1
1303-
3
HINGE; DOOR FRT
(B) LOWER
1-64780-098-2
02
1
1009-1302
3
HINGE; DOOR FRT
(B) LOWER
1-64780-098-2
01
1
1303-
3
HINGE; DOOR FRT
(B) LOWER
1-64780-098-2
01
1
1303-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
1303-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
1303-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
32
1
1009-1302
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
1303-
