0-66 — GENERATOR (#6954) — 73 parça

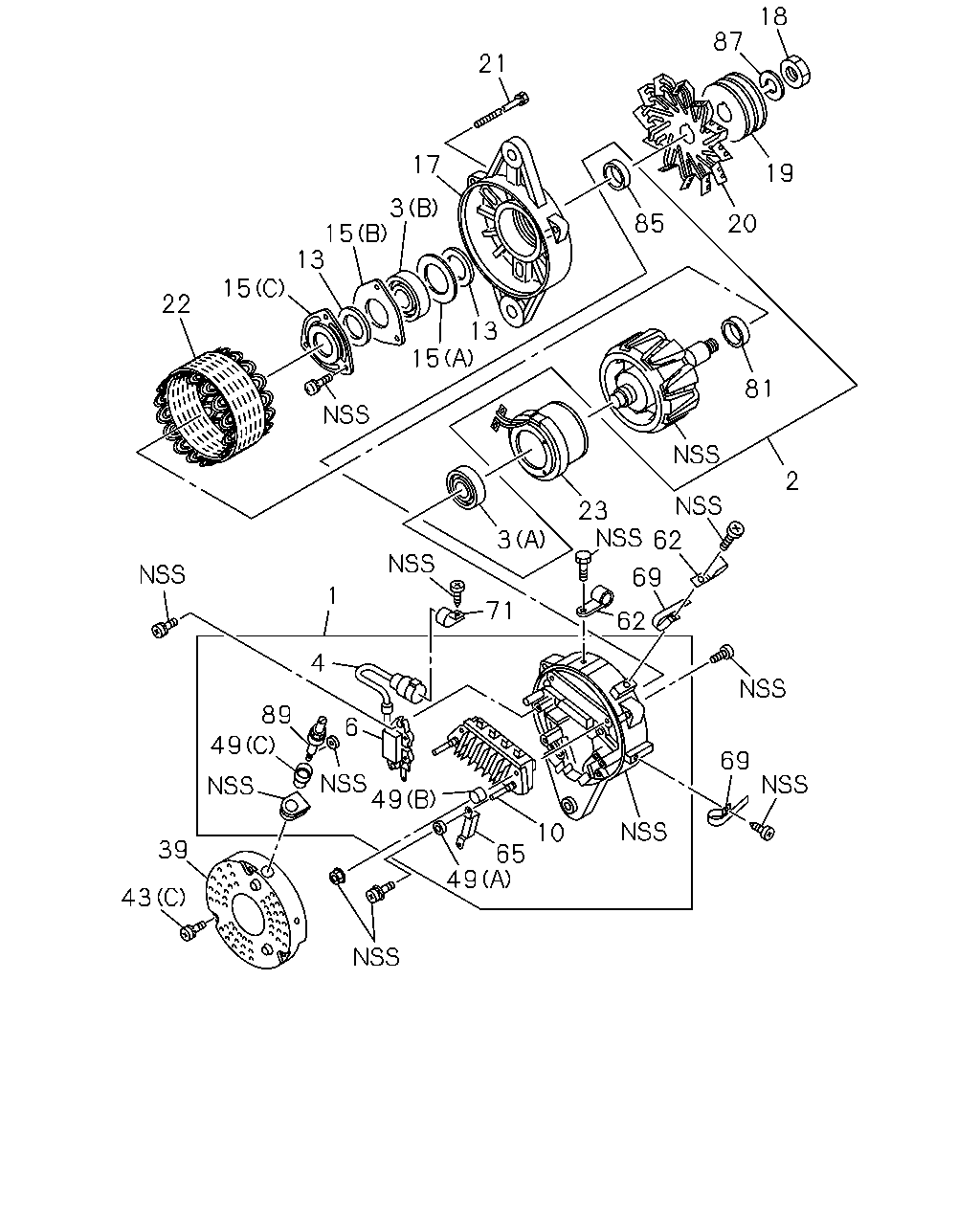

çizim 10596
18 87 21 17 19 3 1 13 85 20 15 22 13 15 81 2 23 3 62 69 1 71 62 4 89 49 6 69 49 10 39 65 49 43
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81214-339-0 01 1 -
1 COVER ASM; RR,GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81222-135-0 01 1 -
2 ROTOR; GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81211-121-0 01 1 -
2 ROTOR; GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81221-102-0 01 1 -
3 BEARING; ROTOR,GEN
(A) NIKKO ASM PART: A = 1-81200-470-3 		1-81229-723-0 01 1 -
3 BEARING; ROTOR,GEN
(B) NIKKO ASM PART: A = 1-81200-470-3 		1-81229-740-0 01 1 -
3 BEARING; ROTOR,GEN
(A) MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-769-0 01 1 -
3 BEARING; ROTOR,GEN
(B) MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-770-0 01 1 -
4 TERMINAL; BRUSH,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81229-726-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81260-015-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81260-017-0 01 1 -
10 RECTIFIER; GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81219-117-0 01 1 -
10 RECTIFIER; GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81219-126-0 01 1 -
13 GASKET; ROTOR,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81229-644-0 02 1 -
15 RETAINER; ROTOR,GEN
(A) NIKKO ASM PART: A = 1-81200-470-3 		1-81229-526-0 01 1 -
15 RETAINER; ROTOR,GEN
(C) NIKKO ASM PART: A = 1-81200-470-3 		1-81229-643-0 01 1 -
15 RETAINER; ROTOR,GEN
(B) NIKKO ASM PART: A = 1-81200-470-3 		8-97094-161-0 01 1 -
17 COVER ASM; FRT,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81213-094-0 01 1 -
17 COVER ASM; FRT,GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81213-101-0 01 1 -
18 NUT; PULLEY,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81229-474-0 01 1 -
19 PULLEY; GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81222-101-0 01 1 -
19 PULLEY; GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81222-130-0 01 1 -
20 FAN; GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81223-019-0 01 1 -
21 BOLT; THROUGH,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81229-382-0 03 1 -
22 STATOR; GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81211-122-0 01 1 -
22 STATOR; GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81211-129-0 01 1 -
23 COIL; ROTOR GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81212-016-0 01 1 -
23 COIL; ROTOR GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81222-102-0 01 1 -
39 COVER; END,RR COVER,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81214-343-0 01 1 -
43 SCREW; RR END COVER
(C) NIKKO ASM PART: A = 1-81200-470-3 		1-81229-733-0 03 1 -
43 SCREW; RR END COVER
(A) MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-773-0 01 1 -
43 SCREW; RR END COVER
(B) MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-774-0 01 1 -
49 BUSHING; RECTIFIER,GEN
(A) NIKKO ASM PART: A = 1-81200-470-3 		1-81229-727-0 01 1 -
49 BUSHING; RECTIFIER,GEN
(B) NIKKO ASM PART: A = 1-81200-470-3 		1-81229-728-0 02 1 -
49 BUSHING; RECTIFIER,GEN
(C) NIKKO ASM PART: A = 1-81200-470-3 		1-81229-729-0 01 1 -
62 CLIP; TERMINAL,BRUSH,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81118-011-0 03 1 -
65 CONDENSER; GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-84132-012-0 01 1 -
69 CLIP; WIRE,GEN
NIKKKO ASM PART: A = 1-81200-470-3 		1-81229-516-0 02 1 -
71 HOLDER; TERMINAL,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81217-053-0 01 1 -
81 SPACER; ROTOR,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81229-642-0 01 1 -
85 SPACER; PULLEY,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81229-722-0 01 1 -
87 WASHER; PULLEY,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81229-479-0 01 1 -
89 BOLT; RECTIFIER,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81229-731-0 01 1 -

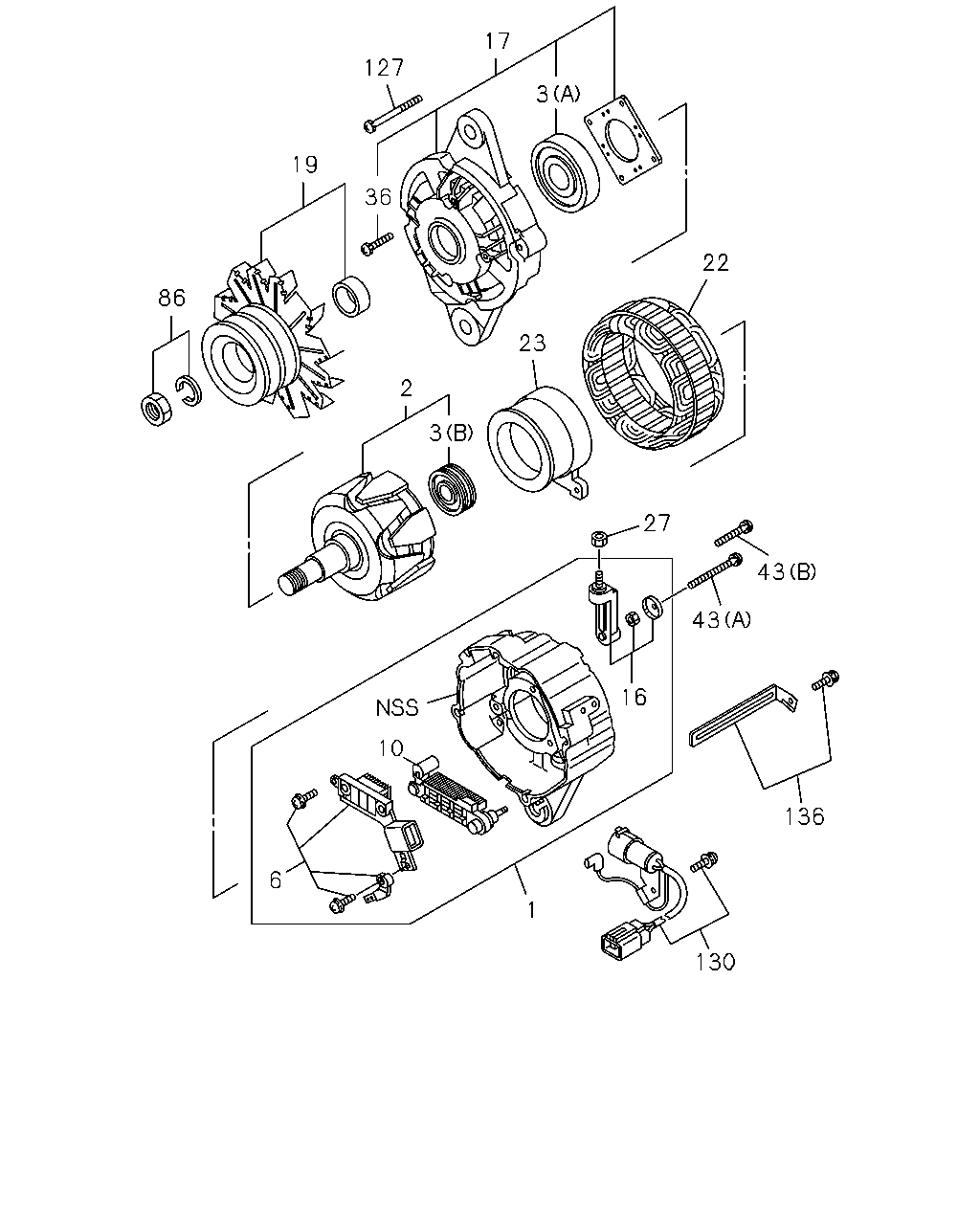

çizim 44609
17 127 3 19 36 22 86 23 2 3 27 43 43 16 10 136 6 1 130
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81214-339-0 01 1 -
1 COVER ASM; RR,GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81222-135-0 01 1 -
2 ROTOR; GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81211-121-0 01 1 -
2 ROTOR; GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81221-102-0 01 1 -
3 BEARING; ROTOR,GEN
(A) NIKKO ASM PART: A = 1-81200-470-3 		1-81229-723-0 01 1 -
3 BEARING; ROTOR,GEN
(B) NIKKO ASM PART: A = 1-81200-470-3 		1-81229-740-0 01 1 -
3 BEARING; ROTOR,GEN
(A) MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-769-0 01 1 -
3 BEARING; ROTOR,GEN
(B) MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-770-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81260-015-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81260-017-0 01 1 -
10 RECTIFIER; GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81219-117-0 01 1 -
10 RECTIFIER; GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81219-126-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-804-0 01 1 -
17 COVER ASM; FRT,GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81213-094-0 01 1 -
17 COVER ASM; FRT,GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81213-101-0 01 1 -
19 PULLEY; GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81222-101-0 01 1 -
19 PULLEY; GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81222-130-0 01 1 -
22 STATOR; GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81211-122-0 01 1 -
22 STATOR; GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81211-129-0 01 1 -
23 COIL; ROTOR GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81212-016-0 01 1 -
23 COIL; ROTOR GEN
NIKKO ASM PART: A = 1-81200-470-3 		1-81222-102-0 01 1 -
27 NUT; RECTIFIER,GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-772-0 01 1 -
36 SCREW; FRT COVER
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-768-0 01 1 -
43 SCREW; RR END COVER
(C) NIKKO ASM PART: A = 1-81200-470-3 		1-81229-733-0 03 1 -
43 SCREW; RR END COVER
(A) MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-773-0 01 1 -
43 SCREW; RR END COVER
(B) MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-774-0 01 1 -
86 NUT SET; PULLEY,GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-767-0 01 1 -
130 CONNECTOR; GEN
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-810-0 01 1 -
136 CLAMP; GENERATOR
MITSUBISHI ASM PART: B = 1-81200-522-0 		1-81229-775-0 01 1 -
