Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11294 - EXZ RHD EURO5
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

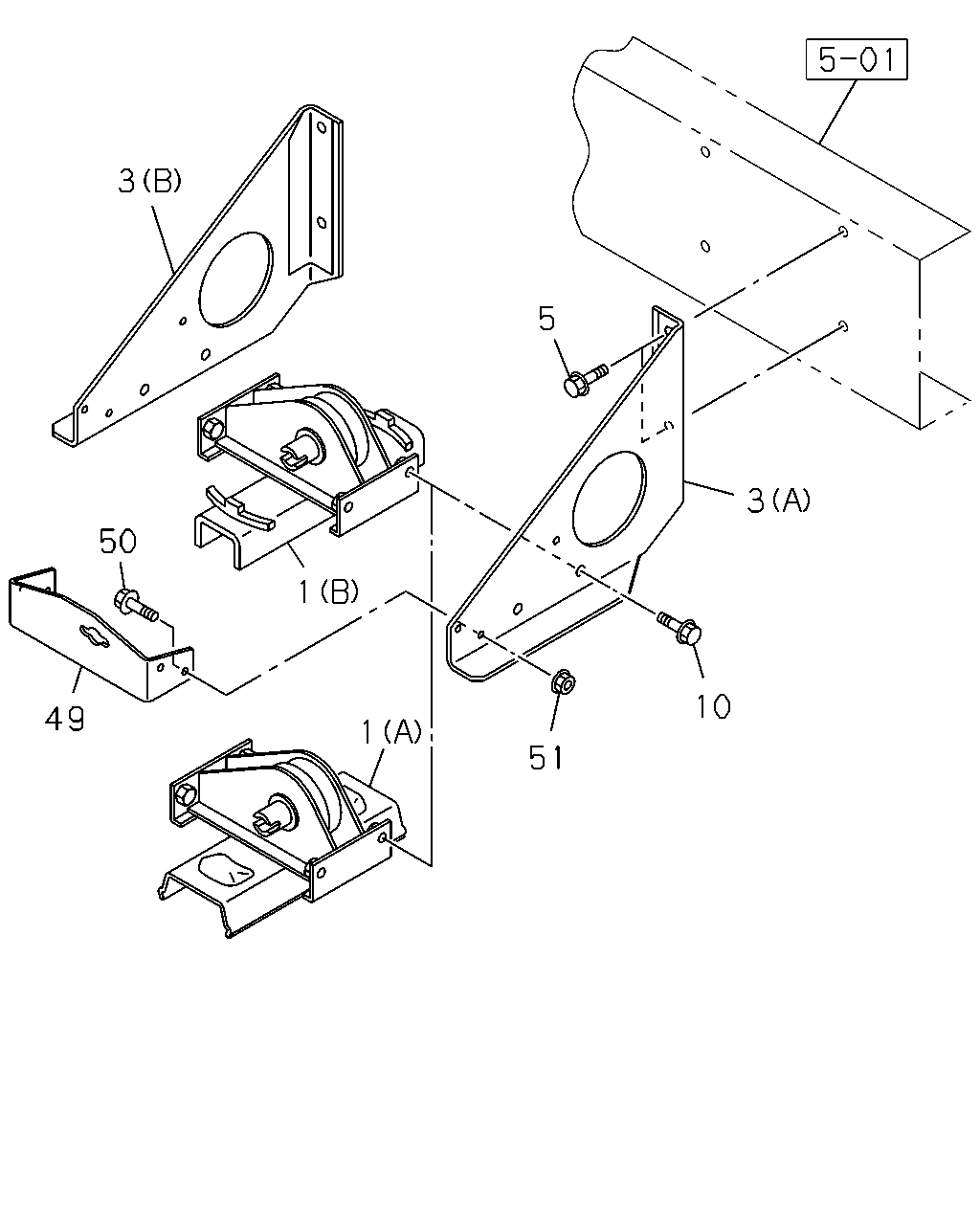

5-30 — SPARE TIRE CARRIER AND COVER
(#69539) — 11 parça
5
3
10
51
1
1
49
50
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
1-53630-210-3
01
1
1009-1302
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
1-53630-210-4
01
1
1303-
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)
1-53630-208-3
01
1
1009-1302
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
8-97383-718-1
01
1
1009-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
8-97383-719-1
01
1
1009-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE
0-28651-235-0
04
1
1009-1302
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE
0-28651-240-0
04
1
1303-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28651-230-0
04
1
1009-
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>
8-97383-722-0
01
1
1009-
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE
0-28650-825-0
04
1
1009-
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE
0-91180-108-0
04
1
1009-
