◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#69534) — 351 parça
çizim 125150
202 205 204 203 202 294 204 203 201 173 203 66 205 204 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date
66 BRACKET; S/ABS 1-53458-755-1 01 1 1009-1204
66 BRACKET; S/ABS 8-98214-572-0 01 1 1205-
66 BRACKET; S/ABS 1-53458-786-0 01 1 1009-
173 MEMBER; CAB MTG RR
HONG KONG EQUIPMENT(PQ1) 		1-53450-670-1 01 1 1009-1010
173 MEMBER; CAB MTG RR
HONG KONG EQUIPMENT(PQ1) 		8-98171-648-0 01 1 1011-1302
173 MEMBER; CAB MTG RR 8-98171-648-0 01 1 1303-
173 MEMBER; CAB MTG RR
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98166-139-0 01 1 1009-1010
173 MEMBER; CAB MTG RR
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98171-657-0 01 1 1011-1302
174 OUTRIGGER 1-53456-418-3 01 1 1009-
174 OUTRIGGER 8-98158-646-0 01 1 1009-
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 1009-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1009-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1009-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1009-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1009-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1009-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1009-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1009-
294 MEMBER; FLOATING 1-53454-949-2 01 1 1009-
çizim 125459
202 202 203 204 205 65 204 203 70 72 69
BalonParca AdiParca NoAdetTipApplied Date
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1009-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1009-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1009-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 1009-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 1009-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 1009-1302
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1303-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1009-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 1009-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 1009-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 1009-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1009-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 1009-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 1009-

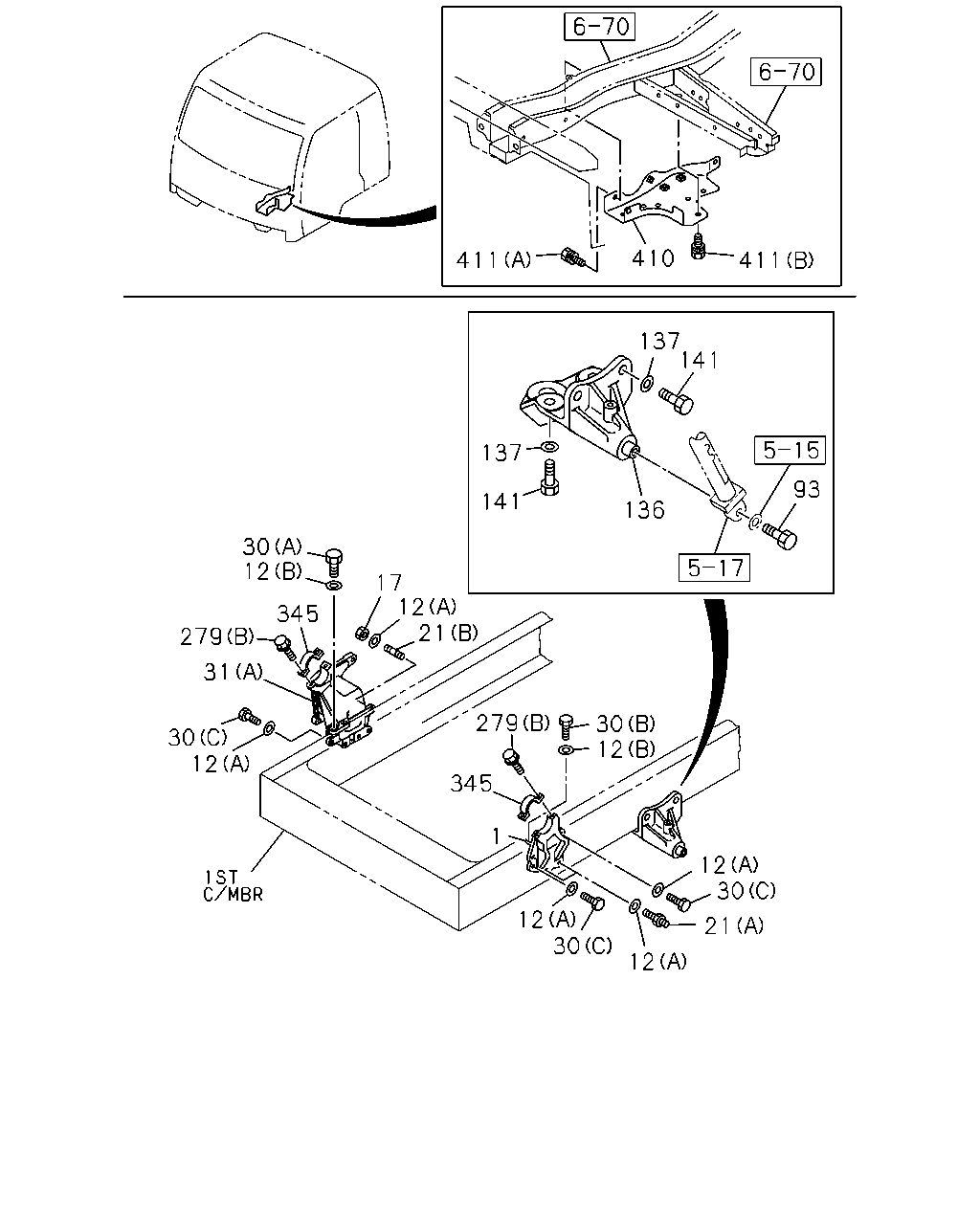

çizim 125588
411 410 411 137 137 141 136 93 12 17 30 12 345 21 279 30 12 12 30 21 12 30 12 1 345 12 30 31 279 141
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 8-98094-536-0 01 1 1009-1302
1 BRACKET; CAB MTG 8-98120-797-0 01 1 1303-1510
1 BRACKET; CAB MTG 8-98120-797-0 01 1 1511-
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 11 1 1009-
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 04 1 1009-
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1009-
21 STUD; BRKT,CAB TILT
(A) M12X20,M16X45 L=76 		1-09029-090-0 02 1 1009-1302
21 STUD; BRKT,CAB TILT
(B) M16X50 L=74 		1-09300-117-0 01 1 1009-
30 BOLT; CAB FRT FOOT
(A) M14X60 		0-20951-460-0 02 1 1009-
30 BOLT; CAB FRT FOOT
(B) M14X45 		9-92061-445-0 02 1 1009-1302
30 BOLT; CAB FRT FOOT
(B) M14X50 		0-20951-450-0 02 1 1303-
30 BOLT; CAB FRT FOOT
(C) M16X45 		9-92061-645-0 08 1 1009-1302
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 05 1 1303-
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 05 1 1303-
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 1009-1302
31 BRACKET; CAB
(E) 		8-98131-521-2 01 1 1303-
31 BRACKET; CAB
(D) 		1-53453-224-4 01 1 1009-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 1009-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 1009-
31 BRACKET; CAB
(C) 		8-97619-220-1 01 1 1009-1302
31 BRACKET; CAB
(A) 		8-98152-139-0 01 1 1303-
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 1009-
136 BRACKET; OIL CYL 1-53458-829-0 01 1 1009-
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1009-
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1009-
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
279 BOLT
(D) M8X60 FLANGE 		0-28050-860-0 02 1 1009-
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 1009-1510
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511-
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1510
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511-
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-1302
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1303-1510
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1511-
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1009-1302
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1303-1303
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1304-
279 BOLT
HONG KONG EQUIPMENT(PQ1) (E) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302
279 BOLT
(E) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
345 CAP; CAB 1-53458-336-3 02 1 1009-
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 1009-
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 1009-
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1009-

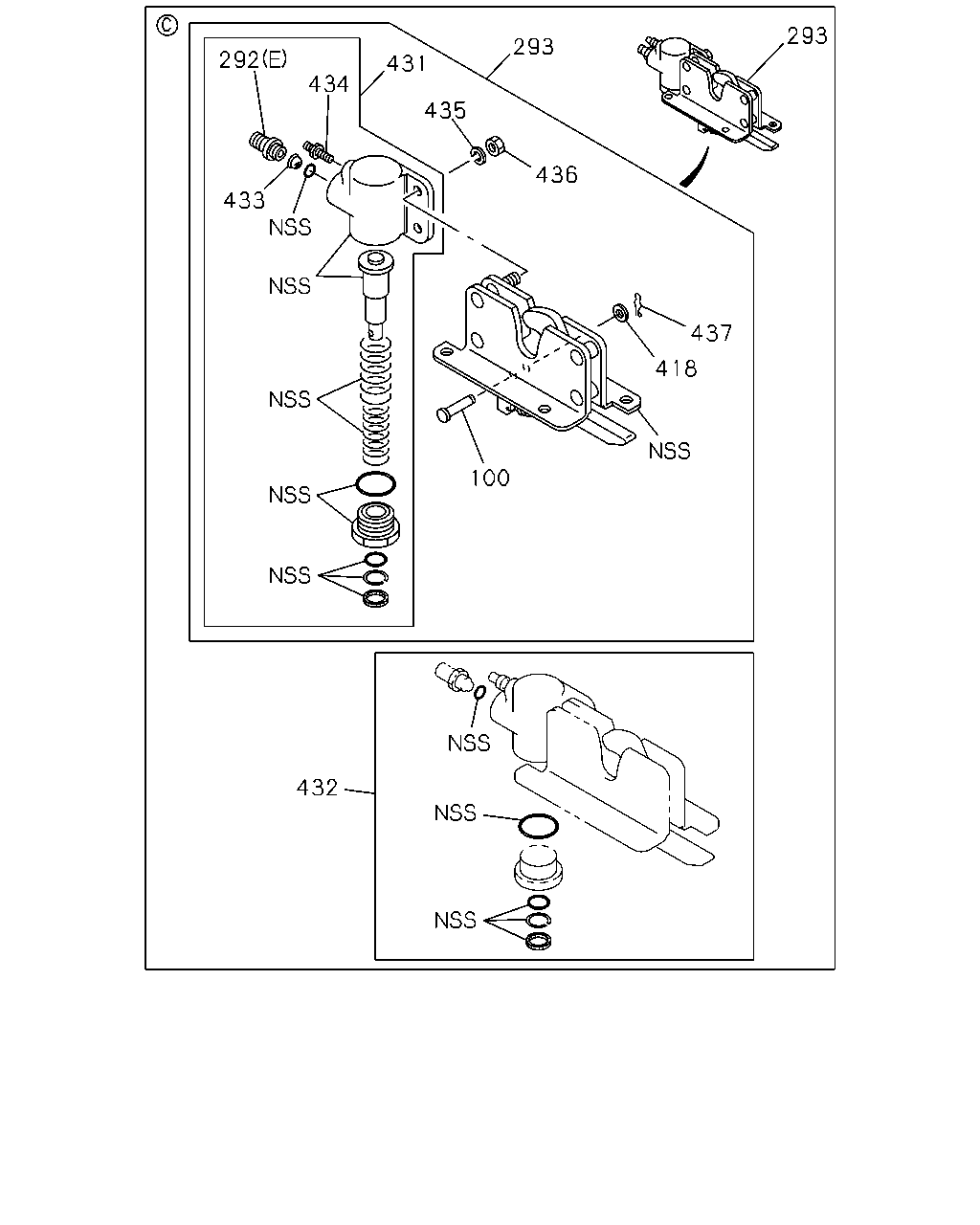

çizim 126041
293 293 435 431 436 434 292 433 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date
100 PIN; JOINT 1-53458-831-0 01 1 1009-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1009-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 1009-1302
292 CONNECTOR; CAB SUSPENSION
(G) DIN6X2 & R1/8 3WAY 		1-09660-761-1 01 1 1303-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1009-1302
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 02 1 1303-1510
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1511-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1511-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 1009-1302
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 1009-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 1009-1302
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 1009-
418 WASHER; PL,PIN 1-53458-059-0 01 1 1009-
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 1009-
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 1009-
433 FILTER; AIR CYL 1-53458-048-0 01 1 1009-
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 1009-
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 1009-
436 NUT; AIR CYL 1-53458-528-0 02 1 1009-
437 PIN; SNAP 1-53458-526-0 01 1 1009-

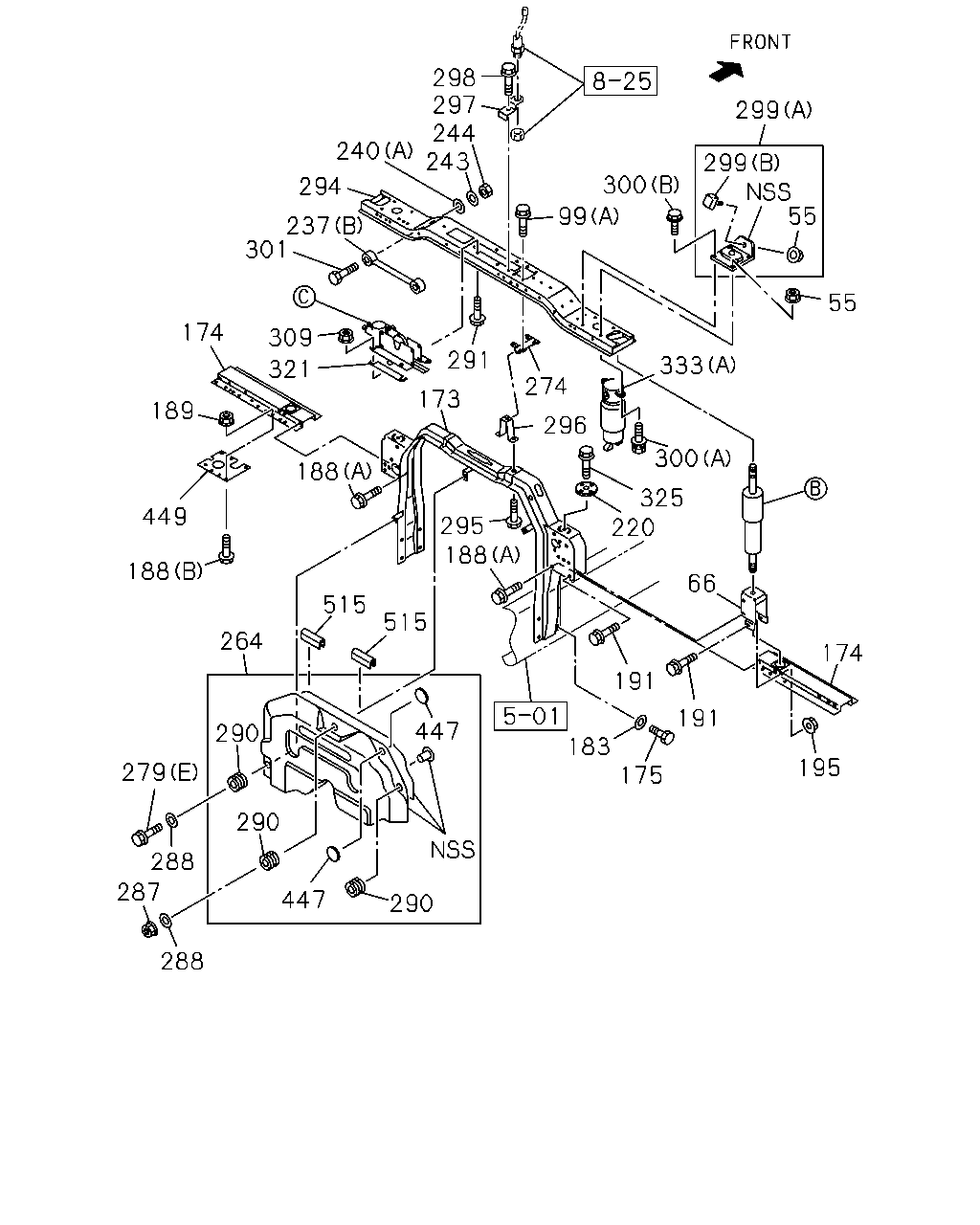

çizim 188909
298 297 244 243 240 294 237 301 300 99 299 299 55 55 333 274 291 309 321 174 189 188 173 296 300 325 220 66 174 195 191 191 175 183 188 295 515 515 449 188 264 290 279 288 290 447 290 447 288 287
BalonParca AdiParca NoAdetTipApplied Date
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 1009-
66 BRACKET; S/ABS 1-53458-755-1 01 1 1009-1204
66 BRACKET; S/ABS 8-98214-572-0 01 1 1205-
66 BRACKET; S/ABS 1-53458-786-0 01 1 1009-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1009-
173 MEMBER; CAB MTG RR
HONG KONG EQUIPMENT(PQ1) 		1-53450-670-1 01 1 1009-1010
173 MEMBER; CAB MTG RR
HONG KONG EQUIPMENT(PQ1) 		8-98171-648-0 01 1 1011-1302
173 MEMBER; CAB MTG RR 8-98171-648-0 01 1 1303-
173 MEMBER; CAB MTG RR
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98166-139-0 01 1 1009-1010
173 MEMBER; CAB MTG RR
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98171-657-0 01 1 1011-1302
174 OUTRIGGER 1-53456-418-3 01 1 1009-
174 OUTRIGGER 8-98158-646-0 01 1 1009-
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1009-
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1009-
188 BOLT; OUTRIGGER
(B) M10X20 FLANGE 		0-28651-020-0 04 1 1009-
188 BOLT; OUTRIGGER
(A) M10X25 FLANGE 		0-28651-025-0 08 1 1009-
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 1009-
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 1009-
195 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1009-
220 GUIDE; SPR 1-53458-648-1 02 1 1009-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 1009-
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 1009-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 1009-
240 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		1-09985-173-0 01 1 1303-1410
240 WASHER; PL,BRKT
(A) ID=12.5 OD=22 		0-91610-512-0 02 1 1009-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1009-
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 1009-
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 1009-
264 PANEL; BACK
HONG KONG EQUIPMENT(PQ1) 		1-53194-511-2 01 1 1009-1302
264 PANEL; BACK 1-53194-511-2 01 1 1303-
274 PIN 1-53458-996-0 01 1 1009-
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
279 BOLT
(D) M8X60 FLANGE 		0-28050-860-0 02 1 1009-
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 1009-1510
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511-
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1510
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511-
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-1302
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1303-1510
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1511-
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1009-1302
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1303-1303
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1304-
279 BOLT
HONG KONG EQUIPMENT(PQ1) (E) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302
279 BOLT
(E) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
287 NUT
HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1009-1302
287 NUT
M8 FLANGE 		0-91180-108-0 01 1 1303-
288 WASHER; PL
HONG KONG EQUIPMENT(PQ1) ID=8.4 OD=26 		0-91614-808-0 03 1 1009-1302
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 1303-
290 RUBBER; MTG
HONG KONG EQUIPMENT(PQ1) 		1-53459-702-1 03 1 1009-1302
290 RUBBER; MTG 1-53459-702-1 03 1 1303-
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 1009-
294 MEMBER; FLOATING 1-53454-949-2 01 1 1009-
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 1009-
296 STOPPER; UPR 1-53458-973-1 01 1 1009-
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 1009-
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 1009-
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 1009-
300 BOLT; MTG RUBBER
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
300 BOLT; MTG RUBBER
(A) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 1009-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 1009-
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 1009-
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 1009-
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28650-820-0 02 1 1009-
333 SPRING
(B) 		1-52110-142-4 02 1 1009-
333 SPRING
(A) 		1-52110-143-4 02 1 1009-
447 SEAL
HONG KONG EQUIPMENT(PQ1) OD=45 BLACK 		1-76798-017-0 02 1 1009-1302
447 SEAL
OD=45 BLACK 		1-76798-017-0 02 1 1303-
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 1009-
515 FINISHER; BACK PANEL
HONG KONG EQUIPMENT(PQ1) L=150 		1-76710-004-0 01 1 1009-1302
515 FINISHER; BACK PANEL
L=150 		1-76710-004-0 01 1 1303-
515 FINISHER; BACK PANEL
HONG KONG EQUIPMENT(PQ1) L=300 		1-76710-006-0 01 1 1009-1302
515 FINISHER; BACK PANEL
L=300 		1-76710-006-0 01 1 1303-

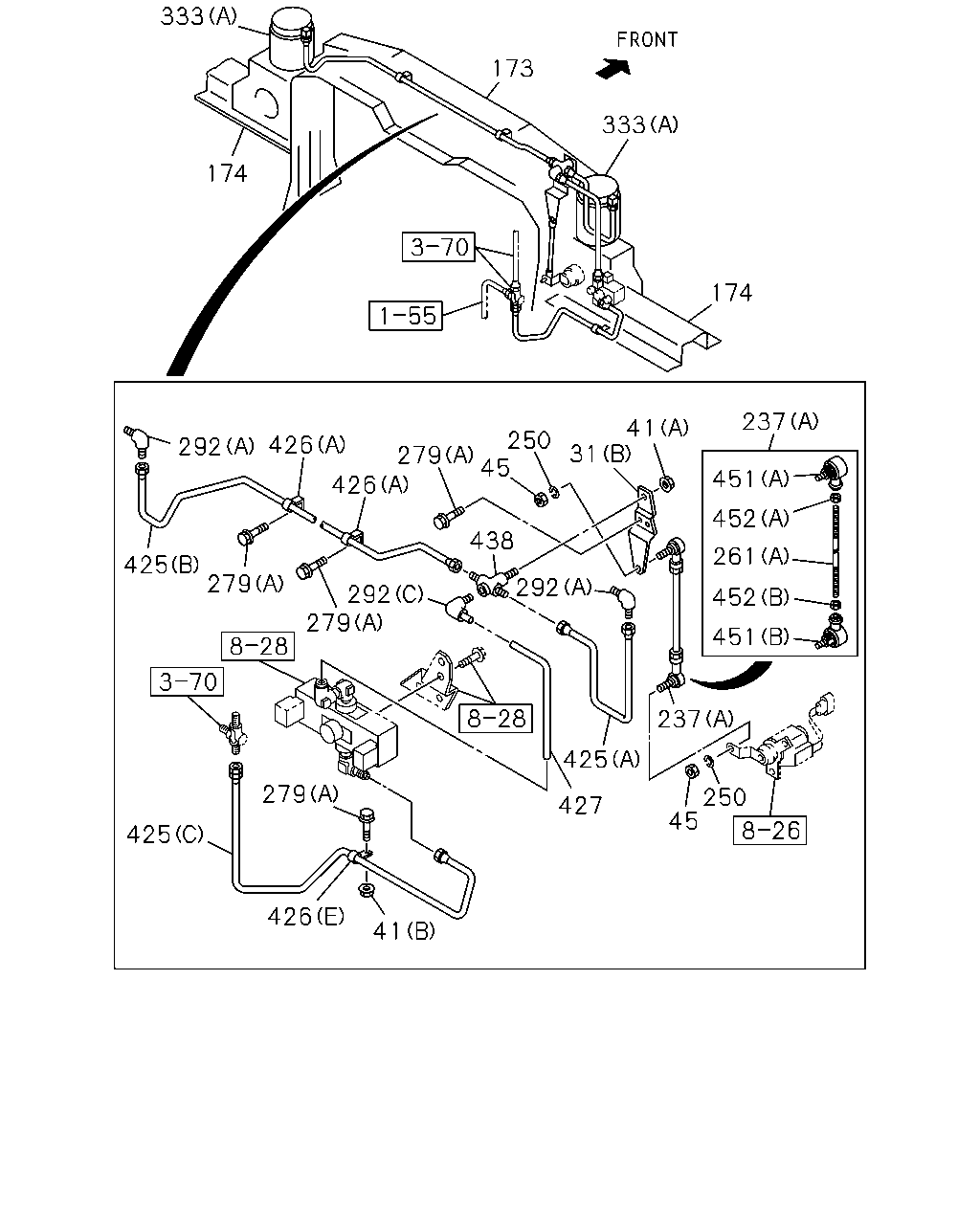

çizim 188912
173 333 174 174 333 292 426 279 250 41 237 451 452 452 451 261 30 45 426 438 292 237 45 250 425 427 292 279 279 425 425 279 426 41
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; CAB FRT FOOT
(A) M14X60 		0-20951-460-0 02 1 1009-
30 BOLT; CAB FRT FOOT
(B) M14X45 		9-92061-445-0 02 1 1009-1302
30 BOLT; CAB FRT FOOT
(B) M14X50 		0-20951-450-0 02 1 1303-
30 BOLT; CAB FRT FOOT
(C) M16X45 		9-92061-645-0 08 1 1009-1302
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 05 1 1303-
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 05 1 1303-
41 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 1009-
41 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 1009-
45 NUT
M5 		0-91110-505-0 04 1 1009-1510
45 NUT
M5 		0-91110-505-0 02 1 1511-
45 NUT
M5 		0-91110-505-0 02 1 1511-
173 MEMBER; CAB MTG RR
HONG KONG EQUIPMENT(PQ1) 		1-53450-670-1 01 1 1009-1010
173 MEMBER; CAB MTG RR
HONG KONG EQUIPMENT(PQ1) 		8-98171-648-0 01 1 1011-1302
173 MEMBER; CAB MTG RR 8-98171-648-0 01 1 1303-
173 MEMBER; CAB MTG RR
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98166-139-0 01 1 1009-1010
173 MEMBER; CAB MTG RR
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98171-657-0 01 1 1011-1302
174 OUTRIGGER 1-53456-418-3 01 1 1009-
174 OUTRIGGER 8-98158-646-0 01 1 1009-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 1009-
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 1009-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 1009-
250 WASHER; LK
ID=5.1 		0-91510-505-0 04 1 1009-1510
250 WASHER; LK
ID=5.1 		0-91510-505-0 02 1 1511-
250 WASHER; LK
ID=5.1 		0-91510-505-0 02 1 1511-
261 ROD; LINK
(B) 		0-84100-506-0 01 1 1009-
261 ROD; LINK
(A) 		9-08410-514-0 01 1 1009-
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
279 BOLT
(D) M8X60 FLANGE 		0-28050-860-0 02 1 1009-
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 1009-1510
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511-
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1510
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511-
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-1302
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1303-1510
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1511-
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1009-1302
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1303-1303
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1304-
279 BOLT
HONG KONG EQUIPMENT(PQ1) (E) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302
279 BOLT
(E) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1009-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 1009-1302
292 CONNECTOR; CAB SUSPENSION
(G) DIN6X2 & R1/8 3WAY 		1-09660-761-1 01 1 1303-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1009-1302
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 02 1 1303-1510
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1511-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1511-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 1009-1302
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 1009-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 1009-1302
333 SPRING
(B) 		1-52110-142-4 02 1 1009-
333 SPRING
(A) 		1-52110-143-4 02 1 1009-
425 PIPE ASM; AIR
(C) L=566 SERVICED BY L=600 		1-47428-809-0 01 1 1009-
425 PIPE ASM; AIR
(B) L=1149 SERVICED BY L=1200 		1-47428-816-0 01 1 1009-
425 PIPE ASM; AIR
(A) L=291 		8-98095-656-0 01 1 1009-
426 CLIP
(D) ID=11 L=16 		0-95235-025-0 01 1 1303-1303
426 CLIP
(E) ID=7 L=32 		0-95234-665-0 01 1 1009-
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 1009-
426 CLIP
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1302
426 CLIP
(D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303-
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 1009-
426 CLIP
(C) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009-
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1009-1302
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1009-1302
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 03 1 1303-
438 UNION
M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 1009-
451 JOINT; BALL
(B) 		1-09760-103-2 02 1 1009-1510
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 1511-
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 1511-
451 JOINT; BALL
(A) 		1-09760-104-2 02 1 1009-1510
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 1511-
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 1511-
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 02 1 1009-1510
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 1511-
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 1511-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 1009-1510
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 1511-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 1511-

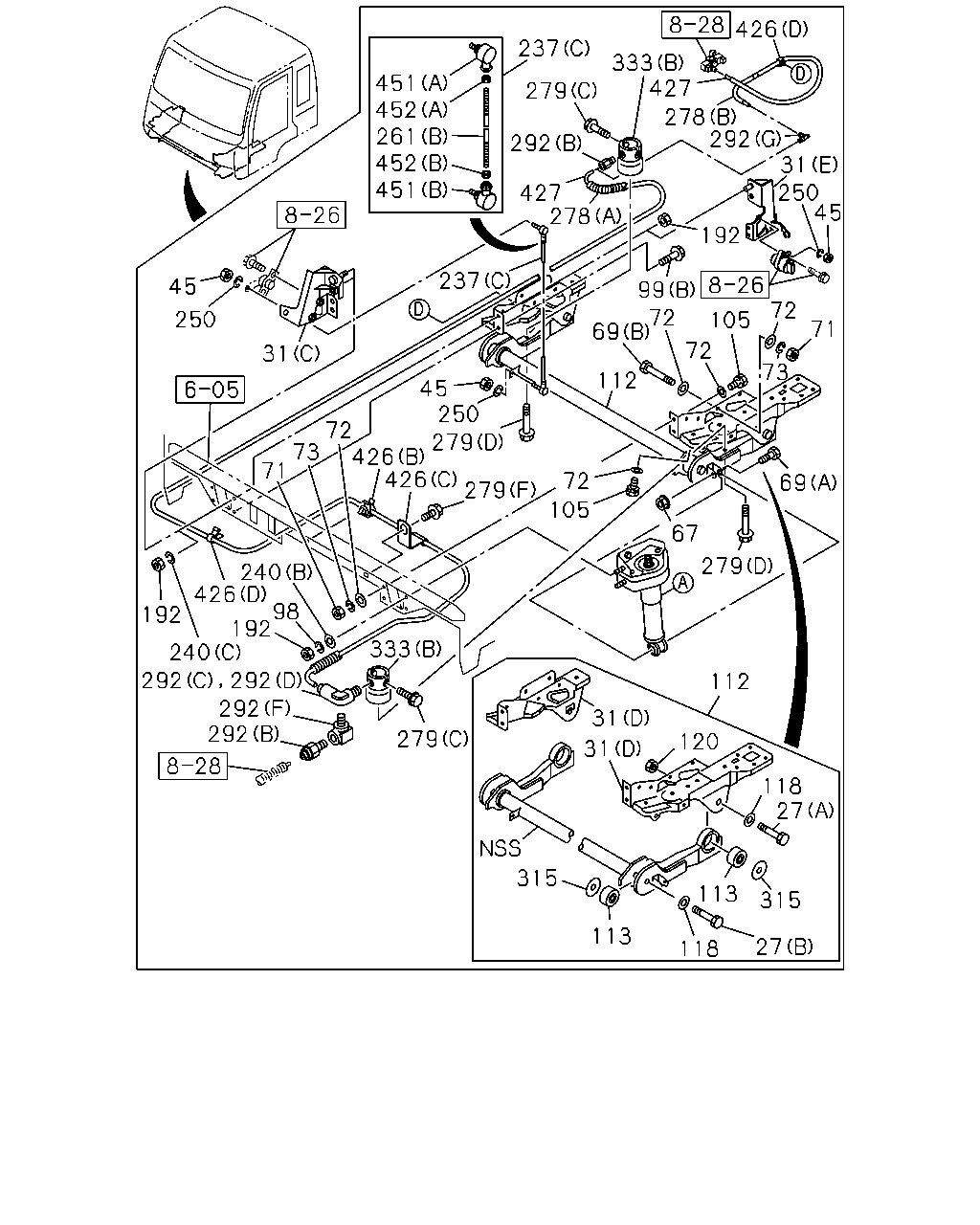

çizim 188915
27 118 113 315 113 315 27 118 120 112 31 31 279 292 292 292 292 192 426 192 240 98 333 279 67 69 105 72 279 426 426 72 73 71 279 250 45 71 73 72 105 72 112 69 72 99 45 250 31 292 278 427 426 333 237 279 292 427 278 237 31 250 45 240 451 452 261 452 451 192
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 1009-1302
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 1303-
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 1009-1302
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 1303-
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 1009-1302
31 BRACKET; CAB
(E) 		8-98131-521-2 01 1 1303-
31 BRACKET; CAB
(D) 		1-53453-224-4 01 1 1009-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 1009-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 1009-
31 BRACKET; CAB
(C) 		8-97619-220-1 01 1 1009-1302
31 BRACKET; CAB
(A) 		8-98152-139-0 01 1 1303-
45 NUT
M5 		0-91110-505-0 04 1 1009-1510
45 NUT
M5 		0-91110-505-0 02 1 1511-
45 NUT
M5 		0-91110-505-0 02 1 1511-
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 1009-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 1009-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 1009-
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 1009-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 1009-1302
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 22 1 1303-
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 1009-1302
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 06 1 1303-1305
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 1306-
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 1009-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 01 1 1009-
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 08 1 1009-
112 ARM ASM; LINK,CAB FRT SUSP 8-98077-409-1 01 1 1009-1302
112 ARM ASM; LINK,CAB FRT SUSP 8-98127-505-1 01 1 1303-
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 1009-
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 1009-
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 1009-1302
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 1303-
192 NUT; BRKT FIX
M10 		1-09984-142-0 01 1 1009-1302
192 NUT; BRKT FIX
M10 		1-09984-142-0 05 1 1303-
192 NUT; BRKT FIX
M10 		1-09984-142-0 04 1 1009-1302
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 1009-
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 1009-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 1009-
240 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		1-09985-173-0 01 1 1303-1410
240 WASHER; PL,BRKT
(A) ID=12.5 OD=22 		0-91610-512-0 02 1 1009-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 1009-
250 WASHER; LK
ID=5.1 		0-91510-505-0 04 1 1009-1510
250 WASHER; LK
ID=5.1 		0-91510-505-0 02 1 1511-
250 WASHER; LK
ID=5.1 		0-91510-505-0 02 1 1511-
261 ROD; LINK
(B) 		0-84100-506-0 01 1 1009-
261 ROD; LINK
(A) 		9-08410-514-0 01 1 1009-
278 COVER
(B) L=400 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1303-
278 COVER
(A) L=1200 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1009-
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1009-
279 BOLT
(D) M8X60 FLANGE 		0-28050-860-0 02 1 1009-
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 1009-1510
279 BOLT
(B) M12X40 FLANGE 		8-98270-173-0 04 1 1511-
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1303-1510
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511-
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1009-1302
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1303-1510
279 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1511-
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1009-1302
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1303-1303
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 1304-
279 BOLT
HONG KONG EQUIPMENT(PQ1) (E) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302
279 BOLT
(E) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1009-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 1009-1302
292 CONNECTOR; CAB SUSPENSION
(G) DIN6X2 & R1/8 3WAY 		1-09660-761-1 01 1 1303-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1009-1302
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 02 1 1303-1510
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1511-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 1511-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 1009-1302
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 1009-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 1009-1302
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 1009-
333 SPRING
(B) 		1-52110-142-4 02 1 1009-
333 SPRING
(A) 		1-52110-143-4 02 1 1009-
426 CLIP
(D) ID=11 L=16 		0-95235-025-0 01 1 1303-1303
426 CLIP
(E) ID=7 L=32 		0-95234-665-0 01 1 1009-
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 1009-
426 CLIP
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1009-1302
426 CLIP
(D) ID=5-12 L=14.5 		1-09987-221-0 02 1 1303-
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 1009-
426 CLIP
(C) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009-
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1009-1302
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1009-1302
427 TUBE
SERVICED BY L=2000 OD=6 		1-87411-001-0 03 1 1303-
451 JOINT; BALL
(B) 		1-09760-103-2 02 1 1009-1510
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 1511-
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 1511-
451 JOINT; BALL
(A) 		1-09760-104-2 02 1 1009-1510
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 1511-
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 1511-
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 02 1 1009-1510
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 1511-
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 1511-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 1009-1510
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 1511-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 1511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
