◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶

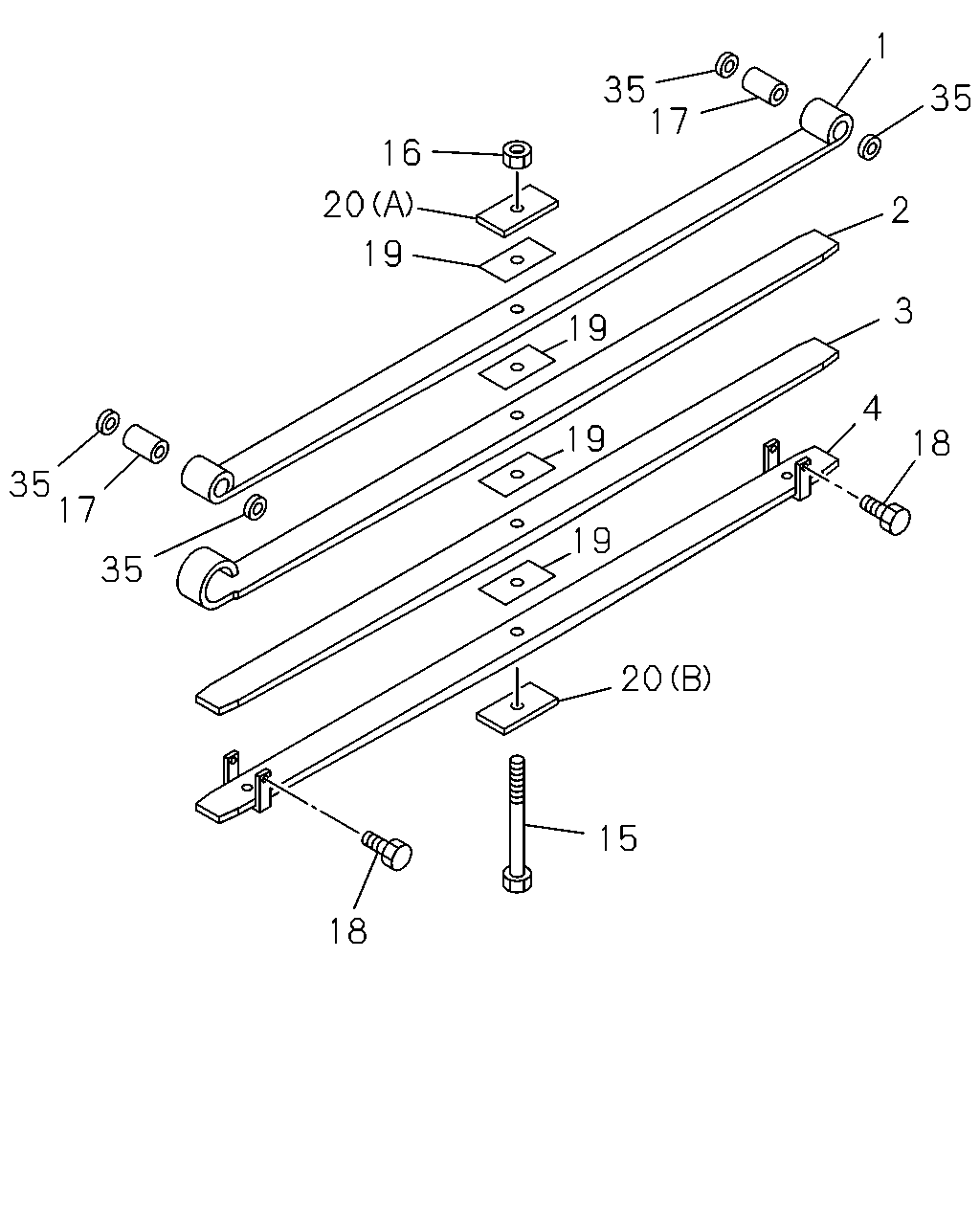

4-55 — FRONT LEAF SPRING (#69529) — 12 parça
çizim 125138
16 20 35 19 35 35 17 18 15 20 4 3 2 18 35 17 1 19 19 19
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97617-985-0 		1-51131-917-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97617-985-0 		1-51132-917-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97617-985-0 		1-51133-917-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-97617-985-0 		1-51134-917-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: A = 8-97617-985-0 		8-98048-521-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-97617-985-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 8-97617-985-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: A = 8-97617-985-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97617-985-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
(B), T=7 ASM PART: A = 8-97617-985-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97617-985-0 		1-51177-097-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-97617-985-0 		1-51177-321-0 04 1 -
