4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#69524) — 227 parça

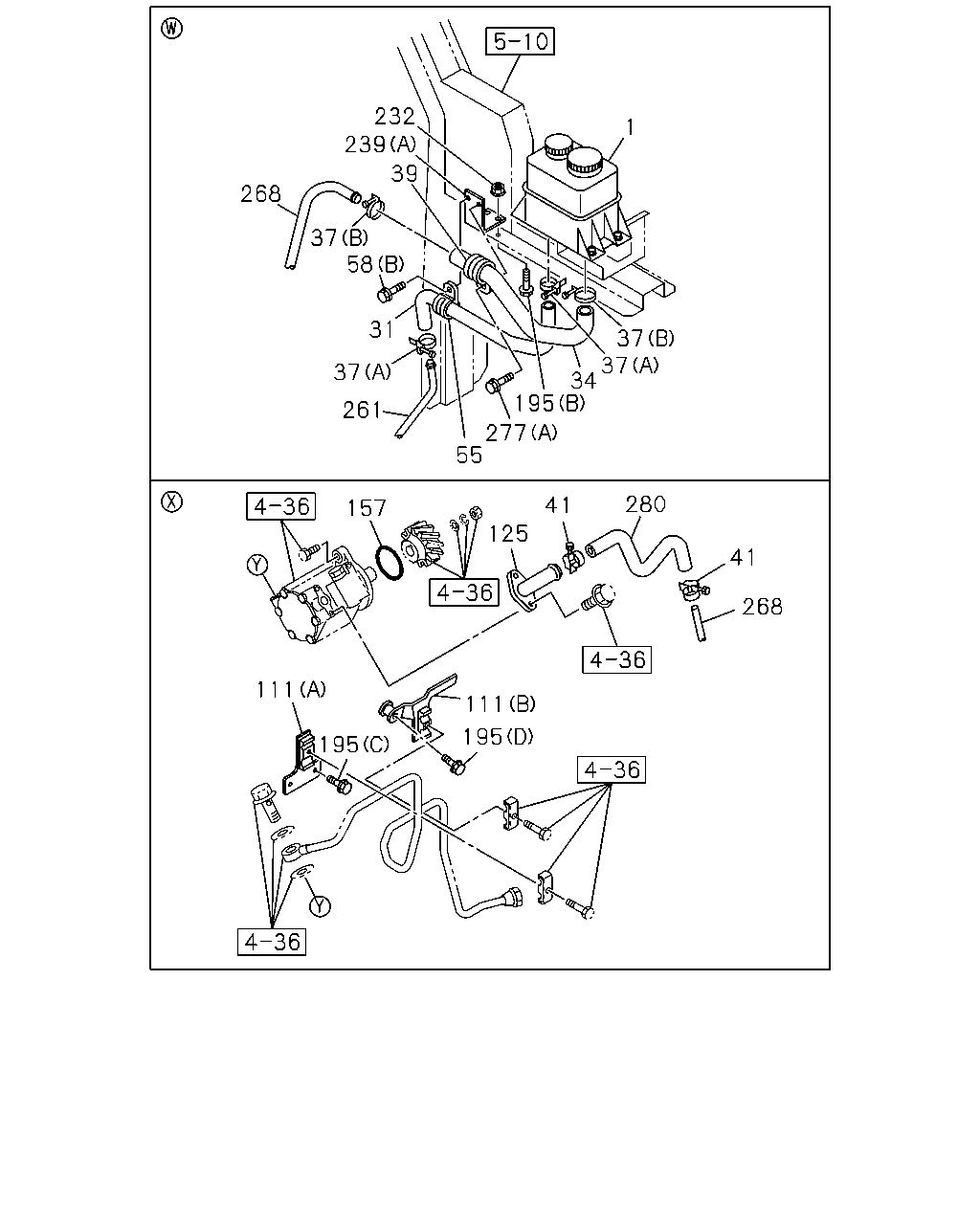

1 37 37 34 31 232 37 268 261 37 239 195 55 58 39 277 157 111 195 111 195 125 280 41 268 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	1009-1302
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1009-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1009-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1009-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1009-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1009-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1009-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	01	1	1009-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1009-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1009-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1009-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1009-
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1009-
195	BOLT; BRKT (D) M10X35 FLANGE	0-28151-035-0	01	1	1009-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1009-
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-
261	PIPE; OIL,UNION TO HOSE	8-98155-327-0	01	1	1009-1302
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98142-365-0	01	1	1009-1302
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1009-1302
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-

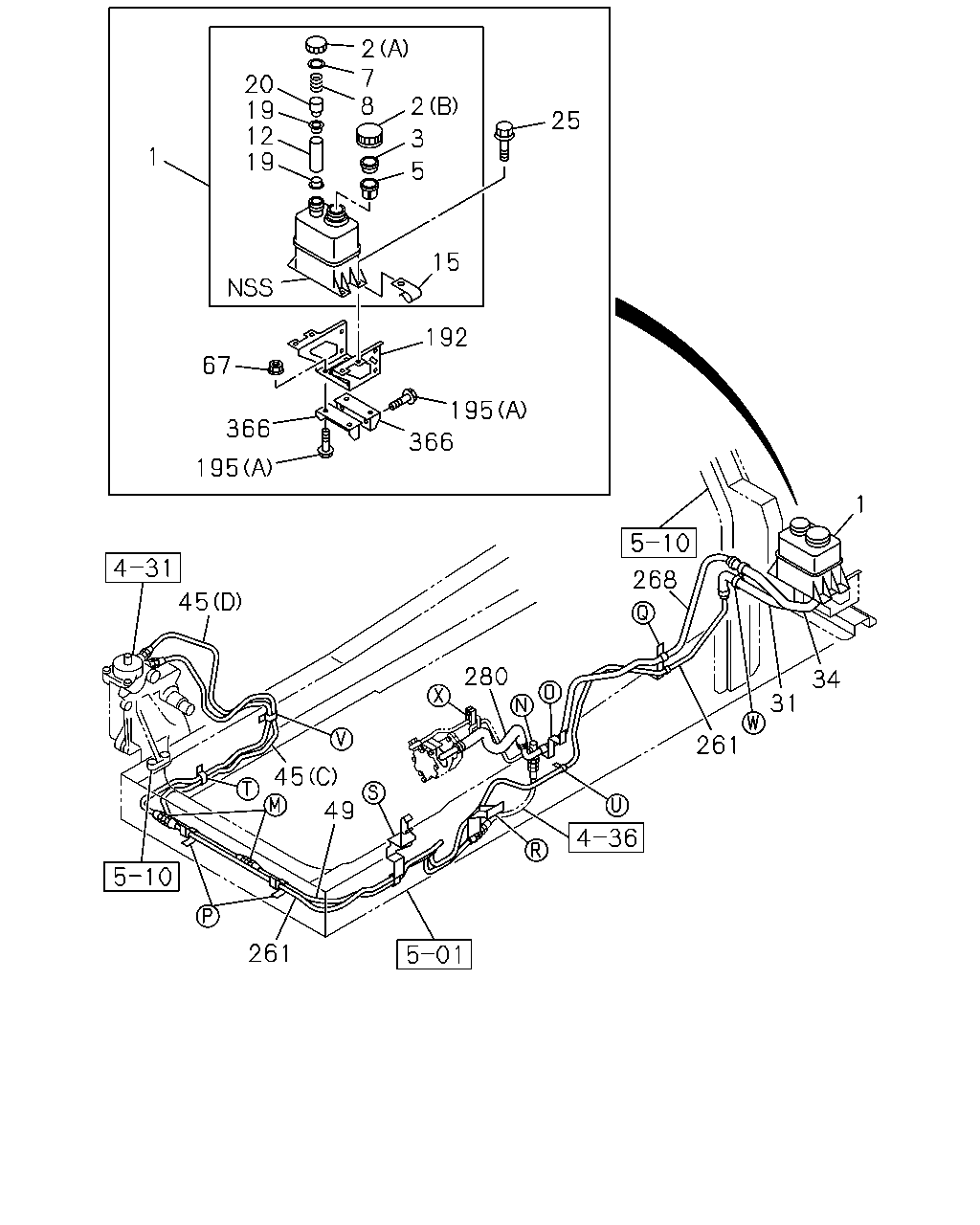

25 5 3 2 8 7 2 1 20 19 19 12 15 192 366 195 366 67 268 31 34 1 261 280 49 45 45 67 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1009-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1009-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1009-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1009-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1009-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1009-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1009-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1009-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1009-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1009-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	1009-1302
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1009-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98139-031-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98240-513-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98139-032-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION (D)	8-98240-515-0	01	1	1303-
49	PIPE; OIL,FLEX HOSE TO UNION L=1358	8-98155-326-0	01	1	1009-1302
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1009-
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1009-
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1009-
195	BOLT; BRKT (D) M10X35 FLANGE	0-28151-035-0	01	1	1009-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1009-
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-
261	PIPE; OIL,UNION TO HOSE	8-98155-327-0	01	1	1009-1302
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98142-365-0	01	1	1009-1302
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1009-1302
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1009-

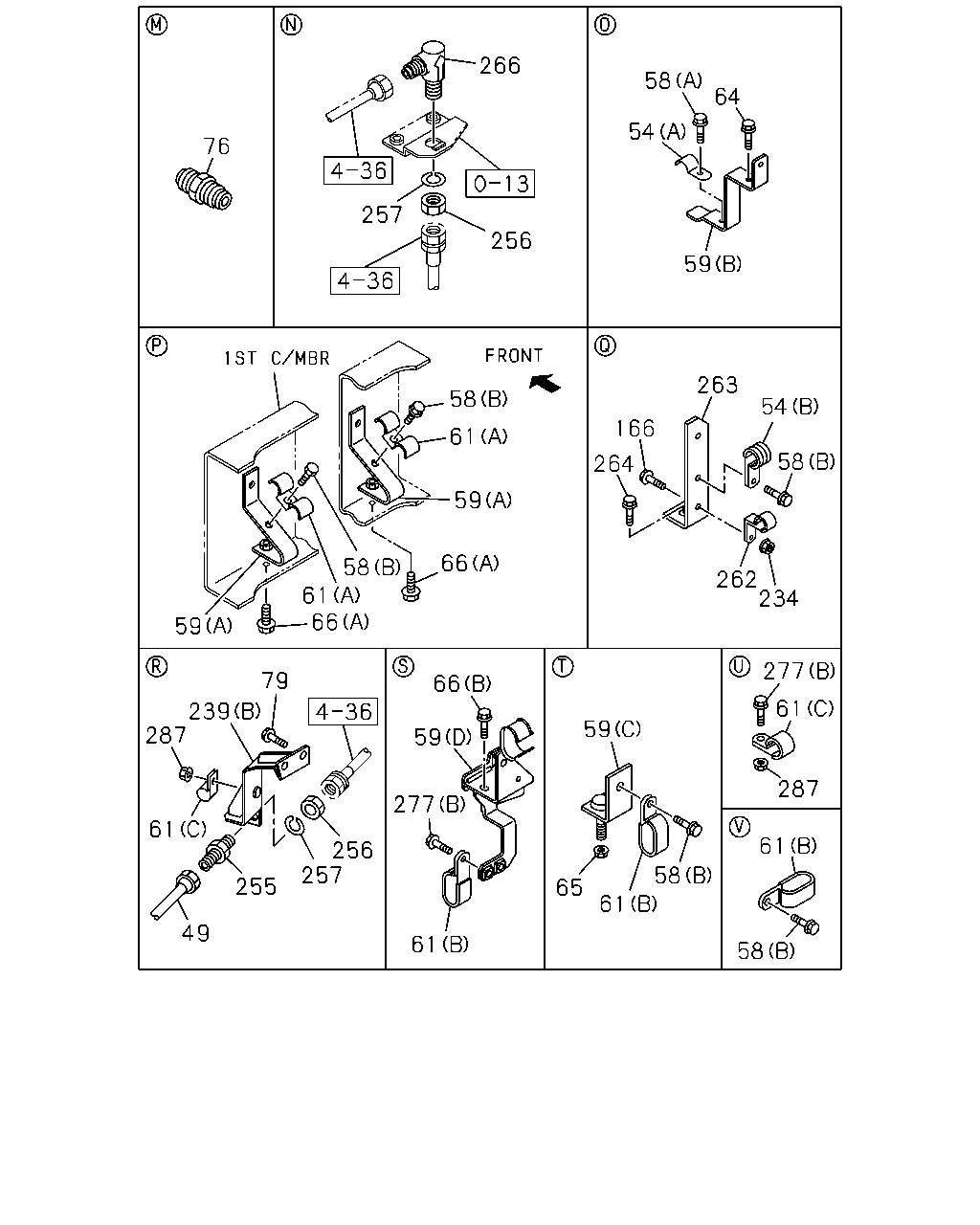

65 58 61 61 277 239 287 61 49 79 61 277 257 255 63 256 262 166 58 54 263 234 264 58 61 66 58 61 66 59 59 64 58 59 54 76 266 257 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION L=1358	8-98155-326-0	01	1	1009-1302
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1009-
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	1009-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	01	1	1009-
59	BRACKET; CLIP,OIL PIPE (D)	8-98239-922-0	01	1	1303-
59	BRACKET; CLIP,OIL PIPE (C)	8-98240-516-0	01	1	1303-
59	BRACKET; CLIP,OIL PIPE (B)	1-47471-183-0	01	1	1009-
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1009-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1303-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	02	1	1009-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1009-1302
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1303-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	1009-1302
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1303-
63	BRACKET; CLIP,P/S L=112	1-47475-694-1	01	1	1009-1302
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	1009-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1009-1302
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1009-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-
256	NUT; UNION M22	0-91111-522-0	01	1	1009-
256	NUT; UNION M22	0-91111-522-0	01	1	1009-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1009-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	1009-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-
266	UNION; OIL PIPE,P/S M20 & M22 ELBOW	1-09654-154-1	01	1	1009-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1009-1302
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-

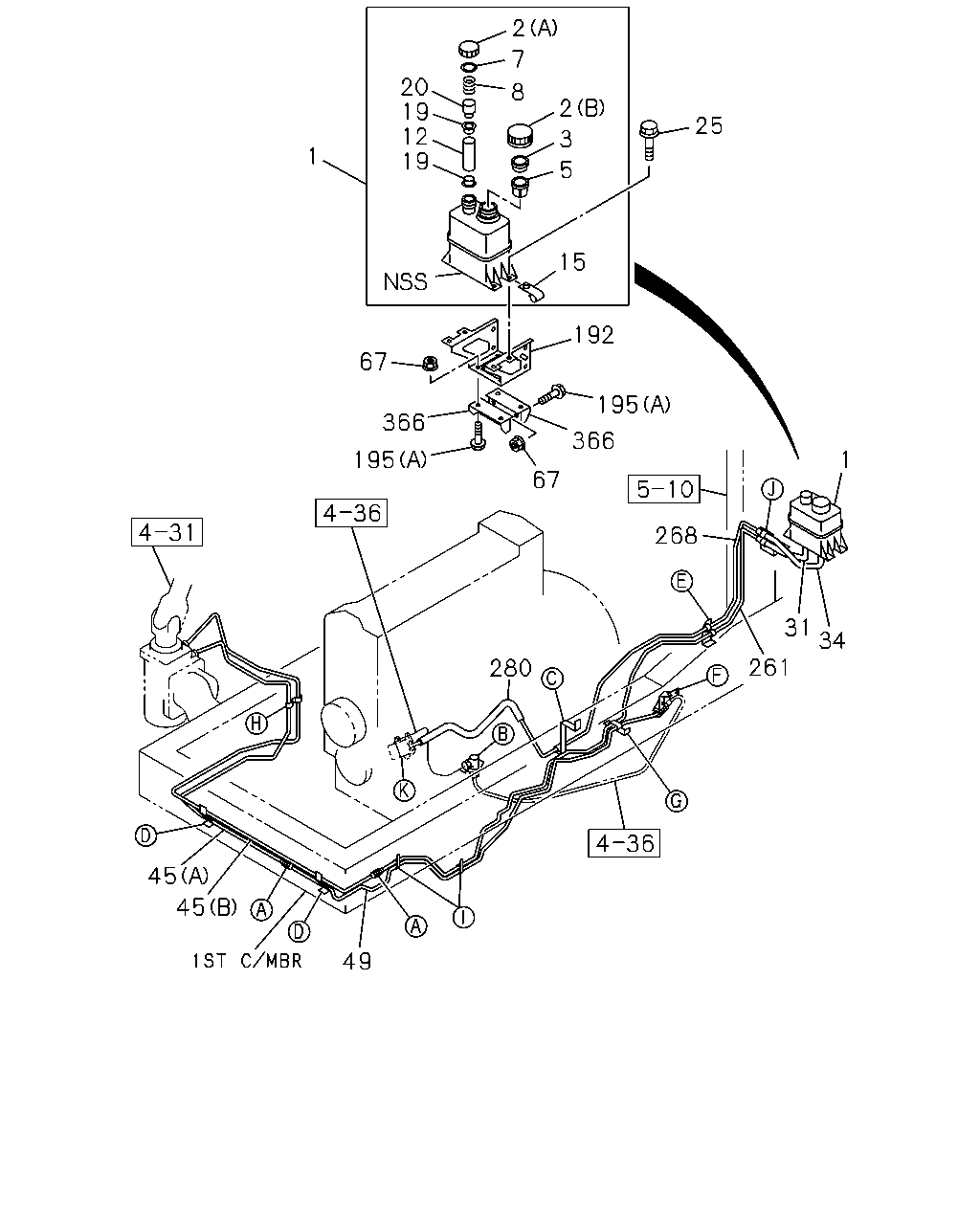

1 20 12 19 19 2 8 7 3 2 5 25 15 192 195 366 195 366 67 45 45 49 261 280 268 261 34 31 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1009-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1009-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1009-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1009-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1009-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1009-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1009-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1009-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1009-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1009-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	1009-1302
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1009-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98139-031-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98240-513-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98139-032-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION (D)	8-98240-515-0	01	1	1303-
49	PIPE; OIL,FLEX HOSE TO UNION L=1358	8-98155-326-0	01	1	1009-1302
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1009-
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1009-
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1009-
195	BOLT; BRKT (D) M10X35 FLANGE	0-28151-035-0	01	1	1009-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1009-
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-
261	PIPE; OIL,UNION TO HOSE	8-98155-327-0	01	1	1009-1302
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98142-365-0	01	1	1009-1302
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1009-1302
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1009-

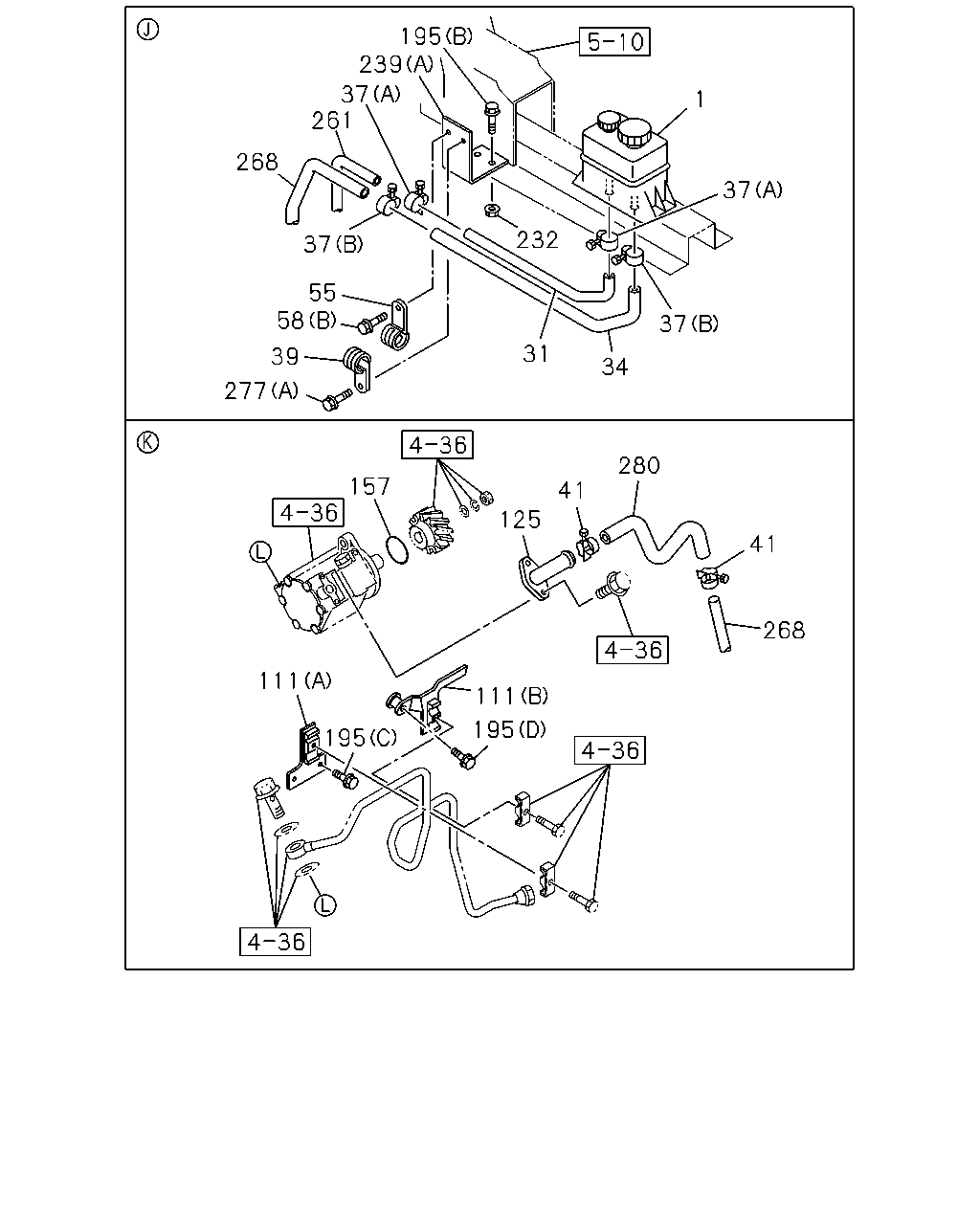

111 157 125 280 41 41 268 111 195 195 261 55 277 195 34 37 37 37 31 58 37 268 239 232 1 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	1009-1302
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1009-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1009-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1009-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1009-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1009-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1009-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	01	1	1009-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1009-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1009-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1009-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1009-
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1009-
195	BOLT; BRKT (D) M10X35 FLANGE	0-28151-035-0	01	1	1009-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1009-
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-
261	PIPE; OIL,UNION TO HOSE	8-98155-327-0	01	1	1009-1302
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98142-365-0	01	1	1009-1302
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1009-1302
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-

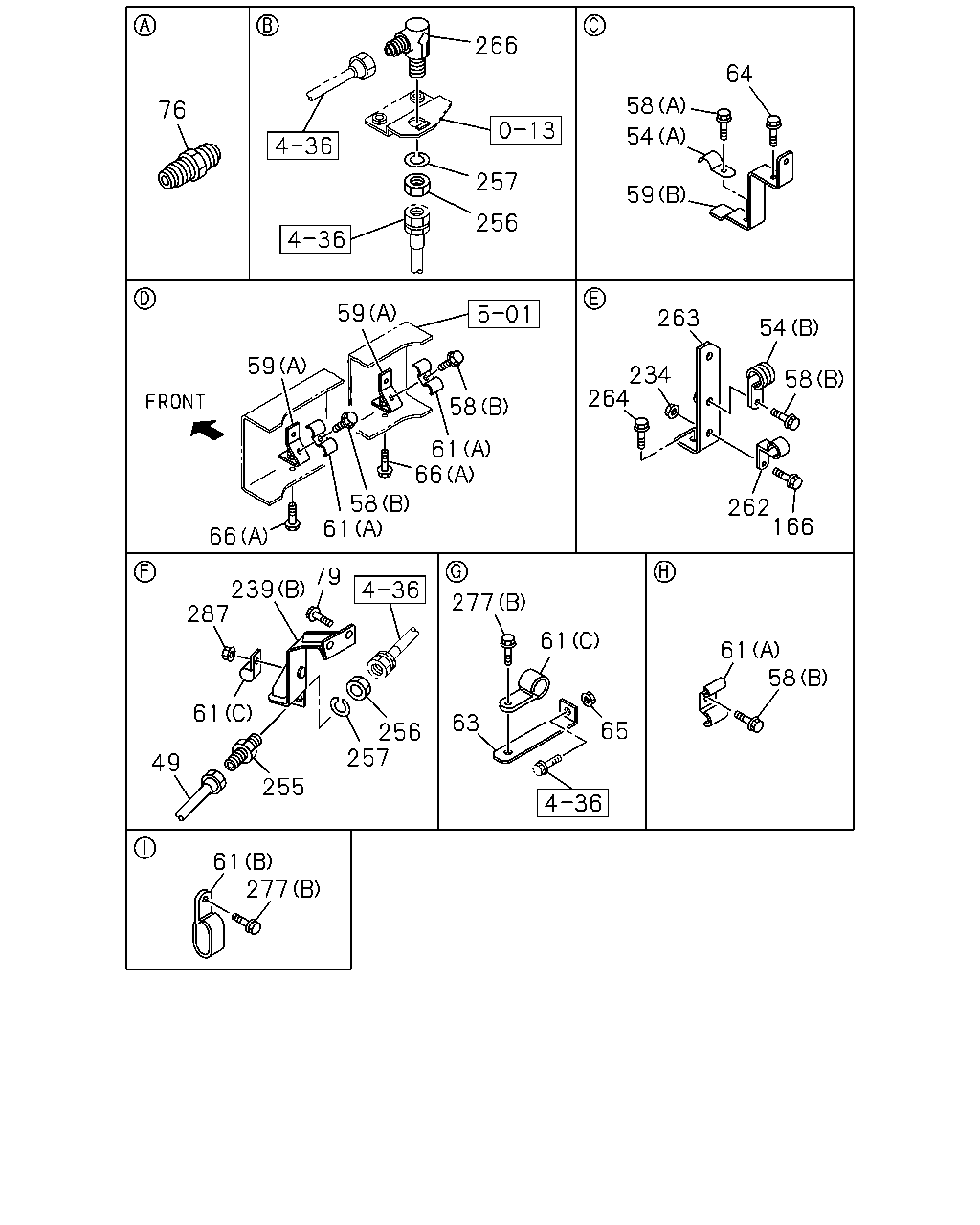

76 257 256 266 58 54 59 263 166 264 54 58 262 234 277 61 287 59 65 61 66 59 277 58 61 256 257 255 49 61 287 79 239 58 61 59 66 58 61 66 59 64 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION L=1358	8-98155-326-0	01	1	1009-1302
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1009-
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	1009-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (A) M10X20 FLANGE	0-28651-020-0	01	1	1009-
59	BRACKET; CLIP,OIL PIPE (D)	8-98239-922-0	01	1	1303-
59	BRACKET; CLIP,OIL PIPE (C)	8-98240-516-0	01	1	1303-
59	BRACKET; CLIP,OIL PIPE (B)	1-47471-183-0	01	1	1009-
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1009-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1303-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	02	1	1009-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1009-1302
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1303-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	1009-1302
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1303-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	1009-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1009-1302
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1009-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-
256	NUT; UNION M22	0-91111-522-0	01	1	1009-
256	NUT; UNION M22	0-91111-522-0	01	1	1009-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1009-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	1009-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-
266	UNION; OIL PIPE,P/S M20 & M22 ELBOW	1-09654-154-1	01	1	1009-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1009-1302
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
