4-31 — STEERING COLUMN AND SHAFT
(#69522) — 68 parça
◀

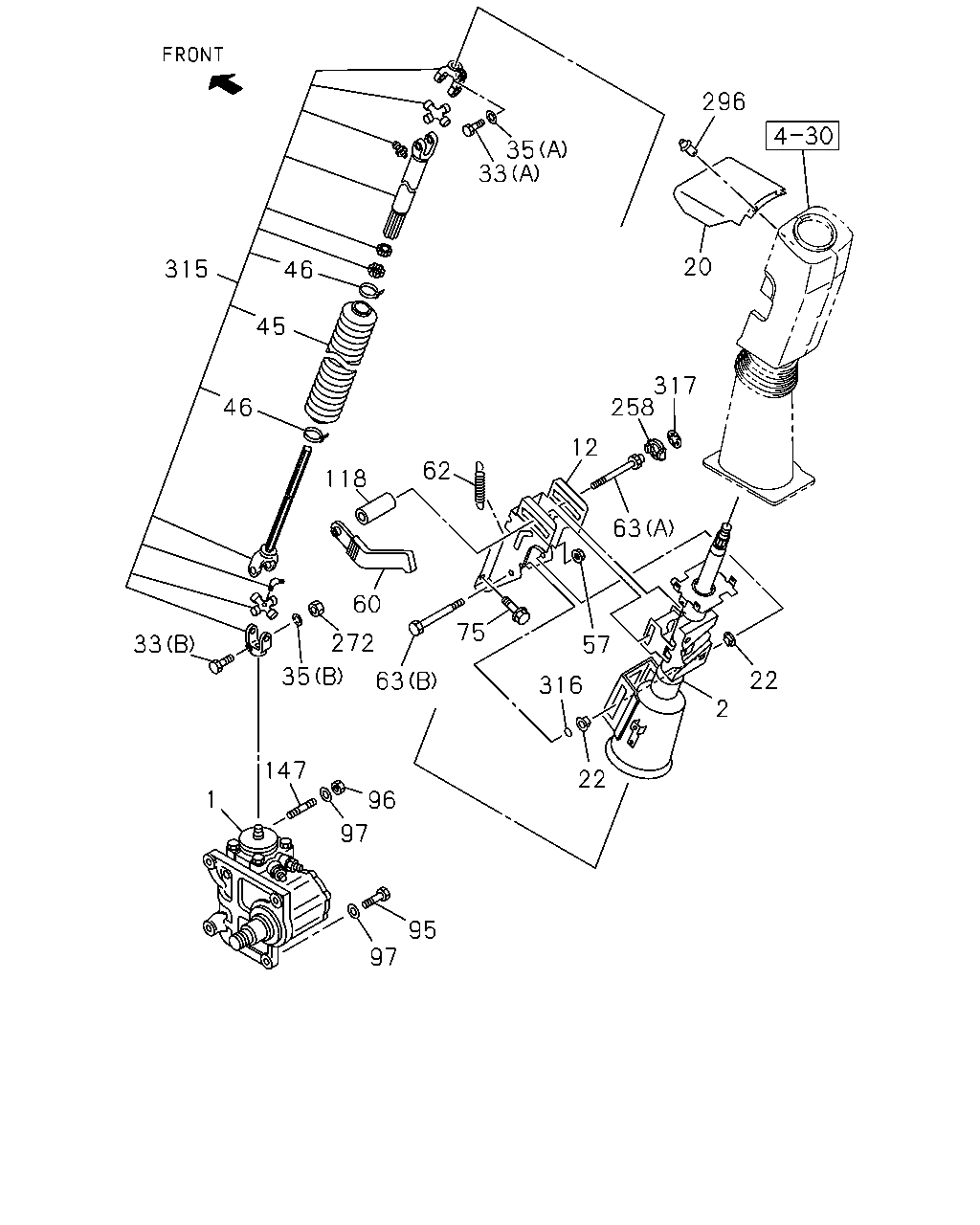

[431A02] (34 parça)

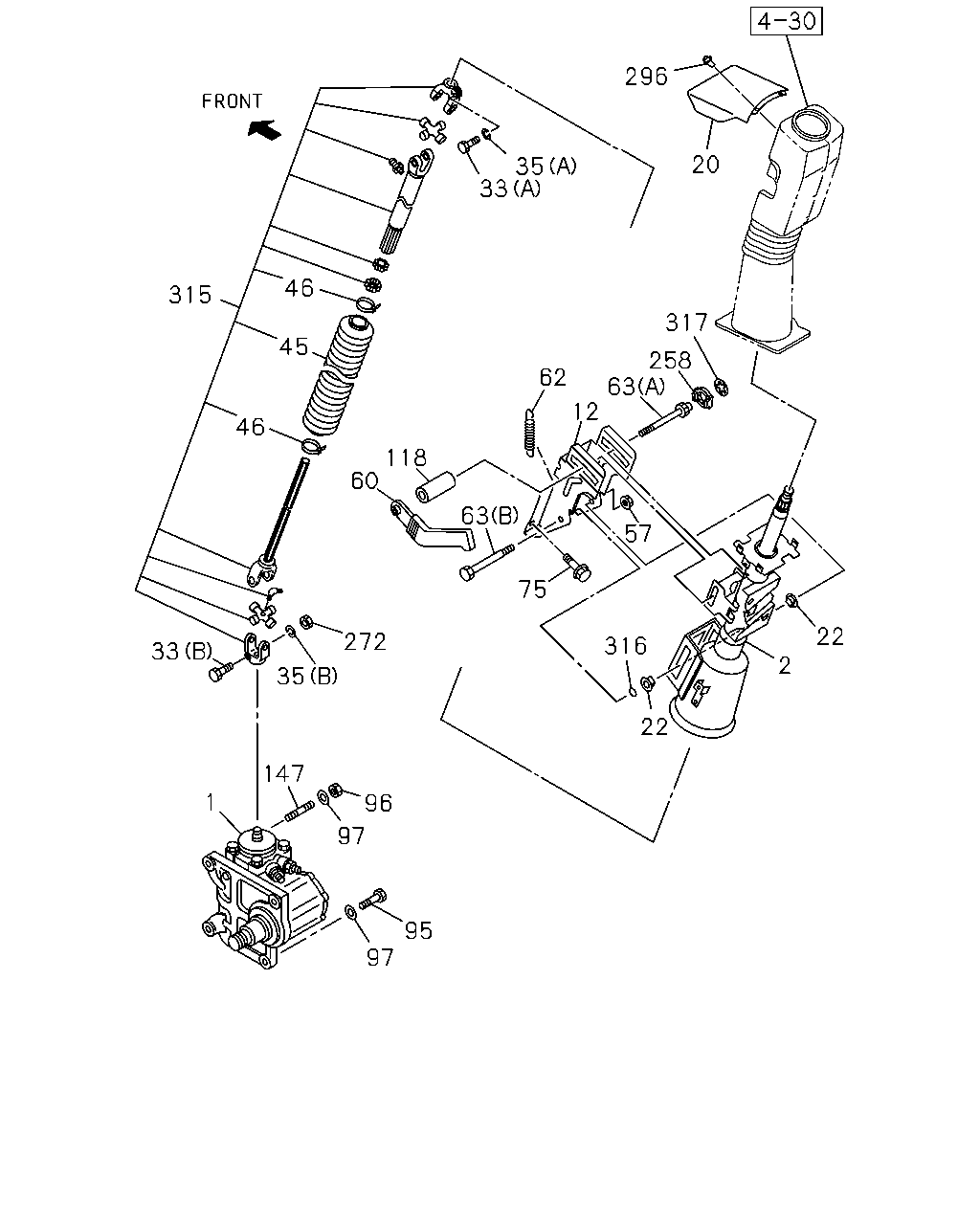

[431A01] (34 parça)
▶
97
97
95
96
147
1
22
2
316
22
57
63
258
12
317
75
272
63
35
33
118
62
20
296
35
33
46
45
46
315
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-942-2
01
1
1009-
2
SHAFT ASM; STRG
AIR BAG(TFQ)
1-44130-823-1
01
1
1009-1302
2
SHAFT ASM; STRG
1-44130-823-1
01
1
1303-
2
SHAFT ASM; STRG
EXC. AIR BAG(TFQ)
1-44130-689-1
01
1
1009-1302
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
1009-
20
COVER; STRG SHAFT
1-72438-121-3
01
1
1303-
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
1009-
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
1009-
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
1009-
35
WASHER; LK,STRG SHAFT
(B) ID=10.2
0-91510-810-0
01
1
1009-
35
WASHER; LK,STRG SHAFT
(A)
1-44139-154-0
01
1
1009-
45
BOOT; STRG SHAFT
1-44139-163-0
01
1
1009-1409
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
1410-
46
CLIP; BOOT
1-44139-156-0
02
1
1009-
57
NUT; ADJ BOLT
1-44227-151-0
01
1
1009-
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
1009-
62
SPRING; LK,LEVER
1-44227-153-0
01
1
1009-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
1009-
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
1009-
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28650-820-0
04
1
1009-
95
BOLT; STRG UNIT
M18X60
8-98036-497-0
03
1
1009-
96
NUT; STRG UNIT
M18
0-91110-518-0
01
1
1009-
97
WASHER; PL,STRG UNIT
ID=18
9-09851-862-0
04
1
1009-
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
1009-
147
STUD; STRG UNIT
M18X49 L=76
1-09300-107-0
01
1
1009-
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
1009-
272
NUT; SHAFT TO YOKE
M10
0-91110-510-0
01
1
1009-
296
CLIP; COVER
D6X12.5
8-94146-425-0
02
1
1009-
315
JOINT; SPLINE
AIR BAG(TFQ)
1-44135-388-0
01
1
1009-1302
315
JOINT; SPLINE
1-44135-388-0
01
1
1303-1409
315
JOINT; SPLINE
1-44135-345-2
01
1
1410-
315
JOINT; SPLINE
EXC. AIR BAG(TFQ)
1-44135-392-0
01
1
1009-1302
316
RING
1-44227-152-0
01
1
1009-
317
NUT; PUSH
1-44227-148-0
01
1
1009-
296
20
35
33
315
46
45
46
33
60
118
62
258
317
63
12
63
75
57
316
22
2
272
22
35
147
96
97
1
95
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-942-2
01
1
1009-
2
SHAFT ASM; STRG
AIR BAG(TFQ)
1-44130-823-1
01
1
1009-1302
2
SHAFT ASM; STRG
1-44130-823-1
01
1
1303-
2
SHAFT ASM; STRG
EXC. AIR BAG(TFQ)
1-44130-689-1
01
1
1009-1302
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
1009-
20
COVER; STRG SHAFT
1-72438-121-3
01
1
1303-
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
1009-
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
1009-
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
1009-
35
WASHER; LK,STRG SHAFT
(B) ID=10.2
0-91510-810-0
01
1
1009-
35
WASHER; LK,STRG SHAFT
(A)
1-44139-154-0
01
1
1009-
45
BOOT; STRG SHAFT
1-44139-163-0
01
1
1009-1409
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
1410-
46
CLIP; BOOT
1-44139-156-0
02
1
1009-
57
NUT; ADJ BOLT
1-44227-151-0
01
1
1009-
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
1009-
62
SPRING; LK,LEVER
1-44227-153-0
01
1
1009-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
1009-
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
1009-
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28650-820-0
04
1
1009-
95
BOLT; STRG UNIT
M18X60
8-98036-497-0
03
1
1009-
96
NUT; STRG UNIT
M18
0-91110-518-0
01
1
1009-
97
WASHER; PL,STRG UNIT
ID=18
9-09851-862-0
04
1
1009-
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
1009-
147
STUD; STRG UNIT
M18X49 L=76
1-09300-107-0
01
1
1009-
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
1009-
272
NUT; SHAFT TO YOKE
M10
0-91110-510-0
01
1
1009-
296
CLIP; COVER
D6X12.5
8-94146-425-0
02
1
1009-
315
JOINT; SPLINE
AIR BAG(TFQ)
1-44135-388-0
01
1
1009-1302
315
JOINT; SPLINE
1-44135-388-0
01
1
1303-1409
315
JOINT; SPLINE
1-44135-345-2
01
1
1410-
315
JOINT; SPLINE
EXC. AIR BAG(TFQ)
1-44135-392-0
01
1
1009-1302
316
RING
1-44227-152-0
01
1
1009-
317
NUT; PUSH
1-44227-148-0
01
1
1009-
