4-10 — FRONT AXLE (#69517) — 158 parça

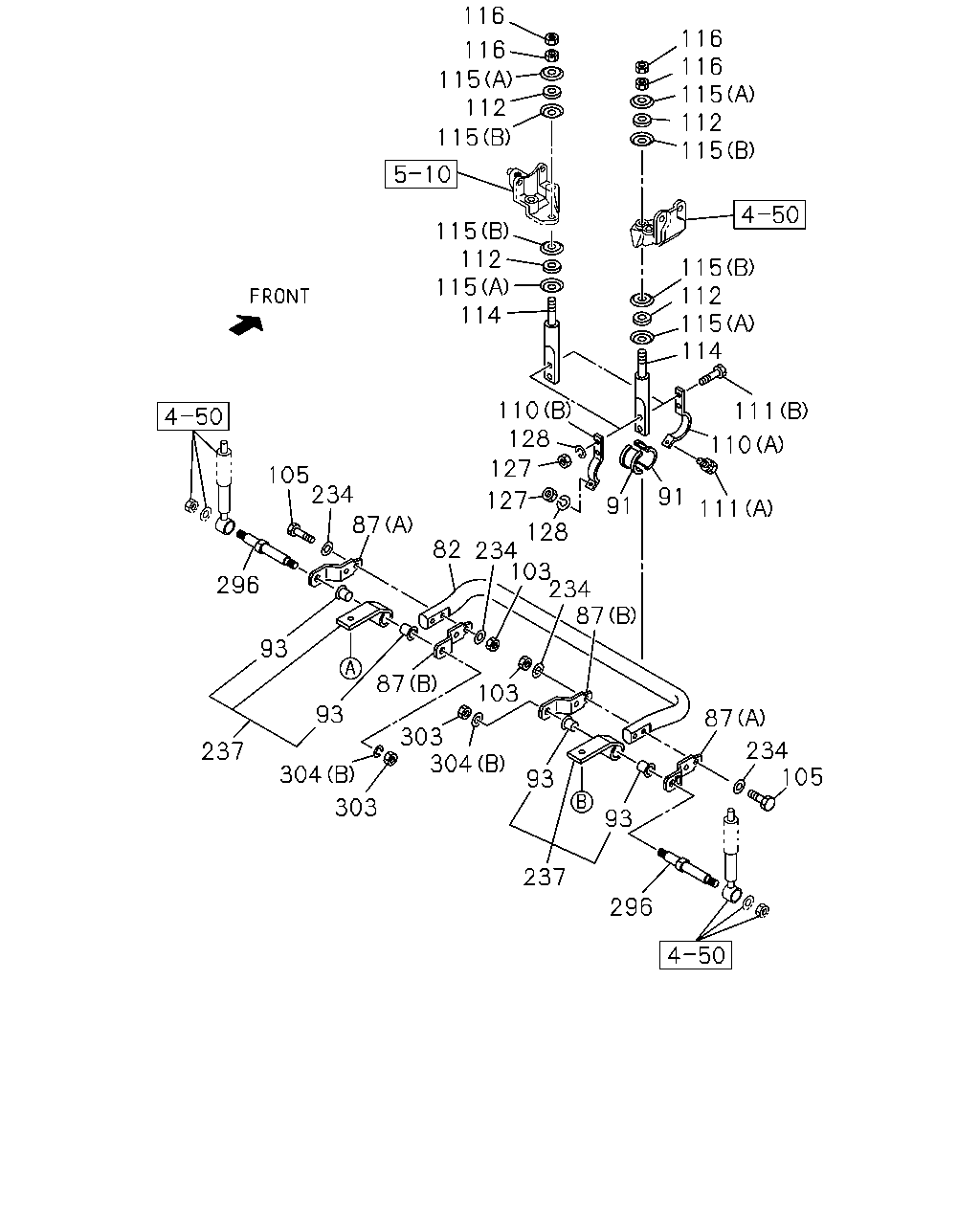

116 116 115 112 115 115 112 115 114 116 116 115 112 115 115 112 115 114 111 110 111 91 91 127 128 110 127 105 234 87 82 234 103 128 234 87 103 87 93 296 237 304 303 303 304 93 93 93 87 234 105 296 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-136-1	01	1	1303-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1303-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1303-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	1303-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1303-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1303-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1303-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1303-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1303-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1303-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1303-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	1303-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-083-2	02	1	1303-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	1303-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	1303-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1303-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1303-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1303-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1303-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1303-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1303-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1303-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1303-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1009-

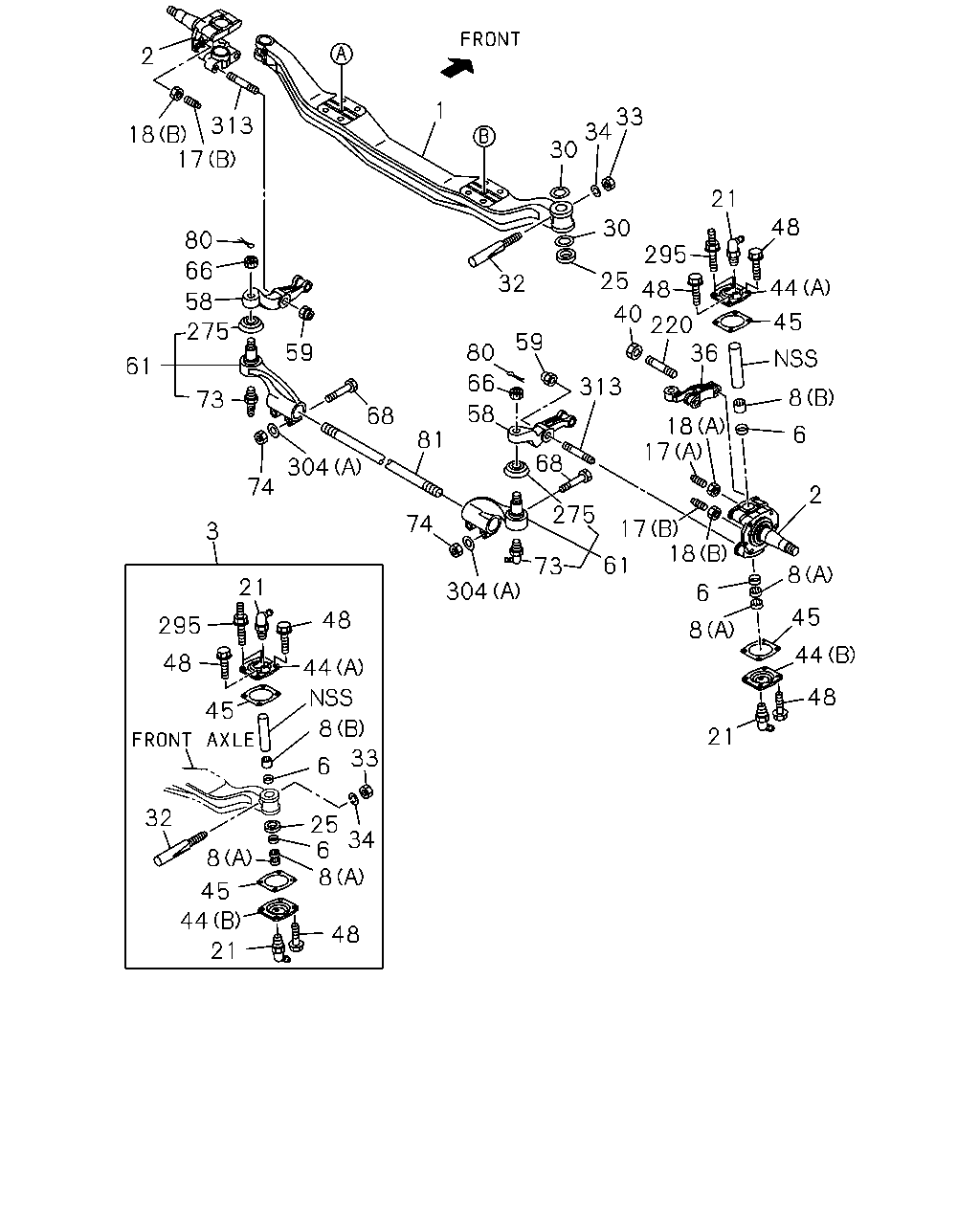

2 18 17 313 80 66 58 275 61 74 3 74 304 81 68 59 1 61 304 68 48 21 44 45 8 6 8 18 17 313 17 18 58 66 80 59 32 40 25 30 30 34 33 295 21 48 44 45 48 220 36 8 6 2 295 48 21 48 44 8 6 33 34 25 6 8 48 21 44 45 8 32 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1009-1302
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1009-1302
1	AXLE; FRT	1-43111-178-3	01	1	1303-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1009-
3	KING PIN SET	1-87831-349-2	02	1	1009-
6	SEAL; KING PIN	9-09926-024-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1009-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1009-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1009-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1009-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1009-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1009-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1009-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1009-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1009-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1009-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1009-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1009-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1009-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1009-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1009-
58	ARM; TIE ROD	1-43134-049-4	01	1	1009-
58	ARM; TIE ROD	1-43135-049-4	01	1	1009-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1009-
61	ROD END; TIE ROD	8-98054-851-0	01	1	1009-1009
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	01	1	1009-1009
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1009-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1009-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1009-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1009-
81	ROD; TIE	1-43151-154-0	01	1	1009-1009
81	ROD; TIE	8-98105-064-0	01	1	1010-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1009-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1009-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1009-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1303-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1009-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1009-

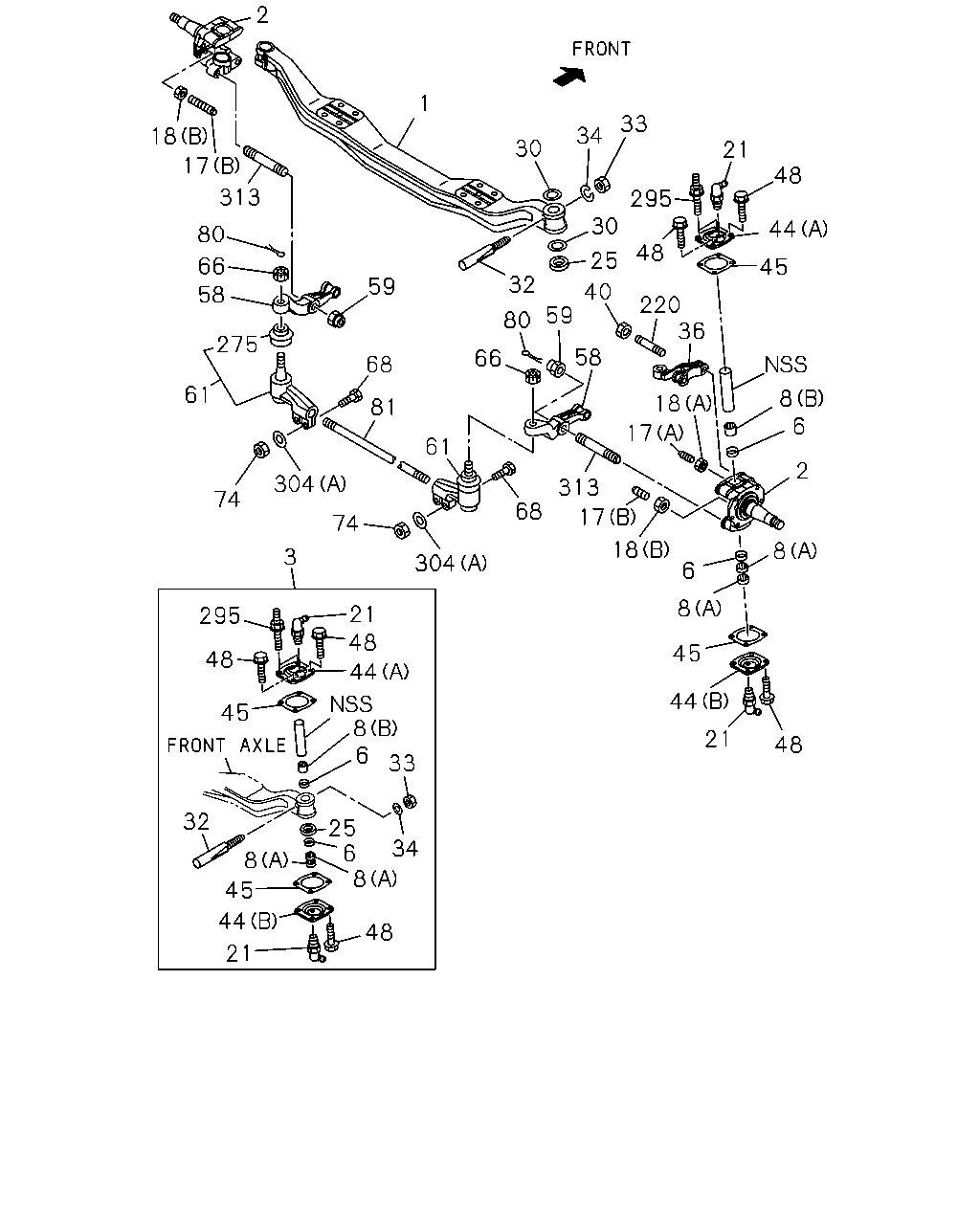

2 18 313 17 80 1 30 34 33 21 295 30 32 25 313 59 80 58 66 68 17 18 36 220 40 48 48 44 8 2 45 8 45 44 48 21 8 6 18 17 61 275 73 304 74 81 68 304 74 3 21 48 44 8 25 6 34 33 295 48 45 32 8 45 44 21 48 8 6 66 275 61 73 59 6 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1009-1302
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1009-1302
1	AXLE; FRT	1-43111-178-3	01	1	1303-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1009-
3	KING PIN SET	1-87831-349-2	02	1	1009-
6	SEAL; KING PIN	9-09926-024-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1009-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1009-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1009-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1009-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1009-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1009-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1009-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1009-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1009-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1009-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1009-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1009-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1009-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1009-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1009-
58	ARM; TIE ROD	1-43134-049-4	01	1	1009-
58	ARM; TIE ROD	1-43135-049-4	01	1	1009-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1009-
61	ROD END; TIE ROD	8-98054-851-0	01	1	1009-1009
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	01	1	1009-1009
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1009-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1009-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1009-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1009-
81	ROD; TIE	1-43151-154-0	01	1	1009-1009
81	ROD; TIE	8-98105-064-0	01	1	1010-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1009-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1009-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1009-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1303-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1009-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1009-

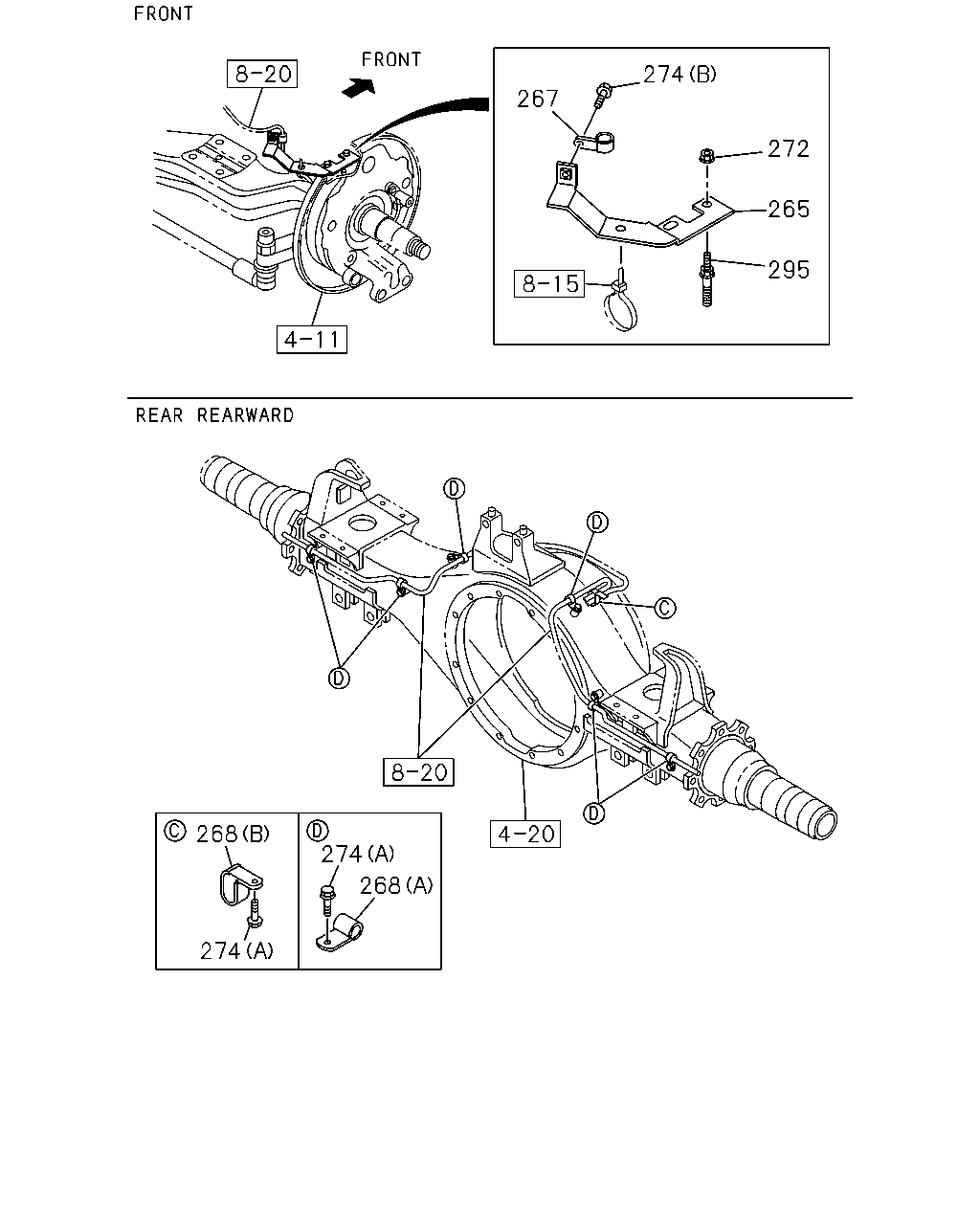

267 274 272 265 295 268 274 268 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	1009-
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	1009-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1009-
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	06	1	1009-
268	CLIP; HARNESS (B) ID=11X2 L=20	1-09700-871-0	01	1	1009-
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	1009-
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	07	1	1009-
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1009-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1009-
