4-01 — PROPELLER SHAFT (#69516) — 26 parça

56 95 8 9 8 17 17 9 71 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP L=915	1-37124-592-1	01	1	1009-
8	YOKE; FLANGE,PROP SHAFT	1-37211-083-0	02	1	1009-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1009-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-118-0	02	1	1009-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1009-
17	NIPPLE; GREASE,PROP SHAFT (B)	1-37319-013-0	02	1	1009-
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1009-
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1009-
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	1009-

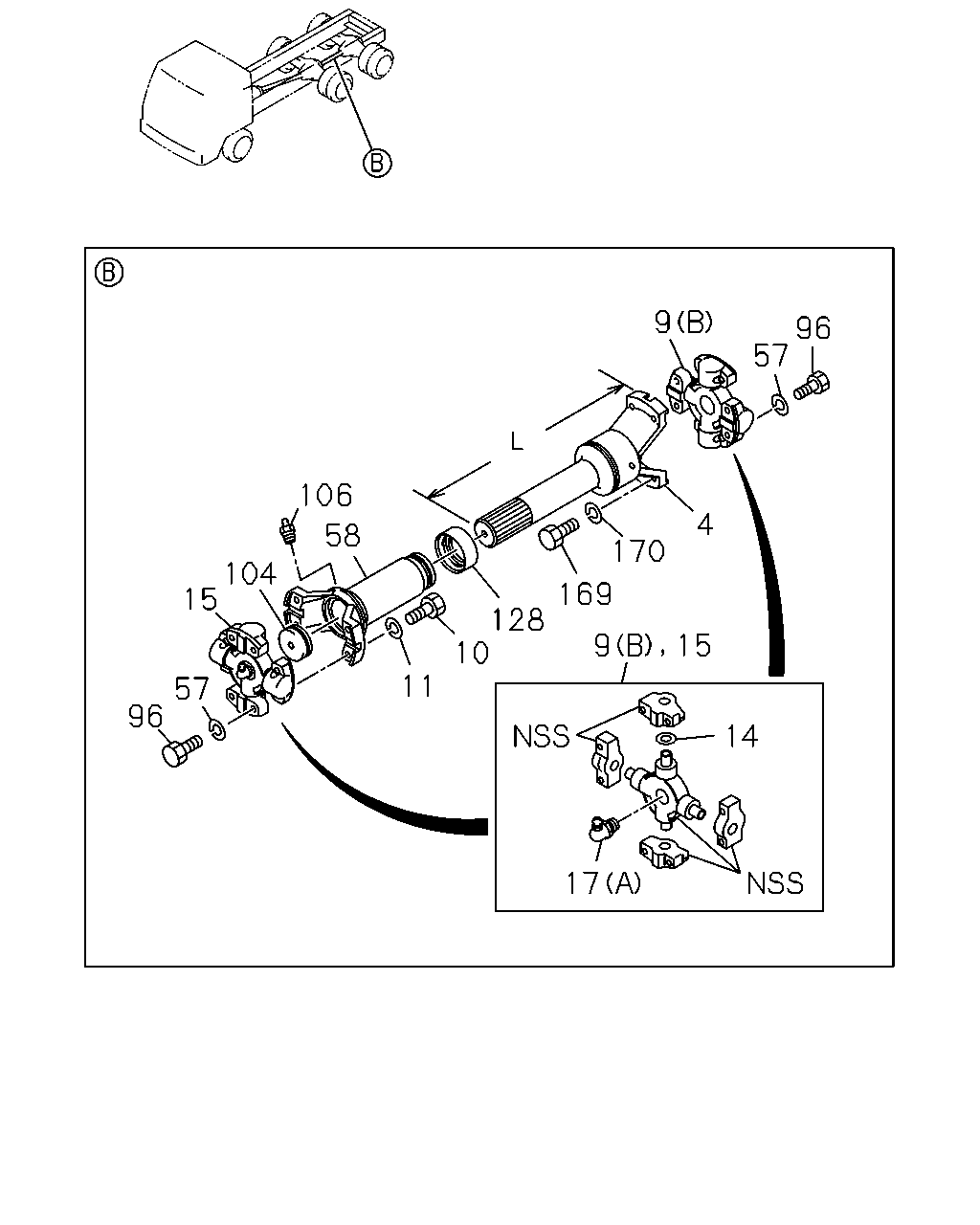

9 96 57 4 170 15 169 9 128 10 11 58 106 104 15 57 96 14 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SHAFT; PROP L=348	1-37171-127-2	01	1	1009-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1009-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-118-0	02	1	1009-
10	BOLT; UJT M12X45	8-98036-382-0	04	1	1009-
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	0-91510-612-0	04	1	1009-
14	COVER; DUST,SPIDER	1-37319-004-0	08	1	1009-
15	UNIVERSAL CENTER	1-37300-100-1	01	1	1009-
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1009-
17	NIPPLE; GREASE,PROP SHAFT (B)	1-37319-013-0	02	1	1009-
57	WASHER; LK,YOKE ID=12.2	0-91510-612-0	08	1	1009-
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	1009-
96	BOLT; PROP SHAFT M12X45	8-98036-382-0	08	1	1009-
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1009-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	1009-
128	SEAL; SLEEVE	8-97603-618-0	01	1	1009-
169	BOLT; YOKE,SLEEVE M12X45	8-98036-382-0	04	1	1009-
170	WASHER; LK,YOKE,SLEEVE ID=12.2	0-91510-612-0	04	1	1009-
