Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11294 - EXZ RHD EURO5
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#69514) — 27 parça
◀

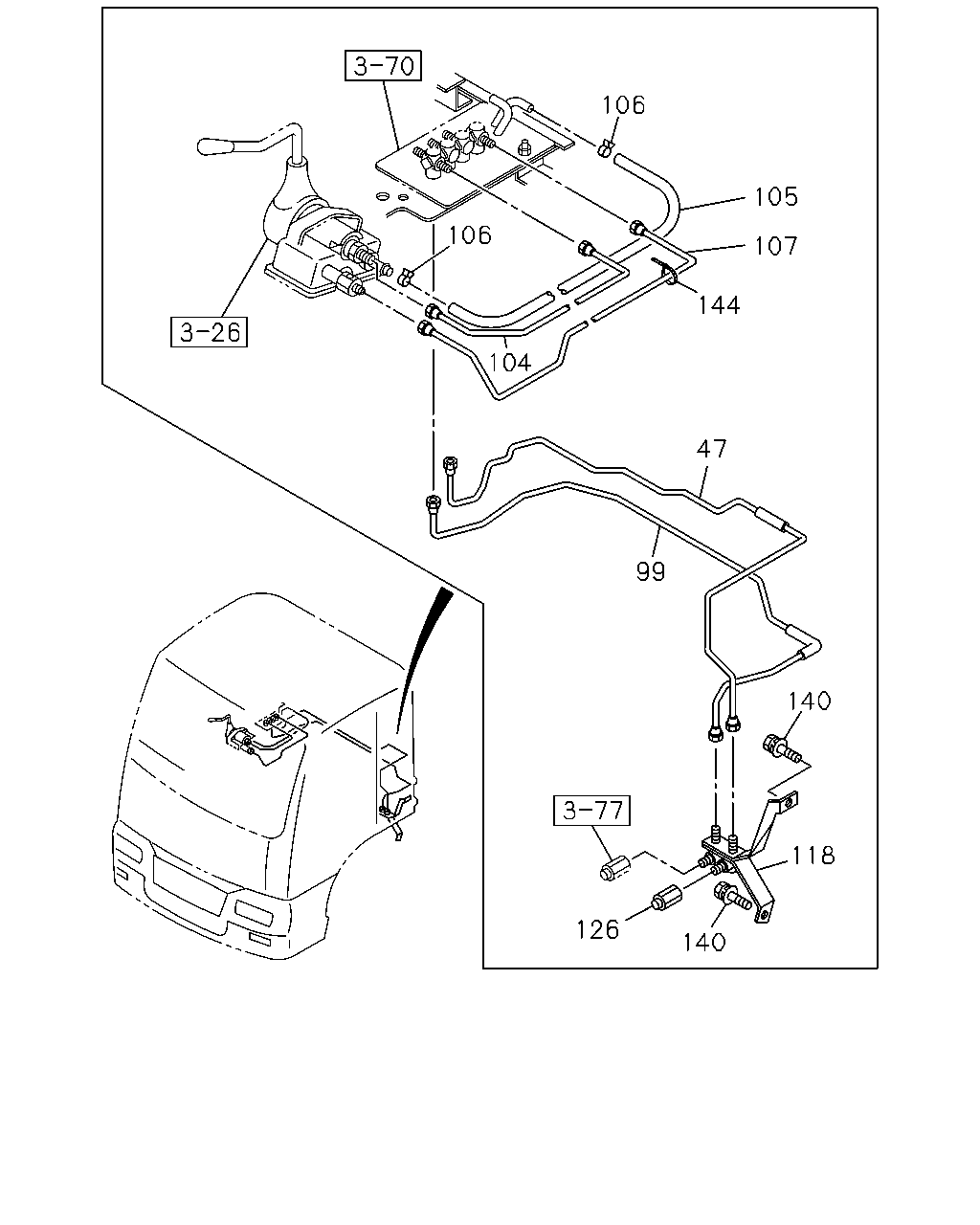

[380A] CAB SIDE (12 parça)

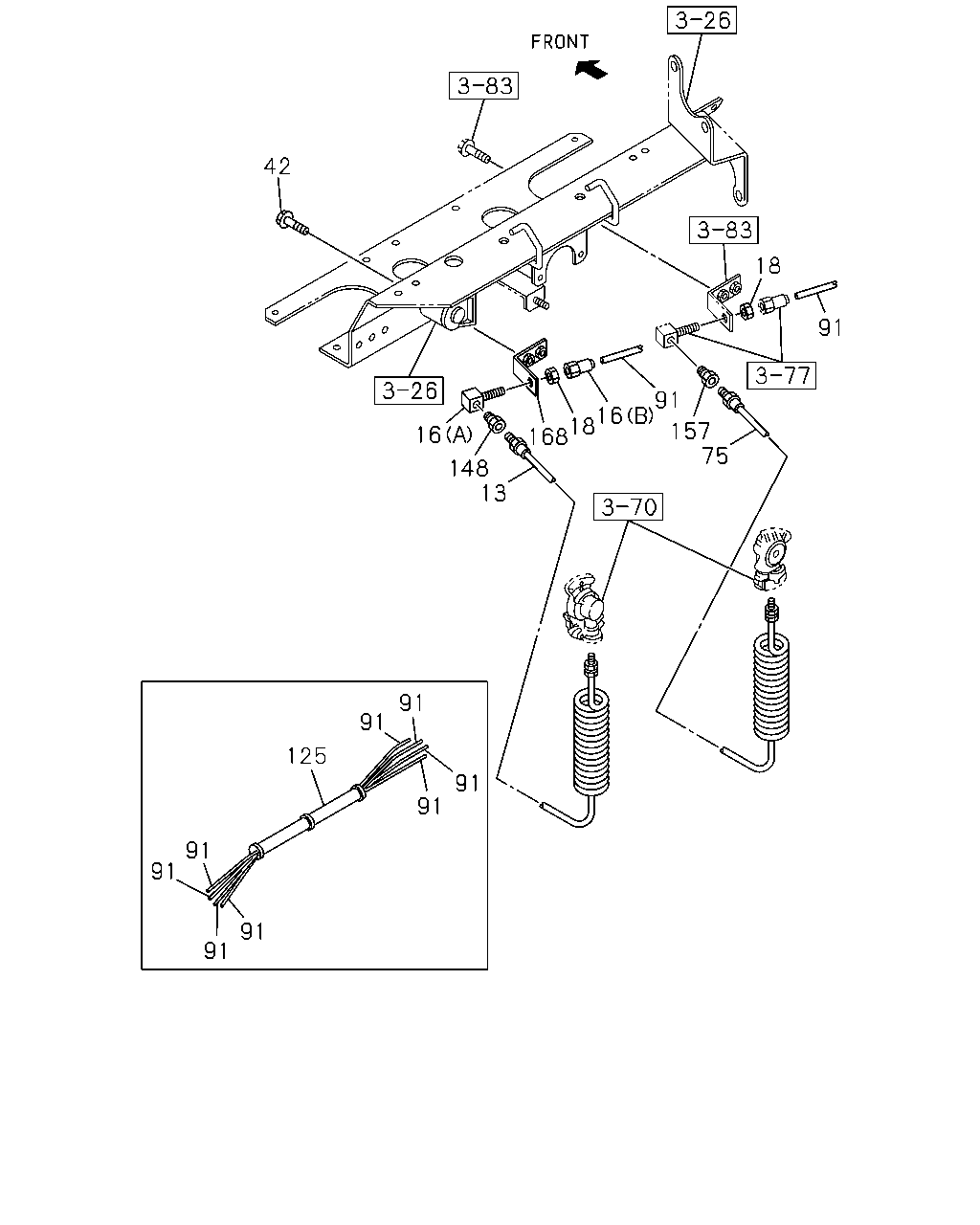

[380A] SPIRAL TUBE (15 parça)
▶
106
105
107
144
104
106
47
99
140
118
140
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
PIPE; AIR,UNION TO UNION
L=1910 SERVICED BY L=1950
1-47428-854-0
01
1
1009-
99
PIPE; AIR,JOINT TO JOINT
1-49122-057-1
01
1
1009-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
1009-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
1009-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
1009-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
1009-
118
JOINT; AIR PIPE
1-47470-608-1
01
1
1009-
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1009-1302
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1009-1302
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1303-
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1009-
144
CLIP; BAND
L=140
5-09707-031-1
01
1
1009-1302
18
91
75
157
91
16
18
168
13
148
16
42
91
91
91
91
125
91
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HOSE; FLEX,TRAILER SERVICE
1-49222-064-0
01
1
1009-
16
UNION; AIR PIPE
(A)
1-09650-003-1
01
1
1009-
16
UNION; AIR PIPE
(B) DIN12 & M20 STRAIGHT
1-09660-877-0
01
1
1009-
18
NUT; UNION
M20
0-91111-520-0
02
1
1009-
42
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1009-
75
HOSE; FLEX,TRAILER EMERGENCY
1-49222-064-0
01
1
1009-
91
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1009-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1009-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1009-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1009-
148
ADAPTER; NYLON TUBE
1-09660-078-0
01
1
1009-
157
ADAPTER
1-09660-078-0
01
1
1009-
168
BRACKET; UNION
1-47478-483-0
01
1
1009-
