Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#69513) — 326 parça

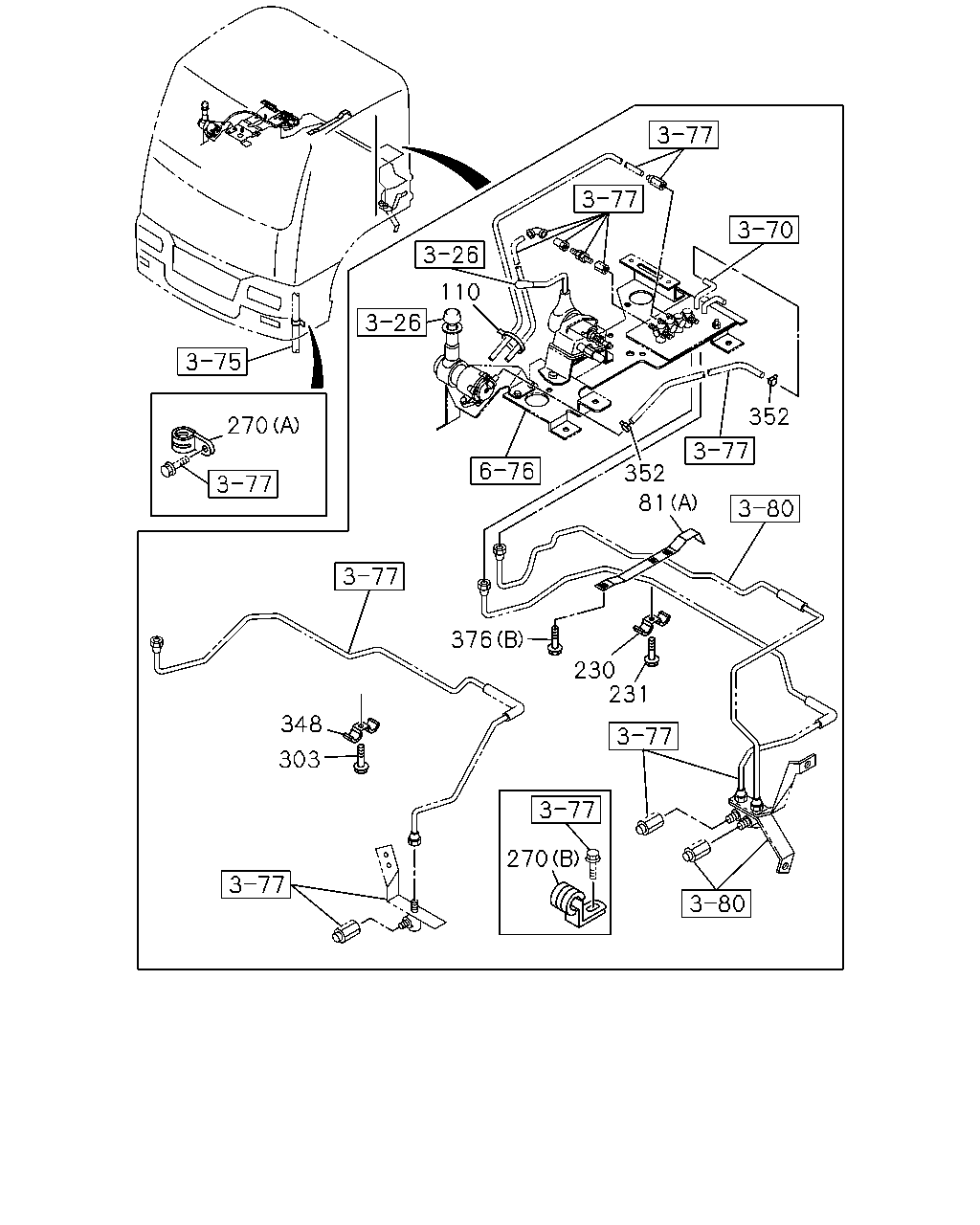

270 352 352 81 230 231 376 270 348 303 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BRACKET; CLIP (E) L=150	1-47471-217-0	02	1	1009-
81	BRACKET; CLIP (B)	1-47471-274-0	01	1	1009-1302
81	BRACKET; CLIP (J)	8-98061-758-0	02	1	1303-
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	1009-
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	01	1	1009-
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	1009-1302
81	BRACKET; CLIP (C)	1-47479-381-2	01	1	1303-
81	BRACKET; CLIP (D)	8-98052-412-0	01	1	1009-
81	BRACKET; CLIP (H)	8-98052-413-0	01	1	1009-
81	BRACKET; CLIP (I)	8-98052-414-0	01	1	1009-
81	BRACKET; CLIP (G)	8-98052-415-0	01	1	1009-
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	01	1	1009-1302
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	1303-
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	1009-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-
270	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1009-
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	1009-
270	CLIP; NYLON TUBE (C) ID=16 H=25 L=25	1-09701-162-0	02	1	1009-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	1009-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1009-
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-
376	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (C) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
376	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-

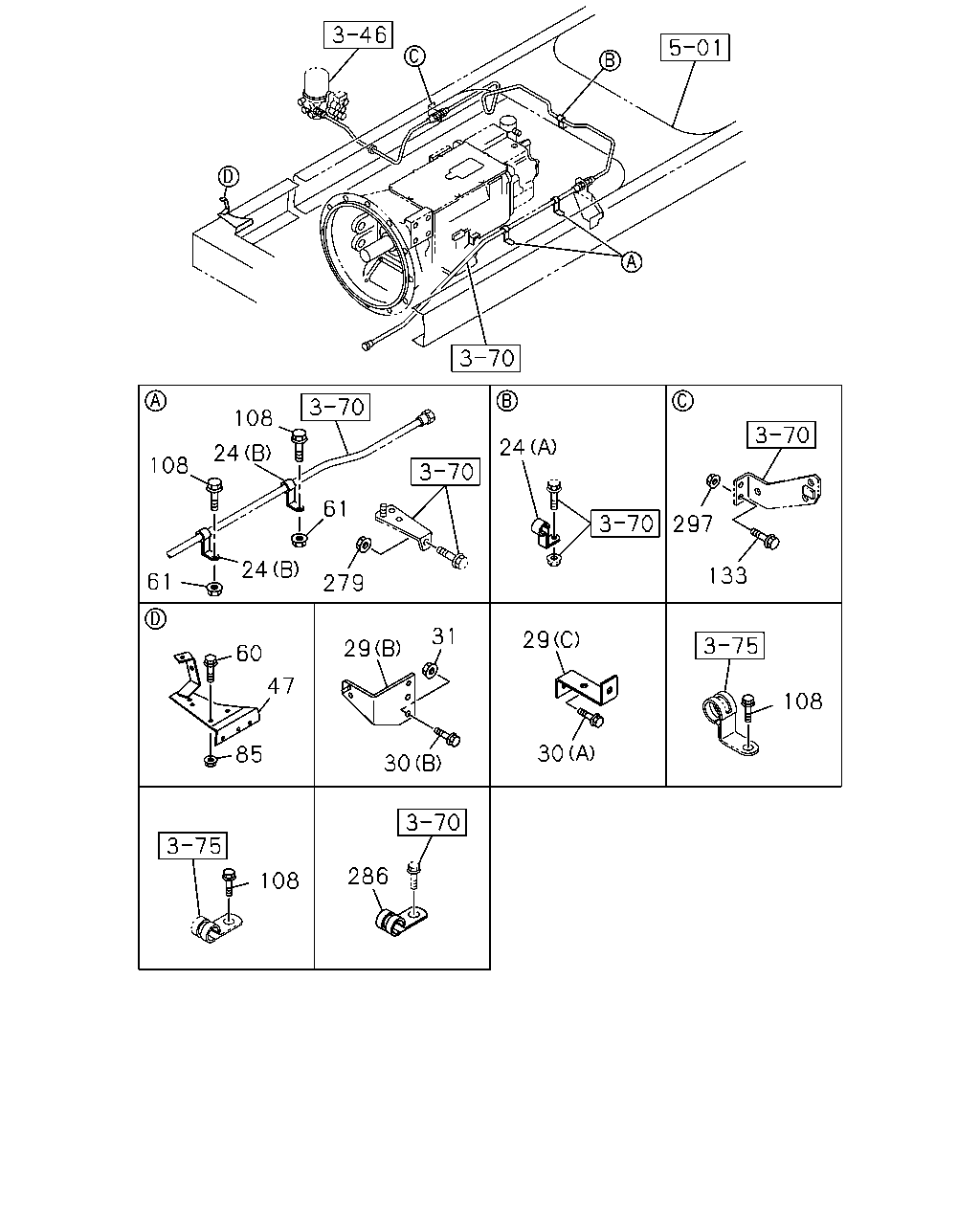

108 108 24 24 133 29 31 29 60 30 85 108 30 108 297 279 24 61 286 61 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-1302
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1009-1302
29	BRACKET; CLIP,AIR PIPE (B)	8-98169-621-1	01	1	1303-
29	BRACKET; CLIP,AIR PIPE (A) L=60	1-47476-217-0	01	1	1009-1302
29	BRACKET; CLIP,AIR PIPE (C)	1-47479-698-0	01	1	1303-
30	BOLT; CLIP BRKT (B) M10X25 FLANGE	0-28651-025-0	01	1	1303-
30	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-
31	NUT; CLIP BRKT M10 FLANGE	0-91180-210-0	01	1	1303-
47	BRACKET; PIPE CLIP	1-47471-389-0	01	1	1009-1302
47	BRACKET; PIPE CLIP	8-98226-739-0	01	1	1303-
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1303-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1009-1302
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1303-
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1009-1302
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1303-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1303-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	1009-1302
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1303-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1303-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1303-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	03	1	1009-1302
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	1303-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1401-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1009-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	13	1	1009-1302
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	08	1	1303-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1312
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1312
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1401-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-1302
279	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1303-1504
279	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1505-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	1009-1302
286	CLIP; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) ID=15 L=28	1-09701-216-0	01	1	1303-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	1009-1302
297	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1303-
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	1009-1302
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91180-212-0	01	1	1303-

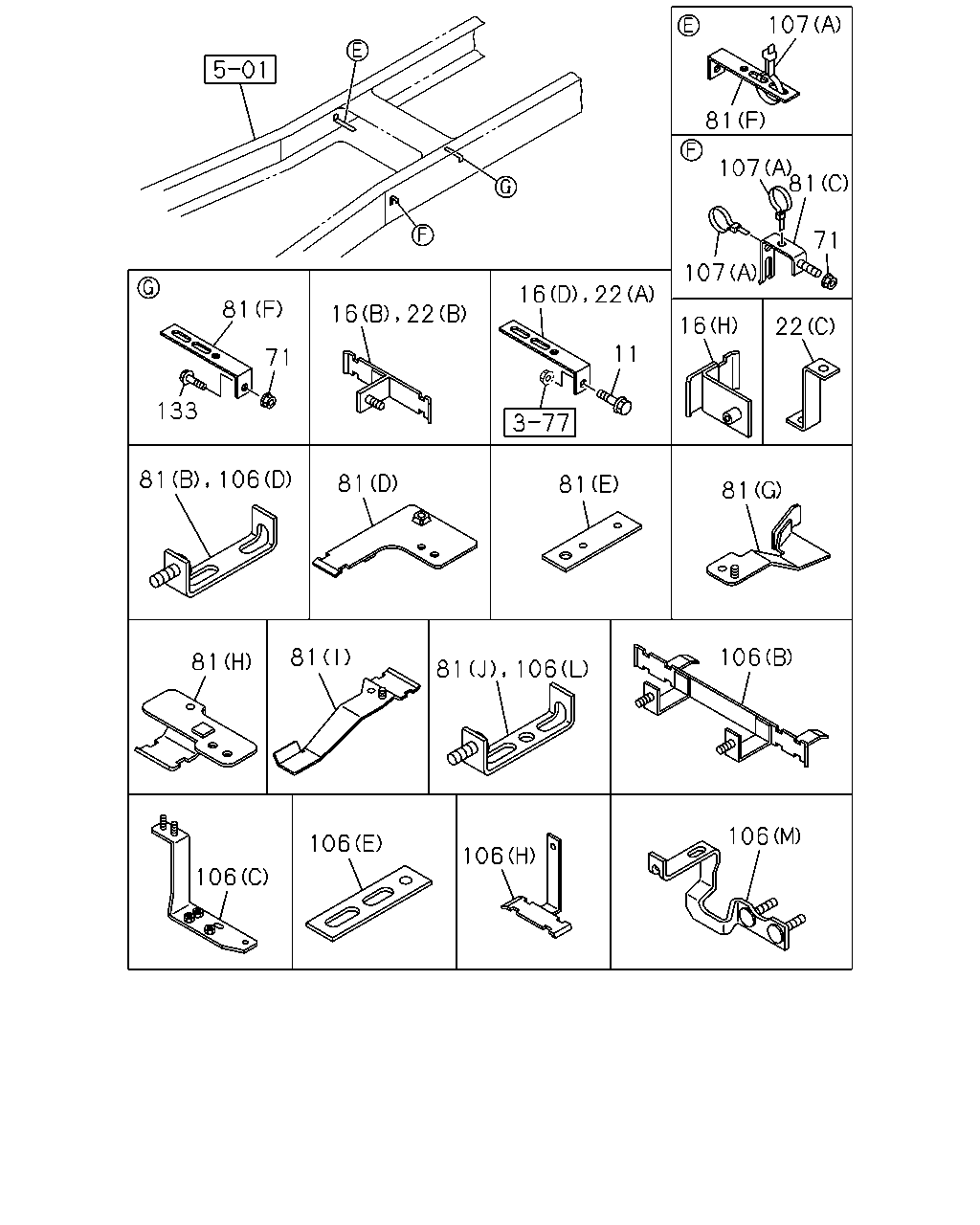

107 81 107 71 81 107 16 16 22 22 11 22 16 81 81 81 81 106 133 71 81 81 81 81 106 106 106 106 106 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	1009-
16	BRACKET; PIPE CLIP (G)	1-47471-309-0	01	1	1009-
16	BRACKET; PIPE CLIP (E) L=85 H=40	1-47476-676-0	01	1	1009-
16	BRACKET; PIPE CLIP (D) L=100 H=30	1-47477-645-2	04	1	1009-1302
16	BRACKET; PIPE CLIP (D) L=100 H=30	1-47477-645-2	02	1	1303-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1009-
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	1009-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1009-
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	01	1	1009-
16	BRACKET; PIPE CLIP (I)	1-47479-856-0	01	1	1009-
16	BRACKET; PIPE CLIP (K)	1-47479-857-0	01	1	1009-
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	1009-1302
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	01	1	1303-
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	01	1	1303-
16	BRACKET; PIPE CLIP (H)	8-98054-389-0	01	1	1009-
22	BRACKET; CLIP (E) L=50	1-47475-299-2	01	1	1303-
22	BRACKET; CLIP (C)	1-46147-101-0	02	1	1009-
22	BRACKET; CLIP (D)	1-47471-308-0	01	1	1009-
22	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	06	1	1009-1302
22	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	02	1	1303-
22	BRACKET; CLIP (B)	1-47479-554-0	01	1	1009-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1009-1302
71	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1303-
81	BRACKET; CLIP (E) L=150	1-47471-217-0	02	1	1009-
81	BRACKET; CLIP (B)	1-47471-274-0	01	1	1009-1302
81	BRACKET; CLIP (J)	8-98061-758-0	02	1	1303-
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	1009-
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	01	1	1009-
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	1009-1302
81	BRACKET; CLIP (C)	1-47479-381-2	01	1	1303-
81	BRACKET; CLIP (D)	8-98052-412-0	01	1	1009-
81	BRACKET; CLIP (H)	8-98052-413-0	01	1	1009-
81	BRACKET; CLIP (I)	8-98052-414-0	01	1	1009-
81	BRACKET; CLIP (G)	8-98052-415-0	01	1	1009-
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	1009-1302
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	1303-
106	BRACKET; TUBE CLIP (D)	1-47471-274-0	01	1	1009-1302
106	BRACKET; TUBE CLIP (L)	8-98061-758-0	01	1	1303-1504
106	BRACKET; TUBE CLIP (M)	8-98302-600-0	01	1	1505-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	1009-1302
106	BRACKET; TUBE CLIP (K)	8-98226-741-1	01	1	1303-1312
106	BRACKET; TUBE CLIP (K)	8-98251-770-0	01	1	1401-
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	02	1	1009-
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	1009-
106	BRACKET; TUBE CLIP (A)	1-47479-870-0	01	1	1009-1302
106	BRACKET; TUBE CLIP (A)	1-47479-870-0	01	1	1303-
106	BRACKET; TUBE CLIP (K)	8-97615-493-0	01	1	1009-1302
106	BRACKET; TUBE CLIP (G)	8-98052-408-0	01	1	1009-1412
106	BRACKET; TUBE CLIP (G)	8-98297-188-0	01	1	1501-
106	BRACKET; TUBE CLIP (H)	8-98052-409-0	01	1	1009-
106	BRACKET; TUBE CLIP (I)	8-98052-410-0	01	1	1009-
106	BRACKET; TUBE CLIP (J)	8-98052-411-0	01	1	1009-
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1009-
107	CLIP; NYLON TUBE (B) ID=28 L=40	1-09700-995-1	01	1	1009-1302
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-
107	CLIP; NYLON TUBE (B) ID=25 L=50	1-09701-019-0	01	1	1009-1302
107	CLIP; NYLON TUBE (C) ID=39 H=28 L=32	1-09701-263-0	02	1	1009-
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1009-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1009-1302
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	15	1	1303-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1401-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1009-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	13	1	1009-1302
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	08	1	1303-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1312
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1312
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1401-

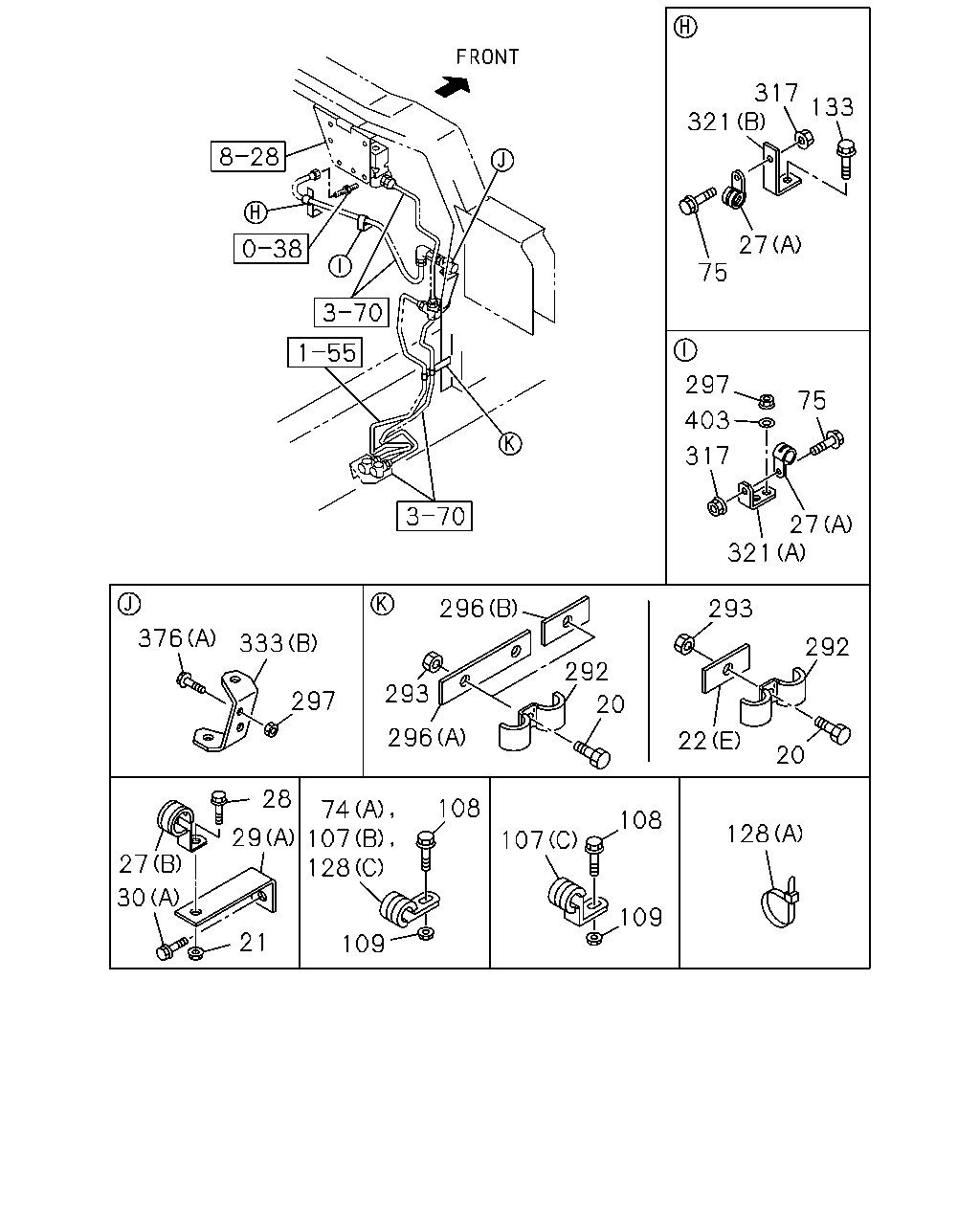

317 321 133 27 75 297 75 403 317 321 27 376 333 297 293 296 296 292 20 293 292 22 20 28 29 27 30 74 107 128 108 109 107 109 108 128 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	1009-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	1009-
22	BRACKET; CLIP (E) L=50	1-47475-299-2	01	1	1303-
22	BRACKET; CLIP (C)	1-46147-101-0	02	1	1009-
22	BRACKET; CLIP (D)	1-47471-308-0	01	1	1009-
22	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	06	1	1009-1302
22	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	02	1	1303-
22	BRACKET; CLIP (B)	1-47479-554-0	01	1	1009-
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1009-1302
27	CLIP; FLEX HOSE (A) ID=11 L=50	0-95235-085-0	01	1	1303-
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	1009-1302
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
29	BRACKET; CLIP,AIR PIPE (B)	8-98169-621-1	01	1	1303-
29	BRACKET; CLIP,AIR PIPE (A) L=60	1-47476-217-0	01	1	1009-1302
29	BRACKET; CLIP,AIR PIPE (C)	1-47479-698-0	01	1	1303-
30	BOLT; CLIP BRKT (B) M10X25 FLANGE	0-28651-025-0	01	1	1303-
30	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-
74	CLIP; NYLON TUBE SMOOTHER-G(C1W) (B) L=350	1-09707-183-0	16	1	1303-
74	CLIP; NYLON TUBE (A) ID=13	1-09701-030-1	04	1	1009-
74	CLIP; NYLON TUBE (C) ID=11X2 L=42	1-09701-306-0	01	1	1009-
74	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	16	1	1009-1302
74	CLIP; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=350	1-09707-183-0	15	1	1303-
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1009-
107	CLIP; NYLON TUBE (B) ID=28 L=40	1-09700-995-1	01	1	1009-1302
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-
107	CLIP; NYLON TUBE (B) ID=25 L=50	1-09701-019-0	01	1	1009-1302
107	CLIP; NYLON TUBE (C) ID=39 H=28 L=32	1-09701-263-0	02	1	1009-
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1009-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1009-1302
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	15	1	1303-
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1303-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1303-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	1009-1302
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1303-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1303-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1303-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	03	1	1009-1302
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	1303-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1302
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	02	1	1303-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	1009-1302
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1303-
109	NUT; TUBE CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	0-91180-108-0	01	1	1303-
128	CLIP; NYLON TUBE (C) ID=24.5 L=27	1-09701-049-0	01	1	1009-1302
128	CLIP; NYLON TUBE (C) ID=24 L=27	1-09700-809-0	01	1	1303-
128	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1009-
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	08	1	1009-1302
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	09	1	1303-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1401-
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1009-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	13	1	1009-1302
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	08	1	1303-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1312
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1303-1312
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1401-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	1009-1302
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	1303-
293	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1009-1302
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1303-
296	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1009-1302
296	BRACKET; CLIP (B)	1-47475-648-0	01	1	1009-1302
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	1009-1302
297	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1303-
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	1009-1302
297	NUT; BRKT SMOOTHER-G(C1W) M12 FLANGE	0-91180-212-0	01	1	1303-
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1009-1302
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	1009-1302
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	1009-1302
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	1009-
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	1009-1302
333	BRACKET; BRK AIR PIPE (A)	8-98169-062-0	01	1	1303-
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-
376	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (C) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
376	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
403	WASHER; PL D=12	0-91614-612-0	01	1	1212-1302
403	WASHER; PL SMOOTHER-G(C1W) D=12	0-91614-612-0	01	1	1303-

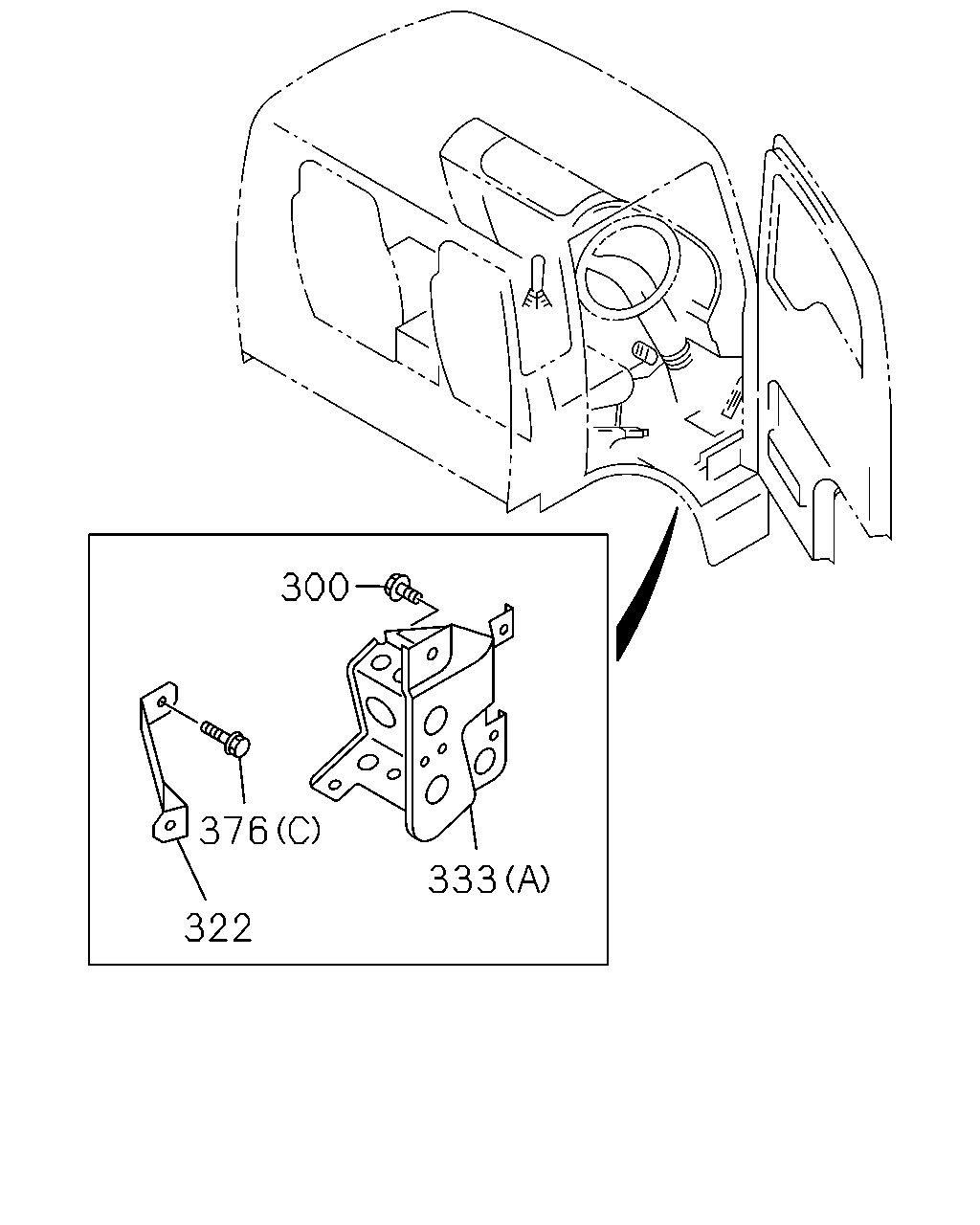

300 333 376 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1009-
322	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1)	8-98152-740-1	01	1	1009-1302
322	BRACKET; CLIP	8-98227-231-0	01	1	1303-
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	1009-
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	1009-1302
333	BRACKET; BRK AIR PIPE (A)	8-98169-062-0	01	1	1303-
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-
376	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (C) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
376	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-

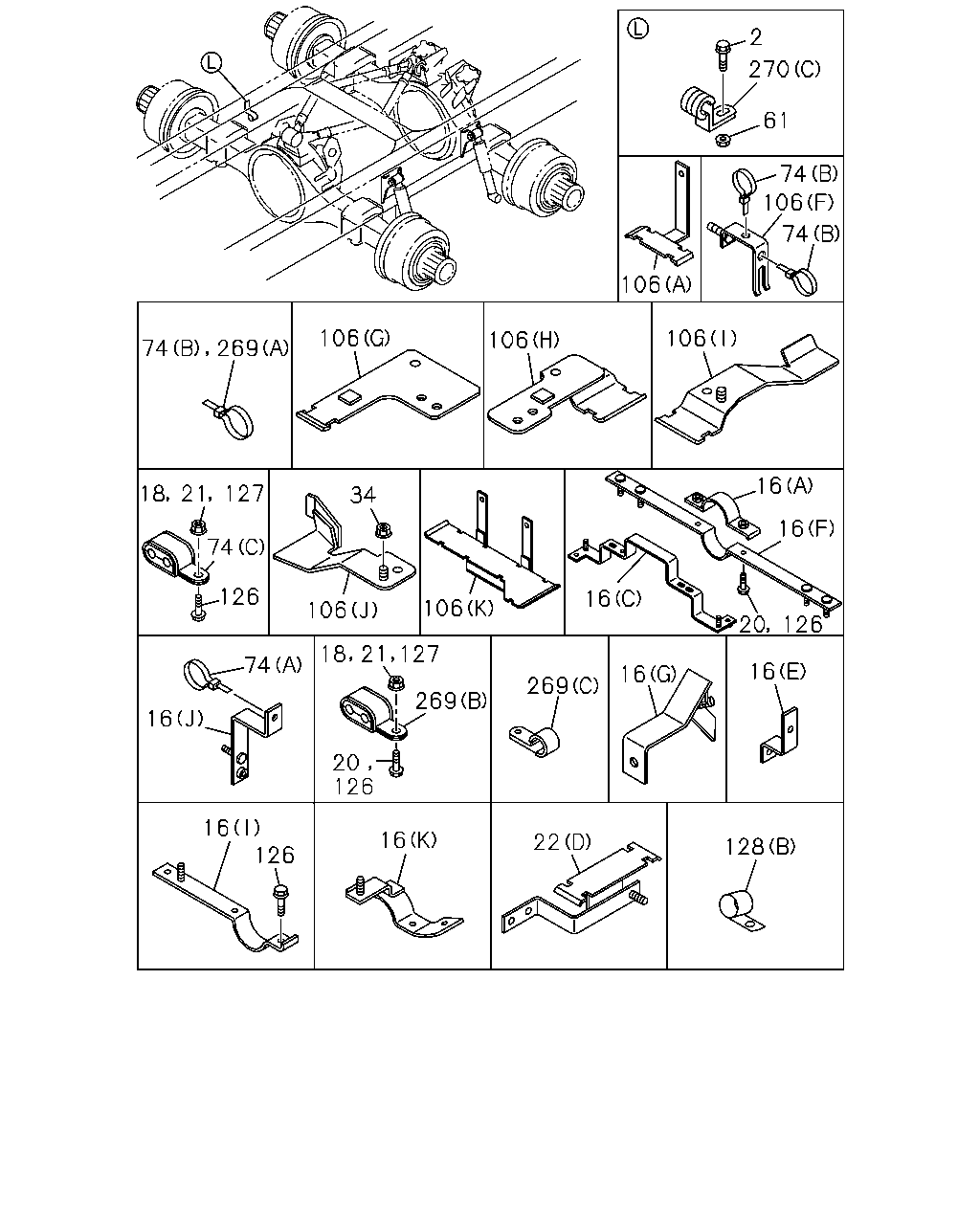

2 61 270 74 74 106 106 106 16 16 20 126 16 106 106 269 74 18 21 127 74 126 34 106 106 18 74 16 21 127 269 20 126 16 126 16 22 269 16 128 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1009-
16	BRACKET; PIPE CLIP (G)	1-47471-309-0	01	1	1009-
16	BRACKET; PIPE CLIP (E) L=85 H=40	1-47476-676-0	01	1	1009-
16	BRACKET; PIPE CLIP (D) L=100 H=30	1-47477-645-2	04	1	1009-1302
16	BRACKET; PIPE CLIP (D) L=100 H=30	1-47477-645-2	02	1	1303-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1009-
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	1009-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1009-
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	01	1	1009-
16	BRACKET; PIPE CLIP (I)	1-47479-856-0	01	1	1009-
16	BRACKET; PIPE CLIP (K)	1-47479-857-0	01	1	1009-
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	1009-1302
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	01	1	1303-
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	01	1	1303-
16	BRACKET; PIPE CLIP (H)	8-98054-389-0	01	1	1009-
18	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1009-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	1009-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	1009-
22	BRACKET; CLIP (E) L=50	1-47475-299-2	01	1	1303-
22	BRACKET; CLIP (C)	1-46147-101-0	02	1	1009-
22	BRACKET; CLIP (D)	1-47471-308-0	01	1	1009-
22	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	06	1	1009-1302
22	BRACKET; CLIP (A) L=100 H=30	1-47477-645-2	02	1	1303-
22	BRACKET; CLIP (B)	1-47479-554-0	01	1	1009-
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1009-1302
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1303-
74	CLIP; NYLON TUBE SMOOTHER-G(C1W) (B) L=350	1-09707-183-0	16	1	1303-
74	CLIP; NYLON TUBE (A) ID=13	1-09701-030-1	04	1	1009-
74	CLIP; NYLON TUBE (C) ID=11X2 L=42	1-09701-306-0	01	1	1009-
74	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	16	1	1009-1302
74	CLIP; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=350	1-09707-183-0	15	1	1303-
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	1009-1302
106	BRACKET; TUBE CLIP (C)	1-47471-108-0	01	1	1303-
106	BRACKET; TUBE CLIP (D)	1-47471-274-0	01	1	1009-1302
106	BRACKET; TUBE CLIP (L)	8-98061-758-0	01	1	1303-1504
106	BRACKET; TUBE CLIP (M)	8-98302-600-0	01	1	1505-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	1009-1302
106	BRACKET; TUBE CLIP (K)	8-98226-741-1	01	1	1303-1312
106	BRACKET; TUBE CLIP (K)	8-98251-770-0	01	1	1401-
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	02	1	1009-
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	1009-
106	BRACKET; TUBE CLIP (A)	1-47479-870-0	01	1	1009-1302
106	BRACKET; TUBE CLIP (A)	1-47479-870-0	01	1	1303-
106	BRACKET; TUBE CLIP (K)	8-97615-493-0	01	1	1009-1302
106	BRACKET; TUBE CLIP (G)	8-98052-408-0	01	1	1009-1412
106	BRACKET; TUBE CLIP (G)	8-98297-188-0	01	1	1501-
106	BRACKET; TUBE CLIP (H)	8-98052-409-0	01	1	1009-
106	BRACKET; TUBE CLIP (I)	8-98052-410-0	01	1	1009-
106	BRACKET; TUBE CLIP (J)	8-98052-411-0	01	1	1009-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1303-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	1009-1302
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1303-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1303-
126	BOLT; CLIP BRKT M8X45 FLANGE	0-28050-845-0	01	1	1009-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	09	1	1009-1302
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	1303-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	07	1	1009-1302
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1303-
128	CLIP; NYLON TUBE (C) ID=24.5 L=27	1-09701-049-0	01	1	1009-1302
128	CLIP; NYLON TUBE (C) ID=24 L=27	1-09700-809-0	01	1	1303-
128	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1009-
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	08	1	1009-1302
128	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	09	1	1303-
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	05	1	1009-
269	CLIP; BAND,NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	04	1	1009-
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	03	1	1009-
270	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1009-
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	1009-
270	CLIP; NYLON TUBE (C) ID=16 H=25 L=25	1-09701-162-0	02	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
