Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11294 - EXZ RHD EURO5
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#69512) — 133 parça
◀

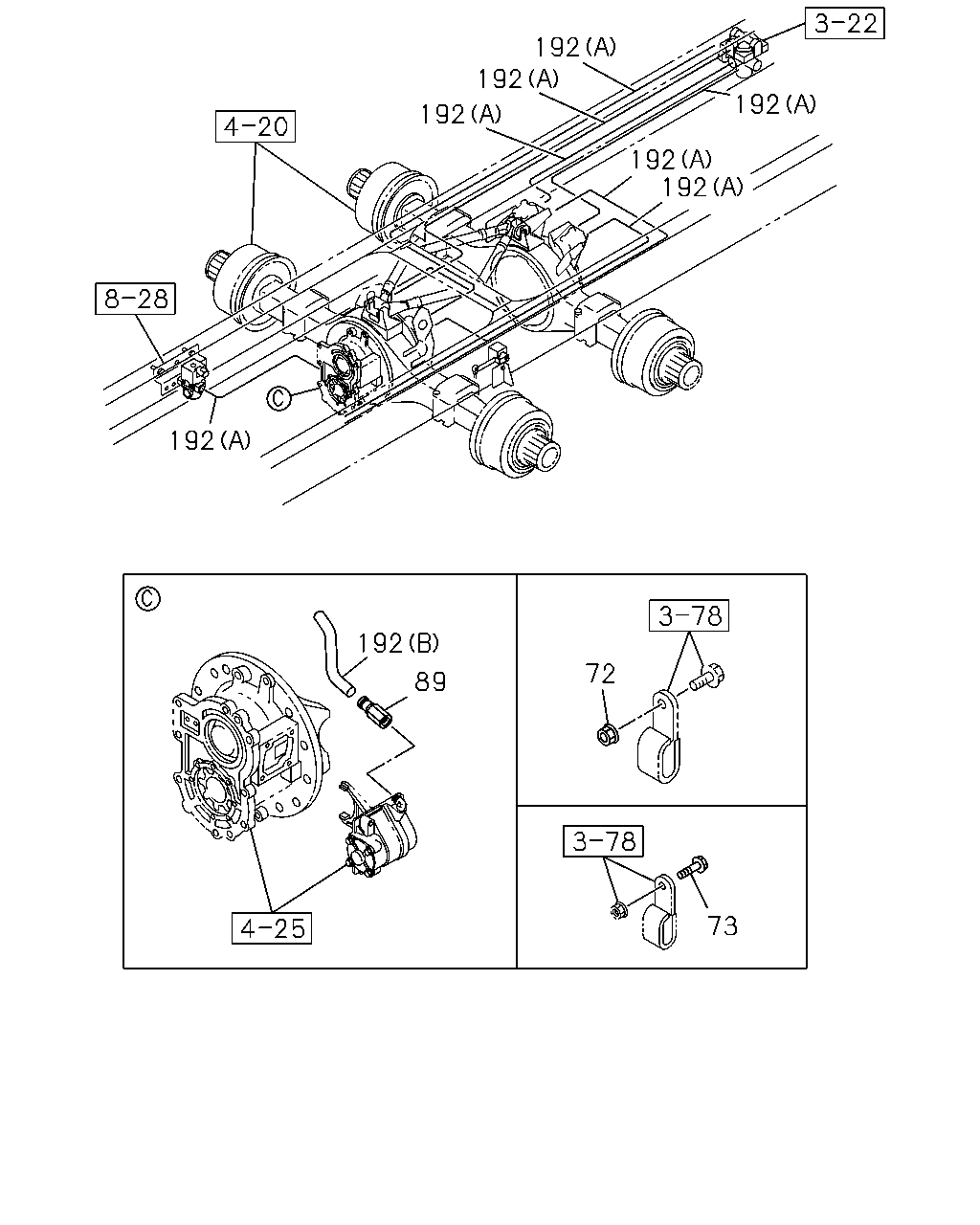

[377A] REAR AXLE SIDE NO.1 (12 parça)

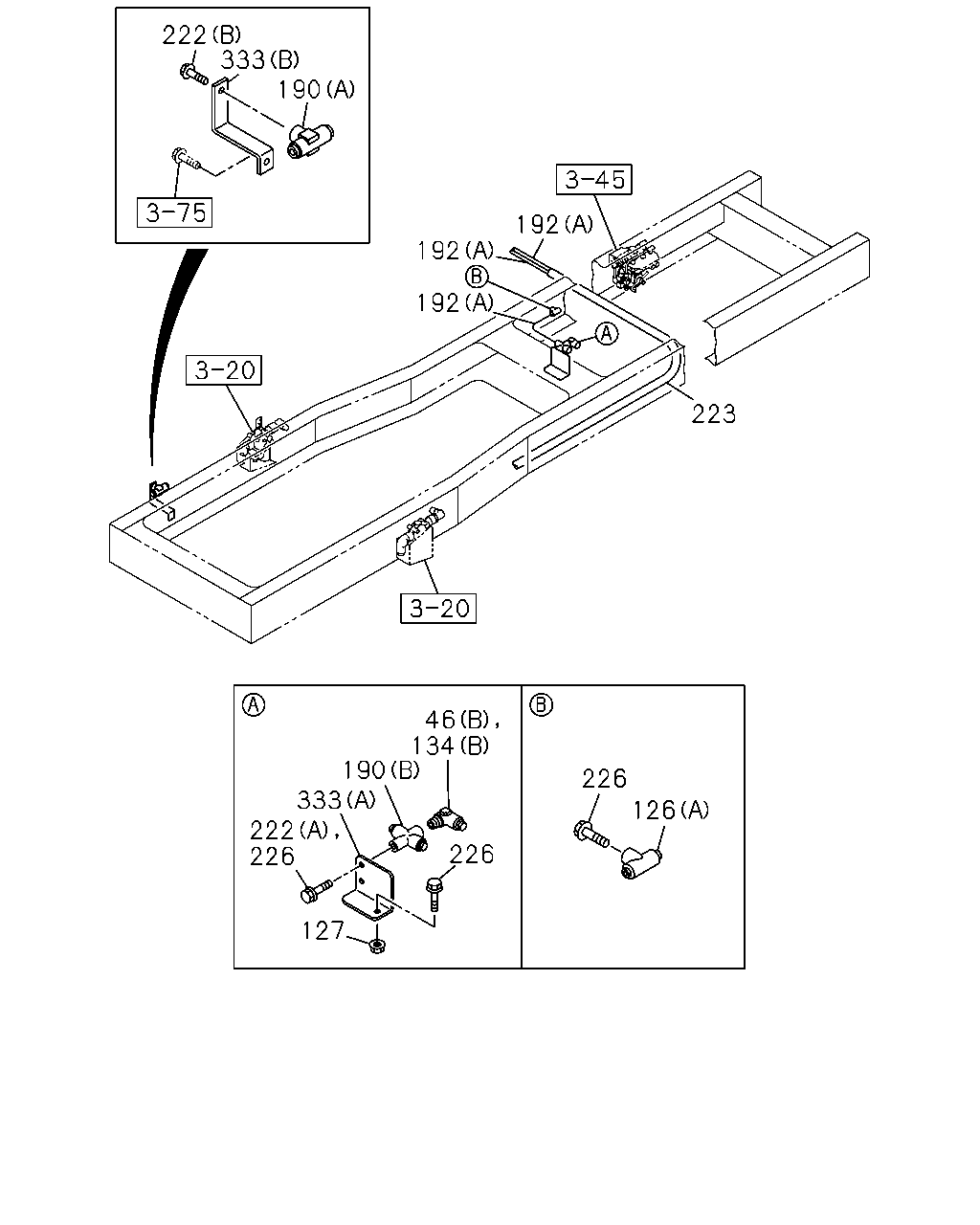

[377A] FRAME SIDE NO.1 (33 parça)

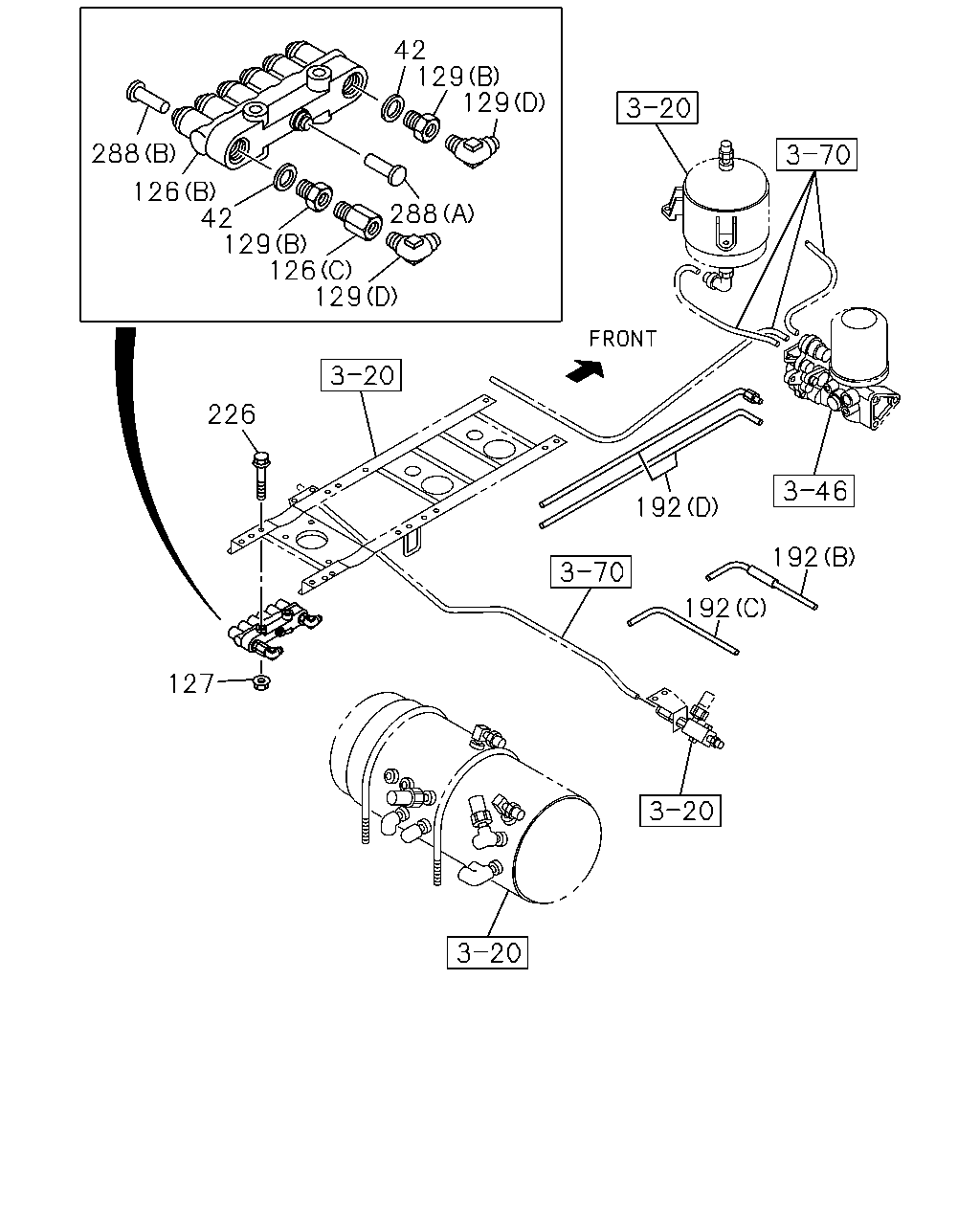

[377A] FRAME SIDE NO.2 (28 parça)

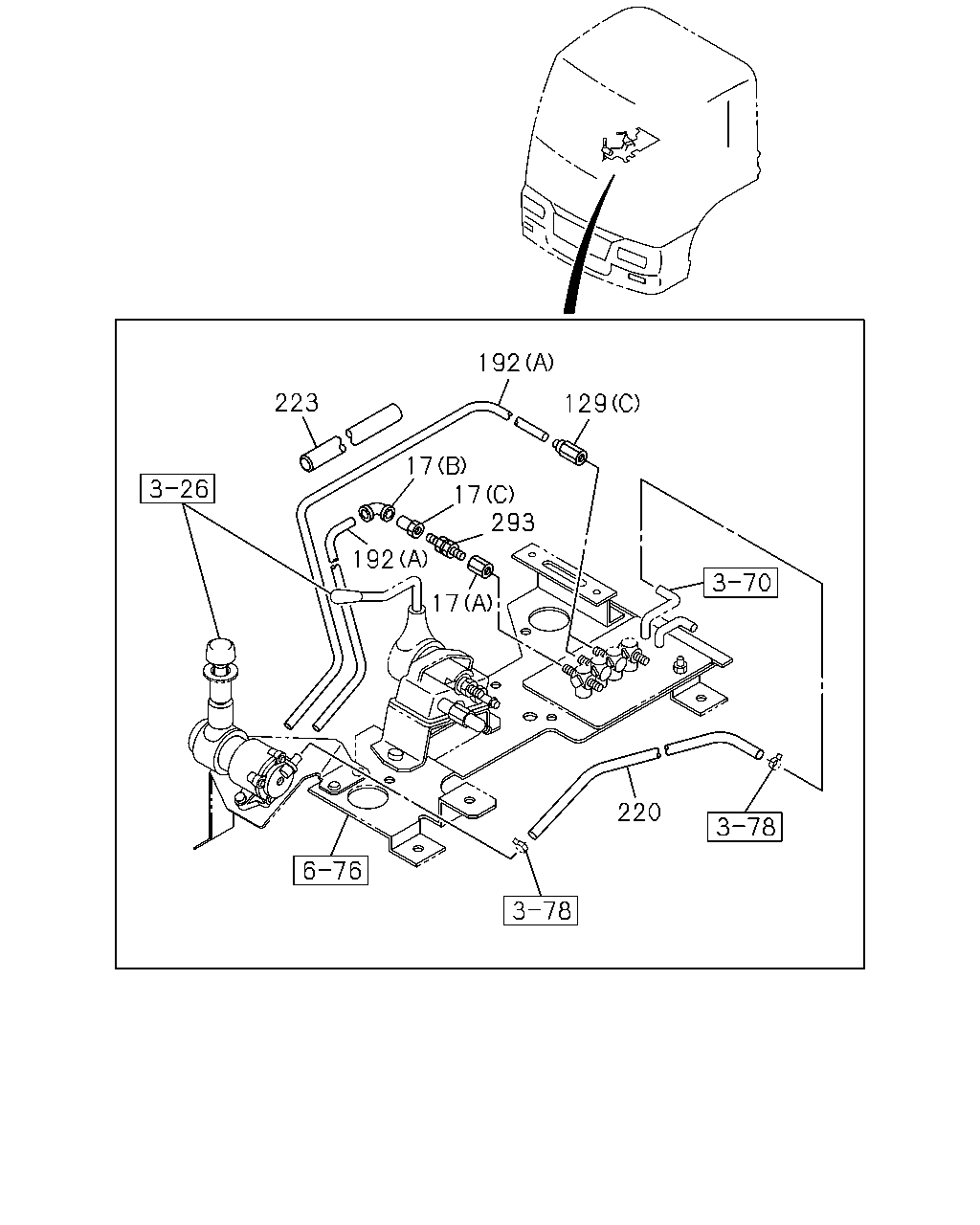

[377A] CAB SIDE NO.2 (22 parça)

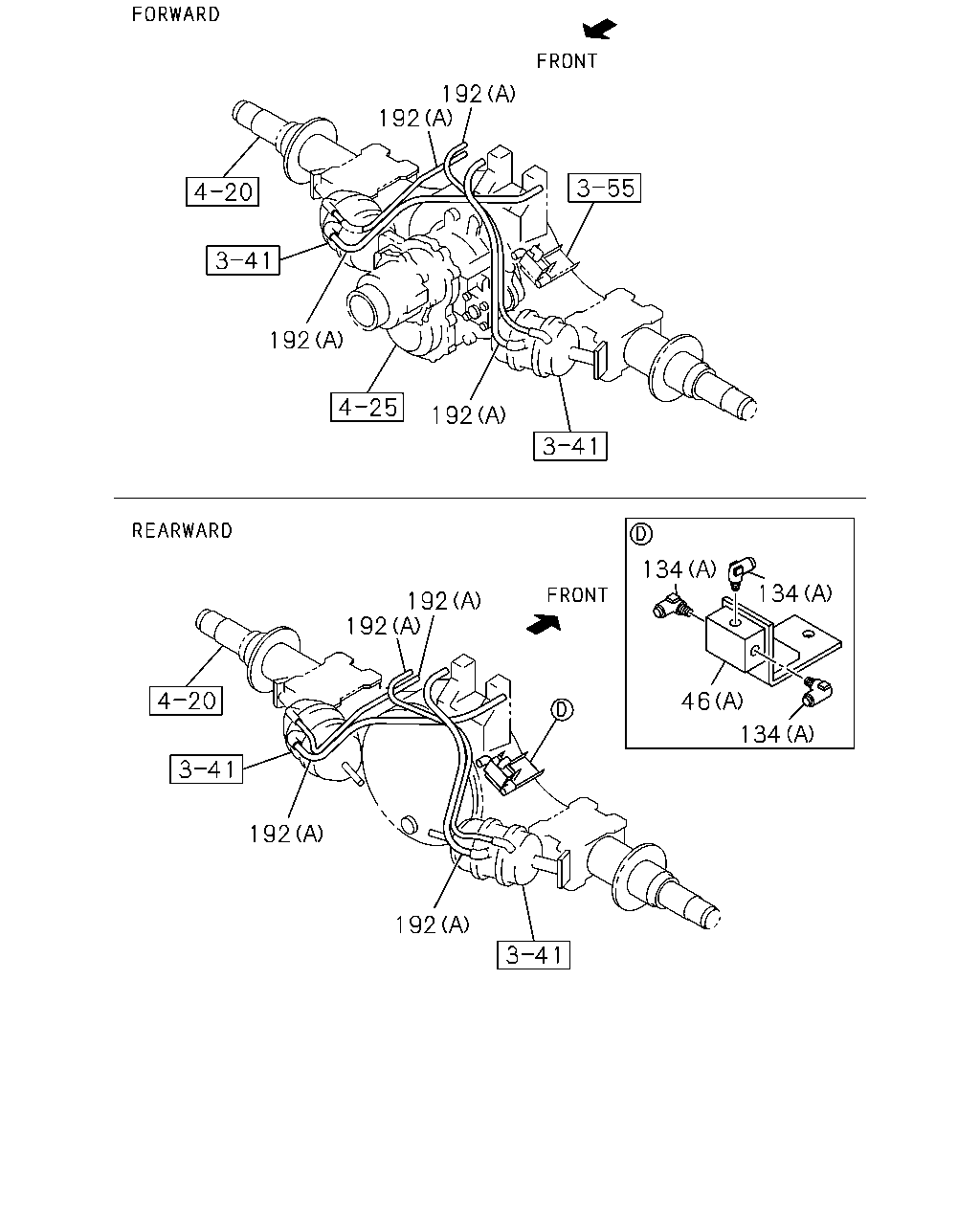

[377A] REAR AXLE SIDE NO.2 (13 parça)

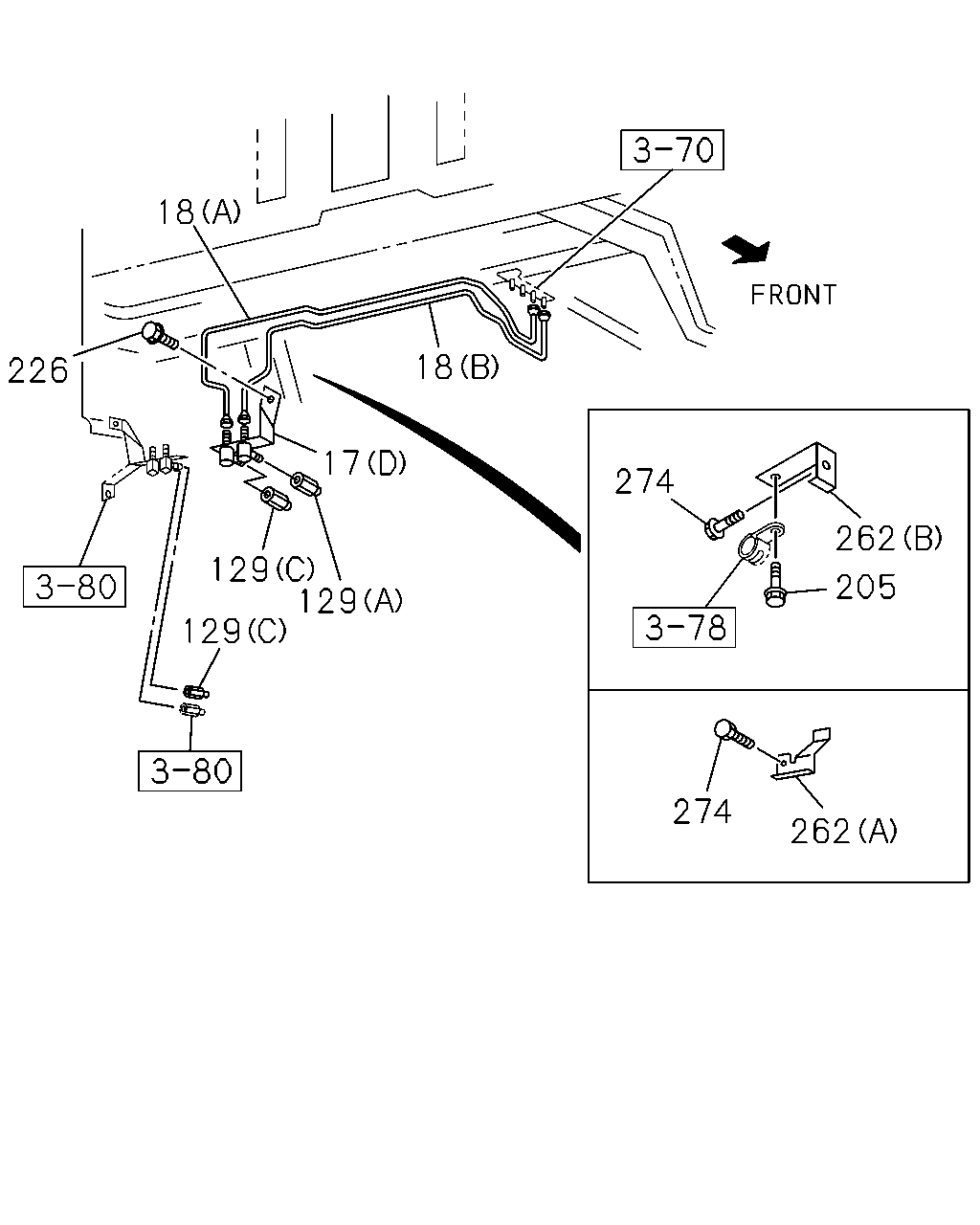

[377A] CAB SIDE NO.1 (23 parça)

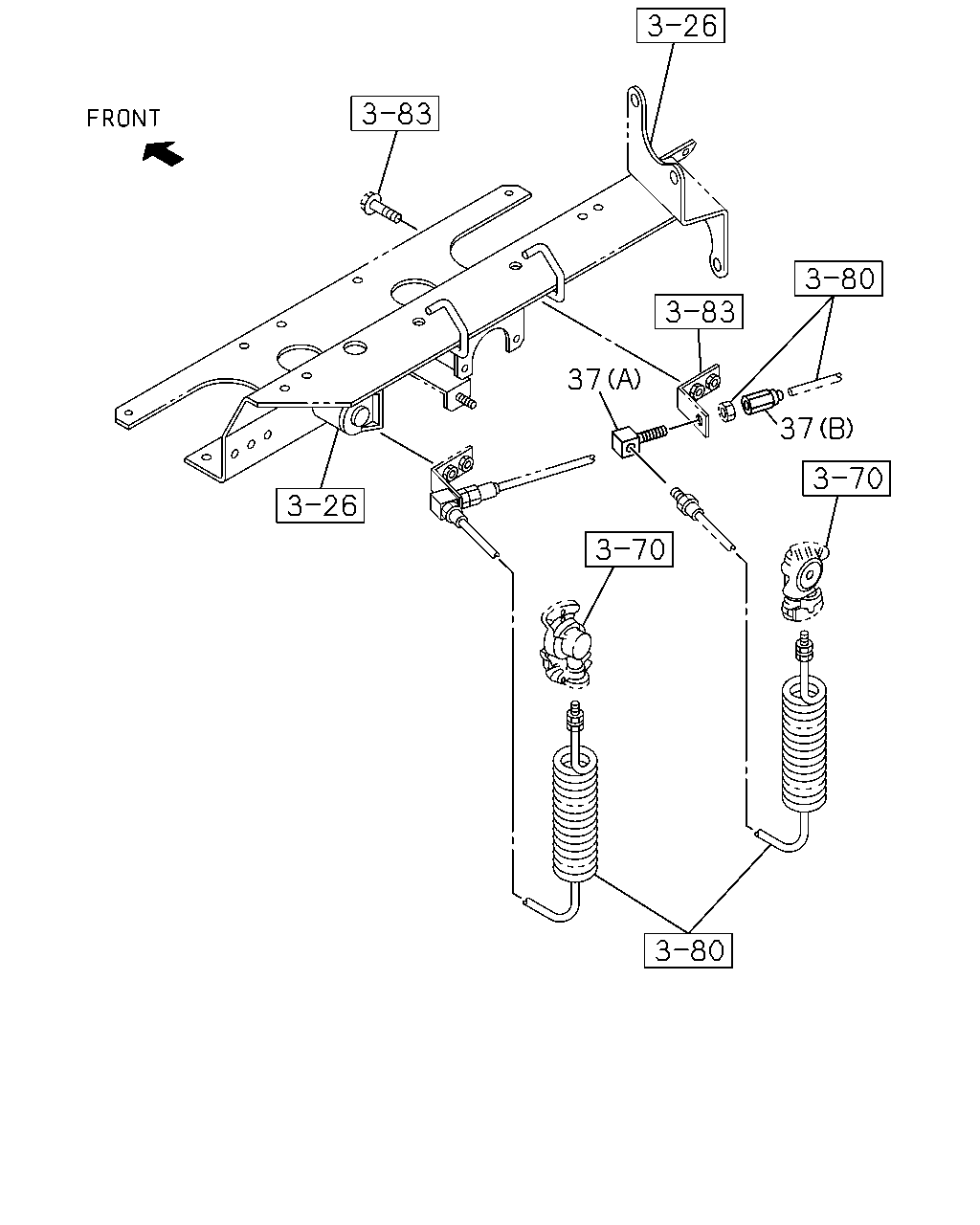

[377A] FRAME SIDE NO.3 (2 parça)
▶
192
192
192
192
192
192
192
192
89
72
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
72
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1009-
73
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1009-
89
CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1009-
192
TUBE; NYLON
(B)
8-98128-020-0
01
1
1009-
192
TUBE; NYLON
(C)
8-98128-021-0
01
1
1009-
192
TUBE; NYLON
(D)
8-98176-127-0
01
1
1009-1302
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1009-
222
190
333
192
192
192
223
46
134
190
333
222
226
226
127
226
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
NIPPLE; AIR PIPE
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1009-1102
46
NIPPLE; AIR PIPE
(A)
1-47471-156-0
01
1
1009-
126
UNION; NYLON TUBE
(A) 2WAY
1-09661-518-0
01
1
1009-1102
126
UNION; NYLON TUBE
(B)
1-09661-612-1
01
1
1009-
126
UNION; NYLON TUBE
(C) PT3/8
1-09664-210-0
01
1
1009-
127
NUT; UNION
M8 FLANGE
0-91180-108-0
01
1
1009-
127
NUT; UNION
M8 FLANGE
0-91180-108-0
02
1
1009-
134
CONNECTOR
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1103-
134
CONNECTOR
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1009-
190
UNION; 3 WAY
(A) DIN7.5X2 & M8 2WAY
1-09661-128-0
01
1
1009-1302
190
UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
1009-
192
TUBE; NYLON
(B)
8-98128-020-0
01
1
1009-
192
TUBE; NYLON
(C)
8-98128-021-0
01
1
1009-
192
TUBE; NYLON
(D)
8-98176-127-0
01
1
1009-1302
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1009-
222
BOLT; CONNECTOR
(A) M8X12 FLANGE
0-28050-812-0
01
1
1009-1102
222
BOLT; CONNECTOR
(B) M8X16 FLANGE
0-28050-816-0
01
1
1009-1302
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1009-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1009-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1009-
226
BOLT; UNION
M8X12 FLANGE
0-28050-812-0
01
1
1103-
226
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
05
1
1009-1102
226
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
04
1
1103-
226
BOLT; UNION
M8X45 FLANGE
0-28050-845-0
02
1
1009-
226
BOLT; UNION
M8X25 FLANGE
0-28650-825-0
01
1
1009-
226
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1009-
333
BRACKET; CONNECTOR
(A) L=50
1-47475-663-1
01
1
1009-
333
BRACKET; CONNECTOR
(B)
1-47479-248-0
01
1
1009-1302
288
126
42
129
126
129
288
129
129
42
226
127
192
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
GASKET; CONNECTOR
ID=22.5
9-09571-422-0
02
1
1009-
126
UNION; NYLON TUBE
(A) 2WAY
1-09661-518-0
01
1
1009-1102
126
UNION; NYLON TUBE
(B)
1-09661-612-1
01
1
1009-
126
UNION; NYLON TUBE
(C) PT3/8
1-09664-210-0
01
1
1009-
127
NUT; UNION
M8 FLANGE
0-91180-108-0
01
1
1009-
127
NUT; UNION
M8 FLANGE
0-91180-108-0
02
1
1009-
129
CONNECTOR; NYLON TUBE
(B) INNER PT3/8,OUTER M22
1-09650-494-1
02
1
1009-
129
CONNECTOR; NYLON TUBE
(C) DIN8 & M14 STRAIGHT
1-09660-874-0
02
1
1009-
129
CONNECTOR; NYLON TUBE
(C) DIN8 & M14 STRAIGHT
1-09660-874-0
02
1
1009-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1009-
129
CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1009-
192
TUBE; NYLON
(B)
8-98128-020-0
01
1
1009-
192
TUBE; NYLON
(C)
8-98128-021-0
01
1
1009-
192
TUBE; NYLON
(D)
8-98176-127-0
01
1
1009-1302
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1009-
226
BOLT; UNION
M8X12 FLANGE
0-28050-812-0
01
1
1103-
226
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
05
1
1009-1102
226
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
04
1
1103-
226
BOLT; UNION
M8X45 FLANGE
0-28050-845-0
02
1
1009-
226
BOLT; UNION
M8X25 FLANGE
0-28650-825-0
01
1
1009-
226
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1009-
288
PLUG
(A) OD=6 L=27
1-09661-615-0
01
1
1009-1102
288
PLUG
(B) OD=8 PLASTIC
1-09661-616-0
01
1
1009-
18
226
17
18
129
129
129
274
262
205
274
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1009-
17
UNION; AIR PIPE
(D)
1-47470-609-0
01
1
1009-
17
UNION; AIR PIPE
(B)
8-97633-775-0
01
1
1009-
17
UNION; AIR PIPE
(C)
8-97633-777-0
01
1
1009-
18
PIPE; AIR,UNION TO UNION
(A) L=1749
1-49121-758-1
01
1
1009-
18
PIPE; AIR,UNION TO UNION
(B) L=1845
1-49122-059-1
01
1
1009-
129
CONNECTOR; NYLON TUBE
(B) INNER PT3/8,OUTER M22
1-09650-494-1
02
1
1009-
129
CONNECTOR; NYLON TUBE
(C) DIN8 & M14 STRAIGHT
1-09660-874-0
02
1
1009-
129
CONNECTOR; NYLON TUBE
(C) DIN8 & M14 STRAIGHT
1-09660-874-0
02
1
1009-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1009-
129
CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1009-
205
BOLT; TUBE CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1009-
226
BOLT; UNION
M8X12 FLANGE
0-28050-812-0
01
1
1103-
226
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
05
1
1009-1102
226
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
04
1
1103-
226
BOLT; UNION
M8X45 FLANGE
0-28050-845-0
02
1
1009-
226
BOLT; UNION
M8X25 FLANGE
0-28650-825-0
01
1
1009-
226
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1009-
262
BRACKET
(B)
1-79996-143-0
01
1
1009-
262
BRACKET
(A)
1-79996-144-0
01
1
1009-
274
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
1009-
274
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
1009-
192
192
192
192
192
192
192
192
134
134
46
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
NIPPLE; AIR PIPE
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1009-1102
46
NIPPLE; AIR PIPE
(A)
1-47471-156-0
01
1
1009-
134
CONNECTOR
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1103-
134
CONNECTOR
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1009-
192
TUBE; NYLON
(B)
8-98128-020-0
01
1
1009-
192
TUBE; NYLON
(C)
8-98128-021-0
01
1
1009-
192
TUBE; NYLON
(D)
8-98176-127-0
01
1
1009-1302
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1009-
129
192
223
17
17
192
293
17
220
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
UNION; AIR PIPE
(A) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1009-
17
UNION; AIR PIPE
(D)
1-47470-609-0
01
1
1009-
17
UNION; AIR PIPE
(B)
8-97633-775-0
01
1
1009-
17
UNION; AIR PIPE
(C)
8-97633-777-0
01
1
1009-
129
CONNECTOR; NYLON TUBE
(B) INNER PT3/8,OUTER M22
1-09650-494-1
02
1
1009-
129
CONNECTOR; NYLON TUBE
(C) DIN8 & M14 STRAIGHT
1-09660-874-0
02
1
1009-
129
CONNECTOR; NYLON TUBE
(C) DIN8 & M14 STRAIGHT
1-09660-874-0
02
1
1009-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1009-
129
CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1009-
192
TUBE; NYLON
(B)
8-98128-020-0
01
1
1009-
192
TUBE; NYLON
(C)
8-98128-021-0
01
1
1009-
192
TUBE; NYLON
(D)
8-98176-127-0
01
1
1009-1302
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=6
1-87411-001-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1009-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1009-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000
9-09914-701-0
01
1
1009-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1009-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1009-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1009-
293
VALVE; CHECK
1-48410-479-1
01
1
1009-
37
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
(A)
1-09650-003-1
01
1
1009-
37
UNION; AIR PIPE
(B) DIN12 & M20 STRAIGHT
1-09660-877-0
01
1
1009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
