◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#69510) — 233 parça

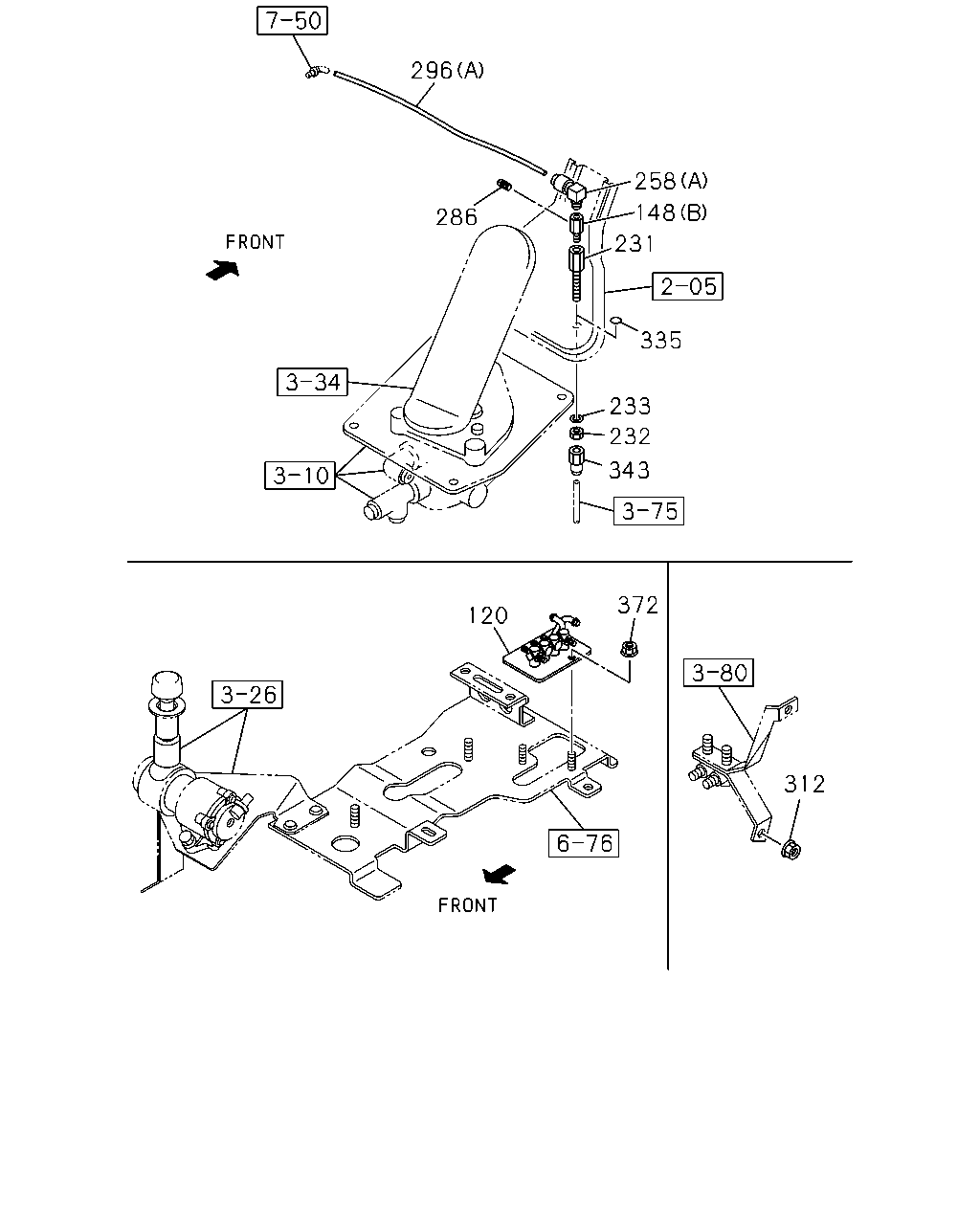

çizim 121176
296 286 258 148 231 335 233 232 343 372 120 312
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 1009-
148 CONNECTOR; UNION
(A) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1009-1302
148 CONNECTOR; UNION
(B) 		8-94338-417-0 01 1 1009-1302
148 CONNECTOR; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-94338-417-0 01 1 1303-
231 UNION; AIR PIPE
PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1009-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 01 1 1009-
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 1009-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) PT3/8 3WAY 		1-09661-300-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
286 PLUG; AIR PIPE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 1009-1302
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
312 NUT; UNION
M8 		0-91110-508-0 01 1 1009-
335 SEAL; UNION
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 1009-1302
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1009-1302
343 UNION; NYLON TUBE
DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1303-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1009-

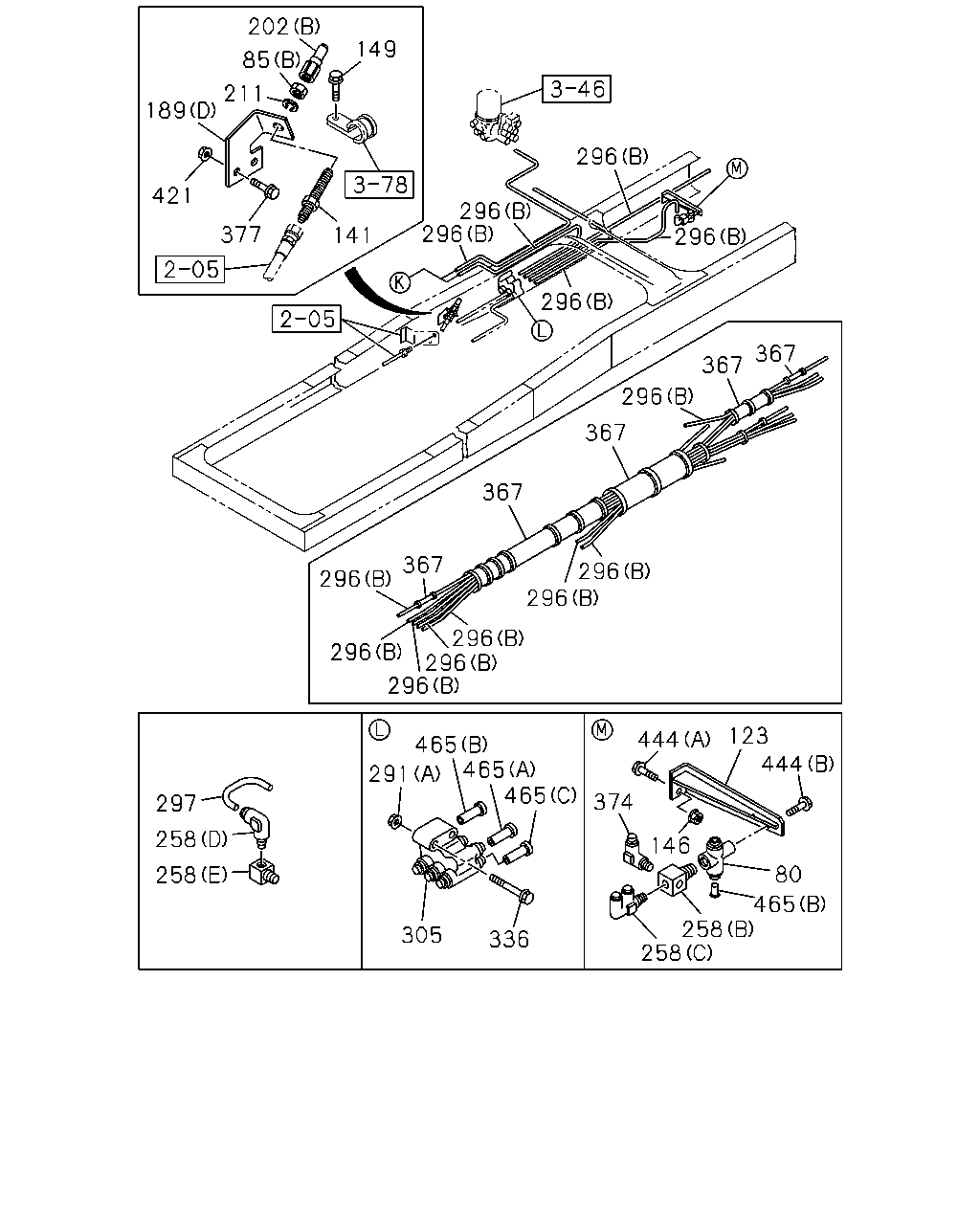

çizim 121219
296 202 85 189 149 421 296 296 296 296 367 367 296 367 367 367 296 296 296 296 296 296 296 465 291 465 465 305 336 444 123 444 374 146 80 465 258 258 258 297 258 141 377 211
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
TRANSMISSION CONTROL CABLE TYPE(C1A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1303-
85 NUT; UNION
(A) M18 		0-91110-518-0 01 1 1009-1302
85 NUT; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M12 		0-91111-512-0 01 1 1303-1308
85 NUT; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M12 		9-09840-280-0 01 1 1309-
123 BRACKET; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-47479-401-0 01 1 1303-
141 UNION; FLEX HOSE
TRANSMISSION CONTROL CABLE TYPE(C1A) M12 L=66.5 		0-92113-306-0 01 1 1303-
146 NUT; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 02 1 1303-
149 BOLT; TUBE CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 FLANGE 		0-28650-825-0 01 1 1303-
189 BRACKET; FLEX HOSE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-97645-648-0 01 1 1303-1308
189 BRACKET; FLEX HOSE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-97646-842-0 01 1 1309-
189 BRACKET; FLEX HOSE
(C) L=75 		1-47478-328-0 01 1 1303-
189 BRACKET; FLEX HOSE
(A) 		1-47471-236-0 01 1 1009-1302
189 BRACKET; FLEX HOSE
(B) 		1-47477-337-1 01 1 1303-
202 ADAPTER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303-
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1009-
211 WASHER; LK,UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=12.2 		0-91510-812-0 01 1 1303-1308
211 WASHER; LK,UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=12.2 		0-91510-512-0 01 1 1309-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) PT3/8 3WAY 		1-09661-300-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
(A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1009-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1009-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1009-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 1009-1009
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1009-
374 CONNECTOR
TRANSMISSION CONTROL CABLE TYPE(C1A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1303-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 1009-1302
377 BOLT; BRKT FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
421 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 02 1 1303-
444 BOLT; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X16 FLANGE 		0-28050-816-0 01 1 1303-
444 BOLT; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1303-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1009-1302
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1303-
465 PLUG
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1303-
465 PLUG
(C) OD=12 		1-09661-617-0 01 1 1009-1302
465 PLUG
SMOOTHER-G(C1W) (C) OD=12 		1-09661-617-0 01 1 1303-
465 PLUG
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1009-1106
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) OD=6 L=27 		1-09661-615-0 01 1 1009-1106
465 PLUG
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1107-1302
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1107-1302
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1303-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1303-

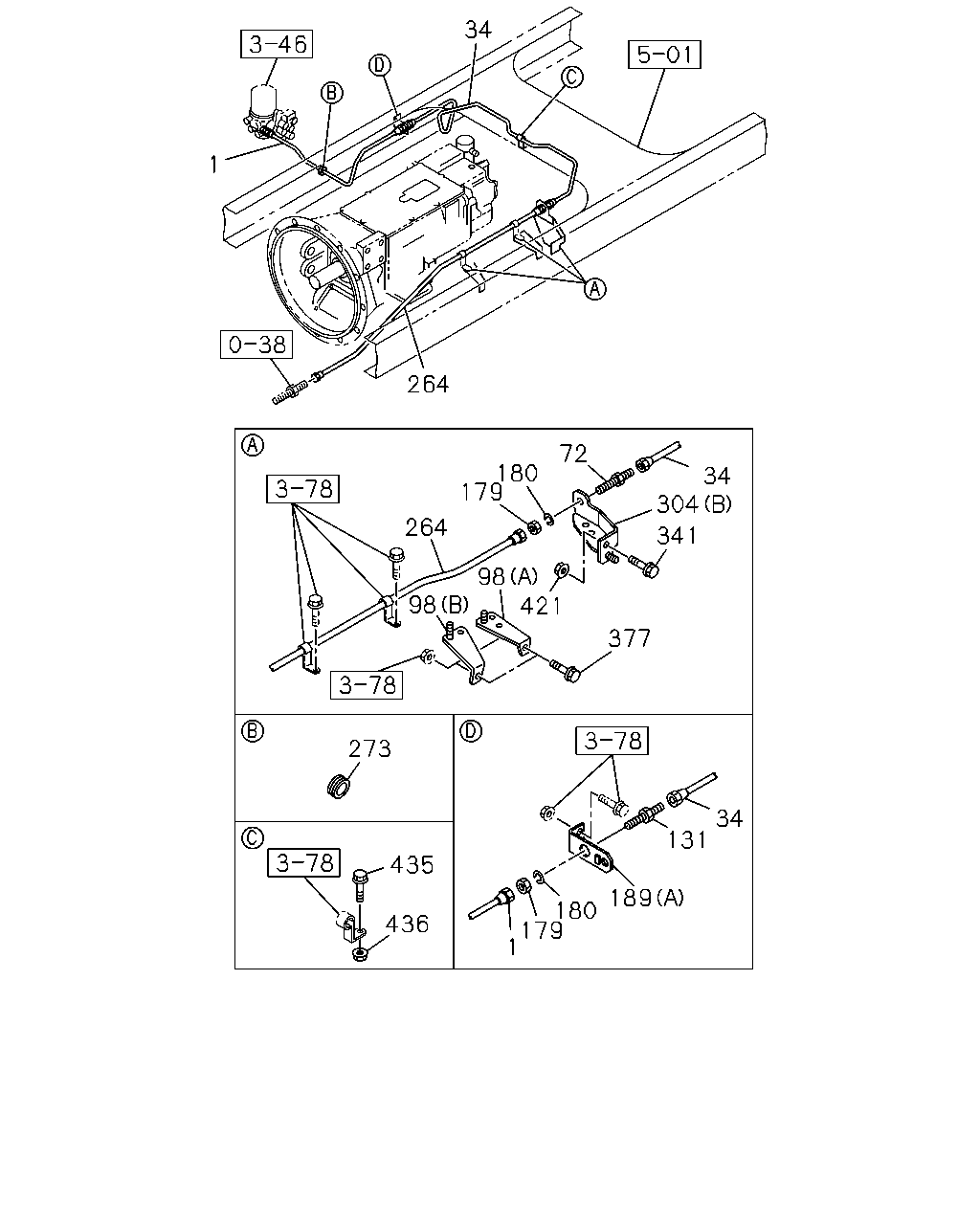

çizim 121458
34 264 72 180 264 179 34 304 377 341 98 421 98 34 131 189 180 179 1 435 436 273 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 1009-1302
1 HOSE; FLEX,AIR TANK
L=1480 		8-98169-578-0 01 1 1303-
34 PIPE; AIR
L=1114 		1-49124-668-0 01 1 1009-1302
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1009-1302
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 1009-1302
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 1009-1302
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1009-1302
179 NUT; UNION
M22 		0-91111-522-0 02 1 1009-1302
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 1009-1302
189 BRACKET; FLEX HOSE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-97645-648-0 01 1 1303-1308
189 BRACKET; FLEX HOSE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-97646-842-0 01 1 1309-
189 BRACKET; FLEX HOSE
(C) L=75 		1-47478-328-0 01 1 1303-
189 BRACKET; FLEX HOSE
(A) 		1-47471-236-0 01 1 1009-1302
189 BRACKET; FLEX HOSE
(B) 		1-47477-337-1 01 1 1303-
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 1009-1302
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1009-1302
304 BRACKET; UNION
(B) 		1-47471-262-0 01 1 1009-1302
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1009-1302
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1303-
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 1009-1302
377 BOLT; BRKT FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
421 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 02 1 1303-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1303-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1303-

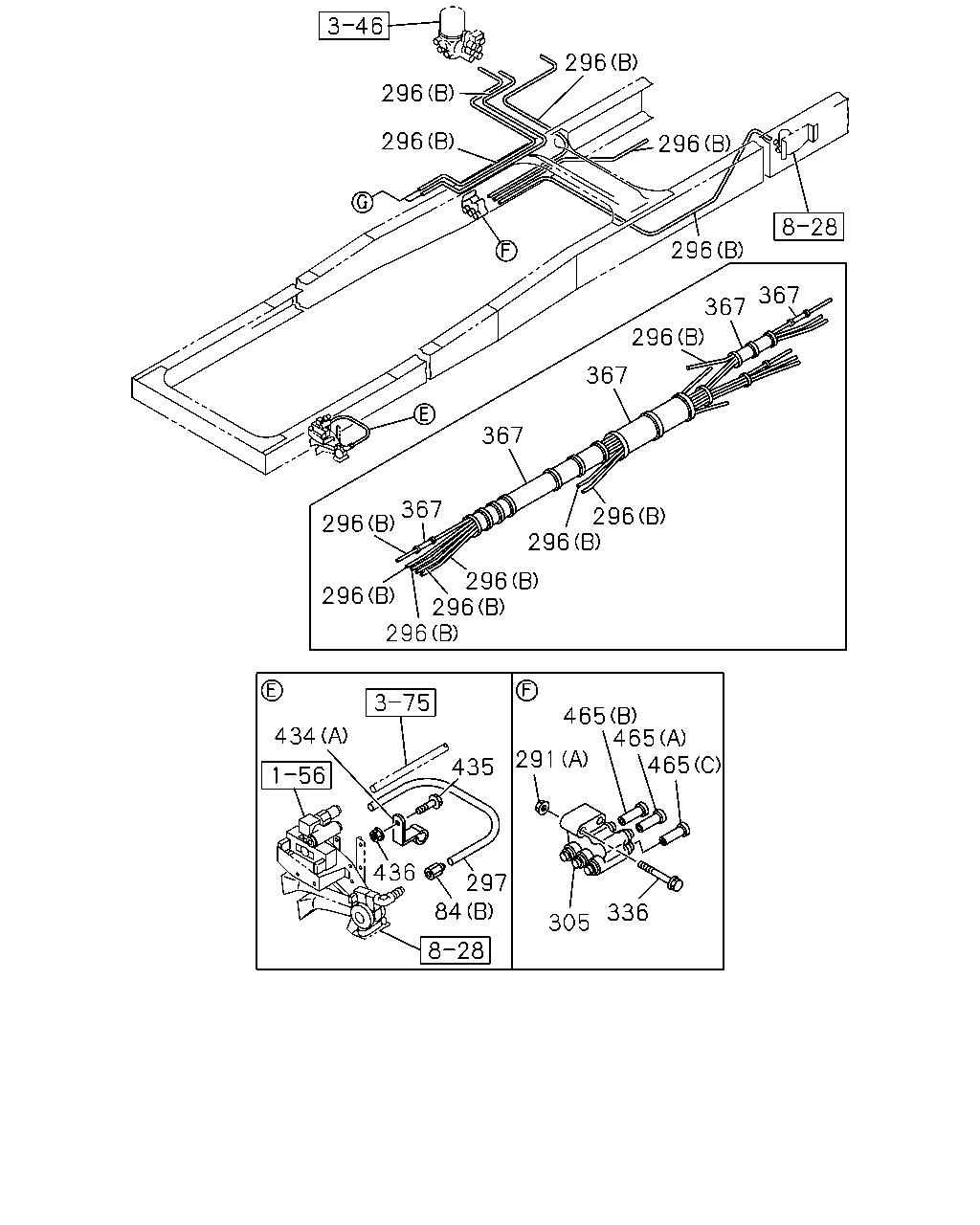

çizim 121528
296 296 296 296 296 367 367 296 367 367 367 296 296 296 296 296 296 296 465 465 465 291 435 434 436 297 84 305 336
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 1009-1302
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1302
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1009-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1009-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1009-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 1009-1009
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1009-
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 1303-
434 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1009-1302
434 CLIP
(B) ID=24 L=27 		1-09700-809-0 03 1 1303-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1303-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1303-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1009-1302
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1303-
465 PLUG
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1303-
465 PLUG
(C) OD=12 		1-09661-617-0 01 1 1009-1302
465 PLUG
SMOOTHER-G(C1W) (C) OD=12 		1-09661-617-0 01 1 1303-
465 PLUG
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1009-1106
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) OD=6 L=27 		1-09661-615-0 01 1 1009-1106
465 PLUG
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1107-1302
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1107-1302
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1303-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1303-

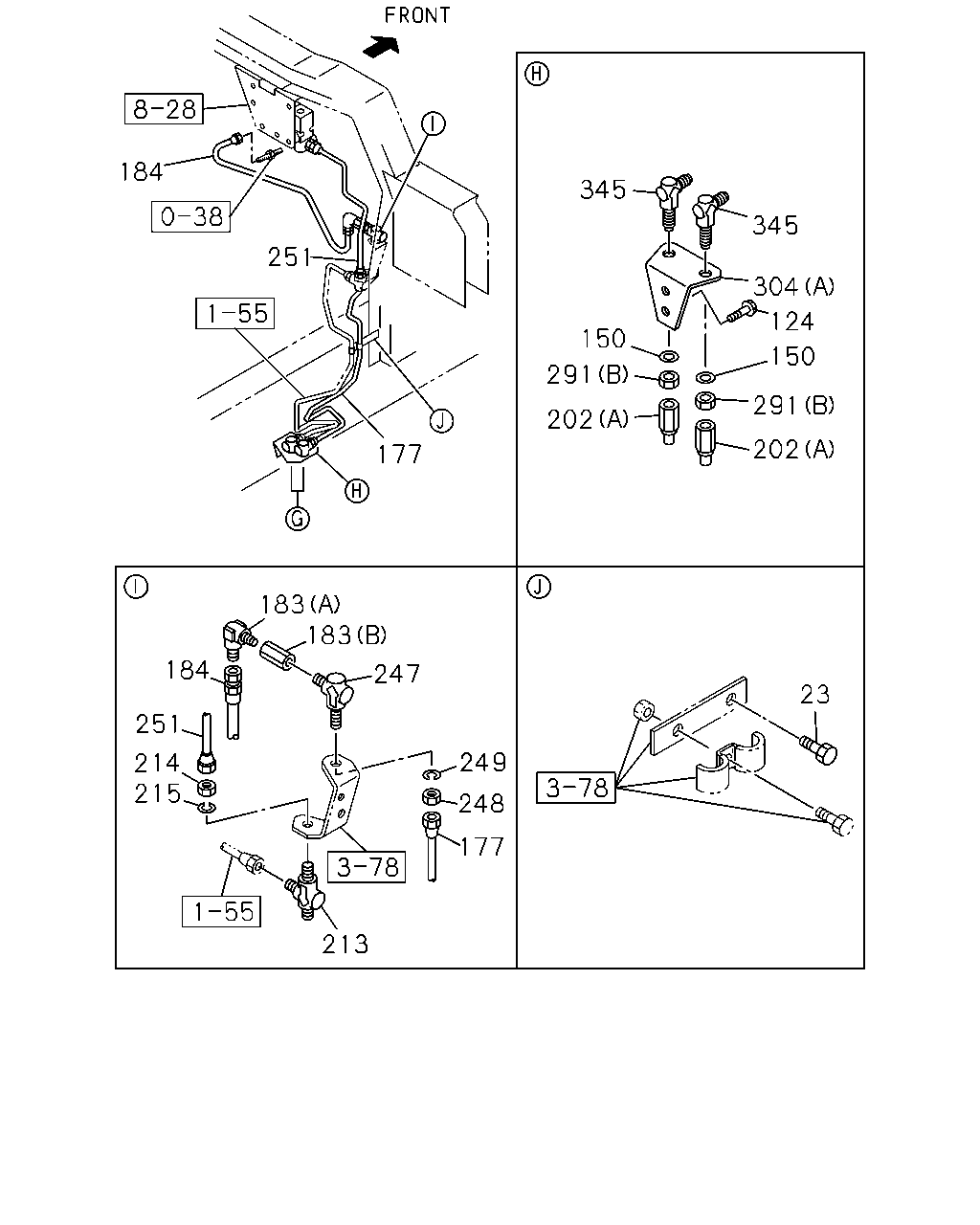

çizim 121636
184 251 177 150 291 345 345 304 124 150 291 202 202 23 177 249 248 213 215 251 214 184 183 183 247
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1302
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1009-
177 PIPE; AIR,UNION TO UNION
L=785 SERVICED BY L=800 		1-47428-812-0 01 1 1009-1302
177 PIPE; AIR,UNION TO UNION
L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1303-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1009-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1009-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1009-
202 ADAPTER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303-
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1009-
213 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 1009-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1009-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1009-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1009-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1009-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1009-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1009-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1009-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1009-
304 BRACKET; UNION
(B) 		1-47471-262-0 01 1 1009-1302
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1009-1302
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1303-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1009-

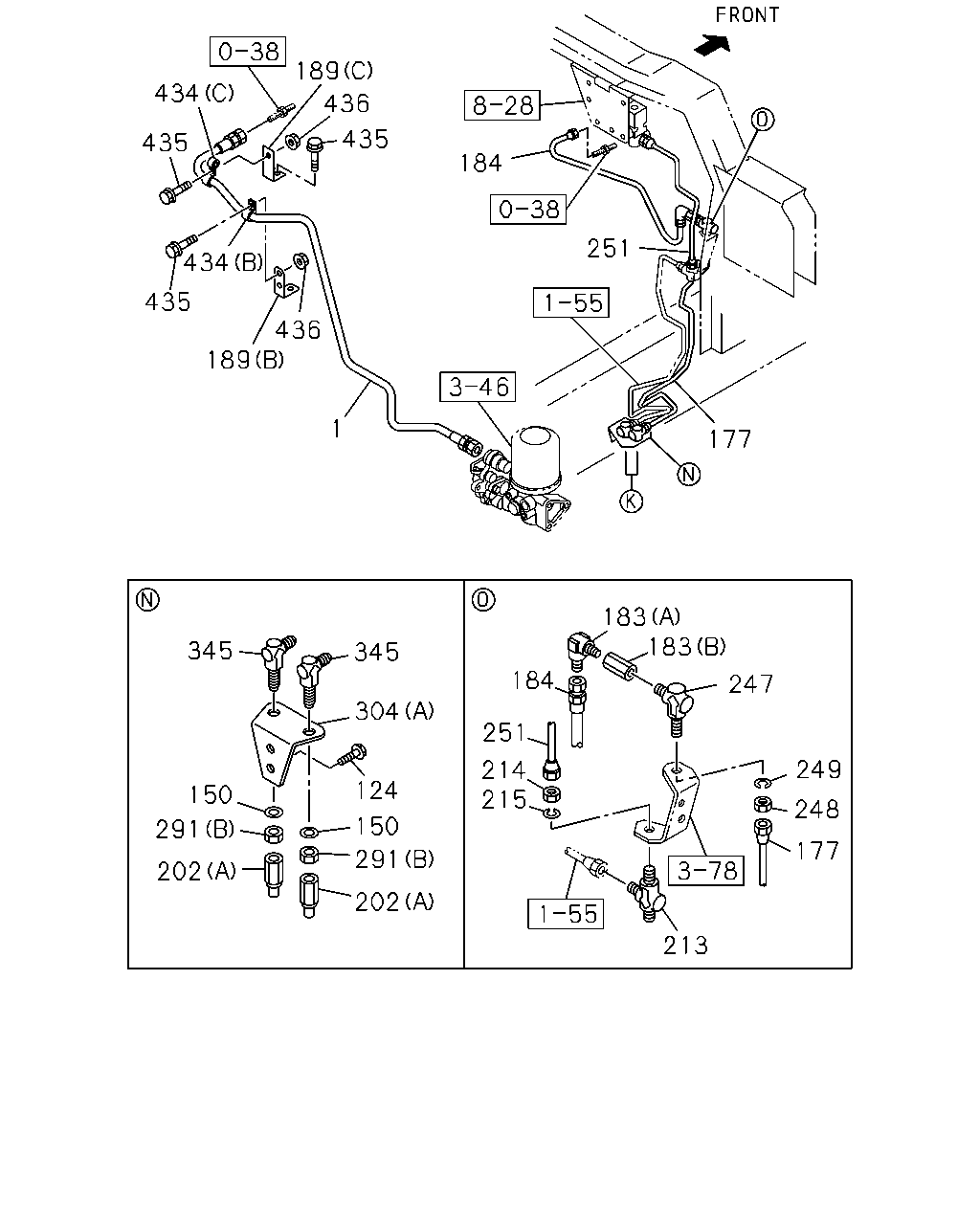

çizim 188893
434 435 189 435 184 251 177 189 436 435 434 345 345 304 124 150 291 150 291 202 202 183 183 247 249 248 177 184 251 214 215 213 436 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 1009-1302
1 HOSE; FLEX,AIR TANK
L=1480 		8-98169-578-0 01 1 1303-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1009-
177 PIPE; AIR,UNION TO UNION
L=785 SERVICED BY L=800 		1-47428-812-0 01 1 1009-1302
177 PIPE; AIR,UNION TO UNION
L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1303-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1009-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1009-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1009-
189 BRACKET; FLEX HOSE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-97645-648-0 01 1 1303-1308
189 BRACKET; FLEX HOSE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) 		8-97646-842-0 01 1 1309-
189 BRACKET; FLEX HOSE
(C) L=75 		1-47478-328-0 01 1 1303-
189 BRACKET; FLEX HOSE
(A) 		1-47471-236-0 01 1 1009-1302
189 BRACKET; FLEX HOSE
(B) 		1-47477-337-1 01 1 1303-
202 ADAPTER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303-
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1009-
213 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 1009-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1009-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1009-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1009-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1009-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1009-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1009-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1009-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1009-
304 BRACKET; UNION
(B) 		1-47471-262-0 01 1 1009-1302
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 1009-1302
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1303-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1009-
434 CLIP
(C) ID=12 & 24 		1-09701-248-0 01 1 1303-
434 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1009-1302
434 CLIP
(B) ID=24 L=27 		1-09700-809-0 03 1 1303-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1303-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1303-

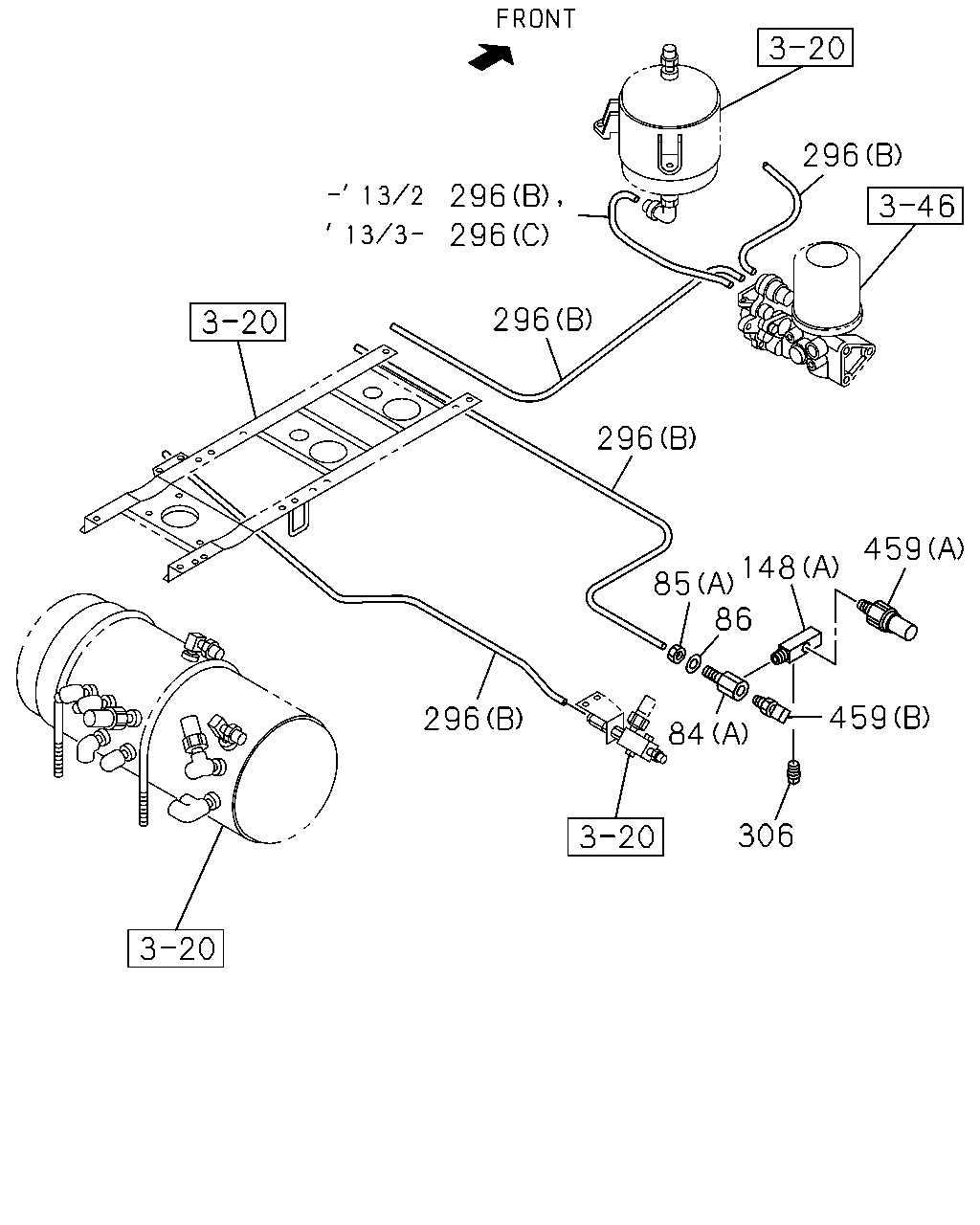

çizim 336358
296 296 296 296 296 148 85 86 459 459 306 84 296
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 1009-1302
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1302
85 NUT; UNION
(A) M18 		0-91110-518-0 01 1 1009-1302
85 NUT; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M12 		0-91111-512-0 01 1 1303-1308
85 NUT; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M12 		9-09840-280-0 01 1 1309-
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 1009-1302
148 CONNECTOR; UNION
(A) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1009-1302
148 CONNECTOR; UNION
(B) 		8-94338-417-0 01 1 1009-1302
148 CONNECTOR; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-94338-417-0 01 1 1303-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302
296 TUBE; NYLON
(A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 01 1 1009-1302
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 1009-1302
459 SWITCH; PRESS
(A) STAMP 5.5 		8-97609-249-0 01 1 1009-1302

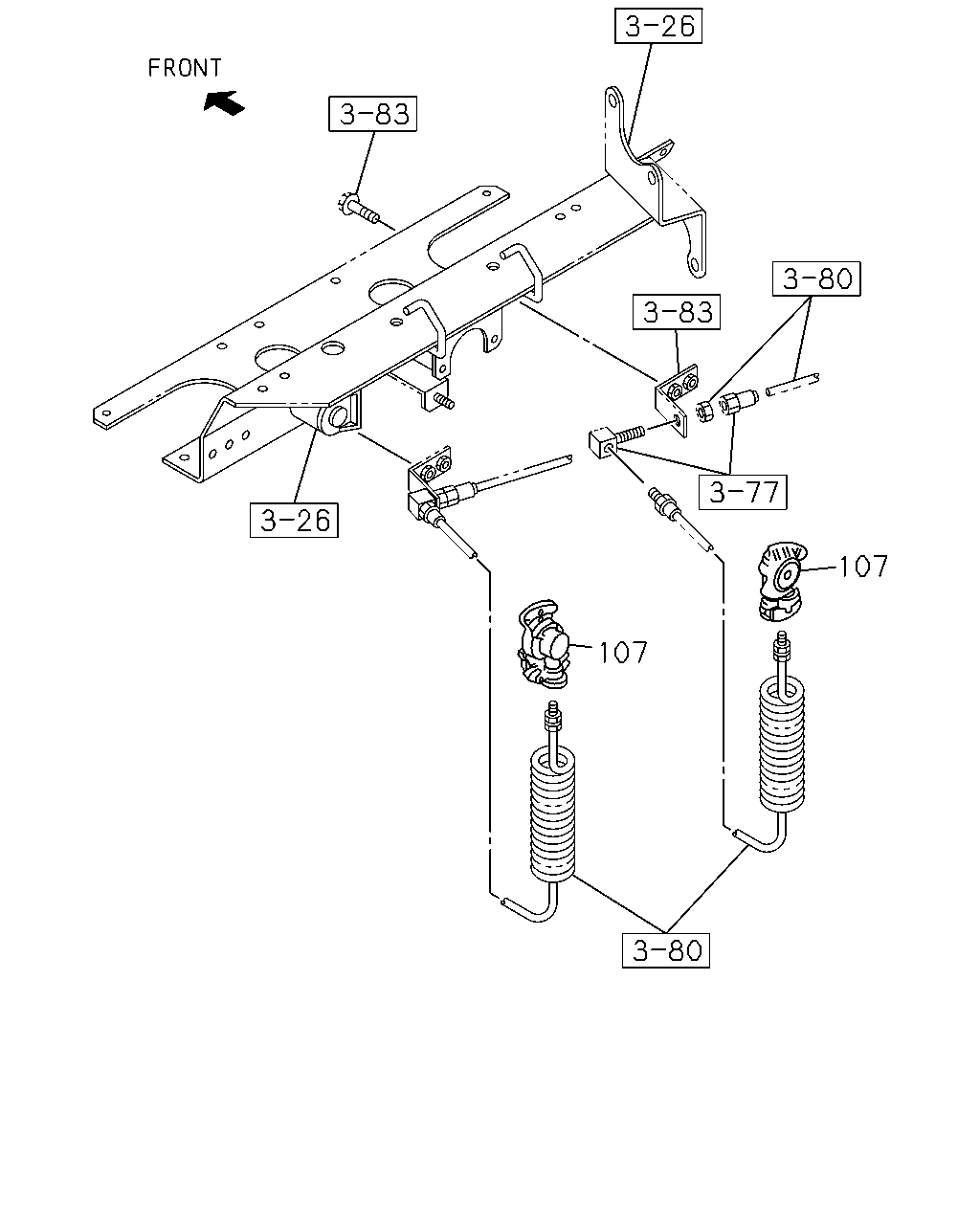

çizim 337266
107 107
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
EMERGENCY 		1-47478-210-0 01 1 1009-
107 COUPLING; SERVICE
SERVICE 		1-47478-211-0 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
