3-26 — TRAILER CONTROL (#69502) — 138 parça

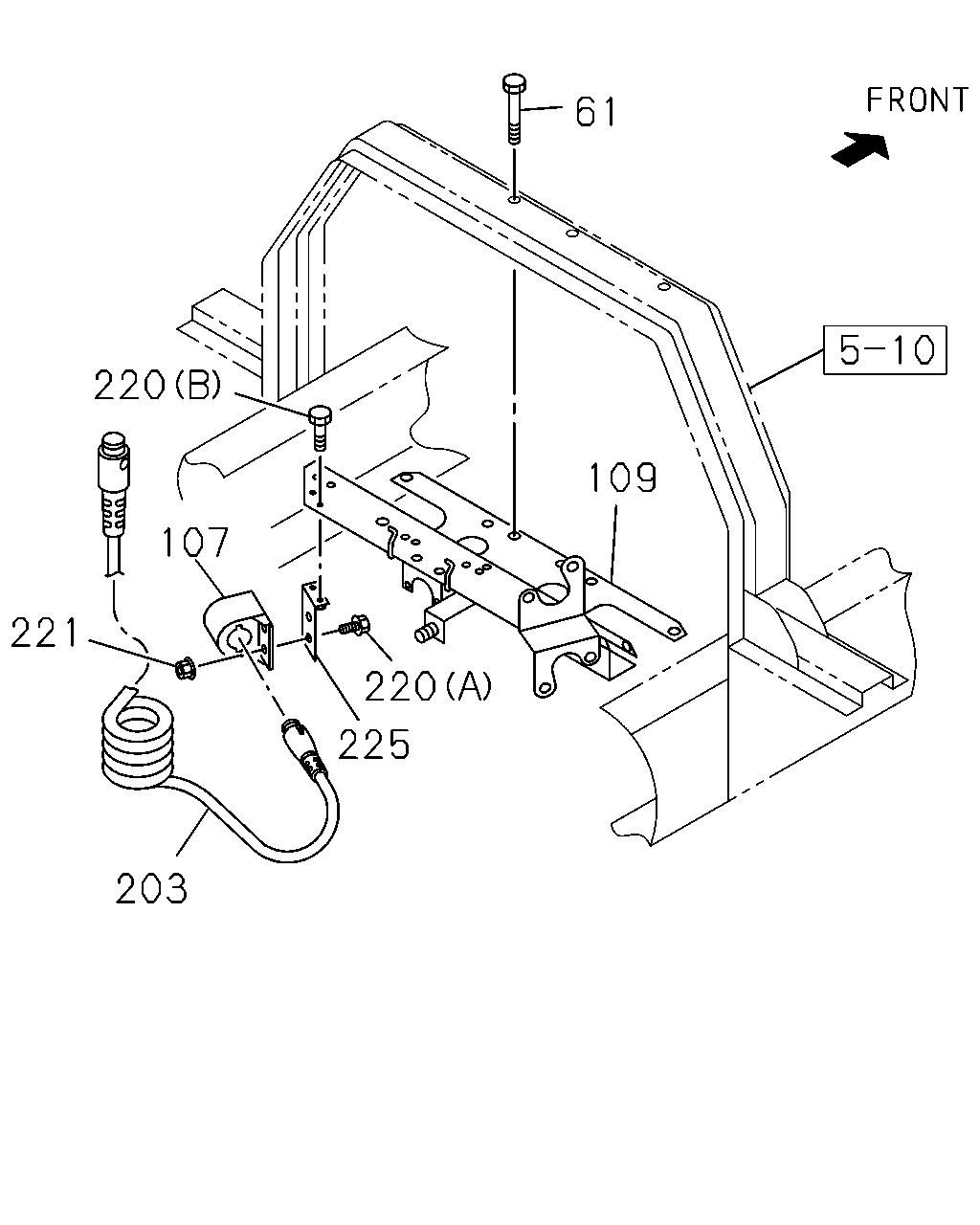

çizim 116838
61 109 220 225 203 221 107 220
BalonParca AdiParca NoAdetTipApplied Date
61 BOLT; STEP BOARD
M10X30 FLANGE 		0-28651-030-0 06 1 1009-
107 HANGER; JUMPER HOSE 1-57550-022-2 01 1 1009-
109 BRACKET; HOSE HANGER 8-98049-443-0 01 1 1009-
203 CABLE; JUMPER
L=5500 		1-82659-201-2 01 1 1009-1009
203 CABLE; JUMPER
L=5500 		8-98107-178-0 01 1 1010-
220 BOLT; HANGER
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1009-
220 BOLT; HANGER
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1009-
221 NUT; HANGER
M6 FLANGE 		0-91180-106-0 02 1 1009-
225 BRACKET; HANGER 1-82698-002-0 01 1 1009-

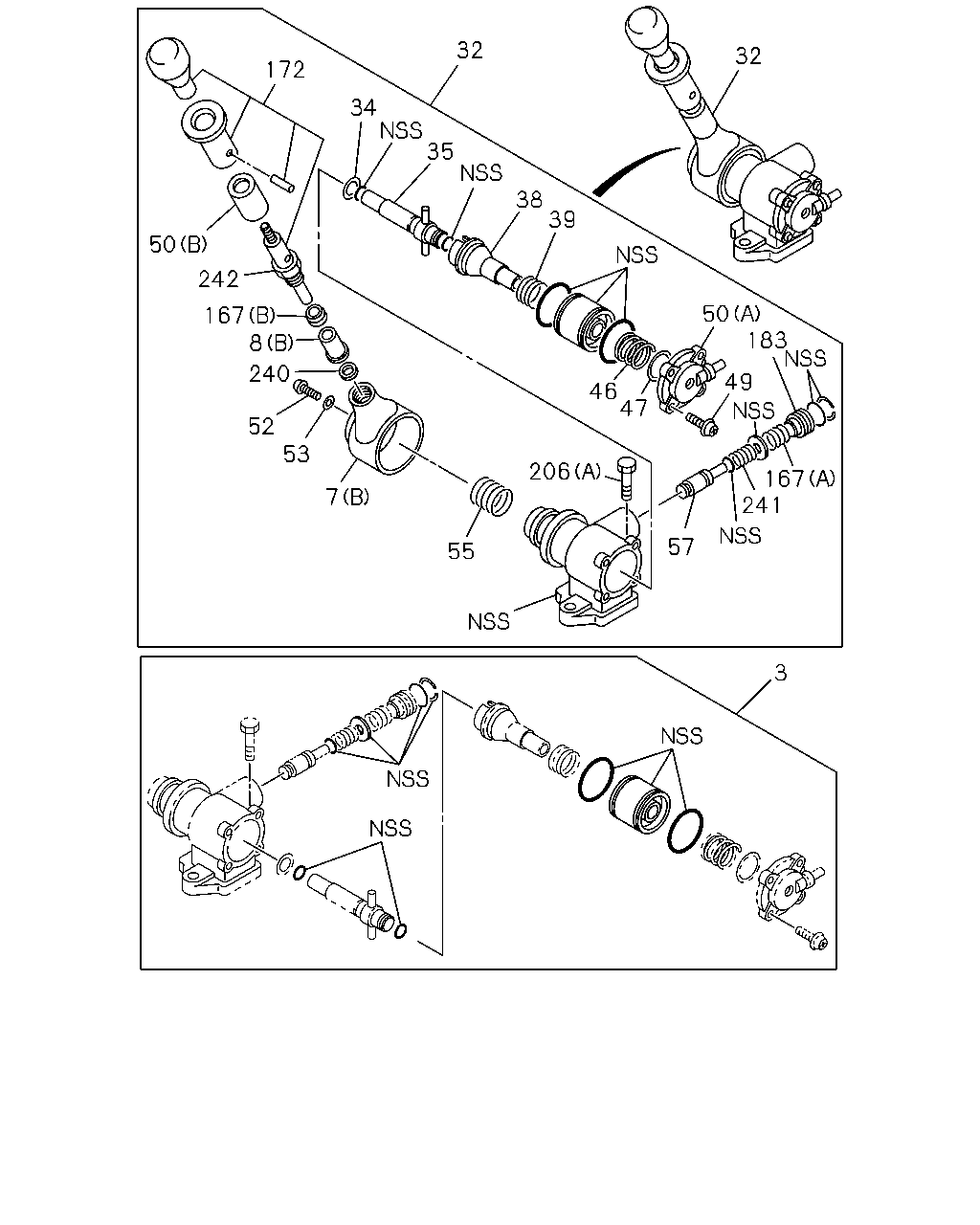

çizim 117059
32 32 172 34 35 38 39 50 183 49 167 241 57 3 47 46 50 242 167 8 240 52 53 7 55 206
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; HAND BRK VLV 1-85576-376-0 01 1 1009-
7 HEAD; BRK VLV
(A) 		1-48119-131-1 01 1 1009-
7 HEAD; BRK VLV
BRAKE REGULATION HONG KONG<TCZ> (B) 		1-48469-209-0 01 1 1009-1302
7 HEAD; BRK VLV
(B) 		1-48469-209-0 01 1 1303-
7 HEAD; BRK VLV
EXC. BRAKE REGULATION HONG KONG<TCZ> (B) 		1-48469-201-0 01 1 1009-1302
8 STOPPER; BRK VLV
(A) 		1-48119-239-0 01 1 1009-
8 STOPPER; BRK VLV
(B) 		1-48469-200-0 01 1 1009-
32 VALVE; BRK,HAND CONT
BRAKE REGULATION HONG KONG<TCZ> 		1-48460-341-1 01 1 1009-1302
32 VALVE; BRK,HAND CONT 1-48460-341-1 01 1 1303-
32 VALVE; BRK,HAND CONT
EXC. BRAKE REGULATION HONG KONG<TCZ> 		1-48460-339-1 01 1 1009-1302
34 SHIM; CAM HOLDER 1-48469-055-0 AR 1 1009-
35 HOLDER; CAM
BRAKE REGULATION HONG KONG<TCZ> 		1-48469-207-0 01 1 1009-1302
35 HOLDER; CAM 1-48469-207-0 01 1 1303-
35 HOLDER; CAM
EXC. BRAKE REGULATION HONG KONG<TCZ> 		1-48469-171-0 01 1 1009-1302
38 SEAT; EXH VLV
BRAKE REGULATION HONG KONG<TCZ> 		1-48469-211-0 01 1 1009-1302
38 SEAT; EXH VLV 1-48469-211-0 01 1 1303-
38 SEAT; EXH VLV
EXC. BRAKE REGULATION HONG KONG<TCZ> 		1-48469-172-0 01 1 1009-1302
39 SPRING; RETURN,CAM RING 1-48469-150-0 01 1 1009-
46 SPRING; MAIN,PISTON 1-48469-173-0 01 1 1009-
47 SHIM; MAIN SPRING 1-48469-072-0 AR 1 1009-
49 SCREW; COVER 1-48469-169-0 04 1 1009-
50 COVER; HAND BRK VLV
(A) 		1-48469-153-0 01 1 1009-
50 COVER; HAND BRK VLV
(B) 		1-48469-196-0 01 1 1009-
52 SCREW; HANDLE 1-48469-062-0 01 1 1009-
53 WASHER; HANDLE 1-48469-061-0 01 1 1009-
55 SPRING; RETURN,HANDLE 1-48469-155-0 01 1 1009-
57 PLUNGER; HAND BRK VLV 1-48469-180-0 01 1 1009-
167 SPRING; VALVE
(A) 		1-48469-177-0 01 1 1009-
167 SPRING; VALVE
(B) 		1-48469-184-0 01 1 1009-
172 KNOB; VALVE
BRAKE REGULATION HONG KONG<TCZ> 		1-48469-210-0 01 1 1009-1302
172 KNOB; VALVE 1-48469-210-0 01 1 1303-
172 KNOB; VALVE
EXC. BRAKE REGULATION HONG KONG<TCZ> 		1-48469-203-0 01 1 1009-1302
183 RETAINER; VALVE 1-48469-185-0 01 1 1009-
206 BOLT; HAND BRK VALVE
(B) M10X20 W/LK WASHER 		0-50541-020-0 02 1 1009-
206 BOLT; HAND BRK VALVE
(A) 		1-48469-160-0 01 1 1009-
240 RING; STOPPER
BRAKE REGULATION HONG KONG<TCZ> 		1-48469-208-0 01 1 1009-1302
240 RING; STOPPER 1-48469-208-0 01 1 1303-
240 RING; STOPPER
EXC. BRAKE REGULATION HONG KONG<TCZ> 		1-48469-199-0 01 1 1009-1302
241 SPRING; RETURN 1-48469-182-0 01 1 1009-
242 NUT; LK 1-48469-179-0 01 1 1009-

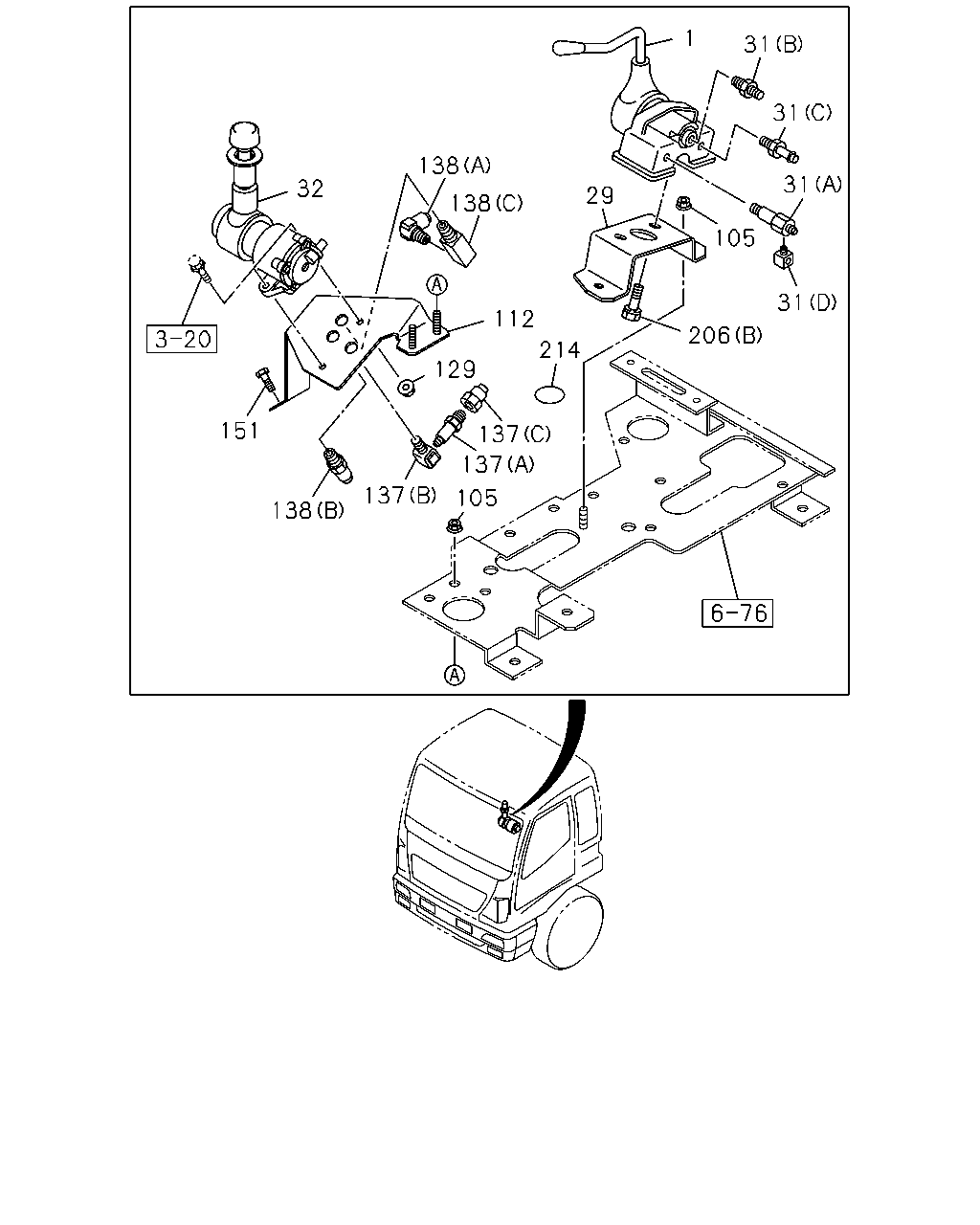

çizim 117122
32 138 112 138 29 214 129 151 138 137 105 137 137 206 31 105 31 31 31 1
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; HAND BRK 1-48100-848-0 01 1 1009-
29 BRACKET; HAND BRK 1-79997-357-1 01 1 1009-
31 CONNECTOR; HAND BRK VLV
(B) M16 & PT1/4 STRAIGHT 		0-92121-810-0 01 1 1009-
31 CONNECTOR; HAND BRK VLV
(A) M14 		1-09656-391-2 01 1 1009-
31 CONNECTOR; HAND BRK VLV
(D) PT1/4 2WAY 		1-09660-693-0 01 1 1009-
31 CONNECTOR; HAND BRK VLV
(C) L=45 		8-94338-874-0 01 1 1009-
32 VALVE; BRK,HAND CONT
BRAKE REGULATION HONG KONG<TCZ> 		1-48460-341-1 01 1 1009-1302
32 VALVE; BRK,HAND CONT 1-48460-341-1 01 1 1303-
32 VALVE; BRK,HAND CONT
EXC. BRAKE REGULATION HONG KONG<TCZ> 		1-48460-339-1 01 1 1009-1302
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
112 BRACKET; CONT VLV 1-79996-387-0 01 1 1009-
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 01 1 1009-
137 CONNECTOR; SUPPLY
(A) PT1/4 & M16 STRAIGHT 		1-09650-352-1 01 1 1009-
137 CONNECTOR; SUPPLY
(B) PT1/4 2WAY 		1-09660-693-0 01 1 1009-
137 CONNECTOR; SUPPLY
(C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1009-
138 CONNECTOR; DELIVERY
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-
138 CONNECTOR; DELIVERY
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1009-
138 CONNECTOR; DELIVERY
(C) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1009-
151 BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1009-
206 BOLT; HAND BRK VALVE
(B) M10X20 W/LK WASHER 		0-50541-020-0 02 1 1009-
206 BOLT; HAND BRK VALVE
(A) 		1-48469-160-0 01 1 1009-
214 SEAL; COVER,HAND BRK
OD=25 BLACK 		1-76798-019-0 02 1 1009-1302
214 SEAL; COVER,HAND BRK
OD=25 BLACK 		1-76798-019-0 01 1 1303-

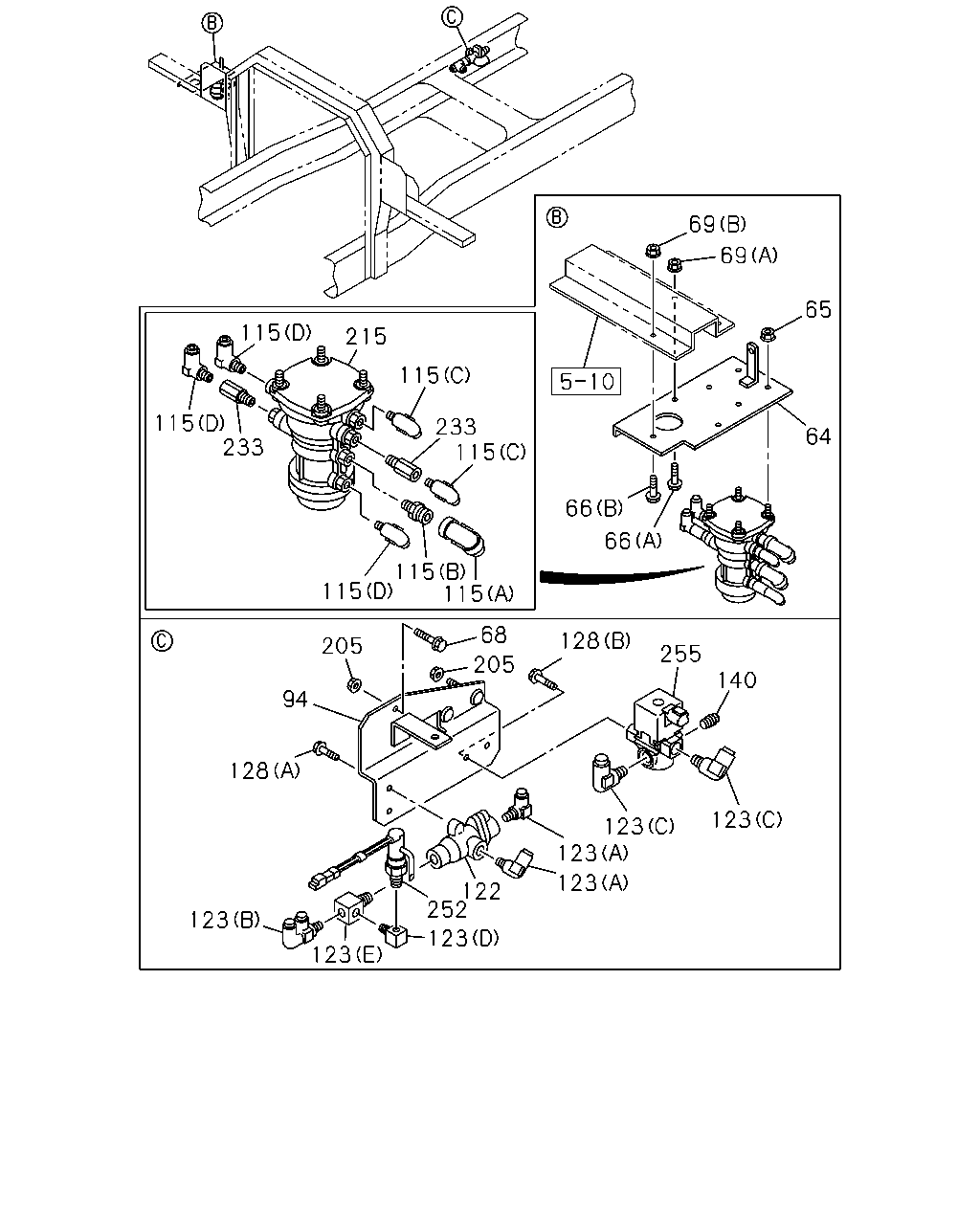

çizim 117244
69 65 64 69 66 66 128 255 140 123 123 123 123 123 252 122 205 205 68 115 115 115 115 233 115 215 115 115 233 128 94 123 123
BalonParca AdiParca NoAdetTipApplied Date
64 BRACKET; RELAY VLV 8-98036-587-0 01 1 1009-
65 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 04 1 1009-
66 BOLT; VLV BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1009-
66 BOLT; VLV BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1009-
68 BOLT; DOUBLE CHECK VLV
M8X30 FLANGE 		0-28650-830-0 01 1 1009-
69 NUT; VLV BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1009-
69 NUT; VLV BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1009-
94 BRACKET; CHECK VLV 8-98036-330-0 01 1 1009-
115 CONNECTOR; DUAL RELAY VLV
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1009-
115 CONNECTOR; DUAL RELAY VLV
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1009-
115 CONNECTOR; DUAL RELAY VLV
(A) 		8-97633-756-0 01 1 1009-
115 CONNECTOR; DUAL RELAY VLV
(B) 		8-97633-771-0 01 1 1009-
122 VALVE ASM; DOUBLE CHECK 1-48410-531-1 01 1 1009-
123 CONNECTOR; DBL CHECK VLV
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1009-1302
123 CONNECTOR; DBL CHECK VLV
SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1303-
123 CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1009-
123 CONNECTOR; DBL CHECK VLV
(B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1009-
123 CONNECTOR; DBL CHECK VLV
(E) PT3/8 3WAY 		1-09661-300-0 01 1 1009-1302
123 CONNECTOR; DBL CHECK VLV
SMOOTHER-G(C1W) (E) PT3/8 3WAY 		1-09661-300-0 01 1 1303-
123 CONNECTOR; DBL CHECK VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 1009-1302
123 CONNECTOR; DBL CHECK VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 1303-
128 BOLT; VLV
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X14 FLANGE 		0-28080-814-0 02 1 1303-
128 BOLT; VLV
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1009-1302
128 BOLT; VLV
SMOOTHER-G(C1W) (A) M8X12 FLANGE 		0-28050-812-0 02 1 1303-
128 BOLT; VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
128 BOLT; VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1303-
140 PLUG
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 1009-1302
140 PLUG
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) PT1/4 		9-99204-513-0 01 1 1303-
205 NUT; DOUBLE CHECK VLV
M8 FLANGE 		0-91180-108-0 03 1 1009-
215 VALVE; TRAILER CONT 8-98091-694-0 01 1 1009-
233 ADAPTER; VLV
PT3/8 		1-48319-058-0 02 1 1009-
252 SWITCH; PRESSURE
STAMP 2.2 		8-98010-858-0 01 1 1009-1302
252 SWITCH; PRESSURE
SMOOTHER-G(C1W) STAMP 2.2 		8-98010-858-0 01 1 1303-
255 VALVE; MAG
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-82563-871-2 01 1 1009-1302
255 VALVE; MAG
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-82563-871-2 01 1 1303-

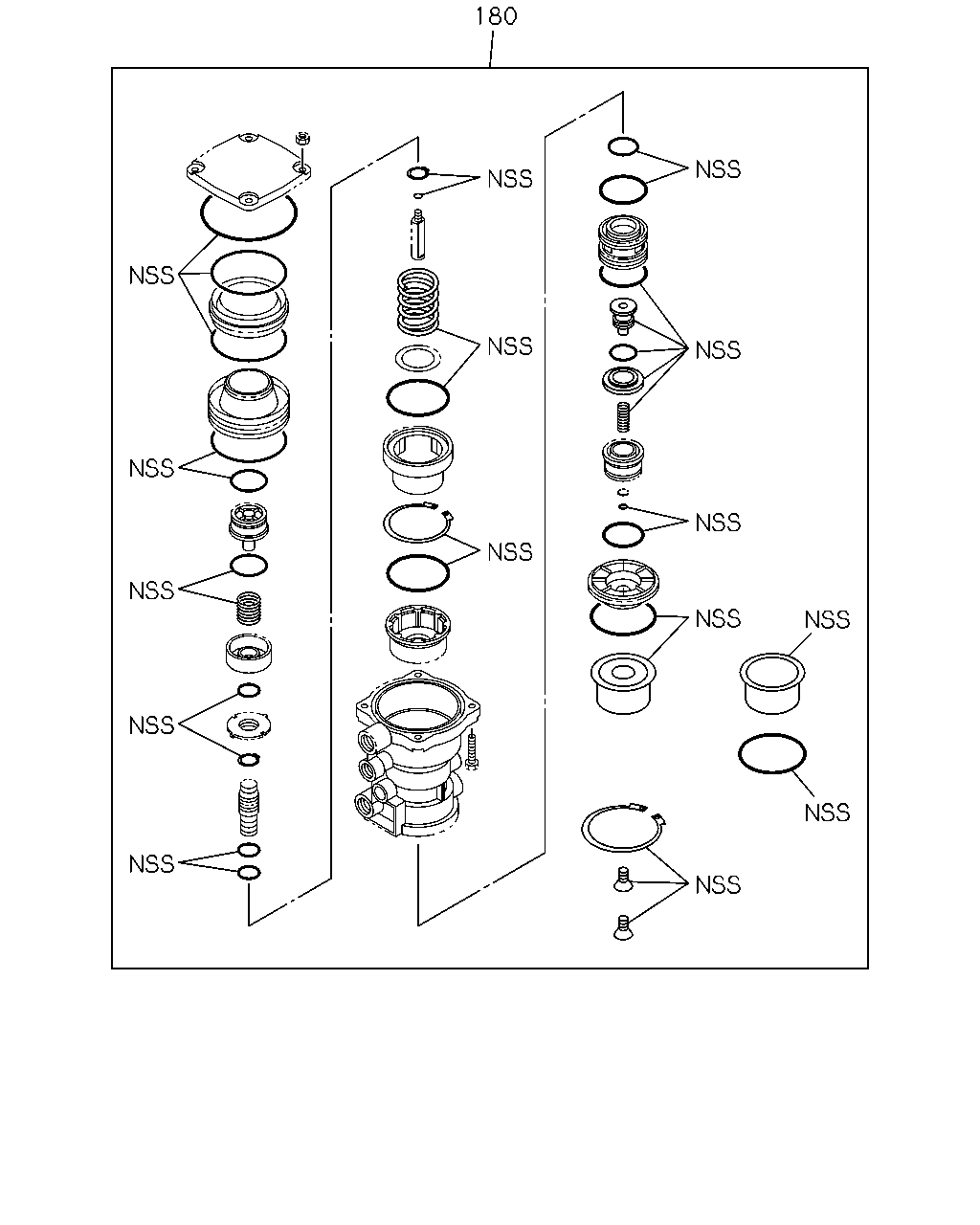

çizim 188889
180
BalonParca AdiParca NoAdetTipApplied Date
180 REPAIR KIT; RELAY VLV 1-85576-449-0 01 1 1009-

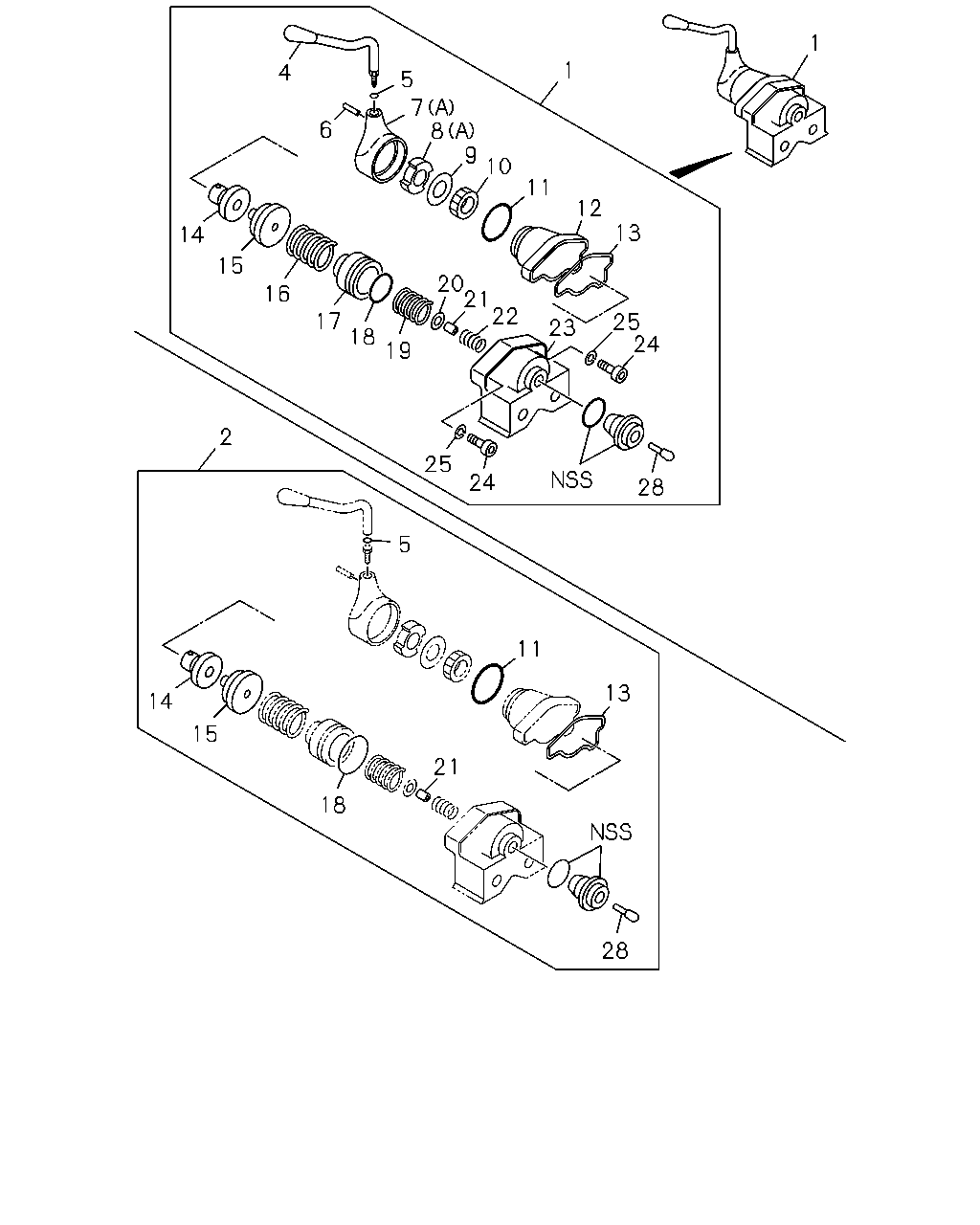

çizim 188890
1 1 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 25 24 24 25 23 22 21 20 11 13 5 2 14 15 18 21 28 28
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; HAND BRK 1-48100-848-0 01 1 1009-
2 REPAIR KIT; HAND BRK VLV 1-85576-181-0 01 1 1009-
4 HANDLE ASM; BRK VLV 1-48119-517-0 01 1 1009-
5 GASKET; HANDLE 1-48119-128-0 01 1 1009-
6 PIN; SPR 1-48119-143-0 01 1 1009-
7 HEAD; BRK VLV
(A) 		1-48119-131-1 01 1 1009-
7 HEAD; BRK VLV
BRAKE REGULATION HONG KONG<TCZ> (B) 		1-48469-209-0 01 1 1009-1302
7 HEAD; BRK VLV
(B) 		1-48469-209-0 01 1 1303-
7 HEAD; BRK VLV
EXC. BRAKE REGULATION HONG KONG<TCZ> (B) 		1-48469-201-0 01 1 1009-1302
8 STOPPER; BRK VLV
(A) 		1-48119-239-0 01 1 1009-
8 STOPPER; BRK VLV
(B) 		1-48469-200-0 01 1 1009-
9 WASHER; LK,ADJ 1-48119-123-0 01 1 1009-
10 RING; ADJ 1-48119-122-0 01 1 1009-
11 GASKET; HD TO COVER 1-48119-130-0 01 1 1009-
12 COVER; BRK VLV 1-48129-097-1 01 1 1009-
13 GASKET; BODY TO COVER 1-48119-120-0 01 1 1009-
14 FOLLOWER; CAM 1-48129-135-0 01 1 1009-
15 CAM; FOLLOWER 1-48129-134-0 01 1 1009-
16 SPRING; GRUDUATING 1-48129-101-0 01 1 1009-
17 PISTON; SPR 1-48129-095-0 01 1 1009-
18 GASKET; BODY 1-48129-096-0 01 1 1009-
19 SPRING; PISTON 1-48129-094-0 01 1 1009-
20 GUIDE; VLV 1-48129-090-0 01 1 1009-
21 VALVE; IN & EXH 1-48121-017-0 01 1 1009-
22 SPRING; VLV 1-48123-024-0 01 1 1009-
23 BODY; BRK VLV 1-48111-060-1 01 1 1009-
24 BOLT; EXH VLV 1-48129-092-0 02 1 1009-
25 WASHER; LK,EXH VLV 1-48129-093-0 02 1 1009-
28 STEM ASM; BRK VLV 1-48129-089-0 01 1 1009-
