Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#69500) — 290 parça

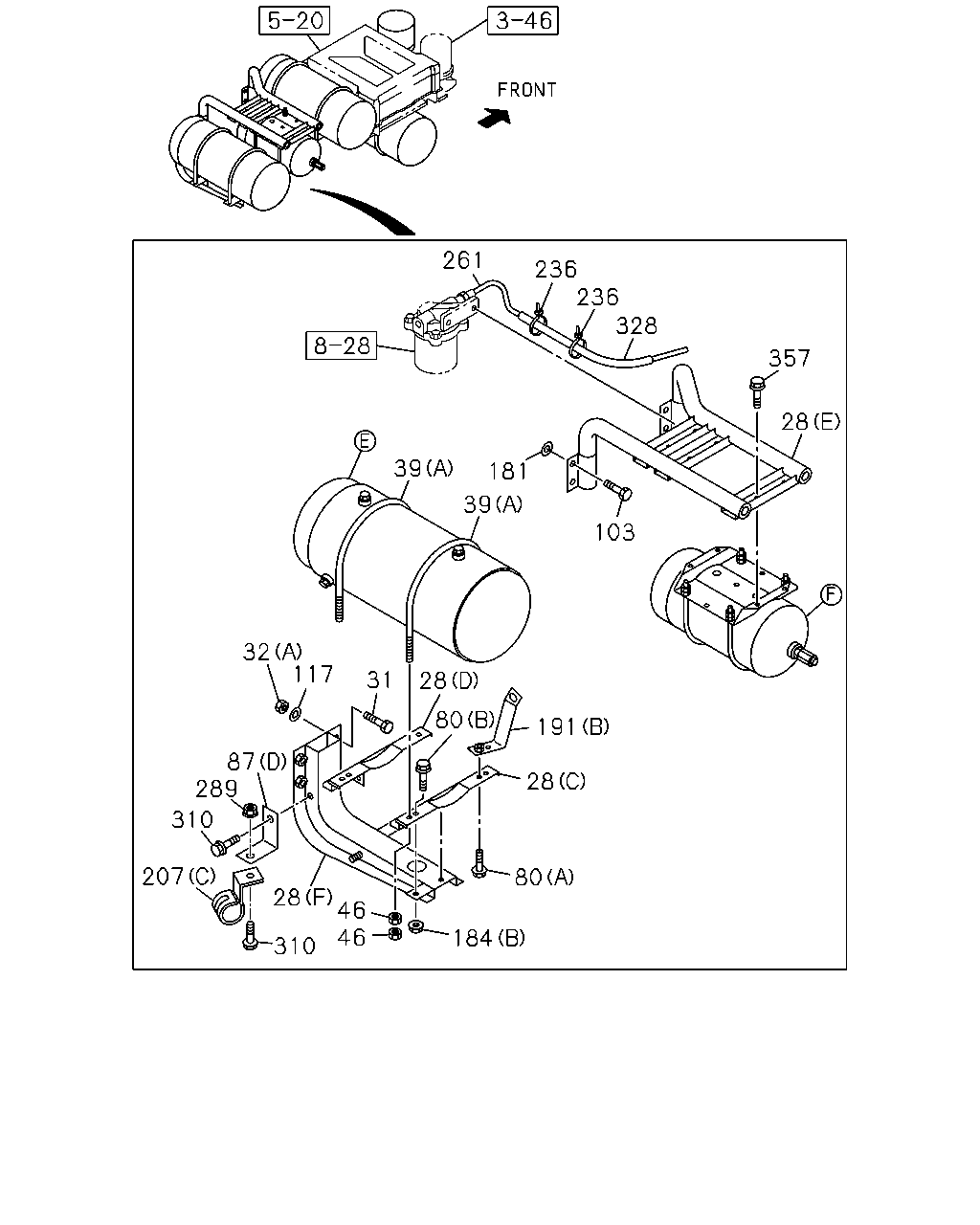

261 236 236 39 328 357 28 103 39 191 181 32 117 31 28 80 28 80 184 46 46 28 87 289 310 207 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BRACKET; AIR TANK (A)	1-47471-153-0	01	1	1009-1102
28	BRACKET; AIR TANK (G)	8-98187-151-0	01	1	1103-1302
28	BRACKET; AIR TANK (B)	1-48317-473-2	01	1	1303-
28	BRACKET; AIR TANK (F)	1-48316-024-3	01	1	1009-
28	BRACKET; AIR TANK (D)	1-48316-026-0	01	1	1009-
28	BRACKET; AIR TANK (B)	1-48317-473-2	01	1	1009-1302
28	BRACKET; AIR TANK (H)	8-98200-121-2	01	1	1303-
28	BRACKET; AIR TANK (E)	1-48317-985-1	01	1	1009-
28	BRACKET; AIR TANK (C)	1-48317-994-2	01	1	1009-
31	BOLT; BRKT TO FRAME M14X50	0-20851-450-0	04	1	1009-
32	NUT; BRKT TO FRAME (B) M8 FLANGE	0-91180-108-0	02	1	1303-
32	NUT; BRKT TO FRAME (A) M14	0-91110-514-0	04	1	1009-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1303-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	1009-1302
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	02	1	1303-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-1302
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	03	1	1303-
46	NUT; U-BOLT M8	0-91110-508-0	12	1	1303-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1302
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1302
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1303-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1303-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1303-
80	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-
80	BOLT; BRKT (B) M12X25 FLANGE	0-28651-225-0	04	1	1009-
87	BRACKET; AIR PIPE JOINT (E)	1-47471-189-0	02	1	1009-
87	BRACKET; AIR PIPE JOINT (A)	1-47479-690-0	01	1	1009-
87	BRACKET; AIR PIPE JOINT (C)	1-47479-707-0	01	1	1009-
87	BRACKET; AIR PIPE JOINT (G)	1-47479-944-0	01	1	1009-
87	BRACKET; AIR PIPE JOINT (D)	8-98053-747-0	01	1	1009-
87	BRACKET; AIR PIPE JOINT (F)	8-98055-494-0	01	1	1009-
87	BRACKET; AIR PIPE JOINT (B)	8-98060-053-0	01	1	1009-1302
103	BOLT; BRKT M14X35	0-20851-435-0	04	1	1009-
117	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1009-
181	WASHER; LK,AIR TANK ID=14.2	0-91510-514-0	04	1	1009-
184	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1009-
184	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	01	1	1009-
191	BRACKET; STOPPER,AIR TANK (B)	1-48316-014-1	01	1	1009-
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-015-1	01	1	1009-
207	CLIP; AIR PIPE (A) ID=7 L=20	0-95234-635-0	01	1	1009-
207	CLIP; AIR PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1009-
207	CLIP; AIR PIPE (A) ID=35 L=33	1-09700-945-0	01	1	1009-
207	CLIP; AIR PIPE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1009-
207	CLIP; AIR PIPE (A) ID=18 L=28	1-09701-067-0	01	1	1009-
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	13	1	1009-
207	CLIP; AIR PIPE (B) L=256	1-09707-189-0	02	1	1009-
236	CLIP; BAND SMOOTHER-G(C1W) L=350	1-09707-183-0	02	1	1303-
236	CLIP; BAND L=350	1-09707-183-0	02	1	1009-1302
236	CLIP; BAND L=350	1-09707-183-0	03	1	1303-
261	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1009-1302
261	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1303-
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	10	1	1009-1302
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	09	1	1303-
310	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	1303-
310	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	08	1	1009-1302
310	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	07	1	1303-
328	TUBE; CORRUGATED SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1009-1302
328	TUBE; CORRUGATED SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1303-
357	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	1009-

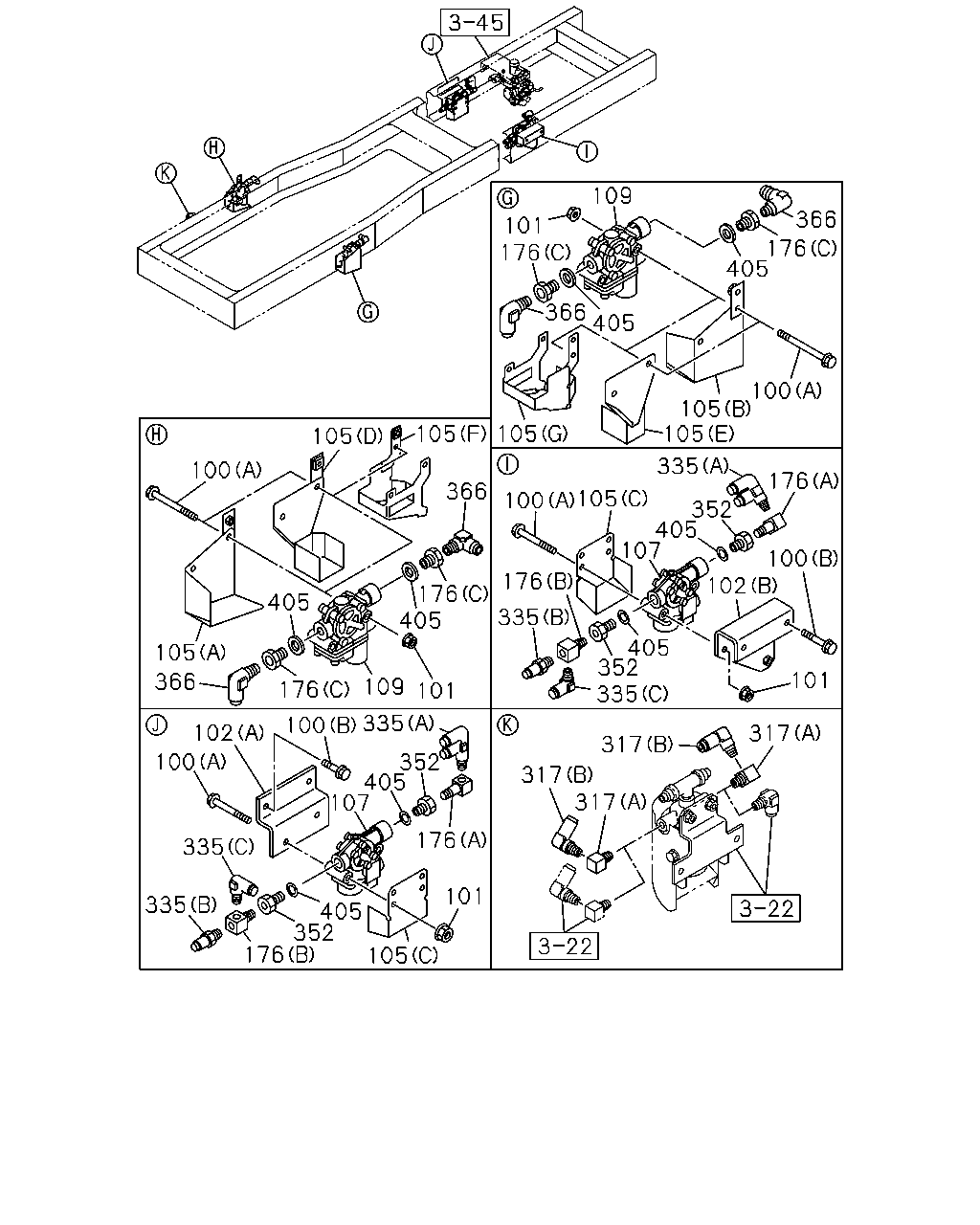

100 105 105 366 405 176 405 105 366 176 109 101 102 100 335 352 405 176 101 405 352 100 335 335 105 176 107 101 109 176 366 105 105 405 405 176 366 100 105 100 105 335 176 100 102 352 107 405 176 335 405 352 335 101 317 317 317 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR (A) M8X85	1-09044-074-0	04	1	1505-
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	04	1	1009-1504
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	04	1	1009-1504
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	04	1	1505-
100	BOLT; MODULATOR (B) M8X25 FLANGE	0-28650-825-0	04	1	1009-
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	04	1	1009-1302
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1303-
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1303-
102	BRACKET; MODULATOR (A)	1-47471-180-0	01	1	1009-1504
102	BRACKET; MODULATOR (A)	8-98300-018-0	01	1	1505-
102	BRACKET; MODULATOR (B)	8-98049-914-0	01	1	1009-1504
102	BRACKET; MODULATOR (B)	8-98300-020-0	01	1	1505-
105	COVER; MODULATOR (C)	8-98302-925-0	01	1	1505-
105	COVER; MODULATOR (C)	1-47471-354-0	02	1	1009-1504
105	COVER; MODULATOR (C)	8-98302-924-0	01	1	1505-
105	COVER; MODULATOR (A)	8-98049-454-0	01	1	1009-1302
105	COVER; MODULATOR (D)	8-98147-206-0	01	1	1303-1504
105	COVER; MODULATOR (F)	8-98300-154-0	01	1	1505-
105	COVER; MODULATOR (B)	8-98061-815-0	01	1	1009-1302
105	COVER; MODULATOR (E)	8-98226-757-0	01	1	1303-1504
105	COVER; MODULATOR (G)	8-98300-152-0	01	1	1505-
107	MODULATOR; RR	1-48240-115-0	02	1	1009-1504
107	MODULATOR; RR	8-98215-454-0	02	1	1505-
109	MODULATOR; FRT	1-48240-115-0	02	1	1009-1504
109	MODULATOR; FRT	8-98215-454-0	02	1	1505-
176	ADAPTER (C) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-
176	ADAPTER (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-
176	ADAPTER (B) PT3/8 3WAY	1-09661-300-0	02	1	1009-
317	CONNECTOR; MODULATOR (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-1302
317	CONNECTOR; MODULATOR (A) PT3/8 ELBOW	1-09660-696-0	01	1	1303-
317	CONNECTOR; MODULATOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1302
335	CONNECTOR; MODULATOR (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-
335	CONNECTOR; MODULATOR (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-
335	CONNECTOR; MODULATOR (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1009-
352	CONNECTOR; STRAIGHT INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-
366	CONNECTOR; NYLON TUBE DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-
405	GASKET ID=22.5	9-09571-422-0	04	1	1009-
405	GASKET ID=22.5	9-09571-422-0	04	1	1009-

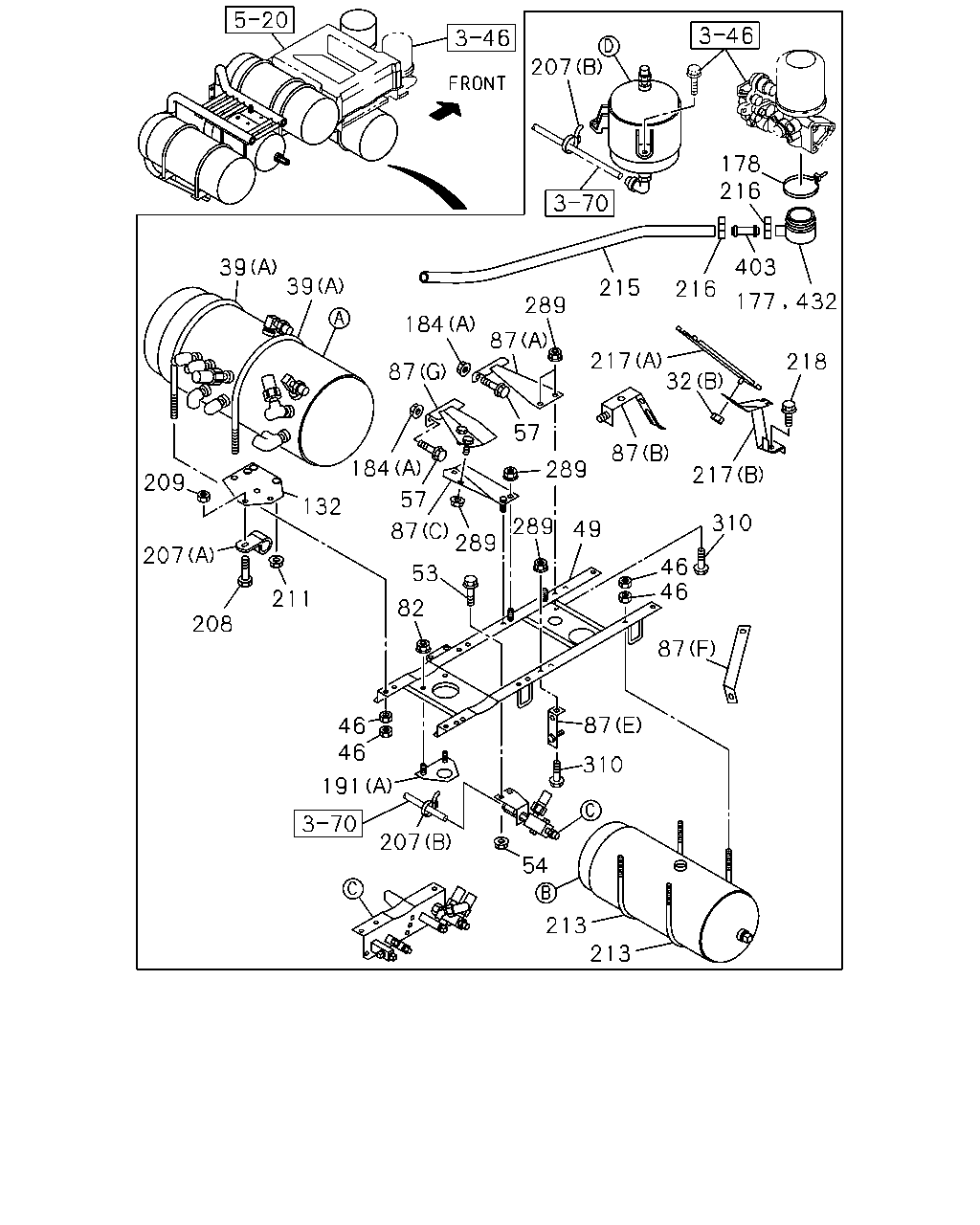

213 213 54 207 310 87 87 46 46 310 217 218 432 177 403 216 216 178 207 215 289 217 32 87 49 289 289 289 82 53 87 57 184 57 87 184 87 46 46 191 211 208 207 209 132 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	NUT; BRKT TO FRAME (B) M8 FLANGE	0-91180-108-0	02	1	1303-
32	NUT; BRKT TO FRAME (A) M14	0-91110-514-0	04	1	1009-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1303-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	1009-1302
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	02	1	1303-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-1302
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	03	1	1303-
46	NUT; U-BOLT M8	0-91110-508-0	12	1	1303-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1302
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1302
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1303-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1303-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1303-
49	BRACKET; AIR TANK	8-98127-561-2	01	1	1009-
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1009-1302
54	NUT; STAY M8 FLANGE	0-91180-108-0	01	1	1303-
57	BOLT; BRKT,AIR TANK TO FRAME M10X25 FLANGE	0-28651-025-0	04	1	1009-
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	1009-
87	BRACKET; AIR PIPE JOINT (E)	1-47471-189-0	02	1	1009-
87	BRACKET; AIR PIPE JOINT (A)	1-47479-690-0	01	1	1009-
87	BRACKET; AIR PIPE JOINT (C)	1-47479-707-0	01	1	1009-
87	BRACKET; AIR PIPE JOINT (G)	1-47479-944-0	01	1	1009-
87	BRACKET; AIR PIPE JOINT (D)	8-98053-747-0	01	1	1009-
87	BRACKET; AIR PIPE JOINT (F)	8-98055-494-0	01	1	1009-
87	BRACKET; AIR PIPE JOINT (B)	8-98060-053-0	01	1	1009-1302
132	BRACKET; STRING GUIDE	8-98140-096-0	01	1	1009-1302
132	BRACKET; STRING GUIDE	8-98200-122-0	01	1	1303-
177	HOSE; RUBBER,DRAIN	1-48199-599-0	01	1	1303-1407
178	CLIP; HOSE ID=68-85	8-94320-428-0	01	1	1303-
184	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1009-
184	NUT; BRKT (B) M12 FLANGE	0-91180-212-0	01	1	1009-
191	BRACKET; STOPPER,AIR TANK (B)	1-48316-014-1	01	1	1009-
191	BRACKET; STOPPER,AIR TANK (A)	1-48316-015-1	01	1	1009-
207	CLIP; AIR PIPE (A) ID=7 L=20	0-95234-635-0	01	1	1009-
207	CLIP; AIR PIPE (A) ID=16 L=20	0-95235-535-0	01	1	1009-
207	CLIP; AIR PIPE (A) ID=35 L=33	1-09700-945-0	01	1	1009-
207	CLIP; AIR PIPE (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1009-
207	CLIP; AIR PIPE (A) ID=18 L=28	1-09701-067-0	01	1	1009-
207	CLIP; AIR PIPE (B) L=350	1-09707-183-0	13	1	1009-
207	CLIP; AIR PIPE (B) L=256	1-09707-189-0	02	1	1009-
208	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1009-
209	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1009-
211	NUT; STRING GUIDE M8 FLANGE	0-91180-108-0	02	1	1009-
213	BOLT; U AIR TANK L=303	1-48317-087-2	02	1	1009-
215	PIPE; VINYL	0-02775-120-0	01	1	1303-
216	CLIP; PIPE,VINYL ID=32	9-09715-053-1	02	1	1303-
217	BRACKET; RUBBER HOSE (B)	8-98229-868-0	01	1	1303-
217	BRACKET; RUBBER HOSE (A)	8-97622-898-1	01	1	1303-1304
217	BRACKET; RUBBER HOSE (A)	8-97622-898-1	01	1	1303-1304
217	BRACKET; RUBBER HOSE (A)	8-97622-898-1	01	1	1305-
218	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1303-
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	10	1	1009-1302
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	09	1	1303-
310	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	1303-
310	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	08	1	1009-1302
310	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	07	1	1303-
403	PIPE; JOINT	1-48199-600-0	01	1	1303-
432	COVER; ADAPTER	8-98279-091-0	01	1	1408-

11 2 126 10 1 5 5 10 10 8 5 5 10 7 6 46 46 28 5 39 39 10 7 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (C)	1-48371-165-3	01	1	1009-
1	TANK ASM; AIR (D)	1-48371-226-3	01	1	1009-
1	TANK ASM; AIR (A)	1-48371-387-1	01	1	1009-
1	TANK ASM; AIR (B)	1-48371-434-1	01	1	1009-
2	TANK; AIR	1-48371-166-3	01	1	1009-
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1009-1302
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1303-
5	UNION; AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1009-
5	UNION; AIR TANK (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	1009-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1303-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1303-
6	COCK; DRAIN,AIR TANK (A)	1-48312-006-1	01	1	1009-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	06	1	1009-1302
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	04	1	1303-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1303-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	07	1	1009-1302
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1303-
8	CONNECTOR; AIR TANK (A) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1009-
8	CONNECTOR; AIR TANK (B)	1-09661-568-0	02	1	1009-
8	CONNECTOR; AIR TANK (C) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	1009-1302
8	CONNECTOR; AIR TANK SMOOTHER-G(C1W) (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1303-
10	PLUG; AIR TANK TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT3/8	9-09204-517-0	01	1	1303-
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	01	1	1303-
10	PLUG; AIR TANK (B) M22	1-09661-502-0	02	1	1303-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	1303-
10	PLUG; AIR TANK (B) M22	1-09661-502-0	03	1	1009-1302
10	PLUG; AIR TANK (B) M22	1-09661-502-0	01	1	1303-
10	PLUG; AIR TANK (E) M14	1-09661-569-0	02	1	1009-
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	01	1	1009-1102
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	01	1	1009-1102
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	02	1	1103-1302
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	04	1	1303-
10	PLUG; AIR TANK (D) PT3/4	9-09204-526-0	01	1	1009-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	05	1	1009-1102
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	07	1	1103-1302
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	1303-
11	VALVE; SAFETY,AIR TANK (A)	1-48320-012-2	01	1	1009-
11	VALVE; SAFETY,AIR TANK (B)	1-48320-047-2	01	1	1009-
28	BRACKET; AIR TANK (A)	1-47471-153-0	01	1	1009-1102
28	BRACKET; AIR TANK (G)	8-98187-151-0	01	1	1103-1302
28	BRACKET; AIR TANK (B)	1-48317-473-2	01	1	1303-
28	BRACKET; AIR TANK (F)	1-48316-024-3	01	1	1009-
28	BRACKET; AIR TANK (D)	1-48316-026-0	01	1	1009-
28	BRACKET; AIR TANK (B)	1-48317-473-2	01	1	1009-1302
28	BRACKET; AIR TANK (H)	8-98200-121-2	01	1	1303-
28	BRACKET; AIR TANK (E)	1-48317-985-1	01	1	1009-
28	BRACKET; AIR TANK (C)	1-48317-994-2	01	1	1009-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1303-
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	04	1	1009-1302
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	02	1	1303-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-1302
39	U-BOLT; AIR TANK (A) L=303	1-48317-087-2	03	1	1303-
46	NUT; U-BOLT M8	0-91110-508-0	12	1	1303-
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1302
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1302
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1303-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1303-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1303-
126	CONNECTOR; ELBOW (B)	8-98227-936-0	01	1	1303-
126	CONNECTOR; ELBOW (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	1009-

180 203 203 180 28 10 369 124 383 383 10 10 124 429 344 10 126 11 383 124 13 28 203 180 28 10 203 180 124 282 369 344 10 10 11 124 1 4 8 7 6 10 1 10 10 166 8 8 10 166 5 5 5 7 7 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (C)	1-48371-165-3	01	1	1009-
1	TANK ASM; AIR (D)	1-48371-226-3	01	1	1009-
1	TANK ASM; AIR (A)	1-48371-387-1	01	1	1009-
1	TANK ASM; AIR (B)	1-48371-434-1	01	1	1009-
4	CONNECTOR; FLARE DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1009-
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1009-1302
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1303-
5	UNION; AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1009-
5	UNION; AIR TANK (B) DIN12 & M22 ELBOW	1-09661-497-0	01	1	1009-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1303-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1303-
6	COCK; DRAIN,AIR TANK (A)	1-48312-006-1	01	1	1009-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	06	1	1009-1302
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	04	1	1303-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1303-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1303-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	07	1	1009-1302
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1303-
8	CONNECTOR; AIR TANK (A) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1009-
8	CONNECTOR; AIR TANK (B)	1-09661-568-0	02	1	1009-
8	CONNECTOR; AIR TANK (C) DIN8 & R3/8 & RC1/4 3WAY	1-09661-687-0	01	1	1009-1302
8	CONNECTOR; AIR TANK SMOOTHER-G(C1W) (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1303-
10	PLUG; AIR TANK TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT3/8	9-09204-517-0	01	1	1303-
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	01	1	1303-
10	PLUG; AIR TANK (B) M22	1-09661-502-0	02	1	1303-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	1303-
10	PLUG; AIR TANK (B) M22	1-09661-502-0	03	1	1009-1302
10	PLUG; AIR TANK (B) M22	1-09661-502-0	01	1	1303-
10	PLUG; AIR TANK (E) M14	1-09661-569-0	02	1	1009-
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	01	1	1009-1102
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	01	1	1009-1102
10	PLUG; AIR TANK (C) PT3/8	9-09204-517-0	02	1	1103-1302
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	04	1	1303-
10	PLUG; AIR TANK (D) PT3/4	9-09204-526-0	01	1	1009-
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	05	1	1009-1102
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	07	1	1103-1302
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	1303-
11	VALVE; SAFETY,AIR TANK (A)	1-48320-012-2	01	1	1009-
11	VALVE; SAFETY,AIR TANK (B)	1-48320-047-2	01	1	1009-
13	ADAPTER; NYLON TUBE DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1009-1302
28	BRACKET; AIR TANK (A)	1-47471-153-0	01	1	1009-1102
28	BRACKET; AIR TANK (G)	8-98187-151-0	01	1	1103-1302
28	BRACKET; AIR TANK (B)	1-48317-473-2	01	1	1303-
28	BRACKET; AIR TANK (F)	1-48316-024-3	01	1	1009-
28	BRACKET; AIR TANK (D)	1-48316-026-0	01	1	1009-
28	BRACKET; AIR TANK (B)	1-48317-473-2	01	1	1009-1302
28	BRACKET; AIR TANK (H)	8-98200-121-2	01	1	1303-
28	BRACKET; AIR TANK (E)	1-48317-985-1	01	1	1009-
28	BRACKET; AIR TANK (C)	1-48317-994-2	01	1	1009-
124	SWITCH; AIR PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	1009-1302
124	SWITCH; AIR PRESSURE (A) STAMP 5.5	8-97609-249-0	02	1	1303-
124	SWITCH; AIR PRESSURE (B) STAMP 6.5	8-97609-252-0	01	1	1009-
126	CONNECTOR; ELBOW (B)	8-98227-936-0	01	1	1303-
126	CONNECTOR; ELBOW (A) DIN8 & M22 ELBOW	1-09661-495-0	01	1	1009-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) STAMP 5.5	8-97609-249-0	01	1	1009-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (B) STAMP 6.5	8-97609-252-0	01	1	1009-1302
180	WASHER; LK (B) ID=18.2	0-91510-518-0	01	1	1103-1302
180	WASHER; LK (B) ID=18.2	0-91510-518-0	03	1	1303-
180	WASHER; LK (A) ID=16.2	0-91510-516-0	01	1	1009-1302
203	NUT (B) M18	0-91110-518-0	01	1	1103-1302
203	NUT (B) M18	0-91110-518-0	03	1	1303-
203	NUT (A) M16	0-91110-516-0	01	1	1009-1302
282	UNION; 2 WAY	1-09650-222-1	01	1	1009-1302
344	CONNECTOR; 4WAY	1-09660-521-2	01	1	1009-1302
344	CONNECTOR; 4WAY PT1/4 4WAY	1-09660-358-0	01	1	1303-
369	CONNECTOR; 3WAY	1-09661-593-0	01	1	1103-1302
369	CONNECTOR; 3WAY DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1303-
383	UNION; 3 WAY (A)	1-09661-092-0	02	1	1303-
383	UNION; 3 WAY (B)	1-09661-593-0	01	1	1303-
429	SENSOR THREAD R1/4	1-80220-023-1	01	1	1303-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
