0-52 - OIL AND VACUUM PIPING; ENGINE
▶
0-52 — OIL AND VACUUM PIPING; ENGINE
(#6950) — 39 parça
◀

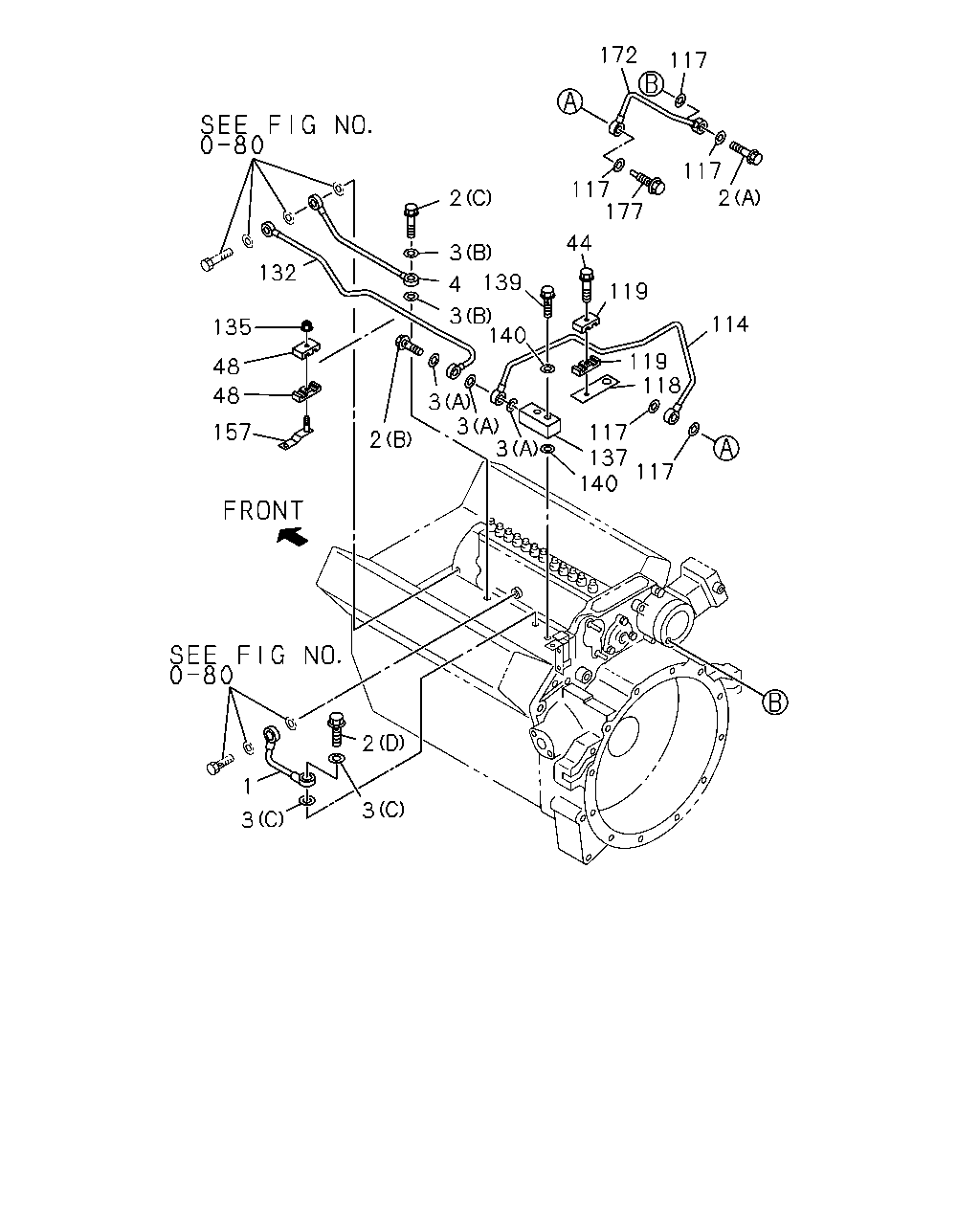

[052A] PIPING;INJ PUMP AND AIR CMPR (25 parça)

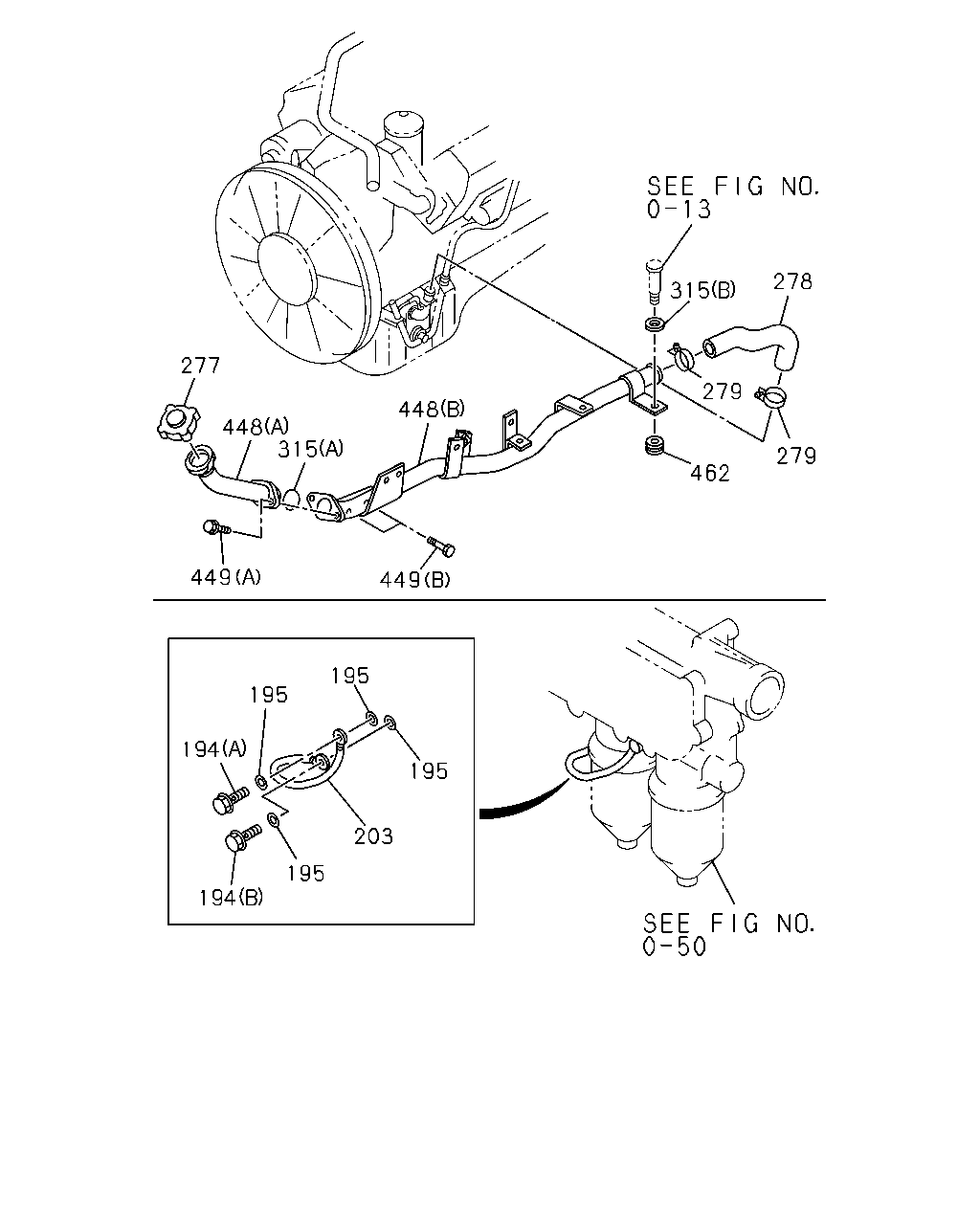

[052A] OIL FILLER AND HOSE;FILTER RETURN (14 parça)
▶
117
172
117
2
117
177
44
119
114
119
118
117
140
137
117
2
3
139
4
3
140
3
3
3
2
132
135
48
48
157
2
3
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; OIL,INJ PUMP TO C/BL
1-13313-495-0
01
1
9908-
2
BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE
1-09675-077-0
01
1
9908-
2
BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE
1-09675-085-0
01
1
9908-
2
BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE
1-09675-086-0
01
1
9908-
2
BOLT; EYE,OIL PIPE
(A) M10X32
1-09675-119-0
01
1
9908-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2
1-09630-083-0
03
1
9908-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2
1-09630-084-0
02
1
9908-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2
1-09630-085-0
02
1
9908-
4
PIPE ASM; OIL,GOV TO C/BL
1-13313-492-0
01
1
9908-
44
BOLT; CLIP,OIL PIPE
M6X25 FLANGE
0-28080-625-0
01
1
9908-
48
CLIP; OIL PIPE
ID=15 L=30
1-09701-132-1
02
1
9908-
114
PIPE ASM; OIL,BODY
1-13313-619-0
01
1
9908-
117
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2
1-09630-083-0
05
1
9908-
118
BRACKET; CLIP,OIL PIPE
1-13319-041-0
01
1
9908-
119
CLIP; OIL PIPE,BODY TO CMPR
ID=7 L=25 B=18
1-09700-851-0
02
1
9908-
132
PIPE ASM; OIL,INJ PUMP FEED
1-13313-607-0
01
1
9908-
135
NUT; CLIP
M6 FLANGE
0-91150-106-0
01
1
9908-
137
UNION; OIL PIPE
1-09664-170-0
01
1
9908-0008
137
UNION; OIL PIPE
1-09664-256-0
01
1
0009-
139
BOLT; EYE,UNION
M14X39 FLANGE
1-09675-089-0
01
1
9908-
140
GASKET; EYE BOLT,UNION
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
02
1
9908-
157
BRACKET; OIL PIPE
1-15419-363-1
01
1
9908-9910
157
BRACKET; OIL PIPE
1-15419-622-0
01
1
9911-
172
PIPE; OIL,TIMER
1-13313-620-0
01
1
9908-
177
JET ASM; OIL,OIL PIPE
1-09679-010-0
01
1
9908-
278
315
279
279
462
448
315
448
277
449
449
195
195
194
194
195
203
195
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
194
BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(A) M14X45
1-09675-023-1
01
1
9908-
194
BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(B) M14X33 FLANGE
1-09675-088-0
01
1
9908-
195
GASKET; EYE BOLT,PARTIAL FILTER
ID=14.2 OD=19.2
1-09630-085-0
04
1
9908-
203
HOSE; FLEX,PARTIAL FILTER,RETURN
L=440
1-09364-916-0
01
1
9908-
277
CAP; OIL FILLER
1-11750-020-0
01
1
9908-
278
HOSE; RUBBER,OIL FILLER
1-11749-149-0
01
1
9908-
279
CLIP; RUBBER HOSE
ID=48
9-09915-512-1
02
1
9908-
315
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7
1-09623-299-0
01
1
9908-
315
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.5 OD=26
9-09160-612-0
01
1
9908-
448
FILLER; OIL
(A)
1-11741-175-4
01
1
9908-
448
FILLER; OIL
(B)
1-11741-192-1
01
1
9908-
449
BOLT; OIL FILLER
(A) M8X20 FLANGE
0-28680-820-0
02
1
9908-
449
BOLT; OIL FILLER
(B) M8X25 FLANGE
0-28680-825-0
02
1
9908-
462
GROMMET
1-09332-117-0
01
1
9908-
