Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11294 - EXZ RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

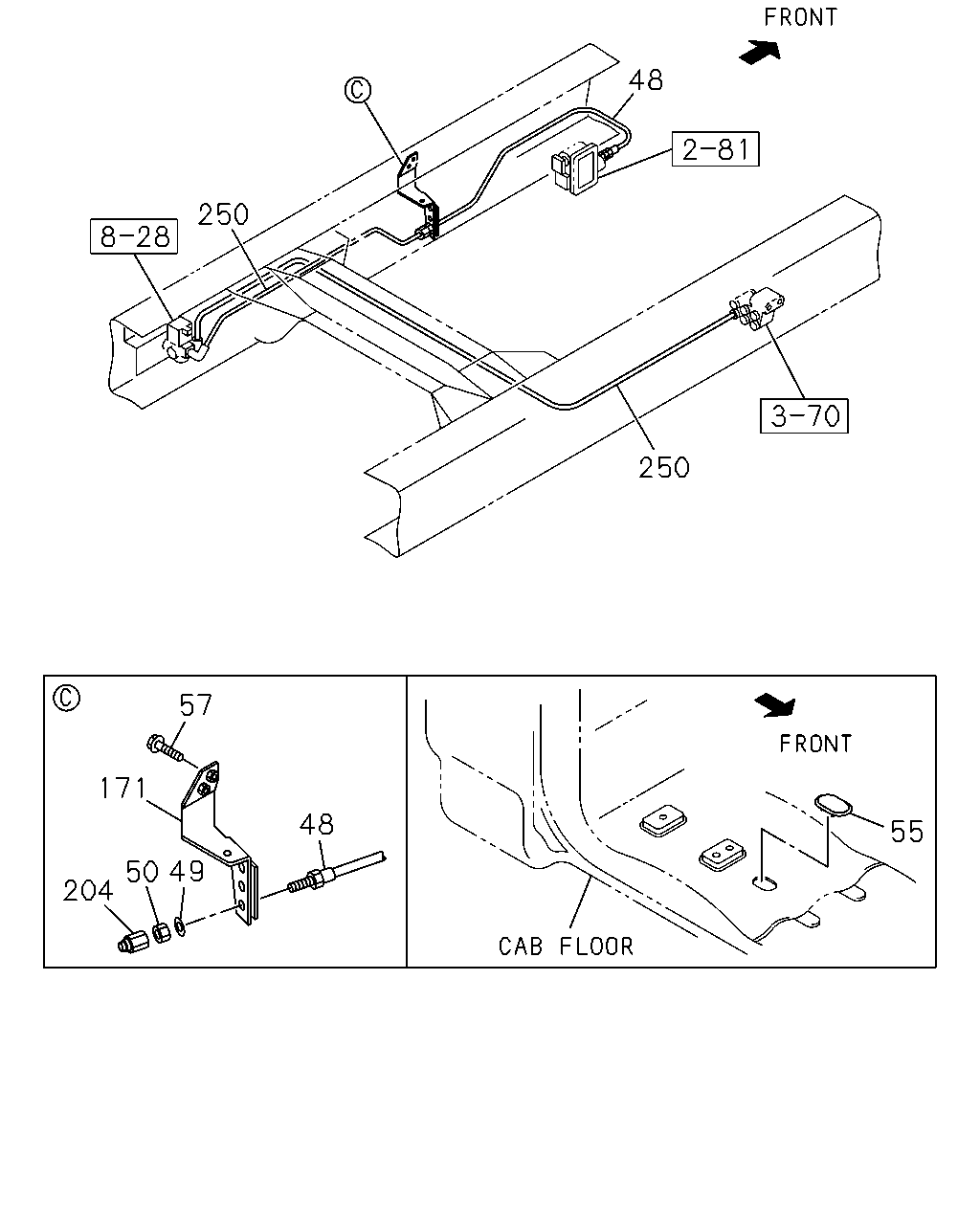

2-85 — POWER TAKE OFF CONTROL
(#69495) — 19 parça
◀
[285A] TRANSMISSION SIDE PTO HIGH CAPACITY (9 parça)
[285A] TRANSMISSION SIDE PTO HEAVY DUTY (10 parça)
▶
305
250
250
153
317
318
322
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
GROMMET; CABLE
1-09983-068-0
01
1
1009-
153
NUT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE
0-91180-108-0
01
1
1009-
250
TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=6
1-87411-001-0
02
1
1009-1302
250
TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6
1-87411-001-0
01
1
1303-
250
TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6
1-87411-001-0
01
1
1303-
305
TUBE; CORRUGATE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 ID=7
1-87411-016-0
01
1
1009-
317
CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) ID=11 L=16
0-95235-025-0
01
1
1009-
318
BOLT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE
0-28650-825-0
01
1
1009-
322
UNION
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1009-1302
48
250
250
55
48
57
171
49
50
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) L=300
1-09363-608-0
01
1
1303-
49
WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=12.2
0-91510-512-0
01
1
1303-
50
NUT; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12
9-09840-280-0
01
1
1303-
55
GROMMET; CABLE
1-09983-068-0
01
1
1009-
57
BOLT; BRKT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8X30 FLANGE
0-28650-830-0
02
1
1303-
171
BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P)
8-98171-734-0
01
1
1303-
204
CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1303-
250
TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=6
1-87411-001-0
02
1
1009-1302
250
TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6
1-87411-001-0
01
1
1303-
250
TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6
1-87411-001-0
01
1
1303-
