Sayfa 2-81 - Isuzu EPC

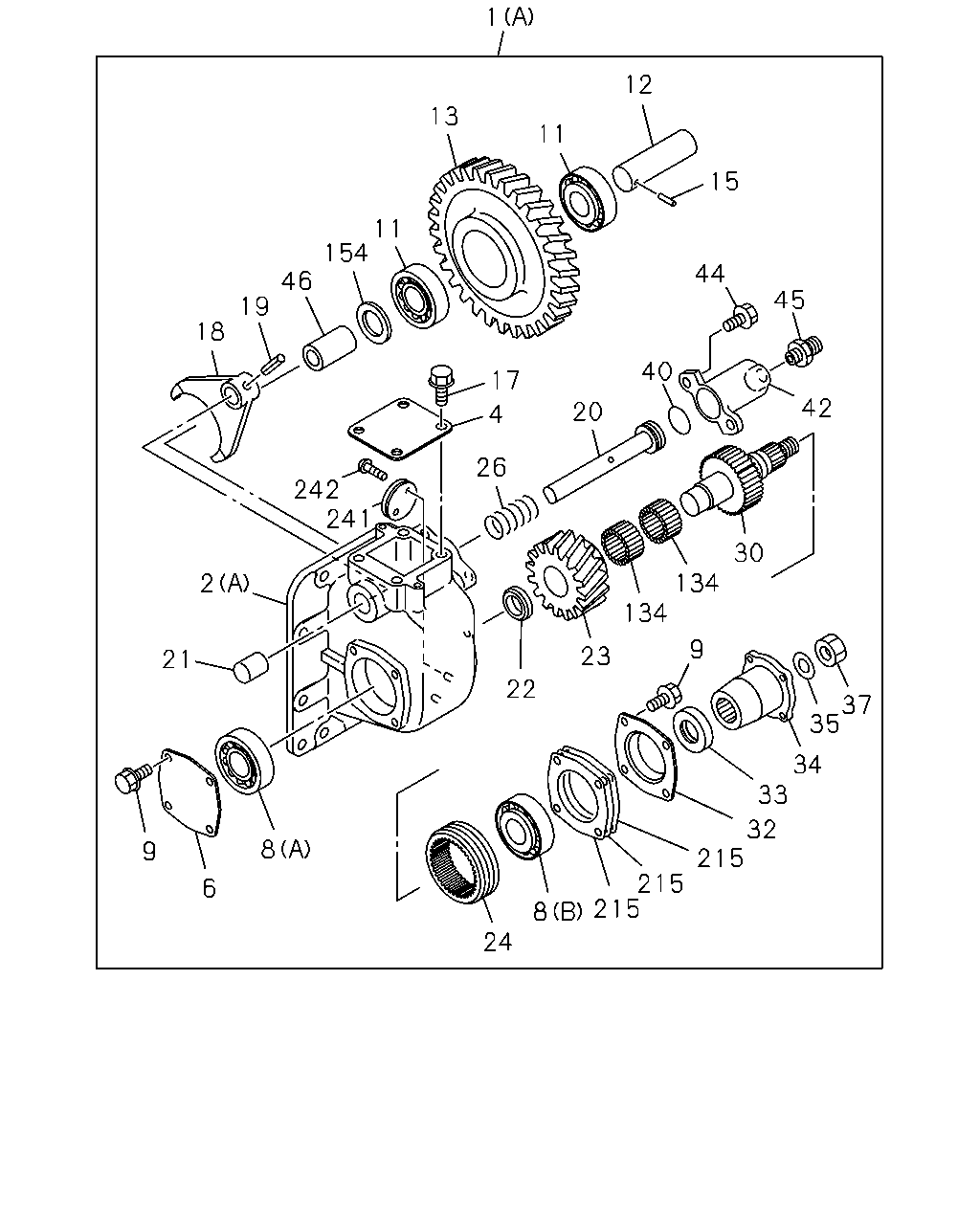

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#69494) — 145 parça

37 35 34 33 32 215 215 215 8 24 22 134 23 134 30 42 45 44 40 20 26 4 17 241 242 2 21 9 6 8 18 19 46 154 11 13 12 11 15 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B)	1-38000-380-3	01	1	1303-
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-38000-352-1	01	1	1009-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B)	1-38111-115-0	01	1	1303-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-38111-112-0	01	1	1009-
4	COVER; UPR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-38121-002-0	01	1	1009-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38151-022-0	01	1	1303-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38151-024-0	01	1	1009-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C)	1-38225-011-0	01	1	1303-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-38225-012-0	01	1	1303-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-09810-263-0	01	1	1009-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	5-09820-012-0	01	1	1009-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8X20 FLANGE	0-28080-820-0	08	1	1303-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M10X25 FLANGE	0-28781-025-0	08	1	1009-
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-09810-264-0	02	1	1009-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38211-039-0	01	1	1009-
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=34	1-38241-131-0	01	1	1009-
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-09878-614-0	01	1	1009-
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M10X20 FLANGE	0-28181-020-0	04	1	1009-
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38361-036-0	01	1	1303-
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38361-041-0	01	1	1009-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-97306-596-0	01	1	1303-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-09878-614-0	01	1	1009-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38371-058-1	01	1	1303-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38371-048-1	01	1	1009-
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-33545-001-0	01	1	1009-1302
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	9-33545-001-0	01	1	1303-
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38245-023-0	01	1	1303-
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38226-082-0	01	1	1009-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) Z=23	1-38241-134-1	01	1	1303-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=18	1-38241-129-0	01	1	1009-
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38225-010-0	01	1	1303-
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38225-014-0	01	1	1009-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38121-009-0	01	1	1303-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38121-008-0	01	1	1009-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38221-056-0	01	1	1303-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38211-034-0	01	1	1009-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-97305-793-0	01	1	1303-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38161-029-0	01	1	1009-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-98036-323-0	01	1	1303-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98028-791-0	01	1	1009-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38512-028-0	01	1	1303-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38512-015-0	01	1	1009-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-09503-013-0	01	1	1009-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M24 FLANGE	8-98189-932-0	01	1	1303-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M24	5-09409-021-0	01	1	1009-
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-09561-324-0	01	1	1009-1302
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	9-09561-324-0	01	1	1303-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-97306-597-0	01	1	1303-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38377-007-0	01	1	1009-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8X20 FLANGE	0-28080-820-0	02	1	1303-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M10X25 FLANGE	0-28781-025-0	02	1	1009-
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
46	COLLAR; DIST,IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38216-060-0	01	1	1009-
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-09811-412-0	02	1	1303-
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-09811-429-0	02	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.55	1-38216-047-0	01	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.60	1-38216-048-0	01	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.65	1-38216-049-0	01	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.70	1-38216-050-0	01	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.75	1-38216-051-0	01	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.80	1-38216-052-0	01	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.85	1-38216-053-0	01	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.90	1-38216-054-0	01	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.95	1-38216-055-0	01	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=4.00	1-38216-056-0	01	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=4.05	1-38216-057-0	01	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=4.10	1-38216-058-0	01	1	1009-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=4.15	1-38216-059-0	01	1	1009-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.05	1-38229-013-0	AR	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.07	1-38229-014-0	AR	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.10	1-38229-015-0	AR	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.15	1-38229-016-0	AR	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.50	1-38229-017-0	AR	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.75	1-38229-018-0	AR	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.10	5-33156-010-0	04	1	1009-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.15	5-33156-011-0	04	1	1009-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.20	5-33156-012-0	04	1	1009-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.40	5-33156-013-0	04	1	1009-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.65	5-33156-014-0	04	1	1009-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.80	5-33156-015-0	04	1	1009-
241	BRACKET; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-32579-019-0	01	1	1009-
242	SCREW; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-09129-017-0	02	1	1009-

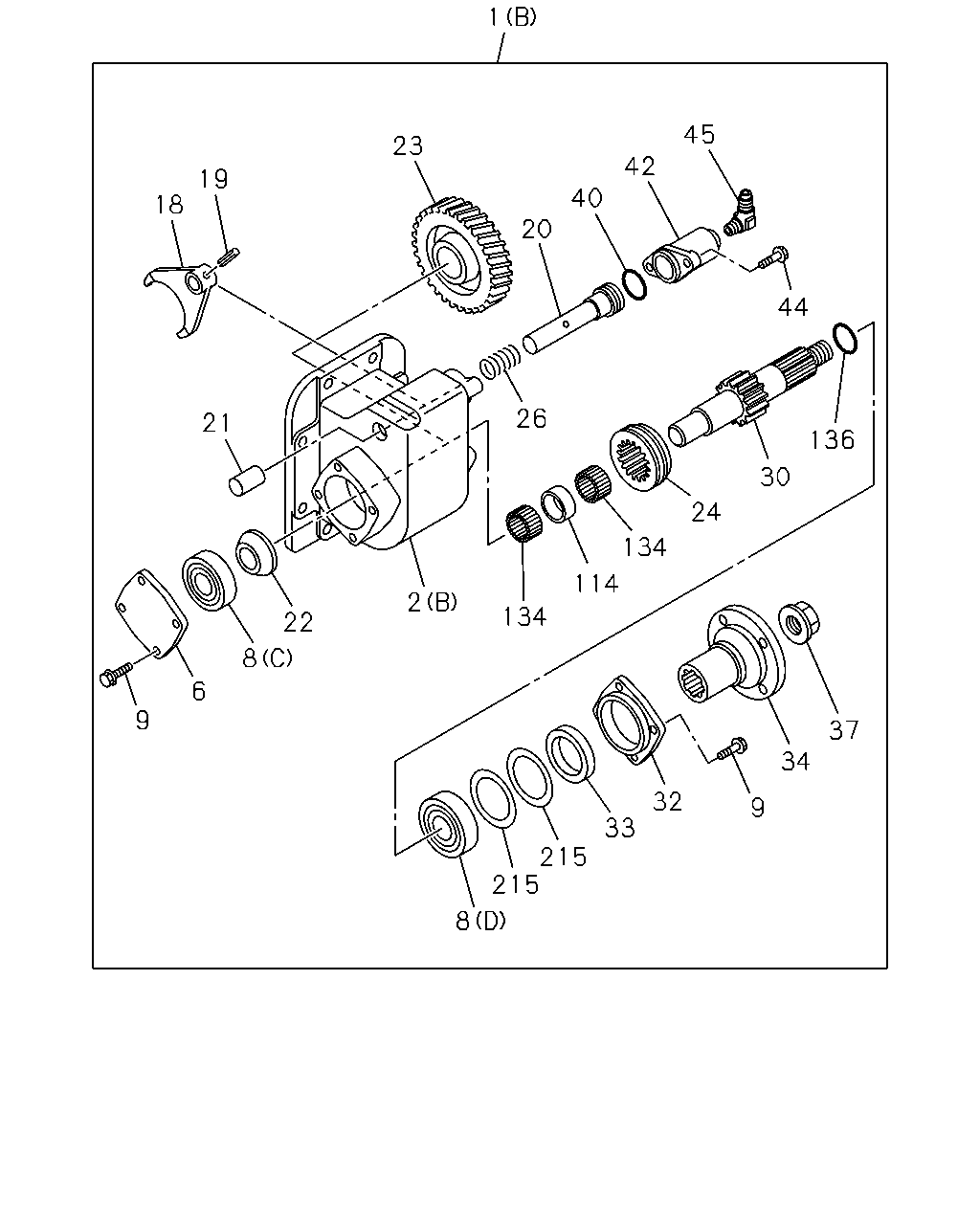

1 23 19 18 21 9 8 6 22 134 134 30 114 136 26 44 20 40 42 45 8 215 215 33 9 32 34 37 24 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B)	1-38000-380-3	01	1	1303-
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-38000-352-1	01	1	1009-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B)	1-38111-115-0	01	1	1303-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-38111-112-0	01	1	1009-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38151-022-0	01	1	1303-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38151-024-0	01	1	1009-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (C)	1-38225-011-0	01	1	1303-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (D)	1-38225-012-0	01	1	1303-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-09810-263-0	01	1	1009-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	5-09820-012-0	01	1	1009-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8X20 FLANGE	0-28080-820-0	08	1	1303-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M10X25 FLANGE	0-28781-025-0	08	1	1009-
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38361-036-0	01	1	1303-
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38361-041-0	01	1	1009-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-97306-596-0	01	1	1303-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-09878-614-0	01	1	1009-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38371-058-1	01	1	1303-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38371-048-1	01	1	1009-
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-33545-001-0	01	1	1009-1302
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	9-33545-001-0	01	1	1303-
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38245-023-0	01	1	1303-
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38226-082-0	01	1	1009-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) Z=23	1-38241-134-1	01	1	1303-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=18	1-38241-129-0	01	1	1009-
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38225-010-0	01	1	1303-
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38225-014-0	01	1	1009-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38121-009-0	01	1	1303-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38121-008-0	01	1	1009-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38221-056-0	01	1	1303-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38211-034-0	01	1	1009-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-97305-793-0	01	1	1303-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38161-029-0	01	1	1009-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-98036-323-0	01	1	1303-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98028-791-0	01	1	1009-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38512-028-0	01	1	1303-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38512-015-0	01	1	1009-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M24 FLANGE	8-98189-932-0	01	1	1303-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M24	5-09409-021-0	01	1	1009-
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-09561-324-0	01	1	1009-1302
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	9-09561-324-0	01	1	1303-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	8-97306-597-0	01	1	1303-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38377-007-0	01	1	1009-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8X20 FLANGE	0-28080-820-0	02	1	1303-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M10X25 FLANGE	0-28781-025-0	02	1	1009-
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
114	COLLAR; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-38229-045-0	01	1	1303-
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-09811-412-0	02	1	1303-
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-09811-429-0	02	1	1009-
136	GASKET; PTO SHAFT TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-09623-246-0	01	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.05	1-38229-013-0	AR	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.07	1-38229-014-0	AR	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.10	1-38229-015-0	AR	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.15	1-38229-016-0	AR	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.50	1-38229-017-0	AR	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.75	1-38229-018-0	AR	1	1303-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.10	5-33156-010-0	04	1	1009-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.15	5-33156-011-0	04	1	1009-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.20	5-33156-012-0	04	1	1009-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.40	5-33156-013-0	04	1	1009-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.65	5-33156-014-0	04	1	1009-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.80	5-33156-015-0	04	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
