2-38 — SHIFT CONTROL (#69492) — 10 parça

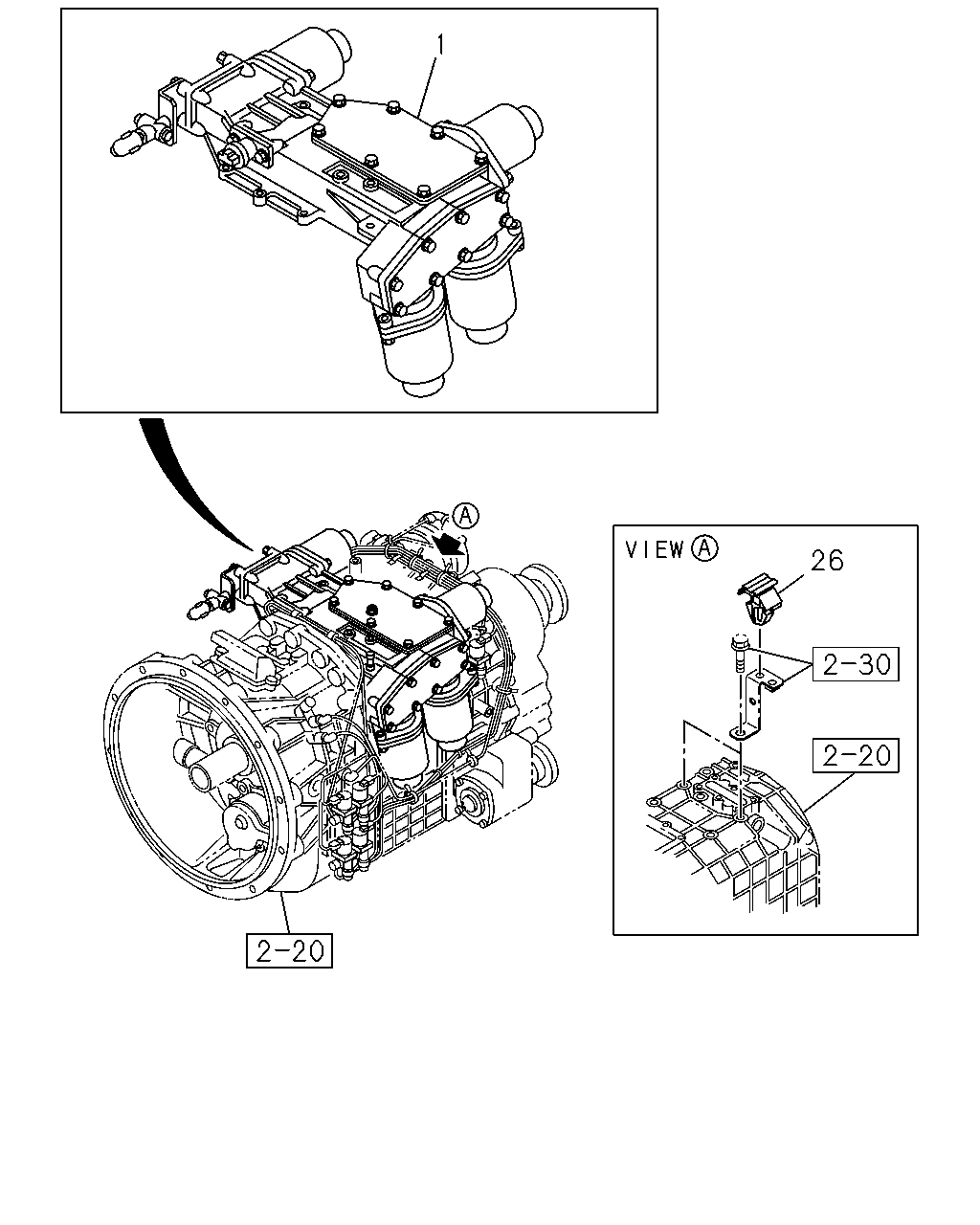

çizim 188873
1 26
BalonParca AdiParca NoAdetTipApplied Date
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 		8-98163-036-0 01 1 1009-1106
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 		8-98186-516-0 01 1 1107-1302
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W) 		8-98186-519-0 01 1 1303-1310
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W) 		8-98254-321-0 01 1 1311-1506
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. SMOOTHER-G(C1W) 		8-98302-719-0 01 1 1507-
26 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) OD=9 H=6 		1-09709-178-0 02 1 1303-

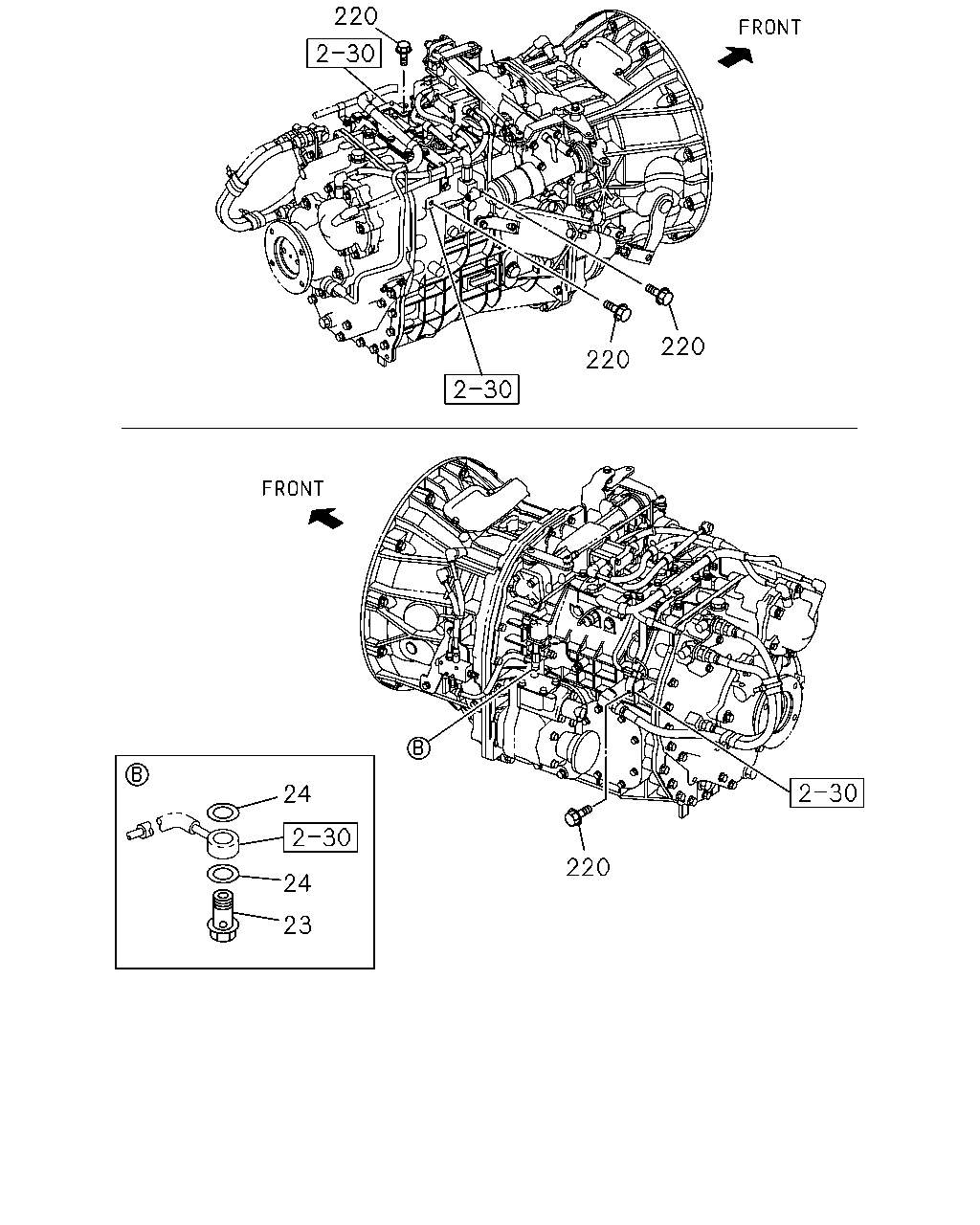

çizim 336252
220 220 220 220 24 24 23
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; EYE
TRANSMISSION CONTROL CABLE TYPE(C1A) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1303-
24 GASKET
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=12.2 		1-09630-084-0 02 1 1303-1312
24 GASKET
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=12.2 		8-98251-344-0 02 1 1401-
220 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X25 FLANGE 		0-28751-025-0 03 1 1303-
