◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11294 - EXZ RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#69491) — 111 parça

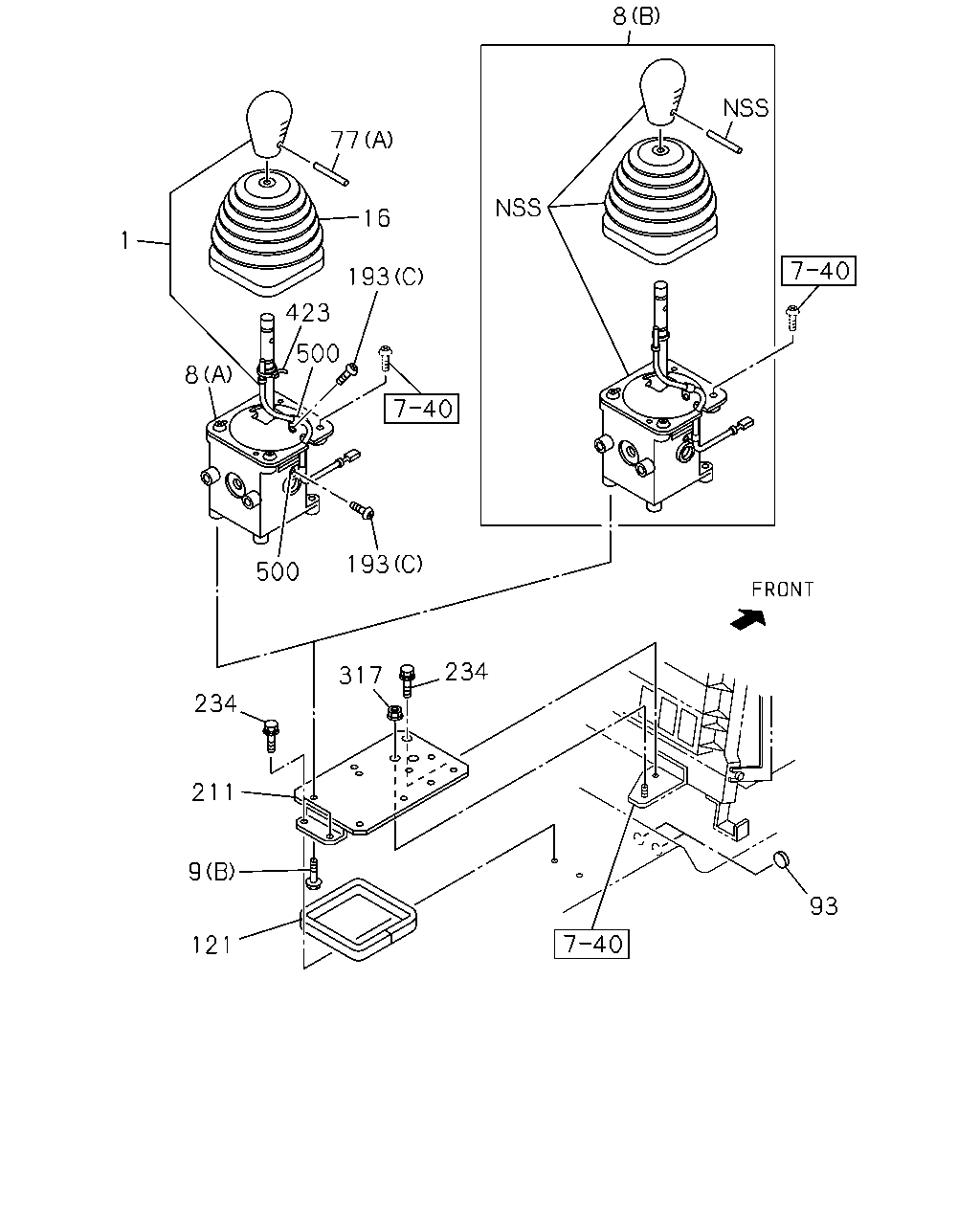

çizim 113849
8 77 1 423 193 16 500 8 500 234 193 317 234 211 9 121 93
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33611-038-0 01 1 1303-
1 KNOB; CHANGE LEVER 8-98152-481-0 01 1 1009-1010
8 LEVER; CHANGE
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-33613-345-0 01 1 1303-
8 LEVER; CHANGE
(A) 		1-33620-114-2 01 1 1009-1010
8 LEVER; CHANGE
(B) 		8-98181-427-0 01 1 1011-1302
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98181-427-0 01 1 1303-1401
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98149-127-1 01 1 1402-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M8X25 FLANGE 		0-28650-825-0 04 1 1303-
9 BOLT; CHANGE LEVER
(A) 		1-33619-798-0 08 1 1009-1010
9 BOLT; CHANGE LEVER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1009-1302
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1303-
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-79996-687-0 01 1 1303-
16 BOOT; CHANGE LEVER 1-33614-145-0 01 1 1009-1010
77 PIN; CHANGE LEVER
(A) 		1-33619-780-0 01 1 1009-1010
77 PIN; CHANGE LEVER
(B) 		1-33619-795-0 01 1 1009-1010
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 01 1 1009-1302
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 1303-
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 1009-1302
93 SEAL; HOLE COVER,GEAR CONT
SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 01 1 1303-
121 SEAL; CHANGE LEVER 1-79997-354-0 01 1 1009-1302
121 SEAL; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79997-354-0 01 1 1303-
193 SCREW; CHANGE LEVER
(C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 1009-1010
193 SCREW; CHANGE LEVER
(B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 1009-1010
193 SCREW; CHANGE LEVER
(A) M5X12 W/LK WASHER 		9-03910-512-0 04 1 1009-1010
211 BRACKET; CHANGE LEVER 1-79907-115-1 01 1 1009-1302
211 BRACKET; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79907-115-1 01 1 1303-
234 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
234 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1009-1302
234 BOLT; BRKT
SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1303-
317 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1303-
317 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-1302
317 NUT; BRKT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1303-
423 CLIP; BAND 8-97138-392-0 01 1 1009-1010
500 CLIP; HARNESS
ID=9 L=16 		9-09524-822-0 02 1 1009-1010

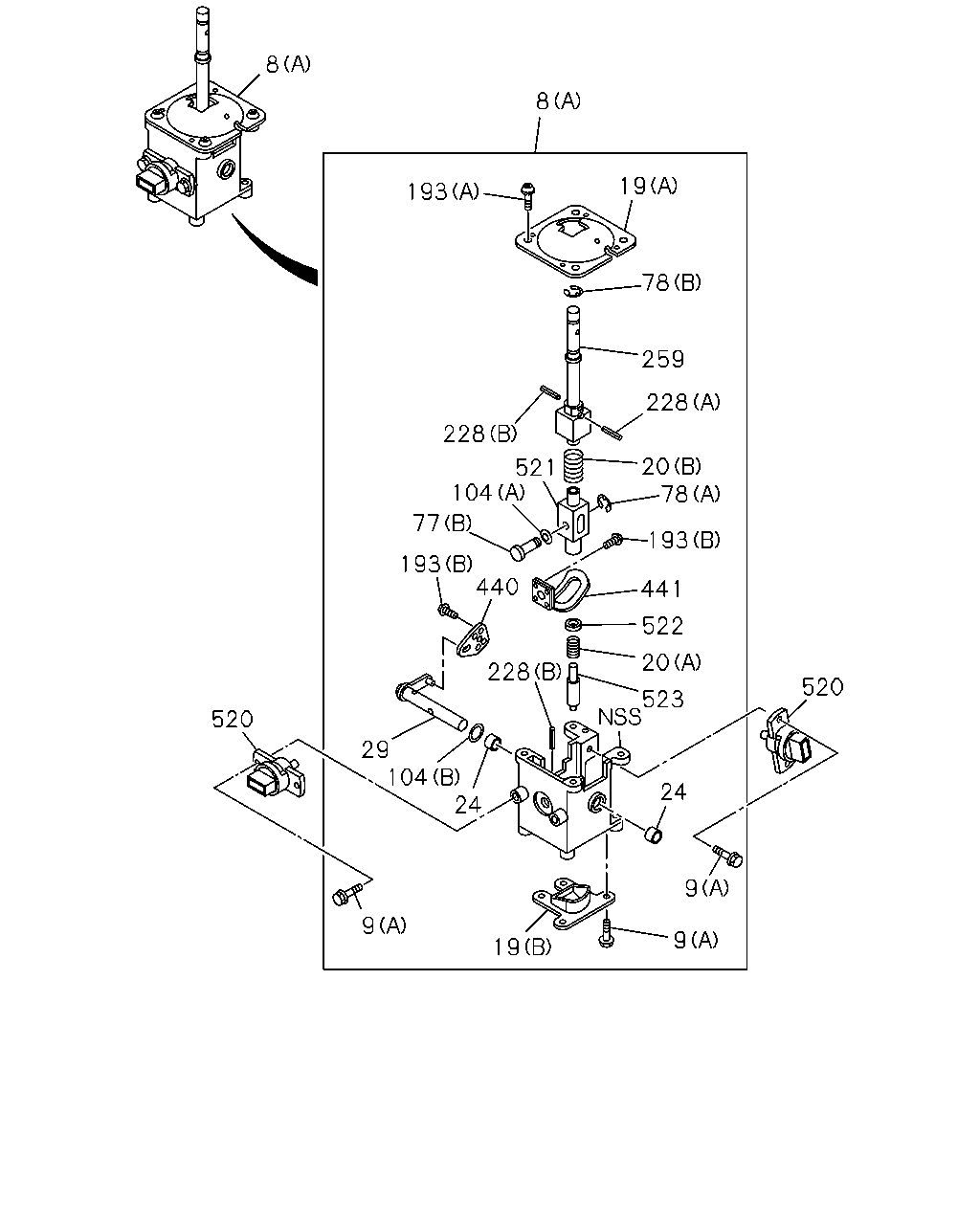

çizim 114002
19 8 193 8 78 259 228 228 77 193 440 104 20 521 441 193 78 523 522 20 520 228 104 29 520 24 24 9 9 19 9
BalonParca AdiParca NoAdetTipApplied Date
8 LEVER; CHANGE
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-33613-345-0 01 1 1303-
8 LEVER; CHANGE
(A) 		1-33620-114-2 01 1 1009-1010
8 LEVER; CHANGE
(B) 		8-98181-427-0 01 1 1011-1302
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98181-427-0 01 1 1303-1401
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98149-127-1 01 1 1402-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M8X25 FLANGE 		0-28650-825-0 04 1 1303-
9 BOLT; CHANGE LEVER
(A) 		1-33619-798-0 08 1 1009-1010
9 BOLT; CHANGE LEVER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1009-1302
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1303-
19 COVER; CHANGE LEVER
(A) 		1-33619-790-0 01 1 1009-1010
19 COVER; CHANGE LEVER
(B) 		1-33619-791-0 01 1 1009-1010
20 SPRING; CHANGE LEVER
(A) 		1-33619-786-0 01 1 1009-1010
20 SPRING; CHANGE LEVER
(B) 		1-33619-787-0 01 1 1009-1010
24 BUSHING; CHANGE LEVER 1-33619-797-0 02 1 1009-1010
29 SHAFT 1-33619-792-0 01 1 1009-1010
77 PIN; CHANGE LEVER
(A) 		1-33619-780-0 01 1 1009-1010
77 PIN; CHANGE LEVER
(B) 		1-33619-795-0 01 1 1009-1010
78 RING; SNAP,CHANGE LEVER
(A) ID=4 		9-09185-404-0 01 1 1009-1010
78 RING; SNAP,CHANGE LEVER
(B) ID=9 		9-09185-409-0 01 1 1009-1010
104 WASHER; WAVED
(A) 		1-33619-788-0 01 1 1009-1010
104 WASHER; WAVED
(B) 		1-33619-789-0 01 1 1009-1010
193 SCREW; CHANGE LEVER
(C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 1009-1010
193 SCREW; CHANGE LEVER
(B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 1009-1010
193 SCREW; CHANGE LEVER
(A) M5X12 W/LK WASHER 		9-03910-512-0 04 1 1009-1010
228 PIN; SPR,CHANGE LEVER
(A) 		1-33619-505-0 01 1 1009-1010
228 PIN; SPR,CHANGE LEVER
(B) 		1-33619-796-0 02 1 1009-1010
259 LEVER; CHANGE,UPR 1-33619-782-0 01 1 1009-1010
440 LEVER; SHIFT 1-33619-794-0 01 1 1009-1010
441 LEVER; SELECT 1-33619-793-0 01 1 1009-1010
520 SENSOR; CHANGE LEVER 1-81541-113-0 02 1 1009-1010
521 LEVER; CHANGE,LOW 1-33619-783-0 01 1 1009-1010
522 GUIDE; CHANGE LEVER 1-33619-784-0 01 1 1009-1010
523 PLUNGER; CHANGE LEVER 1-33619-785-0 01 1 1009-1010
çizim 336235
227 225 2 1 226 16 40 18 34 37 480 422 42 61 13 9 22 62 264 62 8 103 277 111 103 252
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33611-038-0 01 1 1303-
1 KNOB; CHANGE LEVER 8-98152-481-0 01 1 1009-1010
2 NUT; KNOB
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		0-91180-210-0 01 1 1303-
8 LEVER; CHANGE
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-33613-345-0 01 1 1303-
8 LEVER; CHANGE
(A) 		1-33620-114-2 01 1 1009-1010
8 LEVER; CHANGE
(B) 		8-98181-427-0 01 1 1011-1302
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98181-427-0 01 1 1303-1401
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		8-98149-127-1 01 1 1402-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M8X25 FLANGE 		0-28650-825-0 04 1 1303-
9 BOLT; CHANGE LEVER
(A) 		1-33619-798-0 08 1 1009-1010
9 BOLT; CHANGE LEVER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1009-1302
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1303-
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22 		0-91610-708-0 04 1 1303-
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-79996-687-0 01 1 1303-
16 BOOT; CHANGE LEVER 1-33614-145-0 01 1 1009-1010
18 BOOT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-79996-685-0 01 1 1303-
22 COVER; DUST,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-573-0 01 1 1303-
34 NUT
TRANSMISSION CONTROL CABLE TYPE(C1A) M6 FLANGE 		0-91180-106-0 02 1 1303-
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98100-876-1 01 1 1303-
40 SEAL; BOOT HOLDER CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-79996-345-0 01 1 1303-
42 PIN; SPRING,SELECT LEVER PIN
TRANSMISSION CONTROL CABLE TYPE(C1A) D=5 L=28 		8-94252-581-0 01 1 1303-
61 PIN; SELECT LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-470-0 01 1 1303-
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		1-33619-427-0 01 1 1303-
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		8-97011-900-0 01 1 1303-
103 BUSHING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14 OD=16 		8-94252-671-0 02 1 1303-
111 SPRING
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09585-133-1 01 1 1303-
225 WASHER; PL,KNOB
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1303-
226 VALVE; SELECTOR
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33710-008-0 01 1 1303-
227 COVER; KNOB
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-219-0 01 1 1303-
252 BOLT; COVER,CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303-
264 PLATE; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-469-0 01 1 1303-
277 LEVER; RELAY
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33651-636-1 01 1 1303-
422 BUSHING; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-97091-427-0 04 1 1303-
480 RUBBER; COVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98119-365-0 01 1 1303-
çizim 336236
317 496 89 234 112 527
BalonParca AdiParca NoAdetTipApplied Date
89 WASHER; PL,LWR SUPPORT BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22 		0-91610-708-0 02 1 1303-
112 RUBBER; CUSHION
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-442-0 04 1 1303-
234 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
234 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1009-1302
234 BOLT; BRKT
SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1303-
317 NUT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1303-
317 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-1302
317 NUT; BRKT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 1303-
496 BRACKET ASM; T/M CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33657-852-2 01 1 1303-
527 COLLAR; DIST,T/M CABLE BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33619-443-0 04 1 1303-
