Sayfa 2-30 - Isuzu EPC

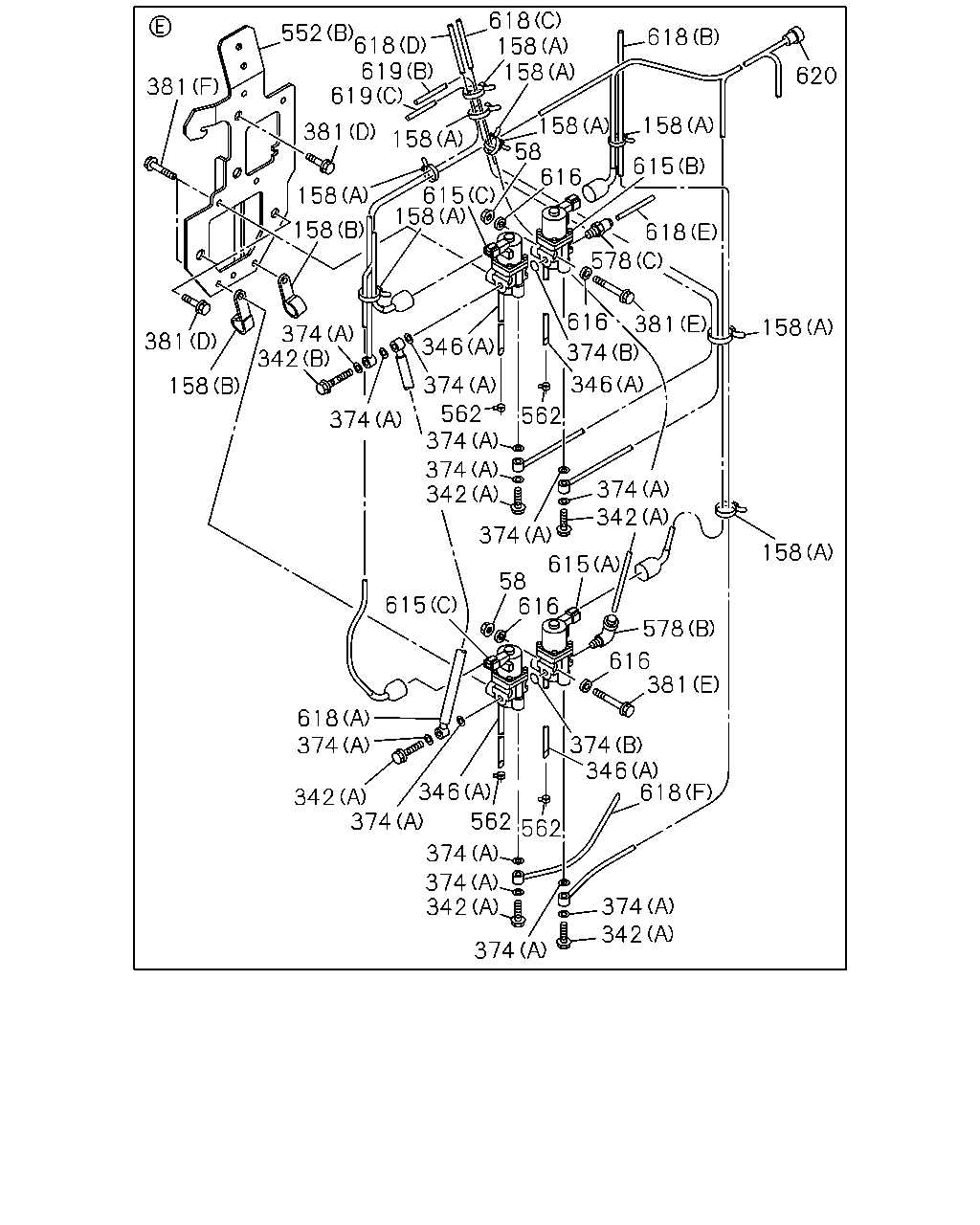

2-30 — GEAR SHIFTER AND QUADRANT BOX (#69489) — 623 parça

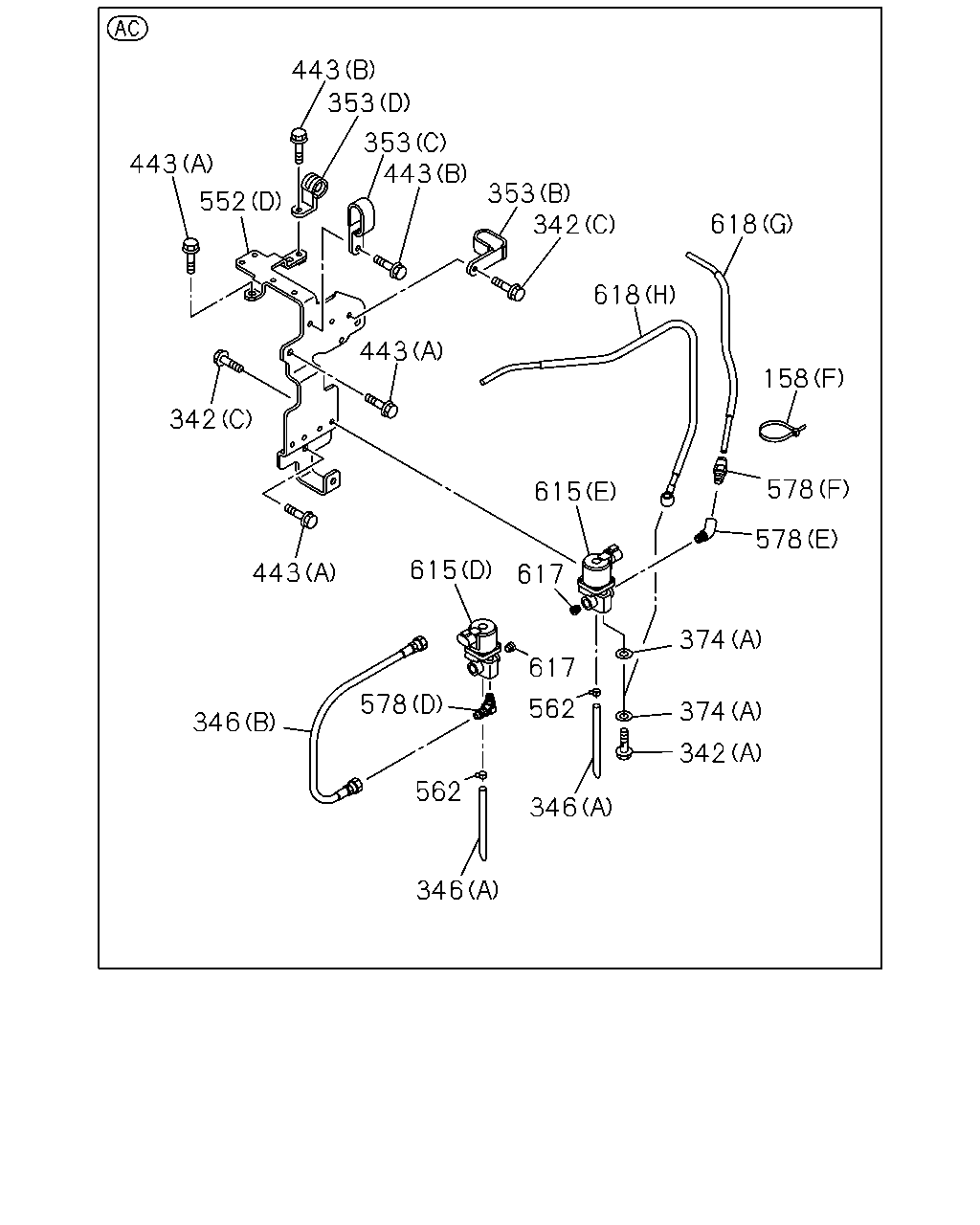

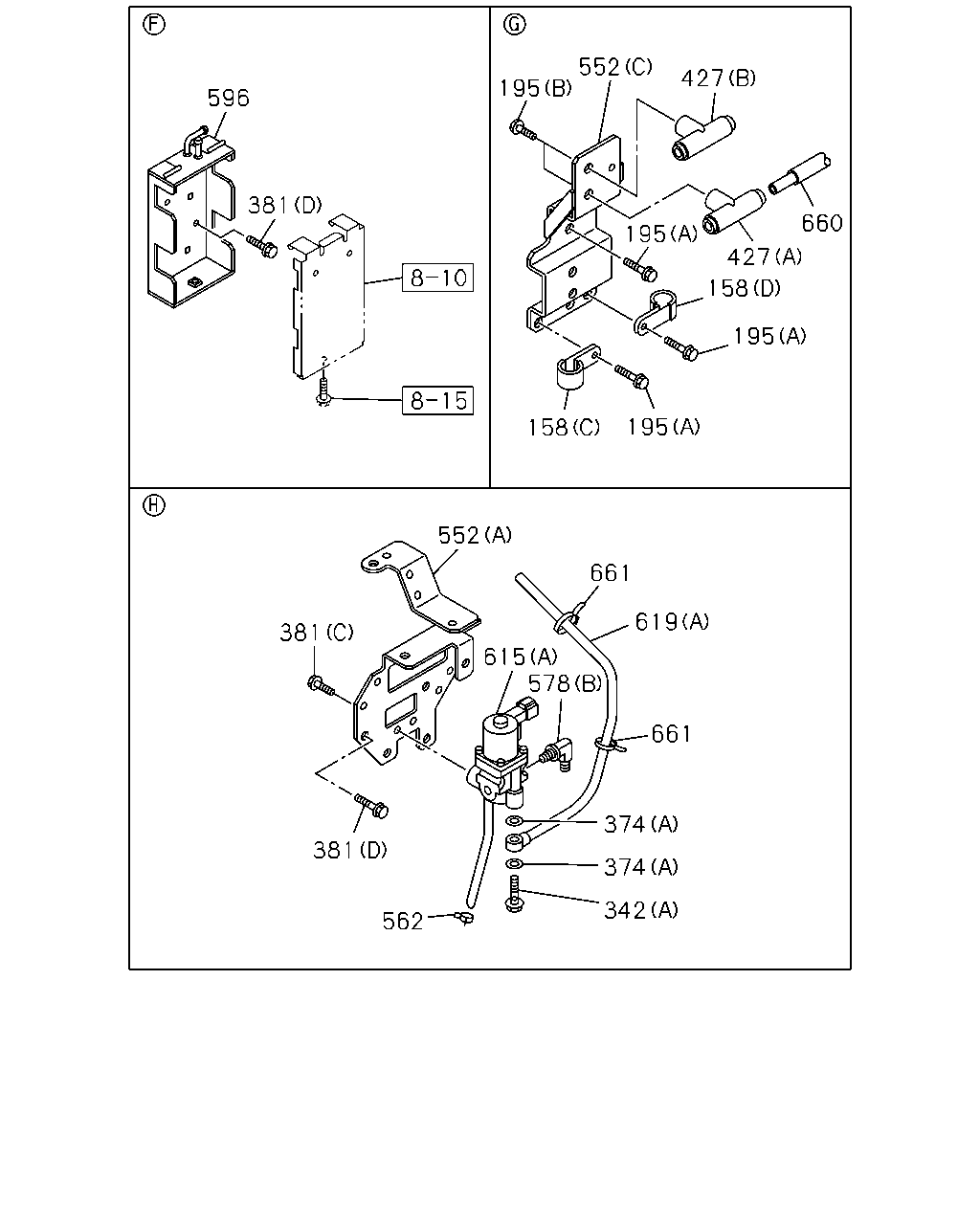

596 381 195 552 427 195 427 660 158 195 195 158 661 619 552 381 381 615 578 661 374 374 342 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (F) L=140	5-09707-031-1	02	1	1303-
158	CLIP; HARNESS (B) ID=19 L=60	0-95235-896-0	02	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	0-95235-896-0	02	1	1303-
158	CLIP; HARNESS (C) ID=19 L=25	1-09700-515-1	01	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (C) ID=19 L=25	1-09700-515-1	01	1	1303-
158	CLIP; HARNESS (D) ID=28 L=30	1-09700-607-1	01	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (D) ID=28 L=30	1-09700-607-1	01	1	1303-
158	CLIP; HARNESS (A) L=150	1-82569-328-0	10	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (A) L=150	1-82569-328-0	10	1	1303-
158	CLIP; HARNESS (E) L=36	8-94224-891-1	02	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	02	1	1303-
195	BOLT (B) M8X16 FLANGE	0-28050-816-0	02	1	1009-
195	BOLT (A) M10X25 FLANGE	0-28751-025-0	03	1	1009-1302
195	BOLT SMOOTHER-G(C1W) (A) M10X25 FLANGE	0-28751-025-0	03	1	1303-
342	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M8X16 FLANGE	0-28050-816-0	05	1	1303-
342	BOLT SMOOTHER-G(C1W) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	1303-
342	BOLT (B) M12X41	1-09675-140-0	01	1	1009-1302
342	BOLT SMOOTHER-G(C1W) (B) M12X41	1-09675-140-0	01	1	1303-
342	BOLT (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	1009-1302
342	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1303-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09661-390-0	01	1	1303-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	1303-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	1009-1302
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	1-09630-084-0	02	1	1303-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	8-98251-344-0	02	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	1009-1302
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (B) ID=16.8	9-09565-117-0	02	1	1303-
381	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (G)	1-09044-111-0	04	1	1303-
381	BOLT (E) M6X50 FLANGE	0-28050-650-0	02	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28050-650-0	02	1	1303-
381	BOLT (C) M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (C) M8X16 FLANGE	0-28050-816-0	02	1	1303-
381	BOLT (F) M8X20 FLANGE	0-28050-820-0	05	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28050-820-0	05	1	1303-
381	BOLT (D) M10X25 FLANGE	0-28751-025-0	11	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28751-025-0	11	1	1303-
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1009-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1009-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1303-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 ELBOW	1-09660-924-1	01	1	1303-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (G) M12	1-09660-931-1	01	1	1303-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (H) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1303-
427	CONNECTOR; NYLON TUBE (C) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	1009-1302
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (C) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	1303-
427	CONNECTOR; NYLON TUBE (A) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1009-1302
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (A) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1303-
427	CONNECTOR; NYLON TUBE (B) 2WAY	1-09661-518-0	01	1	1009-1302
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (B) 2WAY	1-09661-518-0	01	1	1303-
427	CONNECTOR; NYLON TUBE (D)	1-09661-770-0	02	1	1009-1302
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (D)	1-09661-770-0	02	1	1303-
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (E)	1-33719-083-0	01	1	1303-
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-98222-117-0	01	1	1303-
552	BRACKET SMOOTHER-G(C1W) (A)	8-98148-167-0	01	1	1303-1303
552	BRACKET SMOOTHER-G(C1W) (A)	8-98197-639-0	01	1	1303-
552	BRACKET (A)	1-47471-393-0	01	1	1009-1302
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (F)	1-33719-082-0	01	1	1303-
552	BRACKET (B)	1-82569-397-1	01	1	1009-1302
552	BRACKET SMOOTHER-G(C1W) (B)	1-82569-397-1	01	1	1303-
552	BRACKET (C)	1-82698-607-0	01	1	1009-1302
552	BRACKET SMOOTHER-G(C1W) (C)	1-82698-607-0	01	1	1303-
562	CLAMP; LOCKING SMOOTHER-G(C1W) ID=7.8	8-94246-958-0	05	1	1303-
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	05	1	1009-1302
562	CLAMP; LOCKING TRANSMISSION CONTROL CABLE TYPE(C1A) ID=7.8	8-94246-958-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (L) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (G) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (H)	1-09661-292-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (E) R1/4 & RC1/4	1-09664-211-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (I)	1-33712-023-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (J)	1-33712-024-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (K)	1-33712-026-0	01	1	1303-
578	CONNECTOR (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1303-
578	CONNECTOR (C)	1-09661-134-0	01	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (C)	1-09661-134-0	01	1	1303-
578	CONNECTOR (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1303-
596	BOX; CONNECTOR	8-98160-716-1	01	1	1009-1302
596	BOX; CONNECTOR SMOOTHER-G(C1W)	8-98160-716-1	01	1	1303-
615	VALVE; MAGNETIC TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-98222-558-0	01	1	1303-
615	VALVE; MAGNETIC TRANSMISSION CONTROL CABLE TYPE(C1A) (E)	8-98222-559-0	01	1	1303-
615	VALVE; MAGNETIC (C) M12	1-82560-342-0	02	1	1009-1302
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (C) M12	1-82560-342-0	02	1	1303-
615	VALVE; MAGNETIC (B)	1-82560-344-0	01	1	1009-1302
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (B)	1-82560-344-0	01	1	1303-
615	VALVE; MAGNETIC (A) M12 & PT3/8	1-82560-451-0	02	1	1009-1302
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (A) M12 & PT3/8	1-82560-451-0	02	1	1303-
619	TUBE; NYLON (C) L=420	1-09376-829-1	01	1	1009-1302
619	TUBE; NYLON SMOOTHER-G(C1W) (C) L=420	1-09376-829-1	01	1	1303-
619	TUBE; NYLON (A) L=690	1-09377-332-0	01	1	1009-1302
619	TUBE; NYLON SMOOTHER-G(C1W) (A) L=630	8-98074-302-0	01	1	1303-
619	TUBE; NYLON (B) L=480	8-98081-861-0	01	1	1009-1302
619	TUBE; NYLON SMOOTHER-G(C1W) (B) L=480	8-98081-861-0	01	1	1303-
660	PROTECTOR; NYLON TUBE	1-09377-342-0	01	1	1009-1302
660	PROTECTOR; NYLON TUBE SMOOTHER-G(C1W)	1-09377-342-0	01	1	1303-
661	CLIP L=150	1-82569-328-0	02	1	1009-1302
661	CLIP SMOOTHER-G(C1W) L=150	1-82569-328-0	02	1	1303-

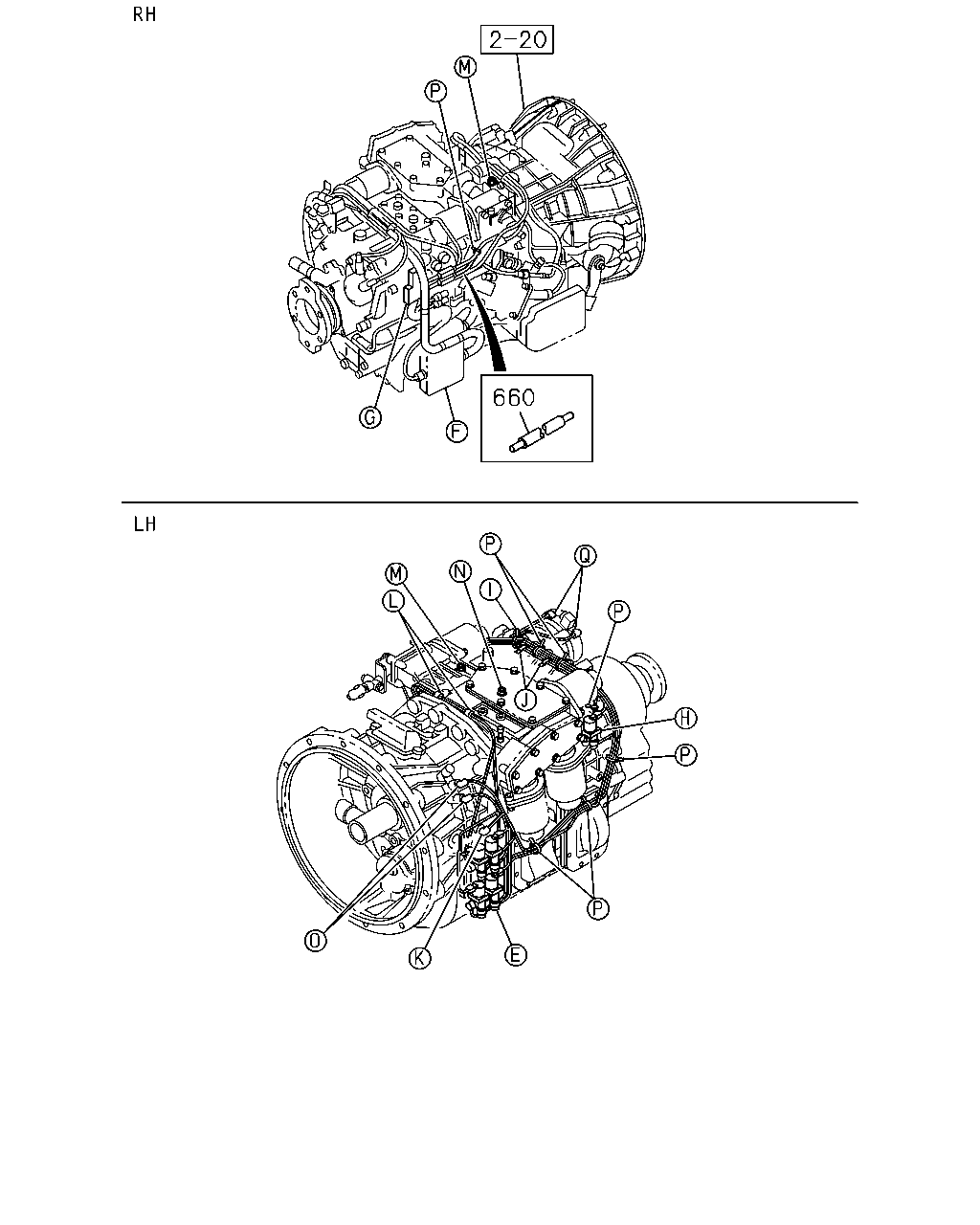

660

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	660	PROTECTOR; NYLON TUBE	1-09377-342-0	01	1	1009-1302
	660	PROTECTOR; NYLON TUBE SMOOTHER-G(C1W)	1-09377-342-0	01	1	1303-

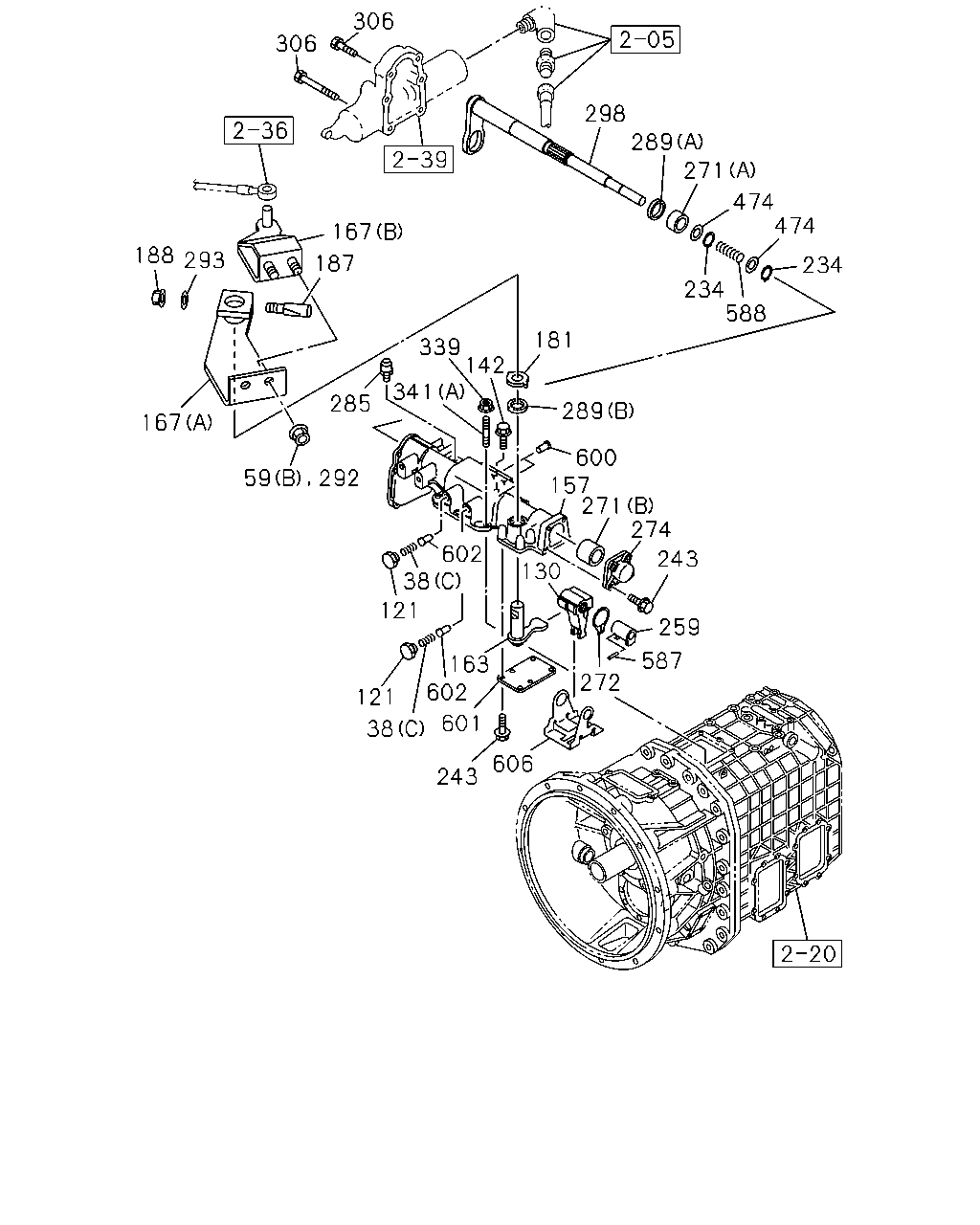

381 512 222 339 341 158 427 513 578 339 341 339 341 512 444 427

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (F) L=140	5-09707-031-1	02	1	1303-
158	CLIP; HARNESS (B) ID=19 L=60	0-95235-896-0	02	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	0-95235-896-0	02	1	1303-
158	CLIP; HARNESS (C) ID=19 L=25	1-09700-515-1	01	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (C) ID=19 L=25	1-09700-515-1	01	1	1303-
158	CLIP; HARNESS (D) ID=28 L=30	1-09700-607-1	01	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (D) ID=28 L=30	1-09700-607-1	01	1	1303-
158	CLIP; HARNESS (A) L=150	1-82569-328-0	10	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (A) L=150	1-82569-328-0	10	1	1303-
158	CLIP; HARNESS (E) L=36	8-94224-891-1	02	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	02	1	1303-
222	BRACKET; CLIP	1-82698-591-0	01	1	1009-1302
222	BRACKET; CLIP SMOOTHER-G(C1W)	1-82698-591-0	01	1	1303-
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	1009-
341	STUD; QUAD BOX SMOOTHER-G(C1W) (A) M10X35 L=50	0-44011-035-0	04	1	1303-
341	STUD; QUAD BOX (A) M10X35 L=50	0-44011-035-0	04	1	1009-1302
341	STUD; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X35 L=50	0-44011-035-0	05	1	1303-
341	STUD; QUAD BOX (B) M10X81.5 L=96.5	8-98019-465-0	01	1	1009-1302
341	STUD; QUAD BOX SMOOTHER-G(C1W) (B) M10X81.5 L=96.5	8-98019-465-0	01	1	1303-
381	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (G)	1-09044-111-0	04	1	1303-
381	BOLT (E) M6X50 FLANGE	0-28050-650-0	02	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28050-650-0	02	1	1303-
381	BOLT (C) M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (C) M8X16 FLANGE	0-28050-816-0	02	1	1303-
381	BOLT (F) M8X20 FLANGE	0-28050-820-0	05	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28050-820-0	05	1	1303-
381	BOLT (D) M10X25 FLANGE	0-28751-025-0	11	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28751-025-0	11	1	1303-
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1009-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1009-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1303-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 ELBOW	1-09660-924-1	01	1	1303-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (G) M12	1-09660-931-1	01	1	1303-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (H) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1303-
427	CONNECTOR; NYLON TUBE (C) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	1009-1302
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (C) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	1303-
427	CONNECTOR; NYLON TUBE (A) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1009-1302
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (A) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1303-
427	CONNECTOR; NYLON TUBE (B) 2WAY	1-09661-518-0	01	1	1009-1302
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (B) 2WAY	1-09661-518-0	01	1	1303-
427	CONNECTOR; NYLON TUBE (D)	1-09661-770-0	02	1	1009-1302
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (D)	1-09661-770-0	02	1	1303-
444	BOLT; CLIP SMOOTHER-G(C1W) M10X25 FLANGE	0-28751-025-0	04	1	1303-
444	BOLT; CLIP M10X25 FLANGE	0-28751-025-0	04	1	1009-1302
444	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) M10X25 FLANGE	0-28751-025-0	06	1	1303-
512	CLIP; PIPE ID=13X2 L=25	9-09916-814-0	04	1	1009-1302
512	CLIP; PIPE SMOOTHER-G(C1W) ID=13X2 L=25	9-09916-814-0	03	1	1303-
513	CLIP; BAND (A) L=250	5-09707-030-1	10	1	1009-1302
513	CLIP; BAND SMOOTHER-G(C1W) (A) L=250	5-09707-030-1	10	1	1303-
513	CLIP; BAND (B) L=140	5-09707-031-1	02	1	1009-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (L) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (G) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (H)	1-09661-292-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (E) R1/4 & RC1/4	1-09664-211-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (I)	1-33712-023-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (J)	1-33712-024-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (K)	1-33712-026-0	01	1	1303-
578	CONNECTOR (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1303-
578	CONNECTOR (C)	1-09661-134-0	01	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (C)	1-09661-134-0	01	1	1303-
578	CONNECTOR (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1303-

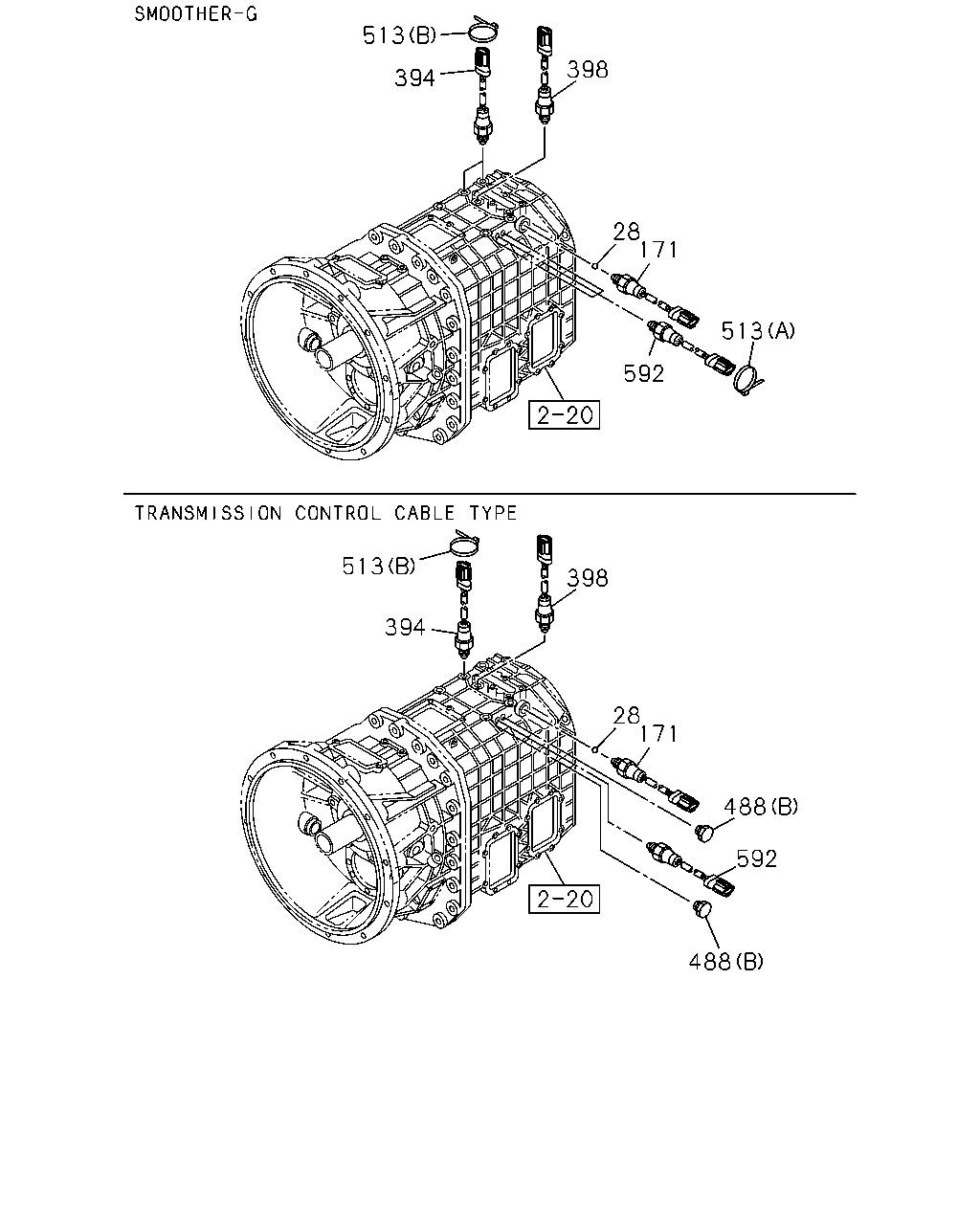

488 592 488 171 28 398 394 513 592 513 171 28 398 394 513

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BALL; INTER LK	9-00097-501-0	02	1	1009-
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1009-1109
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-
394	SWITCH; RANGE CHANGE TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98228-482-0	02	1	1303-
394	SWITCH; RANGE CHANGE	8-98042-854-0	02	1	1009-1209
394	SWITCH; RANGE CHANGE	8-98228-481-0	02	1	1210-1302
394	SWITCH; RANGE CHANGE SMOOTHER-G(C1W)	8-98228-481-0	02	1	1303-
398	SWITCH; REV LAMP TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98228-482-0	01	1	1303-
398	SWITCH; REV LAMP	8-98042-854-0	01	1	1009-1209
398	SWITCH; REV LAMP	8-98228-483-0	01	1	1210-1302
398	SWITCH; REV LAMP SMOOTHER-G(C1W)	8-98228-483-0	01	1	1303-
488	PLUG; AIR CYL TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M14X9	8-98042-944-0	02	1	1303-
488	PLUG; AIR CYL TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT1/4	9-99204-513-0	01	1	1303-
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1009-
513	CLIP; BAND (A) L=250	5-09707-030-1	10	1	1009-1302
513	CLIP; BAND SMOOTHER-G(C1W) (A) L=250	5-09707-030-1	10	1	1303-
513	CLIP; BAND (B) L=140	5-09707-031-1	02	1	1009-
592	SWITCH; POSITION TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98228-482-0	01	1	1303-
592	SWITCH; POSITION	8-98042-854-0	03	1	1009-1209
592	SWITCH; POSITION	8-98228-481-0	03	1	1210-1302
592	SWITCH; POSITION SMOOTHER-G(C1W)	8-98228-481-0	03	1	1303-

342 374 618 346 374 374 342 374 562 562 346 374 342 374 618 381 616 578 158 342 615 616 58 615 374 374 342 374 374 562 562 346 374 381 158 616 346 374 374 342 158 381 374 578 618 616 615 158 620 618 158 158 618 58 158 615 158 381 158 158 619 619 618 552 381 374 158

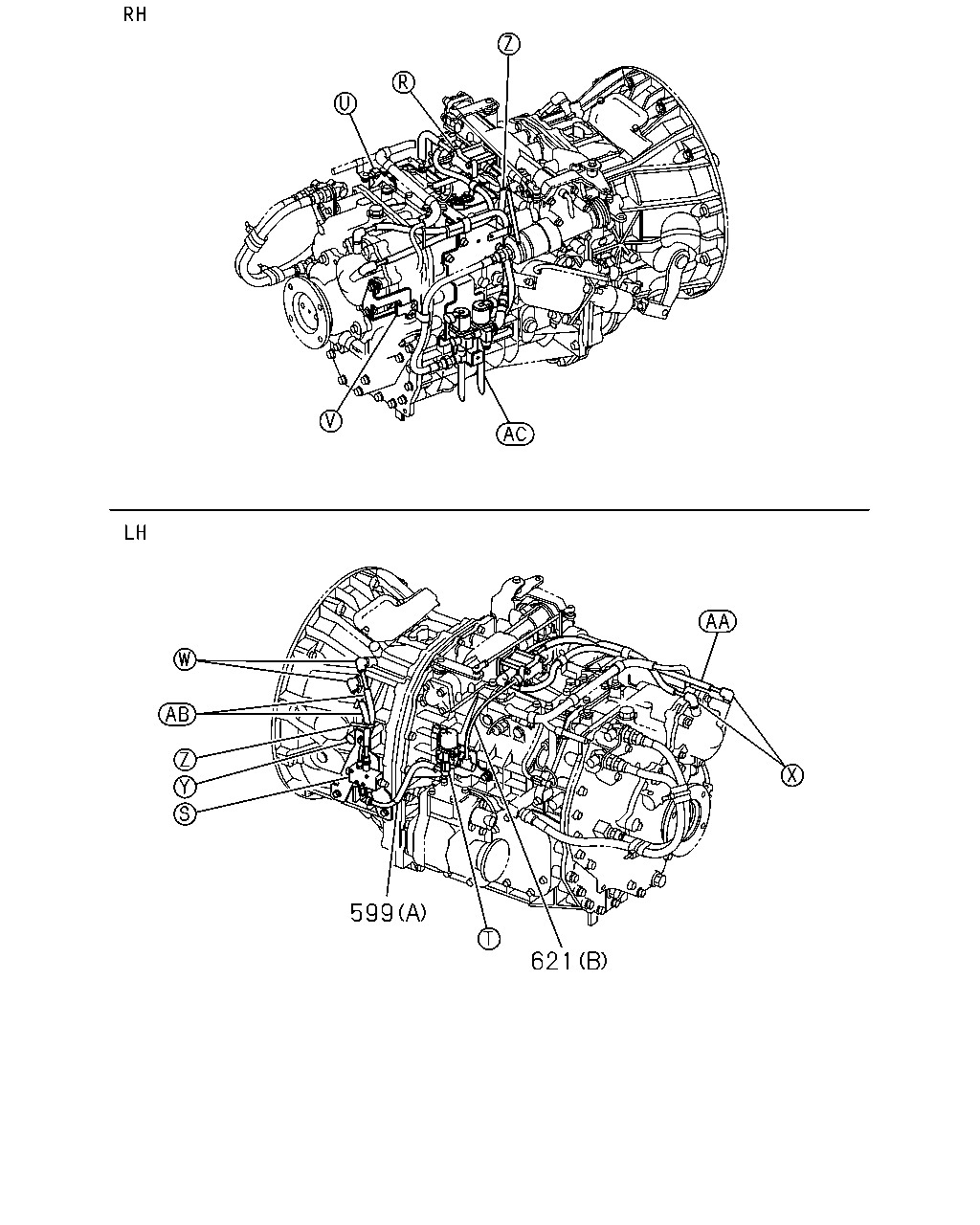

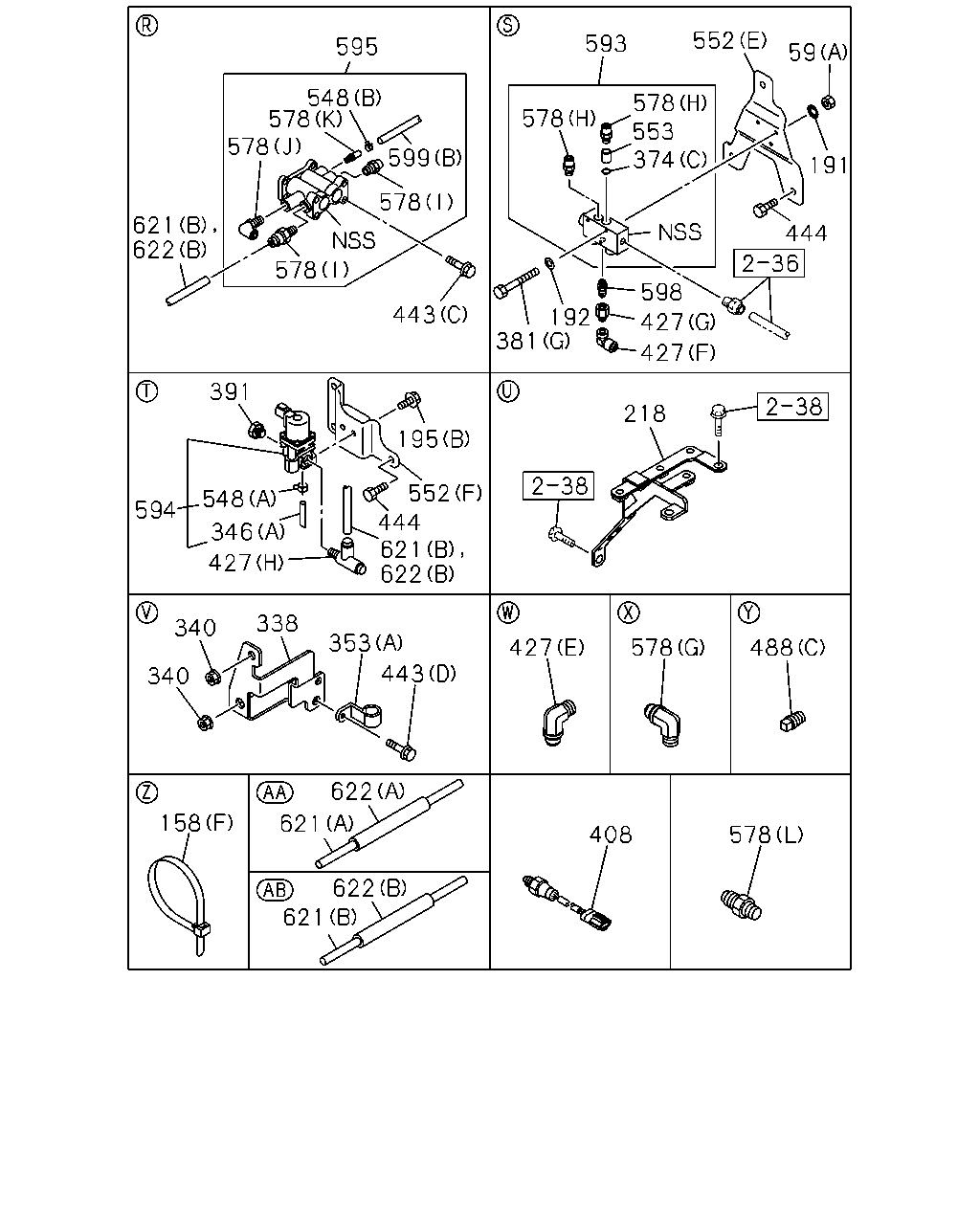

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	NUT M6 FLANGE	0-91180-106-0	02	1	1009-1302
58	NUT SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1303-
158	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (F) L=140	5-09707-031-1	02	1	1303-
158	CLIP; HARNESS (B) ID=19 L=60	0-95235-896-0	02	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	0-95235-896-0	02	1	1303-
158	CLIP; HARNESS (C) ID=19 L=25	1-09700-515-1	01	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (C) ID=19 L=25	1-09700-515-1	01	1	1303-
158	CLIP; HARNESS (D) ID=28 L=30	1-09700-607-1	01	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (D) ID=28 L=30	1-09700-607-1	01	1	1303-
158	CLIP; HARNESS (A) L=150	1-82569-328-0	10	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (A) L=150	1-82569-328-0	10	1	1303-
158	CLIP; HARNESS (E) L=36	8-94224-891-1	02	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	02	1	1303-
342	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M8X16 FLANGE	0-28050-816-0	05	1	1303-
342	BOLT SMOOTHER-G(C1W) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	1303-
342	BOLT (B) M12X41	1-09675-140-0	01	1	1009-1302
342	BOLT SMOOTHER-G(C1W) (B) M12X41	1-09675-140-0	01	1	1303-
342	BOLT (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	1009-1302
342	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1303-
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	02	1	1303-1401
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1402-
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=450	1-09363-965-0	01	1	1303-
346	HOSE; AIR SMOOTHER-G(C1W) (A) ID=6 OD=9 L=150	1-33739-872-0	04	1	1303-
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	04	1	1009-1302
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09661-390-0	01	1	1303-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	1303-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	1009-1302
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	1-09630-084-0	02	1	1303-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	8-98251-344-0	02	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	1009-1302
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (B) ID=16.8	9-09565-117-0	02	1	1303-
381	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (G)	1-09044-111-0	04	1	1303-
381	BOLT (E) M6X50 FLANGE	0-28050-650-0	02	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28050-650-0	02	1	1303-
381	BOLT (C) M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (C) M8X16 FLANGE	0-28050-816-0	02	1	1303-
381	BOLT (F) M8X20 FLANGE	0-28050-820-0	05	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28050-820-0	05	1	1303-
381	BOLT (D) M10X25 FLANGE	0-28751-025-0	11	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28751-025-0	11	1	1303-
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1009-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1009-
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (E)	1-33719-083-0	01	1	1303-
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-98222-117-0	01	1	1303-
552	BRACKET SMOOTHER-G(C1W) (A)	8-98148-167-0	01	1	1303-1303
552	BRACKET SMOOTHER-G(C1W) (A)	8-98197-639-0	01	1	1303-
552	BRACKET (A)	1-47471-393-0	01	1	1009-1302
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (F)	1-33719-082-0	01	1	1303-
552	BRACKET (B)	1-82569-397-1	01	1	1009-1302
552	BRACKET SMOOTHER-G(C1W) (B)	1-82569-397-1	01	1	1303-
552	BRACKET (C)	1-82698-607-0	01	1	1009-1302
552	BRACKET SMOOTHER-G(C1W) (C)	1-82698-607-0	01	1	1303-
562	CLAMP; LOCKING SMOOTHER-G(C1W) ID=7.8	8-94246-958-0	05	1	1303-
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	05	1	1009-1302
562	CLAMP; LOCKING TRANSMISSION CONTROL CABLE TYPE(C1A) ID=7.8	8-94246-958-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (L) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (G) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (H)	1-09661-292-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (E) R1/4 & RC1/4	1-09664-211-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (I)	1-33712-023-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (J)	1-33712-024-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (K)	1-33712-026-0	01	1	1303-
578	CONNECTOR (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1303-
578	CONNECTOR (C)	1-09661-134-0	01	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (C)	1-09661-134-0	01	1	1303-
578	CONNECTOR (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1303-
615	VALVE; MAGNETIC TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-98222-558-0	01	1	1303-
615	VALVE; MAGNETIC TRANSMISSION CONTROL CABLE TYPE(C1A) (E)	8-98222-559-0	01	1	1303-
615	VALVE; MAGNETIC (C) M12	1-82560-342-0	02	1	1009-1302
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (C) M12	1-82560-342-0	02	1	1303-
615	VALVE; MAGNETIC (B)	1-82560-344-0	01	1	1009-1302
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (B)	1-82560-344-0	01	1	1303-
615	VALVE; MAGNETIC (A) M12 & PT3/8	1-82560-451-0	02	1	1009-1302
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (A) M12 & PT3/8	1-82560-451-0	02	1	1303-
616	COLLAR	1-82569-266-0	04	1	1009-1302
616	COLLAR SMOOTHER-G(C1W)	1-82569-266-0	04	1	1303-
618	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (H) L=730	8-98222-118-0	01	1	1303-
618	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (G) L=400	8-98222-734-0	01	1	1303-
618	TUBE; NYLON (A) L=140	1-09376-826-0	01	1	1009-1302
618	TUBE; NYLON SMOOTHER-G(C1W) (A) L=140	1-09376-826-0	01	1	1303-
618	TUBE; NYLON (B) L=550	1-09376-830-1	01	1	1009-1302
618	TUBE; NYLON SMOOTHER-G(C1W) (B) L=550	1-09376-830-1	01	1	1303-
618	TUBE; NYLON (C) L=1400	1-09377-321-0	01	1	1009-1302
618	TUBE; NYLON SMOOTHER-G(C1W) (C) L=1400	1-09377-321-0	01	1	1303-
618	TUBE; NYLON (D) L=750	1-09377-322-0	01	1	1009-1302
618	TUBE; NYLON SMOOTHER-G(C1W) (D) L=750	1-09377-322-0	01	1	1303-
618	TUBE; NYLON (E) L=700	1-09377-323-0	01	1	1009-1302
618	TUBE; NYLON SMOOTHER-G(C1W) (E) L=700	1-09377-323-0	01	1	1303-
618	TUBE; NYLON (F) L=1500	1-09377-324-0	01	1	1009-1302
618	TUBE; NYLON SMOOTHER-G(C1W) (F) L=1500	1-09377-324-0	01	1	1303-
619	TUBE; NYLON (C) L=420	1-09376-829-1	01	1	1009-1302
619	TUBE; NYLON SMOOTHER-G(C1W) (C) L=420	1-09376-829-1	01	1	1303-
619	TUBE; NYLON (A) L=690	1-09377-332-0	01	1	1009-1302
619	TUBE; NYLON SMOOTHER-G(C1W) (A) L=630	8-98074-302-0	01	1	1303-
619	TUBE; NYLON (B) L=480	8-98081-861-0	01	1	1009-1302
619	TUBE; NYLON SMOOTHER-G(C1W) (B) L=480	8-98081-861-0	01	1	1303-
620	HARNESS	1-82677-897-1	01	1	1009-1302
620	HARNESS SMOOTHER-G(C1W)	1-82677-897-1	01	1	1303-

561 583 580 583 581 582 648 610 356 611 359 609 613 39 33 39 607 607 31 521 347 7 10 44 52 38 54 30 121 38 39 44 52 44 44 62 30 54 521 10 38 7 51 102 61 52 52 381 44 52 368 354 356 488 363 359 361 354 359 44 381 579 52 445 603 381 78 44 52 30 603 82 38 39 352 605 150 186 359 39 489 354 81 54 28

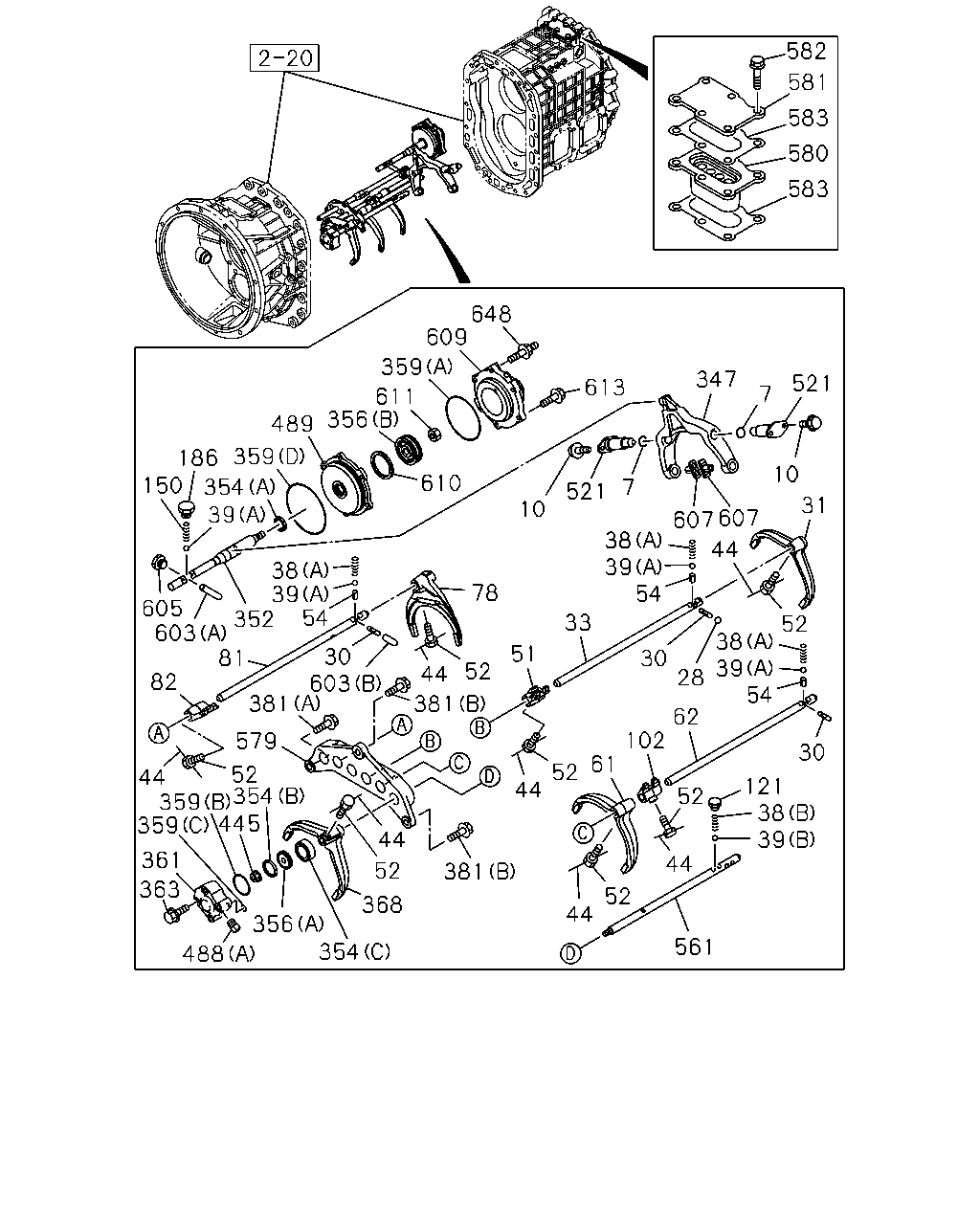

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	02	1	1009-
10	BOLT; SPINDLE M10X30 FLANGE	0-28751-030-0	04	1	1009-
28	BALL; INTER LK	9-00097-501-0	02	1	1009-
30	PIN; INTER LK	9-33534-003-0	03	1	1009-
31	ARM; SHIFT,LOW & 2ND	1-33511-587-0	01	1	1009-
33	ROD; SHIFT,LOW & 2ND	1-33531-458-0	01	1	1009-
38	SPRING; DETENT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09580-580-0	02	1	1303-
38	SPRING; DETENT (B)	1-09580-374-0	01	1	1009-
38	SPRING; DETENT (A)	1-09580-379-0	03	1	1009-
39	BALL; DETENT (A)	1-09843-012-0	04	1	1009-
39	BALL; DETENT (B)	9-00097-013-0	01	1	1009-
44	WIRE; LK L=200	9-08351-020-0	07	1	1009-
51	BLOCK; SHIFT,1ST & 2ND TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33511-617-0	01	1	1303-
51	BLOCK; SHIFT,1ST & 2ND	1-33511-590-0	01	1	1009-1302
51	BLOCK; SHIFT,1ST & 2ND SMOOTHER-G(C1W)	1-33511-590-0	01	1	1303-
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	07	1	1009-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	1009-
61	ARM; SHIFT,3RD & 4TH	1-33511-586-0	01	1	1009-
62	ROD; SHIFT,3RD & 4TH	1-33531-459-0	01	1	1009-
78	ARM; SHIFT,REV	1-33511-589-0	01	1	1009-
81	ROD; SHIFT,REV BLOCK	1-33531-457-0	01	1	1009-
82	BLOCK; SHIFT,REV TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33511-600-0	01	1	1303-
82	BLOCK; SHIFT,REV	1-33511-451-0	01	1	1009-1302
82	BLOCK; SHIFT,REV SMOOTHER-G(C1W)	1-33511-451-0	01	1	1303-
102	BLOCK; SHIFT,3RD & 4TH TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33511-615-0	01	1	1303-
102	BLOCK; SHIFT,3RD & 4TH	8-98044-038-0	01	1	1009-1302
102	BLOCK; SHIFT,3RD & 4TH SMOOTHER-G(C1W)	8-98044-038-0	01	1	1303-
121	PLUG; DETENT SPR M16X12	0-92002-416-0	01	1	1303-
121	PLUG; DETENT SPR M16X12	0-92002-416-0	01	1	1009-1302
121	PLUG; DETENT SPR TRANSMISSION CONTROL CABLE TYPE(C1A) M14X9	8-98042-944-0	02	1	1303-
150	SPRING; DETENT BALL	1-09580-379-0	01	1	1009-
186	PLUG; SHIFTER ROD M16X12	0-92002-416-0	01	1	1009-
347	ARM; SHIFT,RANGE CHANGE	1-33511-585-0	01	1	1009-
352	ROD; SHIFT,RANGE CHANGE	1-33531-482-0	01	1	1009-
354	SEAL; AIR CYL (A)	1-19387-056-0	01	1	1009-
354	SEAL; AIR CYL (B)	1-33739-978-0	01	1	1009-
354	SEAL; AIR CYL (C)	1-33739-981-0	01	1	1009-
356	PISTON; AIR CYL (A)	1-33551-017-0	01	1	1009-
356	PISTON; AIR CYL (B)	1-33551-025-0	01	1	1009-
359	GASKET; AIR CYL (A) ID=124.6	1-09623-468-0	01	1	1009-
359	GASKET; AIR CYL (B) ID=55.6	8-98075-598-0	01	1	1009-
359	GASKET; AIR CYL (C) ID=6.8	9-09565-107-0	01	1	1009-
359	GASKET; AIR CYL (D) ID=144.4	9-09920-735-0	01	1	1009-
361	CYLINDER; AIR,SHIFT	1-33561-019-0	01	1	1009-
363	BOLT; AIR CYL M10X60 FLANGE	8-98169-763-0	04	1	1009-
368	ARM; SHIFT,SPLITTER GEAR	1-33511-588-0	01	1	1009-1510
368	ARM; SHIFT,SPLITTER GEAR	8-98318-482-0	01	1	1511-
381	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (G)	1-09044-111-0	04	1	1303-
381	BOLT (E) M6X50 FLANGE	0-28050-650-0	02	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28050-650-0	02	1	1303-
381	BOLT (C) M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (C) M8X16 FLANGE	0-28050-816-0	02	1	1303-
381	BOLT (F) M8X20 FLANGE	0-28050-820-0	05	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28050-820-0	05	1	1303-
381	BOLT (D) M10X25 FLANGE	0-28751-025-0	11	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28751-025-0	11	1	1303-
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1009-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1009-
445	NUT; SHIFT CYL M12 LOCK NUT FLANGE	0-91380-012-0	01	1	1009-
488	PLUG; AIR CYL TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M14X9	8-98042-944-0	02	1	1303-
488	PLUG; AIR CYL TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT1/4	9-99204-513-0	01	1	1303-
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1009-
489	COVER; AIR CYL	1-33569-052-0	01	1	1009-
521	SPINDLE; 6TH	1-33519-131-0	02	1	1009-
561	ROD; SHIFT TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33531-466-0	01	1	1303-
561	ROD; SHIFT	1-33531-460-0	01	1	1009-1302
561	ROD; SHIFT SMOOTHER-G(C1W)	1-33531-460-0	01	1	1303-
579	BLOCK; SHIFT,ROD GUIDE	1-33539-066-2	01	1	1009-
580	BLOCK; INTERLOCK	1-33539-064-1	01	1	1009-
581	COVER; BLOCK	1-33141-056-0	01	1	1009-
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28151-035-0	06	1	1009-
583	GASKET; SPRING GUIDE	1-33142-047-0	02	1	1009-
603	ROD; INTER LK (B) L=49	1-33534-005-0	01	1	1303-
603	ROD; INTER LK (B) L=49	1-33534-005-0	01	1	1009-1302
603	ROD; INTER LK TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=77	1-33534-010-0	01	1	1303-
605	PLUG; INTER LK M18X12	0-92002-418-0	01	1	1009-
607	PIECE; SHIFT	1-33518-010-0	02	1	1009-
609	BODY; AIR,CYL	1-33561-018-0	01	1	1009-
610	SEAL; PISTON	1-33738-054-0	01	1	1009-
611	NUT; SHAFT	8-97324-304-0	01	1	1009-
613	BOLT; AIR CYL M10X45 FLANGE	0-28151-045-0	03	1	1009-
648	STUD; AIR CYL M10X20,M10X45 L=75	8-98010-335-0	03	1	1009-

443 353 353 443 353 342 618 618 158 578 578 374 374 342 346 346 562 578 346 443 615 617 617 562 615 342 443 552 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (F) L=140	5-09707-031-1	02	1	1303-
158	CLIP; HARNESS (B) ID=19 L=60	0-95235-896-0	02	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	0-95235-896-0	02	1	1303-
158	CLIP; HARNESS (C) ID=19 L=25	1-09700-515-1	01	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (C) ID=19 L=25	1-09700-515-1	01	1	1303-
158	CLIP; HARNESS (D) ID=28 L=30	1-09700-607-1	01	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (D) ID=28 L=30	1-09700-607-1	01	1	1303-
158	CLIP; HARNESS (A) L=150	1-82569-328-0	10	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (A) L=150	1-82569-328-0	10	1	1303-
158	CLIP; HARNESS (E) L=36	8-94224-891-1	02	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	02	1	1303-
342	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M8X16 FLANGE	0-28050-816-0	05	1	1303-
342	BOLT SMOOTHER-G(C1W) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	1303-
342	BOLT (B) M12X41	1-09675-140-0	01	1	1009-1302
342	BOLT SMOOTHER-G(C1W) (B) M12X41	1-09675-140-0	01	1	1303-
342	BOLT (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	06	1	1009-1302
342	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1303-
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	02	1	1303-1401
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1402-
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=450	1-09363-965-0	01	1	1303-
346	HOSE; AIR SMOOTHER-G(C1W) (A) ID=6 OD=9 L=150	1-33739-872-0	04	1	1303-
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	04	1	1009-1302
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (D) ID=12 H=24 L=20	1-09700-605-0	01	1	1303-
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=33X16.5 L=50	5-09700-341-0	01	1	1303-
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (C) ID=16X2 L=40	9-09535-576-0	01	1	1303-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09661-390-0	01	1	1303-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	1303-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	1009-1302
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	1-09630-084-0	02	1	1303-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	8-98251-344-0	02	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	1009-1302
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (B) ID=16.8	9-09565-117-0	02	1	1303-
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X16 FLANGE	0-28050-816-0	02	1	1303-
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M8X90 FLANGE	0-28050-890-0	04	1	1303-
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M8X20 FLANGE	0-28650-820-0	01	1	1303-
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X25 FLANGE	0-28751-025-0	05	1	1303-
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (E)	1-33719-083-0	01	1	1303-
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-98222-117-0	01	1	1303-
552	BRACKET SMOOTHER-G(C1W) (A)	8-98148-167-0	01	1	1303-1303
552	BRACKET SMOOTHER-G(C1W) (A)	8-98197-639-0	01	1	1303-
552	BRACKET (A)	1-47471-393-0	01	1	1009-1302
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (F)	1-33719-082-0	01	1	1303-
552	BRACKET (B)	1-82569-397-1	01	1	1009-1302
552	BRACKET SMOOTHER-G(C1W) (B)	1-82569-397-1	01	1	1303-
552	BRACKET (C)	1-82698-607-0	01	1	1009-1302
552	BRACKET SMOOTHER-G(C1W) (C)	1-82698-607-0	01	1	1303-
562	CLAMP; LOCKING SMOOTHER-G(C1W) ID=7.8	8-94246-958-0	05	1	1303-
562	CLAMP; LOCKING ID=7.8	8-94246-958-0	05	1	1009-1302
562	CLAMP; LOCKING TRANSMISSION CONTROL CABLE TYPE(C1A) ID=7.8	8-94246-958-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (L) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (G) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (H)	1-09661-292-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (E) R1/4 & RC1/4	1-09664-211-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (I)	1-33712-023-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (J)	1-33712-024-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (K)	1-33712-026-0	01	1	1303-
578	CONNECTOR (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1303-
578	CONNECTOR (C)	1-09661-134-0	01	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (C)	1-09661-134-0	01	1	1303-
578	CONNECTOR (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1303-
615	VALVE; MAGNETIC TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-98222-558-0	01	1	1303-
615	VALVE; MAGNETIC TRANSMISSION CONTROL CABLE TYPE(C1A) (E)	8-98222-559-0	01	1	1303-
615	VALVE; MAGNETIC (C) M12	1-82560-342-0	02	1	1009-1302
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (C) M12	1-82560-342-0	02	1	1303-
615	VALVE; MAGNETIC (B)	1-82560-344-0	01	1	1009-1302
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (B)	1-82560-344-0	01	1	1303-
615	VALVE; MAGNETIC (A) M12 & PT3/8	1-82560-451-0	02	1	1009-1302
615	VALVE; MAGNETIC SMOOTHER-G(C1W) (A) M12 & PT3/8	1-82560-451-0	02	1	1303-
617	PLUG TRANSMISSION CONTROL CABLE TYPE(C1A)	8-97320-204-0	02	1	1303-
618	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (H) L=730	8-98222-118-0	01	1	1303-
618	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (G) L=400	8-98222-734-0	01	1	1303-
618	TUBE; NYLON (A) L=140	1-09376-826-0	01	1	1009-1302
618	TUBE; NYLON SMOOTHER-G(C1W) (A) L=140	1-09376-826-0	01	1	1303-
618	TUBE; NYLON (B) L=550	1-09376-830-1	01	1	1009-1302
618	TUBE; NYLON SMOOTHER-G(C1W) (B) L=550	1-09376-830-1	01	1	1303-
618	TUBE; NYLON (C) L=1400	1-09377-321-0	01	1	1009-1302
618	TUBE; NYLON SMOOTHER-G(C1W) (C) L=1400	1-09377-321-0	01	1	1303-
618	TUBE; NYLON (D) L=750	1-09377-322-0	01	1	1009-1302
618	TUBE; NYLON SMOOTHER-G(C1W) (D) L=750	1-09377-322-0	01	1	1303-
618	TUBE; NYLON (E) L=700	1-09377-323-0	01	1	1009-1302
618	TUBE; NYLON SMOOTHER-G(C1W) (E) L=700	1-09377-323-0	01	1	1303-
618	TUBE; NYLON (F) L=1500	1-09377-324-0	01	1	1009-1302
618	TUBE; NYLON SMOOTHER-G(C1W) (F) L=1500	1-09377-324-0	01	1	1303-

599 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
599	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-09377-036-1	01	1	1303-
599	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33712-027-0	01	1	1303-
621	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	1303-
621	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1303-

306 306 298 271 474 474 234 289 167 188 187 293 167 285 339 181 234 142 341 588 289 600 157 274 271 243 259 587 272 606 243 601 602 38 163 121 121 130 38 292 59 602

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SPRING; DETENT TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09580-580-0	02	1	1303-
38	SPRING; DETENT (B)	1-09580-374-0	01	1	1009-
38	SPRING; DETENT (A)	1-09580-379-0	03	1	1009-
59	NUT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8 FLANGE	0-91180-108-0	02	1	1409-
59	NUT TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-09440-068-0	04	1	1303-
121	PLUG; DETENT SPR M16X12	0-92002-416-0	01	1	1303-
121	PLUG; DETENT SPR M16X12	0-92002-416-0	01	1	1009-1302
121	PLUG; DETENT SPR TRANSMISSION CONTROL CABLE TYPE(C1A) M14X9	8-98042-944-0	02	1	1303-
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33521-189-0	01	1	1303-
142	BOLT; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) M10X30 FLANGE	0-28751-030-0	01	1	1303-
157	BOX; QUAD,TRANS TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98220-885-0	01	1	1303-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33522-202-0	01	1	1303-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33521-194-0	01	1	1303-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98052-192-0	01	1	1303-
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) OD=40	1-09532-008-0	01	1	1303-
187	BOLT; SELECT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M8X42	1-33659-045-0	01	1	1303-
188	NUT; SELECT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	1-09440-062-1	01	1	1303-
234	RING; SNAP TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14.7	0-91800-616-0	02	1	1303-
243	BOLT; COVER TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE	0-28050-820-0	06	1	1303-
243	BOLT; COVER TRANSMISSION CONTROL CABLE TYPE(C1A) M8X35 FLANGE	0-28650-835-0	04	1	1303-
259	GUIDE; SELECT,CONT BOX TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98222-568-0	01	1	1303-
271	BUSHING; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=20 OD=23	1-33549-016-0	01	1	1303-
271	BUSHING; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=28 OD=32	1-33549-104-0	01	1	1303-
272	RING; SNAP,QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09588-213-0	01	1	1303-
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98220-886-0	01	1	1303-
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33149-003-0	01	1	1303-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (B) OD=30	1-09625-386-0	01	1	1303-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) OD=41	1-09625-647-0	01	1	1303-
292	NUT; LINK ROD TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE	0-91180-108-0	02	1	1303-1408
293	WASHER; PL,TAPER BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=22	0-91610-708-0	01	1	1303-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98222-566-0	01	1	1303-
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL CABLE TYPE(C1A) M10X45 FLANGE	0-28151-045-0	02	1	1303-
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL CABLE TYPE(C1A) M10X80 FLANGE	0-28151-080-0	04	1	1303-
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	1009-
341	STUD; QUAD BOX SMOOTHER-G(C1W) (A) M10X35 L=50	0-44011-035-0	04	1	1303-
341	STUD; QUAD BOX (A) M10X35 L=50	0-44011-035-0	04	1	1009-1302
341	STUD; QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X35 L=50	0-44011-035-0	05	1	1303-
341	STUD; QUAD BOX (B) M10X81.5 L=96.5	8-98019-465-0	01	1	1009-1302
341	STUD; QUAD BOX SMOOTHER-G(C1W) (B) M10X81.5 L=96.5	8-98019-465-0	01	1	1303-
474	WASHER; SPRING STOPPER TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98222-569-0	02	1	1303-
587	PIN; SHIFT GUIDE TRANSMISSION CONTROL CABLE TYPE(C1A)	9-08160-420-0	01	1	1303-
588	SPRING; RETURN,QUADRANT BOX TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09580-576-0	01	1	1303-
600	PLUNGER; VLV TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33263-037-0	02	1	1303-
601	COVER; SHAFT,SELECT TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33545-011-0	01	1	1303-
602	PLUNGER; DETENT TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33263-037-0	02	1	1303-
606	INHIBITOR TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33529-116-0	01	1	1303-

595 548 578 578 621 599 578 578 622 443 391 195 552 444 621 622 548 427 594 346 338 353 443 340 340 622 621 158 622 621 408 578 488 578 427 218 427 427 381 192 598 374 191 444 59 552 593 578 578 553

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
59	NUT TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8 FLANGE	0-91180-108-0	02	1	1409-
59	NUT TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-09440-068-0	04	1	1303-
158	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (F) L=140	5-09707-031-1	02	1	1303-
158	CLIP; HARNESS (B) ID=19 L=60	0-95235-896-0	02	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (B) ID=19 L=60	0-95235-896-0	02	1	1303-
158	CLIP; HARNESS (C) ID=19 L=25	1-09700-515-1	01	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (C) ID=19 L=25	1-09700-515-1	01	1	1303-
158	CLIP; HARNESS (D) ID=28 L=30	1-09700-607-1	01	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (D) ID=28 L=30	1-09700-607-1	01	1	1303-
158	CLIP; HARNESS (A) L=150	1-82569-328-0	10	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (A) L=150	1-82569-328-0	10	1	1303-
158	CLIP; HARNESS (E) L=36	8-94224-891-1	02	1	1009-1302
158	CLIP; HARNESS SMOOTHER-G(C1W) (E) L=36	8-94224-891-1	02	1	1303-
191	WASHER; LK TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09503-311-0	04	1	1303-
192	WASHER; PL TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09503-310-0	04	1	1303-
195	BOLT (B) M8X16 FLANGE	0-28050-816-0	02	1	1009-
195	BOLT (A) M10X25 FLANGE	0-28751-025-0	03	1	1009-1302
195	BOLT SMOOTHER-G(C1W) (A) M10X25 FLANGE	0-28751-025-0	03	1	1303-
218	BRACKET; HARNESS CLIP,QUAD BOX TRANSMISSION CONTROL CABLE TYPE(C1A)	1-82698-350-0	01	1	1303-
338	BRACKET; FLEX TUBE TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98222-750-1	01	1	1303-
340	NUT; BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE	0-91180-210-0	02	1	1303-
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	02	1	1303-1401
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=6 OD=9 L=150	1-33739-872-0	03	1	1402-
346	HOSE; AIR TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=450	1-09363-965-0	01	1	1303-
346	HOSE; AIR SMOOTHER-G(C1W) (A) ID=6 OD=9 L=150	1-33739-872-0	04	1	1303-
346	HOSE; AIR (A) ID=6 OD=9 L=150	1-33739-872-0	04	1	1009-1302
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (D) ID=12 H=24 L=20	1-09700-605-0	01	1	1303-
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=33X16.5 L=50	5-09700-341-0	01	1	1303-
353	CLIP; AIR HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (C) ID=16X2 L=40	9-09535-576-0	01	1	1303-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-09661-390-0	01	1	1303-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	1-09630-084-0	15	1	1303-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (A) ID=12.2	8-98251-344-0	15	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2	1-09630-084-0	15	1	1009-1302
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	1-09630-084-0	02	1	1303-1312
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=12.2	8-98251-344-0	02	1	1401-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8	9-09565-117-0	02	1	1009-1302
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-G(C1W) (B) ID=16.8	9-09565-117-0	02	1	1303-
381	BOLT TRANSMISSION CONTROL CABLE TYPE(C1A) (G)	1-09044-111-0	04	1	1303-
381	BOLT (E) M6X50 FLANGE	0-28050-650-0	02	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (E) M6X50 FLANGE	0-28050-650-0	02	1	1303-
381	BOLT (C) M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (C) M8X16 FLANGE	0-28050-816-0	02	1	1303-
381	BOLT (F) M8X20 FLANGE	0-28050-820-0	05	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (F) M8X20 FLANGE	0-28050-820-0	05	1	1303-
381	BOLT (D) M10X25 FLANGE	0-28751-025-0	11	1	1009-1302
381	BOLT SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28751-025-0	11	1	1303-
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	1009-
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	1009-
391	PLUG; SW HOLE TRANSMISSION CONTROL CABLE TYPE(C1A) M12X9	9-99202-312-0	01	1	1303-1304
391	PLUG; SW HOLE TRANSMISSION CONTROL CABLE TYPE(C1A) M12X9	0-92002-412-0	01	1	1305-
408	SWITCH; SELECT,4TH 5TH TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98228-507-0	01	1	1303-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1303-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 ELBOW	1-09660-924-1	01	1	1303-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (G) M12	1-09660-931-1	01	1	1303-
427	CONNECTOR; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (H) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1303-
427	CONNECTOR; NYLON TUBE (C) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	1009-1302
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (C) DIN6 & R1/4 ELBOW	1-09660-707-1	01	1	1303-
427	CONNECTOR; NYLON TUBE (A) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1009-1302
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (A) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1303-
427	CONNECTOR; NYLON TUBE (B) 2WAY	1-09661-518-0	01	1	1009-1302
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (B) 2WAY	1-09661-518-0	01	1	1303-
427	CONNECTOR; NYLON TUBE (D)	1-09661-770-0	02	1	1009-1302
427	CONNECTOR; NYLON TUBE SMOOTHER-G(C1W) (D)	1-09661-770-0	02	1	1303-
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X16 FLANGE	0-28050-816-0	02	1	1303-
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (C) M8X90 FLANGE	0-28050-890-0	04	1	1303-
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M8X20 FLANGE	0-28650-820-0	01	1	1303-
443	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X25 FLANGE	0-28751-025-0	05	1	1303-
444	BOLT; CLIP SMOOTHER-G(C1W) M10X25 FLANGE	0-28751-025-0	04	1	1303-
444	BOLT; CLIP M10X25 FLANGE	0-28751-025-0	04	1	1009-1302
444	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) M10X25 FLANGE	0-28751-025-0	06	1	1303-
488	PLUG; AIR CYL TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M14X9	8-98042-944-0	02	1	1303-
488	PLUG; AIR CYL TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT1/4	9-99204-513-0	01	1	1303-
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	1009-
548	CLIP; HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=7.8	8-94246-958-0	01	1	1303-
548	CLIP; HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33712-028-0	01	1	1303-
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (E)	1-33719-083-0	01	1	1303-
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-98222-117-0	01	1	1303-
552	BRACKET SMOOTHER-G(C1W) (A)	8-98148-167-0	01	1	1303-1303
552	BRACKET SMOOTHER-G(C1W) (A)	8-98197-639-0	01	1	1303-
552	BRACKET (A)	1-47471-393-0	01	1	1009-1302
552	BRACKET TRANSMISSION CONTROL CABLE TYPE(C1A) (F)	1-33719-082-0	01	1	1303-
552	BRACKET (B)	1-82569-397-1	01	1	1009-1302
552	BRACKET SMOOTHER-G(C1W) (B)	1-82569-397-1	01	1	1303-
552	BRACKET (C)	1-82698-607-0	01	1	1009-1302
552	BRACKET SMOOTHER-G(C1W) (C)	1-82698-607-0	01	1	1303-
553	ADAPTER; AIR TRANSMISSION CONTROL CABLE TYPE(C1A)	1-09661-389-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (L) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (G) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (H)	1-09661-292-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (E) R1/4 & RC1/4	1-09664-211-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (I)	1-33712-023-0	02	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (J)	1-33712-024-0	01	1	1303-
578	CONNECTOR TRANSMISSION CONTROL CABLE TYPE(C1A) (K)	1-33712-026-0	01	1	1303-
578	CONNECTOR (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (A) DIN6 & R1/4 ELBOW	1-09660-707-1	02	1	1303-
578	CONNECTOR (C)	1-09661-134-0	01	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (C)	1-09661-134-0	01	1	1303-
578	CONNECTOR (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1009-1302
578	CONNECTOR SMOOTHER-G(C1W) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	1303-
593	VALVE; SPLITTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33712-009-0	01	1	1303-
594	VALVE; MAGNETIC,AIR TRANSMISSION CONTROL CABLE TYPE(C1A)	1-82564-069-0	01	1	1303-
595	VALVE; RANGE TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33712-029-1	01	1	1303-
598	UNION TRANSMISSION CONTROL CABLE TYPE(C1A) M10 & M12 STRAIGHT	1-09664-235-0	01	1	1303-
599	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-09377-036-1	01	1	1303-
599	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33712-027-0	01	1	1303-
621	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	1303-
621	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1303-
622	TUBE; CORRUGATE TRANSMISSION CONTROL CABLE TYPE(C1A) (A) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	1303-
622	TUBE; CORRUGATE TRANSMISSION CONTROL CABLE TYPE(C1A) (B) SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
