Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#69488) — 321 parça

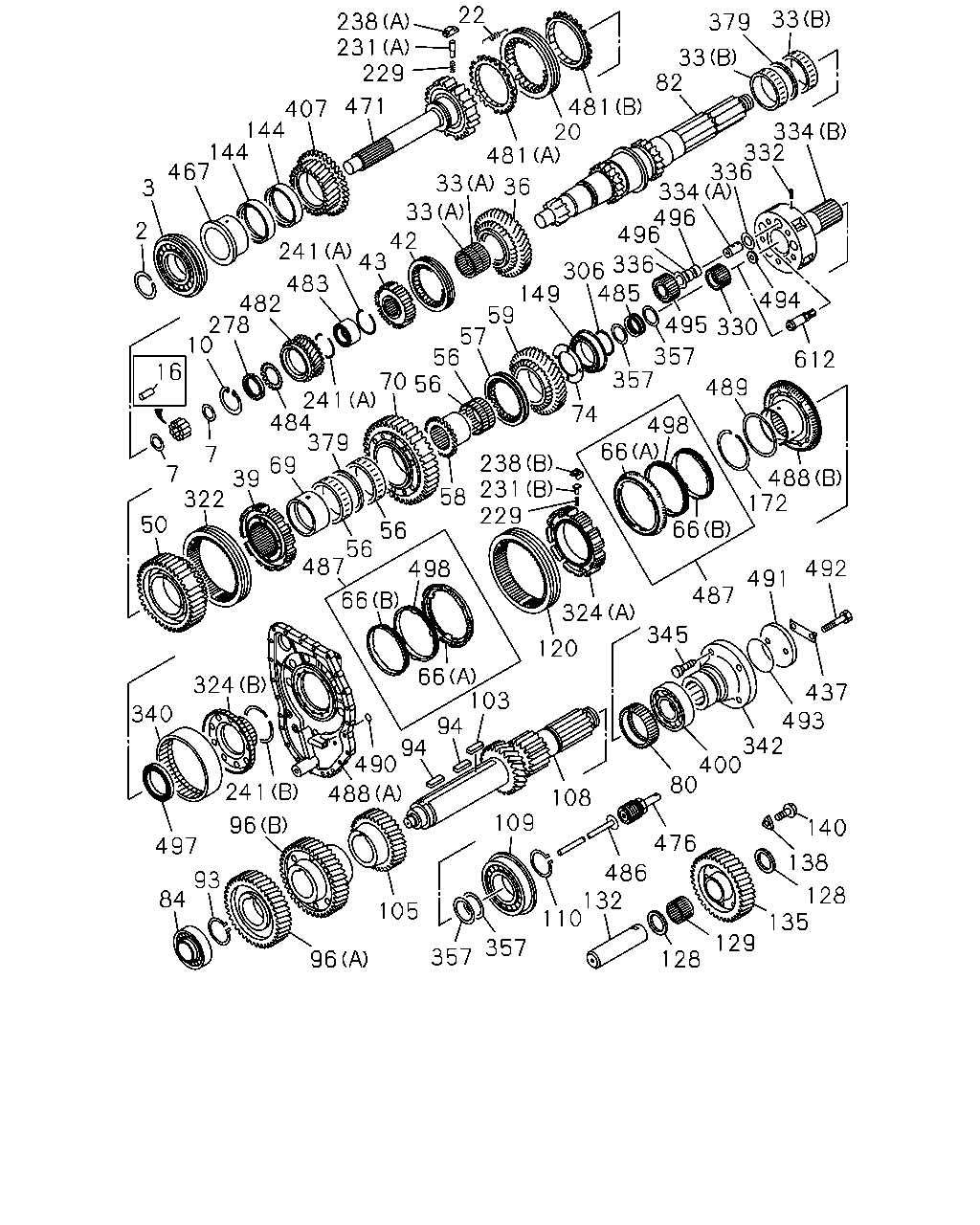

66 487 345 22 238 231 229 471 407 144 144 467 3 2 10 278 482 483 241 42 33 33 481 20 36 481 82 33 379 33 334 332 336 334 496 496 336 485 306 149 59 57 56 56 70 241 484 69 379 39 7 7 50 322 487 56 56 229 58 231 238 74 357 357 495 330 494 612 489 488 172 498 66 324 491 492 437 493 342 400 80 140 138 128 135 129 128 476 486 132 110 108 109 357 357 105 96 84 497 241 96 488 94 490 324 340 66 94 66 103 120 43 16 498 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1009-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1009-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1009-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1009-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	1009-
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1009-
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1009-
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	1009-
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	1009-
20	SLEEVE	1-33262-216-1	01	1	1009-
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	1009-
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	1009-1308
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	1009-
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	1009-1311
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	1009-
36	GEAR; 3RD,MAINSHAFT TRANSMISSION CONTROL CABLE TYPE(C1A) Z=41	1-33253-704-1	01	1	1303-
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-680-1	01	1	1009-1302
36	GEAR; 3RD,MAINSHAFT SMOOTHER-G(C1W) Z=41	1-33253-680-1	01	1	1303-
39	HUB; CLU,LOW & 2ND TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33261-277-0	01	1	1303-
39	HUB; CLU,LOW & 2ND	1-33261-279-1	01	1	1009-1302
39	HUB; CLU,LOW & 2ND SMOOTHER-G(C1W)	1-33261-279-1	01	1	1303-
42	SLEEVE	1-33262-222-0	01	1	1009-
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-278-1	01	1	1009-
50	GEAR; 2ND,MAINSHAFT TRANSMISSION CONTROL CABLE TYPE(C1A) Z=43	1-33251-411-1	01	1	1303-
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-393-1	01	1	1009-1302
50	GEAR; 2ND,MAINSHAFT SMOOTHER-G(C1W) Z=43	1-33251-393-1	01	1	1303-
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	1009-1311
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	1009-
57	SLEEVE; REV	1-33262-209-1	01	1	1009-
58	HUB; CLU,REV	1-33261-286-1	01	1	1009-
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	1009-
66	RING; BLOCK,SYN SMOOTHER-G(C1W) (A)	1-33265-588-0	02	1	1303-1312
66	RING; BLOCK,SYN SMOOTHER-G(C1W) (A)	8-98239-909-1	02	1	1401-
66	RING; BLOCK,SYN SMOOTHER-G(C1W) (B)	1-33265-590-0	02	1	1303-1307
66	RING; BLOCK,SYN SMOOTHER-G(C1W) (B)	8-98239-294-0	02	1	1308-1312
66	RING; BLOCK,SYN SMOOTHER-G(C1W) (B)	8-98239-911-1	02	1	1401-
66	RING; BLOCK,SYN (A)	1-33265-588-0	02	1	1009-1302
66	RING; BLOCK,SYN TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33265-588-0	04	1	1303-1312
66	RING; BLOCK,SYN TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98239-909-1	04	1	1401-
66	RING; BLOCK,SYN (B)	1-33265-590-0	02	1	1009-1302
66	RING; BLOCK,SYN TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33265-590-0	04	1	1303-1307
66	RING; BLOCK,SYN TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98239-294-0	04	1	1308-1312
66	RING; BLOCK,SYN TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98239-911-1	04	1	1401-
69	COLLAR; 1ST GEAR MAIN	1-33234-099-0	01	1	1009-
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL CABLE TYPE(C1A) Z=49	1-33255-074-1	01	1	1303-
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-071-1	01	1	1009-1302
70	GEAR; 1ST,MAINSHAFT SMOOTHER-G(C1W) Z=49	1-33255-071-1	01	1	1303-
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	1009-
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	1009-
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	1009-
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1009-
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1009-
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1009-
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	1009-
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	1009-
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	1009-
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	1009-
105	GEAR; 3RD,COUNTER Z=36	1-33338-373-1	01	1	1009-
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	1009-
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-186-0	01	1	1009-
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-207-0	01	1	1009-
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1009-
120	SLEEVE	1-33262-229-0	01	1	1009-
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1009-
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1009-
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1009-
132	SHAFT; REV	1-33351-035-1	01	1	1009-
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	1009-
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	1009-
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	1009-
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-422-0	02	1	1009-1311
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-423-0	02	1	1009-
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-256-0	01	1	1009-
149	BEARING; NEEDLE,MAINSHAFT,RR NTN	1-09810-257-0	01	1	1009-
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	1009-
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	1009-1403
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-
231	PLUNGER SMOOTHER-G(C1W) (B)	1-33263-038-1	09	1	1303-
231	PLUNGER (A)	1-33263-033-0	06	1	1009-1403
231	PLUNGER (A)	8-98273-831-0	06	1	1404-
231	PLUNGER (B)	1-33263-038-0	09	1	1009-1302
231	PLUNGER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33263-038-1	12	1	1303-
238	INSERT (A)	1-33263-036-0	06	1	1009-
238	INSERT (B)	1-33263-039-0	09	1	1009-
241	RING; SNAP (A)	1-09587-023-0	02	1	1009-
241	RING; SNAP (B)	1-09587-104-0	01	1	1009-
278	NUT; BRG	1-09449-080-0	01	1	1009-
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	1009-
322	SLEEVE; SYN,LOW & 2ND TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33262-228-0	01	1	1303-
322	SLEEVE; SYN,LOW & 2ND	1-33262-222-0	01	1	1009-1302
322	SLEEVE; SYN,LOW & 2ND SMOOTHER-G(C1W)	1-33262-222-0	01	1	1303-
324	HUB; CLU (A)	1-34231-015-0	01	1	1009-
324	HUB; CLU (B)	1-34371-017-0	01	1	1009-1307
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-
330	GEAR; SUN Z=24	1-34311-010-0	01	1	1009-
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	1009-
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	1009-
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	1009-1307
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	1009-
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	1009-
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	1009-
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	1009-
342	FLANGE; OUTPUT	1-37243-370-0	01	1	1009-
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1009-
357	RING	1-31349-044-0	04	1	1009-
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	02	1	1009-
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	1009-
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	1009-
437	PLATE; LOCK	1-34252-032-0	01	1	1009-
467	COLLAR; SHAFT	1-33234-091-1	01	1	1009-
471	SHAFT; INPUT	1-33215-020-0	01	1	1009-1102
471	SHAFT; INPUT	8-98174-781-0	01	1	1103-
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	1009-
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1009-1407
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1009-1407
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-
482	GEAR; PRIMARY TRANSMISSION CONTROL CABLE TYPE(C1A) Z=29	1-33253-718-0	01	1	1303-
482	GEAR; PRIMARY Z=29	1-33253-720-0	01	1	1009-1302
482	GEAR; PRIMARY SMOOTHER-G(C1W) Z=29	1-33253-720-0	01	1	1303-
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1009-1504
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-
484	PLATE; SETTING	1-33313-023-0	01	1	1009-
485	PIECE; GUIDE	1-33363-040-1	01	1	1009-
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	1009-
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	1009-1307
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-
488	CLUTCH; DOG,RANGE (B)	1-34254-006-1	01	1	1009-1211
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1212-1307
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	1009-1307
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-
489	WASHER; THRUST	1-09503-308-0	01	1	1009-
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	1009-
491	PLATE; OUTPUT SHAFT	1-34252-026-0	01	1	1009-
492	BOLT; PLATE	1-09000-740-0	02	1	1009-
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	1009-
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	1009-1307
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	1009-
496	BEARING; PLANETARY NSK	1-09811-424-0	10	1	1009-
496	BEARING; PLANETARY NTN	1-09811-425-0	10	1	1009-
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	1009-1307
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	1009-1307
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-
498	CONE; SYN SMOOTHER-G(C1W)	1-33265-617-0	02	1	1303-1312
498	CONE; SYN SMOOTHER-G(C1W)	8-98239-910-0	02	1	1401-
498	CONE; SYN	1-33265-617-0	02	1	1009-1302
498	CONE; SYN TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33265-617-0	04	1	1303-1312
498	CONE; SYN TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98239-910-0	04	1	1401-
612	GALLERY; OIL	8-98239-463-0	01	1	1308-

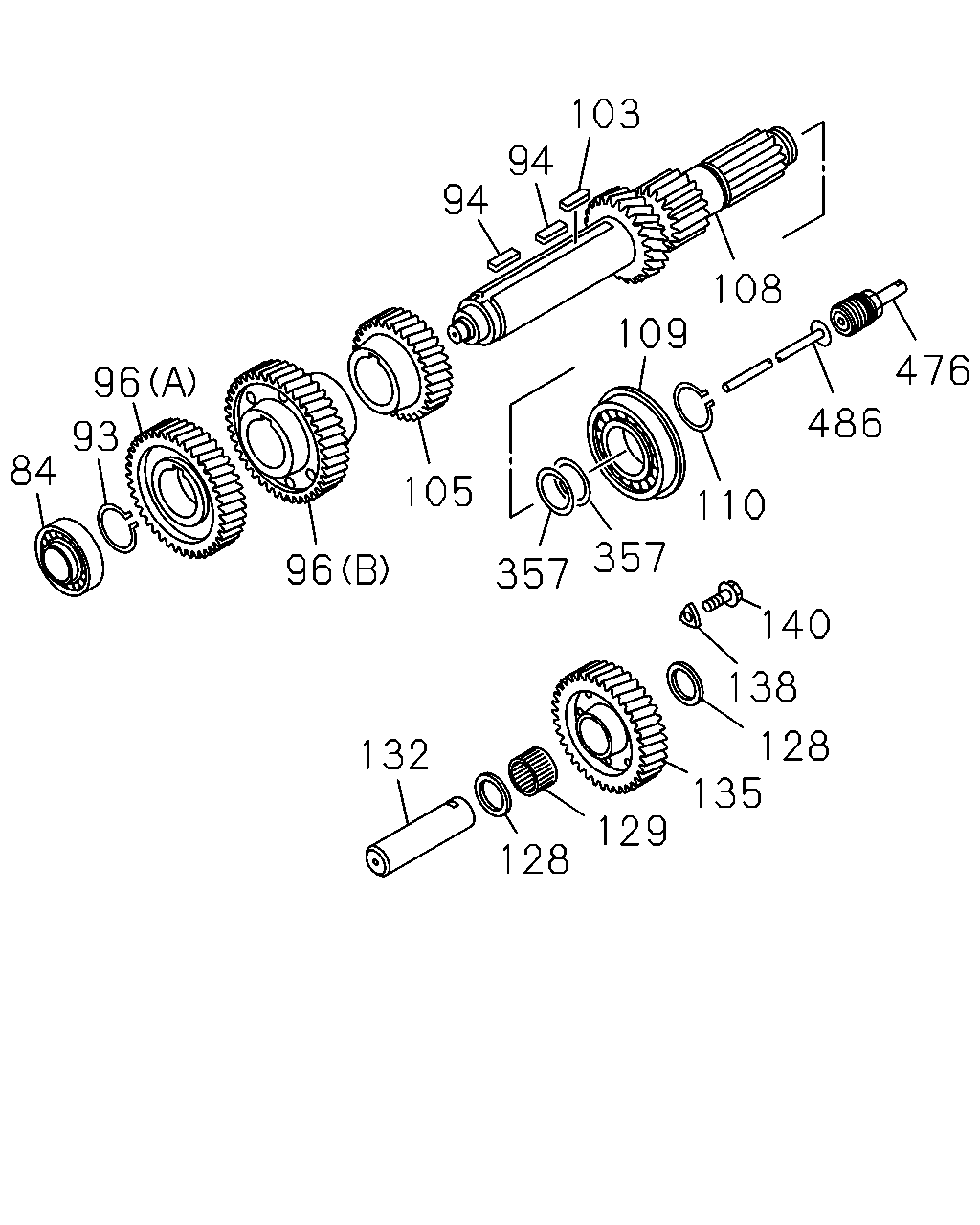

84 93 94 94 103 486 476 110 357 357 138 128 140 135 129 128 132 105 109 108 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1009-
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1009-
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1009-
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	1009-
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	1009-
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	1009-
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	1009-
105	GEAR; 3RD,COUNTER Z=36	1-33338-373-1	01	1	1009-
108	SHAFT; COUNTER Z=26-21	1-33311-325-1	01	1	1009-
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-186-0	01	1	1009-
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-207-0	01	1	1009-
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1009-
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1009-
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1009-
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1009-
132	SHAFT; REV	1-33351-035-1	01	1	1009-
135	GEAR; REV IDLER Z=30	1-33361-081-1	01	1	1009-
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	1009-
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	1009-
357	RING	1-31349-044-0	04	1	1009-
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	1009-
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	1009-

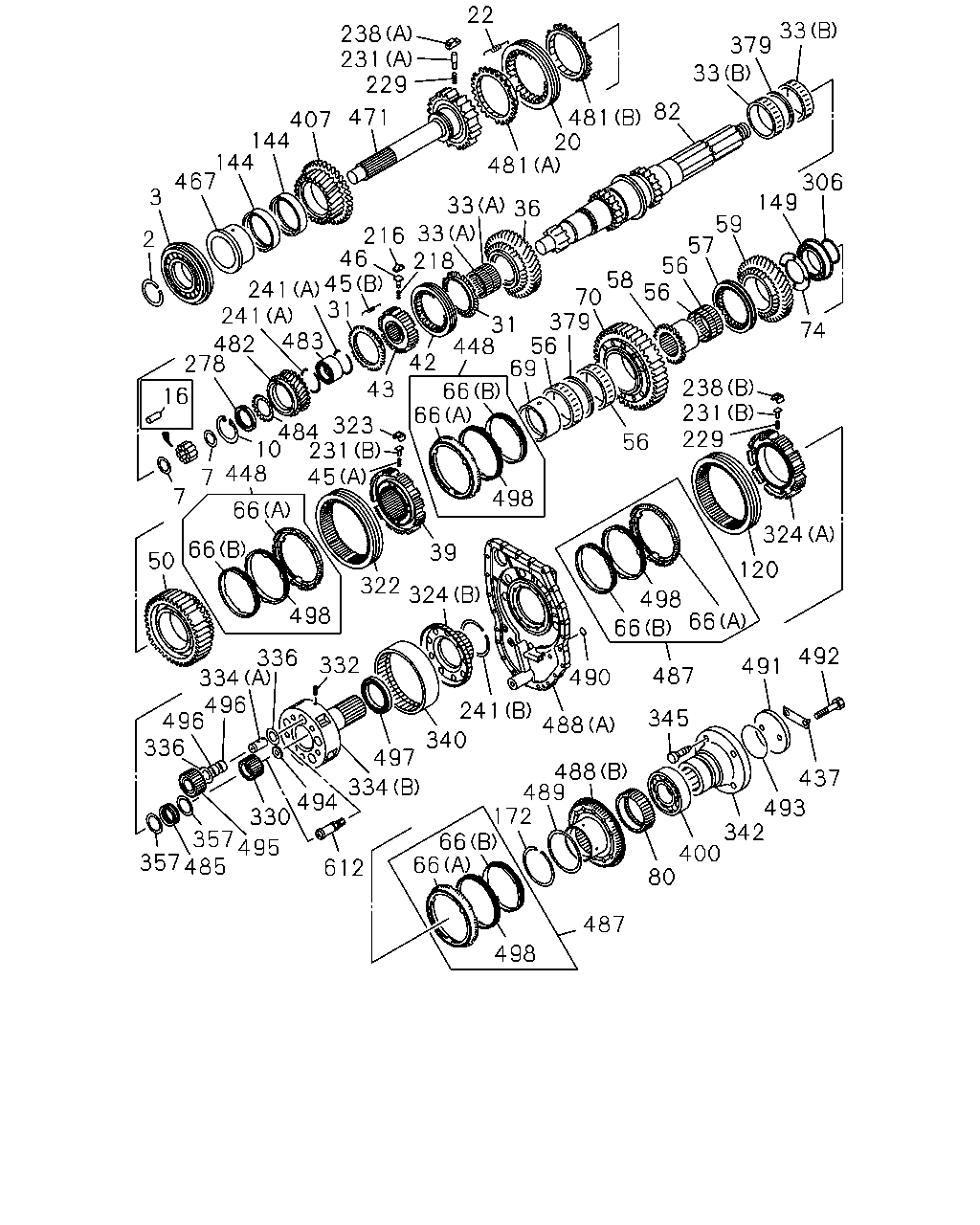

238 231 22 229 471 407 144 144 467 3 2 16 278 482 241 241 45 46 216 33 33 36 481 20 481 82 33 379 33 306 149 59 74 57 56 56 58 70 379 56 69 56 238 231 229 324 120 492 491 437 493 342 400 80 487 498 66 66 172 489 488 345 487 490 241 340 497 334 494 330 495 357 485 357 612 488 66 498 66 498 39 322 324 323 43 42 448 31 231 45 484 10 448 66 7 7 50 66 336 496 334 496 336 66 66 332 498 483 31 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1009-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1009-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1009-
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1009-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	1009-
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1009-
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1009-
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	1009-
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	1009-
20	SLEEVE	1-33262-216-1	01	1	1009-
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	1009-
31	RING; BLOCK,3RD & 4TH TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98212-814-1	02	1	1303-
33	BEARING; NEEDLE,3RD GEAR (A) NSK	1-09811-378-0	02	1	1009-1308
33	BEARING; NEEDLE,3RD GEAR (A) NTN	1-09811-379-0	02	1	1009-
33	BEARING; NEEDLE,3RD GEAR (B) NSK	1-09811-422-0	02	1	1009-1311
33	BEARING; NEEDLE,3RD GEAR (B) NTN	1-09811-423-0	02	1	1009-
36	GEAR; 3RD,MAINSHAFT TRANSMISSION CONTROL CABLE TYPE(C1A) Z=41	1-33253-704-1	01	1	1303-
36	GEAR; 3RD,MAINSHAFT Z=41	1-33253-680-1	01	1	1009-1302
36	GEAR; 3RD,MAINSHAFT SMOOTHER-G(C1W) Z=41	1-33253-680-1	01	1	1303-
39	HUB; CLU,LOW & 2ND TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33261-277-0	01	1	1303-
39	HUB; CLU,LOW & 2ND	1-33261-279-1	01	1	1009-1302
39	HUB; CLU,LOW & 2ND SMOOTHER-G(C1W)	1-33261-279-1	01	1	1303-
42	SLEEVE	1-33262-222-0	01	1	1009-
43	HUB; CLU,3RD & 4TH,MAIN	1-33261-278-1	01	1	1009-
45	SPRING; BLOCK INSERT TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-09580-578-0	03	1	1303-
45	SPRING; BLOCK INSERT TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-09583-171-0	03	1	1303-
46	PLUNGER; DETENT,SYN TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33263-020-0	03	1	1303-
50	GEAR; 2ND,MAINSHAFT TRANSMISSION CONTROL CABLE TYPE(C1A) Z=43	1-33251-411-1	01	1	1303-
50	GEAR; 2ND,MAINSHAFT Z=43	1-33251-393-1	01	1	1009-1302
50	GEAR; 2ND,MAINSHAFT SMOOTHER-G(C1W) Z=43	1-33251-393-1	01	1	1303-
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-422-0	04	1	1009-1311
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-423-0	04	1	1009-
57	SLEEVE; REV	1-33262-209-1	01	1	1009-
58	HUB; CLU,REV	1-33261-286-1	01	1	1009-
59	GEAR; REV MAINSHAFT Z=44	1-33257-081-2	01	1	1009-
66	RING; BLOCK,SYN SMOOTHER-G(C1W) (A)	1-33265-588-0	02	1	1303-1312
66	RING; BLOCK,SYN SMOOTHER-G(C1W) (A)	8-98239-909-1	02	1	1401-
66	RING; BLOCK,SYN SMOOTHER-G(C1W) (B)	1-33265-590-0	02	1	1303-1307
66	RING; BLOCK,SYN SMOOTHER-G(C1W) (B)	8-98239-294-0	02	1	1308-1312
66	RING; BLOCK,SYN SMOOTHER-G(C1W) (B)	8-98239-911-1	02	1	1401-
66	RING; BLOCK,SYN (A)	1-33265-588-0	02	1	1009-1302
66	RING; BLOCK,SYN TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-33265-588-0	04	1	1303-1312
66	RING; BLOCK,SYN TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	8-98239-909-1	04	1	1401-
66	RING; BLOCK,SYN (B)	1-33265-590-0	02	1	1009-1302
66	RING; BLOCK,SYN TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33265-590-0	04	1	1303-1307
66	RING; BLOCK,SYN TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98239-294-0	04	1	1308-1312
66	RING; BLOCK,SYN TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	8-98239-911-1	04	1	1401-
69	COLLAR; 1ST GEAR MAIN	1-33234-099-0	01	1	1009-
70	GEAR; 1ST,MAINSHAFT TRANSMISSION CONTROL CABLE TYPE(C1A) Z=49	1-33255-074-1	01	1	1303-
70	GEAR; 1ST,MAINSHAFT Z=49	1-33255-071-1	01	1	1009-1302
70	GEAR; 1ST,MAINSHAFT SMOOTHER-G(C1W) Z=49	1-33255-071-1	01	1	1303-
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	1009-
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	1009-
82	SHAFT; MAIN,TRANS Z=37-40-28-19	1-33231-327-2	01	1	1009-
120	SLEEVE	1-33262-229-0	01	1	1009-
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-422-0	02	1	1009-1311
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-423-0	02	1	1009-
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-256-0	01	1	1009-
149	BEARING; NEEDLE,MAINSHAFT,RR NTN	1-09810-257-0	01	1	1009-
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	1009-
216	INSERT; CLU HUB,2ND TO 3RD TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33263-025-2	03	1	1303-
218	SPRING; INSERT,CLU HUB,2ND TO 3RD TRANSMISSION CONTROL CABLE TYPE(C1A) D=6.2	1-09580-091-1	03	1	1303-
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	1009-1403
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-
231	PLUNGER SMOOTHER-G(C1W) (B)	1-33263-038-1	09	1	1303-
231	PLUNGER (A)	1-33263-033-0	06	1	1009-1403
231	PLUNGER (A)	8-98273-831-0	06	1	1404-
231	PLUNGER (B)	1-33263-038-0	09	1	1009-1302
231	PLUNGER TRANSMISSION CONTROL CABLE TYPE(C1A) (B)	1-33263-038-1	12	1	1303-
238	INSERT (A)	1-33263-036-0	06	1	1009-
238	INSERT (B)	1-33263-039-0	09	1	1009-
241	RING; SNAP (A)	1-09587-023-0	02	1	1009-
241	RING; SNAP (B)	1-09587-104-0	01	1	1009-
278	NUT; BRG	1-09449-080-0	01	1	1009-
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	1009-
322	SLEEVE; SYN,LOW & 2ND TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33262-228-0	01	1	1303-
322	SLEEVE; SYN,LOW & 2ND	1-33262-222-0	01	1	1009-1302
322	SLEEVE; SYN,LOW & 2ND SMOOTHER-G(C1W)	1-33262-222-0	01	1	1303-
323	INSERT TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33263-041-0	03	1	1303-
324	HUB; CLU (A)	1-34231-015-0	01	1	1009-
324	HUB; CLU (B)	1-34371-017-0	01	1	1009-1307
324	HUB; CLU (B)	8-98239-089-0	01	1	1308-
330	GEAR; SUN Z=24	1-34311-010-0	01	1	1009-
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	1009-
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	1009-
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	1009-1307
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	1009-
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	1009-
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	1009-
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	1009-
342	FLANGE; OUTPUT	1-37243-370-0	01	1	1009-
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1009-
357	RING	1-31349-044-0	04	1	1009-
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	02	1	1009-
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	1009-
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	1009-
437	PLATE; LOCK	1-34252-032-0	01	1	1009-
448	SYNCHRONIZER ASM; 1ST & 2ND TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33265-616-0	02	1	1303-1307
448	SYNCHRONIZER ASM; 1ST & 2ND TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98239-293-0	02	1	1308-1312
448	SYNCHRONIZER ASM; 1ST & 2ND TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98239-908-1	02	1	1401-
467	COLLAR; SHAFT	1-33234-091-1	01	1	1009-
471	SHAFT; INPUT	1-33215-020-0	01	1	1009-1102
471	SHAFT; INPUT	8-98174-781-0	01	1	1103-
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1009-1407
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1009-1407
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-
482	GEAR; PRIMARY TRANSMISSION CONTROL CABLE TYPE(C1A) Z=29	1-33253-718-0	01	1	1303-
482	GEAR; PRIMARY Z=29	1-33253-720-0	01	1	1009-1302
482	GEAR; PRIMARY SMOOTHER-G(C1W) Z=29	1-33253-720-0	01	1	1303-
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1009-1504
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-
484	PLATE; SETTING	1-33313-023-0	01	1	1009-
485	PIECE; GUIDE	1-33363-040-1	01	1	1009-
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	1009-1307
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-
488	CLUTCH; DOG,RANGE (B)	1-34254-006-1	01	1	1009-1211
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1212-1307
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	1009-1307
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-
489	WASHER; THRUST	1-09503-308-0	01	1	1009-
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	1009-
491	PLATE; OUTPUT SHAFT	1-34252-026-0	01	1	1009-
492	BOLT; PLATE	1-09000-740-0	02	1	1009-
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	1009-
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	1009-1307
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	1009-
496	BEARING; PLANETARY NSK	1-09811-424-0	10	1	1009-
496	BEARING; PLANETARY NTN	1-09811-425-0	10	1	1009-
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	1009-1307
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	1009-1307
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-
498	CONE; SYN SMOOTHER-G(C1W)	1-33265-617-0	02	1	1303-1312
498	CONE; SYN SMOOTHER-G(C1W)	8-98239-910-0	02	1	1401-
498	CONE; SYN	1-33265-617-0	02	1	1009-1302
498	CONE; SYN TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33265-617-0	04	1	1303-1312
498	CONE; SYN TRANSMISSION CONTROL CABLE TYPE(C1A)	8-98239-910-0	04	1	1401-
612	GALLERY; OIL	8-98239-463-0	01	1	1308-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
