Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11294 - EXZ RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶

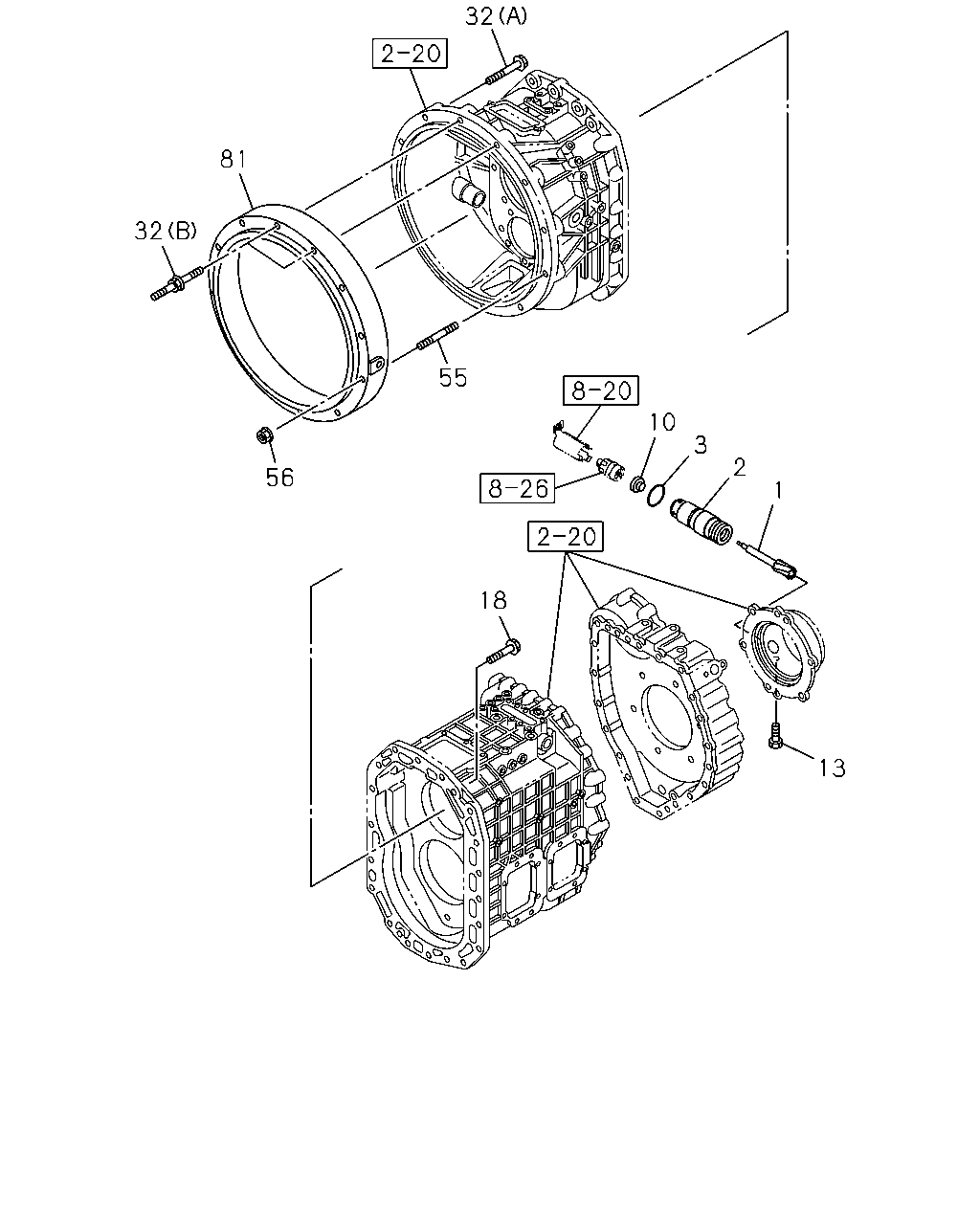

2-25 — SPEEDOMETER DRIVEN GEAR
(#69487) — 13 parça
1
2
3
10
55
56
81
32
32
13
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
Z=17
1-33372-120-4
01
1
1009-
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-084-0
01
1
1009-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-069-0
01
1
1009-
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1009-
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
1009-
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28151-250-0
19
1
1009-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X100 FLANGE
0-28151-200-0
06
1
1009-1207
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X110 FLANGE
0-28156-211-0
06
1
1208-
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X100 L=129.5
1-09049-039-1
02
1
1009-1207
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X18,M12X110 L=139.5
1-09049-033-1
02
1
1208-
55
STUD; FLYWHEEL HSG
M12X105 L=123
1-09302-166-0
04
1
1009-
56
NUT; CLU HSG TO FLYWHEEL HSG
M12 FLANGE
0-91180-212-0
04
1
1009-
81
SPACER
1-31119-017-0
01
1
1009-
