Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#69486) — 308 parça

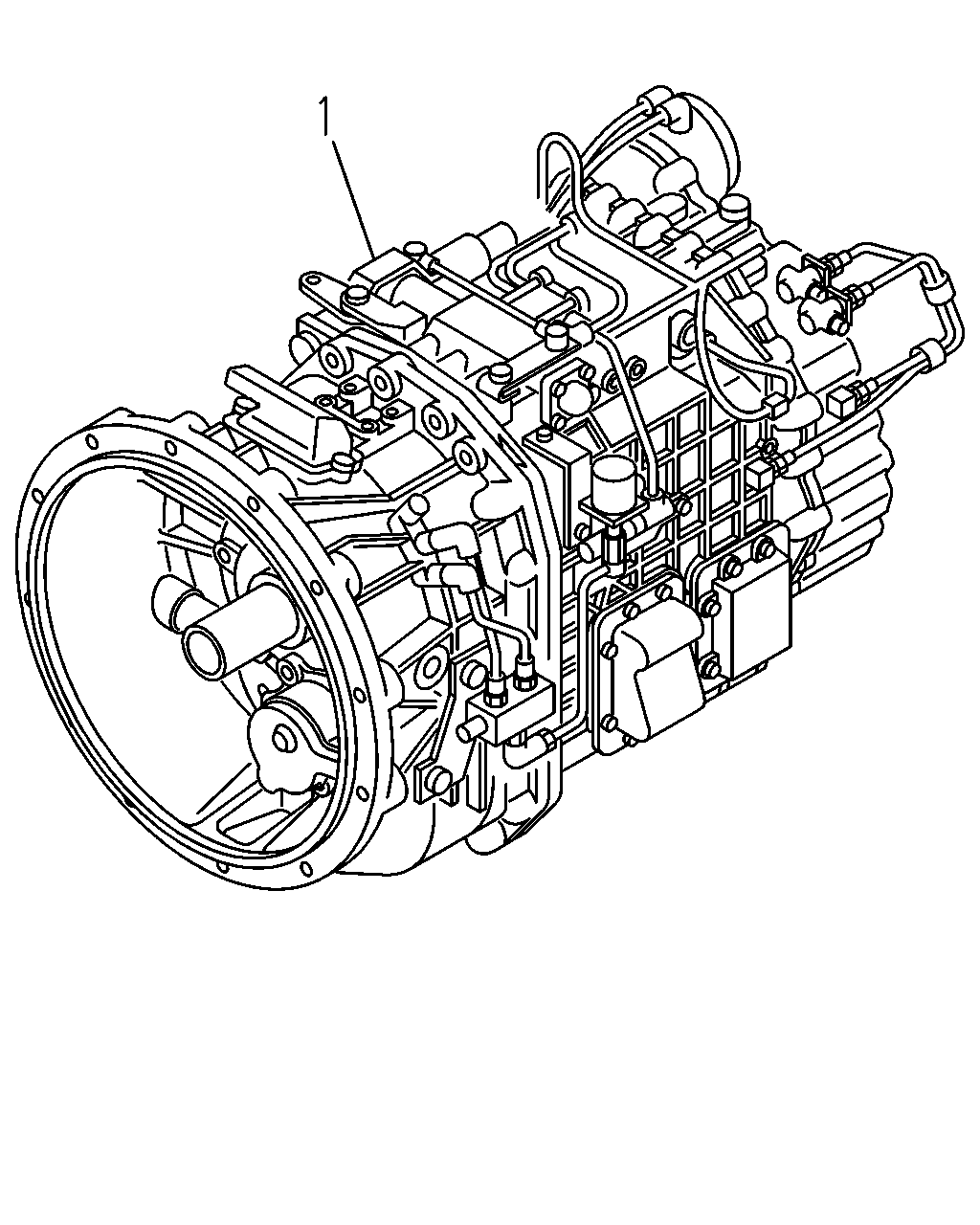

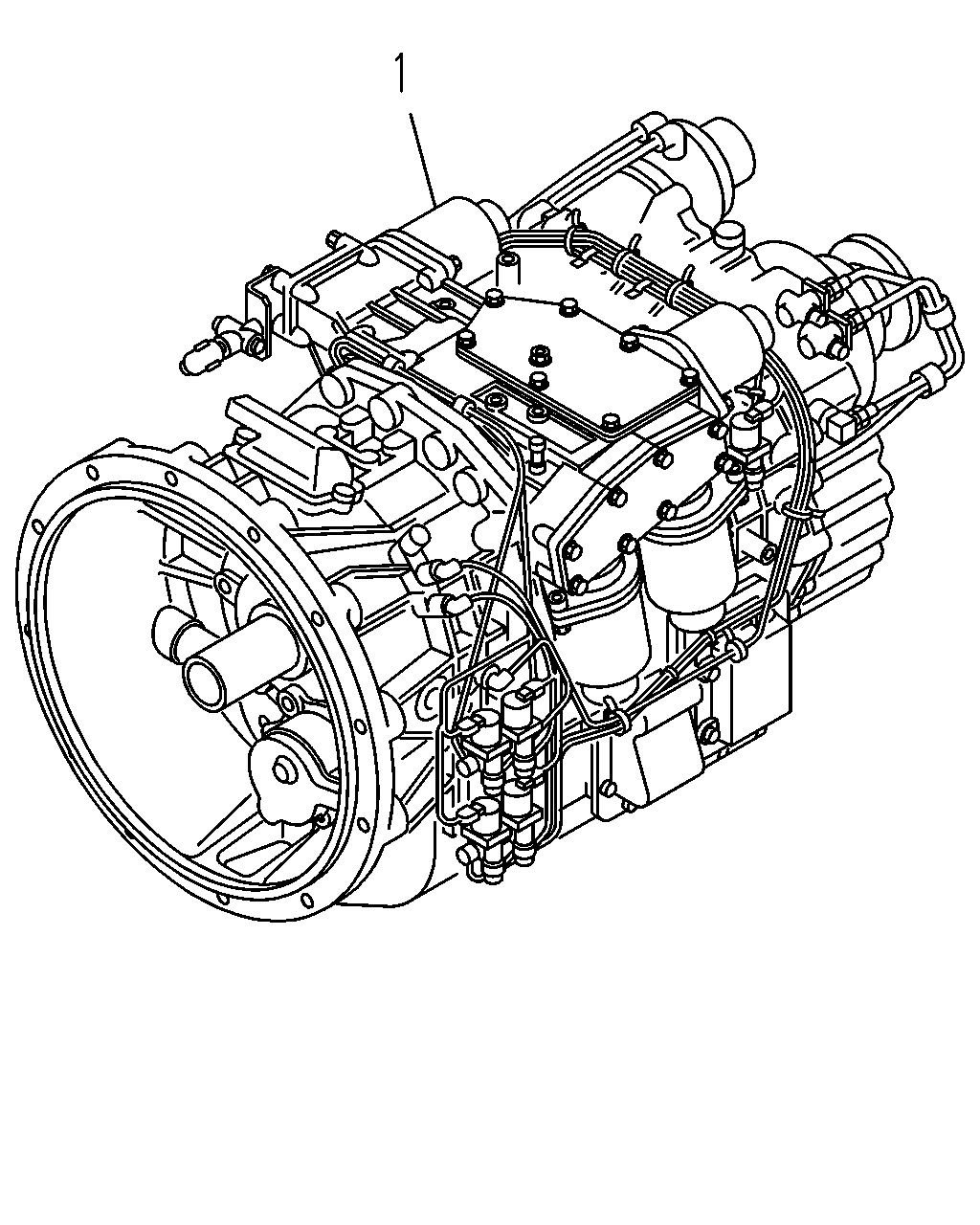

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33044-615-0	01	1	1303-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33044-615-0	01	1	1303-
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1303-
1	TRANSMISSION ASM; MANUAL SMOOTHER-G(C1W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-455-0	01	1	1303-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-066-0	01	1	1009-1302
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W)	1-33044-455-0	01	1	1303-
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-066-0	01	1	1009-1302
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SMOOTHER-G(C1W)	1-33044-455-0	01	1	1303-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33044-615-0	01	1	1303-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P) TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33044-615-0	01	1	1303-
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1303-
1	TRANSMISSION ASM; MANUAL SMOOTHER-G(C1W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-455-0	01	1	1303-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-066-0	01	1	1009-1302
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W)	1-33044-455-0	01	1	1303-
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-066-0	01	1	1009-1302
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SMOOTHER-G(C1W)	1-33044-455-0	01	1	1303-

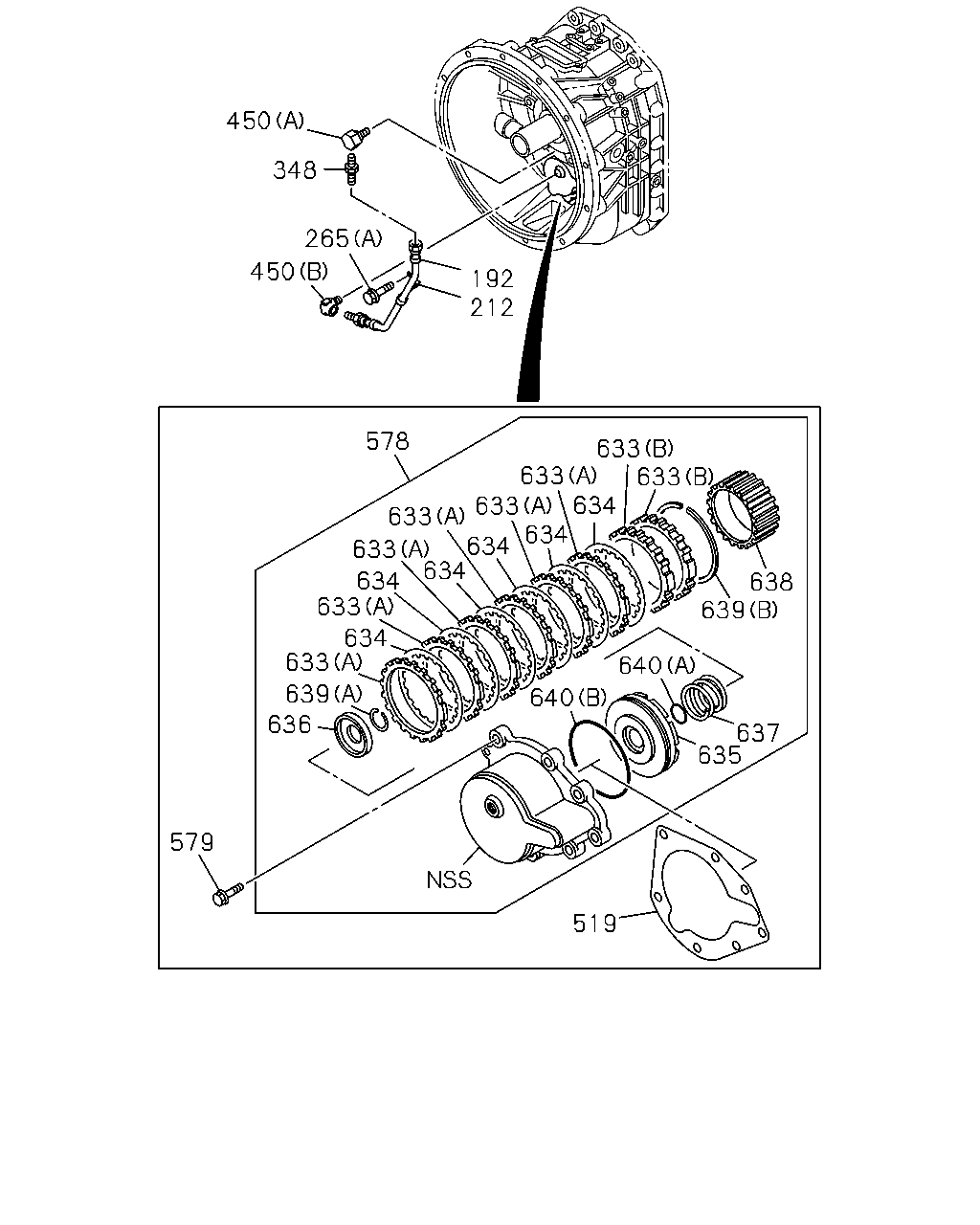

450 265 348 450 192 578 212 633 633 633 634 634 633 634 633 634 633 634 633 634 633 639 636 638 639 640 640 637 635 579 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	HOSE; FLEX,TRANS L=252	1-09365-062-0	01	1	1009-1302
192	HOSE; FLEX,TRANS SMOOTHER-G(C1W) L=252	1-09365-062-0	01	1	1303-
212	CLIP; FLEX HOSE ID=9 H=20 L=25	1-09701-073-0	01	1	1009-1302
212	CLIP; FLEX HOSE SMOOTHER-G(C1W) ID=9 H=20 L=25	1-09701-073-0	01	1	1303-
265	BOLT; CLIP SMOOTHER-G(C1W) (B) M8X20 FLANGE	0-28650-820-0	02	1	1303-
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302
265	BOLT; CLIP SMOOTHER-G(C1W) (A) M8X16 FLANGE	0-28050-816-0	01	1	1303-
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
265	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
265	BOLT; CLIP (B) M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
265	BOLT; CLIP SMOOTHER-G(C1W) (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
348	NIPPLE; GREASE,SHAFT	9-09902-299-0	01	1	1009-1302
348	NIPPLE; GREASE,SHAFT SMOOTHER-G(C1W)	9-09902-299-0	01	1	1303-
450	ADAPTER; OIL (A)	1-09660-012-0	01	1	1009-1302
450	ADAPTER; OIL SMOOTHER-G(C1W) (A)	1-09660-012-0	01	1	1303-
450	ADAPTER; OIL (B) PT1/8 ELBOW	8-94338-418-1	01	1	1009-1302
450	ADAPTER; OIL SMOOTHER-G(C1W) (B) PT1/8 ELBOW	8-94338-418-1	01	1	1303-
519	GASKET; SHAFT	1-34142-034-0	01	1	1009-1302
519	GASKET; SHAFT SMOOTHER-G(C1W)	1-34142-034-0	01	1	1303-
578	BRAKE; COUNTER SHAFT	1-33316-005-1	01	1	1009-1302
578	BRAKE; COUNTER SHAFT SMOOTHER-G(C1W)	1-33316-005-1	01	1	1303-
579	BOLT; COUNTER SHAFT M10X30 FLANGE	0-28151-030-0	07	1	1009-1302
579	BOLT; COUNTER SHAFT SMOOTHER-G(C1W) M10X30 FLANGE	0-28151-030-0	07	1	1303-
633	PLATE; SEPARATE,BRAKE (A)	1-33319-208-0	06	1	1009-1302
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (A)	1-33319-208-0	06	1	1303-
633	PLATE; SEPARATE,BRAKE (B) T=3.6	1-33319-209-0	02	1	1009-1302
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=3.6	1-33319-209-0	02	1	1303-
633	PLATE; SEPARATE,BRAKE (B) T=3.8	1-33319-210-0	02	1	1009-1302
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=3.8	1-33319-210-0	02	1	1303-
633	PLATE; SEPARATE,BRAKE (B) T=4.0	1-33319-211-0	02	1	1009-1302
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=4.0	1-33319-211-0	02	1	1303-
633	PLATE; SEPARATE,BRAKE (B) T=4.2	1-33319-212-0	02	1	1009-1302
633	PLATE; SEPARATE,BRAKE SMOOTHER-G(C1W) (B) T=4.2	1-33319-212-0	02	1	1303-
634	PLATE; FRICTION,BRAKE	1-33319-207-0	06	1	1009-1302
634	PLATE; FRICTION,BRAKE SMOOTHER-G(C1W)	1-33319-207-0	06	1	1303-
635	PISTON; BRAKE T=4.90	1-33319-230-0	01	1	1009-1302
635	PISTON; BRAKE SMOOTHER-G(C1W) T=4.90	1-33319-230-0	01	1	1303-
636	PLATE; PRESSURE,BRAKE	1-33319-213-1	01	1	1009-1302
636	PLATE; PRESSURE,BRAKE SMOOTHER-G(C1W)	1-33319-213-1	01	1	1303-
637	SPRING; BRAKE	1-33319-215-0	01	1	1009-1302
637	SPRING; BRAKE SMOOTHER-G(C1W)	1-33319-215-0	01	1	1303-
638	HUB; BRAKE	1-33319-220-0	01	1	1009-1302
638	HUB; BRAKE SMOOTHER-G(C1W)	1-33319-220-0	01	1	1303-
639	RING; BRAKE (A)	1-33319-216-0	01	1	1009-1302
639	RING; BRAKE SMOOTHER-G(C1W) (A)	1-33319-216-0	01	1	1303-
639	RING; BRAKE (B)	1-33319-217-0	01	1	1009-1302
639	RING; BRAKE SMOOTHER-G(C1W) (B)	1-33319-217-0	01	1	1303-
640	GASKET; BRAKE (A)	1-33319-218-0	01	1	1009-1302
640	GASKET; BRAKE SMOOTHER-G(C1W) (A)	1-33319-218-0	01	1	1303-
640	GASKET; BRAKE (B)	1-33319-219-0	01	1	1009-1302
640	GASKET; BRAKE SMOOTHER-G(C1W) (B)	1-33319-219-0	01	1	1303-

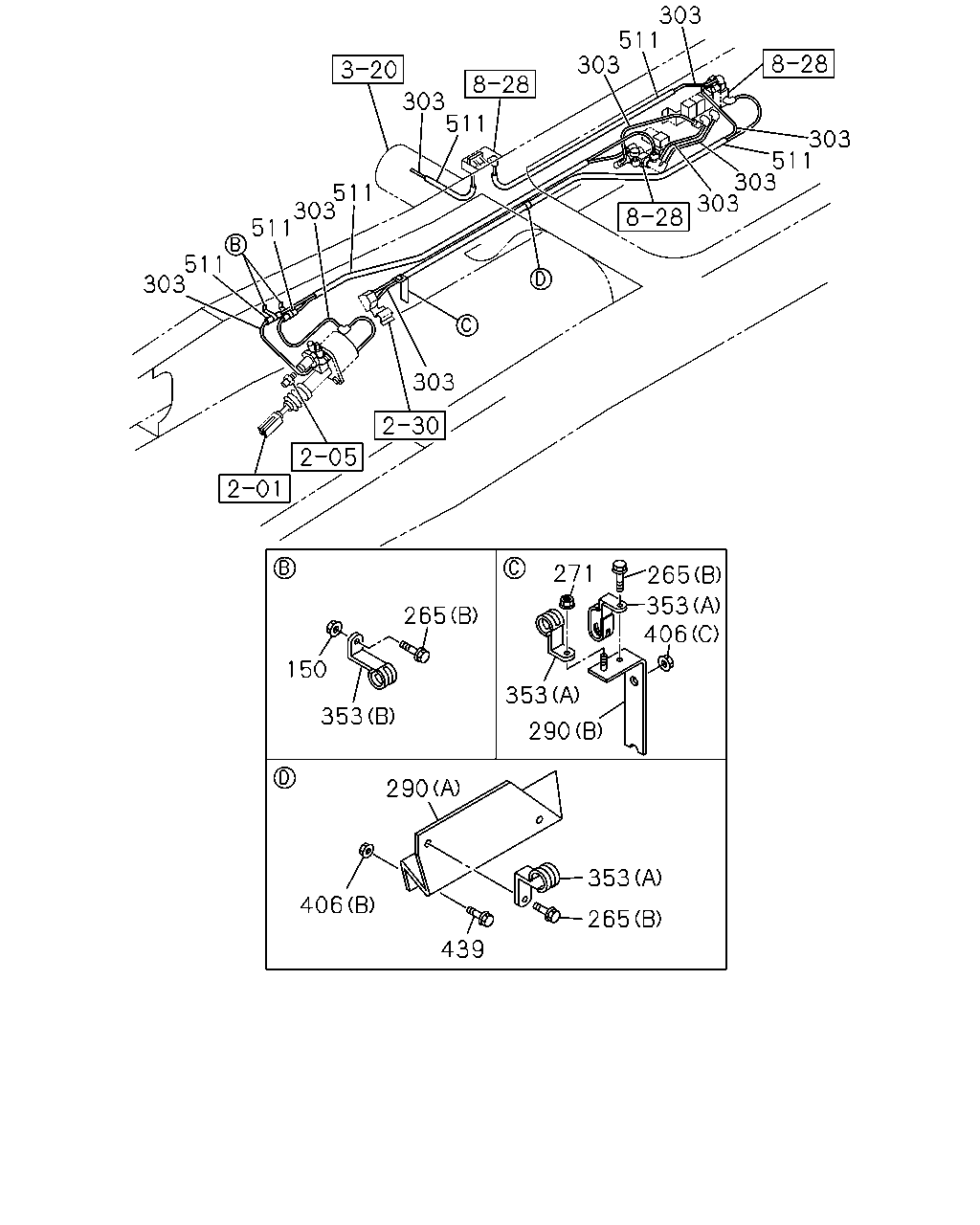

303 511 511 303 511 303 511 303 511 303 303 511 303 303 303 265 353 406 290 353 271 265 150 353 290 406 439 265 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
150	NUT M8 FLANGE	0-91180-108-0	01	1	1009-
265	BOLT; CLIP SMOOTHER-G(C1W) (B) M8X20 FLANGE	0-28650-820-0	02	1	1303-
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302
265	BOLT; CLIP SMOOTHER-G(C1W) (A) M8X16 FLANGE	0-28050-816-0	01	1	1303-
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
265	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
265	BOLT; CLIP (B) M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
265	BOLT; CLIP SMOOTHER-G(C1W) (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
271	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1009-1302
271	NUT; CLIP SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	1303-
290	BRACKET; CLIP (A)	1-47471-357-0	01	1	1009-1302
290	BRACKET; CLIP SMOOTHER-G(C1W) (A)	1-47471-357-0	01	1	1303-
290	BRACKET; CLIP (B)	8-97609-042-0	01	1	1009-1302
290	BRACKET; CLIP SMOOTHER-G(C1W) (B)	8-97609-042-0	01	1	1303-
303	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1303-
303	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1303-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	1009-1302
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	1303-
353	CLIP; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (C) ID=18 H=23 L=28	1-09701-070-0	01	1	1303-
353	CLIP; NYLON TUBE (B) ID=16 L=50 H=25	1-09700-838-0	02	1	1009-1302
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (B) ID=16 L=50 H=25	1-09700-838-0	02	1	1303-
353	CLIP; NYLON TUBE (A) ID=20 H=23 L=27	1-09700-861-0	03	1	1009-1302
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (A) ID=20 H=23 L=27	1-09700-861-0	03	1	1303-
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1009-1302
406	NUT; BRKT SMOOTHER-G(C1W) (B) M8 FLANGE	0-91180-108-0	02	1	1303-
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	1009-
406	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1009-1302
406	NUT; BRKT SMOOTHER-G(C1W) (C) M10 FLANGE	0-91180-210-0	01	1	1303-
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
439	BOLT; BRKT SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	1303-
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	1303-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	1009-1302
511	TUBE; CORRUGATE TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1303-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1009-1302
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1303-

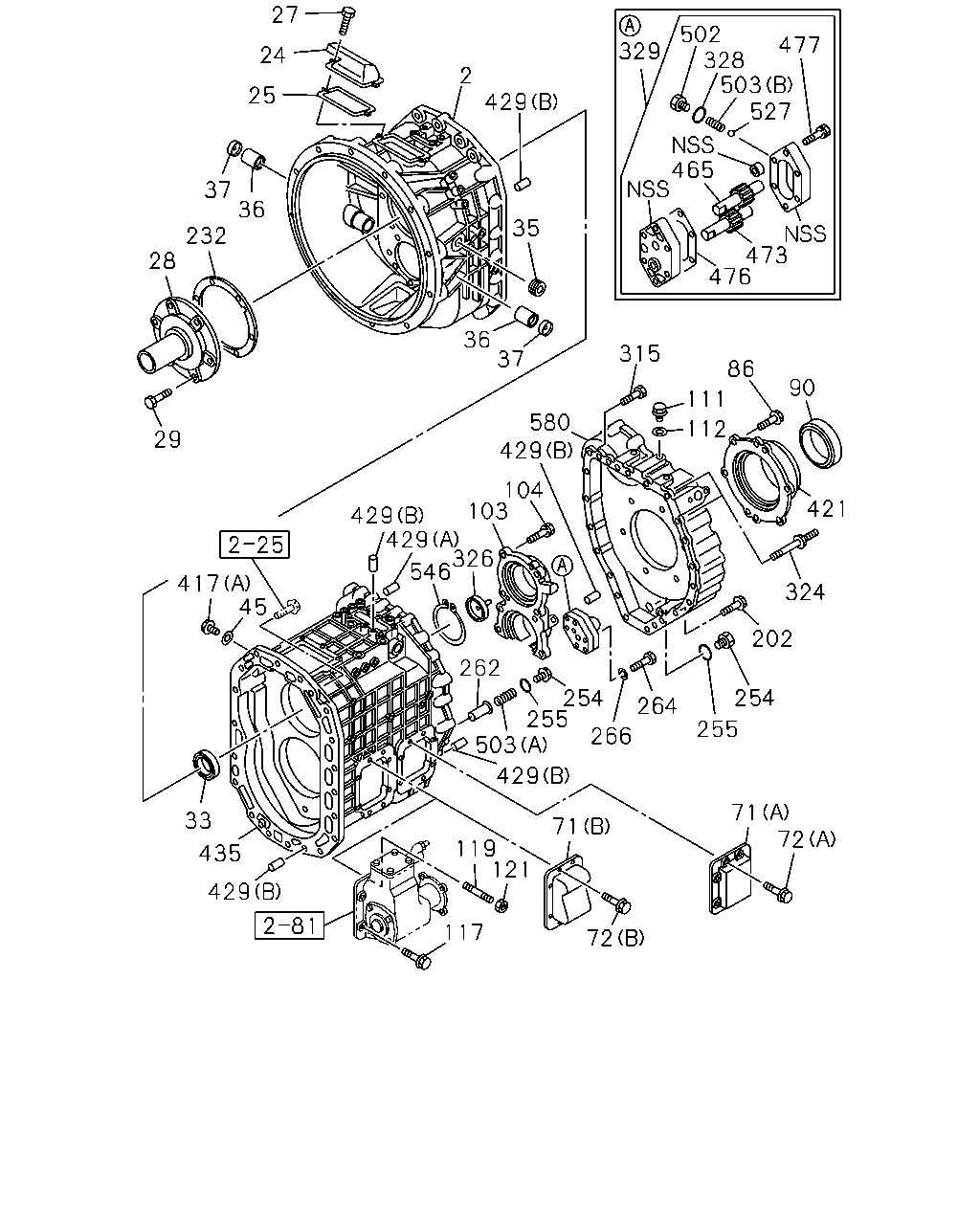

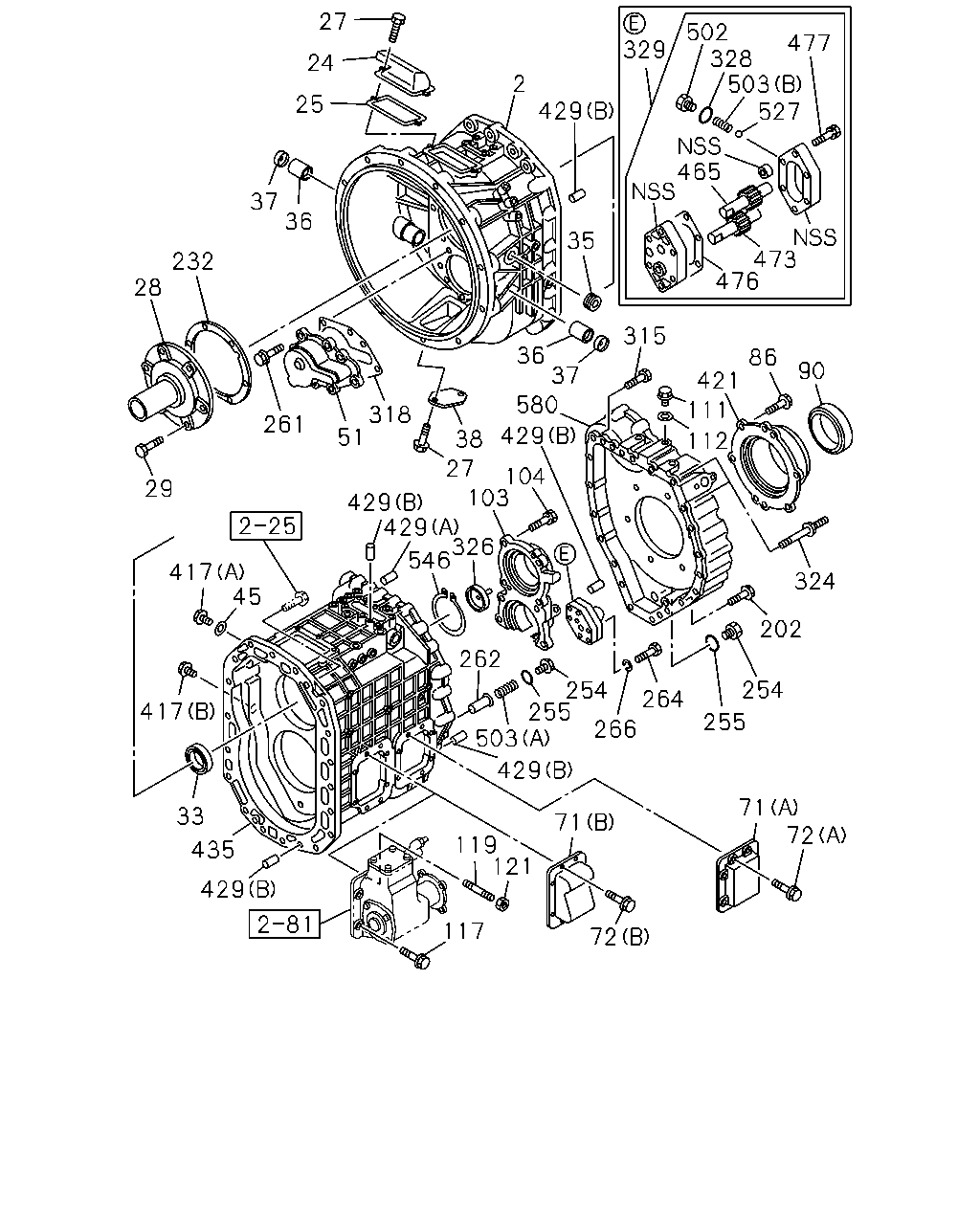

27 24 25 37 36 232 28 29 37 36 35 429 2 417 45 33 435 429 117 121 119 71 429 503 255 266 264 255 254 202 324 421 90 86 111 112 315 580 429 104 103 326 546 429 429 262 254 72 72 71 476 473 465 527 503 477 328 502 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	8-98168-737-0	01	1	1009-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1009-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1009-1406
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1009-
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	1009-
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	1009-1211
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	1009-
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1009-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1009-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1009-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1009-
71	COVER; SIDE,TRANS CASE (A)	1-33141-066-0	01	1	1009-1302
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-33141-066-0	01	1	1303-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33141-057-1	01	1	1009-
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28751-035-0	08	1	1009-1302
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M10X35 FLANGE	0-28751-035-0	08	1	1303-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE	1-09044-086-0	08	1	1009-
86	BOLT; RR COVER M17X35	1-09044-076-0	06	1	1009-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1009-
103	RETAINER; BRG TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33151-061-0	01	1	1303-
103	RETAINER; BRG	1-33151-060-1	01	1	1009-1302
103	RETAINER; BRG SMOOTHER-G(C1W)	1-33151-060-1	01	1	1303-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1009-
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	1009-
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1009-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE	8-98044-944-0	02	1	1303-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	1009-
119	STUD; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40	0-44011-025-0	06	1	1303-
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	1009-
121	NUT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE	0-91180-210-0	06	1	1303-
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	1009-
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	1009-
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1009-
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	1009-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	1009-
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	1009-
264	BOLT; OIL PUMP M8X65	0-10805-865-0	02	1	1009-
264	BOLT; OIL PUMP M8X50	0-10855-850-0	02	1	1009-
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	1009-
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	1009-
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	1009-
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	1009-
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	1009-
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	1009-
328	GASKET; PLUG	1-34159-100-0	01	1	1009-
329	PUMP ASM; OIL	1-34150-117-0	01	1	1009-1408
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1303-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1009-1302
417	PLUG; OIL FILLER,TRANS TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M22X12	1-09604-035-0	01	1	1303-
421	COVER; RR,TRANS	1-33131-238-0	01	1	1009-
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	1009-
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	1009-
435	CASE; TRANS TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33111-361-1	01	1	1303-
435	CASE; TRANS	8-98049-690-1	01	1	1009-1302
435	CASE; TRANS SMOOTHER-G(C1W)	8-98049-690-1	01	1	1303-
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	1009-1408
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	1009-1408
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	1009-
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	1009-1408
502	PLUG; OIL PUMP	1-34159-101-0	01	1	1009-
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	1009-
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	1009-
527	BALL; OIL PUMP	9-00097-531-0	01	1	1009-
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	1009-
580	CASE; RANGE	1-33115-051-2	01	1	1009-

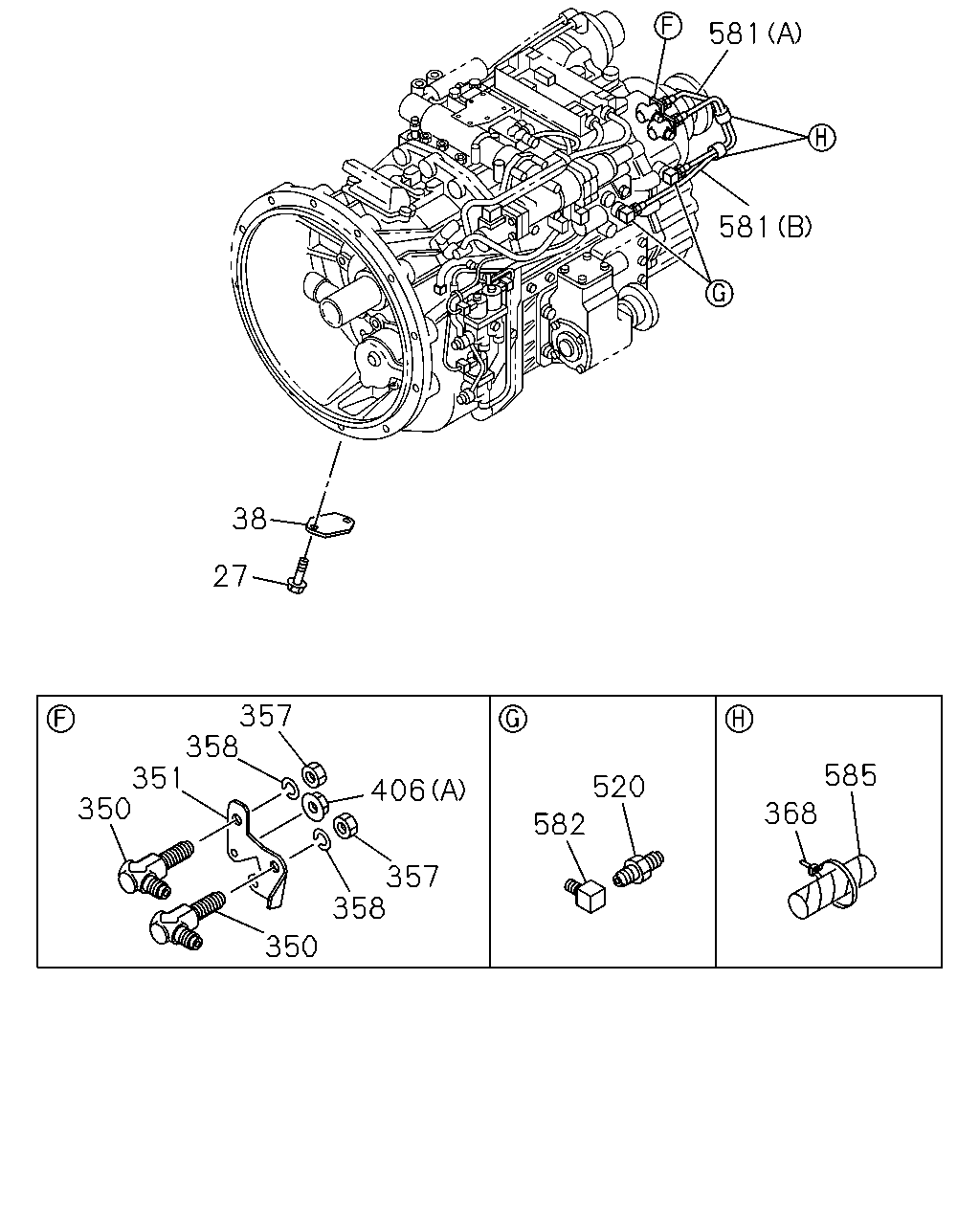

581 581 38 27 357 358 351 350 406 357 358 350 582 520 368 585

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1009-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1009-
350	UNION; FLEX HOSE,BRKT	1-09664-257-0	02	1	1009-1302
351	BRACKET; UNION,FLEX HOSE	1-46147-308-1	01	1	1009-1302
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	1009-1302
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	1009-1302
368	CLIP; BAND,CABLE L=250	1-09707-126-0	02	1	1009-1302
368	CLIP; BAND,CABLE L=250	1-09707-126-0	01	1	1303-
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1009-1302
406	NUT; BRKT SMOOTHER-G(C1W) (B) M8 FLANGE	0-91180-108-0	02	1	1303-
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	1009-
406	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1009-1302
406	NUT; BRKT SMOOTHER-G(C1W) (C) M10 FLANGE	0-91180-210-0	01	1	1303-
520	CONNECTOR R1/4 & M20	0-92306-010-0	02	1	1009-1302
520	CONNECTOR R1/4 & M16	0-92306-008-0	02	1	1303-
581	HOSE; OIL COOLER (A) L=520	1-09365-144-0	01	1	1009-1302
581	HOSE; OIL COOLER (C) L=360	1-09365-234-0	02	1	1303-
581	HOSE; OIL COOLER (B) L=650	1-09365-145-0	01	1	1009-1302
582	NIPPLE; ELBOW R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	1009-1302
582	NIPPLE; ELBOW R3/8 & M22 ELBOW	1-09660-612-1	02	1	1303-
585	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	1009-1302
585	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1303-

581 581 410 410 585 368 581 520 11 648 582 406 582 520 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	01	1	1303-
368	CLIP; BAND,CABLE L=250	1-09707-126-0	02	1	1009-1302
368	CLIP; BAND,CABLE L=250	1-09707-126-0	01	1	1303-
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1009-1302
406	NUT; BRKT SMOOTHER-G(C1W) (B) M8 FLANGE	0-91180-108-0	02	1	1303-
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	1009-
406	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1009-1302
406	NUT; BRKT SMOOTHER-G(C1W) (C) M10 FLANGE	0-91180-210-0	01	1	1303-
410	UNION; OIL PIPE (B) R1/4 & M16	0-92306-008-0	01	1	1303-
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	1303-
520	CONNECTOR R1/4 & M20	0-92306-010-0	02	1	1009-1302
520	CONNECTOR R1/4 & M16	0-92306-008-0	02	1	1303-
581	HOSE; OIL COOLER (A) L=520	1-09365-144-0	01	1	1009-1302
581	HOSE; OIL COOLER (C) L=360	1-09365-234-0	02	1	1303-
581	HOSE; OIL COOLER (B) L=650	1-09365-145-0	01	1	1009-1302
582	NIPPLE; ELBOW R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	1009-1302
582	NIPPLE; ELBOW R3/8 & M22 ELBOW	1-09660-612-1	02	1	1303-
585	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	1009-1302
585	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1303-
648	UNION ASM	8-98131-605-2	01	1	1303-

303 511 265 353 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
150	NUT M8 FLANGE	0-91180-108-0	01	1	1009-
265	BOLT; CLIP SMOOTHER-G(C1W) (B) M8X20 FLANGE	0-28650-820-0	02	1	1303-
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302
265	BOLT; CLIP SMOOTHER-G(C1W) (A) M8X16 FLANGE	0-28050-816-0	01	1	1303-
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
265	BOLT; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-
265	BOLT; CLIP (B) M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
265	BOLT; CLIP SMOOTHER-G(C1W) (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
303	TUBE; NYLON TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1303-
303	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1009-1302
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	1303-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	1009-1302
303	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	1303-
353	CLIP; NYLON TUBE TRANSMISSION CONTROL CABLE TYPE(C1A) (C) ID=18 H=23 L=28	1-09701-070-0	01	1	1303-
353	CLIP; NYLON TUBE (B) ID=16 L=50 H=25	1-09700-838-0	02	1	1009-1302
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (B) ID=16 L=50 H=25	1-09700-838-0	02	1	1303-
353	CLIP; NYLON TUBE (A) ID=20 H=23 L=27	1-09700-861-0	03	1	1009-1302
353	CLIP; NYLON TUBE SMOOTHER-G(C1W) (A) ID=20 H=23 L=27	1-09700-861-0	03	1	1303-
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	1303-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	1009-1302
511	TUBE; CORRUGATE TRANSMISSION CONTROL CABLE TYPE(C1A) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1303-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1009-1302
511	TUBE; CORRUGATE SMOOTHER-G(C1W) SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1303-

477 27 24 2 25 37 36 429 329 502 328 232 28 35 465 527 503 473 476 86 90 112 111 421 315 324 202 254 255 266 264 71 72 72 71 429 503 255 254 262 417 33 435 429 119 121 117 103 417 45 429 27 38 318 51 261 29 429 546 326 104 580 37 36 429

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	8-98168-737-0	01	1	1009-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1009-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1009-1406
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1009-
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	1009-
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	1009-1211
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	1009-
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1009-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1009-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1009-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1009-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1009-
51	COVER; SEAL,COUNTER,FRT TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33319-200-1	01	1	1303-
71	COVER; SIDE,TRANS CASE (A)	1-33141-066-0	01	1	1009-1302
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-33141-066-0	01	1	1303-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33141-057-1	01	1	1009-
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28751-035-0	08	1	1009-1302
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M10X35 FLANGE	0-28751-035-0	08	1	1303-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE	1-09044-086-0	08	1	1009-
86	BOLT; RR COVER M17X35	1-09044-076-0	06	1	1009-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1009-
103	RETAINER; BRG TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33151-061-0	01	1	1303-
103	RETAINER; BRG	1-33151-060-1	01	1	1009-1302
103	RETAINER; BRG SMOOTHER-G(C1W)	1-33151-060-1	01	1	1303-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1009-
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	1009-
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1009-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE	8-98044-944-0	02	1	1303-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	1009-
119	STUD; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40	0-44011-025-0	06	1	1303-
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	1009-
121	NUT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE	0-91180-210-0	06	1	1303-
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	1009-
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	1009-
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1009-
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	1009-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	1009-
261	BOLT; COVER TRANSMISSION CONTROL CABLE TYPE(C1A) M10X30 FLANGE	0-28151-030-0	07	1	1303-
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	1009-
264	BOLT; OIL PUMP M8X65	0-10805-865-0	02	1	1009-
264	BOLT; OIL PUMP M8X50	0-10855-850-0	02	1	1009-
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	1009-
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	1009-
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	1009-
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	1009-
318	GASKET; COVER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-34142-034-0	01	1	1303-
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	1009-
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	1009-
328	GASKET; PLUG	1-34159-100-0	01	1	1009-
329	PUMP ASM; OIL	1-34150-117-0	01	1	1009-1408
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1303-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1009-1302
417	PLUG; OIL FILLER,TRANS TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M22X12	1-09604-035-0	01	1	1303-
421	COVER; RR,TRANS	1-33131-238-0	01	1	1009-
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	1009-
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	1009-
435	CASE; TRANS TRANSMISSION CONTROL CABLE TYPE(C1A)	1-33111-361-1	01	1	1303-
435	CASE; TRANS	8-98049-690-1	01	1	1009-1302
435	CASE; TRANS SMOOTHER-G(C1W)	8-98049-690-1	01	1	1303-
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	1009-1408
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	1009-1408
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	1009-
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	1009-1408
502	PLUG; OIL PUMP	1-34159-101-0	01	1	1009-
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	1009-
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	1009-
527	BALL; OIL PUMP	9-00097-531-0	01	1	1009-
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	1009-
580	CASE; RANGE	1-33115-051-2	01	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
