Sayfa 2-07 - Isuzu EPC

2-07 — CLUTCH BOOSTER; MINIPACK (#69483) — 271 parça

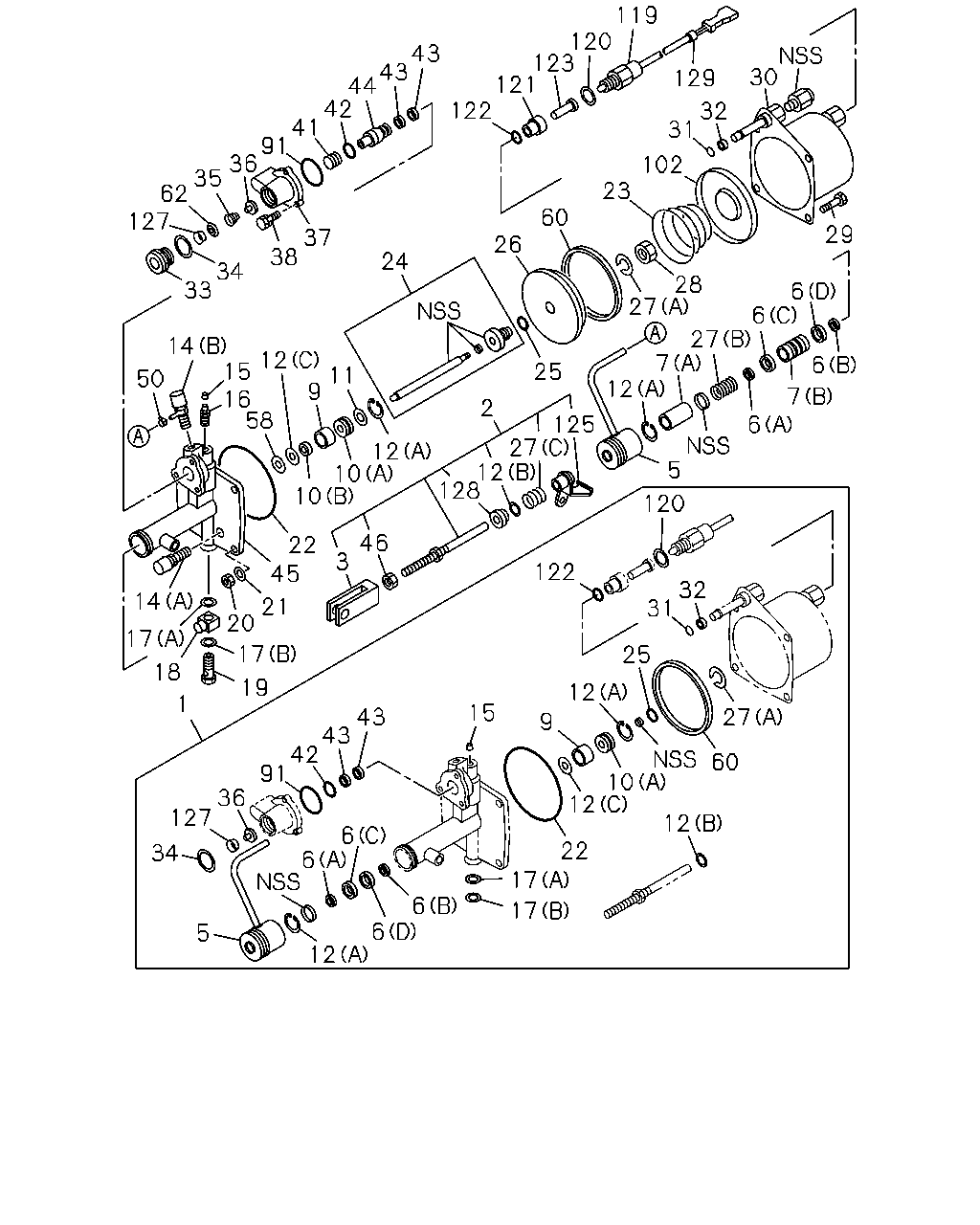

127 62 35 36 91 41 42 44 43 43 33 34 38 37 122 121 123 120 119 129 30 32 31 102 23 60 26 24 14 50 15 12 16 9 11 58 10 10 12 46 3 22 45 21 20 14 7 18 1 19 17 2 128 25 27 28 29 6 6 27 7 12 125 27 12 6 7 6 5 120 122 32 31 25 27 60 12 12 10 12 9 15 22 17 17 6 6 43 43 42 91 36 127 34 5 6 12 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-560-0	01	1	1303-
1	REPAIR KIT; CLU BOOSTER	1-31829-507-0	01	1	1009-1105
1	REPAIR KIT; CLU BOOSTER	1-31829-620-0	01	1	1106-1302
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-620-0	01	1	1303-
2	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31824-227-0	01	1	1303-
2	ROD; PUSH,CLU BOOSTER	1-31824-213-0	01	1	1009-1105
2	ROD; PUSH,CLU BOOSTER	1-31824-256-0	01	1	1106-1302
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-256-0	01	1	1303-
3	CLEVIS; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-287-0	01	1	1303-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	1009-1105
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-619-0	01	1	1106-1302
3	CLEVIS; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-619-0	01	1	1303-
5	GUARD; PISTON,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-555-0	01	1	1303-
5	GUARD; PISTON,CLU BOOSTER	1-31829-486-0	01	1	1009-1105
5	GUARD; PISTON,CLU BOOSTER	1-31829-626-0	01	1	1106-1302
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-626-0	01	1	1303-
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (E)	1-31829-055-0	01	1	1303-
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (F)	1-31829-056-0	01	1	1303-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-441-0	01	1	1009-1302
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-441-0	01	1	1303-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-442-0	01	1	1009-1302
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-442-0	01	1	1303-
6	GASKET; PISTON CUP,CLU BOOSTER (C)	1-31829-443-0	01	1	1009-1302
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-443-0	01	1	1303-
6	GASKET; PISTON CUP,CLU BOOSTER (D)	1-31829-444-0	01	1	1009-1302
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-444-0	01	1	1303-
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-31821-048-0	01	1	1303-
7	PISTON; CLU BOOSTER (B)	1-31821-068-0	01	1	1009-1302
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-068-0	01	1	1303-
7	PISTON; CLU BOOSTER (A)	1-31821-081-0	01	1	1009-1302
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31821-081-0	01	1	1303-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	1009-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	1009-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	1009-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	1009-
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-94415-036-0	01	1	1303-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-142-0	02	1	1303-
12	RING; RET,CLU BOOSTER (C)	1-31829-446-0	01	1	1009-1302
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-446-0	01	1	1303-
12	RING; RET,CLU BOOSTER (B)	1-31829-511-0	01	1	1009-1105
12	RING; RET,CLU BOOSTER (B)	1-31829-621-0	01	1	1106-1302
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-621-0	01	1	1303-
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	02	1	1009-1302
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-142-0	01	1	1303-
14	COVER; EXH,CLU BOOSTER (A)	1-31829-365-0	01	1	1009-1302
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-365-0	01	1	1303-
14	COVER; EXH,CLU BOOSTER (B)	1-31829-366-0	01	1	1009-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	1009-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	1009-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	1009-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	1009-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	1009-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	1009-
20	NUT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) M10	9-09111-410-0	04	1	1303-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	1009-1105
20	NUT; END PLATE TO SHELL,CLU BOOSTER	1-31829-624-0	04	1	1106-1302
20	NUT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-624-0	04	1	1303-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	1009-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	1009-
23	SPRING; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-554-0	01	1	1303-
23	SPRING; SHELL,CLU BOOSTER	1-31829-506-0	01	1	1009-1302
23	SPRING; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-506-0	01	1	1303-
24	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31824-224-0	01	1	1303-
24	ROD; PUSH,CLU BOOSTER	1-31824-211-0	01	1	1009-1302
24	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-211-0	01	1	1303-
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	1009-
26	PISTON; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31821-050-0	01	1	1303-
26	PISTON; SHELL,CLU BOOSTER	1-31821-080-0	01	1	1009-1302
26	PISTON; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-080-0	01	1	1303-
27	SPRING; CLU BOOSTER (A)	1-31829-291-0	01	1	1009-
27	SPRING; CLU BOOSTER (B)	1-31829-505-0	01	1	1009-1302
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-505-0	01	1	1303-
27	SPRING; CLU BOOSTER (C)	1-31829-510-0	01	1	1009-1302
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-510-0	01	1	1303-
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	1009-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	9-83315-099-0	04	1	1303-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-02041-045-0	04	1	1009-1105
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-078-0	04	1	1106-1302
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	9-83315-078-0	04	1	1303-
30	SHELL; CYL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31811-128-0	01	1	1303-
30	SHELL; CYL,CLU BOOSTER	1-31811-120-0	01	1	1009-1302
30	SHELL; CYL,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-120-0	01	1	1303-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	1009-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	1009-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	1009-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	1009-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	1009-
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	1009-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	1009-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	1009-
41	SPRING; DIAPH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-458-0	01	1	1303-
41	SPRING; DIAPH,CLU BOOSTER	1-31829-288-0	01	1	1009-1302
41	SPRING; DIAPH,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-288-0	01	1	1303-
42	GASKET; FITTING,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-148-0	01	1	1303-
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	1009-1302
42	GASKET; FITTING,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-143-0	01	1	1303-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	1009-
44	PISTON; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31821-058-0	01	1	1303-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-049-0	01	1	1009-1105
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	1106-1302
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-087-0	01	1	1303-
45	PLATE; END,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31811-133-0	01	1	1303-
45	PLATE; END,CLU BOOSTER	1-31811-119-0	01	1	1009-1302
45	PLATE; END,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-119-0	01	1	1303-
46	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) M10	9-09111-410-0	02	1	1303-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	1009-1105
46	NUT; PUSH ROD,CLU BOOSTER	1-31829-625-0	01	1	1106-1302
46	NUT; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-625-0	01	1	1303-
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-063-0	01	1	1009-1302
50	CLAMP; PISTON GUARD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-063-0	01	1	1303-
58	WASHER; PISTON,CLU BOOSTER	1-31829-294-0	01	1	1009-1302
58	WASHER; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-294-0	01	1	1303-
60	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-292-0	01	1	1303-
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	1009-1302
60	GASKET; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-454-0	01	1	1303-
62	RETAINER; POPPET	1-31829-489-0	01	1	1009-1302
62	RETAINER; POPPET SMOOTHER-G(C1W)	1-31829-489-0	01	1	1303-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	1009-
102	PLATE; BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-559-0	01	1	1303-
102	PLATE; BOOSTER	1-31829-508-0	01	1	1009-1302
102	PLATE; BOOSTER SMOOTHER-G(C1W)	1-31829-508-0	01	1	1303-
119	SWITCH; CLU BOOSTER	1-31824-178-0	01	1	1009-1302
119	SWITCH; CLU BOOSTER SMOOTHER-G(C1W)	1-31824-178-0	01	1	1303-
120	GASKET; SWITCH	1-31829-361-0	01	1	1009-1302
120	GASKET; SWITCH SMOOTHER-G(C1W)	1-31829-361-0	01	1	1303-
121	GUIDE; ROD	1-31824-165-0	01	1	1009-1302
121	GUIDE; ROD SMOOTHER-G(C1W)	1-31824-165-0	01	1	1303-
122	GASKET; ROD	1-31829-360-0	01	1	1009-1302
122	GASKET; ROD SMOOTHER-G(C1W)	1-31829-360-0	01	1	1303-
123	ROD; SWITCH L=23.2	1-31824-167-0	01	1	1009-1105
123	ROD; SWITCH L=23.2	1-31824-167-0	AR	1	1106-1302
123	ROD; SWITCH SMOOTHER-G(C1W) L=23.2	1-31824-167-0	AR	1	1303-
123	ROD; SWITCH L=24.0	1-31824-168-0	01	1	1009-1105
123	ROD; SWITCH L=24.0	1-31824-168-0	AR	1	1106-1302
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.0	1-31824-168-0	AR	1	1303-
123	ROD; SWITCH L=22.5	1-31824-176-0	01	1	1009-1105
123	ROD; SWITCH L=22.5	1-31824-176-0	AR	1	1106-1302
123	ROD; SWITCH SMOOTHER-G(C1W) L=22.5	1-31824-176-0	AR	1	1303-
123	ROD; SWITCH L=24.5	1-31824-189-0	01	1	1009-1105
123	ROD; SWITCH L=24.5	1-31824-189-0	AR	1	1106-1302
123	ROD; SWITCH SMOOTHER-G(C1W) L=24.5	1-31824-189-0	AR	1	1303-
123	ROD; SWITCH L=25.0	1-31824-212-0	01	1	1009-1105
123	ROD; SWITCH L=25.0	1-31824-212-0	AR	1	1106-1302
123	ROD; SWITCH SMOOTHER-G(C1W) L=25.0	1-31824-212-0	AR	1	1303-
125	BRACKET; CLU BOOSTER	1-31829-512-0	01	1	1009-1105
125	BRACKET; CLU BOOSTER	1-31829-622-0	01	1	1106-1302
125	BRACKET; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-622-0	01	1	1303-
127	FILTER; POPPET	1-31829-488-0	01	1	1009-1302
127	FILTER; POPPET SMOOTHER-G(C1W)	1-31829-488-0	01	1	1303-
128	COLLAR; ROD,CLU BOOSTER	1-31829-509-0	01	1	1009-1105
129	CONNECTOR ASM; CLU BOOSTER	1-09656-753-0	01	1	1009-1302
129	CONNECTOR ASM; CLU BOOSTER SMOOTHER-G(C1W)	1-09656-753-0	01	1	1303-

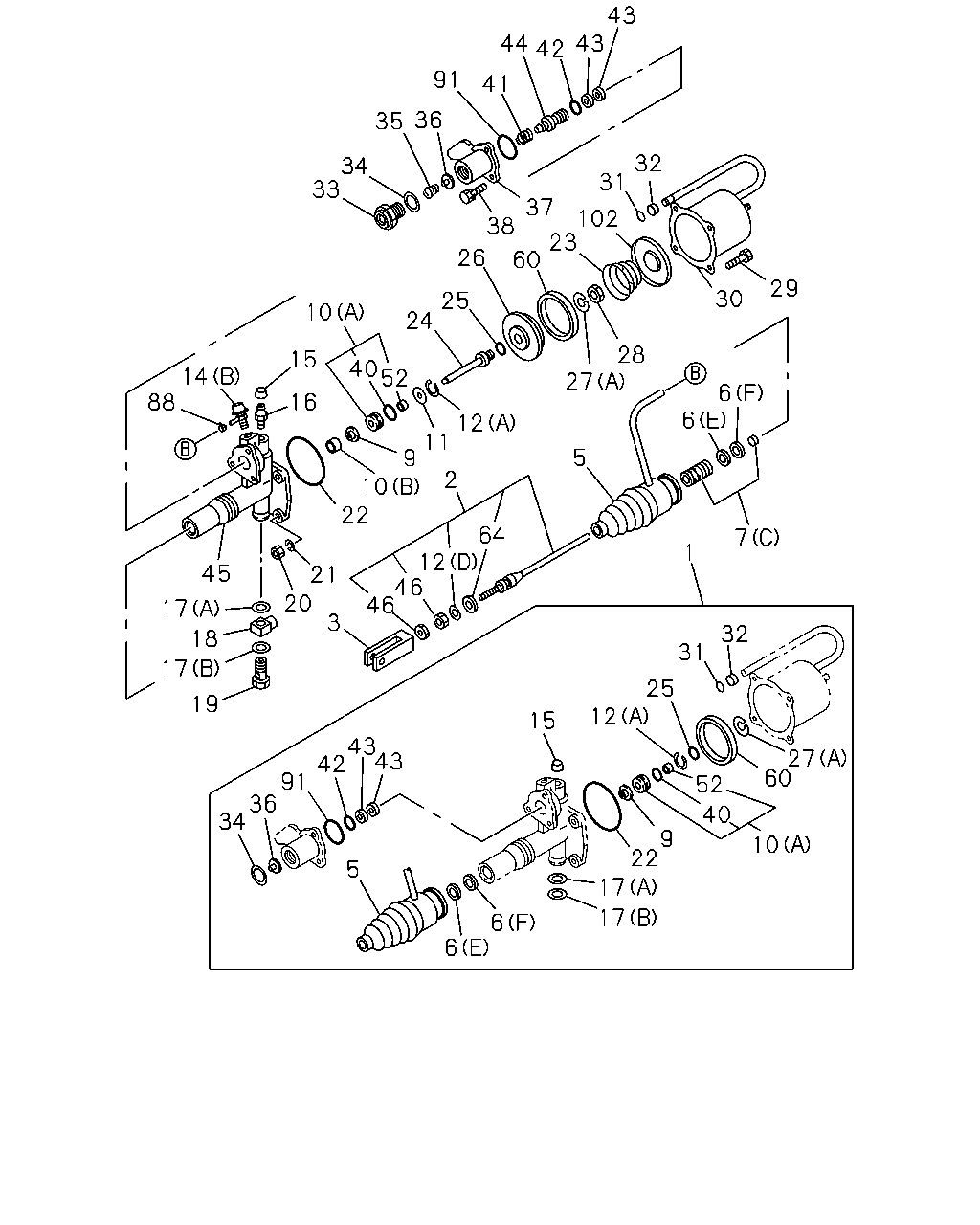

43 43 42 44 41 91 36 34 35 33 10 15 14 88 16 45 17 17 19 20 3 21 22 10 9 11 12 12 46 46 64 5 6 6 29 30 28 27 2 24 25 26 38 37 60 23 102 31 32 52 40 31 25 32 12 27 60 10 40 52 9 22 17 17 6 15 6 5 43 43 42 91 36 34 18 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-560-0	01	1	1303-
1	REPAIR KIT; CLU BOOSTER	1-31829-507-0	01	1	1009-1105
1	REPAIR KIT; CLU BOOSTER	1-31829-620-0	01	1	1106-1302
1	REPAIR KIT; CLU BOOSTER SMOOTHER-G(C1W)	1-31829-620-0	01	1	1303-
2	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31824-227-0	01	1	1303-
2	ROD; PUSH,CLU BOOSTER	1-31824-213-0	01	1	1009-1105
2	ROD; PUSH,CLU BOOSTER	1-31824-256-0	01	1	1106-1302
2	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-256-0	01	1	1303-
3	CLEVIS; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-287-0	01	1	1303-
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	1009-1105
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-619-0	01	1	1106-1302
3	CLEVIS; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-619-0	01	1	1303-
5	GUARD; PISTON,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-555-0	01	1	1303-
5	GUARD; PISTON,CLU BOOSTER	1-31829-486-0	01	1	1009-1105
5	GUARD; PISTON,CLU BOOSTER	1-31829-626-0	01	1	1106-1302
5	GUARD; PISTON,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-626-0	01	1	1303-
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (E)	1-31829-055-0	01	1	1303-
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (F)	1-31829-056-0	01	1	1303-
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-441-0	01	1	1009-1302
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-441-0	01	1	1303-
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-442-0	01	1	1009-1302
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-442-0	01	1	1303-
6	GASKET; PISTON CUP,CLU BOOSTER (C)	1-31829-443-0	01	1	1009-1302
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-443-0	01	1	1303-
6	GASKET; PISTON CUP,CLU BOOSTER (D)	1-31829-444-0	01	1	1009-1302
6	GASKET; PISTON CUP,CLU BOOSTER SMOOTHER-G(C1W) (D)	1-31829-444-0	01	1	1303-
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (C)	1-31821-048-0	01	1	1303-
7	PISTON; CLU BOOSTER (B)	1-31821-068-0	01	1	1009-1302
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31821-068-0	01	1	1303-
7	PISTON; CLU BOOSTER (A)	1-31821-081-0	01	1	1009-1302
7	PISTON; CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31821-081-0	01	1	1303-
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	1009-
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	1009-
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	1009-
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	1009-
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (D)	8-94415-036-0	01	1	1303-
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-142-0	02	1	1303-
12	RING; RET,CLU BOOSTER (C)	1-31829-446-0	01	1	1009-1302
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-446-0	01	1	1303-
12	RING; RET,CLU BOOSTER (B)	1-31829-511-0	01	1	1009-1105
12	RING; RET,CLU BOOSTER (B)	1-31829-621-0	01	1	1106-1302
12	RING; RET,CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-621-0	01	1	1303-
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	02	1	1009-1302
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) (A)	1-31829-142-0	01	1	1303-
14	COVER; EXH,CLU BOOSTER (A)	1-31829-365-0	01	1	1009-1302
14	COVER; EXH,CLU BOOSTER SMOOTHER-G(C1W) (A)	1-31829-365-0	01	1	1303-
14	COVER; EXH,CLU BOOSTER (B)	1-31829-366-0	01	1	1009-
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	1009-
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	1009-
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	1009-
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	1009-
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	1009-
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	1009-
20	NUT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) M10	9-09111-410-0	04	1	1303-
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	1009-1105
20	NUT; END PLATE TO SHELL,CLU BOOSTER	1-31829-624-0	04	1	1106-1302
20	NUT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-624-0	04	1	1303-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	1009-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	1009-
23	SPRING; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-554-0	01	1	1303-
23	SPRING; SHELL,CLU BOOSTER	1-31829-506-0	01	1	1009-1302
23	SPRING; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-506-0	01	1	1303-
24	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31824-224-0	01	1	1303-
24	ROD; PUSH,CLU BOOSTER	1-31824-211-0	01	1	1009-1302
24	ROD; PUSH,CLU BOOSTER SMOOTHER-G(C1W)	1-31824-211-0	01	1	1303-
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	1009-
26	PISTON; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31821-050-0	01	1	1303-
26	PISTON; SHELL,CLU BOOSTER	1-31821-080-0	01	1	1009-1302
26	PISTON; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-080-0	01	1	1303-
27	SPRING; CLU BOOSTER (A)	1-31829-291-0	01	1	1009-
27	SPRING; CLU BOOSTER (B)	1-31829-505-0	01	1	1009-1302
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (B)	1-31829-505-0	01	1	1303-
27	SPRING; CLU BOOSTER (C)	1-31829-510-0	01	1	1009-1302
27	SPRING; CLU BOOSTER SMOOTHER-G(C1W) (C)	1-31829-510-0	01	1	1303-
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	1009-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	9-83315-099-0	04	1	1303-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-02041-045-0	04	1	1009-1105
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-078-0	04	1	1106-1302
29	BOLT; END PLATE TO SHELL,CLU BOOSTER SMOOTHER-G(C1W)	9-83315-078-0	04	1	1303-
30	SHELL; CYL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31811-128-0	01	1	1303-
30	SHELL; CYL,CLU BOOSTER	1-31811-120-0	01	1	1009-1302
30	SHELL; CYL,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-120-0	01	1	1303-
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	1009-
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	1009-
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	1009-
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	1009-
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	1009-
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	1009-
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	1009-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	1009-
40	GASKET; PISTON,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-037-0	01	1	1303-
41	SPRING; DIAPH,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-458-0	01	1	1303-
41	SPRING; DIAPH,CLU BOOSTER	1-31829-288-0	01	1	1009-1302
41	SPRING; DIAPH,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-288-0	01	1	1303-
42	GASKET; FITTING,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-148-0	01	1	1303-
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	1009-1302
42	GASKET; FITTING,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-143-0	01	1	1303-
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	1009-
44	PISTON; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31821-058-0	01	1	1303-
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-049-0	01	1	1009-1105
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	1106-1302
44	PISTON; UPR VLV,CLU BOOSTER SMOOTHER-G(C1W)	1-31821-087-0	01	1	1303-
45	PLATE; END,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31811-133-0	01	1	1303-
45	PLATE; END,CLU BOOSTER	1-31811-119-0	01	1	1009-1302
45	PLATE; END,CLU BOOSTER SMOOTHER-G(C1W)	1-31811-119-0	01	1	1303-
46	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A) M10	9-09111-410-0	02	1	1303-
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	1009-1105
46	NUT; PUSH ROD,CLU BOOSTER	1-31829-625-0	01	1	1106-1302
46	NUT; PUSH ROD,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-625-0	01	1	1303-
52	SEAL; OIL,END PLATE,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-47819-027-0	01	1	1303-
60	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-292-0	01	1	1303-
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	1009-1302
60	GASKET; SHELL,CLU BOOSTER SMOOTHER-G(C1W)	1-31829-454-0	01	1	1303-
64	WASHER; PUSH ROD TRANSMISSION CONTROL CABLE TYPE(C1A) ID=10.5 OD=22	9-09164-610-0	01	1	1303-
88	CLAMP; HOSE,CLU BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-063-0	01	1	1303-
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	1009-
102	PLATE; BOOSTER TRANSMISSION CONTROL CABLE TYPE(C1A)	1-31829-559-0	01	1	1303-
102	PLATE; BOOSTER	1-31829-508-0	01	1	1009-1302
102	PLATE; BOOSTER SMOOTHER-G(C1W)	1-31829-508-0	01	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
